Tripp Lite B127A-1A1-BHBH User manual

1
HDMI over Cat6 Extender Kits
and Repeater, 4K/60 Hz
Extender Kit Models: B127A-1A1-BHBH,
B127A-1A1-BHPH, B127A-111-BHTH, B127A-110-BH
Repeater Model: B127A-010-H
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR®surge protector in our monthly drawing!
tripplite.com/warranty
Este manual está disponible en español en la página de Tripp Lite:
tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite :
tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website
verfügbar: tripplite.com
20-12-086-933CC9-EN.indd 120-12-086-933CC9-EN.indd 1 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

2
B127A-1A1-BHBH B127A-1A1-BHPH B127A-111-BHTH B127A-110-BH B127A-010-H
Local and Remote Units (LR),
Remote Unit (R), Repeater Unit (RT) LR LR LR R RT
External Power Supplies (0 or 1) 1 1 1 1 0
Mounting Hardware Y Y Y Y N
Package Contents
Product Features
All
• Support video resolutions up to 4K x 2K (3840 x 2160) @
60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma
Subsampling
• Support up to 7.1-channel surround sound audio
• HDCP 2.2- and HDR-compatible
• USB 1.1 standard
• Plug and play—no software or drivers required
Note: USB 1.1 standard and bi-directional IR applies only to the extender
kits, not the repeater.
20-12-086-933CC9-EN.indd 220-12-086-933CC9-EN.indd 2 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

3
Product Features
B127A-1A1-BHBH
• HDMI over Cat6 Power over Cable (PoC) Extender Kit
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified
in HDMI 2.0, up to 230 ft. (70 m) from the source
• Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment
• Supports up to 7.1-channel surround sound audio
• Receiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Support bi-directional IR and USB 1.1 function by dip switch
selection
• Includes mounting hardware that enables both the local
transmitter and remote receiver units to be wall-mounted,
rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged in at either transmitter or receiver side and
provide power to both units
20-12-086-933CC9-EN.indd 320-12-086-933CC9-EN.indd 3 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

4
Product Features
B127A-1A1-BHPH
• HDMI over Cat6 Power over Cable (PoC) Extender Kit with
Pigtail Receiver
• Extends a 4K x 2K (3840 x 2160) @ 60 Hz signal, as specified
in HDMI 2.0, up to 230 ft. (70 m) from the source
• Built-in local HDMI port supports 4K @ 60 Hz signal
• Remote receiver unit features built-in equalization (EQ) control
and auto EDID image adjustment with 1 ft. HDMI male cable
• Supports up to 7.1-channel surround sound audio
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that enables the local transmitter
to be wall-mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged into transmitter and provide power to both units
20-12-086-933CC9-EN.indd 420-12-086-933CC9-EN.indd 4 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

5
Product Features
B127A-111-BHTH
• HDMI over Cat6 Power over Cable (PoC) daisy-chainable
Extender Kit
• Remote transceiver unit features built-in equalization (EQ)
control, auto EDID image adjustment and RJ45 expanding port
to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio extraction
function
• Extends and expands a 4K x 2K (3840 x 2160) @ 60 Hz
signal, as specified in HDMI 2.0, in an over Cat6 installation,
allowing multiple monitors to be located at different points in a
chain by adding up to four B127A-110-BH units
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to an
additional 230 ft. or a 1080p @ 60 Hz signal up to an
additional 230 ft. from each remote/repeater unit to the next
unit in the chain (in a full four-level daisy chain installation), a
4K (3840 x 216) @ 60 Hz signal up to 920 ft. or a 1080p @
60 Hz signal up to 920 ft. from the source to the last remote
unit in the chain
• Increase the maximum transmission distance to 1,090 ft. by
adding a B127A-010-H signal booster to the first link of a
daisy-chain installation.
Note: The signal booster will only work when used in the first link of
the daisy-chain installation.
20-12-086-933CC9-EN.indd 520-12-086-933CC9-EN.indd 5 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

6
Product Features
• Supports up to 7.1-channel surround sound audio
• Transceiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Plug and play—no software or drivers required
• Includes mounting hardware that allows unit to be wall-
mounted, rack-mounted or pole-mounted
• Power over Cable (PoC) function allows external power supply
to be plugged into either transmitter or receiver side and
provide power to connected units
B127A-110-BH
• HDMI over Cat6 Power over Cable (PoC) transceiver unit
• Works with the B127A-111-BHTH to extend a 4K x 2K
(3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0,
up to 230 ft. (70 m)
• This transceiver unit features built-in equalization (EQ) control
and auto EDID image adjustment and one RJ-45 expanding
port to be able to connect to next B127A-110-BH
• Transceiver features built-in Toslink port for audio extraction
function
• Compatible with HDCP 2.2, High Dynamic Range (HDR) and
36-bit color depth
• Add a B127A-010-H signal booster for increased maximum
transmission distance. See B127A-111-BHTH for details.
20-12-086-933CC9-EN.indd 620-12-086-933CC9-EN.indd 6 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

7
Product Features
B127A-010-H
• Repeater unit extends the transmission of a 4K x 2K
(3840 x 2160) @ 60 Hz signal, as specified in HDMI 2.0,
up to a total of 400 ft. (120 m)
• Power over Cable (PoC) technology means no external
power is required to power the unit
• HCDP 2.2- and HDR-compliant
• Supports up to 7.1-channel surround sound audio
• Compatible with all B127A-Series products, including HDMI,
DisplayPort and USB-C models
• Increase the maximum transmission distance to 1,090 ft. by
adding a B127A-010-H signal booster to the first link of a
B127A-111-BHTH and B127A-110-BH daisy-chain installation.
Note: The signal booster will only work when used in the first link of
the daisy-chain installation.
Optional Accessories:
• N202-Series Cat6 24 AWG Solid Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed
HDMI 2.0 Cables
20-12-086-933CC9-EN.indd 720-12-086-933CC9-EN.indd 7 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

8
Disclaimer
Before installation, please check the following settings of your
source(s) and TV/monitor(s):
1. Set display to 60 Hz. Double-check factory settings, as
default can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0.
Some displays may have default setting at HDMI 1.4.
3. Verify your monitor has the HDR feature enabled. Some
displays may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on
your TV/monitor. Confirm with your TV/monitor manufacturer
which HDMI ports support UHD Deep Color.
5. Check USB/IR DIP switch, as the default setting is set to IR.
Note: To connect a local monitor to your installation, the UHD Deep
Color setting may need to be disabled on your local TV/monitor
(depending make/mode) to achieve 4K @ 60 Hz resolution.
20-12-086-933CC9-EN.indd 820-12-086-933CC9-EN.indd 8 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

9
Mounting Instructions (select models only)
The B127A-1A1-BHBH, B127A-1A1-BHPH, B127A-111-BHTH
and B127A-110-BH include mounting hardware that allows for a
variety of mounting methods.
The following images illustrate how the included mounting
brackets can be attached for different installations.
Notes:
• The model shown in the below images is for illustrative purposes only.
Your product may vary by model number, size or port orientation. The
mounting options for all over IP units are the same.
• Only the transmitter unit in the B127A-1A1-BHPH can be mounted.
The receiver is a pigtail-type unit that cannot be mounted.
Wall-Mount
19” Rack-Mount Pole-Mount
20-12-086-933CC9-EN.indd 920-12-086-933CC9-EN.indd 9 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

10
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.

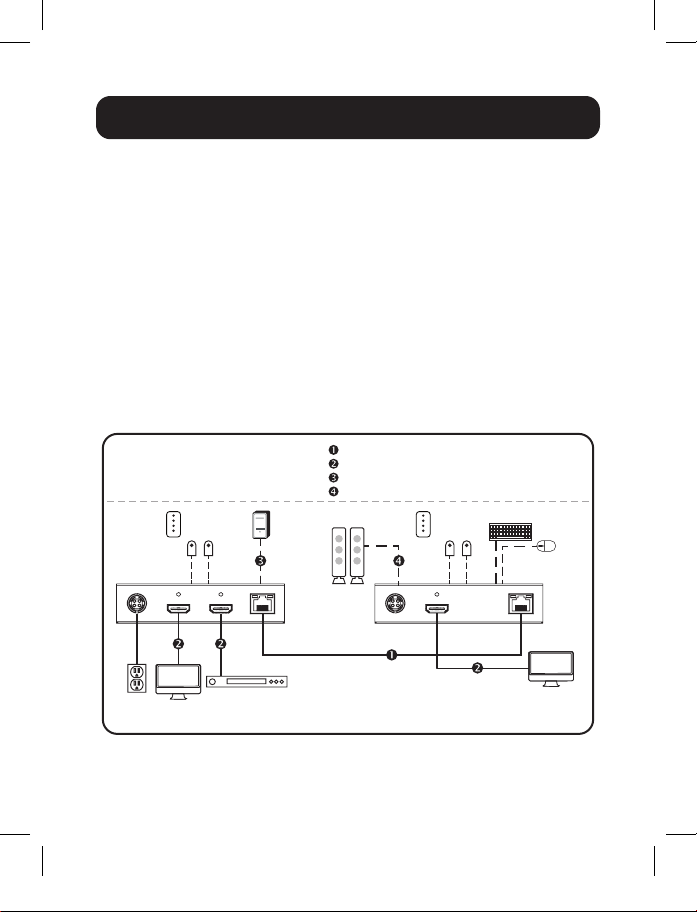

• The installation diagram shows a B127A-1A1-BHBH unit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
B127A-1A1-BHBH
extender kit
IR Control
Pad IR Sensor
HDR Player
LOCAL / TRANSMITTER REMOTE / RECEIVER
Monitor
TV
USB Keyboard
USB Mouse
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Micro-USB cable
Toslink cable
IR Control
Pad IR
Sensor
20-12-086-933CC9-EN.indd 1020-12-086-933CC9-EN.indd 10 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

11
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray™ players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-1A1-BHBH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-1A1-BHBH local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H
signal repeater unit to the transmitter and receiver via
Cat6 cabling. See B127A-010-H product features for more
information.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
7. Turn on the power to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port
has been connected to a display.
20-12-086-933CC9-EN.indd 1120-12-086-933CC9-EN.indd 11 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

12
Standard Extender Kit Installation
8. Connect the external power supply to either the transmitter
or receiver unit. Plug it into an available wall outlet or a
Tripp Lite surge protector, power distribution unit (PDU) or
uninterruptible power supply (UPS). The POWER (green)
LED on the local transmitter unit will illuminate to indicate
the unit is receiving power from the external power supply.
The POWER (green) LED on the remote receiver unit will
illuminate to indicate the unit is receiving power from the
local transmitter unit through PoC technology.
9. Turn on the power to the HDMI source. The OUTPUT (orange)
LED on the local transmitter unit will illuminate to indicate a
signal is being received from the source.
10. The (orange) RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor(s).
20-12-086-933CC9-EN.indd 1220-12-086-933CC9-EN.indd 12 12/29/2020 1:20:15 PM12/29/2020 1:20:15 PM

13
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-1A1-BHPH unit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
B127A-1A1-BHPH
extender kit
IR Control
Pad IR Sensor
HDR Player
LOCAL / TRANSMITTER REMOTE / RECEIVER
Monitor
TV
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Micro-USB cable
20-12-086-933CC9-EN.indd 1320-12-086-933CC9-EN.indd 13 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM

14
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-1A1-BHPH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-1A1-BHPH local transmitter unit.
4. Optional: For extended range, connect a B127A-010-H
signal repeater unit to the transmitter and receiver via
Cat6 cabling. See B127A-010-H product features for
more information.
5. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
6. Connect the remote receiver unit’s HDMI cable to a monitor/TV.
7. Turn on the power to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port
has been connected to a display.
20-12-086-933CC9-EN.indd 1420-12-086-933CC9-EN.indd 14 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM

15
Standard Extender Kit Installation
8. Connect the external power supply to the transmitter
unit. Plug it into an available wall outlet or a Tripp Lite
surge protector, power distribution unit or uninterruptible
power supply (UPS). The POWER (green) LED on the local
transmitter unit will illuminate to indicate the unit is receiving
power from the external power supply. The POWER (green)
LED on the remote receiver unit will illuminate to indicate the
unit is receiving power from the local transmitter unit through
PoC technology.
9. Turn on the power to the HDMI source. The OUTPUT (orange)
LED on the local transmitter unit will illuminate to indicate a
signal is being received from the source.
10. The (orange) RJ45 LED will illuminate on both local
transmitter and remote receiver units to indicate a signal
is being received from source to display. The screen should
now display on the connected monitor(s).
20-12-086-933CC9-EN.indd 1520-12-086-933CC9-EN.indd 15 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM

16
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat6 cable. Using stranded wire Cat6 cable, or cable with a
gauge (AWG) size higher than 24 AWG, will result in shorter extension
distance. Higher gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid wire cabling.

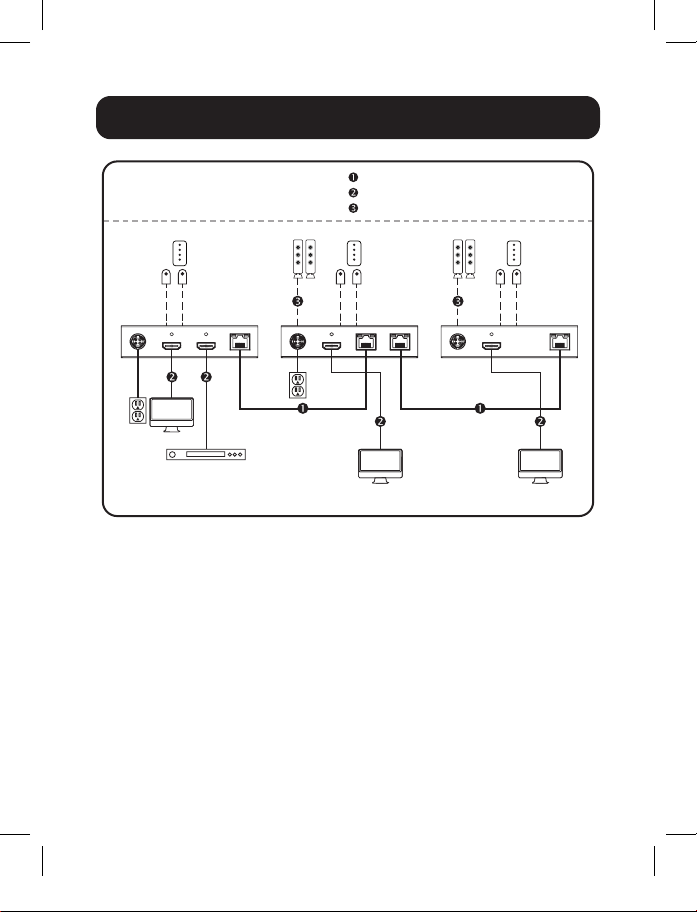

• The installation diagram shows a B127A-111-BHTH transmitter and
transceiver with an additional transceiver attached to demonstrate the
kit’s daisy-chain capabilities.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the transmitter units.
20-12-086-933CC9-EN.indd 1620-12-086-933CC9-EN.indd 16 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM

17
B127A-111-BHTH
extender kit
IR Control
Pad IR Control
Pad
IR Control
Pad
IR Sensor IR Sensor IR Sensor
HDR Player
LOCAL / TRANSMITTER REMOTE / RECEIVER
Monitor
TV TV
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Toslink cable
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the local transmitter unit.
3. Optional for B127A-111-BHTH: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127A-111-BHTH local transmitter unit.
20-12-086-933CC9-EN.indd 1720-12-086-933CC9-EN.indd 17 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM

18
Standard Extender Kit Installation
4. Using Cat6 cable, connect the RJ45 port on the local
transmitter unit to the RJ45 port on the remote receiver unit.
5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
or transceiver unit’s HDMI port to a monitor.
6. Turn on the power to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port
has been connected to a display.
7. Connect the external power supply to the transmitter. Plug
it into an available wall outlet or a Tripp Lite surge protector,
power distribution or uninterruptible power supply (UPS).
The POWER (green) LED on the local transmitter unit will
illuminate to indicate the unit is receiving power from the
external power supply. The POWER (green) LED on the
remote receiver unit will illuminate to indicate the unit is
receiving power from the local transmitter unit through PoC
technology.
8. Turn on the power to the HDMI source. The OUTPUT (orange)
LED on the local transmitter unit will illuminate to indicate a
signal is being received from the source.
9. The (orange) RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor.
20-12-086-933CC9-EN.indd 1820-12-086-933CC9-EN.indd 18 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM

19
Transceiver Daisy-Chain Installation
(B127A-110-BH only)
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid
wire Cat5e/6 cable. Using stranded wire Cat5e/6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower gauge cabling. All Tripp Lite N202-
Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows the B127A-111-BHTH and
B127A-110-BH installation.
20-12-086-933CC9-EN.indd 1920-12-086-933CC9-EN.indd 19 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM

20
Transceiver Daisy-Chain Installation
(B127A-110-BH only)
B127A-110-BH
transceiver
IR Control
Pad
IR Control
Pad
IR Control
Pad
IR Control
Pad
IR Control
Pad
IR Sensor IR Sensor
IR Sensor
IR Sensor
IR Sensor
Level 1
Level 2
Level 3
Level 4
HDR Player
Monitor
TV
TV
TV
TV
Up to 230 ft. Cat6 solid cable at 4K/60 Hz
Up to 15 ft. HDMI 2.0 cable at 4K/60 Hz
Toslink cable
20-12-086-933CC9-EN.indd 2020-12-086-933CC9-EN.indd 20 12/29/2020 1:20:16 PM12/29/2020 1:20:16 PM
