Owner’s Manual

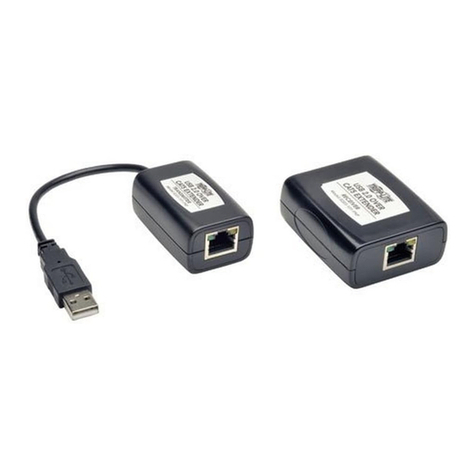

1-Port USB 2.0 over Cat5
Plug-and-Play Extender Kit
with Power over Cable
Model: B203-101-POC
4-Port USB 2.0 over Cat5
Plug-and-Play Extender Kit
with Power over Cable
Model: B203-104-POC
Español 9 • Français 16 • Русский 23

2
Product Features
Package Includes
• B203-101-POC extends a USB 2.0 signal up to 164 ft. (50 m)
from the source
• The B203-104-POC allows you to connect four USB 2.0
devices up to 164 ft. (50 m) from the source
• Supports USB 2.0 data transfer rates up to 480 Mbps
• Power over Cable (PoC) technology provides power to the
receivers via Cat5 cable
• Backward compatible with USB 1.1
• Plug-and-Play; no software or drivers required
• Compatible with all major operating systems
• B203-101-POC or B203-104-POC Transmitter
• B203-101-POC or B203-104-POC Receiver
• Owner’s Manual

3
Installation
Optional Accessories
Note: Test to make sure that the entire installation works properly before
pulling cables through ceilings or walls.
1. Connect the built-in USB cable on the transmitter unit to an
available USB port on your computer.
2. Connect the RJ45 ports on the transmitter and receiver units
with Cat5e/6 cable.
Note: The distance between the transmitter and receiver units must be
no longer than 164 ft. (50 m).
3. Connect a USB 2.0 device to each available port on the
receiver unit.
4. (Optional) If connecting power-hungry device(s), use the USB
Micro-B port on the receiver to add external power.
• N202-Series Cat6 Snagless Patch Cables
• U022-Series USB 2.0 Cables
• UR022-Series Reversible USB 2.0 Cables
• U030-Series USB 2.0 5-Pin Mini-B Cables
• UR030-Series Reversible USB 2.0 5-Pin Mini-B Cables
• U050-Series USB 2.0 Micro-B Cables
• UR050-Series Reversible USB 2.0 Micro-B Cables

4
Installation Diagrams
B203-101-POC
Workstation Web Cam
Transmitter Receiver USB Cable
*
24 AWG Solid CAT 6 Cable
Up to 164 ft. / 50 m
AC Outlet
B203-104-POC
Workstation
Web Cam
Printer
Hard Drive
Mouse
Transmitter Receiver
USB Cable
*
24 AWG Solid CAT 6 Cable
Up to 164 ft. / 50 m
* When connecting the receiver to high-power device(s), add external
power via its USB Micro-B port.

5
Specifications
Specification B203-101-POC B203-104-POC
Supported USB Versions USB 2.0 (480 Mbps),
USB 1.1 (12 Mbps)
Transmitter Ports (x1) RJ45
Receiver Ports (x1) RJ45 ;
(x1) USB-A ;
(x1) USB Micro-B
(x1) RJ45 ;
(x4) USB-A ;
(x1) USB Micro-B
Transmitter Plug USB-A
Maximum Extension
Distance
164 ft. (50 m)
Operating Temperature 32°F to 122°F (0° to 50°C)
Storage Temperature -4°F to 158°F (-20° to 70°C)
Transmitter Dimensions
[H x W x D]
0.59 x 14.36 x 1.02 in.
(15 x 365 x 26 mm)
Receiver Dimensions
[H x W x D]
0.59 x 2.36 x
1.02 in.
(15 x 60 x 26 mm)
1.95 x 1.00 x
2.42 in.
(50 x 26 x 62 mm)

6
Warranty and
Product Registration
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials
and workmanship for a period of one (1) year from the date of initial
purchase. TRIPP LITE’s obligation under this warranty is limited to
repairing or replacing (at its sole option) any such defective products. To
obtain service under this warranty, you must obtain a Returned Material
Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE
service center. Products must be returned to TRIPP LITE or an authorized
TRIPP LITE service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered
and proof of date and place of purchase. This warranty does not apply
to equipment which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties;
therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the
purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically,
TRIPP LITE is not liable for any costs, such as lost profits or revenue,
loss of equipment, loss of use of equipment, loss of software, loss of
data, costs of substitutes, claims by third parties, or otherwise.

7
Warranty and
Product Registration
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product.
You’ll be automatically entered into a drawing for a chance to win a FREE
Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. Open to
U.S. residents only. See tripplite.com for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

8
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
19-12-207 93-3BC4_RevA
Warranty and
Product Registration
Any changes or modifications to this equipment not expressly approved by
Tripp Lite could void the user’s authority to operate this equipment.
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE)
Directive and implementing regulations, when customers buy
new electrical and electronic equipment from Tripp Lite they are
entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like
basis (this varies depending on the country)
• Send the new equipment back for recycling when this
ultimately becomes waste
Tripp Lite has a policy of continuous improvement. Product specifications
are subject to change without notice. Photos and illustrations may differ
slightly from actual products.
