Tripp Lite B140-101 User manual

1
Owner’s Manual
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
Copyright © 2011 Tripp Lite. All rights reserved.
DVI over Cat5 Extenders
and Extender/Splitters
Extender Kit Models:
B140-101, B140-1P1-WP-1, B140-101X, B140-1A1-WP
Local Unit Models: B140-002 and B140-004
Remote Unit Models: B140-1P0, B140-1P0-WP-1,
B140-1A0, B140-1A0-WP-1 and B140-110
Warranty
Registration:
register online today for a
chance to win a FREE Tripp Lite
product—www.tripplite.com/warranty
Package Contents 2
Product Features 2
Mounting (Optional) 8
Standard Extender Kit Installation 9
Extender Kit with Remote/Repeater Installation 11
(B140-101X and B140-1A1-WP extender kits only)
Standard Extender/Splitter Installation 14
Extender/Splitter with Remote/Repeater Installation 17
(B140-1A0 and B140-1A0-WP-1 remote receiver units only)
Extender/Splitter Daisy-Chain Installation 20

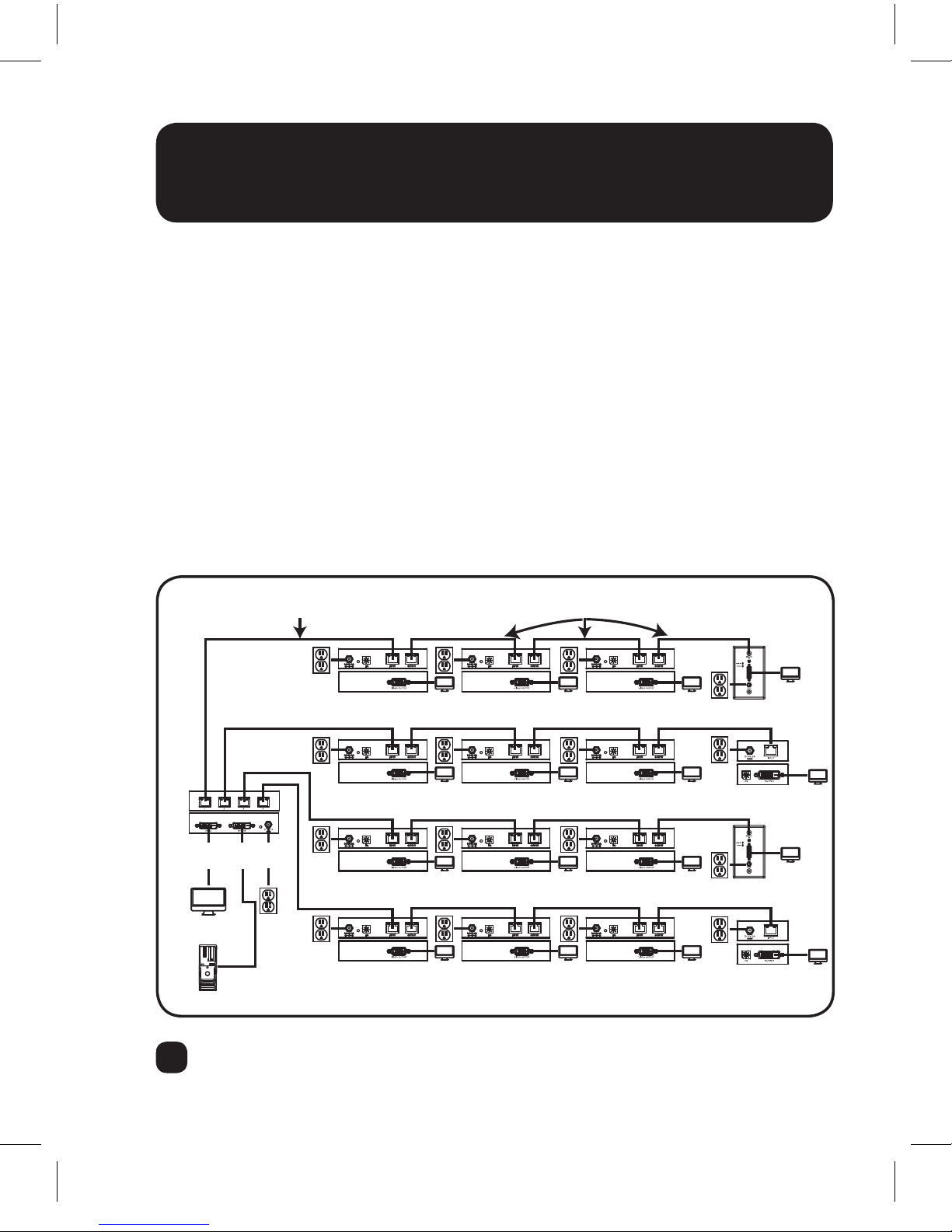

Extender/Splitter Daisy-Chain with Remote/Repeater Installation 22
(B140-004 extender/splitter, and B140-1A0 and B140-1A0-WP
remote receivers only)
Warranty & Warranty Registration 27
201110026-93-3094-EN.indd 1 11/3/2011 11:37:06 AM

2
Package Contents
Product Features
B140-101 B140-1P1-WP-1 B140-101X B140-1A1-WP B140-002 B140-004 B140-1A0 B140-1A0-WP-1 B140-1P0 B140-1P0-WP-1 B140-110
Local Unit (L), Remote Unit
(R), or Both (B) B B B B L L R R R R R
External Power Supplies
(0, 1, or 2) 00121111001
Mounting Hardware X X X X X
Wallplate Screws X X X X
Screwdriver for Equalization
Adjustment X X X X X
DVI Daisy-chain Cable X
All
• SupportDVI-DSingle-Linkvideoresolutionsupto1920x1080(60Hz)
• Plug-and-play;nosoftwareordriversrequired
• Compatiblewithallmajoroperatingsystems
•HDCPcompatible
B140-101
• DVIoverCat5PassiveExtenderKit(Box-style)
• Extenda1024x768(60Hz)signalupto100ft.fromthesource,or
a1920x1080(60Hz)signalupto50ft.fromthesource
• Noexternalpowerrequired
201110026-93-3094-EN.indd 2 11/3/2011 11:37:06 AM

3
Product Features
B140-1P1-WP-1
• DVIoverCat5PassiveExtenderWallplateKit
• Extenda1024x768(60Hz)signalupto75ft.fromthesource,ora
1920x1080(60Hz)signalupto50ft.fromthesource
• RJ45-stylewallplatesallowfortheuseofstandardCat5e/6patch
cables;110punchdownconnectionnotrequired
• Noexternalpowerrequired
B140-101X
• DVIoverCat5ActiveExtenderKit(Box-style)
• Extenda1024x768(60Hz)signalupto200ft.fromthesource,or
a1920x1080(60Hz)signalupto150ft.fromthesource
• Remotereceiverunitfeaturesabuilt-inEqualizationcontrolforvideo
image adjustment
• Includesmountinghardwarethatallowsremoteunittobe
wallmounted, rackmounted or pole mounted
B140-1A1-WP
• DVIoverCat5ActiveExtenderWallplateKit
• Extenda1024x768(60Hz)signalupto200ft.fromthesource,or
a1920x1080(60Hz)signalupto150ft.fromthesource
• Remotereceiverunitfeaturesabuilt-inEqualizationcontrolforvideo
image adjustment
• RJ45-stylewallplatesallowfortheuseofstandardCat5e/6patch
cables;110punchdownconnectionnotrequired
201110026-93-3094-EN.indd 3 11/3/2011 11:37:06 AM

4
Product Features
B140-002
• 2-PortDVIoverCat5Extender/SplitterLocalTransmitterUnit
(Box-style)
• SplitsaDVI-DSingle-Linksignalinto2separatesignals
• Workswithremote/repeaterandreceiverunitstoextendaDVI-D
Single-Linksignalpassedthe16-ft.(5m.)distancelimitation
• Includesmountinghardwarethatallowstheunittobewallmounted,
rackmounted or pole mounted
B140-004
• 4-PortDVIoverCat5Extender/SplitterLocalTransmitterUnit
(Box-style)
• SplitsaDVI-DSingle-Linksignalinto4
• AdditionalDVIportcanbeusedtoconnectalocalmonitororto
daisy-chain additional B140-004 units. Up to 3 B140-004 units
can be daisy-chained together to increase the number of connected
monitors
• Workswithremote/repeaterandreceiverunitstoextendaDVI-D
Single-Linksignalpassedthe16ft.(5m.)distancelimitation
• Includesmountinghardwarethatallowstheunittobewallmounted,
rackmounted or pole mounted
• Upto3B126-004unitscanbemountedinaB132-004-RB
1U rackmount bracket
201110026-93-3094-EN.indd 4 11/3/2011 11:37:06 AM

5
Product Features
B140-1A0
• DVIoverCat5ActiveExtenderRemoteReceiverUnit(Box-style)
• WorkswithB140-002andB140-004extender/splitterstoextenda
1024x768(60Hz)signalupto200ft.fromthesource,ora
1920x1080(60Hz)signalupto150ft.fromthesource
• Built-inEqualizationcontrolforvideoimageadjustment
• Includesmountinghardwarethatallowstheunittobewallmounted,
rackmounted or pole mounted
B140-1A0-WP-1
• DVIoverCat5ActiveExtenderWallplate
• WorkswithB140-002andB140-004extender/splitterstoextenda
1024x768(60Hz)signalupto200ft.fromthesource,ora
1920x1080(60Hz)signalupto150ft.fromthesource
• Built-inEqualizationcontrolforvideoimageadjustment
• RJ45-stylewallplateallowsfortheuseofstandardCat5e/6patch
cables;110punchdownconnectionnotrequired
B140-1P0
• DVIoverCat5PassiveExtenderRemoteReceiverUnit(Box-style)
• WorkswithB140-002andB140-004extender/splitterstoextenda
1024x768(60Hz)signalupto100ft.fromthesource,ora
1920x1080(60Hz)signalupto50ft.fromthesource
• Built-inDVIcable;separateDVIcablenotrequired
• Noexternalpowerrequired
201110026-93-3094-EN.indd 5 11/3/2011 11:37:06 AM

6
Product Features
B140-1P0-WP-1
• DVIoverCat5PassiveExtenderWallplate
• WorkswithB140-002andB140-004extender/splitterstoextenda
1024x768(60Hz)signalupto75ft.fromthesource,ora1920x
1080(60Hz)signalupto50ft.fromthesource
• RJ45-stylewallplateallowsfortheuseofstandardCat5e/6patch
cables;110punchdownconnectionnotrequired.
• Noexternalpowerrequired
B140-110
• DVIoverCat5ExtenderRemote/RepeaterUnit(Box-style)
• ExtendsandexpandsyourTrippLiteDVIoverCat5installation,
allowing you to locate multiple monitors at different points in a chain
of up to 700 ft.
• Extendsa1024x768(60Hz)signalupto175ft.,ora1920x1080
(60Hz)signalupto125ft.fromthelocaltransmitterunittotherst
remote/repeater unit in the installation
• Extendsa1024x768(60Hz)signaluptoanadditional175ft.,or
a1920x1080(60Hz)signaluptoanadditional125ft.fromeach
remote/repeater unit to the next unit in the chain. In a full 4-level
daisychaininstallation,a1024x768(60Hz)signalcanbeextended
upto700ft.,ora1920x1080(60Hz)signalupto500ft.fromthe
source to the last remote unit in the chain.
• Connectupto4remoteunits(3remote/repeatersand1receiver),
with a monitor located at each point in the chain
• Built-inEqualizationcontrolforvideoimageadjustment
• Includesmountinghardwarethatallowstheunittobewallmounted,
rackmounted or pole mounted
201110026-93-3094-EN.indd 6 11/3/2011 11:37:06 AM

7
Product Features
Optional Accessories:
• B132-004-RB1URackmountBracket
• N202-SeriesCat624AWG,solidwirepatchcables
• P561-SeriesDVI-DSingle-Linkcables
201110026-93-3094-EN.indd 7 11/3/2011 11:37:06 AM

8
Mounting (Optional)
The B140-101X, B140-002, B140-004, B140-1A0 and B140-110
come with mounting hardware that allows them to be mounted in
a variety of ways. The following images show the different ways the
included mounting brackets can be attached for different mounting
methods. Note: The B140-004 can also be mounted to a Tripp Lite
B132-004-RB 1U Rackmount Bracket. Up to 3 B140-004 local units
can be connected to a B132-004-RB.
Wallmount
19” Rackmount Pole Mount
201110026-93-3094-EN.indd 8 11/3/2011 11:37:08 AM

TO DVI SOURCE
RJ45 JACK
Cat5/5e/6
PATCH CABLE
LOCAL UNIT
POWER
JACK
REMOTE UNIT
TO DVI MONITOR
B140-101 — Up to 100 ft. at 1024 x 768 (60 Hz), or up to 50 ft. at 1920 x 1080 (60 Hz)
B140-1P1-WP-1 — Up to 75 ft. at 1024 x 768 (60 Hz), or up to 50 ft. at 1920 x 1080 (60 Hz)
B140-101X and B140-1A1-WP — Up to 200 ft. at 1024 x 768 (60 Hz), or up to 150 ft. at 1920 x 1080 (60 Hz)
9
Standard Extender Kit Installation
(B140-101, B140-1P1-WP-1, B140-101X, B140-1A1-WP)
Notes:

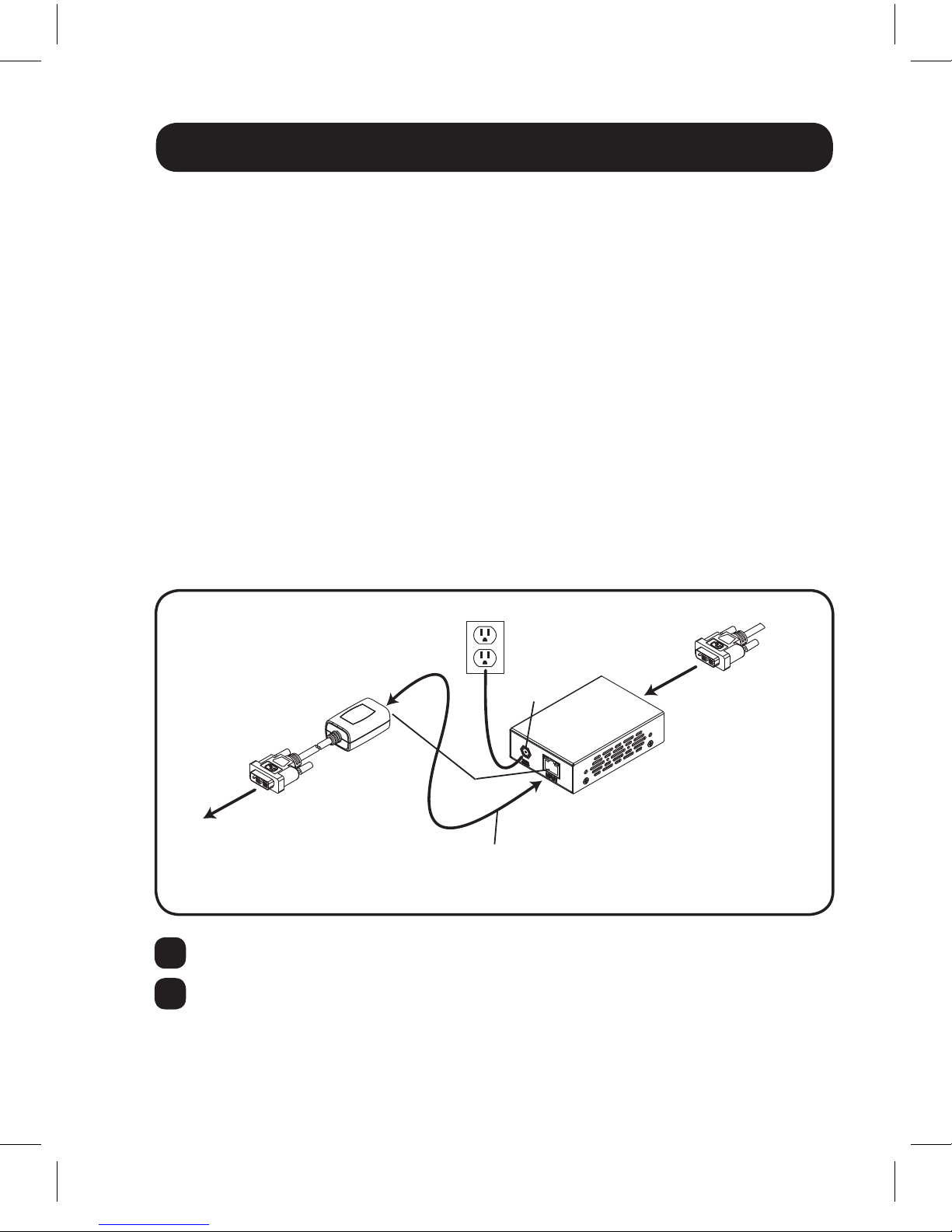

1. The diagram below shows a B140-101X installation. Installation will
be the same for the B140-1A1-WP. Installation will be similar for the
B140-101 and B140-1P1-WP-1, except that they will not require
external power.
2. Test to make sure that the entire installation works properly before
pulling cables through ceilings/walls.
3. To achieve maximum distance and performance, use 24 AWG Solid
Wire Cat5e/6 cable. Using stranded wire cable, or cable with a gauge
(AWG) size higher than 24 AWG, will result in lesser performance
and shorter extension distance. Tripp Lite N202-Series (Cat6) patch
cables are made with 24 AWG Solid Wire cabling.
1Make sure power to the DVI source is turned off.
2Connect the built-in DVI connector on the B140-101 or B140-101X
local unit to the DVI source, or connect the B140-1A1-WP or
B140-1P1-WP-1 local unit to the source using a Tripp Lite
P561-SeriesDVIcable.
201110026-93-3094-EN.indd 9 11/3/2011 11:37:08 AM

10
Standard Extender Kit Installation
3B140-1A1-WP only: Connect the external power supply to the local
unit and plug it into a Trip Lite Surge Suppressor, Power Distribution
Unit(PDU),orUninterruptablePowerSupply(UPS).TheGreen
Power LED will illuminate.
4ConnecttheRJ45portsonthelocalandremoteunitsusing
Cat5e/6cable.
5Connect the built-in DVI connector on the B140-101 remote unit to
the DVI monitor, or connect the B140-1A1-WP, B140-1P1-WP-1 or
B140-101X remote unit to the monitor using a Tripp Lite
P561-SeriesDVIcable.
6B140-1A1-WP and B140-101X only: Connect the external
power supply to the remote unit and plug it into a Tripp Lite Surge
Suppressor, Power Distribution Unit (PDU) or Uninterruptible Power
Supply(UPS).TheGreenRJ45LEDontheB140-101Xremoteunit
willilluminatetoindicateitisreceivingpower.TheGreenPowerLED
will illuminate on the B140-1A1-WP remote unit.
7TurnonthepowertotheDVIsource.TheGreenRJ45LEDswill
illuminate on the B140-101 and B140-101X units, and the Power
LEDs will illuminate on the B140-1P1-WP-1 units to indicate that
theyarereceivingpower.TheOrangeRJ45LEDwillilluminateonthe
B140-101X remote unit to indicate it is receiving a signal from the
source. The Orange Activity LEDs will illuminate on the
B140-1A1-WP units.
8B140-1A1-WP and B140-101X only: If necessary, adjust the
Equalization control on the remote unit to improve the video image.
Note: An improper Equalization setting can cause the monitor not
to display a picture at all. Try each Equalization setting until an
acceptable image is displayed.
201110026-93-3094-EN.indd 10 11/3/2011 11:37:09 AM

DVI SOURCE
B140-1A1-WP LOCAL
TRANSMITTER
B140-1A1-WP REMOTE
RECEIVER
B140-110
REMOTE
REPEATER
B140-110
REMOTE
REPEATER
B140-110
REMOTE
REPEATER
Up to 175 ft. at 1024 x 768 (60Hz)
Up to 125 ft. at 1920 x 1080 (60Hz)
Up to 175 ft. at 1024 x 768 (60Hz)
Up to 125 ft. at 1920 x 1080 (60Hz)
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
11
Extender Kit with Remote/Repeater
Installation (B140-101X and B140-1A1-WP extender kits only)
Notes:
1. Test to make sure the entire installation works properly before pulling
cables through ceilings/walls.
2. To achieve maximum distance and performance, use 24 AWG solid
wire Cat5e/6 cable. Using stranded wire Cat5e/6 cable, or cable
with a gauge (AWG) size higher than 24 AWG, will result in shorter
extension distance. All Tripp Lite N202-Series Cat6 cables are made
with 24 AWG solid wire cabling.
3. The installation diagram shows a B140-1A1-WP. The B140-101X
installation is the same, except its local unit does not require power.
1Make sure the DVI source is powered OFF.
2Connect the built-in DVI connector on the B140-101X local unit to
theDVIsource;or,connecttheDVIsourcetotheINPUTportonthe
B140-1A1-WPlocalunitusingaTrippLiteP561-SeriesDVI-DSingle
Link Cable.
3B140-1A1-WP only: Connect the external power supply to the local
unit and plug it into a Tripp Lite Surge Suppressor, PDU or UPS. The
GreenPowerLEDwillilluminate.
201110026-93-3094-EN.indd 11 11/3/2011 11:37:09 AM

12
4UsingCat5e/6cable,connecttheRJ45portonthelocalunittothe
RJ45INPUTportontheB140-110remote/repeaterunit.
5Connect a monitor to the DVI OUTPUT port on the remote/repeater
unitusingaTrippLiteP561-SeriesDVI-DSingle-LinkCable.
6Connect the external power supply to the remote/repeater unit and
plugitintoaTrippLiteSurgeSuppressor,PDUorUPS.TheGreen
PowerLEDandtheGreenRJ45LEDsilluminatetoindicatetheunit
is receiving power.
Up to 4 units can be daisy-chained (3 remote/repeaters and 1 receiver).
Toconnectadditionalremote/repeaterunits,proceedtostep7.Tonish
your installation with the B140-101X or B140-1A1-WP remote receiver
unit, proceed to step 11.
7UsingCat5e/6cable,connecttheRJ45OUTPUTportontherst
remote/repeaterunittotheRJ45INPUTportonasecondremote/
repeater unit.
8Connect a monitor to the DVI OUTPUT port on the remote/repeater
unitthatyoujustaddedusingaTrippLiteP561-SeriesDVI-D
Single-Link Cable.
9Connect the external power supply to the remote/repeater unit and
plugitintoaTrippLiteSurgeSuppressor,PDUorUPS.TheGreen
PowerLEDandtheGreenRJ45LEDsilluminatetoindicatetheunit
is receiving power.
10 To add a third remote/repeater unit, repeat steps 7 through 9.
TonishyourinstallationwiththeB140-101XorB140-1A1-WP
remote receiver unit, proceed to step 11.
Extender Kit with Remote/Repeater
Installation (B140-101X and B140-1A1-WP extender kits only)
201110026-93-3094-EN.indd 12 11/3/2011 11:37:09 AM

13
11 UsingCat5e/6cable,connecttheRJ45OUTPUTportonthelast
remote/repeaterunittotheRJ45INPUTportoftheB140-101Xor
B140-1A1-WP remote receiver unit.
12 Connect a monitor to the DVI OUTPUT port on the remote receiver
unitusingaTrippLiteP561-SeriesDVI-DSingle-LinkCable.
13 Connect the external power supply to the remote receiver unit and
plugitintoaTrippLiteSurgeSuppressor,PDUorUPS.TheGreen
RJ45LEDontheB140-101Xremotereceiver,ortheGreenPower
LED on the B140-1A1-WP remote wallplate, illuminates to indicate
the unit is receiving power from the external power supply.
14 Turn on the power to the DVI source. The Orange LEDs on the
B140-1A1-WP units illuminate to indicate a signal is being received
fromthesource.TheOrangeRJ45LEDsontheB140-101Xand
B140-110 units illuminates to indicate a signal is being received
from the source.
15 If necessary, use the Equalization control on the remote/repeater
unit(s) and remote receiver unit to adjust the video image. Note: An
improper Equalization setting can cause the monitor not to display
a picture at all. Try each Equalization setting until an acceptable
picture is displayed.
Extender Kit with Remote/Repeater
Installation (B140-101X and B140-1A1-WP extender kits only)
201110026-93-3094-EN.indd 13 11/3/2011 11:37:09 AM

B140-004
B140-1A0
B140-1P0
B140-1A0-WP-1
Up to 200 ft. at 1024 x 768 (60Hz)
Up to 150 ft. at 1920 x 1080 (60Hz)
Up to 100 ft. at 1024 x 768 (60Hz)
Up to 50 ft. at 1920 x 1080 (60Hz)
Up to 75 ft. at 1024 x 768 (60Hz)
Up to 50 ft. at 1920 x 1080 (60Hz)
DVI OVER Cat5
EXTENDER
REMOTE UNIT
MODEL: B140-1P0
B140-1P0-WP-1
14
Standard Extender/Splitter Installation
Notes:
1. The diagram below shows a B140-004 installation. Installation will
be the same when using a B140-002, except that the B140-002
has fewer RJ45 ports and no local monitor port.
2. Test to make sure that the entire installation works properly before
pulling cables through ceilings/walls.
3. To achieve maximum distance and performance, use 24 AWG solid
wire Cat5e/6 cable. Using stranded wire cable, or cable with a gauge
(AWG) size higher than 24 AWG, will result in lesser performance
and shorter extension distance. Tripp Lite N202-Series (Cat6) patch
cables are made with 24 AWG solid wire cabling.
201110026-93-3094-EN.indd 14 11/3/2011 11:37:10 AM

15
Standard Extender/Splitter Installation
1Make sure the DVI source is powered OFF.
2Connect the DVI source to the DVI port on the B140-002 or
B140-004labeledINPUTusingaTrippLiteP561-SeriesDVI-D
Single-Link Cable.
3Optional for B140-004: Connect a DVI monitor to the DVI port on
theB140-004markedLOCALusingaTrippLiteP561-SeriesDVI-D
Single-Link Cable.
4Connect the external power supply to the B140-002 or B140-004
local unit and plug it into a Tripp Lite Surge Suppressor, PDU or
UPS.TheGreenRJ45LEDsandRedPowerLEDontheB140-004
will illuminate to indicate power is being received from the external
powersupply.TheGreenRJ45LEDsontheB140-002willilluminate
to indicate power is being received from the external power supply.
5UsingCat5e/6cable,connectoneoftheRJ45outputportsonthe
localunittotheRJ45inputportontheB140-1P0,B140-1A0,
B140-1P0-WP-1 or B140-1A0-WP-1 remote unit.
6Repeatstep5foreachadditionalremoteunityouareconnecting.
7B140-1A0 and B140-1A0-WP-1 only: Connect the external
power supply to the B140-1A0 or B140-1A0-WP-1 and plug it into
aTrippLiteSurgeSuppressor,PDUorUPS.TheGreenRJ45LED
ontheB140-1A0andtheGreenLEDontheB140-1A0-WP-1will
illuminate to indicate that the unit is receiving power.
8Repeat step 7 for each additional B140-1A0 or B140-1A0-WP-1 in
the installation.
201110026-93-3094-EN.indd 15 11/3/2011 11:37:10 AM

16
9ConnecttheB140-1P0DVI-DSingle-Linkconnectortothemonitor;
or, connect the B140-1P0-WP-1, B140-1A0 or B140-1A0-WP-1 to
themonitorusingaTrippLiteP561-SeriesDVI-DSingle-LinkCable.
TheGreenRJ45LEDontheB140-1P0andtheGreenLEDonthe
B140-1P0-WP-1 illuminate to indicate the unit is receiving power
from the monitor.
10 Repeat step 9 for each additional monitor you are connecting.
11 TurnonthepowertotheDVIsource.TheOrangeRJ45LEDs
illuminate on the B140-002, B140-004 and B140-1A0, and the
Orange LED illuminates on the B140-1A0-WP-1 to indicate the unit
is receiving a signal from the source. The image should now be
displayed on the connected monitors.
12 If necessary, use the Equalization control on the B140-1A0 or
B140-1A0-WP-1 to adjust the video image. Note: An improper
Equalization setting can cause the monitor not to display a picture
at all. Try each Equalization setting until an acceptable image is
displayed.
Standard Extender/Splitter Installation
201110026-93-3094-EN.indd 16 11/3/2011 11:37:10 AM

OPTIONAL LOCAL
MONITOR
B140-004 LOCAL
TRANSMITTER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
Up to 175 ft. at 1024 x 768 (60Hz)
Up to 125 ft. at 1920 x 1080 (60Hz)
Up to 175 ft. at 1024 x 768 (60Hz)
Up to 125 ft. at 1920 x 1080 (60Hz)
DVI SOURCE
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER B140-1A0-WP-1
REMOTE RECEIVER
B126-1A0-WP-1
REMOTE RECEIVER
B126-1A0
REMOTE RECEIVER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
B140-110 REMOTE/
REPEATER
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
B126-1A0
REMOTE RECEIVER
17
Notes:
1. Test to make sure the entire installation works properly before pulling
cables through ceilings/walls.
2. To achieve maximum distance and performance, use 24 AWG solid
wire Cat5e/6 cable. Using stranded wire Cat5e/6 cable, or cable
with a gauge (AWG) size higher than 24 AWG, will result in shorter
extension distance. All Tripp Lite N202-Series Cat6 cables are made
with 24 AWG solid wire cabling.
3. The installation diagram shows the B140-004. The B140-002
installation will be the same, except there are only 2 remote ports
and there is no local monitor port.
Extender/Splitter with Remote/Repeater Installation
(B140-1A0 and B140-1A0-WP-1 remote receiver units only)
1Make sure the DVI source is powered OFF.
201110026-93-3094-EN.indd 17 11/3/2011 11:37:12 AM

18
Extender/Splitter with Remote/Repeater Installation
(B140-1A0 and B140-1A0-WP-1 remote receiver units only)
2ConnecttheDVIsourcetotheINPUTportontheB140-002or
B140-004usingaTrippLiteP561-SeriesDVI-DSingle-LinkCable.
3Optional for B140-004: Connect a local monitor to the DVI
OUTPUTportusingaTrippLiteP561-SeriesDVI-DSingle-LinkCable.
4Connect the external power supply to the local unit and plug it into
aTrippLiteSurgeSuppressor,PDUorUPS.TheGreenRJ45LEDs
illuminate to indicate power is being received from the external
power supply. An additional Red LED on the B140-004 also
illuminates to indicate that power is being received.
5UsingCat5e/6cable,connectoneoftheRJ45outputportsonthe
localunittotheRJ45inputportontheB140-110remote/repeater
unit.
6Connect a monitor to the DVI OUTPUT port on the remote/repeater
unitusingaTrippLiteP561-SeriesDVI-DSingle-LinkCable.
7Connect the external power supply to the remote/repeater unit and
plugitintoaTrippLiteSurgeSuppressor,PDUorUPS.TheGreen
PowerLEDandtheGreenRJ45LEDsilluminatetoindicatetheunit
is receiving power.
Up to 4 units can be daisy-chained (3 remote/repeaters and 1 receiver).
Toconnectadditionalremote/repeaterunits,proceedtostep8.Tonish
your installation with a B140-1A0 or B140-1A0-WP-1 remote receiver
unit, proceed to step 12.
8UsingCat5e/6cable,connecttheRJ45OUTPUTportontherst
remote/repeaterunittotheRJ45INPUTportonasecondremote/
repeater unit.
9Connect a monitor to the DVI OUTPUT port on the remote/repeater
unitthatyoujustaddedusingaTrippLiteP561-SeriesDVI-DSingle-
Link Cable.
201110026-93-3094-EN.indd 18 11/3/2011 11:37:12 AM

19
Extender/Splitter with Remote/Repeater Installation
(B140-1A0 and B140-1A0-WP-1 remote receiver units only)
10 Connect the external power supply to the remote/repeater unit and
plugitintoaTrippLiteSurgeSuppressor,PDUorUPS.TheGreen
PowerLEDandtheGreenRJ45LEDsilluminatetoindicatetheunit
is receiving power.
11 To add a third remote/repeater unit, repeat steps 8 through 10. To
nishyourinstallationwithaB140-1A0orB140-1A0-WP-1remote
receiver unit, proceed to step 12.
12 UsingCat5e/6cable,connecttheRJ45OUTPUTportonthelast
remote/repeaterunittotheRJ45INPUTportonaB140-1A0or
B140-1A0-WP-1 remote receiver unit.
13 Connect a monitor to the DVI OUTPUT port on the remote receiver
unitusingaTrippLiteP561-SeriesDVI-DSingle-LinkCable.
14 Connect the external power supply to the remote receiver unit and
plugitintoaTrippLiteSurgeSuppressor,PDUorUPS.TheGreen
RJ45LEDsontheB140-1A0andtheGreenLEDontheB140-1A0-
WP-1 illuminate to indicate that the unit is receiving power.
15 Repeatsteps5through14foreachadditionalRJ45outputporton
the local transmitter unit.
16 TurnonthepowertotheDVIsource.TheOrangeRJ45LEDson
the local transmitter, remote/repeater and B140-1A0 illuminate
to indicate a signal is being received from the source. The Orange
LED on the B140-1A0-WP-1 illuminates to indicate a signal is being
received from the source.
17 If necessary, use the Equalization control on the remote/repeater
unit(s) and remote receiver unit to adjust the video image. Note: An
improper Equalization setting can cause the monitor not to display
a picture at all. Try each Equalization setting until an acceptable
picture is displayed.
201110026-93-3094-EN.indd 19 11/3/2011 11:37:12 AM

Level 1
Level 2
Level 3
OPTIONAL LOCAL
MONITOR
B140-1P0 — Up to 100 ft. at 1024 x 768 (60 Hz), or up to 50 ft. at 1920 x 1080 (60 Hz)
B140-1P0-WP-1 — Up to 75 ft. at 1024 x 768 (60 Hz), or up to 50 ft. at 1920 x 1080 (60 Hz)
B140-1A0 and B140-1A0-WP-1 — Up to 200 ft. at 1024 x 768 (60 Hz), or up to 150 ft. at 1920 x 1080 (60 Hz)
20
Extender/Splitter Daisy-Chain Installation
(B140-004 only)
Notes:
1. Test to make sure that the entire installation works properly before
pulling cables through ceilings/walls.
2. To achieve maximum distance and performance, use 24 AWG solid
wire Cat5e/6 cable. Using stranded wire cable, or cable with a gauge
(AWG) size higher than 24 AWG, will result in lesser performance
and shorter extension distance. Tripp Lite N202-Series (Cat6) patch
cables are made with 24 AWG solid wire cabling.
201110026-93-3094-EN.indd 20 11/3/2011 11:37:13 AM
