Tripp Lite B127M-101-H User manual

1
HDMI over Cat6 Extenders for
Medical Applications
Extender Kit Model: B127M-101-H
Receiver Model: B127M-100-H
Splitter Model: B127M-004-H
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR®surge protector in our monthly drawing!
tripplite.com/warranty
Español 17 • Français 33 • Русский 49 • Deutsch 65

2
Package Contents
B127M-004-H Splitter Unit
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;
Output: 24V 1A)
• International Plug Adapters: NEMA 1-15P North America;
AS/NZS 3112 Australia; BS 1363 U.K.; CEE 7/16 Schuko
• Mounting Hardware
• Owner’s Manual
B127M-100-H Receiver Unit
• Mounting Hardware
• Owner’s Manual
B127M-101-H Extender Kit
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;
Output: 24V 1A)
• International Plug Adapters: NEMA 1-15P North America;
AS/NZS 3112 Australia; BS 1363 U.K.; CEE 7/16 Schuko
• Mounting Hardware
• Owner’s Manual
Optional Accessories
• N202-Series Cat6 24 AWG Solid-Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0
Cables

3
Product Features
B127M-004-H
• Split and extend an HDMI signal to four receivers up to 230 ft.
(70 m) away over STP Cat6 cabling
• Supports video resolutions up to 4K x 2K (3840 x 2160) @
60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma
Subsampling
• Support up to 7.1-channel surround sound audio
• Power-over-Cable (PoC) technology provides power from splitter
unit to all connected receiver units
• HDCP 2.2 and HDR-compatible
• Multi-resolution support allows all connected receivers to
connect to any 1080p, 4K/30 Hz or 4K/60 Hz HDMI display
without affecting the resolution of the other connected displays
• Local HDMI port supports 4K/60 Hz video
• Meets IEC 61000-4-2 (ESD) Test Level 4 Standard (8 KV
Contact, 15 KV Air), IEC 60601-1-2 & CISPR 11 Group 1
Class EMI/RFI Standards for medical environments
• Includes mounting hardware that enables the splitter unit to be
wall-mounted, rack-mounted or pole-mounted
• Plug-and-play – no software or drivers required

4
Product Features
B127M-100-H
• Receive an HDMI signal from a B127M transmitter/splitter up
to 230 ft. (70 m) away over STP Cat6 cabling
• Supports video resolutions up to 4K x 2K (3840 x 2160) @
60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma
Subsampling
• Support up to 7.1-channel surround sound audio
• Power-over-Cable (PoC) technology provides power to the
receiver from a connected extender/splitter
• HDCP 2.2 and HDR-compatible
• Meets IEC 61000-4-2 (ESD) Test Level 4 Standard (8 KV
Contact, 15 KV Air), IEC 60601-1-2 & CISPR 11 Group 1
Class EMI/RFI Standards for medical environments
• Includes mounting hardware that enables the receiver unit to
be wall-mounted, rack-mounted or pole-mounted
• Plug-and-play – no software or drivers required

5
Product Features
B127M-101-H
• Transmitter extends an HDMI signal to the receiver up to
230 ft. (70 m) away over STP Cat6 cabling
• Supports video resolutions up to 4K x 2K (3840 x 2160) @
60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma
Subsampling
• Support up to 7.1-channel surround sound audio
• Power-over-Cable (PoC) technology provides power from
transmitter unit to connected receiver unit
• HDCP 2.2 and HDR-compatible
• Multi-resolution support allows connected receiver to connect
to any 1080p, 4K/30 Hz or 4K/60 Hz HDMI display
• Local HDMI port supports 4K/60 Hz video
• Meets IEC 61000-4-2 (ESD) Test Level 4 Standard (8 KV
Contact, 15 KV Air), IEC 60601-1-2 & CISPR 11 Group 1
Class EMI/RFI Standards for medical environments
• Includes mounting hardware that enables the transmitter and
receiver units to be wall-mounted, rack-mounted or pole-
mounted
• Plug-and-play – no software or drivers required

6
Disclaimer
Before installation, please check the following settings of your
source(s) and TV/monitor(s):
1. Set display to 60 Hz. Double-check factory settings, as
default can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0.
Some displays may have default setting at HDMI 1.4.
3. Verify your monitor has the HDR feature enabled. Some
displays may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on
your TV/monitor. Confirm with your TV/monitor manufacturer
which HDMI ports support UHD Deep Color.
Note: To connect a local monitor to the transmitter in your installation,
the UHD Deep Color setting may need to be disabled on your local TV/
monitor (depending make/mode) to achieve 4K @ 60 Hz resolution.

7
Mounting Instructions
The B127M-004-H, B127M-100-H and B127M-101-H include
mounting hardware that allows for a variety of mounting methods.
The following images illustrate how the included mounting
brackets can be attached for different installations.
Note: The model shown in the below images is for illustrative purposes
only. Your product may vary by model number, size or port orientation.
The mounting options for all over Cat6 units are the same.
Wall-Mount
19” Rack-Mount Pole-Mount

8
Standard Splitter Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid-
wire Cat6 cable. Using stranded-wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid-wire cabling.
• The installation diagram shows a B127A-004-H splitter unit and
B127M-100-H receiver units.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the units.

9

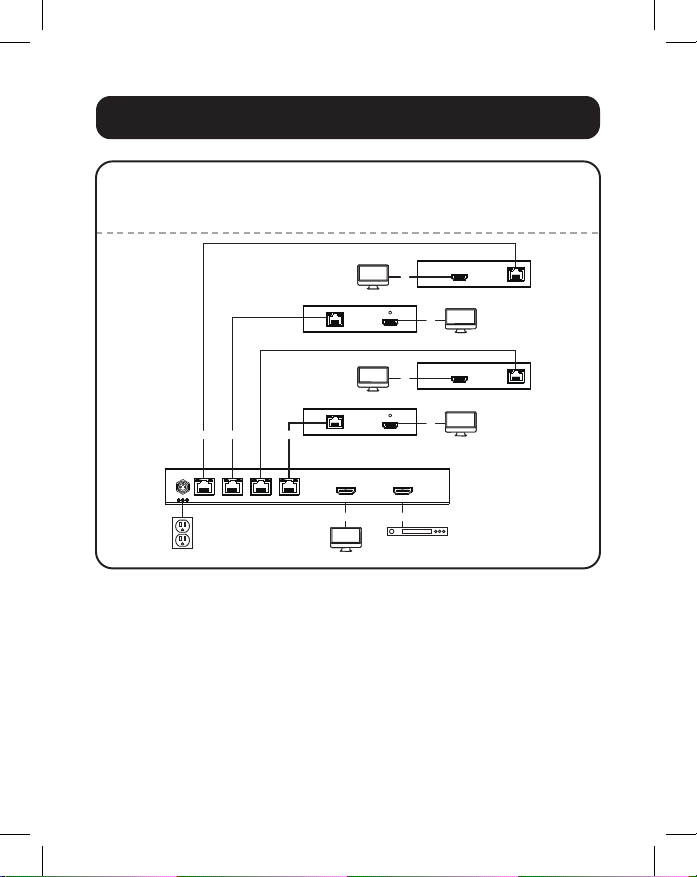

Standard Splitter Installation


OUTPUT 4 OUTPUT 3 OUTPUT 2 OUTPUT 1 INPUT LOCAL
DC 24V, 1A
OUTPUTINPUT
 
OUTPUTINPUT


 
OUTPUT INPUT

OUTPUT INPUT


B127M-004-H + B127M-100-H
Up to 230 ft. (40 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
B127M-100-H
B127M-100-H
HDR PLAYER
OPTIONAL
LOCAL MONITOR
B127M-004-H
B127M-100-H
B127M-100-H
1. Make sure all equipment in the installation—such as TVs,
Blu-ray™ players and the splitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the splitter unit.

10
Standard Extender Kit Installation
3. Optional for B127M-004-H: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127M-004-H unit.
4. Using Cat6 cable, connect the RJ45 output ports on the
local splitter unit to the RJ45 input ports of up to four
remote receiver units.
5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
6. Turn on the power to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port
has been connected to a display.
7. Connect the external power supply to the splitter unit. Plug
it into an available wall outlet or a Tripp Lite surge protector,
power distribution unit (PDU) or uninterruptible power supply
(UPS). The POWER (green) LED on the local splitter unit
will illuminate to indicate the unit is receiving power from
the external power supply. The POWER (green) LED on the
remote receiver units will illuminate to indicate the unit
is receiving power from the local splitter unit through PoC
technology.

11
Standard Extender Kit Installation
8. Turn on the power to the HDMI source. The OUTPUT (orange)
LED on the local splitter unit will illuminate to indicate a
signal is being received from the source.
9. The (orange) RJ45 LED will illuminate on both the local
splitter and remote receiver units to indicate a signal is being
received from the source to display. The screen should now
display on the connected monitor(s).

12
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 26 AWG solid-
wire Cat6 cable. Using stranded-wire Cat6 cable or cable with a
gauge (AWG) size higher than 26 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid-wire cabling.
• The installation diagram shows a B127A-101-H transmitter and
receiver kit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the units.


DC 24V, 1A
OUTPUTINPUTLOCAL
OUTPUT INPUT

  
B127M-101-H
Up to 230 ft. (40 m) Cat6 cable at 4K/60 Hz
Up to 15ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
HDR PLAYER
MONITOR
LOCAL TRANSMITTER REMOTE RECEIVER

13
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray™ players and the transmitter and receiver units—are
powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the transmitter unit.
3. Optional for B127M-101-H: Using an HDMI 2.0 cable
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127M-101-H transmitter unit.
4. Using Cat6 cable, connect the RJ45 output port on the local
transmitter unit to the RJ45 input port of the remote receiver
unit.
5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
6. Turn on the power to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port
has been connected to a display.

14
Standard Extender Kit Installation
7. Connect the external power supply to the transmitter unit.
Plug the unit into an available wall outlet or a Tripp Lite surge
protector, power distribution unit (PDU) or uninterruptible
power supply (UPS). The POWER (green) LED on the local
splitter unit will illuminate to indicate the unit is receiving
power from the external power supply. The POWER (green)
LED on the remote receiver unit will illuminate to indicate the
unit is receiving power from the local transmitter unit through
PoC technology.
8. Turn on the power to the HDMI source. The OUTPUT (orange)
LED on the local transmitter unit will illuminate to indicate a
signal is being received from the source.
9. The (orange) RJ45 LED will illuminate on both the local
transmitter and remote receiver units to indicate a signal is
being received from the source to display. The screen should
now display on the connected monitor(s).

15
Warranty and Product Registration
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials and
workmanship for a period of one (1) year from the date of initial purchase.
TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its
sole option) any such defective products. To obtain service under this warranty, you
must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an
authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an
authorized TRIPP LITE service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered and proof of date
and place of purchase. This warranty does not apply to equipment which has been
damaged by accident, negligence or misapplication or has been altered or modified
in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied
warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the
purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT,
INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT
OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or
revenue, loss of equipment, loss of use of equipment, loss of software, loss of data,
costs of substitutes, claims by third parties, or otherwise.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be
automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See
website for details.

16
Warranty and Product Registration
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and
implementing regulations, when customers buy new electrical and electronic
equipment from Tripp Lite they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis
(this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes
waste
WARNING
Use of this equipment in life support applications where failure of this equipment
can reasonably be expected to cause the failure of the life support equipment or to
significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to
change without notice. Photos and illustrations may differ slightly from actual
products.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
20-12-308 93-3D95_RevA

17
Extensores HDMI sobre Cat6
para Aplicaciones Médicas
Modelo de Juego Extensor: B127M-101-H
Modelo de Receptor: B127M-100-H
Modelo de Divisor: B127M-004-H
1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support
Copyright © 2021 Tripp Lite. Todos los derechos reservados.
Manual del Propietario
English 1 • Françaís 33 • Русский 49 • Deutsch 65

18
Contenido del Empaque
Unidad Divisora B127M-004-H
• Fuente de Alimentación Externa (Entrada: 100V ~ 240V,
50Hz / 60Hz, 0.6A; Salida: 24V 1A)
• Adaptadores de Clavija Internacional: NEMA 1-15P
Norteamérica; AS/NZS 3112 Australia; BS 1363 Reino Unido;
CEE 7/16 Schuko
• Accesorios de Instalación
• Manual del Propietario
Unidad Receptora B127M-100-H
• Accesorios de Instalación
• Manual del Propietario
Juego Extensor B127M-101-H
• Fuente de Alimentación Externa (Entrada: 100V ~ 240V,
50Hz / 60Hz, 0.6A; Salida: 24V 1A)
• Adaptadores de Clavija Internacional: NEMA 1-15P
Norteamérica; AS/NZS 3112 Australia; BS 1363 Reino Unido;
CEE 7/16 Schuko
• Accesorios de Instalación
• Manual del Propietario
Accesorios Opcionales
• Cables Patch Cat6 de Alambre Sólido 24 AWG de la Serie N202
• Cables HDMI 2.0 de Alta Velocidad Serie P569-XXX-CERT o
P568-XXX-2A

19
Características del Producto
B127M-004-H
• Divida y extienda una señal HDMI a cuatro receptores hasta a
70.1 m [230 pies] de distancia sobre cableado STP Cat6
• Soporta resoluciones de video de hasta 4K x 2K (3840 x 2160)
@ 60 Hz, como se especifica en HDMI 2.0, con Submuestreo
de Croma 4:4:4
• Soporta audio de sonido envolvente de hasta 7.1 canales
• La tecnología PoC proporciona energía de la unidad divisora a
todas las unidades receptoras
• Compatible con HDCP 2.2 y HDR
• El soporte a múltiples resoluciones permite a todos los
receptores conectados conectarse a cualquier pantalla HDMI
1080p, 4K @ 30 Hz o 4K @ 60 Hz sin afectar la resolución
de las otras pantallas conectadas
• El puerto HDMI local soporta video 4K @ 60 Hz
• Cumple con los Estándares IEC 61000-4-2 (ESD) Nivel de
Prueba 4 (Contacto de 8 KV, Aire de 15 KV), IEC 60601-1-2 y
CISPR 11 Grupo 1 Clase EMI/RFI para entornos médicos
• Incluye los accesorios de instalación que permiten que la
unidad sea instalada en pared, rack o poste.
• Conectar y Usar—No requiere software ni controladores

20
Características del Producto
B127M-100-H
• Reciba una señal HDMI desde un transmisor/divisor B127M
alejado hasta a 70.1 m [230 pies] sobre cableado STP Cat6
• Soporta resoluciones de video de hasta 4K x 2K (3840 x 2160)
@ 60 Hz, como se especifica en HDMI 2.0, con Submuestreo
de Croma 4:4:4
• Soporta audio de sonido envolvente de hasta 7.1 canales
• La tecnología PoC proporciona energía al receptor desde un
extensor o divisor conectado
• Compatible con HDCP 2.2 y HDR
• Cumple con los Estándares IEC 61000-4-2 (ESD) Nivel de
Prueba 4 (Contacto de 8 KV, Aire de 15 KV), IEC 60601-1-2 y
CISPR 11 Grupo 1 Clase EMI/RFI para entornos médicos
• Incluye los accesorios de instalación que permiten que la
unidad receptora sea instalada en pared, rack o poste.
• Conectar y Usar—No requiere software ni controladores
