Tripp Lite B162-001-POE User manual

1
4K HDMI over IP Extender
with Power over Ethernet
Models: B162-001-POE, B162-100-POE
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Quick Start Guide
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 13 • Français 25
21-06-096-933E85-Book.indb 121-06-096-933E85-Book.indb 1 10/18/2021 1:55:37 PM10/18/2021 1:55:37 PM

2
• B162-001-POE Transmitter or B162-100-POE Receiver
• RS-232 Terminal Block
• Power Adapter
(Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V 3A)
• Foot Pads (x4)
• Quick Start Guide
• P568-Series High-Speed HDMI Cables
• N201P-Series Cat6 Cables with PoE
• U024-Series USB 2.0 Extension Cables or U324-Series
USB 3.0 Extension Cables
Package Contents
Optional Accessories
21-06-096-933E85-Book.indb 221-06-096-933E85-Book.indb 2 10/18/2021 1:55:37 PM10/18/2021 1:55:37 PM

3
B162-001-POE (Transmitter)
Front View Top View
Product Features
Front View
1HDMI Input Port
2Audio Input Port
3Bidirectional IR Port
4RS-232 Serial Port
5USB Type-B Port
Rear View
6LAN Port with PoE
7Power Jack
Top View
8ID Display Panel
9Prev (+) / Next (-)
Buttons
10
Link LED
11
Power LED
Rear View
ID N UMB ER
POW ER
LI NK
4K HDMI Over IP Extender with POE
B162-001-POE
Transmitter
AUDIO
IN
IR U SB
RS-232
Tx GND Rx
LA N
1 2 3 4 5
6 7
8 9
10 11
21-06-096-933E85-Book.indb 321-06-096-933E85-Book.indb 3 10/18/2021 1:55:37 PM10/18/2021 1:55:37 PM

4

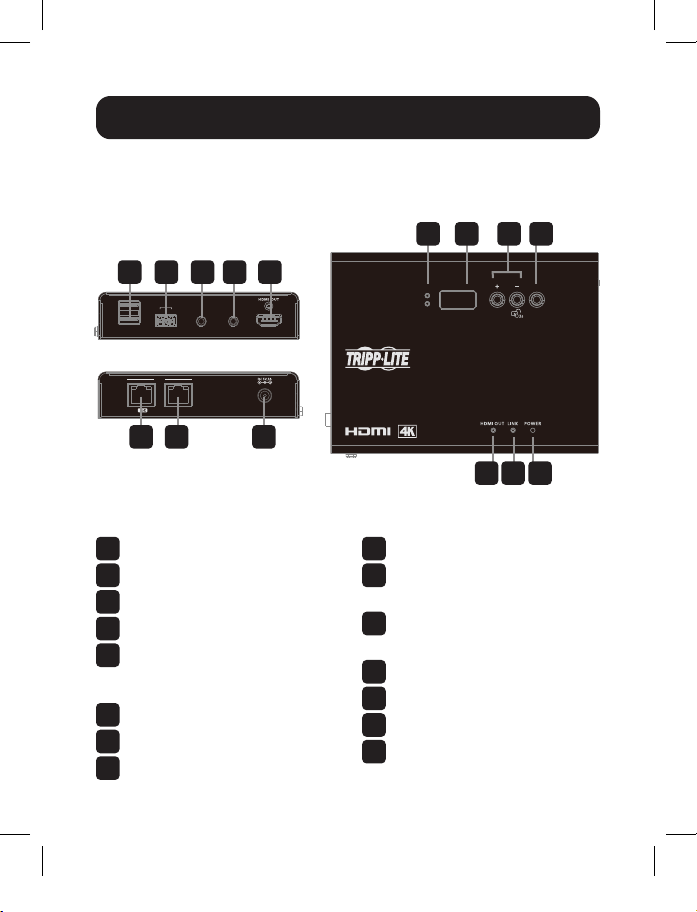

B162-100-POE (Receiver)
Front View Top View
Product Features
Front View
1USB Type-A Ports
2RS-232 Serial Port
3Bidirectional IR Port
4Audio Output Port
5HDMI Output Port
Rear View
6LAN Port 1 with PoE
7LAN Port 2
8Power Jack
Top View
9Tx / Rx LEDs
10
ID Display Panel
11
Prev (+) / Next (-)
Buttons
12
Tx / Rx Switch Button
13
HDMI Out LED
14
Link LED
15
Power LED
Rear View
Tx
Rx
ID N UMB ER Tx / Rx
4K HDMI Over IP Extender with POE
B162-100-POE
Receiver
USB
RS-232
Tx GND Rx
IR AU DIO
OUT
LA N
1 2
1 2 3 4 5
6 7 8
13 14 15
9 10 11 12
21-06-096-933E85-Book.indb 421-06-096-933E85-Book.indb 4 10/18/2021 1:55:37 PM10/18/2021 1:55:37 PM

5

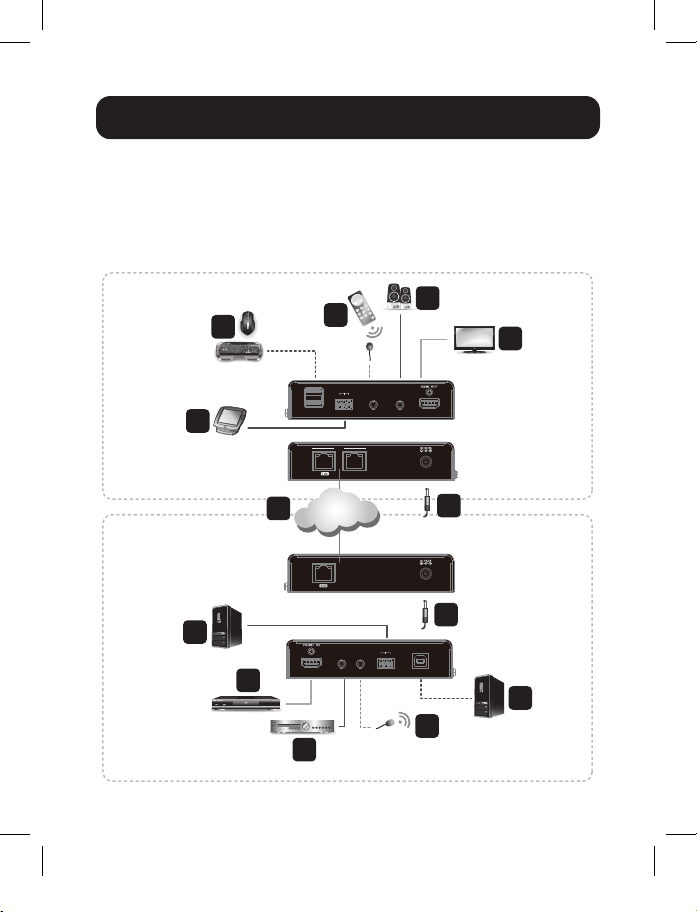

Installation
B162-100-POE Receiver
B162-001-POE
Transmitter
Before starting the installation, decide your network architecture
and configuration. For more information, refer to the complete
product Owner’s Manual, available at tripplite.com/support/
downloads. If further assistance is required, contact
tripplite.com/support.
USB
RS-232
Tx GND Rx
IR AU DIO
OUT
LAN
1 2
AUDIO
IN
IR US B
RS-232
Tx GND Rx
LAN
Internet/
LAN
1
4
4
7
7
2
5
5
3b
3b
3a
6
6
21-06-096-933E85-Book.indb 521-06-096-933E85-Book.indb 5 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

6
Installation
1Connect a video source device to the HDMI Input Port on the
B162-001-POE transmitter using an HDMI cable.
2Connect a video display device to the HDMI Output Port on
the B162-100-POE receiver using an HDMI cable.
3Set up the units as follows:
Point-to-point setup:
3a
Connect one end of an Ethernet cable to the LAN Port
on the transmitter and the other end of the cable to the
receiver’s LAN Port.
3b
Plug the power adapters into the Power Jacks on the
transmitter and receiver, and into an AC wall outlet,
Tripp Lite Surge Protector, PDU or UPS.
Multipoint-to-multipoint setup:
3a
Install the transmitter and receiver to the same local
area network by connecting the LAN Ports to an Ethernet
switch using Ethernet cables.
3b
The unit can be powered on through an Ethernet cable
if connected to a PoE-supported Ethernet switch.
Alternatively, plug the power adapters into the Power
Jacks on the transmitter and receiver, and into an AC wall
outlet, Tripp Lite Surge Protector, PDU or UPS.
Note: When power is supplied from both the power adapter and
the Ethernet cable (PoE), the supply from the power adapter will
be prioritized.
21-06-096-933E85-Book.indb 621-06-096-933E85-Book.indb 6 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

7
Installation
4(Optional) To bypass RS-232 signals, connect your computer
or control system to the RS-232 Serial Ports on the units.
Notes:
• You can connect RS-232 serial devices/peripherals, such as
touchscreens and barcode scanners.
• To save bandwidth and optimize video performance, the USB
and RS-232 ports are disabled by default.
5(Optional) To bypass IR signals, connect the IR Receiver to
the Bidirectional IR on the transmitter or receiver (depending
on where you want to operate the remote control) and the IR
Transmitter to the units.
6(Optional) To use a keyboard and mouse, connect your USB
peripherals to the receiver’s USB Type-A Ports and your PC to
the transmitter’s USB Type-B Port.
7(Optional) Connect your audio devices to the Audio Input Port
on the transmitter and the Audio Output Port on the receiver.
21-06-096-933E85-Book.indb 721-06-096-933E85-Book.indb 7 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

8
The extender operates over an IP LAN. Installing the units on a
network allows point-to-point, point-to-multipoint and multipoint-
to-multipoint setups by connecting multiple transmitter/receiver
B162-XXX-POE devices on the same local area network. The
extender can be used as a video matrix when connected to
the LAN via an Ethernet switch, enabling you to add multiple
transmitters and receivers to the setup.
Note: Make sure to use an Ethernet switch that supports IGMP. For more
information, refer to the complete product Owner’s Manual, available at
tripplite.com/support/downloads. If further assistance is required, contact
tripplite.com/support.
IP LAN Operation
21-06-096-933E85-Book.indb 821-06-096-933E85-Book.indb 8 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

9
1. Assign an ID to all units.
AUse the Prev (+) / Next (-) Buttons to assign an ID to all
transmitter units.
BUse the Prev (+) / Next (-) Buttons to assign an ID to all
receiver units.
Press the Tx / Rx Switch Button to switch the control to Rx.
The Rx LED will illuminate.
2. Assign a source to each of the transmitter units.
APress the Tx / Rx Switch Button to switch the control to
Tx. The Tx LED will illuminate.
BUse the Prev (+) / Next (-) Buttons to assign an input to
the units.
3. For remote management, the extender can be configured
and managed using the web GUI (DVOE Manager) or the CLI
Commands.
Web GUI (DVOE Manager) Login Procedure:
1. Download the IP Installer Utility from tripplite.com/support.
2. Use the utility to look up the IP address of your unit.
3. Open a web browser (such as Chrome) and enter one of the
IP addresses you obtained using the IP Installer Utility.
4. Select Administrator or User and type password in the
Password field.
Software Configuration
21-06-096-933E85-Book.indb 921-06-096-933E85-Book.indb 9 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

10
1-Year Limited Warranty
TRIPP LITE warrants its products to be free from defects in materials
and workmanship for a period of one (1) year from the date of initial
purchase. TRIPP LITE’s obligation under this warranty is limited to
repairing or replacing (at its sole option) any such defective products. To
obtain service under this warranty, you must obtain a Returned Material
Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE
service center. Products must be returned to TRIPP LITE or an authorized
TRIPP LITE service center with transportation charges prepaid and must
be accompanied by a brief description of the problem encountered
and proof of date and place of purchase. This warranty does not apply
to equipment which has been damaged by accident, negligence or
misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit
limitation or exclusion of implied warranties; therefore, the aforesaid
limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE
FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP
LITE is not liable for any costs, such as lost profits or revenue, loss of
equipment, loss of use of equipment, loss of software, loss of data, costs
of substitutes, claims by third parties, or otherwise.
Warranty & Product Registration
21-06-096-933E85-Book.indb 1021-06-096-933E85-Book.indb 10 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

11
Warranty & Product Registration
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product.
You’ll be automatically entered into a drawing for a chance to win a FREE
Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply.
See website for details.
WEEE Compliance Information for Tripp Lite Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE)
Directive and implementing regulations, when customers buy new
electrical and electronic equipment from Tripp Lite they are entitled
to:
• Send old equipment for recycling on a one-for-one, like-for-like
basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately
becomes waste
WARNING
Use of this equipment in life support applications where failure of this
equipment can reasonably be expected to cause the failure of the life
support equipment or to significantly affect its safety or effectiveness is
not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are
subject to change without notice. Photos and illustrations may differ
slightly from actual products.
21-06-096-933E85-Book.indb 1121-06-096-933E85-Book.indb 11 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

12
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-06-096 93-3E85_RevA
21-06-096-933E85-Book.indb 1221-06-096-933E85-Book.indb 12 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

13
MÁS DE
AÑOS
Extensor HDMI 4K sobre
IP con Energía sobre la
Ethernet
Modelos: B162-001-POE, B162-100-POE
1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support
Copyright © 2021 Tripp Lite. Todos los derechos reservados.
Guía de Inicio Rápido
English 1 • Français 25
21-06-096-933E85-Book.indb 1321-06-096-933E85-Book.indb 13 10/18/2021 1:55:38 PM10/18/2021 1:55:38 PM

14
• Transmisor B162-001-POE o Receptor B162-100-POE
• Bloque de Terminales RS-232
• Adaptador de Corriente
(Entrada: 100V ~ 240V, 50Hz / 60Hz, 0.5A; Salida: 5V 3A)
• Almohadillas para las Patas (x4)
• Guía de Inicio Rápido
• Cables HDMI de Alta Velocidad Serie P568
• Cables Cat6 con PoE de la Serie N201P
• Cables de Extensión USB 2.0 de la Serie U024 o Cables de
Extensión USB 3.0 de la Serie U324
Contenido del Empaque
Accesorios Opcionales
21-06-096-933E85-Book.indb 1421-06-096-933E85-Book.indb 14 10/18/2021 1:55:39 PM10/18/2021 1:55:39 PM

15
B162-001-POE (Transmisor)
Vista Frontal Vista Superior
Características del Producto
Vista Frontal
1Puerto de Entrada HDMI
2Puerto de Entrada de
Audio
3Puerto IR Bidireccional
4Puerto Serial RS-232
5Puerto USB Tipo B
Vista Posterior
6Puerto LAN con PoE
7Enchufe de Alimentación
Vista Superior
8Panel de Visualización
de ID
9Botones Prev (+) /
Siguiente (-)
10
LED de Enlace
11
LED de Encendido
Vista Posterior
ID N UMB ER
POW ER
LI NK
4K HDMI Over IP Extender with POE
B162-001-POE
Transmitter
AUDIO
IN
IR U SB
RS-232
Tx GND Rx
LA N
1 2 3 4 5
6 7
8 9
10 11
21-06-096-933E85-Book.indb 1521-06-096-933E85-Book.indb 15 10/18/2021 1:55:39 PM10/18/2021 1:55:39 PM

16
B162-100-POE (Receptor)
Vista Frontal Vista Superior
Características del Producto
Vista Frontal
1
Puertos USB Tipo A
2
Puerto Serial RS-232
3
Puerto IR Bidireccional
4
Puerto de Salida de Audio
5
Puerto de Salida HDMI
Vista Posterior
6
Puerto LAN 1 con PoE
7
Puerto LAN 2
8
Enchufe de Alimentación
Vista Superior
9
LED Tx / Rx
10
Panel de Visualización de
ID
11
Botones Prev (+) /
Siguiente (-)
12
Botón del Switch Tx / Rx
13
LED de Salida HDMI
14
LED de Enlace
15
LED de Encendido
Vista Posterior
Tx
Rx
ID N UMB ER Tx / Rx
4K HDMI Over IP Extender with POE
B162-100-POE
Receiver
USB
RS-232
Tx GND Rx
IR AU DIO
OUT
LA N
1 2
1 2 3 4 5
6 7 8
13 14 15
9 10 11 12
21-06-096-933E85-Book.indb 1621-06-096-933E85-Book.indb 16 10/18/2021 1:55:39 PM10/18/2021 1:55:39 PM

17
Instalación
Receptor B162-100-POE
Transmisor
B162-001-POE
Antes de iniciar la instalación, decida la arquitectura y
configuración de su red. Para información detallada, consulte
el Manual del Propietario del producto completo, disponible
en tripplite.com/support/downloads. Si se requiere asistencia
adicional, póngase en contacto con tripplite.com/support.
USB
RS-232
Tx GND Rx
IR AU DIO
OUT
LAN
1 2
AUDIO
IN
IR US B
RS-232
Tx GND Rx
LAN
Internet/
LAN
1
4
4
7
7
2
5
5
3b
3b
3a
6
6
21-06-096-933E85-Book.indb 1721-06-096-933E85-Book.indb 17 10/18/2021 1:55:39 PM10/18/2021 1:55:39 PM

18
Instalación
1
Usando un cable HDMI, conecte un dispositivo de fuente de
vídeo al puerto de entrada HDMI del transmisor B162-001-POE.
2
Usando un cable HDMI, conecte un dispositivo de visualización
de video al puerto de salida HDMI en el receptor B162-100-POE.
3
Configure las unidades como sigue:
Configuración punto a punto:
3a
Conecte un extremo de un cable Ethernet al puerto LAN en
el transmisor y el otro extremo del cable al puerto LAN del
receptor.
3b
Enchufe los adaptadores de corriente en los enchufes
de alimentación en el transmisor y receptor y en un
tomacorriente de pared de CA,
supresor de sobretensiones, PDU o UPS de Tripp Lite.
Configuración multipunto a multipunto:
3a
Instale el transmisor y el receptor en la misma red de área
local conectando los puertos LAN a un switch Ethernet
usando cables Ethernet.
3b
La unidad puede alimentarse mediante un cable Ethernet
si se conecta a un switch Ethernet que soporte PoE.
Alternativamente, enchufe los adaptadores de corriente
en los Conectores de Alimentación en el transmisor y
receptor y en un tomacorriente de pared de CA, supresor de
sobretensiones, PDU o UPS de Tripp Lite.
Nota: Cuando se suministra energía desde el adaptador de
corriente y el cable Ethernet [PoE], se priorizará la alimentación del
adaptador de corriente.
21-06-096-933E85-Book.indb 1821-06-096-933E85-Book.indb 18 10/18/2021 1:55:39 PM10/18/2021 1:55:39 PM

19
Instalación
4
(Opcional) Para derivar señales RS-232, conecte su
computadora o sistema de control a los puertos seriales RS-232
en las unidades.
Notas:
• Puede conectar dispositivos o periféricos seriales RS-232, como
pantallas táctiles y lectores de códigos de barras.
• Para ahorrar ancho de banda y optimizar el rendimiento de video, los
puertos USB y RS-232 están desactivados de forma predeterminada.
5
(Opcional) Para derivar señales IR, conecte el receptor IR al IR
bidireccional en el transmisor o receptor (dependiendo de donde
desee operar el control remoto) y el transmisor IR a las unidades.
6
(opcional) Para usar un teclado y mouse, conecte sus periféricos
USB a los puertos USB Tipo A del receptor y su PC al puerto USB
Tipo B del transmisor.
7
(Opcional) Conecte sus dispositivos de audio al Puerto de
Entrada de Audio en el transmisor y el Puerto de Salida de Audio
en el receptor.
21-06-096-933E85-Book.indb 1921-06-096-933E85-Book.indb 19 10/18/2021 1:55:39 PM10/18/2021 1:55:39 PM

20
El extensor opera sobre una LAN IP. La instalación de las
unidades en una red permite configuraciones punto a punto,
punto a multipunto y multipunto a multipunto, conectando
múltiples dispositivos transmisor / receptor B162-XXX-POE en
la misma red de área local. El extensor puede usarse como
una matriz de video cuando se conecta a la LAN mediante un
switch Ethernet, permitiéndole agregar múltiples transmisores y
receptores a la configuración.
Nota: Asegúrese de usar un switch Ethernet que soporte IGMP. Para
información detallada, consulte el Manual del Propietario del producto
completo, disponible en tripplite.com/support/downloads. Si se requiere
asistencia adicional, póngase en contacto con tripplite.com/support.
Operación IP LAN
21-06-096-933E85-Book.indb 2021-06-096-933E85-Book.indb 20 10/18/2021 1:55:39 PM10/18/2021 1:55:39 PM
