Tripp Lite NGI-U05 User manual

1
Unmanaged DIN-Mountable
Industrial 10/100/1000
Gigabit Ethernet Switches
Models: NGI-U05, NGI-U08, NGI-U16
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Owner’s Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Este manual está disponible en español en la página de Tripp Lite:
tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite :
tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website
verfügbar: tripplite.com

2
• NGI-U05, NGI-U08 or NGI-U16 10/100/1000 Ethernet Switch
• DIN Rail-Mounting Clip (Preinstalled)
• Wall-Mount Mask (Preinstalled on NGI-U05 Only)
• Owner’s Manual
Package Contents
Product Features
• 5 (NGI-U05), 8 (NGI-U08) or 16 (NGI-U16) auto-negotiable
10/100/1000 Mbps RJ45 ports
• Supports 10/100/1000Base-T, Full Duplex and Auto
MDI/MDI-X crossover function
• Rugged high-strength case
• Industrial temperature switch models support operating
temperature range of -40°F to 167°F (-40°C to 75°C)
• Easy-to-read LEDs indicate connection and activity status for
each port
• Meets the following IEEE standards:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-T
• IEEE 802.3ab 1000Base-T
• IEEE 802.3 Auto Negotiation
• IEEE 802.3x Flow Control

3
Product Features
• Supports MAC address auto-learning and auto-aging
• NGI-U16 supports EIP/QoS/ Flow and Storm Control
Note: Contact tripplite.com/support for information on availability of
enhanced functionality.
• Preinstalled durable rail clip mounts firmly to any standard 35
mm DIN rail
Note: Only NGI-U05 is both DIN and wall mountable.
• Simple plug-and-play installation and operation with no
configuration required
Optional Accessories
• N001-Series Cat5e 350 MHz Snagless UTP Cables
• N002-Series Cat5e 350 MHz UTP Ethernet Cables
• N200-Series Cat6 Gigabit Molded UTP Ethernet Cables
• N201-Series Cat6 Gigabit Snagless Molded UTP Ethernet
Cables

4

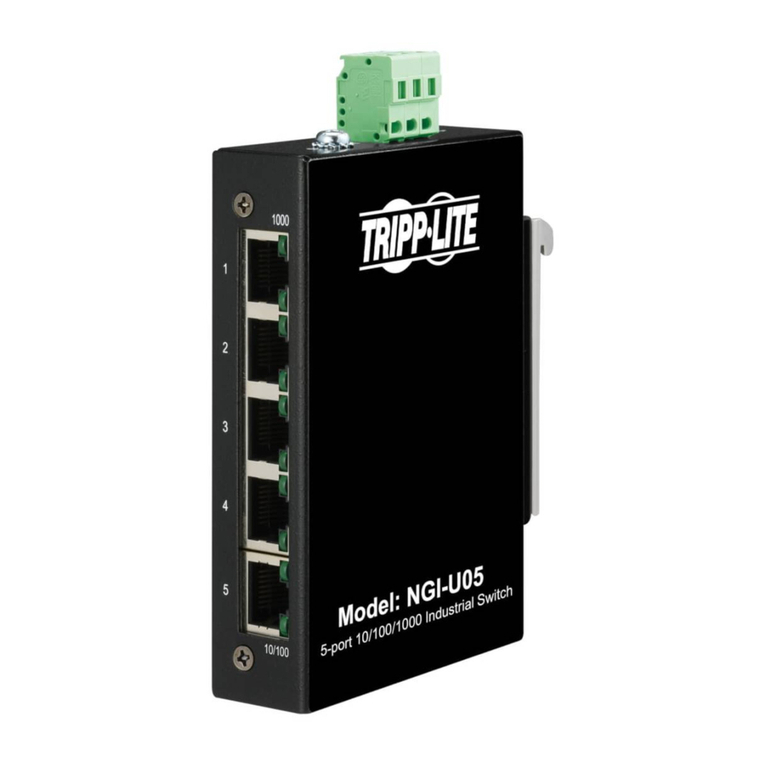

NGI-U05
5-Port Unmanaged Industrial Gigabit 10/100/1000 Ethernet
Switch, Plug and play – Din and Wall Mountable
NGI-U08
8-Port Unmanaged Industrial Gigabit 10/100/1000 Ethernet
Switch, Plug and play – DIN Mountable
Product Overview
Top View Front View Side View
10/100
1000 Mbps
Grounding
Screw
Power
Top View Front View
DIN-Rail
DIP Switches
Grounding Screw
Power Input
Terminal Block
ALM
RPS
PWR
1000Mbps
LNK/ACT
Grounding
Screw

5
Product Overview
NGI-U16
16-Port Unmanaged Industrial Gigabit 10/100/1000 Ethernet
Switch, Plug and Play, DIN Mountable
Top View Front View
Grounding Screw
DIN Rail
LNK/ACT
PWR
1000 Mbps
Power Input
Terminal Block
Grounding
Screw

6
ATTENTION: Switch models NGI-U05, NGI-U08 and
NGI-U16 are open-type devices and shall be DIN-
rail mounted. Model NGI-U05 may be wall mounted
(optional) in cabinet or enclosure. The ambient
temperature should not exceed 167°F (75°C).
Mounting the Switch
Place the NGI-Series switch on the DIN rail from above using the
slot. Push the front of the switch toward the mounting surface
until it snaps into place with the sound of a click.
Dismounting the Switch
Press the switch from the top, then pull out the lower edge of
the switch to remove it from the DIN rail.
DIN-Rail Mounting/Dismounting Instructions
Mounting the Switch Removing the Switch
1. Push
1. Push
2. CLICK2. CLICK

7
DIN Mounting/Dismounting Instructions
Wall-Mounted Mask (NGI-U05 Only)
1. Mount the switch by using mounting holes on the wall at the
appropriate places.
Mounting Holes
Drawing of NGI-U05
Screw Installation
Distance
1.5 mm - 3 mm
ATTENTION: A corrosion-free DIN mounting rail is
advisable. When mounting the switch, be sure to
allow enough space between devices to install
the cabling and to ensure proper airflow.
Mounting holes
for switch
50 mm 50 mm

8
2. The switch can be wall mounted either vertically or horizontally.
Note: Horizontal mounting is not evaluated by UL.
DIN Mounting/Dismounting Instructions
Mounting direction
with screw
Straight Direction
Installation Horizontal Direction
Installation
(Horizontal direction is
not evaluated by UL)
Mounting direction
with screw

9
Horizontal Direction
Installation
(Horizontal direction is
not evaluated by UL)
WARNING: Safety measures should be taken before connecting
the power cable. Turn off the power before connecting modules
or wires. The correct power supply voltage is listed on the product
label. Check the voltage of your power source to make sure you
are using the correct voltage. DO NOT use a voltage greater than
what is specified on the product label. Calculate the maximum
possible current in each power wire and common wire. Observe
all electrical codes dictating the maximum current allowable for
each wire size. If current exceeds the maximum rating, the wiring
can overheat, causing serious damage to your equipment.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross, make sure
the wires are perpendicular at the intersection point.
Note: Do not run signal or communications wiring and power wiring
through the same wire conduit. To avoid interference, wires with
different signal characteristics should be routed separately.
• You can use the type of signal transmitted through a wire to
determine which wires should be kept separate. Wiring that
shares similar electrical characteristics can be bundled together.
• You should separate input wiring from output wiring.
• Be advised that you should label the wiring to all devices in
the system.
Wiring Requirements

10
Wiring Power Input
NGI-U05 with 3-Pin Terminal Block
Check the polarity while connecting. Top view of the Terminal
Block is shown in the figure below:
Wiring Requirements
Power
Grounding Screw
Power Input
Terminals
Grounding
Terminals

11
To insert power wire and connect the 9~48VDC at a maximum of
0.5A DC power to the power terminal block, follow these steps:
• Use a flat-head screwdriver to loosen the wire-clamp screws.
• Insert the negative/positive DC wires into the ( - / + )
terminals, respectively.
• Tighten the wire-clamp screws to prevent the wires from
loosening.
ATTENTION: Use a power supply from 9~48VDC.
The device power shall be supplied
by LPS (Limited Power Source) circuit.
NGI-U08 with 6-Pin Terminal Block
Use “PWR” for the primary power input and “RPS” for the
redundant power input.
Wiring Requirements
-
-
+
+
ALM
RPS
PWR

12
Wiring Requirements
CAUTION:
• Use copper conductors only.
• Wiring cable temperature should support at least 220°F (105°C).
• Tighten the wire to a torque value of 5 lb.-in.
• The wire gauge for the terminal block should range between
12 and 24 AWG.
To insert power wire and connect the 9~VDC at a maximum of
1A DC power to the NGI-U08 power terminal block, follow these
steps:
• Use a flat-head screwdriver to loosen the wire-clamp screws.
• Insert the negative/positive DC wires into the PWR-/PWR+
terminals, respectively.
• Tighten the wire-clamp screws to prevent the wires from
loosening
ATTENTION: Use a power supply from 9~57VDC for
NGI-U08. The device power shall be supplied
by LPS (Limited Power Source) circuit.
Cabling

13
Wiring Requirements
Wiring the Relay Contact (ALM) –
only for device with 6-pin terminal block
The NGI-U08 (device with 6-pin terminal block) has one set of
relay alarm output. This relay contact uses two contacts of the
terminal block on the NGI-U08 top panel.
The two contacts of the 6-pin terminal block connector are used
to detect user-configured events. The two wires attached to the
fault contacts form an open circuit when a user-configured event
is triggered. If a user-configured event does not occur, the fault
circuit remains closed.
-
-
+
+
ALM
RPS
PWR
External
Power
Load
Relay rating: 24V 1A

14
DIP Switch Settings
The switch supports an “Alarm Relay Output” function. You
can connect an alarm light or a buzzer. When events occur that
enabled by the DIPs, the switch will operate the relay ON to
enable the alarm light or a buzzer. The load can be an “alarm
light” a “buzzer” or other equipment.
User configurable switches:
• PWR or RPS “DIP ON”: when there is a power loss, the switch
will operate the “Relay ON.” If connecting only to single power
and a power loss occurs, the switch system will shut down and
will not operate the “Relay ON.”
• Port 1~ Port X “DIP ON”: when the port “Link is down,” the
switch will operate the “Relay ON.” It can help to inform the
link-down events that happened.
• It is not required to connect alarm equipment to the Alarm
Relay output port. The switch has an ALARM LED indicator on
the front panel.
• Default settings for the DIP switch are set to OFF positions.
Wiring Requirements

15
NGI-U08 DIP Switches
PWR ON: Primary power alarm reporting is enabled
OFF: Primary power alarm reporting is disabled
RPS ON: Redundant power alarm reporting is enabled
OFF: Redundant power alarm reporting is disabled
P1 ON: Port 1 link alarm reporting is enabled
OFF: Port 1 link alarm reporting is disabled
P2 ON: Port 2 link alarm reporting is enabled
OFF: Port 2 link alarm reporting is disabled
P3 ON: Port 3 link alarm reporting is enabled
OFF: Port 3 link alarm reporting is disabled
P4 ON: Port 4 link alarm reporting is enabled
OFF: Port 4 link alarm reporting is disabled
P5 ON: Port 5 link alarm reporting is enabled
OFF: Port 5 link alarm reporting is disabled
P6 ON: Port 6 link alarm reporting is enabled
OFF: Port 6 link alarm reporting is disabled
P7 ON: Port 7 link alarm reporting is enabled
OFF: Port 7 link alarm reporting is disabled
P8 ON: Port 8 link alarm reporting is enabled
OFF: Port 8 link alarm reporting is disabled
Wiring Requirements
1 PWR
2 RPS
3 P1
4 P2
5 P3
6 P4
7 P5
8 P6
9 P7
10 P8

16
CAUTION:
• Use copper conductors only.
• Wiring cable temperature should support at least 220°F (105°C).
• Tighten the wire to a torque value 4.5 lb.-in.
• The wire gauge for the terminal block should range between
12 and 24 AWG.
To insert power wire and connect the 12~48VDC at a maximum
of 1.5A DC power to the power terminal block, follow these steps:
• Use a flat-head screwdriver to loosen the wire-clamp screws.
• Insert the negative/positive DC wires into the PWR-/PWR+
terminals, respectively.
• Tighten the wire-clamp screws to prevent the wires from loosening.
ATTENTION: Use a power supply from 12~48VDC.
The device power shall be supplied
by LPS (Limited Power Source) circuit.
Cabling
Wiring Requirements
12~48VDC
Terminal Block
-
+
PWR
NGI-U16 with 2-Pin
Terminal Block
You can use “PWR” for power input.
Top view of the Terminal Block
is shown in the figure at right.

17
Grounding the NGI Series Switch Models
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection
from the ground screw to the grounding surface prior to
connecting devices.
ATTENTION: This product is intended to be
mounted to a well-grounded mounting surface,
such as a metal panel.
Cabling
Connect one end of an Ethernet/RJ45 cable into the Ethernet
port of the NGI-U05, NGI-U08 or NGI-U16. Connect the other
end to a network device. Ports 1 through 5, 8 or 16 on the
switch support Fast Ethernet, as well as Gigabit Ethernet
(10/100/1000Base-T ports).
All the RJ45 ports on the NGI-U05 and NGI-U08 support auto-
negotiation and Auto MDI/MDI-X to eliminate the need for
crossover cabling.
Note: Category 5e or above cable should be used.

18
LED Indicators
NGI-U05
PWR
(Green)
Illuminated Power On by terminal block PWR
Off Terminal block PWR failed or is not available
1000
(Green)
Illuminated Link speed at 1000 Mbps
Blinking Data is transmitting/receiving
Off Link speed at 10/100 Mbps or link failed
10/100
(Green)
Illuminated Copper port link-up 10/100 Mbps
Blinking Data is transmitting/receiving
Off Link speed at 1000 Mbps or link failed

19
LED Indicators
NGI-U08
PWR
(Green)
Illuminated Power On by terminal block PWR or DC jack
Off Terminal block PWR/DC jack failed or is not
available
RPS
(Green)
Illuminated Power on by terminal block RPS
Off Terminal block RPS failed or is unavailable
ALM
(Red)
Illuminated PWR/RPS failed or unavailable
Off No power or DIP function is disabled
1000M
(Green)
Illuminated Link speed at 1000 Mbps
Off Link speed at 10/100 Mbps
LNK/ACT
(Green)
Illuminated Copper port link-up 1000 Mbps
Blinking Data is transmitting/receiving
Off Port disconnected or link failed

20
LED Indicators
NGI-U16
PWR
(Green)
Illuminated Power is supplied to switch
Off Power off or failed
1000
(Green)
Illuminated Link speed at 1000 Mbps
Off Link speed at 10/100 Mbps
LNK/ACT
(Green)
Illuminated Ethernet link-up
Blinking Data is transmitting/receiving
Off Port disconnected or link failed
ATTENTION: If the equipment is used in a manner
not specified, the protection provided by the
equipment may be impaired.
ATTENTION: This device complies with Part 15
of the FCC rules. Operation is subject to the
following conditions:
1.This device may not cause harmful interference.
2.This device must accept any interference
received including interference that may cause
undesired operation.
