Triton LB18-B Guide

Installation & Assembly Instructions
Please contact Customer Service with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙ [e-mail]
For a full line of products visit www.tritonproducts.com 1
Read all instructions completely before installing. Should you have any questions about your
installation, please call Customer Service at 440-248-5480
•Boards can be positioned side by side or in separate location in vertical or horizontal mounting
positions.
•LocBoards fasten directly to concrete, solid wood and hollow wall structures without the use of
furring strips.
•LocBoards are designed with and internal mounting flanges that keeps mounting hardware
hidden from sight and adds to the board’s structural integrity and holding power.
•If installing to bare studs you will need to install wood headers before completing installation.
•You will need mounting hardware to complete your installation. (NOT SUPPLIED)
Hardware needed for installation: (NOTE DO NOT USE Tapered Head Screws.)
1. For hollow or concrete block wall: Quantity=12 Each #8- 2” long Phillips pan head machine screws
and #8 plastic commercial grade wall anchors. Head diameter size of screws should not exceed
.35” in order to fit through square holes in front of boards.
2. For wood stud or wood headers: Use #8-2” long wood screws with Phillips pan heads.
Tools needed for Installation:
Level, Marker, 7/32” standard or masonry drill bit, 7/64” std bit for wood studs, #2 Phillips head
screwdriver, power drill.
LocBoard Installation:
For drywall, hollow concrete wall installation: Use (12 each) plastic drywall anchors and #8
Phillips head wood screws (NOT SUPPLIED WITH THIS SYSTEM). If installing to bare studs you will
need to install wood headers before completing installation using wood screws only. NOTE:
Always install one board at a time.
1. Select wall location for your LocBoards and the desired vertical or horizontal mounting pattern
you wish to mount in. When selecting a location for mounting always make sure that mounting
locations do not fall in line with, are adjacent to, or interfere with any internal or external
electrical wiring, wall mounted or built-in electrical appliances, heaters, gas lines, ductwork or
plumbing inside of wall, or are located on the opposite side of any wall surface from where you
are mounting. If you are unsure, please consult a professional before proceeding with
installation.

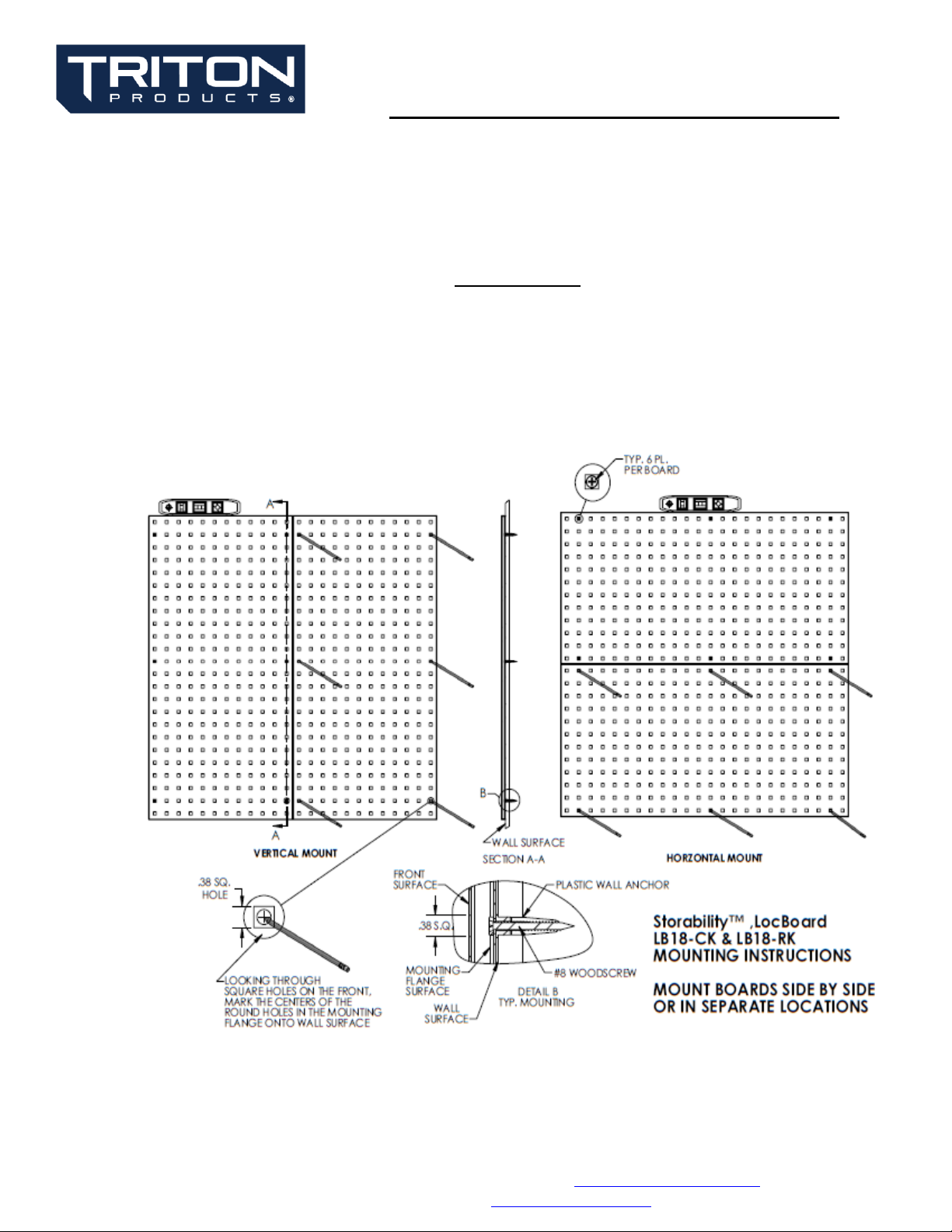

2. (Using Images on Back) There are three screw holes in each mounting flange on the back of your
LocBoard that are accessible through the square holes on the front.
3. Place 1 LocBoard with mounting flanges flat against wall surface. While using a level to make
sure your board is straight and squared, looking through the square holes on the front of the
board, mark the centers of all 6 screw holes onto your wall surface. Note: Installation for first
board should be completed before marking mounting holes for the second board.
4. Pre-drill holes for #8 wall anchors marked in Step 3 using 7/32" standard or masonry drill bit
depending on wall surface. If you hit a wood stud stop drilling and using a 7/64” drill bit create a
pilot hole for the wood screw Note: Avoid over drilling holes. (Plastic wall anchors should fit
snug.)
5. Insert plastic wall anchors in each hole drilled in Step 4 except where you drilled 7/64” pilot hole
for wood stud.
LB18-B, BK, G, W - (2) 18” x 36” x 9/16” LocBoard® Pegboards

Installation & Assembly Instructions
Please contact Customer Service with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙ [e-mail]
For a full line of products visit www.tritonproducts.com 2
6. Align mounting holes in wall surface with screw holes in back flanges. Insert wood screws
through the front square opening and into pre-installed plastic wall anchors. Tighten all screws.
The head of each screw should not be visible and will be tight against inside surface of each
mounting flange.
7. Repeat Steps 2-6 for second LocBoard installation.
Hook Installation:
Insert hooks back locking tabs into front square openings of tool board, slide securely into
place and complete installation by installing the required number of LocScrews system with
hooks. (Hooks not supplied with LB18.) Each LocHook™ has the unique capability of being
securely mounted vertically or horizontally. LocBoards must be securely fastened to sound
wall structures to support heavy load.

Installation & Assembly Instructions
Please contact Customer Service with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙ [e-mail]
For a full line of products visit www.tritonproducts.com 3
LIMITED LIFETIME WARRANTY: Triton Global Products are backed by a Limited Lifetime Warranty to the
original owner that our products are free from defects in material and workmanship. If a product is
defective when used as intended under normal conditions, Triton will replace the product, send a
replacement part or issue a refund (at our option) when the consumer provides the original proof of
purchase along with a full description of the defect, to: Triton Global Products 30700 -D Carter Street
Solon OH 44139 All of our steel products have been engineered to last a lifetime.
EXCLUSIONS TO LIMITED LIFETIME WARRANTY:
− Excludes Normal Wear and Tear.
− Excludes Cosmetics and Aesthetics.
− Is Void if Products were improperly installed or used incorrectly (i.e., Not per Included Instructions).
− Excludes Plastic and any other Non-Metal based Products.
− Limited Lifetime Warranty is Non-Transferable and only applies to the original purchaser.
− Original Proof of Purchase is required for all warranty claims.
