Triton LPC-1 Guide

Installation & Assembly Instructions
Please contact Customer Service with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙ [e-mail]
For a full line of products visit www.tritonproducts.com 1
Read all instructions completely before installing. Should you have any questions about your installation, please call
Customer Service at 440-248-5480.
Inventory and inspect all components before starting assembly (Use Parts Call Out figure 1-1 on page 3).
Report any missing parts and/or damaged goods within 5 days from receipt.
QTY Description
(1) Aluminum Bottom Tray
(2) Left Hand Aluminum Corner Angle brackets
(1) Right Hand Aluminum Corner Angle bracket with holes for 4 handle holes with fittings
(1) Right Hand Aluminum Corner Angle bracket without attachment handle holes
(2) Rail End Brackets interchangeable (With 4 preinstalled threaded fasteners)
(1) Top Rail (48” Long)
(2) Internal Center Braces (With 90° Bends on Ends)
(1) Cart Handle
(2) Fixed Casters
(2) Swivel Casters
(4) Louvered Panels 24”x48”
(72) 1/4"-20 X 3/4” Truss Head Bolts
(16) Lock Nuts for caster installation
(4) 1/4"-20 x 1/2" Tapered Head Screws (For Handle Attachment)
(16) 1/4" Flat Washers
Note: While attaching components it’s important to remember not to fully tighten any bolt or screw until system is fully
assembled. Freedom of movement will allow for proper alignment between bolts and their associated preinstalled
threaded fasteners. For assembly purposes, the END will always be the narrowest dimension of the cart.
Assembly:
1. Locate the (4) corner angle brackets. (Using Parts Call Out figure 1-1 page 3 and close-up Figure 2-3 on page 4) Identify
the left hand from the right hand angle bracket and their top edge from their bottom edge.) The top’s edge can be
identified by its 2 bolt holes when looking from the end view.
2. Position the bottom tray with its lip facing up and one end facing you.

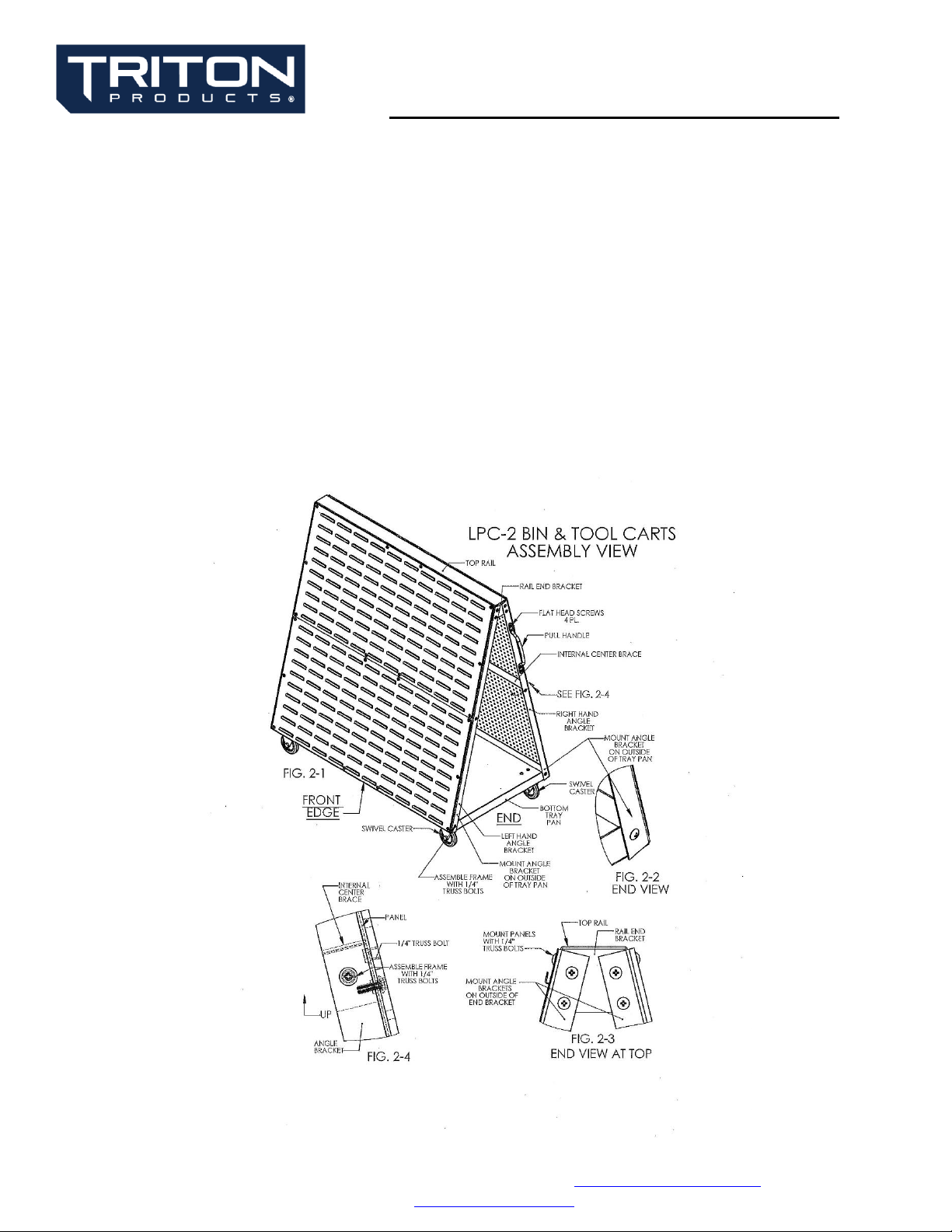

3. (Refer to Figures 2-1, 2-2 and 2-3) Note: All corner angle brackets will install outside of the bottom tray. Starting with a
left corner angle bracket and using ¼” truss head bolt align end bolt hole in tray with pre-installed fastener with
through-hole in angle bracket. Insert bolt and hand tighten (Do not tighten all the way). From the front edge of the
same angle bracket install a second truss head bolt in the same manner. Repeat step #3 for each corner angle bracket.
4. (Refer to Figure 2-3) Using one rail end bracket; position rail end bracket inside of both the left and right installed
corner angle brackets with preinstalled fasteners facing away from you. Align through holes in corner angle bracket
with preinstalled fasteners on rail end bracket. Partially install (4) ¼” bolts. Install bolts about halfway only. (Repeat
steps 2 thru 4 for opposite end.)
5. (Refer to Figure 2-1 and 2-3) Installing Top Rail: Top rail will be positioned between corner angle brackets installed at
each end. Insert top rail from the underneath at slight angle and let set on bolts/fasteners of rail end brackets. Using
holes located on the top front edge of corner angle bracket insert truss head bolt through corner angle and into corner
threaded insert in top rail. (Repeat for all four top corners.)
LPC-1 - 48"L x 53"H x 27"W Louvered Panel/DuraBoard Mobile Tool Cart
(rev 04/13)

Installation & Assembly Instructions
Please contact Customer Service with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙ [e-mail]
For a full line of products visit www.tritonproducts.com 2
6. Installation of internal center supports (Refer to Figures 1-1 parts call out, 2-1 and 2-4). Center support braces will be
placed inside of angle brackets and run the length of the cart. (figure 2-4) Each center support will be installed with
their flat edges without bolts facing up. From the end of each angle bracket install truss head bolt with center point at
each end. (Repeat for opposite end.)
7. (Figure 2-3) Tighten all (4) top end bolts used to attach corner angle brackets to rail end brackets at both ends.
8. (Figure 2-1) Pull handle installation: Locate the right corner angle bracket with the 4 extra holes at the top. Install pull
handle using ¼” tapered head bolts. (Note: handle will be positioned at end of tool cart that swivel casters will be
installed on.)
9. (Figure 1-2) Installation of Casters: Swivel casters will be installed on the end of tool cart with handle: With cart on its
side insert ¼” truss head bolts through caster mount plate and through holes in bottom tray, install ¼” flat washer and
secure in place using ¼” lock nut. Tighten securely after all 4 bolts have been installed. (Repeat for each caster.)
10. Installation of Louvered Panels: Each 24”x48” panel has pre-drilled mounting holes that line up with the threaded
inserts on cart frame. Insert ¼” Truss bolt into each hole and hand tighten. Once all bolts have been installed on the
cart finish tightening with wrench and Philips head screwdriver.
Secure storage for all parts and fasteners can be achieved using the LocBin plastic Hanging bins.

Installation & Assembly Instructions
Please contact Customer Service with any questions at:
30700 D Carter Street ∙ Solon, OH 44139 ∙ (P) 440.248.5480 ∙ [e-mail]
For a full line of products visit www.tritonproducts.com 3
LIMITED LIFETIME WARRANTY: Triton Global Products are backed by a Limited Lifetime Warranty to the original owner that
our products are free from defects in material and workmanship. If a product is defective when used as intended under
normal conditions, Triton will replace the product, send a replacement part or issue a refund (at our option) when the
consumer provides the original proof of purchase along with a full description of the defect, to: Triton Global Products 30700 -
D Carter Street Solon OH 44139 All of our steel products have been engineered to last a lifetime.
EXCLUSIONS TO LIMITED LIFETIME WARRANTY:
−Excludes Normal Wear and Tear.
−Excludes Cosmetics and Aesthetics.
−Is Void if Products were improperly installed or used incorrectly (i.e., Not per Included Instructions).
−Excludes Plastic and any other Non-Metal based Products.
−Limited Lifetime Warranty is Non-Transferable and only applies to the original purchaser.
− Original Proof of Purchase is required for all warranty claims.
