TRIVIEW THB-8001A User manual

HAND BLENDER
MODEL NO: THB-8001A
220-240V~ 50/60Hz 700W

Description:
A. Inching switch a. Cover c
B. Switch Ⅰc. .Glass bowl
C. Switch Ⅱe. Small cover
D. Motor unit g. Small “S”blade
E. Blender stick A R．Bowl cover
F. Whisk holder S．Gratin/silic Knife
G. Whisk T．“S” blade b
H. Chopping bowl lid W．Gratin/silic bowl
P. Wall mount X.Rubber pillow
b. “S” blade c O. Wall mount
d. Waterproof ring
f. Break water
h. Small bowl (150ml)
I. “S” blade a
J. 1250ml chopping
bowl

NOTE:
Inching switch:Rotating it on clockwise is speed up, whereas is
speed-down.

Caution:
Please read the instructions carefully and completely before
using the appliance.
1. Always unplug the appliance before assembling, disassembling,
cleaning.
2. Before plugging into a socket, check whether your voltage
corresponds to the rating label of the appliance.
3. Don’t plug the appliance into the power supply until it is fully
assembled and always unplug before disassembling the
appliance or handle the blade.
4. Don’t allow children to use the blender without supervision.
5. Don’t let the motor unit, cord, or plug get wet.
6. Never use a damaged appliance. If it has been damaged, please
get it to approved service centre, checked or repaired.
7. If the supply cord is damaged, it must be replaced by approved
service center.
8. Don’t let excess cord hang over the edge of the table or worktop
or touch hot surface.
9. Don’t place the appliance in the hot ingredients.
10. The appliance is constructed to process normal household
quantities.
11. Short-time operating. Use the appliance for no longer than 1
minute, and don’t operate hard food for no longer than 10
seconds.
12. Always disconnect the blender from the supply if it is left
unattended and before assembling, disassembling or cleaning.
13. If you press switch I, you can run the inching switch to meet
your request. But the switch II is immutable.
14. It shall warn of potential injury from misuse
15. They shall state that care shall be take when handling the sharp
cutting blades, emptying the bowl and during cleaning.
16. Switch off the appliance and disconnected from supply before

changing accessories or approaching parts which move in use.
17. This appliance is not intended for use by children or other
persons without assistance or supervision if their physical,
sensory or mental capabilities prevent them form using it safely.
18. Children should be supervised to ensure that they do not play
with the appliance.
How to use the handblender
The handblender E is perfectly suited for preparing dips, sauces, soups,
mayonnaise and baby food as well as for mixing and milkshakes. In addition ,
the handblender E’ can crush ice.
1. Turn the plastic or stainless steel blender stick on the motor unit
until it locks.
2. Introduce the hand blender in the vessel. Then rotate the inching
switch and press switchⅠor switchⅡto operate it.
3. Use the handblender for no longer than 1 minute
4. Caution:the blade is very sharp!
5. Caution: Don’t operate food without water!

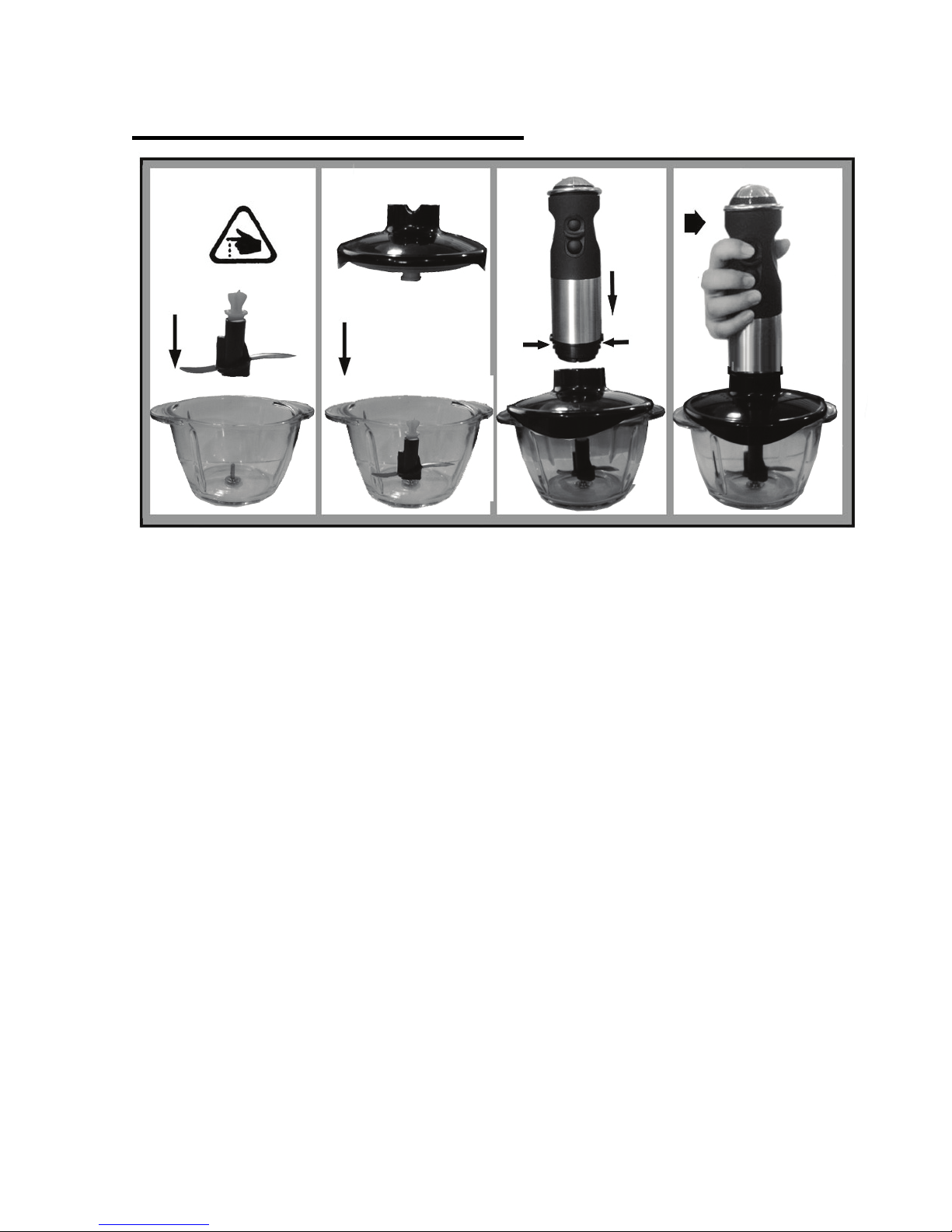

How to use the chopper
1. Chopper is perfectly suited for hard food, such as chopping meat,
cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes
etc.
2. Don’t chop extremely hard food, such as ice cubes, nutmeg,
coffee beans and grains.
Before chopping…
1. Carefully remove the plastic cover from the blade. Caution: the
blade is very sharp! Always hold it by the upper plastic part.
2. Place the blade on the center pin of the chopper bowl. Press
down the blade and lock bowl. Always place the chopper bowl
on the anti-slip base.
3. Place the food in the chopper bowl.
4. Place the chopping bowl lid on the chopper bowl.
5. Turn the motor unit on the chopping bowl lid until it locks.
6. Choose switchⅡto operate the chopper. During processing,
hold the motor unit with on hand and the chopper bowl the
other.
7. After use, turn the motor unit off the chopping bowl lid.
8. Then remove the chopping bowl lid. carefully take out the blade.
9. Remove the processed food from the chopper bowl.

10. Don’t operate hard food for no longer than 10 seconds.

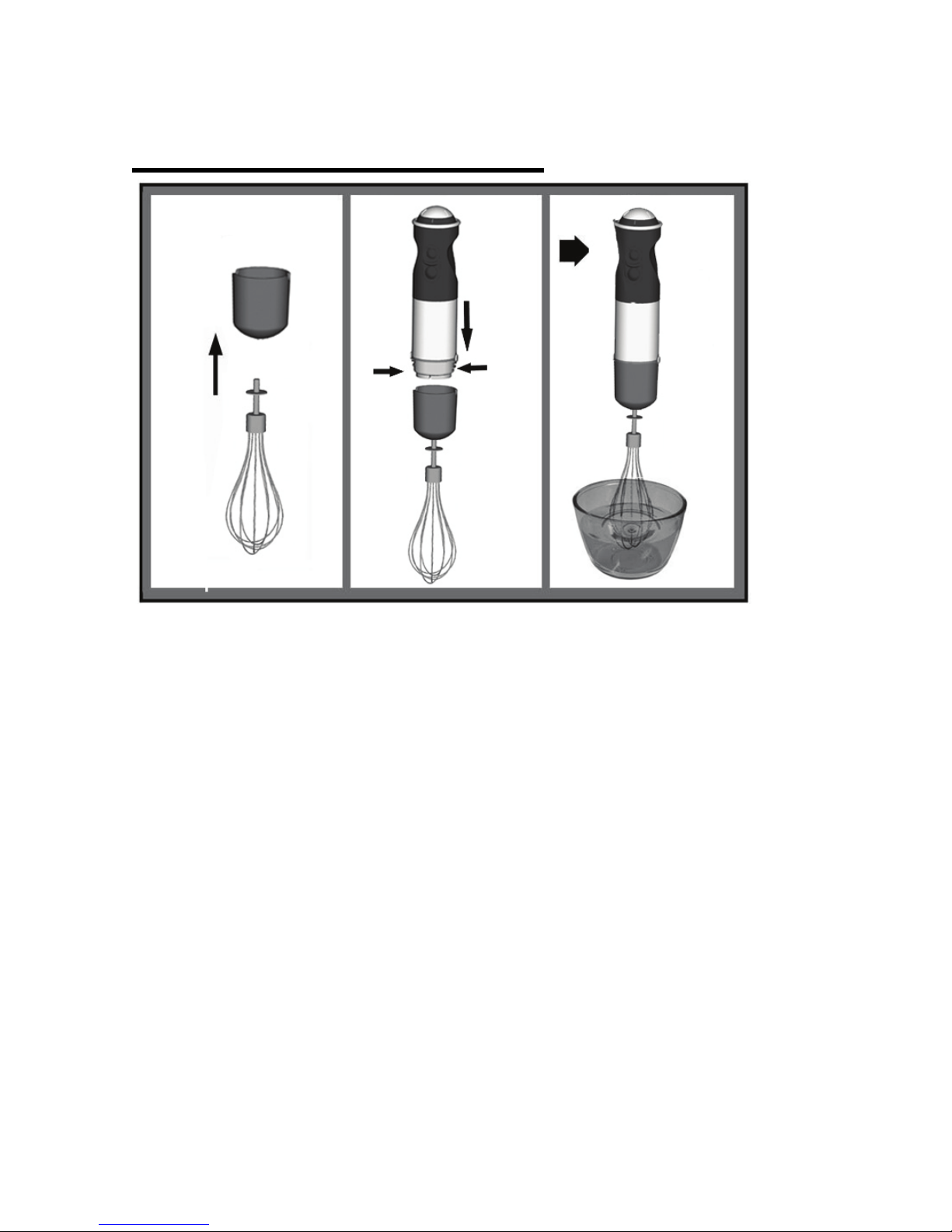

How to use the whisk
Use the whisk only for whipping cream, beating egg whites and
mixing sponges and Ready-mix desserts.
1. Inset the whisk into the whisk holder, and then turn the gear box
on the motor unit until it locks.
2. Place the whisk in a vessel and only then. Then rotate the
inching switch and press switchⅠor switchⅡto operate it.
3. Use the whisk for no longer than 2 minute.
4. Turn the gear box off the motor unit after use. Then pull the
whisk out of the gear box.

How to use the bowl
1. Chopper is perfectly suited for hard food, such as chopping meat,
cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes
etc.
2. Don’t chop extremely hard food, such as ice cubes, nutmeg,
coffee beans and grains.
Before chopping…
1. Carefully place the blade onto the central spindle in the bowl,
holding it by the plastic part. Caution: the blade is very sharp!
Always hold it by the upper plastic part.
2. Put the foodstuffs into the bowl .never fill the bowl above the
maximum limit indicated.
3. Place the blade on the center pin of the chopper bowl. Press
down the blade and lock bowl. Always place the chopper bowl
on the anti-slip base.
4. Place the food in the chopper bowl.
5. Place the chopping bowl lid on the chopper bowl.
6. Turn the motor unit on the chopping bowl lid until it locks.
7. Choose switchⅡto operate the chopper. During processing, hold
the motor unit with on hand and the chopper bowl the other.

8. After use, turn the motor unit off the chopping bowl lid.
9. Then remove the chopping bowl lid. carefully take out the blade.
10. Don’t operate hard food for no longer than 10 seconds.
How to use the small bowl
1. Chopper is perfectly suited for hard food, such as chopping meat,
cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.
2. Don’t chop extremely hard food, such as ice cubes, nutmeg,
coffee beans and grains.
Before chopping…
1. Carefully place the blade onto the central spindle in the bowl,
holding it by the plastic part. Caution: the blade is very sharp!
Always hold it by the upper plastic part.
2. Put the foodstuffs into the bowl .never fill the bowl above the
maximum limit indicated.
3. Place the inner lid into the bowl and then put the lid in
place ,making sure that the lid drive system is properly
positioned on the blade ,put the motor unit in place on the lid .
4. To dismantle the appliance after use ,remove the motor unit from
the lid, lift off the lid and the inner lid ,then carefully remove the
food before lifting off the blade ,holding it at the top ..
5. Choose switch I to operate the chopper. During processing, hold

the motor unit with on hand and the chopper bowl the other.
6. After use, turn the motor unit off the chopping bowl lid.
7. Don’t operate hard food for no longer than 10 seconds.
8. don’t operate food without water than 5 second.
9. when you operating ,you should use the low gear.
How to use the slicing/Grating
For preparing a maximum of 500g of foodstuffs at once (no
meat)
Blade Slicing :potatoes for gratins dauphinois, carrots, cucumbers, etc
Blade Grating: grated carrots,gruerecheese,celery.
1. Silde the blade “S”into the blade –holder disc. place the spindle drive onto
the spindle in the middle of the bowl, then the blade –holder disc onto the
spindle drive , and then the blender lid adaptor on the lid .
2. Position and lock the lid.
3. Put the motor unit in place on the adaptor then start the appliance.
4. Put the foodstuffs into the feeder tube and guide them using the
pudher ,never your fingers, or a utensil .

How to use the “S”blade
1. Chopper is perfectly suited for hard food, such as chopping meat,
cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.
2. Don’t chop extremely hard food, such as ice cubes, nutmeg,
coffee beans and grains.
Before chopping…
1. Carefully place the blade onto the central spindle in the bowl,
holding it by the plastic part. Caution: the blade is very sharp!
Always hold it by the upper plastic part.
2. Put the foodstuffs into the bowl .never fill the bowl above the
maximum limit indicated.
3. Place the blade on the center pin of the chopper bowl. Press
down the blade and lock bowl. Always place the chopper bowl
on the anti-slip base.（Operation of the direction , please see the
figure as show ）.
4. Place the food in the chopper bowl.
5. Place the chopping bowl lid on the chopper bowl.
6. Turn the motor unit on the chopping bowl lid until it locks.
7. Choose switchⅡto operate the chopper. During processing, hold
the motor unit with on hand and the chopper bowl the other.
8. After use, turn the motor unit off the chopping bowl lid.

Cleaning

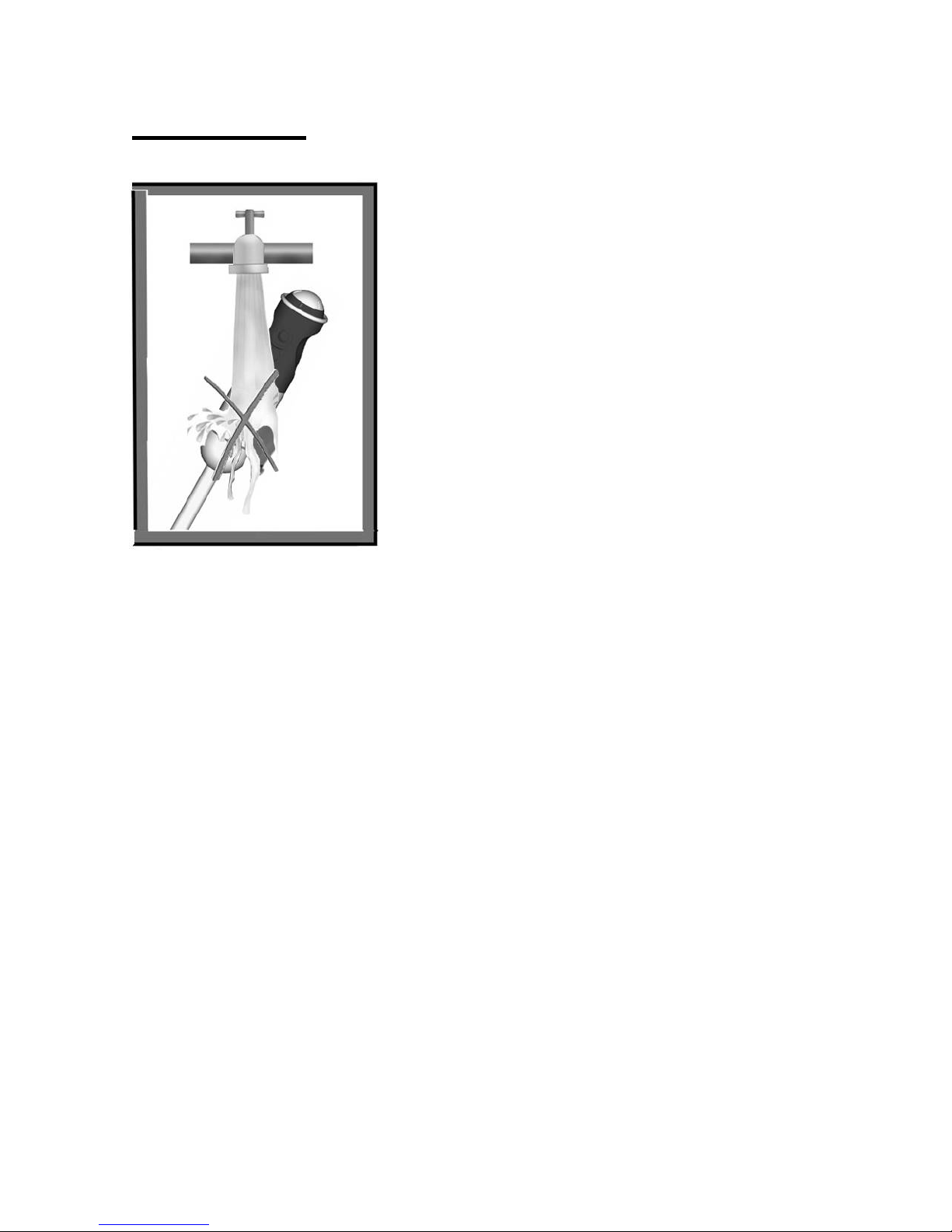

Cleaning the motor unit and chopping bowl lid only with a
damp cloth only. Do not immerse the
motor unit in water!
1. All other parts can be cleaned in
the dish washer. However, after
processing very salty food, you
should rise the blades right away.
2. Also, be careful not to use an
overdose of cleaner or decalcifier
in your dishwasher.
3. When processing food with color,
the plastic parts of the appliance
may
become discolored Wipe these parts with vegetable oil
before placing them in the dishwasher.
4. The blades are very sharp, please attention.
5. Unplug the appliance before cleaning.

Processing Guide (for chopping bowl)
Food Maximu Operati Maximum Operati preparati
500ml chopper 1250ml chopper
meat 250g 8sec 500g 10sec
1-2cm
herbs 50g 8sec 100g 8sec
nut 100g 8sec 300g 10sec
chees 100g 5sec 200g 8sec
1-2cm
bread 80g 5sec 160g 6sec
2cm
onions 150g 8sec 300g 8sec
2cm
biscuit 150g 6sec 300g 6sec
2cm
soft 200g 6sec 400g 8sec
1-2cm
/ / 400g /
/ / 240g /
/ / 8g /
/ / 8g /
Flour
Water
Barm
Sugar
Salt / / 8g
10sec
/
Food Maximum
Operation
time Preparation
Glass bowl
meat 200g 15sec 1~2cm
herbs 50g 8sec
nuts, almonds 150g 15sec
cheese 100g 10sec 1~5cm
bread 75g 8sec 2cm
onion 150g 8sec half
biscuits 150g 8sec 1cm
soft fruit 200g 10sec 1~2cm
Egg frost 4 eggs 15sec

Food Maximum
Operation
time Preparation
150ml bowl
parsley 10g 60sec 1cm
garlic 40g 60sec 1cm
onion 40g 60sec 1cm
pork 80g 60sec 1cm
Food Maximum
Operation
time Preparation
Gratin/silic bowl
potato 700g 60sec
egg yolks Two 60sec
milk 200ml 60sec
Single
cream
Salt
pepper
150ml 60sec
