Tronios BEAMZ User manual

LED FlatPAR-186x10mm UV, DMX
Ref. nr.: 151.285
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
GEBRAUCHSANLEITUNG
MANUAL DE INSTRUCCIONES
NOTICE D'UTILISATION
INSTRUKCJA OBSŁUGI
V1.3

ENGLISH
Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in
order to benefit fully from all features.
Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all
precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to
avoid electrical shock. Keep the manual for future reference.
- Prior to using the unit, please ask advice from a
specialist. When the unit is switched on for the first
time, some smell may occur. This is normal and will
disappear after a while.
- The unit contains voltage carrying parts. Therefore do
NOT open the housing.
- Do not place metal objects or pour liquids into the unit
This may cause electrical shock and malfunction.
- Do not place the unit near heat sources such as
radiators, etc. Do not place the unit on a vibrating
surface. Do not cover the ventilation holes.
- The unit is not suitable for continuous use.
- Be careful with the mains lead and do not damage it.
A faulty or damaged mains lead can cause electrical
shock and malfunction.
- When unplugging the unit from a mains outlet, always
pull the plug, never the lead.
- Do not plug or unplug the unit with wet hands.
- If the plug and/or the mains lead are damaged, they
need to be replaced by a qualified technician.
- If the unit is damaged to such an extent that internal
parts are visible, do NOT plug the unit into a mains
outlet and DO NOT switch the unit on. Contact your
dealer. Do NOT connect the unit to a rheostat or
dimmer.
- To avoid fire and shock hazard, do not expose the
unit to rain and moisture.
- All repairs should be carried out by a qualified
technician only.
- Connect the unit to an earthed mains outlet (220-
240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the unit will not be used
for a longer period of time, unplug it from the mains.
The rule is: Unplug it from the mains when not in use.
- If the unit has not been used for a longer period of
time, condensation may occur. Let the unit reach
room temperature before you switch it on. Never use
the unit in humid rooms or outdoors.
- During operation, the housing becomes very hot. Do
not touch it during operation and immediately after.
- To prevent accidents in companies, you must follow
the applicable guide lines and follow the instructions.
- Secure the unit with an extra safety chain if the unit is
ceiling mount. Use a truss system with clamps. Make
sure nobody stands in the mounting area. Mount the
effect at least 50cm away from inflammable material
and leave at least 1 meter space on every side to
ensure sufficient cooling.
- This unit contains high intensity LEDs. Do not look
into the LED light to prevent damage to your eyes.
- Do not repeatedly switch the fixture on and off. This
shortens the life time.
- Keep the unit out of the reach of children. Do not
leave the unit unattended.
- Do not use cleaning sprays to clean switches. The
residues of these sprays cause deposits of dust and
grease. In case of malfunction, always seek advice
from a specialist.
- Only operate the unit with clean hands.
- Do not force the controls.
- If the unit has fallen, always have it checked by a
qualified technician before you switch the unit on
again.
- Do not use chemicals to clean the unit. They damage
the varnish. Only clean the unit with a dry cloth.
- Keep away from electronic equipment that may cause
interference.
- Only use original spares for repairs, otherwise
serious damage and/or dangerous radiation may
occur.
- Switch the unit off prior to unplugging it from the
mains and/or other equipment. Unplug all leads and
cables prior to moving the unit.
- Make sure that the mains lead cannot be damaged
when people walk on it. Check the mains lead before
every use for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if
power outlet match. If you travel, make sure that the
mains voltage of the country is suitable for this unit.
- Keep the original packing material so that you can
transport the unit in safe conditions
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient
magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should
read and adhere to.
DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks
should be aware of the effects that this light effect may have on them.
The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and
their guarantee!
NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and
35°C/95°F. 
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your
local authorities or your dealer about the way to proceed.

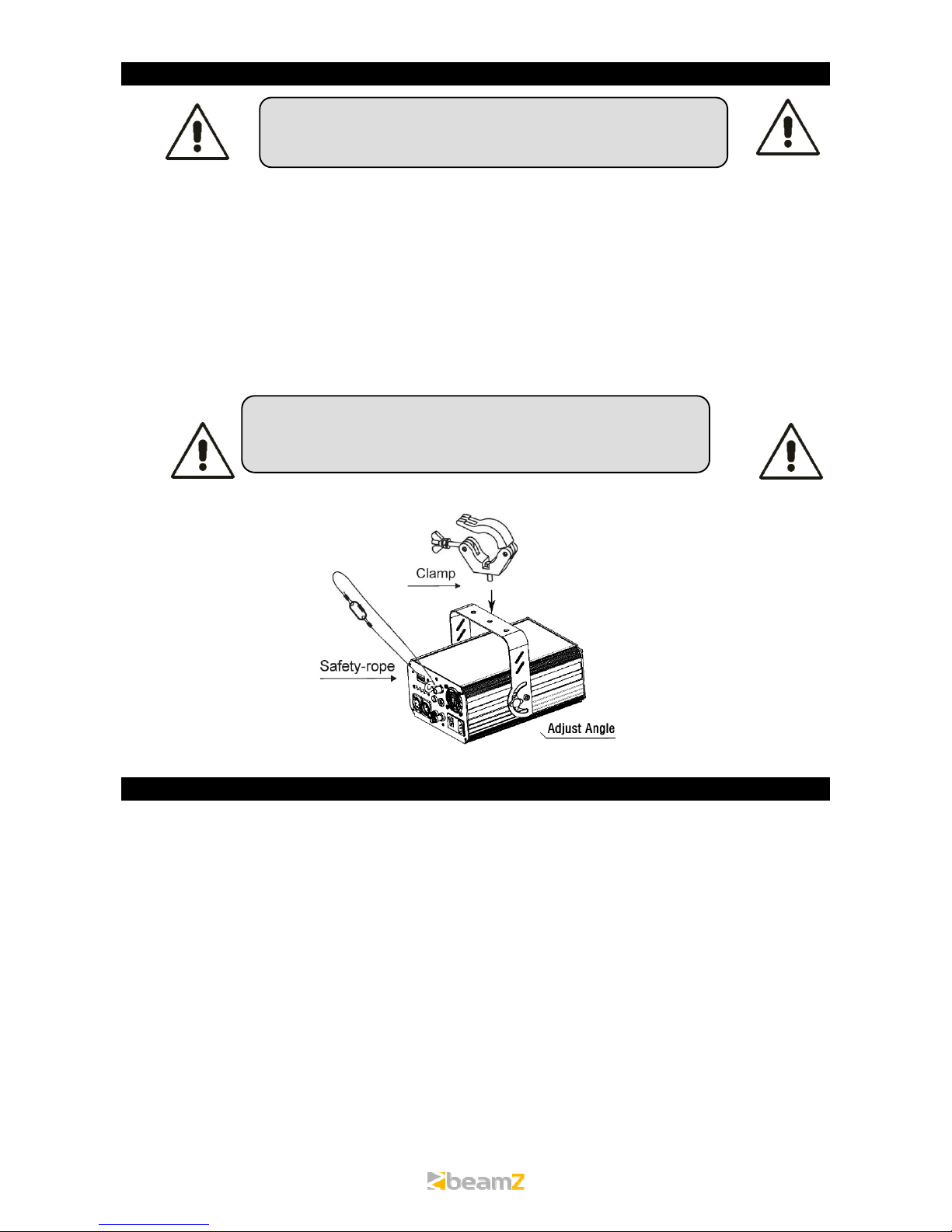

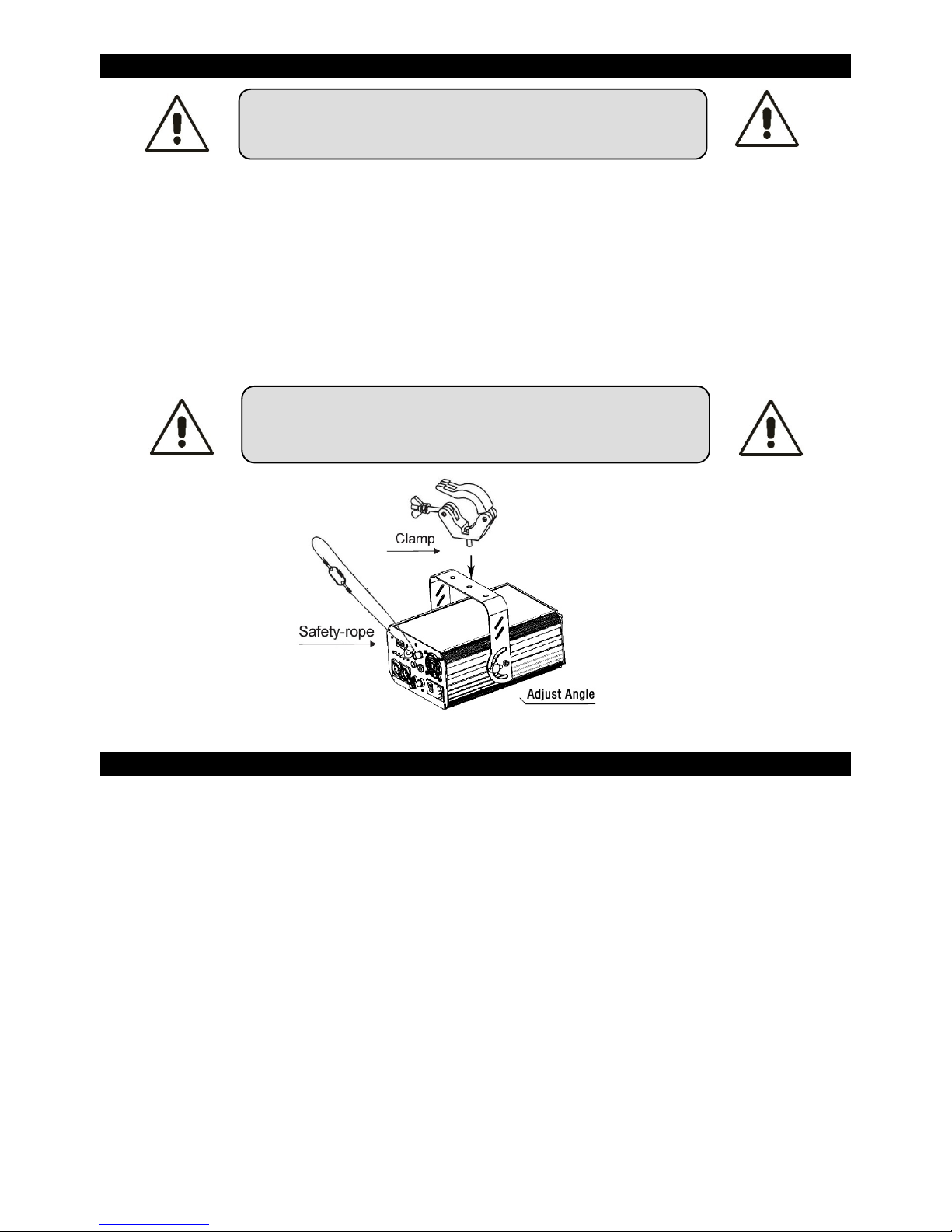

INSTALLATION
Attention:
The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour
without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This
secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main
attachment fails.
Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert
before taking into operation for the first time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled
person once a year.
The fixture should be installed in the position where persons cannot reach and where persons may walk by or be
seated.
POWERSUPPLY
On the label on the backside of the light effect is indicated on this type of power supply must be connected. Check that
the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The
light effect must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
CAUTION: Please consider the respective national norms during the
installation! The installation must only be carried out by
an authorized employee or dealers!
CAUTION: When installing the device, make sure there is no highly
in inflammable material (decoration articles, etc.) in
between a distance of min o.5 meter.

HOW TO CONTROL THE UNIT
The LED FlatPAR-186x10mm UV DMX has four operating modes:
A. Slave Mode - Set the “Master” unit to your desired mode of operation. Set the “Slave” unit in DMX mode address D001
unit will now follow the “Master”.
B. DMX control mode – (D001 – D512)
This function will allow you to control each individual fixtures traits with a standard DMX 512 controller .
C. Manual colour UV Mode - Adjust one of the four UV led groups to mix your effect view.
D. Auto/Sound Mode - There are 3 Auto Modes to choose and sound modes which will react to sound.
After you have selected your desired mode or setting you have to confirm it by pressing the ENTER button.

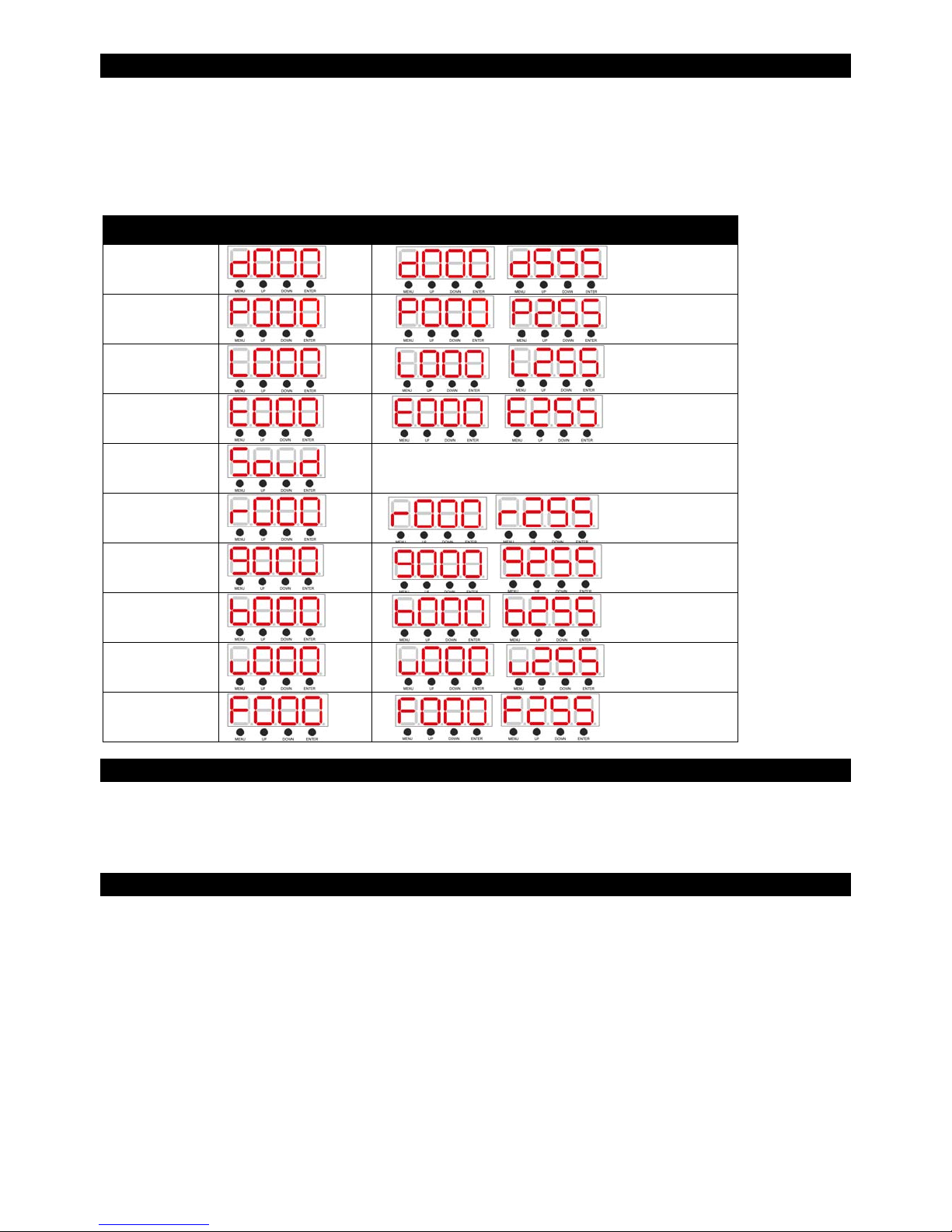

MODE MENU UP - DOWN
DMX Adress
(ch. 1-512)
AUTO 1
(instant)
AUTO 2
(fade smooth)
AUTO 3
(fade in/out)
SOUND Mode
MANUAL
(colour UV)
MANUAL
(colour UV)
MANUAL
(colour UV)
MANUAL
(colour UV)
FLASH
A. MASTER/SLAVE MODE
Daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data cables to link your units
together. The first unit in the chain (master) will use the female XLR connector only. The last unit in the chain will use the
male XLR connector only. Connect the first “Slave” unit to the “Master. Set the “Master” unit to your desired mode of
operation. Set all the “Slave” unit(s) to the DMX mode D001.
B. DMX MODE
If control by DMX controller, then you need to set the address code to control the light, the address code value is 1-512, the
light could receive the signal accordingly.
