Trotec BN35 User manual

TRT-BA-BN35-BN35F-TC2018-66-001-EN
BN35 / BN35F
EN
OPERATING MANUAL
RADIOTHERMOSTAT WITH
TIMER

2 EN
radiothermostat with timer BN35 / BN35F
Table of contents
Notes regarding the operating manual.................................2
Safety .....................................................................................2
Information about the device................................................3
Transport and storage...........................................................5
Operation ...............................................................................6
Maintenance and repair ......................................................10
Errors and faults..................................................................10
Disposal ...............................................................................10
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
BN35
https://hub.trotec.com/?id=42496
BN35F
https://hub.trotec.com/?id=42497
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Protect the device from permanent direct sunlight.
• Do not remove any safety signs, stickers or labels from the
device. Keep all safety signs, stickers and labels in legible
condition.
• Do not open the device with a tool.
• Observe the storage and operating conditions as given in
the Technical data chapter.

EN 3
radiothermostat with timer BN35 / BN35F
Intended use
Only use the device as temperature-controlled plug adapter
between the power connection and the terminal device whilst
adhering to the technical data.
To use the device for its intended use, only use accessories and
spare parts which have been approved by Trotec.
Improper use
The device is not suitable for use with any type of extension
cables. The device must not be used in potentially explosive
areas, when wet or very humid.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Residual risks
Hazardous electric current
Work on the electrical components must only be
carried out by an electrically skilled person or an
authorised specialist company.
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Caution
Keep a sufficient distance from heat sources.
Note
To prevent damages to the device, do not expose it to
extreme temperatures, extreme humidity or moisture.
Note
Do not use abrasive cleaners or solvents to clean the
device.
Information about the device
Device description
The radiothermostat with timer BN35 / BN35F allows for
automatic temperature control of heating devices and air
conditioners between 0°C and 70°C in increments of 1°C. For
this purpose, the socket thermostat is simply plugged in
between the heating device or air conditioner and the socket,
and the desired temperature is set at the radio transmitter. Via
its integrated sensors, the thermostat measures the current
room temperature and regulates the heating device or air
conditioner according to the desired nominal value.
Additionally, devices connected to the radiothermostat, such as
heating devices or air conditioners, can be automatically
controlled by a timer function. The timer function can be
programmed individually. Up to six different timers can be set
for each day.
One radio transmitter can be used to control up to 100socket
thermostats.

4 EN
radiothermostat with timer BN35 / BN35F
Device depiction
4
5
2
1
3
6
7
10
9
8
No. Designation
1 OK button
2 + button
3 Display
4 - button
5 M button
6 Suspension
7 Cover of radio transmitter battery compartment
8 Socket connection
9 Connection for the terminal device (plug adapter)
10 Thermostat on/off switch
Display
DST
TIMER
MODE
11
12
13
14
15
16
17
18
19
20
21
22
24
23
No. Designation
11 Weekdays indication
12 Mode/ Timer selection indication
13 DST indication (daylight saving time)
14 Start time indication
15 End time indication
16 Target temperature indication
17 Celsius/ Fahrenheit indication
18 Radio transmitter battery status indication
19 Cooling/ heating mode indication
20 Operation ON/ OFF indication
21 Indication of the current ambient temperature
22 Connection status indication
23 Segment display for settings
24 Timer/ Mode indication

EN 5
radiothermostat with timer BN35 / BN35F
Technical data
Parameter Value
Model BN35 / BN35F
Socket thermostat
Weight 116 g
Dimensions
(lengthx widthx height)
73 x66 x 112mm
Switching capacity 75A / 250 VA (inductive load)
16A / 250 VA (ohmic load)
Power supply 230 V AC / 50 Hz
Operating temperature 0to 70°C
Storage temperature -10to 70°C
Thermostat radio transmitter
Weight 122 g
Dimensions
(lengthx widthx height)
90 x 90 x 39mm
Temperature setting range 0°C to 70°C (41°F to 85°F) in
increments of 1°C
Measuring
intervals
Radio
transmitter
active and
display ON:
• Temperature indication
updating every second
• Sending commands to
thermostats every
5seconds
• Changing to standby mode
and deactivating display
illumination after 25s of
inactivity
Radio
transmitter
active and
display OFF:
• Temperature indication
updating every 60seconds
• Sending commands to
thermostats every
60seconds
Automatic switch-off of the
display
After 25s of inactivity
Transmission frequency 2.4 GHz
Radio range (in open terrain) 20 m
Scope of delivery
• 1x Socket thermostat
• 1x Thermostat radio transmitter
• 1x Manual
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device use a suitable bag to protect it from
external influences.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• with a cover to protect it from invasive dust if necessary
• The storage temperature is the same as the range given in
the Technical data chapter.

6 EN
radiothermostat with timer BN35 / BN35F
Operation

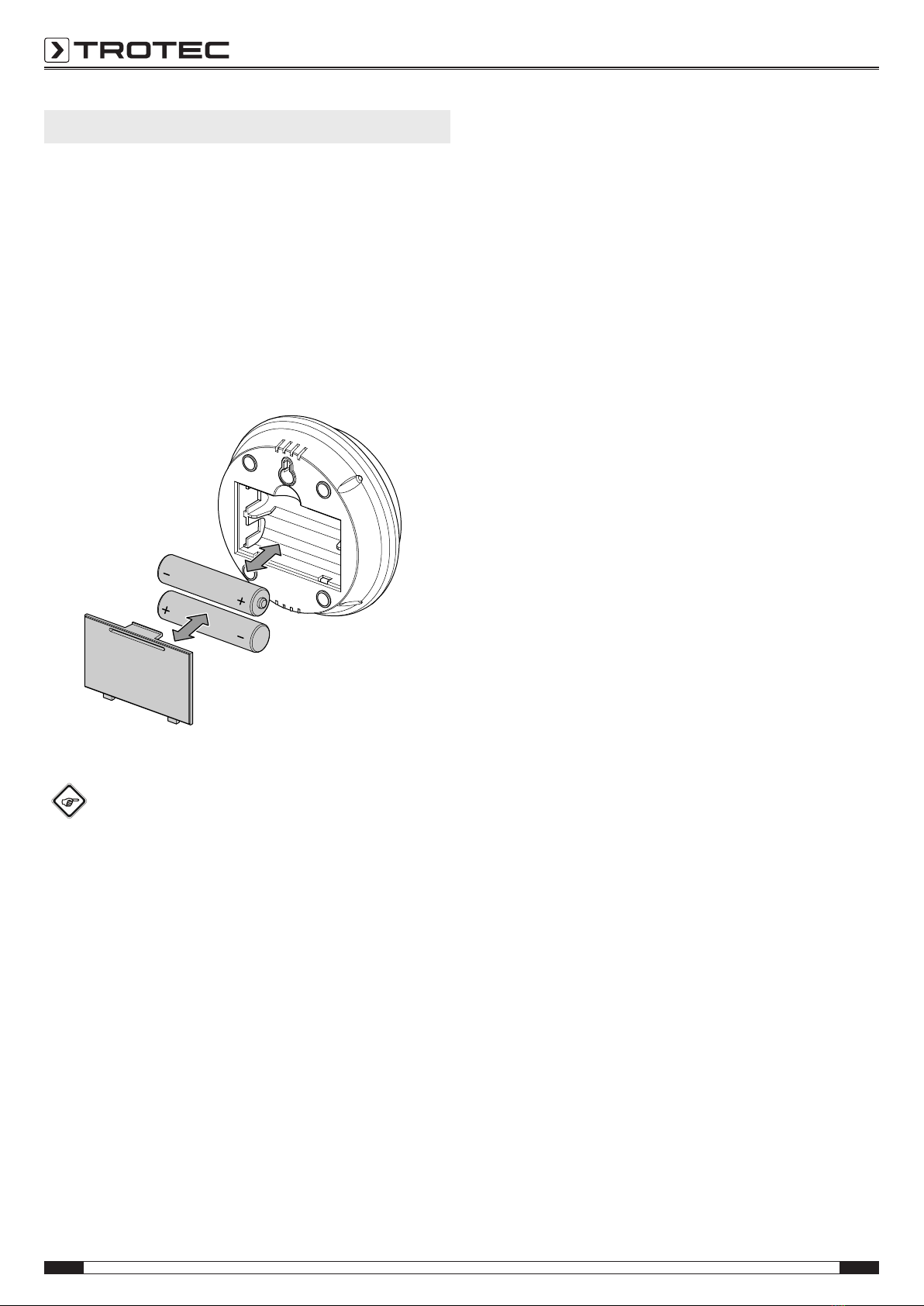

Inserting the batteries
Note
Make sure that the surface of the device is dry and the
device is switched off.
1. Open the battery compartment of the radio transmitter by
removing the battery compartment cover(7) with your
fingers.
2. Insert the batteries (2batteries of typeAA) into the battery
compartment with correct polarity.
3. Reattach the battery compartment cover to the battery
compartment.
Switching the device on
Info
Please note that moving from a cold area to a warm
area can lead to condensation forming on the device's
circuit board. This physical and unavoidable effect can
falsify the measurement. In this case, the display
shows either no measured values or they are incorrect.
Wait a few minutes until the device has become
adjusted to the changed conditions before carrying out
a measurement.
1. Plug the socket thermostat into a properly fused socket.
2. Connect a terminal device to the connection for the
terminal device (plug adapter)(9).
3. Press any button on the radio transmitter.
4. The radio transmitter is switched on.
Connecting the radio transmitter and socket thermostat
To be able to control the socket thermostat with the radio
transmitter, the devices must be connected to one another. To
do so, please proceed as follows:
1. Simultaneously press and hold the +button(2) and the
-button(4) on the radio transmitter for three seconds.
ðThe connection status indication(22) flashes on the
display. The radio transmitter is ready to be connected
to the socket thermostat.
2. Press and hold the thermostat on/off switch(10) at the
socket thermostat for three seconds.
ðThe thermostat on/off switch(10) flashes red. The
socket thermostat is ready for connection.
3. Wait a few seconds until connection of the devices is
completed.
ðOnce connection is completed, the thermostat on/off
switch(10) and the connection status indication(22)
stop flashing.
Changing the unit °C / °F
üThe device is switched on.
1. Press and hold the Mbutton(5) for three seconds.
ðThe segment display for settings(23) flashes.
2. Repeatedly press the OKbutton(1) until the °C or °F
symbol appears and flashes on the segment display for
settings(23).
3. Use the +button(2) and the -button(4) to select the
desired unit, and confirm with OK(1).
Changing the time format
You can choose between 12-hour and 24-hour format.
üThe device is switched on.
1. Press and hold the Mbutton(5) for three seconds.
ðThe indication for the time format flashes.
2. Use the +button(2) and the -button(4) to select the
desired time format, and confirm with OK(1).
3. Repeatedly press the OKbutton(1) until you have left the
settings menu and all parameters to be set have stopped
flashing.
Changing the weekday and time
üThe device is switched on.
1. Press and hold the Mbutton(5) for three seconds.
ðThe segment display for settings(23) flashes.
2. Repeatedly press the OKbutton(1) until the weekdays
indication(11) flashes on the display.
3. Use the +button(2) or the -button(4) to select the
desired weekday, and confirm with OK(1).
4. Repeatedly press the OKbutton(1) until the segment
display for settings(23) flashes.
5. Use the +button(2) or the -button(4) to select the
desired hours and minutes, and confirm with OK(1).
6. Repeatedly press the OKbutton(1) until you have left the
settings menu and all parameters to be set have stopped
flashing.

EN 7
radiothermostat with timer BN35 / BN35F
Activating and deactivating daylight saving time (DST)
Activate the daylight saving time option if you want the
thermostat to automatically switch over from standard time to
daylight saving time.
üThe device is switched on.
1. Press and hold the Mbutton(5) for three seconds.
ðThe indication for the time format flashes.
2. Repeatedly press the OKbutton(1) until the
DST indication(13) flashes on the display.
ðThe OFF symbol lights up beneath the
DST indication(13).
3. Activate the daylight saving time option using the
+button(2) or the -button(4).
ðThe ON symbol lights up beneath the
DST indication(13).
4. Repeatedly press the OKbutton(1) until you have left the
settings menu and all parameters to be set have stopped
flashing.
Note
If the time has already been set, it will be put forward
one hour when you activate DST, and put back one
hour when you deactivate DST. If necessary, correct
the time subsequently.
Presetting thermostat mode
Note:
If the desired temperature is lower than the room temperature,
please use the cooling function. If the desired temperature is
higher than the room temperature, please use the heating
function.
The device allows you to preset up to four individual modes and
to select either the heating or cooling function for each mode.
Please proceed as follows to preset a mode with the radio
transmitter:
üThe radio transmitter is switched on.
üThe radio transmitter and socket thermostat are connected
to one another.

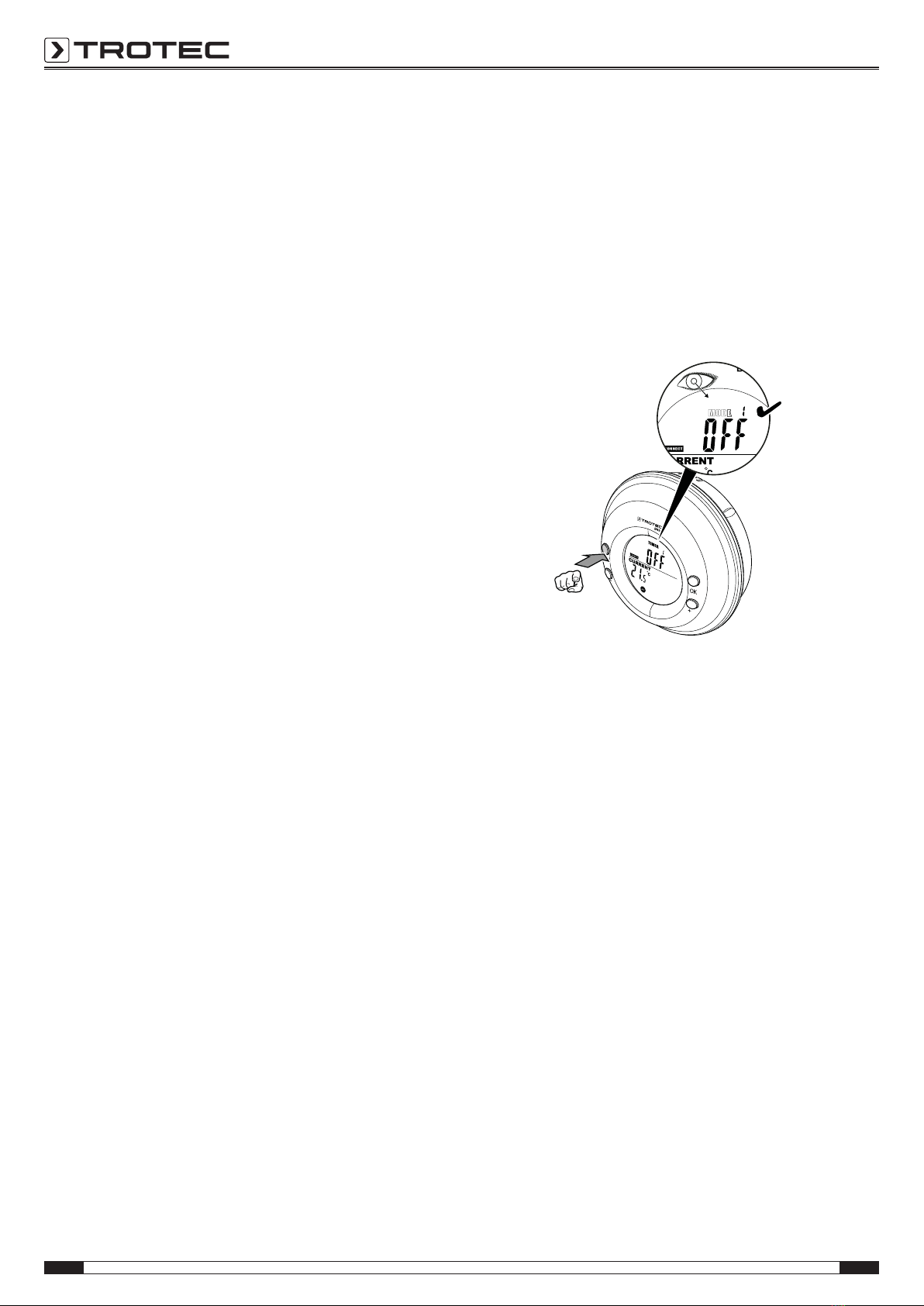

1. Repeatedly press the Mbutton(5) until MODE lights up on
the Timer/ Mode indication(24) of the display.
2x
DST
MODE
2. Use the +button(2) and the -button(4) to choose
between mode 1 to 4.
3. Press and hold the Mbutton(5) for three seconds.
ðThe cooling/ heating mode indication(19) flashes.
ðYou are now in the settings menu of the selected mode.
4. Use the +button(2) and the -button(4) to select the
cooling or heating function, and confirm your selection
with OK(1).
ðThe target temperature indication flashes.
5. Use the +button(2) and the -button(4) to set the desired
target temperature, and confirm with OK(1).
6. Now select the Prd (Period) or FULL (24/7) option using the
+button(2) and the -button(4), and confirm with OK(1).
ðSelect Prd if you want the mode setting of the
thermostat to be enabled only on certain days over a
selected time span.
ðSelect FULL if you want the mode setting of the
thermostat to be enabled for seven days a week and
24hours.
7. If you have selected the Prd option, select the desired
weekdays using the +button(2) and the -button(4), and
confirm with OK(1).
8. Use the +button(2) and the -button(4) to set the desired
start time (S.T) for the thermostat mode, and confirm with
OK(1).
9. Use the +button(2) and the -button(4) to set the desired
end time (E.T) for the thermostat mode, and confirm with
OK(1). After successfully setting the start and end time,
both times will be displayed alternately.
ðThe selected mode is now activated and preset. It can
be activated or deactivated at any time. After the
settings have been made, you can tell that the set mode
is active by the fact that the Timer/ Mode
indication(24) and the operation ON/ OFF
indication(20) flash after automatic switch-off and
restart.

8 EN
radiothermostat with timer BN35 / BN35F
Activating and deactivating thermostat mode
The device allows you to activate not only one but several
modes using the Prd option at a time. Proceed as follows to
activate a mode programme:
Option 1:
üThe radio transmitter is switched on and no mode is active.
üThe desired mode programme is preset.
1. Repeatedly press the Mbutton(5) until MODE lights up on
the Timer/ Mode indication(24) of the display.
2. Use the +button(2) and the -button(4) to select the
desired mode programme between mode1 and mode4.
ðIf OFF is displayed on the segment display for
settings(23), the mode is not activated.
3. Press the OKbutton(1) once.
ðThe presettings of the selected mode programme are
displayed and the mode is activated.
Option 2:
üThe radio transmitter is switched off.
üThe desired mode programme is preset.
1. Enable the display by pressing any button.
2. First check whether a preset mode or timer is active. If this
is the case, the Timer/ Mode indication(24) and the
operation ON/ OFF indication(20) will flash. If you want to
deactivate the active mode/timer and activate another
preset mode instead, please proceed as follows:
3. Repeatedly press the Mbutton(5) until MODE lights up on
the Timer/ Mode indication(24) of the display.
4. Use the +button(2) and the -button(4) to choose
between mode 1 to 4.
ðThe OFF symbol lights up on the operation ON/ OFF
indication(20).
5. Press the OKbutton(1) to activate the socket thermostat
with the selected mode.
ðThe presettings of the selected thermostat mode are
displayed and the mode is activated.
ðIf the relay is open and the thermostat controls the
terminal device, the thermostat on/off switch(10) will
be constantly illuminated in red. Additionally, ON will be
illuminated on the operation ON/ OFF indication(20).
ðIf the settings do correspond to the current ambient
temperature, the thermostat on/off switch(10) will not
flash even if the mode is activated. Additionally, OFF will
be illuminated on the operation ON/ OFF indication(20).
ðThe socket thermostat is activated with the selected
mode.
6. If the socket thermostat is activated, press the
OKbutton(1) twice to deactivate it.
Presetting timer mode
The device allows you to preset up to six different automatic
timer programmes per day. For each individual programme, you
can select on what day and at what time the timer will be
activated and deactivated automatically. There are four options
for selecting the days: You can either select one single day of
the week, only working days, only the weekend, or the entire
week. Proceed as follows to preset a timer programme:
üThe device is switched on.
1. Repeatedly press the Mbutton(5) until TIMER lights up on
the Timer/ Mode indication(24) of the display.
1x
DST
TIMER
2. Use the +button(2) and the -button(4) to choose
between timer 1 to 6.
3. Press and hold the Mbutton(5) for three seconds.
ðThe weekdays indication(11) flashes.
4. Use the +button(2) and the -button(4) to select the day
of the week on which you want the timer to be activated
automatically. Confirm your selection with OK(1).
ðThe segment display for settings(23) flashes.
ðYou can now set the start time (S.T).
5. Use the +button(2) and the -button(4) to select the
desired number of hours, and confirm with OK(1).
ðThe minute indication flashes on the display.
6. Use the +button(2) and the -button(4) to select the
desired number of minutes, and confirm with OK(1).
ðYou can now set the end time (E.T).
7. Use the +button(2) and the -button(4) to select the
desired number of hours, and confirm with OK(1).
ðThe minute indication flashes on the display.
8. Use the +button(2) and the -button(4) to select the
desired number of minutes, and confirm with OK(1).
ðThe selected timer mode is now activated and preset. It
can be activated or deactivated at any time. After the
settings have been made, you can tell that the set timer
is active by the fact that the Timer/ Mode
indication(24) and the operation ON/ OFF
indication(20) flash after automatic switch-off and
restart.

EN 9
radiothermostat with timer BN35 / BN35F
Activating and deactivating timer mode
Info
In timer mode, the thermostat only switches the
connected terminal devices on and off, but does not
control the temperature settings. For this purpose,
please select thermostat mode.
Proceed as follows to activate a timer programme:
Option1:
üThe radio transmitter is switched on and no timer is active.
üThe desired timer programme is preset.
1. Repeatedly press the Mbutton(5) until TIMER lights up on
the Timer/ Mode indication(24) of the display.
2. Use the +button(2) and the -button(4) to select the
desired timer programme between timer1 and timer6.
ðIf OFF is displayed on the segment display for
settings(23), the timer is not activated.
3. Press the OKbutton(1) once.
ðThe presettings of the selected timer programme are
displayed and the timer is activated.
Option2:
üThe radio transmitter is switched off.
üThe desired timer programme is preset.
1. Enable the display by pressing any button.
2. First check whether a preset mode or timer is active. If this
is the case, the Timer/ Mode indication(24) and the
operation ON/ OFF indication(20) will flash. If you want to
deactivate the active mode/ timer and activate another
preset timer mode instead, please proceed as follows:
3. Repeatedly press the Mbutton(5) until TIMER lights up on
the Timer/ Mode indication(24) of the display and the
presettings of the activated timer programme are
displayed.
4. Use the +button(2) and the -button(4) to choose
between timer 1 to 6.
ðThe OFF symbol lights up on the operation ON/ OFF
indication(20).
5. Press the OKbutton(1) to activate the socket thermostat
with the selected timer mode.
ðThe presettings of the selected thermostat mode are
displayed and the mode is activated.
ðIf the relay is open and the thermostat controls the
terminal device, the thermostat on/off switch(10) will
be constantly illuminated in red. Additionally, ON will be
illuminated on the operation ON/ OFF indication(20).
ðIf the settings do not correspond to the time of
activation, the thermostat on/off switch(10) will not
flash even if the timer is activated. Additionally, OFF will
flash on the operation ON/ OFF indication(20).
ðThe socket thermostat is activated with the selected
timer mode.
6. If the socket thermostat is activated, press the
OKbutton(1) twice to deactivate it.
Activating and deactivating the socket thermostat without
radio transmitter
You can also directly activate or deactivate the socket
thermostat without using the radio transmitter. This way, the
connected terminal device will be operated without the
thermostat function. To do so, please proceed as follows:
1. Press the thermostat on/off switch(10).
ðThe thermostat on/off switch(10) is illuminated in red.
ðThe ON symbol lights up on the operation ON/ OFF
indication(20).
ðThe connected terminal device can now be used.
2. Press the thermostat on/off switch(10) again to deactivate
the socket thermostat.
ðThe thermostat on/off switch(10) is no longer
illuminated.
Frost protection function
If the ambient temperature of the radio transmitter drops to 3°C
or below, the radio transmitter will automatically activate a frost
protection mode. The radio transmitter switches on and controls
the connected socket thermostat to 5°C or 7°C. FroS is
displayed on the segment display for settings(23).
Controlling several socket thermostats with one radio
transmitter only
You can control up to 100socket thermostats with only one
radio transmitter as long as they are within the radio range of
the radio transmitter (see Technical data).
Note
Please note that when several socket thermostats are
simultaneously controlled by one radio transmitter, all
socket thermostats which
- are active at that time
- have previously been connected to this radio
transmitter
- are within radio range
will adopt the current menu setting of the radio
transmitter!
1. Connect the radio transmitter to each individual socket
thermostat as described in the chapter Connecting the
radio transmitter and socket thermostat.
ðYou can now control the connected socket thermostats.

10 EN
radiothermostat with timer BN35 / BN35F
Maintenance and repair
Battery change
A battery change is required when the radio transmitter battery
status indication(18) appears on the display.
Cleaning
Clean the device with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Do not use any
sprays, solvents, alcohol-based cleaning agents or abrasive
cleaners, but only clean water to moisten the cloth.
Repair
Do not modify the device or install any spare parts. For repairs
or device testing, contact the manufacturer.
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The display indicates the value LL:
• The ambient temperature is below 0°C. Remove the radio
transmitter from the environment.
The display indicates the value HH:
• The ambient temperature is above 70°C. Remove the
radio transmitter from the environment.
The radio transmitter battery status indication(18) appears
on the display:
• The battery voltage is low. Exchange the batteries
immediately.
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
