Troy-Bilt TB WC33 XP Setup guide

TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
Form No. 769-07589
(October 27, 2011)
33” Wide Cut Mower — Model TB WC33 XP
0637 Black
0709 Dark Green (Bolens, Yard-Man)
0662 Oyster Gray (MTD Gold)
0638 Red (Yard Machines, Huskee, Troy-Bilt, MTD)
0691 Black Jack (MTD Gold, MasterCut)
0674 Yellow (Yard-Man)
0650 Metallic Red (White Outdoor)
0629 Silver Flake (MTD Platinum)
04038 Day Orange (Daedong)
04033 Flint Mica (Troy-Bilt XP)
Thank you for purchasing an MTD Wide Cut Mower. It was
carefully engineered to provide excellent performance when
properly operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
To The Owner
2
Drive and Deck ........................................................ 4
Dash.......................................................................... 6
Table of Contents
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
looking beneath the seat.
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:
3
This page intentionally left blank.
4
11
13
14 14
12
14
39
21
14
29
440
28
5
36
32
16
12
34
33 35
25
7
23
4
41
30
18
24
8
5
19
38
37
13
26
3
13
31
2
20
47
66
65
64
63
64
13
43
42
51
57
15
46
15
53
45
70
72
73
71
62
55
48
27
15
60
15
15 59
58
61
49
10
36
56
44
54
1
15
50
52
6
67
69
68
22 17
17
74
9
TB WC33 XP (12AE763Z)
5
TB WC33 XP (12AE763Z)
Ref. Part Number Description
1710-3005 Hex Head Cap Screw, 3/8-16 x 1.75
2918-04639 4 Speed Drive Assembly, Tecumseh
3710 -0176 Hex Head Cap Screw, 5/16-18 x 2.75
4710-0347 Hex Head Cap Screw, 3/8-16 x 1.75
5710-0376 Hex Head Cap Screw, 5/16-18 x 1.00
6710-0896 Screw, 1/4-15 x 0.50
7710-04377 HHCS, 7/16-20 x 2.75
8710-0513 Hex Head Cap Screw, 1/4-28 x .625
9710-0520 Hex Head Cap Screw, 3/8-16 x 1.50
10 710-3005 Hex Head Cap Screw, 3/8-16 x 1.25
11 710 -3015 Hex Head Cap Screw, 1/4-20 x .75
12 911-1000 Belt Keeper, .25 DIA X 3.0
13 712-04063 Flangelock Nut, 5/16-18
14 712-04064 Flangelock Nut, 1/4-20
15 712-04065 Flangelock Nut, 3/8-16
16 712-0700 Flange Nut, 9/16-18
17 914-0145 Click Pin, .092 x 1.64 LG
18 718-04407 Spline Pulley Hub, 5/8
19 720-04191 Grip, Red
20 731-05766 Trailshield, 8.35 x 19.17
21 732-04409 Extension Spring, Wheel Drive
22 732-04443A Extension Spring, Brake
23 736-0105 Washer, Spring, .401 x .870 x .063
24 736-0270 Washer, Bell, .265 x .75 x .062
25 736-0322 Washer, Flat, .450 x 1.250 x .164
26 736-04256 Washer, Flat, .39 x .87 x .06
27 918-04438C Drive Spindle Assembly
28 738-04166 Spacer, Shoulder, .5000 x .1475
29 747- 04635A Belt Keeper Rod
30 747-05571 Coupling Link, 3/16
31 747- 04678A Brake Spring Mounting Rod
32 954-04145A V Belt. 4L 64.2
33 756- 04129B Idler Pulley, 4.25 DIA
34 756-04258 Flat Sheave, DIA 7.75
35 756-04260 Engine Pulley, 3.20 x 4.35 DIA
36 756-04280A Idler Pulley, 3.50 DIA
37 787-01469B Lower Shaft Lever
38 787-01470A Upper Shaft Lever
Ref. Part Number Description
39 787-01473A Belt Keeper, .375 x 2.00
40 787- 01523A Wheel Drive Idler Bracket
41 918-04439C Spacer Spindle Assembly
42 931-04244 Chute Deector Assembly
43 631-04252 Mulch Cover
44 987-02420 Idler Arm Assembly
45 687-02476 Deck Assembly
46 710-1260A Screw, 5/16-18 x .750
47 710-0451 Bolt, Carriage, 5/16-18 x .750
48 710-0514 Hex Head Cap Screw, 3/8-16 x 1.00
49 710-0560 Screw, Carriage, 3/8-16 x 1.75
50 710-3184A Hex Head Cap Screw, 3/8-16 x 2.00
51 712- 0417A Flange Nut, 5/8-18
52 912-3017 Hex Nut, 3/8-16
53 732-04406 Extension Spring, Timing Belt
54 732-04452 Extension Spring, Deck Brake
55 938-0347 Shoulder Spacer, .625 ID x .169
56 738-04162A Shoulder Spacer, .8840 x .190
57 942-04154A 2 in 1 Blade
58 754-04136 Timing Belt, .315 x .787
59 954-04139 Aramid V Belt, 72.2
60 756- 04129B Idler Pulley, 4.25" DIA
61 756-0616 Idler Pulley, V-Type, 5.0 DIA
62 787-01440 Timing Idler Bracket
63 711- 0 4027 Deector Pin
64 726-04009 Push Cap
65 732-04012 Deector Torsion Spring
66 787-01017A Deector Hinge Bracket
67 634-04285-0911 Wheel, 16 x 4 x 8
68 710-0627 Hex Screw, 5/16-24 x .750
69 736-0242 Washer, Bell, .340 x .872 x .060
70 912- 0641 Nut, Hex, M16-1.5
71 921-04041 Water Nozzle Adaptor
72 736-0225 Washer, Lock, 5/8
73 737-04003D Deck Water Nozzle
74 750-05516 Spacer, 1.0 x 1.28 x .31 (420CC)
—977S30145 Danger Label (Not Shown)
6
TB WC33 XP (12AE763Z)
B
B
28
30
42
49
54
60
62
67
68
73
12
22
10
18
57
58
61
51
32
22
20
21
16
17
50
4
15
74
41
41
4
72
36
35
43
34
29
40
39
38
39
37
45
46
25
44
47
63
64
11
23
6
7
69
3
29
519
55
71 70
13
8
2
9
1
414
48
59
54
8
52
56
13
53
24
8
8
12
65
66
65 7
31
26
27 33
43
60
66 75
7
TB WC33 XP (12AE763Z)
Ref. Part Number Description
1687- 02614 RH Lever Assembly Bracket
2687- 02615 LH Lever Assembly Bracket
3710-0572 Screw, Carriage, 5/16-18 x 2.25
4710-0599 Screw, 1/4-20 x 0.500
5710-0606 Hex Screw, 1/4-20 x 1.50
6710-1237 Screw, #10-32 x 0.625
7712-04063 Nut, Flangelock, 5/16-18
8912- 04 42 Lock Nut Cap, 1/4-20
9720-04190 Grip, 1.0 ID x 5.0 LG
10 720-04072A Star Knob, 5/16-18
11 725-0157 Cable Tie, 3/16 x .05 x 7.4
12 938-0140 Screw, Shoulder, .435 x .178-5/16 x .56
13 938-1226 Screw, Shoulder, .375 x 1.355 x 1/4-20
14 946-04604 Throttle/Choke Cable, 38.0 x 1.1 EXT
15 946-04606 RH Brake Cable, Tecumseh Trans.
16 946-04608 LH Brake Cable, Tecumseh Trans.
17 946-04609 Wheel Clutch Cable
18 946-04610 Deck Clutch Cable
19 749- 04330 Lower Handle
20 749- 04331 Upper LH Handle
21 749- 04332 Upper RH Handle
22 749-04333 Adjustable Handle Brace
23 751B221535 Casing Clamp
24 787-01490A RH Cable Mount Bracket
—787-01491A LH Cable Mount Bracket
25 687-02591 Frame Assembly
26 687-02265 Front Deck Lift Assembly
27 687-02419 Rear Deck Lift Assembly
28 710- 04312 Hex Screw, 5/16-18 x .50
29 710-0604A Screw, 5/16-18 x 0.625
30 710-0627 Hex Screw, 5/16-24 x .750
31 914-0145 Click Pin, .092 x 1.64 LG
32 720-04189 Grip Handle, 1/2
33 731-05791 Plastic Spacer, .63 ID x .75 LG
34 732-04418A Deck Height Lever
35 736-0242 Washer, Bell, .340 x .872 x .060
36 736-0343 Washer, Flat, .330 x 1.25 x .120
37 936-0351 Washer, Flat, .760 ID x 1.50 OD
38 937-3000 Drive Lube Fitting, 3/16
39 741-0660A Flange Bearing, .760 x .941 x 1.0
40 787-01496 Height Adjustment Bracket
Ref. Part Number Description
41 787- 01507 Fuel Tank Mount Bracket
42 787-01510 Link Pivot Bracket
43 787- 01521 Lever Pivot Bracket
44 734-04243 Caster, Wheel, 8 x 1.75
—941-0706 Bearing, Flange w/ftg
45 687-02263 Wheel Caster Bracket
46 712-04065 Nut, Flangelock, 3/8-16
47 738-04216A Bolt, Shoulder, .625 x 2.515 x 3/8-16
48 710-0136 Hex Screw, 1/4-20 x 1.75
49 710-0896 Screw, 1/4-14 x 0.625
50 712-3006 Nut, Hex, 1/4-20
51 931-05684 Belt Cover
52 731- 05937A Handle Panel, Black
53 736-0270 Washer, Bell, .265 x .75 x .062
54 936-0463 Washer, Flat, .25 x .630 x .0515
55 787- 01548 Hour Meter and Key Handle Panel
56 931-06935A Fuel Tank Cover
57 738-04282 Screw, Shoulder, 1/4-20 x .32 x 1.8
58 951-12182 Fuel Cap
59 951-04322 Fuel Tank
60 710-1315 Screw, 3/8-16 x 1.250
61 726-0205 Hose Clamp, .490 DIA.
62 751-10349 Fuel Hose, Low Permeation, 1/4
63 951-10517A Oil Drain
64 751-3141-14 Extension Hose
65 710-04666 Hex Head Flange, 1/4-20 x .75
66 710-0642 Screw, 1/4-20 x 0.750
67 925-1707D Battery, 155 CCA WET
68 712-0271 Sems Nut, 1/4-20
69 712-04064 Nut, Flangelock, 1/4-20
70 925-04022B Hour Meter
71 925-04228 Key Switch
72 725-04439 Solenoid, 12V, 100 AMP
73 747- 04657 Battery Hold Down Strap
74 925-1745A Key
75 787-02009 Plate, Shift
—925-05266 Wiring Harness (Not Shown)
—725-04478 Starter Wire (Not Shown)
—712-0266A Nut, Jamlock, 3/8-16 (Not Shown)
—751-12089-28 Vent Hose, 3/16 (not shown)
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
G
E
N
U
I
N
E
F
A
C
T
O
R
Y
P
A
R
T
S
To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.
Locate your nearest Cub Cadet dealer at (877) 282-8684
or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.

Other manuals for TB WC33 XP

1

This manual suits for next models

1

Other Troy-Bilt Lawn Mower manuals

Troy-Bilt Super Bronco 60TG User manual

Troy-Bilt

Troy-Bilt Super Bronco 60TG User manual

Troy-Bilt 77T Series User manual

Troy-Bilt

Troy-Bilt 77T Series User manual

Troy-Bilt E997 User manual

Troy-Bilt

Troy-Bilt E997 User manual

Troy-Bilt 13WM77KS011 User manual

Troy-Bilt

Troy-Bilt 13WM77KS011 User manual

Troy-Bilt Automatic Lawn Tractor User manual

Troy-Bilt

Troy-Bilt Automatic Lawn Tractor User manual

Troy-Bilt Super Bronco 60TG User manual

Troy-Bilt

Troy-Bilt Super Bronco 60TG User manual

Troy-Bilt 546 User manual

Troy-Bilt

Troy-Bilt 546 User manual

Troy-Bilt Mustang Colt ZT User manual

Troy-Bilt

Troy-Bilt Mustang Colt ZT User manual

Troy-Bilt Super Bronco User manual

Troy-Bilt

Troy-Bilt Super Bronco User manual

Troy-Bilt 13A-130F063 Owner's manual

Troy-Bilt

Troy-Bilt 13A-130F063 Owner's manual

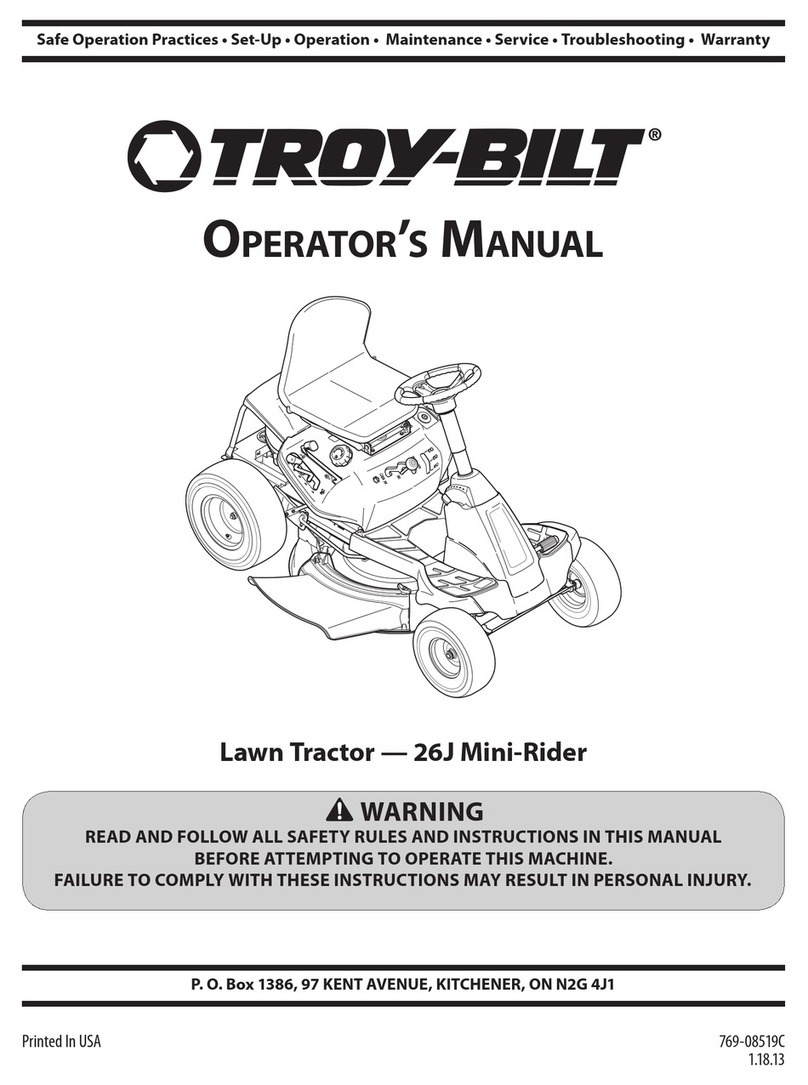

Troy-Bilt 26J Mini-Rider User manual

Troy-Bilt

Troy-Bilt 26J Mini-Rider User manual

Troy-Bilt TB16R User manual

Troy-Bilt

Troy-Bilt TB16R User manual

Troy-Bilt TB30R User manual

Troy-Bilt

Troy-Bilt TB30R User manual

Troy-Bilt 106 User manual

Troy-Bilt

Troy-Bilt 106 User manual

Troy-Bilt 809 User manual

Troy-Bilt

Troy-Bilt 809 User manual

Troy-Bilt 838 User manual

Troy-Bilt

Troy-Bilt 838 User manual

Troy-Bilt 400 Series User manual

Troy-Bilt

Troy-Bilt 400 Series User manual

Troy-Bilt 830 Series User manual

Troy-Bilt

Troy-Bilt 830 Series User manual

Troy-Bilt 34061 User manual

Troy-Bilt

Troy-Bilt 34061 User manual

Troy-Bilt 12AG836E711 Guide

Troy-Bilt

Troy-Bilt 12AG836E711 Guide

Troy-Bilt 26J Mini-Rider User manual

Troy-Bilt

Troy-Bilt 26J Mini-Rider User manual

Troy-Bilt Trail Blazer Owner's manual

Troy-Bilt

Troy-Bilt Trail Blazer Owner's manual

Troy-Bilt TB230 User manual

Troy-Bilt

Troy-Bilt TB230 User manual

Troy-Bilt TB 2246 User manual

Troy-Bilt

Troy-Bilt TB 2246 User manual

Popular Lawn Mower manuals by other brands

AEG ALM58LI401 Original instructions

AEG

AEG ALM58LI401 Original instructions

Yard Machines 820 Series Operator's manual

Yard Machines

Yard Machines 820 Series Operator's manual

Swisher ZT2866 owner's manual

Swisher

Swisher ZT2866 owner's manual

Raider RD-GLM09 user manual

Raider

Raider RD-GLM09 user manual

Poulan Pro PO125-97RB instruction manual

Poulan Pro

Poulan Pro PO125-97RB instruction manual

STERWINS 40VLM2-42P.1 Assemby - Use - Maintenance Manual

STERWINS

STERWINS 40VLM2-42P.1 Assemby - Use - Maintenance Manual

Tecumseh 5267-1900 owner's manual

Tecumseh

Tecumseh 5267-1900 owner's manual

Husqvarna CZE 4818 Operator's manual

Husqvarna

Husqvarna CZE 4818 Operator's manual

Black & Decker CMM1200 instruction manual

Black & Decker

Black & Decker CMM1200 instruction manual

Evh HARDEE LR50160 Operator and  maintenance manual

Evh

Evh HARDEE LR50160 Operator and maintenance manual

McCulloch M185-117T instruction manual

McCulloch

McCulloch M185-117T instruction manual

Kiva MAXIMA Instructions for use

Kiva

Kiva MAXIMA Instructions for use

Craftsman 917.376562 owner's manual

Craftsman

Craftsman 917.376562 owner's manual

Ariens Sierra 936014-026 Service manual

Ariens

Ariens Sierra 936014-026 Service manual

Poulan Pro 424999 Operator's manual

Poulan Pro

Poulan Pro 424999 Operator's manual

MTD 440 Series Operator's manual

MTD

MTD 440 Series Operator's manual

Weed Eater 169437 owner's manual

Weed Eater

Weed Eater 169437 owner's manual

Husqvarna WH3615/966947001 parts manual

Husqvarna

Husqvarna WH3615/966947001 parts manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
