Tru-Turf RS48-11D User manual

RS48-11D & RS48-11DB USA GOLF ROLLER & SPIKER MANUAL

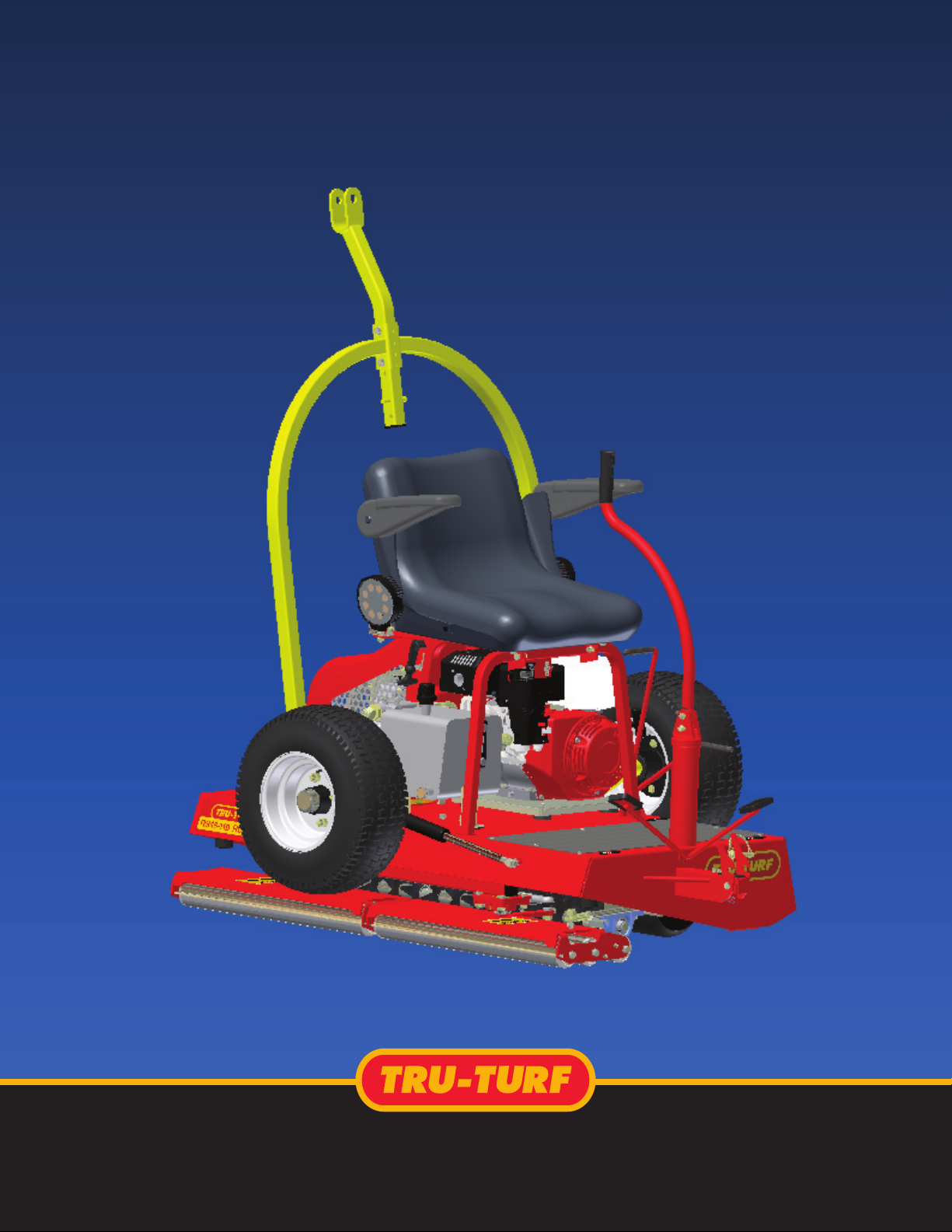

Model shown includes optional upgradesOriginal Instructions

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
Important................................................................1
Machine Information Record...............................2
Safety Information.................................................3
Warranty..................................................................4
CE Declaration ........................................................5
Assembly.................................................................7
Operation ..............................................................10
Maintenance.........................................................12
Fault Finding.........................................................14
Machine Components............................................. 15
Operating Positions.............................................15
Upper Body Assembly.........................................16
Honda Engine Mounting Assembly.................17
Seat Assembly ......................................................18
Adjusting Seat Base.............................................19
Power Train General Assembly .........................20
Transmission Assembly & Pipe Fittings............21
Transmission Assembly & Cooling Fan............22
Transmission, Chain & Tension Assembly.......23
Transmission Pipes & Reservoir.........................24
Transmission Hydraulic Reservoir & Fittings ..25
Yoke & Strut Assembly ........................................26
Under body ...........................................................27
Brake Assembly ....................................................28
Foot Pedal Assembly...........................................29
Joystick & Steering Assembly.............................30
Steering & Tie Rod Assembly .............................31
Smoothing Head Assembly...............................32
Smoothing Roller Assembly Exploded ............33
Drive Roller............................................................34
*Slicer Frame Assembly ......................................35
Contents
*Slicer Assembly...................................................36
Trailer Assembly ...................................................37
Hub Complete Assembly....................................38
LED Light Kit (Optional)......................................39
*Brush Kit (Optional).......................................... 40
Labels .....................................................................42
Sample Forms.......................................................43
Notes & Bulletins ..................................................45
Note: Separate Engine Owners Manual Included
is manual covers 2 models,
RS48-11D Serial Number range 12000 to 12948
& RS48-11DB serial number range RDB0001 to
RDB0033 inclusive for both.
e RS48-11DB is a basic version of the
RS48-11D, both models are identical with the
following exceptions.
e RS48-11DB has all components relating to the
Slicer/Spiker excluded.
e pages in this manual that cover the
Slicer/Spiker components are not applicable to
the RS48-11DB model, these are identied with
an asterisk * next to the each page in the contents
list above and against each item detailed on the
following pages.
Should the owner wish to add the excluded Slicer/
Spiker components to the machine these are
available as a kit. e kit can be purchased through
your nearest dealer / Service agent.
Revised 06/June/2013
The products detailed in this manual conform to the following standards:
Machinery Directive 2006/EC Annex VIII,
EMC Directive 2004/108/EC / Article 10.1 & EN ISO 4254-1:2009.

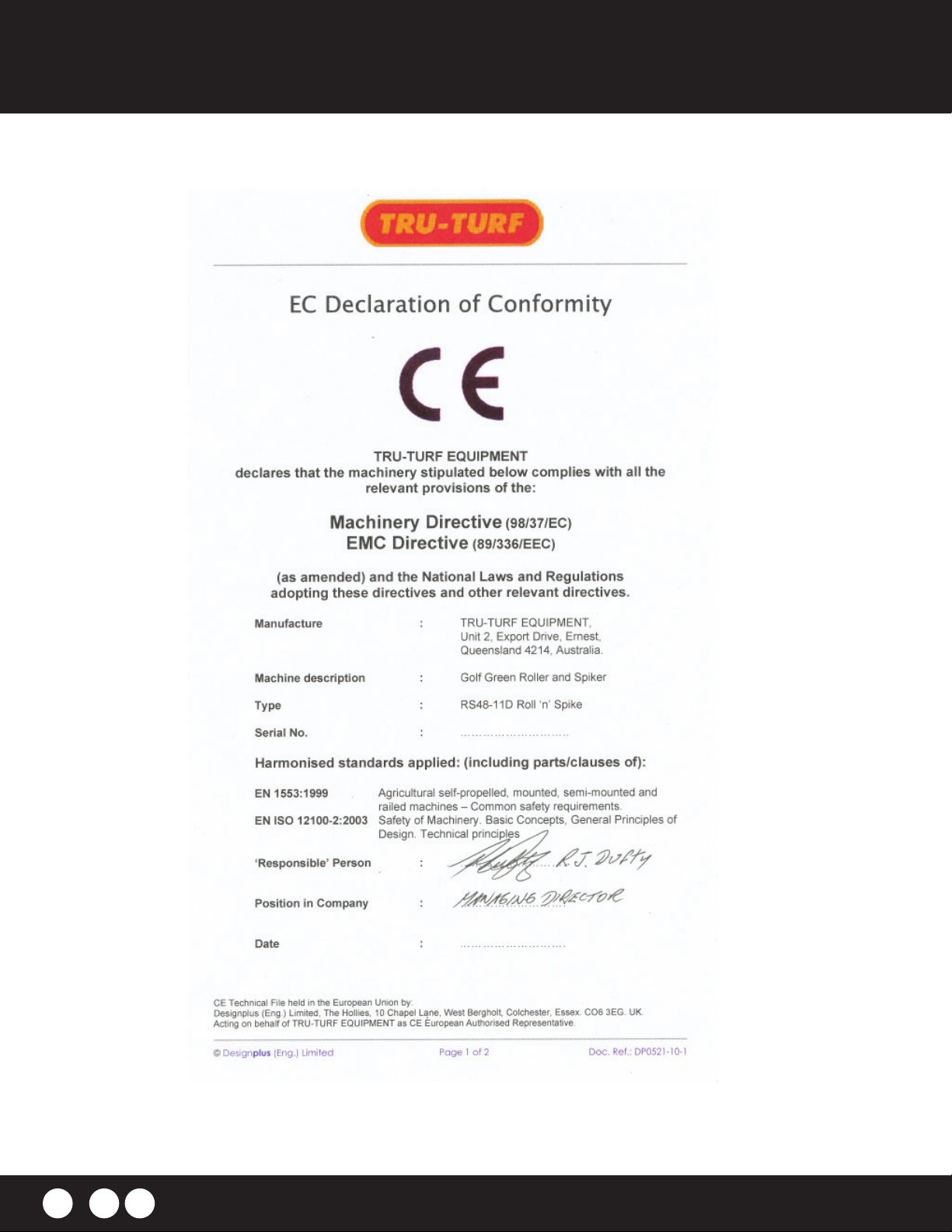

CE Declaration is available on the Tru-turf website.

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
1
Please read and understand before
operating machine.
1. Pre-check all nuts, bolts, grub screws for tightness prior
to operating machine.
2. Understand the operating procedures and the controls
before operating.
3. Use the machine to roll 18-36 greens then check that
all nuts, bolts etc. are tight. If loose and the Loctite seal
has been broken, treat item as per Loctite instructions,
reseal, then tighten securely.
4. Loose transmission and drive roller sprockets will
cause damage to shafts and keyways. Ensure they
are correctly tightened at all times.
5. Change the transmission oil after 50 hours of
operation, then as per the servicing schedule.
We use and recommend Penrite Synthetic 5 SAE 5W-60.
Available through our dealer network.
U.S.A. customers contact your dealer or visit
www.truturf.com to nd your nearest dealer.
Australian customers call 07 5594 7199.
International customers contact your dealer or visit
www.truturf.com to nd your nearest dealer.
Important

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 2
Machine Information
Model. RS48-11D Roll ‘n’ Spike & RS48-11DB Golf
Green Roller
Serial No.
Engine No.
Transmission No.
Purchase Date No.
Congratulations on your investment in the RS48-11D Roll
‘n’ Spike & RS48-11DB Golf Green Roller and your move
to smoother, faster, more consistent putting Greens.
The following operation and maintenance manual has
been prepared for use with the RS48-11D Roll ‘n’ Spike &
RS48-11DB Golf Green Roller. It is intended as a guide and
supplemental updates to the manual may take place at a
future date, without prior notice.
This machine is engineered to be simple to operate and
easy to maintain. If you have any questions or concerns
that this manual does not address, please feel free to
contact your distributor.
Distributor Information
Name:
Address:
Telephone:
Fax:
Email:
Machine Information Record

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
3
Safety Information
Safety is of the utmost importance when operating
turf equipment.
To ensure safe operation of the RS48-11D Roll ‘n’ Spike
& RS48-11DB Golf Green Roller, please follow the
following safety guidelines.
• Always make a pre-operation inspection before you
start the engine. If this procedure is not carried out
damage to property or personnel may occur.
• Keep children, pets and inexperienced personnel
away from the machine. This machine should only be
operated by trained and skilled personnel - check with
your supervisor if you are unsure.
• Know how to stop the engine when in motion. Read
and understand engine manufacturers manual, as
supplied.
• Never permit inexperienced operators to use the
machine. This machine requires certain knowledge
and expertise to operate it; you must be a trained
person to use this machine. Unskilled persons can
harm themselves and others if they operate this
machine.
• Do not use in enclosed areas unless well ventilated.
Carbon monoxide gases are dangerous if inhaled, it
can cause death; use the machine outdoors.
• When transporting the roller, make sure the trailer
lock down mechanism is secure to prevent premature
release of the catch. If the trailer catch is not correctly
engaged while towing and releases accidentally, the
front of the roller can drop and come in contact with
the ground, causing the machine to move dangerously
in any direction, this could cause bodily injury. When
carrying out maintenance ensure the catch is engaged
correctly; if it is not the trailer arm could y up making
contact with a person(s) causing serious injury.
• When engine is running, always keep hands and
loose clothing away from rotating shafts, chains and
sprockets in the transmission area. If hair, clothing or
loose objects become entangled on a rotating shaft
serious bodily injury could occur. Stop engine before
opening safety cover tted to the transmission area.
• Never ride on the machine when machine is being
towed.
Operator, remember it is your responsibility to be
aware of your surroundings. To avoid accidents, think
safe and operate safe.
Safety Information

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 4
Warranty
Universal Conditions
Tru-Turf Pty. Ltd. (Tru-Turf) will repair or replace any item
or part of a Tru-Turf Golf Greens Roller that is defective
in workmanship or material for a period of twenty four
(24) months or unless otherwise stated, from the date of
delivery of the new product to the original end user. Items
identied as warrantable will be repaired or replaced by
an approved Tru-Turf Dealer.
Products Protected By This Warranty
This Warranty relates to the following products
manufactured by Tru-Turf, listed by model series;
a. GR, RS, RB, R52 Series Golf Greens Rollers.
b. TR66 Series Triplex Roll ‘n’ Spike heads and mower
attachment hardware.
c. SR72 Sports ground roller.
d. MT5000 Series Totes are covered for a period of
twelve (12) months.
Ensure that your Dealer has completed and submitted the
Online Warranty Registration and Inspection Report Form
applicable to your unit.
This will ensure that it has been sent directly to Tru-Turf
for registration.
Parts Warranted by OEM Suppliers to Tru-Turf
Specic component parts supplied to Tru-Turf Pty. Ltd. by
OEM suppliers are covered by that supplier’s Warranty.
These parts and components include Eaton Transmissions,
Honda Engines, Sevcon & Curtis Controllers & Foot
Pedals, Falk Gearboxes & Electric Motors. Only Tru-Turf
manufactured parts qualify for the twenty four (24)
month warranty.
Normal Wear and Tear
Tru-Turf will not repair or replace parts that are subject
to normal wear and tear and or that are subject to
regular maintenance intervals as specied in the product
Operator’s Manual. These parts include, but are not
limited to, oils, lters, tyres, shafts, bearings, blades,
spikers, slicers, brakes, belts, hoses, spark plugs, drive
chains, sprockets, drive rollers & smoothing rollers.
Other Items Not Covered By This Warranty.
Tru-Turf will not repair or replace any item that has
been damaged by accident, lack of reasonable care and
protection or lack of suitable storage.
Tru-Turf will not warrant parts that have been altered or
modied, nor aftermarket parts tted without written Tru-
Turf approval. Tru-Turf will not warrant used parts that are
installed in place of failed parts.
Tru-Turf will not warrant parts that have not been installed
by an approved Tru-Turf dealer, nor will Tru-Turf warrant
parts that have not been maintained per the Operator’s
Manual.
The product is to be made available for Warranty
repairs at the approved Tru-Turf dealer’s premises or by
arrangement with the approved dealer.
Service calls, overtime-labour rates and freight costs
related to the return of the faulty product to Tru-Turf or its
agents are not included.
Tru-Turf shall not be liable for any consequential loss,
damage or costs incurred by or incidental to the failure of
any new part supplied with the original purchase or any
new part supplied as a replacement for any failed part.
Ensure that your Dealer completed and submitted the
Online Warranty Registration and Inspection Report Form
applicable to your unit. This will also ensure that it has
been sent directly to Tru-Turf for registration.
This record must be referred to along with the reasons
why the purchaser believes that the product or a part
is defective in the categories of faulty material or
workmanship.
Acceptance or rejection of the Warranty Claim is entirely
at the discretion of Tru-Turf or their OEM Suppliers who
warrant their own part/s.
The Warranty Registration and Inspection Report Form
along with the TRU-TURF Pty. Ltd. Warranty Terms &
Conditions statement are available for viewing, download
or printing as a ready reference by simply clicking the link
provided on our website.
The Warranty Registration and Inspection Report Form
must be signed by both the Dealer Rep and the Customer
and returned or any warranty claim/s will be denied.
No person or organisation has the authority to modify the
terms or conditions or limitations of this Warranty without
the written consent of Tru-Turf.

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
5
CE DECLARATION
A p p r o v a l P e n d i n g

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 6
CE DECLARATION
A p p r o v a l P e n d i n g

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
7
Initial Assembly
When you receive the crate, the machine will be broken
down into components ready for assembly. If you run into
any problems during assembly, please feel free to call your
local distributor or agent.
List of Components
QTY Description
1 Operation, Maintenance and Parts Manual
1MachineFrame/Body
1DriversSeat
2Armrests
4 /” x ³/” UNC Bolts
2 Tires mounted on Wheel Rim
1 Steering Joystick
1 Dampener Strut (attached to main body end)
1 Left-side Trailer Arm
1 Right-side Trailer Arm
2 30mm External Circlips
1 Drawbar Coupling Assembly
2 2¹/” x 3/8” UNF Hex Head Bolts
2 ³/” UNF Nyloc Nuts
Assembly

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 8
Assembly Procedure
Step 1: Mounting the seat to the seat base.
• Use the four /” x ³/” UNC bolts to fasten the seat to
the seat base.
• Remove armrest screws from the seat, position left and
right side armrest, fasten and tighten.
Step 2: Mount the steering joystick to the steering
shaft.
• Select the steering joystick.
• Slide the joystick into the slot on the top of the
steering shaft, already installed in the steering column
directly in front of the foot pedal controls, insert the
³/” bolt into the bottom bolt hole, select a comfortable
operating position, joystick forward for extra
operating room or back for less, once determined
insert the other ³/” bolt into the upper hole and
tighten both bolts securely.
Step 3: Attaching the left-hand trailer arm to machine
body.
• Locate the trailer arm support axle 30mm in diameter
(1/”) which extends out on the left side of the
machine, remove the circlip from the support axle. Oil
machined portion. Slide the left hand side trailer arm,
onto the axle, replace the circlip, ensuring the circlip is
located in the groove correctly.
Step 4: Attaching dampener strut and right hand
trailer arm.
• Locate the trailer arm support axle 30mm in diameter
(1/”) which extends out on the right side of the
machine, remove the circlip from the axle. Hold the
right side trailer arm in the vertical position and slide it
part way onto the axle. Locate dampener strut, remove
packing from the unattached end.
• Apply thread lock “Loctite” to the M10 bolt attached to
the dampener strut. Screw the M10 bolt into the strut
support on the trailer arm.
• If necessary use a soft headed hammer and tap the
trailer arm onto the axle until the circlip groove is
revealed, t the circlip, ensuring it is located in the
groove correctly.
Step 5: Attaching draw bar to trailer arms.
• Locate the draw bar assembly.
• Gather the ends of the right and left trailer arms.
• Place the draw bar assembly between the trailer arms
and align the holes, ensure the bend is upwards.
• Place one 2/” x /” bolt through each hole, t /”
Nyloc nut to each bolt and tighten securely.
• Test to ensure the trailer catch is correctly locking the
trailer arms in the down position and the catch locking
pin ts correctly when transporting the roller, for
safety.
Assembly

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
9
Step 6: Attaching wheels to trailer arms.
• Locate the two wheels for the left and right side trailer
arms.
• Check tires for the correct air pressure, approximately
18psi. Do not exceed this pressure. The tires act as the
suspension, hence the low P.S.I.
• Remove wheel nuts from both hubs, slide wheels onto
hub with air valves facing outwards. Replace wheel
nuts and tighten securely.
• Ensure the taper on the nuts, mate into the wheel
tapers correctly.
Step 7: Correct dampener strut operation
• When the roller is in the trailing position:
1. carefully hold the draw bar assembly,
2. lower machine until the front rests on the ground,
3. release the locking catch,
4. gently with a rm grip begin to raise the draw bar,
5. when it has travelled suciently the dampener strut
will take over and prevent the trailer arms rapidly
rotating on it’s axle, allowing the roller to lower to
the surface gently.
Step 8: Replace engine oil
• A tag is placed on the engine’s On/O switch
indicating you must ll the machine with oil prior
to operation. Low oil level will cause the engine to
stop on steep hills, the engine cut o safety switch is
designed this way to protect the engine from damage
if low in oil.
• The oil in the engine upon delivery (if not pre-
delivered) is to prevent the inside of the engine from
corroding, replace it with the correct engine oil, as per
the manufacturers specications.
Step 9: Transmission oil tank breather.
• Unscrew the plastic plug if tted from the top of
the tank and replace it with the anti-splash breather
supplied. Seal damage and oil leakage will occur if the
breather is not installed. If this is not done damage to
the seals in the transmission will occur.
Step 10: Lubricate smoothing head pivot bearings.
• There is a grease nipple or zirk located on both
smoothing head centre ball joint swivels. Apply grease
to lubricate ttings.
• When rolling of the green is completed, move the
roller onto the fringe, stop the engine, lock the trailer
into the trailing position, connect it to the towing
vehicle then move o to the next green to be rolled.
Do not put the trailer down into the towing position
on the green; damage may occur to the green from the
roller tires and body. Remember turn o the fuel cock
whilst towing the roller
Assembly

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 10
Operation procedures
Pre-operation checks
• Check engine as per Honda manual.
• Ensure steering joystick has no looseness.
• Check that foot pedal depresses under normal foot
pressure in both directions and returns to the neutral
position. (Similar resistance to a motor vehicle clutch).
If this action is not smooth, check the yoke and
transmission struts for correct operation.
• Ensure that the draw bar locking catch mechanism is
securely locked to the main draw bar and the safety
pin is tted when trailing the roller.
• Check and tighten grub screws tted to the end
bearing lock rings on the rubber coated drive roller
and the spiker shaft bearings & pivot bearings on each
smoothing head.
• Grease lightly bearings tted to drive roller, spiker
shaft and Smoothing Head pivot bearings. Replace
plastic caps if tted.
• Grease rod ends, sparingly.
• Check tire pressure for proper operating pressure
(18psi). Do not over inate.
• Check for oil and fuel leaks - rectify before using
machine.
• Lubricate the drive chain with a suitable chain
lubricant.
Standard operation procedures
• Inspect and check that the roller is serviceable prior to
departing from workshop.
• Use a suitable towing vehicle to move roller from
green to green.
• Maximum recommended towing speed would be
equal to a motorized golf buggy. Approximately
4mph/7kph. Towing at excess speed or across rough
terrain may cause damage to the machine and trailer.
• When approaching the green do not tow the roller
onto the green to set up, put the roller on the fringe
of the green. Put trailer in the up position, start up the
roller and drive it onto the green.
• Greens can be rolled in any direction; take care to
ensure there are no crease lines produced on the
surface.
• It is recommended that you place the smoothing head
rollers on the high side of the green when rolling.
This increases the weight on the rubber drive roller
and gives better traction, it also reduces slipping or
spinning of the drive roller on the green, depending
also on the operators ability. Whilst becoming familiar
with the roller, set the throttle at about ¹/ - ³/ speed.
Press the left or right foot pedal down gently but not
suddenly. Be smooth with your action, hold in this
position until nearing the edge of the green, then take
your foot gently o the pedal, the roller will come to a
stop. Rest your other foot on the opposite pedal and
gently apply the pressure to the pedal. It then starts to
move the roller in the opposite direction. Once again
be gentle with the pedal, but not sudden. By using the
left and right pedal in this manner, will ensure there is
no damage to the green and less wear and tear on the
equipment and operator.
Operation procedures

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
11
Points to remember
• Make sure the roller is serviceable before rolling.
• Start rolling from the fringe of the green.
• Smooth operation on the foot pedals.
• Pick a point on the other side of the green to roll to.
• Do not look at the green close to the roller; it makes it
dicult to steer the roller straight; look well ahead.
• Use 1/2 throttle until you are procient at operating
the roller.
• Once you choose your rolling line hold the joystick
steady, correcting direction gently as required.
• Move the steering joystick a little at a time to change
direction; excessive movement of the joystick makes it
dicult to maintain a straight line.
• Roll in straight lines.
• Do not leave the engine running with the roller parked
on the green; the engine vibration will cause roller
depression marks on the green.
• Move o the green when rolling is complete before
putting the trailer in the down position.
• When rolling steep greens and the engine stops, check
engine oil level. The engine is tted with a safety
switch; when the engine oil level is low the engine will
stop.
• The correct procedure for rolling the green is:
(a) Select the correct direction to roll the green,
remember this roller can roll the greens in all
directions.
(b) Start on one side of the green and work your
way across the green in a zigzag fashion, slightly
overlapping each lap you roll: this makes sure you
miss no part of the green and all of the green is
rolled. Avoid coming back across the green to roll
missed areas if possible. You should be able to
complete the rolling of 18 greens in the same time
or quicker than by mowing using a triplex mower.
• When rolling of the green is completed, move the
roller onto the fringe, stop the engine, lock the trailer
into the trailing position, connect it to the towing
vehicle then move o to the next green to be rolled.
Do not put the trailer down into the towing position
on the green; damage may occur to the green from
the roller tires and body.
• Remember turn o the fuel cock whilst towing the
roller.
Park brake
• To engage, push parking lever forward until it will
travel no further, the lever operates on a over cam
principal, when it is fully engaged the lever will remain
in this position with the brake applied. To dis-engage
the park brake, pull the lever up and back. The lever
will remain in the o position until re-applied. Do
not operate the roller with the park brake engaged,
damage to the drive roller rubber coating will occur.
• Ensure the park brake is released prior to operating the
roller, if not irreparable damage to the rubber on the
drive roller will occur.
Operation procedures

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 12
Maintenance
• Stop engine before performing any maintenance.
• Service the Honda engine according to the
manufacturers maintenance schedule.
Transmission (pump, Eaton 11)
• Initially, change the oil at 50 hours running time, then;
• Change oil every 500 hours or annually, whichever
occurs rst.
• Change hydraulic oil lter every 500 hours or annually,
whichever occurs rst.
• Only use the manufacturer’s recommended
replacement oil lter .
• When tting the lter, follow the instructions supplied
with the lter. This will ensure that the lter remains
tight and that no leaks occur.
• Check all hard line oil pipes for rubbing, excessive
vibration, leaks and tightness on a regular basis.
• Check transmission oil level on oil tank sight glass. Oil
level should remain at a minimum of 25mm (1”) and at
a maximum of 40mm (1.5”) from the top of the tank.
• Oil Capacity including lter is 6 liters or 5.3 U.S. quarts.
For the ultimate performance we use and recommend
the Penrite synthetic 5 SAE 5W-60 transmission oil.
(Part No. R5226)
Storing
• It is important to store this roller in the towing
position. This ensures the trailer strut is in the
closed position, protecting the shaft from
corrosion, then failure and also the weight is
taken o the roller bearings.
Service of the drive chain system
• Replacement - Some chains look a like, but
they are not, use only the chain and sprockets
recommended as per the correct spare parts
number. Wrong pitch drive chain tted will
cause excessive sprocket wear and possible
drive failure.
• Tensioning the drive chain - No adjustment
is required; the chain tension is automatically
adjusted.
Lubrication
• Lubricate drive chain with a chain lube such as
Molykote, Innox or ChunkaRocol ITW. Spray
on the inside of the chain so that the lubricant
is forced into each roller and around each pin
prior to rolling of the Greens..
Service of smoothing roller bearings
• Whilst the Roller is suspended by the Trailer,
check operational smoothness of the bearings
tted to each smoothing roller by rotating
the rollers by hand. If bearing tightness,
roughness or excessive looseness is detected,
replace the faulty bearings.
Maintenance

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
13
Maintenance
• If bearings are faulty
(a) Remove the complete smoothing head from the
machine, undo the four swivel mount bolts on
upper body and steering rod, wheel the roller away
until the total head is exposed to work on.
(b) Remove roller shaft bolts from end plates, remove
rollers from the heads.
(c) Fit new bearings, replace rollers into the heads,
lubricate shaft bolts with an anti seize compound
before installing them. Tighten securely and ensure
rollers rotate freely when fully tightened.
or
If the rollers are a sealed type remove the roller and
replace with a complete new roller.
(d) If the rods are removed or lengths altered ensure
they are correctly adjusted so that the three heads
are parallel to each other when in the straight
ahead position. Adjust if necessary.
Changing engine oil
• Change oil and service as per the manufacturers
Servicing Schedule enclosed as a separate insert to
this manual.
Description Pre-Delivery Pre-Operating 12 Monthly
Check Engine oil √√
Check Transmission Oil Level √√
Beware of contaminants entering the transmission √√
Lubricate drive chain with WD40 or equivalent √√
Check Tires Max 18 P.S.I. √√
Check Gas √√
Check Smoothing Roller Bearing √√
Check Drive Roller Bearings √√
Check for loose Nuts and Bolts √√
Renew Engine Oil as per manufacturers Handbook
Renew Transmission Oil - See page 1 for correct oil every 500hrs or... √
Renew Transmission Oil Filter *√
Renew Smoothing Roller Bearings *√
Renew Drive Roller Bearings *√
Renew Chain Tensioner Sprocket Bearings *√
Renew Drive Chain *√
Replace Foot Pedal Struts *
Replace Trailer Strut *
Changing transmission oil
Ongoing Maintenance, Lubricant and Replacement
Schedule (below)
Note. Areas indicated with a *need to be changed
when defective or as required. This may be before the
recommended replacement schedule. Please replace all
parts as necessary.
Maintenance

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 14
Fault Finding
Fault Finding
Roller will not move one or either way, check
• Chain is okay
• Sprockets are not worn or slipping on the shaft
• Foot control is operating - check all arms are secure
• For Sheared Sprocket Keys
• Rubber coupling broken
Roller will not steer, check
• Woodru Key is in place and not sheared
• Rod ends are connected to smoothing roller head and
the steering arm
• Rod ends are not broken or seized
• Centre swivel bearing on top centre of each smoothing
roller head has not seized
• Connecting rod are in place and serviceable
Roller has excessive vibration, check
• Disconnect engine-to- transmission and isolate the
drive chain to determine whether the problem is in the
engine or in the transmissions
• If engine is at fault contact your nearest engine agent
for rectication
• If the transmission is at fault, repair or replace as
necessary, or seek professional advice from a local
Eaton Service Center
• Any out of alignment between engine and
transmission.
• For damaged engine and transmission couplings
Smoothing rollers seized, check
• Bearings have not seized
• Replace if necessary
• Accumulated dry debris is not locking the
smoothing rollers.
Rubber drive roller will not rotate, check
• Roller shaft end bearings have not seized
• Broken chain
• Slipping sprockets
• the Park Brake is not locked on

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
15
Rolling Position
Operating Positions
Towing Position

TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual 16
Upper Body Assembly
'(7$,/$
56''%833(5%2'<$66<3$576/,67
7,7/(672&.180%(5
47<
,7(0
/(9(563,.(5+$1'/(:(/'('$66<5


*5,3+$1'5
635,1*/$7&+67((5
5
%86+$&(7</
5


58%%(575$,/(55(675

75$,/(5&$7&+1$552::(/'('$66<5
3/$7(&+(&.(5)2273$'
5

3/$7(6(5,$/180%(556'86$
5
3/$7(63,.(5/(9(5
5
3/$7(3$5.%5$.(5
3/$7(029(5,*+75
56''%833(5%2'<$66<3$576/,67
7,7/(672&.180%(5
47<
,7(0
3/$7(029(/()7
5
%2'<:(/'('$66<
5
75$160,66,21&29(556'
5

81)1</2&77<3(187
5
[81)%2/7=3
5
&,5&/,3
5
5,9(7
5
5,9(7%/$&.5

'5$:%$56$)(7<3,1&+$,1
5
[7(.6&5(:=3
5
67,&.(5758785)2%5281';
5


58%%(5%211(7&$7&+675(7&+('5

0[&277(53,1=35


,'3/$7(6(5,$/180%(556'%
5
75$160,66,21&29(556'%
5
$


















  











,7(06127$33/,&$%/(727+(56'%02'(/
$5(,'(17,),(':,7+$1$67(5,6.
1(;7727+(3$57$1',7(0180%(56


TRU-TURF RS48-11D USA Roll ‘n’ Spike & RS48-11DB Golf Greens Roller Manual
17
Honda Engine Mounting Assembly
+21'$(1*,1(02817,1*3$576/,67
7,7/(672&.180%(5
47<
,7(0
$'-867,1*6+,0(1*,1(02817
59DULHV
58%%(5,62/$7,21(1*,1(02817
5
(1*,1(028173/$7(:(/'('$66<
5

:$6+(5=32';,';3$&.(5(1*0175
635,1*:$6+(5=3
5


[81)%2/7=3
5
0[%2/7=35
*;(1*,1(+21'$
5
[:$6+(5=3
5
2,/'5,33$1+21'$(1*,1(5
01</2&187=3
5

















