True T-49FG User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
T-49FG
T-49FG
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
T-49FG 2 49
1388
654
1/8
1375
293/4
756
783/8
1991
11/2115/208-230/60/1 12.3 14-20P 9
2.74
600
273
Requires 115/208-230/60 Hz, single phase, 3 pole, 4 wire circuit.
*Height does not include 5
" (127 mm) for castors or 6 " (153 mm) for optional legs.
†Depth does not include 13/8
" (35 mm) for door handles.
12/05
R
True’s glass door reach-in’s are
designed with enduring quality that
protects your long term investment.
Designed using the highest quality
materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today’s food service
marketplace.
Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser maintains
-10°F (-23.3°C). Ideally suited for both
frozen foods and ice cream.
Triple pane thermal glass doors.
Adjustable, heavy duty PVC coated
shelves.
Positive seal self-closing doors.
Lifetime guaranteed door hinges and
torsion type closure system.
Defrost system time-initiated,
temperature-terminated. Saves
energy consumption and provides
shortest possible defrost cycle.
Bottom mounted units feature:
“No stoop” lower shelf.
Storage on top of cabinet.
Compressor performs in coolest, most
grease free area of kitchen.
Easily accessible condenser coil for
cleaning.
T Series:
Reach-In Glass Door Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
Model Elevation Right Plan 3D
PLAN VIEW
T-49FG TFEY07E TFEY07S TFEY07P TFEY073
T-49FG
835/16 "
(2117 mm)
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s
food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains -10°F (-23.3°C). Ideally
suited for both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating evaporator
fan motors and larger fan blades give True
reach-in’s a more efficient low velocity,
high volume airflow design. This unique
design insures faster temperature recovery
and shorter run times in the busiest of food
service environments.
• Bottom mounted condensing unit positioned
for easy cleaning. Compressor runs in coolest
and most grease free area of the kitchen.
Allows for storage area on top of unit.
• Defrost system time-initiated, temperature-
terminated. Saves energy consumption and
provides shortest possible defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel front grill
and shroud. Anodized quality aluminum
exterior ends and back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• Triple pane thermal glass assemblies with
extruded aluminum frames.
• Each door fitted with 15" (381 mm) long
extruded aluminum handle.
• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Six (6) adjustable, heavy duty PVC coated
wire shelves 24 9/16"L x 22 3/8"D
(624 mm x 569 mm). Four (4) chrome plated
shelf clips included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Fluorescent interior lighting. Each door
utilizes full-length, patented, integrated
door light (IDL) system. Safety shielded.
MODEL FEATURES
• Exterior mounted temperature monitor.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Rear airflow guards prevent product from
blocking optimal airflow.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/208-
230/60Hz single phase, 3 pole, 4 wire
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒Alternate door hinging (factory installed).
❒Additional shelves.
❒Half door bun tray racks. Each holds up to
eleven 18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately)
(airflow guards need
to be removed).
❒Full door bun tray racks. Each holds up to
twenty-two 18"L x 26"D (458 mm x 661 mm)
sheet pans (sold separately).
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.

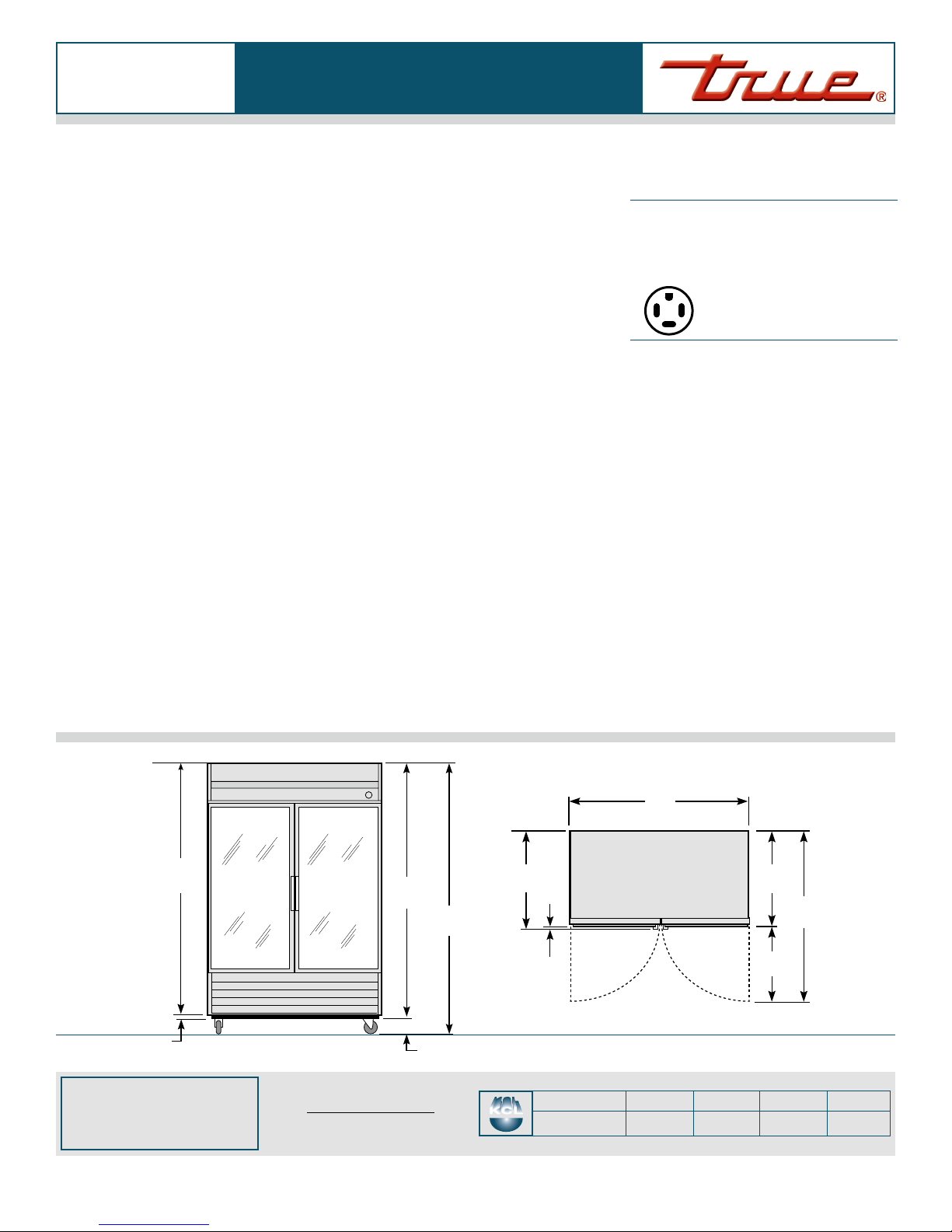

ELEVATION PLAN VIEW
115/208-230/1
NEMA-14-20R
541/8 "
(1375 mm)
785/16 "
(1990 mm)
5 "
(127 mm)
5415/16 "
(1396 mm)
257/16 "
(647 mm)
2923/32 "
(755 mm)
13/8 "
(35 mm)
T Series:
Reach-In Glass Door Freezer
765/16 "
(1955 mm)
13/8 "
(35 mm)
313/32 "
(790 mm)
