True TS-35F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TS-35F
TS-35F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LDH
*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TS-35F 2 35
992
639
1/2
1004
291/2
750
783/8
1991
3/4
1
115/60/1
230-240/50/1
12.4
6.4
5-20P
▲
9
2.74
480
218
*Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs. ▲Plug type varies by country.
11/05
TS Series:
Reach-In 300 Series Stainless Steel Solid Door Freezer
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety and
the best value in today’s food
service marketplace.
Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
-10°F (-23.3°C) cabinet
temperatures. Ideally suited for
both frozen food and ice cream.
300 series stainless steel solid doors,
front and sides. The finest stainless
available; higher tensile strength
for fewer dents and scratches.
Adjustable, heavy duty PVC coated
shelves.
Positive seal self-closing doors.
Lifetime guaranteed door hinges
and torsion type closure system.
Automatic defrost system time-
initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.
Bottom mounted units feature:
“No stoop” lower shelf.
Storage on top of cabinet.
Compressor performs in coolest,
most grease free area of kitchen.
Easily accessible condenser coil for
cleaning.
R
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TS-35F TFGY35E TFEY04S TFEY04P TFGY353
TS-35F
DESIGN
• True’s solid door reach-in’s are designed
with enduring quality that protects your
long term investment.
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user with
colder product temperatures, lower utility
costs, exceptional food safety and the best
value in today’s food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) R404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C). Ideal
for both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motors and larger fan
blades give True reach-in’s a more
efficient, low velocity, high volume airflow
design. This unique design insures faster
temperature recovery and shorter run times
in the busiest of food service environments.
• Bottom mounted condensing unit
positioned for easy maintenance.
Compressor runs in coolest and most grease
free area of the kitchen. Allows for storage
area on top of unit.
• Automatic defrost system time-intiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors,
front and sides. Matching aluminum back.
• Interior - 300 series stainless steel liner
and floor.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm)
diameter stem castors - locks provided on
front set.
DOORS
• 300 series stainless steel exterior and door
liner. Doors extend full width of cabinet
shell. Door locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12 " (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Six (6) adjustable, heavy duty PVC coated
wire shelves 171/2"L x 223/8"D (445 mm x
569 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
LIGHTING
• Incandescent interior lighting - safety
shielded lights activated by rocker switch
mounted above doors.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Exterior mounted temperature monitor.
• Rear airflow guards prevent product from
blocking optimal airflow.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 20 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒Additional shelves.
❒Half door bun tray racks. Each holds up
to eleven 12"L x 20"D (305 mm x 508 mm)
sheet pans (sold separately) (airflow guards
need to be removed).
❒Full door bun tray racks. Each holds up to
twenty-two 12"L x 20"D (305 mm x
508 mm) sheet pans (sold separately)
(airflow guards need to be removed).
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant), consult factory technical
service department for BTU information.
115/60/1
NEMA-5-20R
TS Series:
Reach-In 300 Series Stainless Steel
Solid Door Freezer

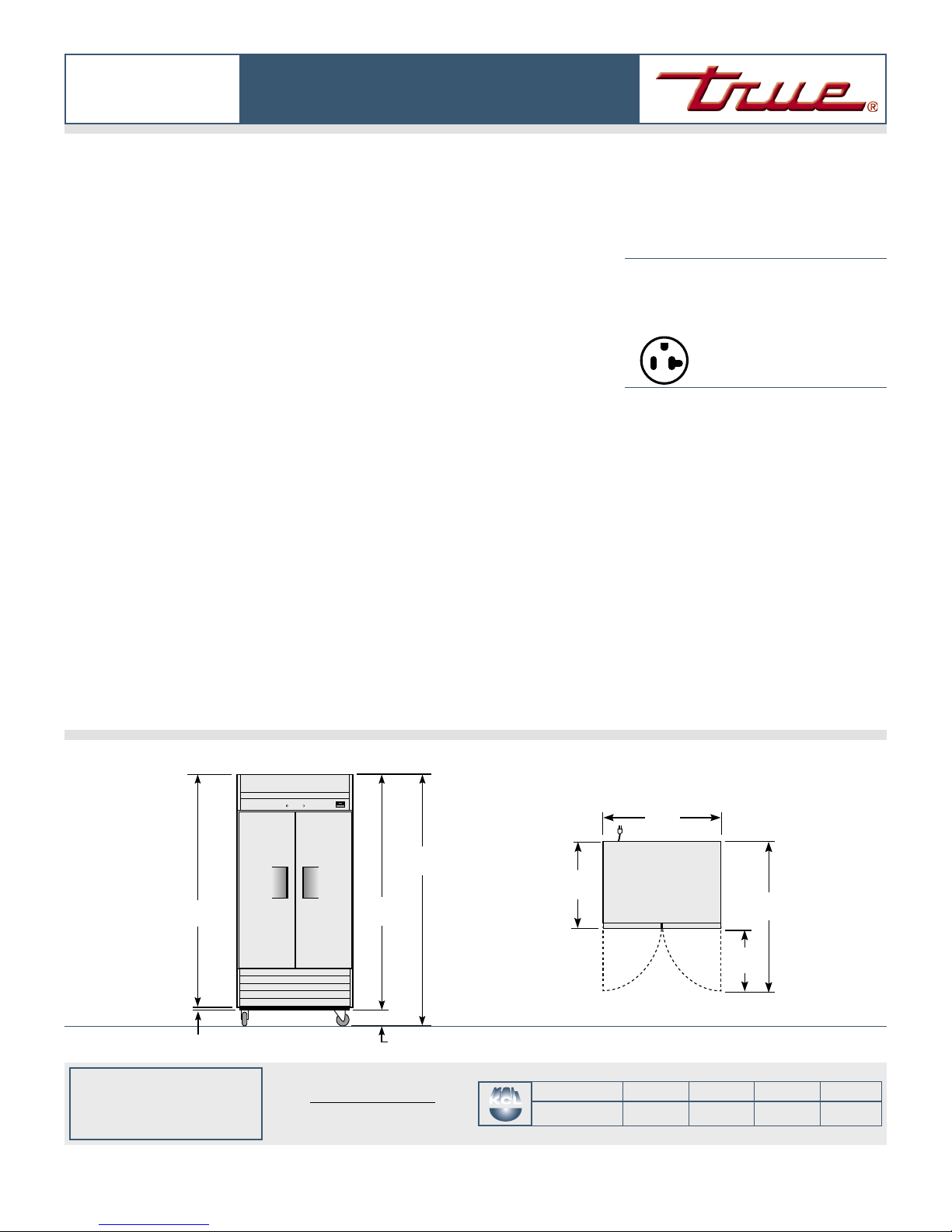

ELEVATION PLAN VIEW
835/16"
(2117 mm)
785/16"
(1990 mm)
5"
(127 mm)
185/32"
(462 mm)
4721/32 "
(1211 mm)
291/2"
(750 mm)
391/2"
(1004 mm)
7615/16"
(1955 mm)
13/8"
(35 mm)
