True TUC-60F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TUC-60F
TUC-60F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TUC-60F 2 15.5
439
460
3/8
1534
301/8
766
293/4
756
1/2
1/2
115/60/1
230-240/50/1
10.9
6.2
5-15P
▲
7
2.13
355
162
†Depth does not include 1
" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs.
1/06
R
True’s undercounter units are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today’s
food service marketplace.
Oversized, environmentally
friendly (R404A) forced-air
refrigeration system holds
-10°F (-23.3°C). Ideally suited
for both frozen foods and ice
cream.
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Front breathing.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy duty PVC coated wire
shelves.
Automatic defrost system time-
initiated, time-terminated.
Undercounter:
Solid Door Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

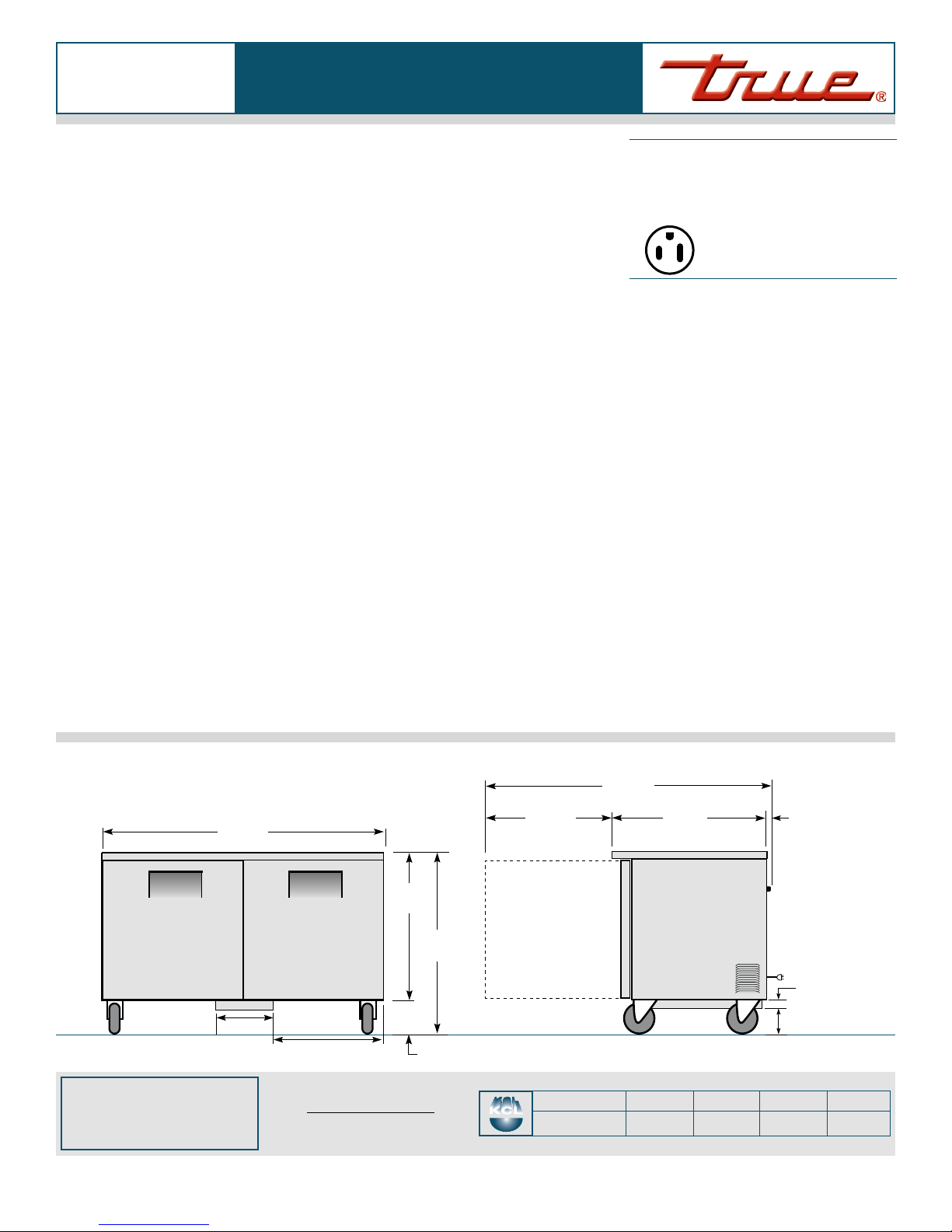

Model Elevation Right Plan 3D
PLAN VIEW
KCL
25/16"
(59 mm)
125/8"
(321 mm) 243/4"
(629 mm)
TUC-60F TFQY03E TFQY03S TFQY03P TFQY033
TUC-60F
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) R404A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform product temperatures.
• Extra large evaporator coil balanced
with higher horsepower compressor and
large condenser; maintains -10°F (-23.3°C)
cabinet temperatures. Ideally suited for
both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motors and larger fan
blades give True undercounter units a
more efficient low velocity, high volume
airflow design. This unique design insures
faster temperature recovery and shorter
run times in the busiest of food service
environments.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
• Automatic defrost system time-initiated,
time-terminated.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum finished
back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.
DOORS
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Positive seal self-closing doors with 90° stay
open feature. Doors swing within cabinet
dimensions.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty PVC coated
wire shelves 271/2"L x 16"D (699 mm x
407 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Basic overshelf.
❒ Sandwich /salad service shelf
❒ Single utility shelf.
❒ Double utility shelf.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
white polyethylene cutting board.
Requires “L” brackets.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires
“L” brackets.
❒ Heavy duty, 16 gauge tops.
❒ ADA compliant models with 34" (864 mm)
work surface height.
❒ Low profile models with 317/8" (810 mm)
work surface height.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant), consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R
ELEVATION RIGHT VIEW
605/16"
(1532 mm)
293/4"
(756 mm)
3515/16"
(913 mm)
63/16"
(158 mm)
2715/32"
(698 mm)
5817/32"
(1487 mm)
301/16"
(764 mm)
Undercounter:
Solid Door Freezer
1"
(26 mm)
37/8"
(99 mm)
