Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TA1F-1S
TA1F-1S
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LDH
*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TA1F-1S 1 31
878
329
737
345/8
880
781/4
1988
1/2115/60/1 10.8 5-15P 9
2.74
410
186
*Height does not include 5" (127 mm) for castors or 1" (26 mm) for system mechanical components.
11/05
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs and exceptional food
safety.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation.
300 series stainless steel exterior
door, front, sides, back, and
bottom. The very finest stainless
with higher tensile strength for
fewer dents and scratches.
NSF approved, white aluminum
interior side walls and back
liner. 300 series stainless steel
door liner and floor with coved
corners.
Adjustable, heavy duty PVC
coated shelves.
Positive seal self-closing door.
Lifetime guaranteed door hinges
and torsion type closure system.
Entire cabinet structure and
solid door are foamed-in-place
using high density, CFC free,
polyurethane insulation.
Automatic defrost system
time-initiated, temperature-
terminated. Saves energy
consumption and provides
shortest possible defrost cycle.
TA Series:
Reach-In Solid Door Freezer
R
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TA1F-1S TFQY50E TFQX72S TFQX60P TFQX723
TA1F-1S
DESIGN
• True’s solid door reach-in’s are designed with
enduring quality that protects your long term
investment.
• Designed using the highest quality materials
and components to provide the user with
colder product temperatures, lower utility
costs and exceptional food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains -10°F (-23.3°C) cabinet
temperature. Ideal for both frozen foods and
ice cream.
• Sealed, cast iron, self-lubricating evaporator
fan motor and larger fan blades give True
reach-in’s a more efficient low velocity, high
volume airflow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone to
maximize capacity.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel door, front,
sides, back and bottom.
• Interior - attractive, NSF approved, white
aluminum side walls and back liner. 300 series
stainless floor with coved corners.
• Insulation - entire cabinet structure and solid
door are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Cabinet mounted on a welded, heavy
duty galvanized frame rail. Rail dipped in
rust inhibiting enamel paint for corrosion
protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOOR
• 300 series stainless steel. Door opens within
cabinet dimensions. Door lock standard.
• Lifetime guaranteed recessed door handle.
Door fitted with 12" (305 mm) long recessed
handle that is foamed-in-place with a
sheet metal interlock to insure permanent
attachment.
• Positive seal self-closing door with 90° stay
open feature. Lifetime guaranteed door
hinges.
• Magnetic door gasket of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• Three (3) adjustable, heavy duty PVC coated
wire shelves 25"L x 273/4"D (635 mm x 705
mm) (shipped separately). Four (4) shelf
supports included per shelf. Shelves adjustable
on 6" (153 mm) increments.
• Four (4) different interior kits available (see Kit
Options). Pilasters and tray slides require field
installation (shipped separately).
LIGHTING
• Incandescent interior lighting - lights activated
by rocker switch mounted above door, safety
shielded.
MODEL FEATURES
• Exterior mounted digital temperature monitor.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Backguard improves airflow.
• Minimum wattage heater in cabinet frame
and door.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6” (153 mm) standard legs.
❒6” (153 mm) seismic/flanged legs.
❒6” (153 mm) stainless legs.
❒Metal door handles (factory installed).
❒Additional shelves.
❒Electronic temperature control (factory installed).
❒Curb mountable units.
❒ Correctional facilities options.
❒Remote cabinets (condensing unit supplied by
others; system comes standard with 404A expansion
valve and requires R404A refrigerant), consult
factory technical service department for BTU
information.
KIT OPTIONS
❒Kit #1: Nine (9) sets of #1 type tray slides (field
installed), bottom support of (1) 18"L x 26"D (458
mm x 661 mm) pan or (2) 14"L x 18"D (356 mm x
458 mm) pans.
❒Kit #2: One (1) set half-section #2 steel rod
tray slides (field installed), rim support of
(1) 18"Lx 26"D (458 mm x 661 mm) pan.
❒Kit #3: Six (6) sets of universal type tray
slides (field installed), bottom support of
(1) 18"L x 26"D (458 mm x 661 mm) pan,
(2) 14"L x 18"D (356 mm x 458 mm) pans or
(2) 12"L x 20"D (305 mm x 508 mm) pans.
❒ Kit #4: Three (3) chrome shelves 25"L x 273/4"D (635
mm x 705 mm). Four (4) shelf supports included
per shelf. Shelves adjustable on 6" (153 mm)
increments.
❒ Additional kit option components available
individually.
115/60/1
NEMA-5-15R
TA Series:
Reach-In Solid Door
Freezer

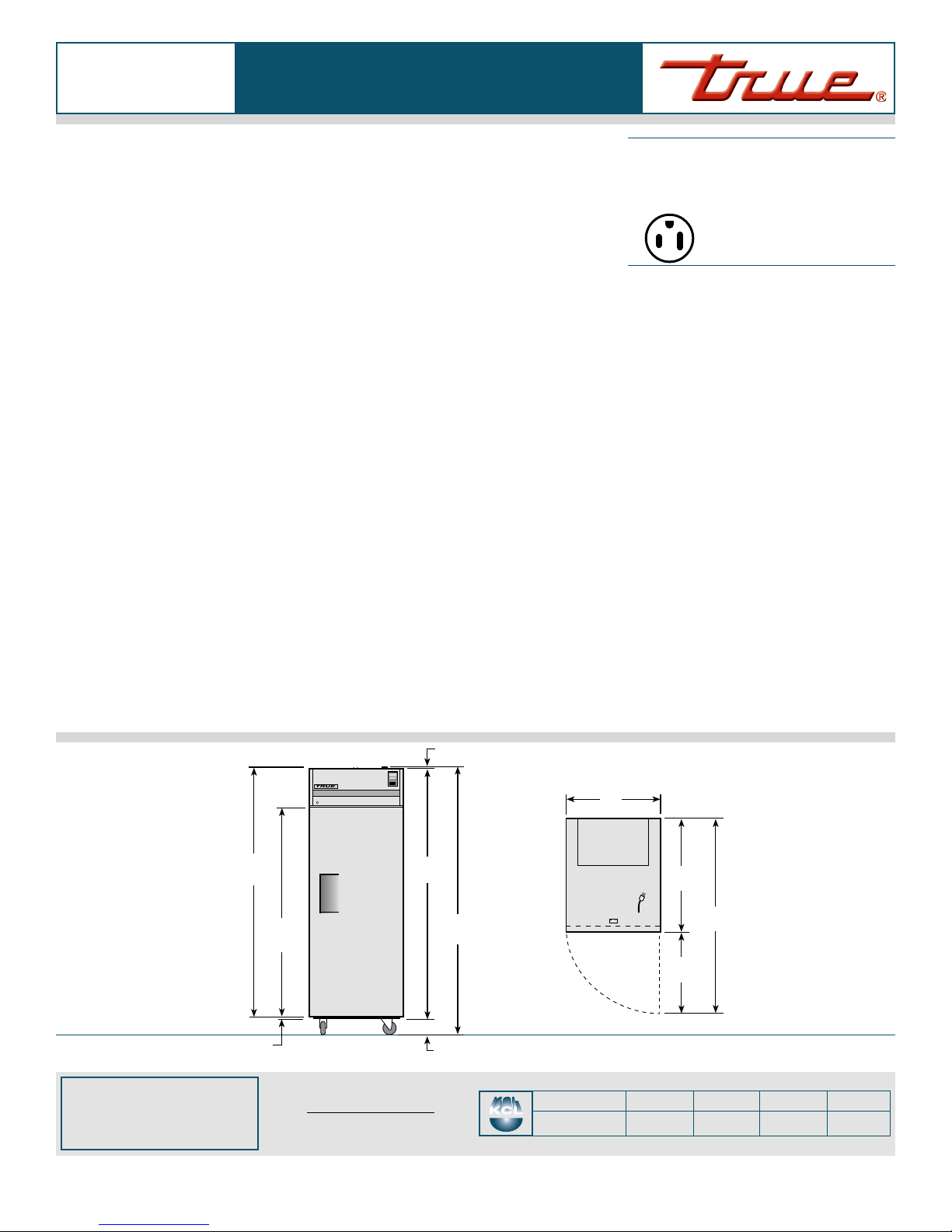

ELEVATION
783/16"
(1986 mm)
843/16"
(2139 mm)
5"
(127 mm)
1/4"
(7 mm)
PLAN VIEW
77"
(1956 mm)
13/16"
(31 mm)
633/8"
(1610 mm)
29"
(737 mm)
345/8"
(880 mm)
2623/32"
(679 mm)
6111/32"
(1559 mm)
