True TR2FPT-2S-2S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TR2FPT-2S-2S
TR2FPT-2S-2S
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LDH
*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TR2FPT-2S-2S 4 56
1586
513/8
1305
371/4
947
781/4
1988
1115/208-230/60 9.1 14-20P 9
2.74
754
342
* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs and 1" (26 mm) for system mechanical components.
Requires 115/208-230/60 Hz, single phase, 3 pole, 4 wire circuit.
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility costs
and exceptional food safety.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Cabinet comes equipped with
one (1) interior kit option
per section, factory installed.
Four (4) different interior kits
available.
Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door
hinges.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
Lifetime guaranteed recessed
door handles.
TR Series:
Pass Thru Solid Door Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TR2FPT-2S-2S TFQY54E TFQY96S TFQY96P TFQY953
TR2FPT-2S-2S
DESIGN
• True’s solid door pass-thru’s are designed with
enduring quality that protects your long term
investment.
• Designed using the highest quality materials
and components to provide the user with
colder product temperatures, lower utility costs
and exceptional food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains -10°F (-23.3°C) cabinet
temperature. Ideal for both frozen foods and
ice cream.
• Sealed, cast iron, self-lubricating evaporator
fan motors and larger fan blades give True
reach-in’s a more efficient low velocity, high
volume airflow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone to
maximize capacity.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors, front,
sides, rear and bottom.
• Interior - 300 series stainless steel liner and
floor.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4 " (102 mm) diameter stem
castors - locks provided on front set.
DOORS
• 300 series stainless steel exterior and door liner.
Doors open within cabinet dimension. Door
locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to insure permanent
attachment.
• Positive seal self-closing doors with 120° stay
open feature. Lifetime guaranteed door
hinges.
• Magnetic door gaskets of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• One (1) factory installed, interior kit option
per full section. Four (4) different interior kits
available (see Kit Options). Pilasters and tray
slides are factory installed at no charge.
LIGHTING
• Incandescent interior lighting - lights activated
by rocker switch mounted above doors, safety
shielded.
MODEL FEATURES
• Exterior mounted temperature monitor.
Available with either °F or °C display
• Evaporator epoxy coated to eliminate the
potential of corrosion.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for final connection to a 115/208-230/60 phase
- 20 amp dedicated outlet. Cord and plug set
included.
OPTIONAL EATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 6" (153 mm) stainless steel legs.
❒ Stainless steel rail skirt for use with legs
(field installed).
❒ Metal door handles (factory installed).
❒ Electronic temperature control (factory installed).
❒ Correctional facilities options.
❒ Curb mountable units.
❒ Remote cabinets (condensing unit supplied by
others; system comes standard with 404A expansion
valve and requires R404A refrigerant), consult
factory technical service department for BTU
information.
KIT OPTIONS
❒Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (factory installed), bottom support of one
(1) 18
" L x 26 " D (458 mm x 661 mm) pan or two (2)
14
" L x 18 " D (356 mm x 458 mm) pans.
❒Kit #2: One (1) set half-section #2 steel rod tray
slides and pilasters (factory installed), rim support of
one (1) 18
" L x 26 " D (458 mm x 661 mm) pan.
❒Kit #3: Six (6) sets of universal type tray slides and
pilasters (factory installed), bottom support of one
(1) 18
" L x 26 " D (458 mm x 661 mm) pan, two (2)
12
" L x 20 " D (305 mm x 508 mm) pans or two (2)
14
" L x 18 " D (356 mm x 458 mm) pans.
❒Kit #4: Three (3) chrome shelves 25
" L x 273/4 " D
(635 mm x 705 mm). Four (4) shelf supports
included per shelf. Shelves adjustable on 6
"
(153 mm) increments.
❒Additional kit option components available
individually.
115/208-230/1
NEMA-14-20R
TR Series:
Pass Thru Solid Door Freezer

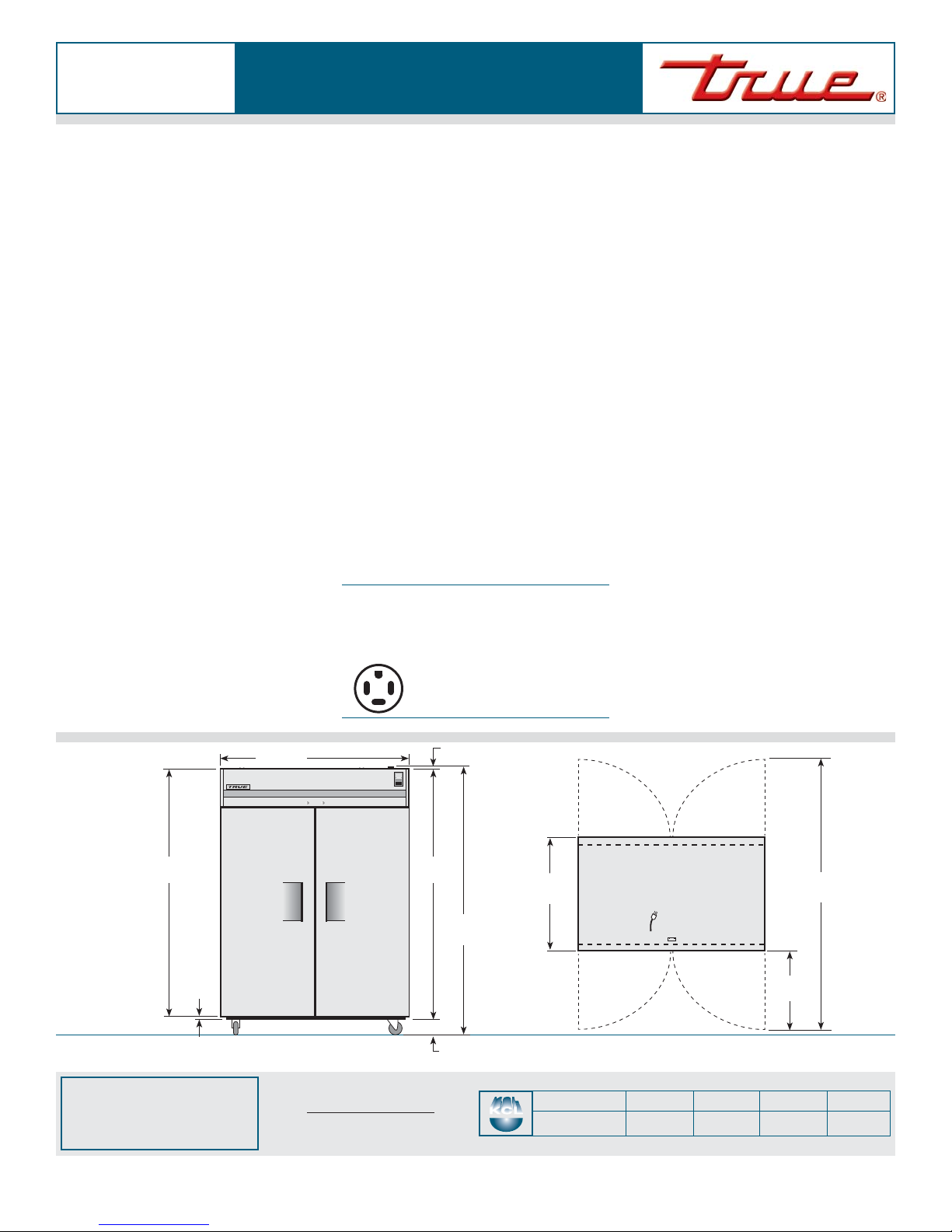

ELEVATION
783/16"
(1986 mm)
843/16"
(2139 mm)
5"
(127 mm)
1"
(26 mm)
PLAN VIEW
2317/32"
(598 mm)
845/16"
(2142 mm)
371/4"
(947 mm)
13/16"
(31 mm)
77"
(1956 mm)
513/8"
(1305 mm)
