True TM-74F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TM-74F
TM-74F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TM-74F 3 74
2096
978
1/8
1985
291/2
750
781/4
1988
1 115/208-230/60/1 10.5 14-20P 9
2.74
695
316
†Depth does not include 23/8
" (61 mm) for upper rear condensate enclosure.
*Height does not include 5
" (127 mm) for castors or 6 " (153 mm) for optional legs.
6/07
R
True’s solid door reach-in’s are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.
Extra large evaporator coil
balanced with higher horsepower
compressor and large condenser;
maintains -10°F (-23.3°C) cabinet
temperatures. Ideally suited for
both frozen foods and ice cream.
300 series stainless steel solid
doors and front. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Adjustable, heavy duty PVC
coated shelves.
Positive seal self-closing doors.
Lifetime guaranteed door hinges
and torsion type closure system.
Automatic defrost system
time-initiated, temperature-
terminated. Saves energy
consumption and provides
shortest possible defrost cycle.
TM Series:
Reach-In Top Mount Solid Door Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
PLAN VIEW
Model Elevation Right Plan 3D
KCL
TM-74F TFEY22E TFEY52S TFEY52P TFEY523
TM-74F
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C)
cabinet temperatures. Ideally suited for
both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True reach-in’s a more
efficient low velocity, high volume
airflow design. This unique design
ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.
• Top-mounted condensing unit.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest
possible defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors
and front. Anodized quality aluminum
exterior ends and back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint
for corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm)
diameter stem castors - locks provided on
front set.
DOORS
• 300 series stainless steel exterior with
white aluminum liners to match cabinet
interior. Doors extend full width of
cabinet shell. Door locks standard.
• Lifetime guaranteed recessed door
handles. Each door fitted with 12"
(305 mm) long recessed handle that
is foamed-in-place with a sheet
metal interlock to ensure permanent
attachment.
• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Nine (9) adjustable, heavy duty PVC
coated wire shelves 241/8"L x 223/8"D
(613 mm x 569 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
LIGHTING
• Incandescent interior lighting - safety
shielded. Lights activated by rocker
switch mounted above doors.
MODEL FEATURES
• Digital exterior temperature display.
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a
115/208-230/60Hz single phase, 3 pole,
4 wire - 20 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒Alternate door hinging (factory
installed).
❒Novelty baskets.
❒Additional shelves.
❒Half door bun tray racks. Holds up to
eleven 18"L x 26"D (458 mm x 661 mm)
sheet pans (sold separately) (airflow
guards need to be removed).
❒Full door bun tray racks. Holds up to
twenty-two 18"L x 26"D (458 mm x
661 mm) sheet pans (sold separately)
(airflow guards need to be removed).
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant). Consult
factory technical service department for
BTU information.
TM Series:
Reach-In Top Mount Solid Door Freezer

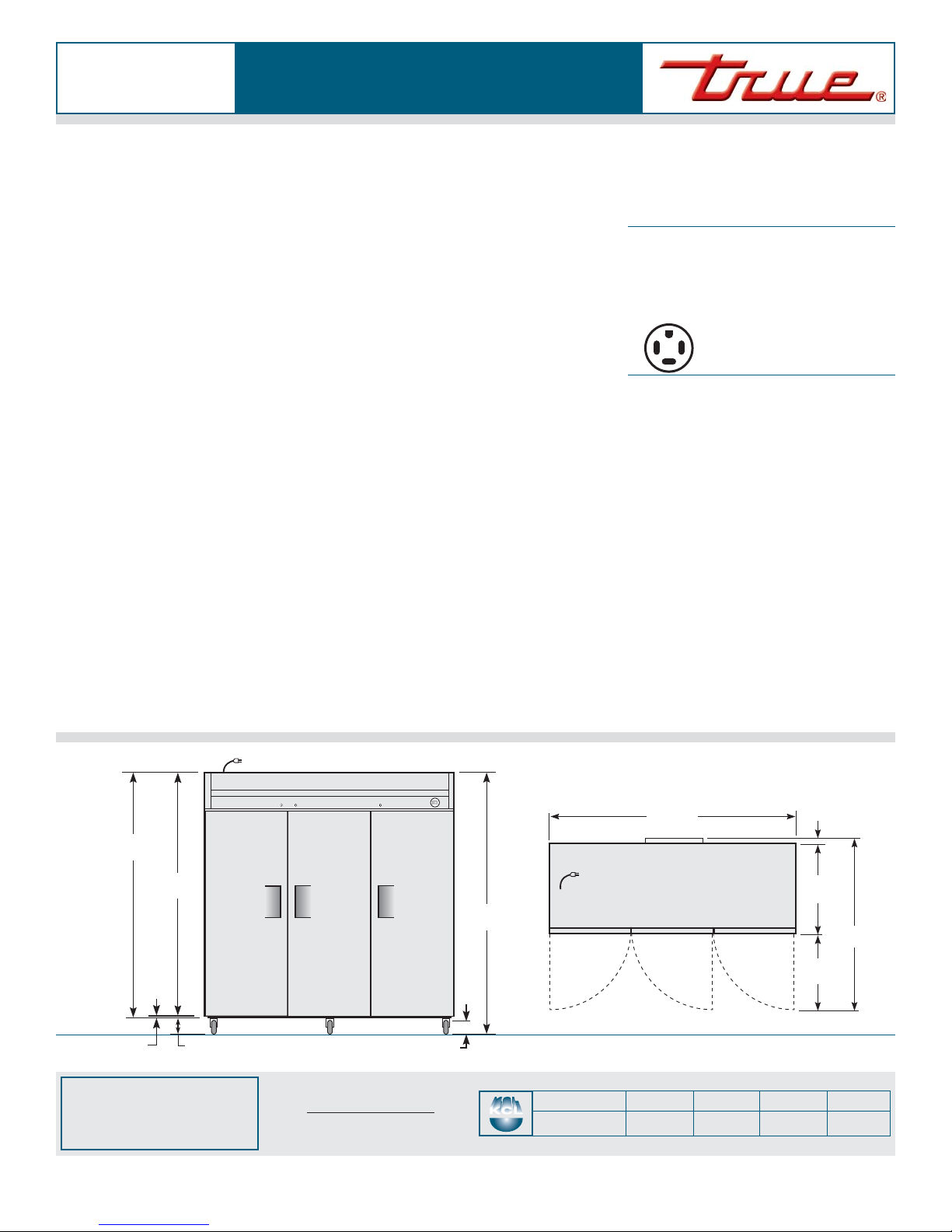

PLAN VIEW
781/8 "
(1985 mm)
2415/32 "
(622 mm)
569/32 "
(1430 mm)
291/2 "
(750 mm)
115/208-230/1
NEMA-14-20R
25/16 "
(59 mm)
ELEVATION
13/16"
(31 mm)
5"
(127 mm)
783/16"
(1986 mm)
833/16"
(2113 mm)
77"
(1956 mm)
4"
(102 mm)
