True TWT-44F User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TWT-44F
TWT-44F
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TWT-44F 1 11.4
323
244
1/2
1131
323/8
823
333/8
848
1/2115/60/1 10.2 5-15P 7
2.13
310
141
†Depth does not include 1" (26 mm) for rear bumpers and 1/4"(7 mm) for front bumper.
*Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.
12/05
True’s deep worktop units are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.
Extra large evaporator coil
balanced with higher horsepower
compressor and large condenser
maintains -10°F (-23.3˚C) cabinet
temperatures. Ideally suited for
both frozen foods and ice cream.
All stainless steel front, top and
cabinet ends. Matching aluminum
finished back. Cabinet top and
backsplash - one piece formed
construction. Bacteria and food
particles can not be trapped
underneath as with other two-
piece worktop units.
NSF approved, white aluminum
interior liner. 300 series stainless
floor with coved corners.
Foamed-in-place, high density
polyurethane insulation (CFC free).
Heavy duty PVC coated wire
shelves.
Automatic defrost system time-
initiated, time-terminated.
Deep Worktop:
Solid Door Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

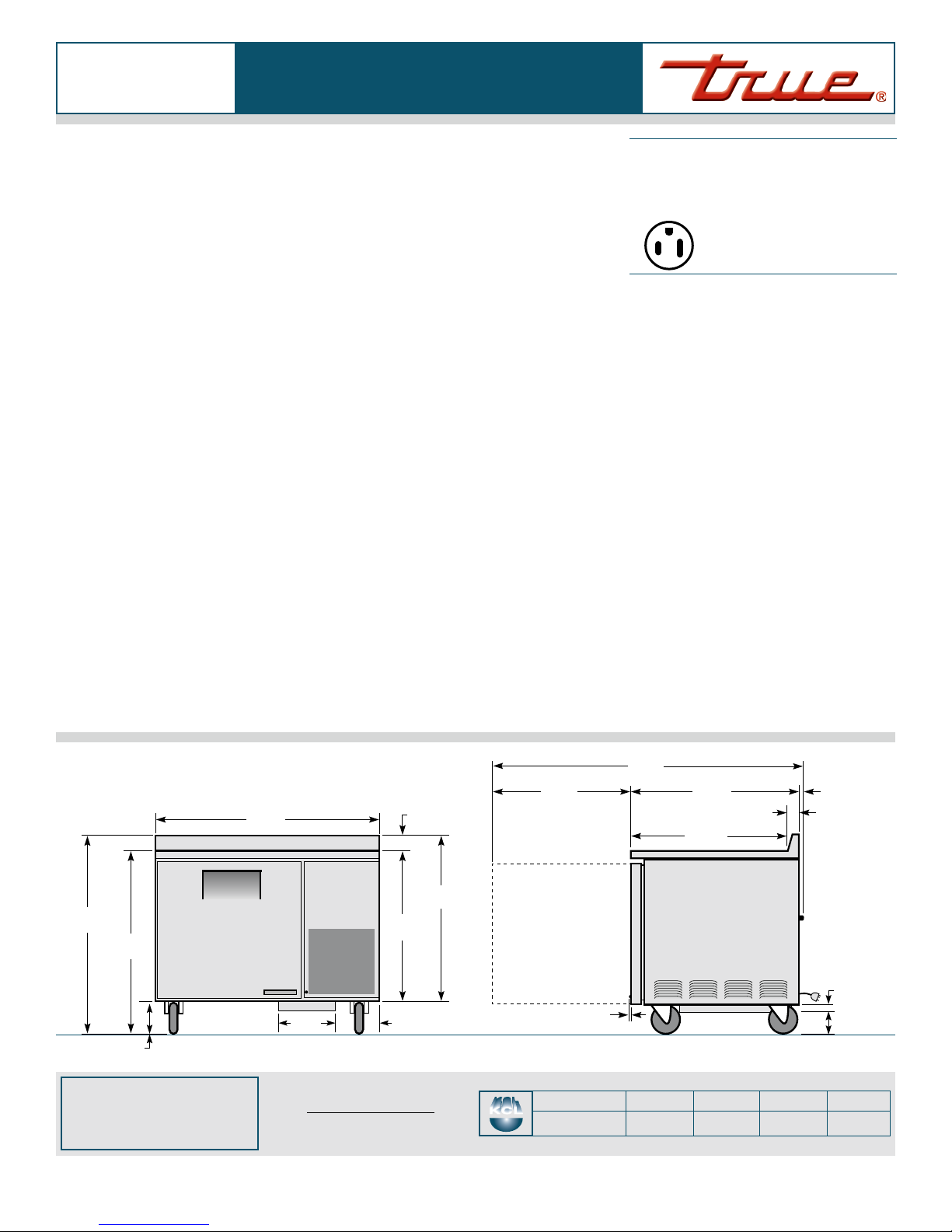

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TWT-44F TFPY21E TFPY21S TFPY21P TFPY213
TWT-44F
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user with
colder product temperatures, lower utility
costs, exceptional food safety and the best
value in today’s food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform product temperatures.
• Extra large evaporator coil balanced
with higher horsepower compressor and
large condenser; maintains -10˚F (-23.3˚C)
cabinet temperatures. Ideally suited for
both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan
blades give True worktop units a more
efficient low velocity, high volume
airflow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of food
service environments.
• Condensing unit is accessed from behind
front grill; slides out for easy maintenance.
• Automatic defrost system time-initiated,
time-terminated.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
ends. Matching aluminum finished
back. Top and backsplash are one piece
formed construction.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid door are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• 5" (127 mm) diameter stem castors -
locks provided on front set. 36"
(915 mm) work surface height.
DOOR
• Stainless steel exterior with white
aluminum liner to match cabinet
interior.
• Door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Positive seal door swings within cabinet
dimensions.
• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves 25"L x 273/4"D
(635 mm x 705 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 6" 153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Single utility shelf.
❒ Double utility shelf.
❒ 321/8" (816 mm) deep, 1/2" (13 mm)
thick, white polyethylene cutting board.
Requires ”L” brackets.
❒ 321/8" (816 mm) deep, 1/2" (13 mm)
thick, composite cutting board.
Requires ”L” brackets.
❒ Half bun tray rack. Holds 18"L x 26"D
(458 mm x 661 mm) sheet pans
(sold separately).
❒ Additional shelves.
❒ Heavy duty, 16 gauge tops.
❒ Heavy duty package - 16 gauge tops,
20 gauge door, sides and back with
stainless interior.
❒ Remote cabinets (condensing units
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.
115/60/1
NEMA-5-15R
RIGHT VIEW
Deep Worktop:
Solid Door Freezer
ELEVATION
123/4"
(324 mm)
441/2"
(1131 mm)
293/4"
(756 mm)
3515/16"
(913 mm)
39/16"
(91 mm)
81/4"
(210 mm)
335/16"
(847 mm)
391/2"
(1004 mm)
TRUE
63/16"
(158 mm)
1/4"
(7 mm)
281/2"
(724 mm)
617/8"
(1572 mm)
323/8"
(823 mm)
1"
(26 mm)
25/8"
(67 mm)
131/32"
(51 mm)
3013/32"
(773 mm)
39/16"
(91 mm)
