True TBB-4G-S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TBB-4G-S
TBB-4G-S
Model Doors
Capacity
Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
12 oz.
Cans
1/2
Barrels
TBB-4G-S 3 209
6-packs
4690
3/8
2296
271/2
699
37
940
1/2
1/3
115/60/1
230-240/50/1
10.7
4.2
5-15P
▲
9
2.74
540
245
†Depth does not include 13/8" (35mm) for door handles. ▲Plug type varies by country.
4/06
True’s refrigerated back bar
coolers are designed with
enduring quality and value. Our
commitment to using the highest
quality materials and oversized
refrigeration assures colder
product temperatures and years
of trouble free service.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
Exterior - stainless steel front,
sides and countertop. Matching
aluminum back.
Interior - 300 series stainless steel
floor with 1/2" (13 mm) reinforced
lip and heavy gauge galvanized
steel walls. NSF approved for pre-
packaged and bottled product.
Positive seal doors.
“Low-E”, double pane thermal
glass door assemblies with
extruded aluminum frames.
The latest in energy efficient
technology.
Patented integrated door light
(IDL) system for brighter, shadow
free illumination.
Entire cabinet structure foamed-
in-place using high density, CFC
free, polyurethane insulation.
Back Bar Cooler:
Glass Door, Stainless Steel Exterior
R
®
Shown with optional white shelving.

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TBB-4G-S TFJY12E TFJY13S TFJY12P TFJY123
TBB-4G-S
DESIGN
• True’s refrigerated back bar coolers
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C
to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more efficient low velocity, high
volume airflow design. This unique
design insures faster temperature pull
down of warm product, colder holding
temperatures and faster recovery in high
use situations.
• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, sides and
countertop. Matching aluminum back.
• Interior - 300 series stainless steel floor
with
1
/ 2 " (13 mm) reinforced lip and
heavy gauge galvanized steel walls.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
DOORS
• “Low-E”, double pane thermal glass
door assemblies with extruded aluminum
frames. The latest in energy efficient
technology.
• Each door fitted with 15" (381 mm) long
extruded aluminum handle.
• Positive seal doors.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
• Door locks standard.
SHELVING
• Six (6) adjustable, heavy duty, black PVC
coated wire shelves. Two (2) right door
shelf dimensions are 20
3
/ 4 "L x 21
1
/ 4 "D
(528 mm x 540 mm). Two (2) left door
and two (2) center door shelf dimensions
are 32"L x 21
1
/ 4 "D (813 mm x
540 mm). Four (4) chrome plated shelf
clips included per shelf.
• Aluminum shelf support pilasters.
Shelves are adjustable on
1
/ 2 " (13 mm)
increments.
LIGHTING
• Fluorescent interior lighting. Each door
utilizes full-length, patented, integrated
door light (IDL) system. Safety shielded.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒2
1
/ 2 " (64 mm) diameter castors.
❒4" (102 mm) diameter castors.
❒Wine racks.
❒True Trac one (1) Liter beer and wine
organizers.
❒True Trac 12 oz. (355 ml) beer bottle
organizers.
❒Remote cabinets (condensing units
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.
115/60/1
NEMA-5-15R

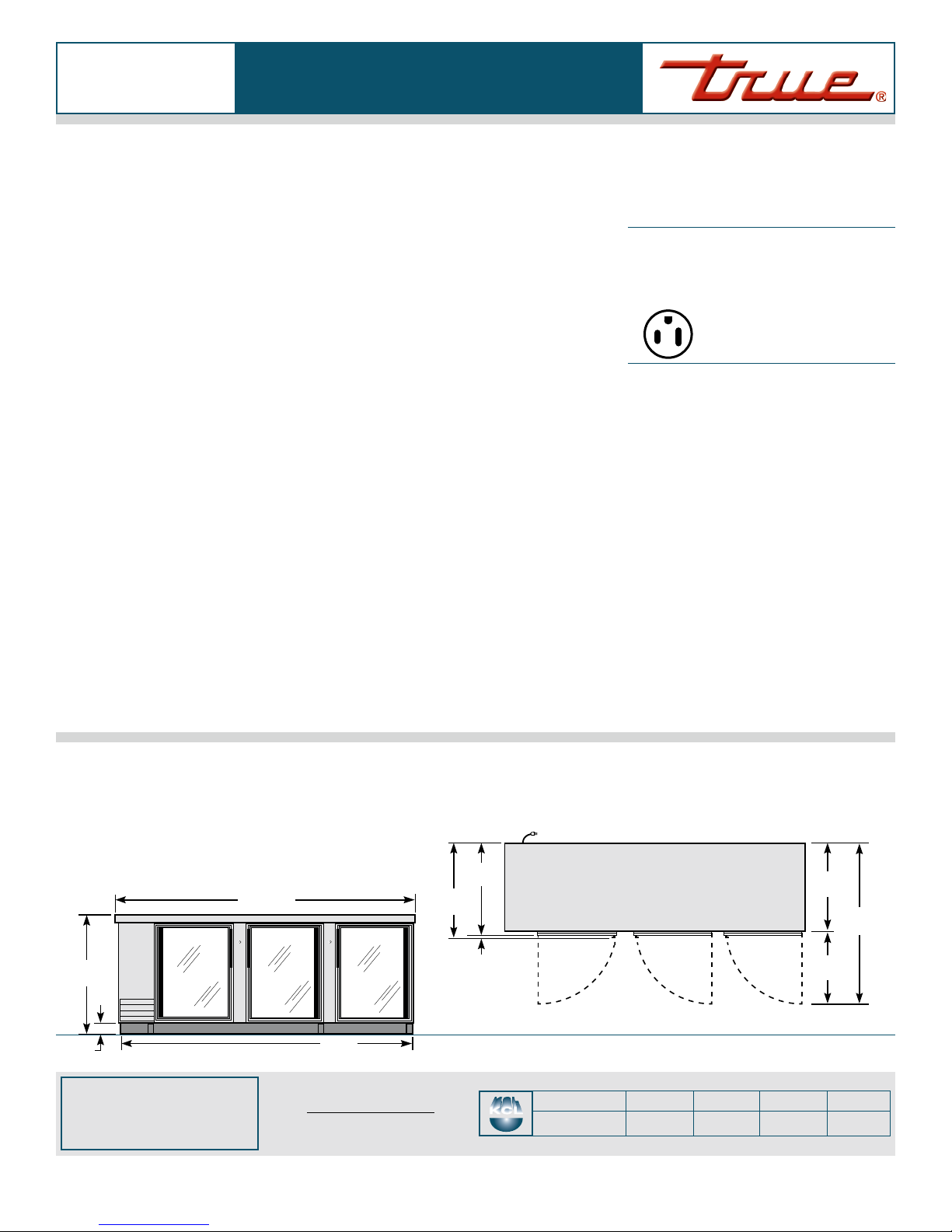

ELEVATION PLAN VIEW
Back Bar Cooler:
Glass Door, Stainless Steel Exterior
905/16"
(2294 mm)
881/2"
(2248 mm)
3"
(77 mm)
37"
(940 mm)
271/16"
(688 mm)
2121/32"
(551 mm)
4823/32"
(1238 mm)
277/16"
(697 mm)
13/8"
(35 mm)
2813/16"
(732 mm)
