True TG2FRI-2S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
TG2FRI-2S
TG2FRI-2S
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs and exceptional food safety.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation.
300 series stainless steel doors and
front. Anodized quality aluminum
exterior sides, back and bottom.
NSF approved, white aluminum
interior sides and back liner. 300
series stainless steel door liners
and floor with coved corners.
Designed to accept roll-in racks
(inboard castors) with a maximum
dimension of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm).
One (1) heavy gauge stainless steel
ramp standard per door.
Three (3) lifetime guaranteed,
cam-lift hinges per doora. Full
180° open capability with a stay
open feature at 120°.
Automatic defrost system time-
initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
TG Series:
Roll-In Solid Door Freezer
®
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
LD
†H*
TG2FRI-2S 2 75
2124
68
1728
341/2
877
833/4
2128
11/5115/208-230/60/1 8.0 14-20P 9
2.74
n/a
†Depth does not include 41/4" (108 mm) for ramps.
* Height does not include 1" (26 mm) for system mechanical components.
note: Requires 115/208-230/60Hz, single phase, 3 pole, 4 wire circuit.
3/07
R

STANDARD FEATURES
Model:
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
TG2FRI-2S
TG2FRI-2S
DESIGN
• True’s solid door roll-in’s are designed
with enduring quality that protects
your long term investment.
• Designed using the highest quality
materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
404A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser maintains -10°F (-
23.3°C) cabinet temperature.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True roll-in’s a more
efficient low velocity, high volume
airflow design. This unique design
ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone
to maximize capacity.
• Automatic defrost system time-
initiated, temperature-terminated.
Saves energy consumption and provides
shortest possible defrost cycle.
• Automatic evaporator fan motor delay
during defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors
and rain shield. Anodized quality
aluminum sides, back and bottom.
• Interior - NSF approved white
aluminum side walls and back liner.
300 series stainless floor with coved
corners.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• One (1) heavy gauge stainless steel
ramp per door.
• Designed to accept roll-in racks
(inboard castors) with a maximum
dimension of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm).
DOORS
• 300 series stainless steel. Doors opens
within cabinet dimension.
• Door locks standard.
• Lifetime guaranteed recessed door
handles. Each door fitted with 12"
(305 mm) long recessed handle that
is foamed-in-place with a sheet
metal interlock to ensure permanent
attachment.
• Wiper gaskets for postitive seal,
reversible.
• Three (3) lifetime guaranteed, cam-
lift hinges per door. Full 180° open
capability with a stay open feature at
120°.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
• Doors are field reversible.
LIGHTING
• Incandescent interior lighting, safety
shielded.
MODEL FEATURES
• Exterior digital temperature display,
available with either °F or °C .
• Evaporator epoxy coated to eliminate
the potential of corrosion.
• Minimum wattage heater in cabinet
frame.
• Interior bumpers protect cabinet walls
from abuse caused by roll-in carts.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/208-230/60Hz single phase, 3 pole,
4 wire - 20 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒Metal door handle (factory installed).
❒Electronic temperature control (factory
installed).
❒Correctional facilities options.
❒Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant),
consult factory technical service
department for BTU information.
115/208-230/1
NEMA-14-20R
TG Series:
Roll-In Solid Door Freezer

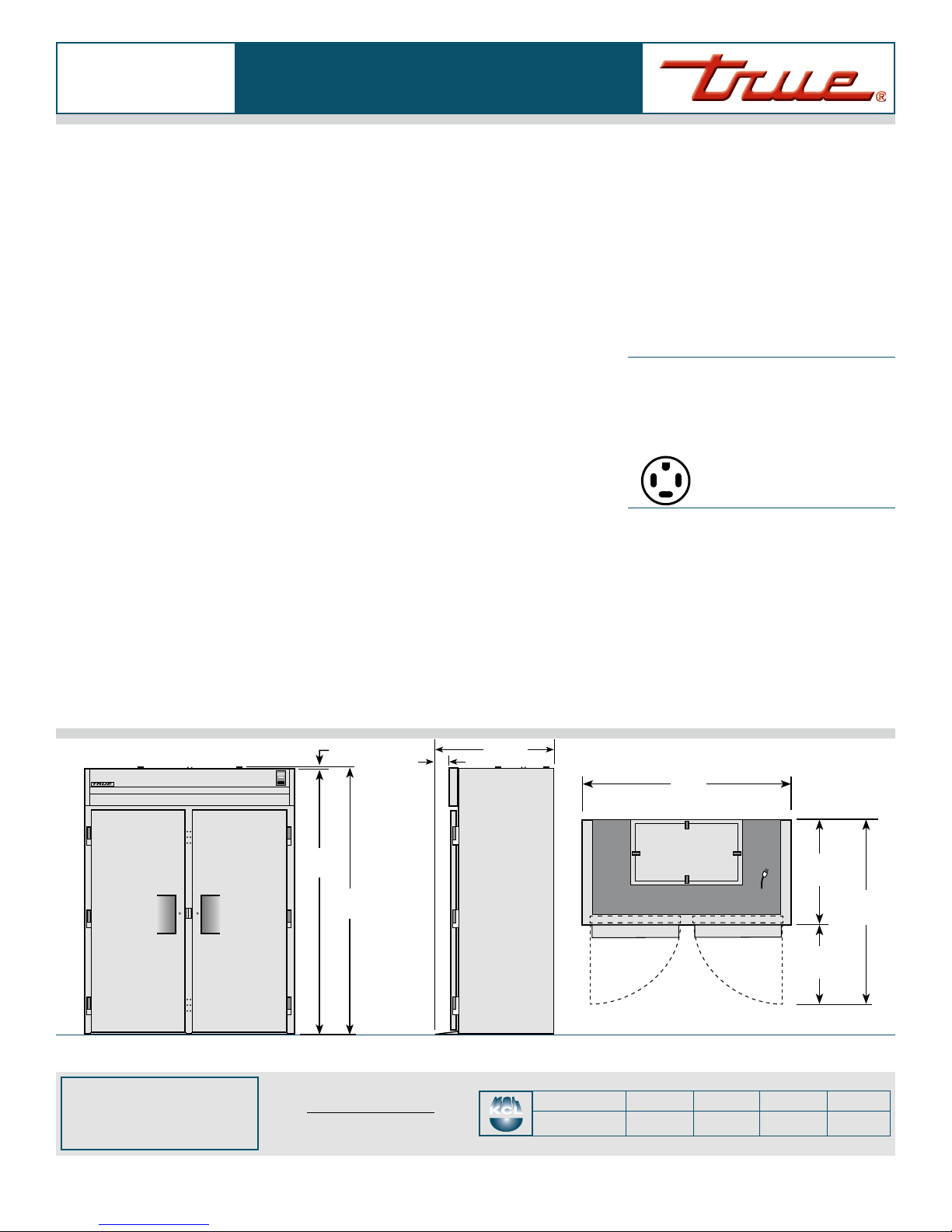

ELEVATION PLAN VIEW
833/4"
(2128 mm)
843/4"
(2153 mm)
347/16"
(875 mm)
30"
(762 mm)
647/16"
(1637 mm)
68"
(1728 mm)
1"
(26 mm)
RIGHT VIEW
3811/16"
(983 mm)
41/4"
(108 mm)
