True TUC-27F-LP User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
TUC-27F-LP
TUC-27F-LP
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*
Counter
Height HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TUC-27F-LP 1 6.5
185
227
5/8
702
301/8
766
293/4
756
317/8
810
1/3
1/3
115/60/1
230-240/50/1
8.3
3.4
5-15P
▲
7
2.13
n/a
n/a
†Depth does not include 1
" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 21/8
" (54 mm) for castors.
1/06
R
True’s undercounters are designed
with enduring quality and value
that protects your long term
investment. Our commitment to
using the highest quality materials
and oversized refrigeration insures
exceptional food preservation.
“Low Profile” models are designed
to slide easily under custom built
countertops.
11/2" (39 mm) diameter dual swivel
castors. 317/8" (810 mm) work
surface height.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C). Ideal for frozen food and
ice cream.
Exterior - 300 series stainless steel
top, stainless front and sides with
matching aluminum back.
Interior - attractive, NSF approved,
white aluminum liner with 300
series stainless steel floor.
Self closing doors. Positive seal,
torsion type closure system.
Entire cabinet and solid door
are foamed-in-place using high
density, CFC free, polyurethane
insulation.
Undercounter:
Low Profile Solid Door Freezer
ADA & Low Profile Comparison
Standard ADA Low Profile
36" height 34" height 317/8" height
(915 mm) (864 mm) (810 mm)
Dual swivel castor
for “LP” models.

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TUC-27F-LP TFQY101E TFQY101S TFQY01P TFQY1013
TUC-27F-LP
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today’s food
service marketplace.
• “Low Profile” models are designed
to slide easily under custom built
countertops.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Oversized, factory balanced
refrigeration system with guided
airflow to provide uniform product
temperatures.
•
Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C).
Ideal for frozen food and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan
blades give True undercounter units a
more efficient low velocity, high volume
airflow design. This unique design
insures colder standard temperature
and faster recovery in high use
situations.
• Condensing unit located in back; slides
out for easy maintenance.
• Defrost system time-initiated, time-
terminated.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel
top,front and sides with matching
aluminum back.
• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless floor with coved corners.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• 11/2" (39 mm) diameter dual swivel
castors permit easy placement. 317/8"
(810 mm) work surface height.
DOOR
• Stainless steel exterior with white
aluminum liner to match cabinet
interior.
• Positive seal, self-closing door with 90˚
stay open feature. Door swings within
cabinet dimensions.
• Door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves 231/4"L x 16"D
(591 mm x 407 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for final connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ Basic overshelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ Additional shelves.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
white polyethylene cutting board.
Requires “L” brackets.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ Heavy duty 16 gauge tops.
❒ Standard height unit with 5" (127 mm)
diameter castors. 36" (915 mm) work
surface height.
❒ ADA compliant unit with 34" (364 mm)
work surface height.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.
115/60/1
NEMA-5-15R
Undercounter:
Low Profile Solid Door Freezer

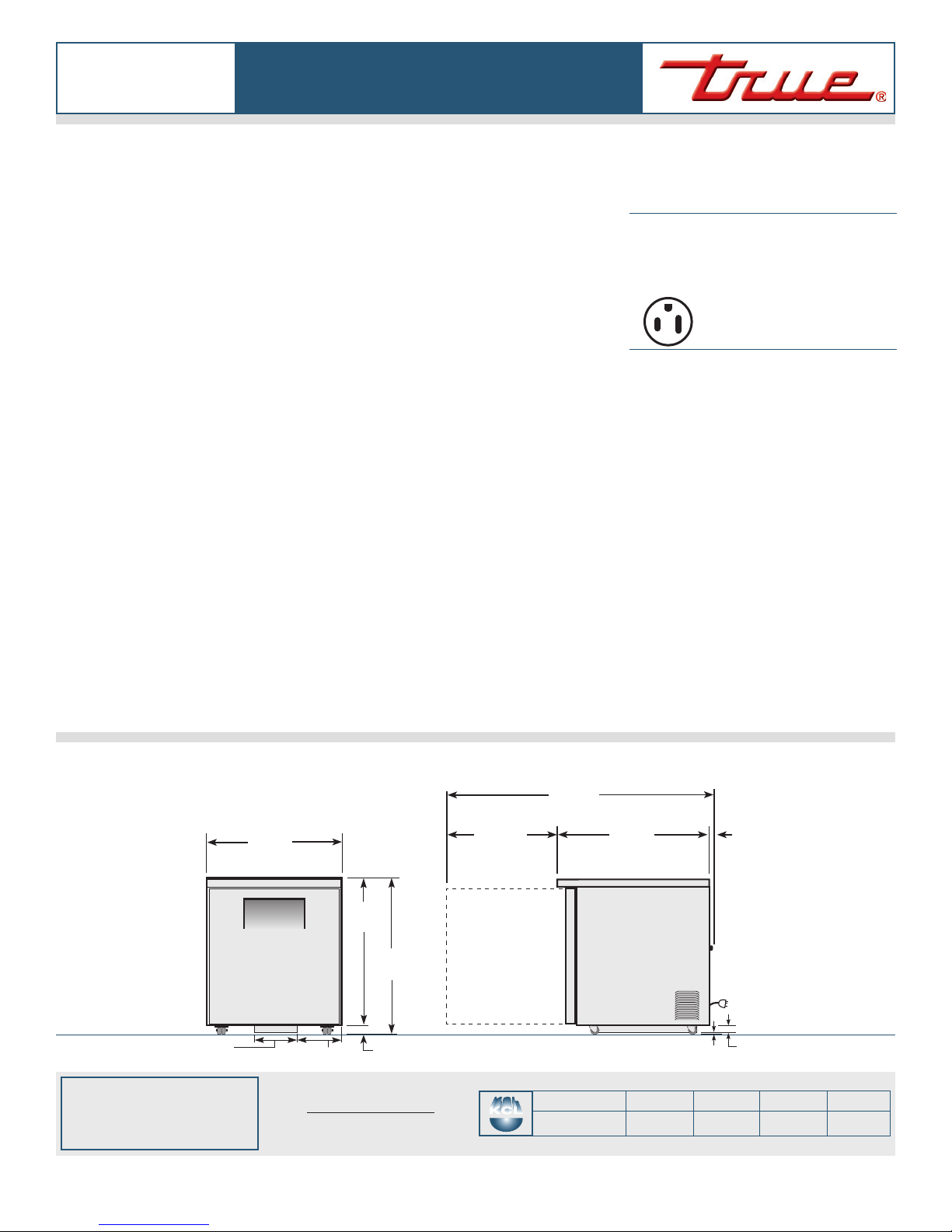

ELEVATION
5/8"
(16 mm)
71/16"
(180 mm) 103/32"
(257 mm) RIGHT VIEW
279/16"
(701 mm)
2427/32"
(632 mm)
5529/32"
(1421 mm)
301/16"
(764 mm)
21/8"
(54 mm)
1"
(26 mm)
293/4"
(756 mm)
317/8"
(810 mm)
11/2"
(39 mm)
