True TUI-15-R-SS-D User manual

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 1 of 64
15 INCH TRUE ICE®MACHINE
INSTALL GUIDE AND USER'S MANUAL
TRUE RESIDENTIAL®
PRESERVE THE MOMENT®
*829867*

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 2 of 64
THANK YOU
FOR YOUR PURCHASE

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 3 of 64
PRESERVE THE MOMENT®
LUXURY REFRIGERATION WITH COMMERCIAL DNA

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 4 of 64
INSTALLATION CHECKLIST 6
15 INCH TRUE ICE®MACHINE MODELS 7
SAFETY INFORMATION & OWNERSHIP
FEATURES OF THE TRUE ICE®MACHINE 10
OWNERSHIP 11
REFRIGERANT SAFETY & WARNING
INFORMATION 11
SAFETY LABELS & LOCATIONS 11
BASIC SAFETY PRECAUTIONS & WARNINGS 13
PROPER DISPOSAL OF THE CABINET 13
CABINET LOCATION & SPECIFICATIONS 14
CONTACT US 14
OUTDOOR USE 14
PRIOR TO INSTALLATION
ROUGH OPENING 16
ANTI-SWEAT FOAM END PANELS 16
WATER LINE, DRAIN LINE, AND POWER CORD
LOCATIONS 16
PLAN VIEWS 17
CUSTOM PANEL SPECIFICATIONS 19
CUSTOM PANEL INSTALLATION 20
ELECTRICAL INSTALLATION & SAFETY 22
DRAIN CONNECTION 23
WATER SUPPLY 25
INSTALLATION
UNCRATING 28
LEVELING LEGS 29
LEVELING 29
KICKPLATE INSTALLATION 29
WATER FILTER INSTALLATION 30
CONTENTS

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 5 of 64
CONTENTS
CABINET SETUP
ICE SCOOP 32
90˚DOORSTOP INSTALLATION
(OPTIONAL ACCESSORY) 32
CABINET OPERATION
BEFORE OPERATING 34
BREAKER RESET 34
POWER SEQUENCE 34
ICE MAKING SEQUENCE 35
ELECTRONIC CONTROL OPERATION 36
MAINTENANCE, CARE, & CLEANING
GENERAL MAINTENANCE 44
WATER FILTER REPLACEMENT 45
CONDENSER COIL CLEANING 46
STAINLESS STEEL EQUIPMENT CARE AND
CLEANING 47
DESCALING & SANITIZING 49
INTERIOR COMPONENTS 51
WINTERIZING 54
SERVICING, REPLACING
COMPONENTS & ADJUSTMENTS
SERVICING & REPLACING COMPONENTS 56
REVERSING DOOR 56
DOOR ADJUSTMENT 59
CONTACT US 59
WARRANTY
LIMITED ICE MACHINE WARRANTY 60

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 6 of 64
INSTALLATION CHECKLIST
To ensure no part of the installation process has been overlooked, complete the checklist below.
Has an authorized True dealer or licensed installer inspected stainless steel surfaces
for imperfection?
(Cosmetic defects are covered by a limited 30-day warranty)
Have all packaging materials been removed?
Is the unit properly leveled with all leveling legs contacting the floor?
Has the water filter been installed? Has the water supply been turned on?
Have the water supply and drain connections been made?
Is the water supply temperature always between 40-100˚F (4.4-7.8˚C)?
Has the ice machine drain line been routed into an open drain with no more than 48”
(1,219.2 mm) vertical rise for 1/2” I.D. tubing and no more than 100’ (30.48 m) run?
Has the water supply been turned on?
Is the power cord plugged into a properly grounded three-prong outlet in accordance with all
applicable electrical codes?
Have all connections been checked for water leaks? If not, pour water directly into the ice
storage bin to ensure drain pump operation and inspect for leaks.
Were the ice maker and storage bin disinfected prior to use? If not, see “Sanitizing” (page 50).
Has the ice machine been turned on? During the initial fill, can you hear the water valve turn
on and see water filling the reservoir tank?
After the first ice cycle, did all 24 ice cubes fall into the bin during harvest?
Have the first two batches of ice been discarded?
Has the customer reviewed the unit’s operation in this manual?
Has the customer reviewed the schedule of maintenance of the machine?

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 7 of 64
15 INCH TRUE ICE®MACHINE MODELS
FINISH

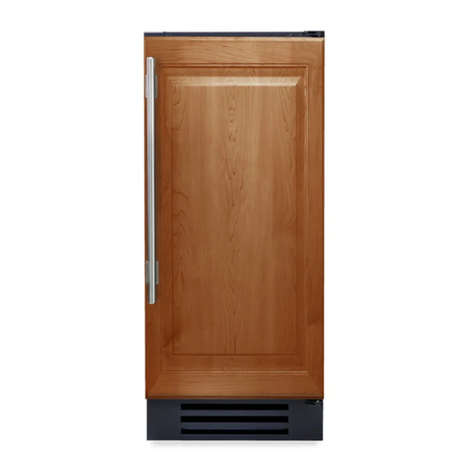

15” STAINLESS STEEL 15” OVERLAY PANEL
15” CUSTOM FINISH
HARDWARE
TUI-15-R-SS-D
TUI-15-L-SS-D
TUI-15-R-OP-D
TUI-15-R/L-OP-D-DSK-103-H08
CUSTOMIZE YOUR TRUE WITH
A VARIETY OF FINISH AND
HARDWARE OPTIONS AT
https://true-residential.com/custom/

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 8 of 64
NOTES

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 9 of 64
FEATURES OF THE TRUE ICE®MACHINE
OWNERSHIP
REFRIGERANT SAFETY & WARNING INFORMATION
SAFETY LABELS & LOCATIONS
BASIC SAFETY PRECAUTIONS & WARNINGS
PROPER DISPOSAL OF THE CABINET
CABINET LOCATION & SPECIFICATIONS
CONTACT US
OUTDOOR USE
PRESERVE THE MOMENT®
SAFETY INFORMATION & OWNERSHIP

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 10 of 64
SAFETY INFORMATION & OWNERSHIP
FEATURES OF THE TRUE ICE MACHINE
• Produces up to 85 lb (38.5 kg) of ultra-clear
gourmet ice cubes per day.
• Stores 28 lb (12.7 kg) of ice cubes.
• Precision Ice-Size control for adjusting to the
perfect cube size.
• Time-of-Flight technology allows for adjusting the
ice level with the push of a button.
• Three-Character LED display tells you what your
machine is doing.
• Auto-clean sequence for walk-away cleaning
simplicity.
• Cleaning time remaining shown on the display.
• Drain Pump standard on all models.
• Built-in water filter with automatic filter change
reminders.
• Fourteen-Color LED bin light.
• High quality True magnetic ice scoop.
• Advanced diagnostics for safe reliable operation.
• Reversible Soft-Close hinges for installation
flexibility.
• U.L. approved for outdoor use.
• Industry-leading True Warranty.
PERFORMANCE SPECIFICATIONS
*Max Ice Production 85 lb (38.5 kg) / day
**Rated Ice Production 75 lb (34 kg) / day
**Rated Water Consumption 25 gal / 100 lb
**Rated Electrical Consumption 6.95 kwH / 100 lb
*Performance rated at 70˚F (21.1˚C) air / 50˚F (10˚C) water / 30 psig (206.8 kPa) water pressure
**Performance rated at 90˚F (32.2˚C) air / 70˚F (21.1˚C) water / 30 psig (206.8 kPa) water pressure

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 11 of 64
SAFETY INFORMATION & OWNERSHIP
OWNERSHIP
To ensure that your unit works properly from the
first day, it must be installed properly. We highly
recommend a trained refrigeration mechanic and
electrician install your True equipment. The cost of a
professional installation is money well spent.
Before you start to install your TRUE unit, carefully
inspect it for freight damage. If damage is discovered,
immediately file a claim with the delivery freight carrier.
TRUE is not responsible for damage incurred during
shipment.
For any questions about installation, please contact
your True dealer or True Residential Technical Service
at 844-746-9423 or [e-mail].
Please have your model and serial number available.
WARNING – PROPER INSTALLATION REQUIRES
A CONNECTION TO THE WATER SUPPLY,
A DRAIN, AND A DEDICATED ELECTRICAL
CIRCUIT. THESE CONNECTIONS ARE THE
RESPONSIBILITIES OF THE INSTALLER.
IMPROPER CONNECTIONS CAN RESULT IN
PERSONAL INJURY, PROPERTY DAMAGE AND
IMPROPER OPERATION. THE ICE MACHINE
MUST BE INSTALLED ACCORDING TO ALL
APPLICABLE NATIONAL, STATE AND LOCAL
CODES AND REGULATIONS.
REFRIGERANT SAFETY & WARNING
INFORMATION
This unit contains hydrocarbon refrigerant (R-290).
Please carefully and completely read all safety labels
and the warnings below:
DANGER – Risk of fire or explosion.
Flammable refrigerant used. DO NOT use
mechanical devices to defrost refrigerator.
DO NOT puncture refrigerant tubing; follow
handling instructions carefully. To be
repaired only by trained service personnel.
DANGER – Risk of fire or explosion
(flammable refrigerant used), consult
repair manual/owner’s guide before
attempting to service this product. All
safety precautions must be followed.
Dispose of properly in accordance with
local and federal regulations. Follow all
safety precautions.
CAUTION – Keep all ventilation openings
clear of obstruction in the appliance
enclosure or in the structure housing the
appliance.
SAFETY LABELS & WARNING
Your new ice maker has labels placed in specific
locations throughout the cabinet which identify
important safety information. Please take a moment
to familiarize yourself with the content and label
locations.
FIG. 1. Example of safety label locations. Not all labels or locations shown.

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 12 of 64
SAFETY INFORMATION & OWNERSHIP
INSIDE THE COMPRESSOR COMPARTMENTON THE REAR PANEL
BENEATH THE EVAPORATOR COVER’S TOP PANEL

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 13 of 64
BASIC SAFETY & WARNING
PRECAUTIONS
• Take care during operation, maintenance or repairs
to avoid cuts or pinching from any part/component
of the cabinet.
• Units may pose a tipping hazard while uncrating,
during installation, or when moving the unit.
• Ensure the unit is properly installed and located in
accordance with the Installation Instructions before
use.
• This appliance is not to be used, cleaned or
maintained by persons (including children) with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge, unless they have
been given supervision or instruction.
• DO NOT allow children to play with the appliance
or climb, stand, or hang on the unit’s shelves to
prevent damage to the refrigerator and personal
injury.
• DO NOT touch the cold surfaces in the freezer
compartment when hands are damp or wet. Skin
may stick to these extremely cold surfaces.
• Unplug the ice maker before cleaning and making
repairs.
• Powering off the ice maker will not remove power
from all components (e.g., light circuit and drain
pump).
• DO NOT store or use gasoline, or other flammable
vapors and liquids, in the vicinity of this or any
other appliance.
• DO NOT store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
• Keep fingers out of the "pinch point" areas;
clearances between the doors and cabinet are
necessarily small; be careful closing doors when
children are in the area.
• DO NOT use electrical appliances inside the food
storage compartments of the units unless the
appliances are of the type recommended by the
manufacturer.
NOTE: ALL SERVICING MUST BE
PERFORMED BY A QUALIFIED TECHNICIAN.
PROPER DISPOSAL OF THE CABINET
DANGER! RISK OF CHILD
ENTRAPMENT
Child entrapment and suffocation are not problems
of the past. Junked or abandoned appliances are still
dangerous, even if they will sit for "just a few days." If
you are getting rid of your old appliance, please follow
the instructions below to help prevent accidents.
Before throwing away your old ice machine:
Take off the door.
DANGER – Risk of fire or explosion.
Flammable insulation and/or refrigerant
used. Dispose of all in accordance with
local and federal regulations. Follow all
safety precautions.
SAFETY INFORMATION & OWNERSHIP

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 14 of 64
CABINET LOCATION &
SPECIFICATIONS
For more information regarding the installation
location or cabinet specifications, please see “Prior to
Installation” starting on page 16.
• Appliance is Certified to NSF Standard 12.
• Appliance is UL rated for outdoor use.
• Appliance is not suitable for an area where a
pressure washer or hose may be used.
• Ensure the location will provide adequate
clearances and sufficient airflow for the cabinet.
• Ensure the power supply for the cabinet matches
the cabinet specification sheet or cabinet data plate
and is within the rated voltage (±5%) Also, ensure
the amperage rating of the circuit is correct and the
circuit is properly grounded.
• The cabinet should always be plugged into its own
individual dedicated electrical circuit. The use of
adapter plugs and extension cords is prohibited.
CONTACT US
For any questions about installation, please contact
your TRUE dealer or TRUE Residential Technical
Service. Please have your model and serial number
(see serial label location below) available so we can
better assist you with your service- or parts-related
inquiries.
Customer Service
Phone: [phone]
[e-mail]
Warranty Department
Phone: [phone]
[e-mail]
Technical Service Department
Phone: [phone]
[e-mail]
SERIAL LABEL LOCATION
Your serial label contains important information such
as your model and serial number. The label is located
on the upper left interior wall.
OUTDOOR USE
All True undercounter ice machines are rated for
outdoor use.
• The unit must be covered or otherwise protected
from direct exposure to rain.
• For the safest possible outdoor installation, build
the unit into an undercounter kitchenette area
within stone, brick, wood, etc.
• If the unit is expected to be exposed to low air
temperatures for a prolonged period of time,
please turn the unit off and winterize the unit. See
“Winterizing” (page 54).
CAUTION: DO NOT ALLOW THE ICE MACHINE
TO BE EXPOSED TO TEMPERATURES BELOW
32˚F (0˚C) WITHOUT WINTERIZING THE UNIT
AS THIS WILL CAUSE ANY WATER IN THE
MACHINE TO FREEZE. FAILURES CAUSED BY
EXPOSURE TO FREEZING TEMPERATURES ARE
NOT COVERED BY THE WARRANTY.
SAFETY INFORMATION & OWNERSHIP

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 15 of 64
PRIOR TO INSTALLATION
ROUGH OPENING
ANTISWEAT FOAM END PANELS
WATER LINE, DRAIN LINE, AND POWER CORD LOCATIONS
PLAN VIEWS
CUSTOM PANEL SPECIFICATIONS
CUSTOM PANEL INSTALLATION
ELECTRICAL INSTALLATION & SAFETY
DRAIN CONNECTION
WATER SUPPLY
PRESERVE THE MOMENT®

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 16 of 64
BACK
PRIOR TO INSTALLATION
ALLOWABLE AIR TEMPERATURES
Air Temperature Water Temperature Water Pressure
Minimum 40˚F (4.4˚C) 40˚F (4.4˚C) 20 psig (1.4 bar)
Maximum 100˚F (37.8˚C) 100˚F (37.8˚C) 80 psig (5.5 bar)
Avoid running
wires or
plumbing in this
area.
SURROUNDING CABINETRY SURROUNDING CABINETRY
9"
(228.6 mm)
16"
(406.4 mm)
11½"
(292.1 mm)
FRONT VIEW OF CABINETRY OPENING
ANTISWEAT FOAM END PANELS
When installing two or more True units side-by-side,
be sure to leave at least a 5/8” (15.88 mm) gap
between the cabinets, or install foam pads between
the cabinets and on any side with 0” clearance, to
prevent moisture from developing on applications.
If installing anti-sweat foam end panels, True
recommends applying a panel to each of the
units being joined together. To order foam pads,
contact our parts department at 844-849-6226 or
[e-mail].
WATER LINE, DRAIN LINE, AND
POWER CORD LOCATIONS
The ice maker must be installed with adequate
clearance for water and drain connections at the rear
of the unit.
ROUGH
OPENING
HEIGHT
34½" min
(876.3 mm)
ROUGH
OPENING
WIDTH
15" min
(381 mm)
ROUGH
OPENING
DEPTH
24" min
(609 mm)
9 7/32"
234mm
15 27/32"
402mm
11 5/8"
295mm
10 19/32"
269mm
8 13/32"
214mm
6 17/32"
166mm
1 23/32"
44mm
WATER LINE
3 7/32"
82mm
DRAIN LINE
3 11/32"
85mm
POWER CORD
ROUGH OPENING

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 17 of 64
PRIOR TO INSTALLATION
PLAN VIEW DIMENSIONS
STAINLESS STEEL DOOR
STAINLESS & FINISHED SOLID UNITS
Dimensions may vary by ± 1/8" (3.2 mm)
CUSTOM FINISH (DSK)
TUI-15-R/L-OP-D-DSK-103-H08
TUI-15-L-SS-D
TUI-15-R-SS-D
SIDE TOPFRONT
34 7/32"
869mm
14 7/8"
377mm
3 3/4"
95mm
22 13/16"
580mm
23 19/32"
599mm
20 3/16"
513mm
1"
25mm
16 7/8"
429mm
37 15/16"
964mm
90°

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 18 of 64
*Measures include 3/4" (19 mm) thick panel (not provided by True)
Dimensions may vary by ± 1/8" (3.2 mm)
TUI-15-L-OP-D
TUI-15-R-OP-D
PRIOR TO INSTALLATION
SOLID OVERLAY UNITS
PLAN VIEW DIMENSIONS
SOLID PANEL - READY DOOR (OP)
NOTE: Unit shown with overlay panel provided by others.
SIDE TOPFRONT
*
*
34 7/32"
869mm
14 7/8"
377mm
3 23/32"
94mm
23 9/16"
599mm
21 13/16"
554mm
1"
25mm
20 3/16"
513mm
16 7/8"
429mm
37 15/16"
964mm
90°

15” TRUE ICE®MACHINE INSTALL GUIDE
TEC_TM_155 REV. A 12/07/2021 Page 19 of 64
PRIOR TO INSTALLATION
Overlay units can be fitted with custom panels to
match adjacent cabinetry. The integrated panel option
extends above the door to conceal the hinge assembly
to match full overlay cabinet doors.
See the picture below for reference. For installation
instructions, please see “Custom Panel Installation”.
(page 20).
CUSTOM PANEL SPECIFICATIONS
SPECIFICATIONS
Panel Width 14-5/8” (371.5 mm)
Panel Height 30-1/8” (765.2 mm)
Panel Depth 3/4” (19 mm) max
Panel Weight 20 lb (9.1 kg) max
Rail Style Dimension 2” (50.8 mm) min
30-1/8”
(765.2 mm)
14-5/8”
(371.5 mm)

TRUE RESIDENTIAL®TEC_TM_155 REV. A12/07/2021Page 20 of 64
PRIOR TO INSTALLATION
CUSTOM PANEL INSTALLATION
Your new ice machine comes with articulating, or soft-
closing, hinges. The hinges can be installed on either
the left of right to change the direction the door opens.
Before installing panels, be sure the door assembly is
oriented as desired. See “Reversing Door” (page 56).
Please closely read all instructions before installing
your panels.
REQUIRED TOOLS
Required tools include (but may not be limited to) the
following.
• Surface protection*
• 2+ Clamps ≥ 2” (51 mm)
• 1/8” Hex Head Allen Wrench
• Phillips Screwdriver or Bit Driver
• 1/8” Drill Bit
• (Qty 6) #6 x 1/2” Screws**
• Drill
*Cardboard, moving blanket, foam padding, etc.
**Screw type varies by panel material.
INSTALLATION
1. Carefully lay the door overlay panel face down on a
protected surface.
2. With a 1/8” hex head Allen wrench, loosen the
cabinet hinge bolts. Then, remove the door.
See fig.1.
NOTE: DO NOT REMOVE THE HINGE FROM THE
DOOR ASSEMBLY.
3. If NSF Cover is present, carefully pry screw caps
from the cover to access the door bracket screws.
See fig. 2.
NOTE: THE CAPS ARE INSTALLED WITH A
TACKY GLUE THAT CAN BE EASILY REMOVED
AND REINSTALLED.
4. Place the door front face down on the overlay
panel. Then, align the bottom door bracket’s
bottom edge with the overlay panel’s bottom edge.
See figs. 3 and 4.
5. Clamp the door assembly panel.
NOTE: IF THE CLAMP JAWS ARE NOT PADDED,
INSERT PADDING BETWEEN THE CLAMP AND
THE OVERLAY TO PROTECT THE PANEL’S
FINISH.
6. If desired, install a handle before proceeding to the
next step. For best installation, fasten the handle
with recessed screws.
7. With a 1/8” drill bit, carefully drill pilot holes into
the door front. See fig. 5.
NOTE: TAKE CARE TO NOT DRILL THROUGH THE
FRONT OF THE PANEL.
8. With the appropriate hardware, fasten the overlay
panel to the door front. Then, remove the clamps.
9. Install the door assembly. Be sure to fully tighten
the hinge screws.
10. Verify the door closes correctly and seals without
gaps. Adjust the door as needed; see “Door
Adjustment” (page 59).
