True GDM-49W-RF User manual

Specications subject to change without notice.
Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

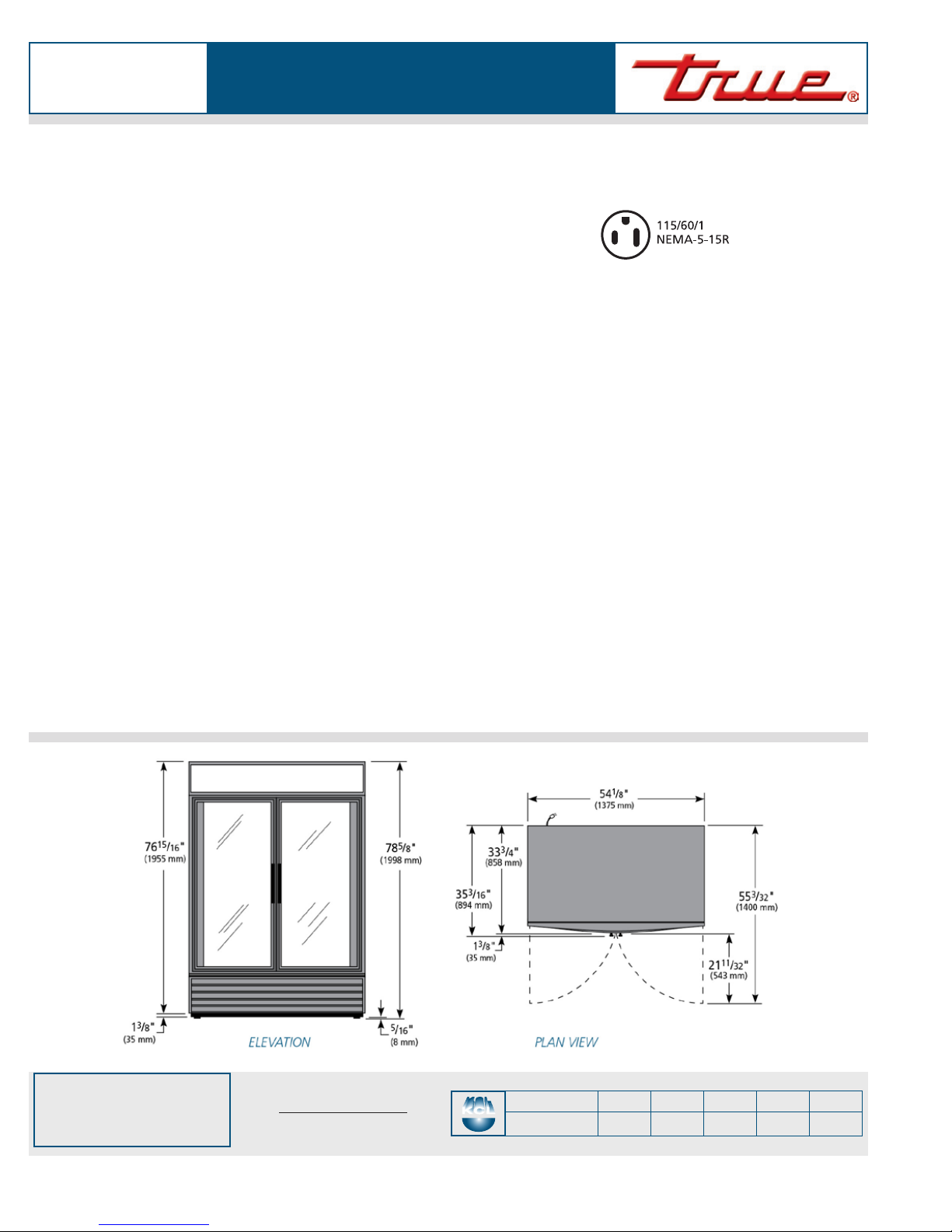

ROUGH-IN DATA
2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
GDM-49W-RF
Glass Door Wine Merchandiser:
Swing Door Radius Front Refrigerator
GDM-49W-RF

The world’s #1 manufacturer of glass
door merchandisers.

Oversized, factory balanced,
refrigeration system holds 33°F to 38°F
(.5°C to 3.3°C).

Exterior - non-peel or chip black
laminated vinyl; durable and permanent.

Interior - attractive, NSF approved, black
aluminum interior sides and top liner
with 300 series stainless steel oor.
Mirrored back wall.

Self closing doors. Positive seal, torsion
type closure system.

“Low-E”, double pane thermal insulated
glass door assemblies with mitered
plastic channel frames. The latest in
energy ecient technology.

Patented integrated door light (IDL)
system for brighter, shadow free
illumination.

Entire cabinet structure is foamed-in-
place using Ecomate. A new, innovative,
high density, polyurethane insulation
that has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Eight (8) adjustable wine racks and two
(2) adjustable, heavy duty PVC coated
wire shelves.
Bottom mounted units feature

”No stoop” lower shelf to maximize
product visibility.

Storage on top of cabinet.

Easily accessible condenser coil for
cleaning.
† Depth does not include 1⁄" (29 mm) for door handles.
Model Doors
Shelves
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)Wire Wine L D† H
GDM-49W-RF 2 2 8 54⁄ 34¾ 78⁄ ½ 115/60/1 7.3 5-15P 9 495
1375 883 1998 ½ 230-240/50/1 5.4 ▲2.74 225
▲
Plug type varies by country.
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
®
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
®
3/13
Scan code
for video

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
PLAN VIEW
KCL
GDM-49W-RF
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in an
attractive merchandiser that brilliantly displays
wine and alcohol products.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary tube
system using environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced with higher
horsepower compressor and large condenser;
maintains cabinet temperature of 33°F to 38°F
(.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
merchandisers a more ecient low velocity,
high volume airow design. This unique design
ensures faster temperature pull down of warm
product, colder holding temperatures and faster
recovery in high use situations.
• Bottom mounted condensing unit positioned
for easy maintenance. “No stoop” lower shelf
maximizes visibility by raising merchandised
product to higher level.
CABINET CONSTRUCTION
• Exterior - non-peel or chip black laminated vinyl;
durable and permanent.
• Interior - attractive, NSF approved, black
aluminum sides and top liner with 300 series
stainless steel oor. Mirrored interior back.
• Insulation - entire cabinet structure is foamed-
in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).
• Welded, heavy duty steel frame rail, black powder
coated for corrosion protection.
• Frame rail tted with leg levelers.
• Illuminated exterior sign panel. Variety of sign
options available.
DOORS
• “Low-E”, double pane thermal insulated glass
door assemblies with mitered plastic channel
frames. The latest in energy ecient technology.
• Each door tted with 12” (305 mm) long extruded
handle.
• Self closing doors. Positive seal, torsion type
closure system.
• Magnetic door gaskets of one piece construction,
removable without tools for ease of cleaning.
SHELVING
• Eight (8) adjustable wine racks 24½”L x 21⁄”D
(623 mm x 535 mm) and two (2) adjustable, heavy
duty PVC coated wire shelves 24⁄”L x 22⁄”D
(624 mm x 562 mm). Four (4) chrome plated shelf
clips included per rack and shelf.
• Shelf support pilasters made of same material as
cabinet interior; shelves are adjustable on½” (13
mm) increments.
LIGHTING
• Low UV emitting uorescent interior lighting.
Door utilizes full-length, patented, integrated
door light (IDL) system. Safety shielded.
• Cabinet lighting utilizes electronic ballast and T-8
bulbs for brighter illumination, longer bulb life
and increased energy eciency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• See our website www.truemfg.com for latest
color and sign oerings.
• Convenient clean-out drain built in cabinet oor.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❑230 - 240V / 50 Hz.
❑White exterior.
❑Rosewood exterior.
❑6” (153 mm) standard legs.
❑6” (153 mm) seismic/anged legs.
❑2½”(64 mm) diameter castors.
❑Red wine thermostat.
❑White wine thermostat.
❑Chocolate thermostat.
❑Padlock.
❑Additional black wine racks.
❑Additional black wire shelves.
❑1¼”(32 mm) pricing strips.
❑Remote cabinets (condensing unit supplied
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information. All remote units must be hard
wired during installation.
Glass Door Wine Merchandiser:
Swing Door Radius Front Refrigerator
Model Elevation Right Plan 3D Back
GDM-49W-RF TFD031E TFD031S TFD031P TFD0313
WARRANTY
Three year warranty on all parts
and laborand an additional 2
year warranty on compressor.
(U.S.A. only)
