True 950 User manual

OWNER’S
MANUAL
950
TREADMILL
MODEL TR950
MAN-TR950 REV00

3
IMPORTANT!
All products shown are prototype. Actual product delivered may vary.
Product specifications, features, and software are subject to change without notice.
For the current owner’s manual and documents in additional languages please visit
https://shop.truefitness.com/customer-service/user-manuals/
IMPORTANTE!
Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir. Especificaciones de
productos, características y software están sujetas a cambios sin previo aviso.
Para la más actualizada de este manual del propietario y para los documentos en otros idiomas, por favor visite
https://shop.truefitness.com/customer-service/user-manuals/
IMPORTANT! Tous les produits présentés sont prototype. Le produit réel livré peut varier. Spécifications du produit,
caractéristiques et logiciels sont sujettes à modification sans préavis. Pour la plus à jour le manuel du propriétaire et pour
documents dans des langues supplémentaires, veuillez https://shop.truefitness.com/customer-service/user-manuals/ de
visite
ꄆ金䬠炐
侁炐䢦僗◲⿁氳⸊㑔ն㲓ꡮ◬♀氳◲⿁⺎耇僗䢦┘⺱◲⿁鈺劲Ⱶ耇⽰鯻♭㞝僗催䷊䔮┘⺁车鵠湳鲃☫╙塛㵒◇㛻㛢丘氳✳
榫陱伺░⽰㵒◇⪭☽陪銨氳乄勮陴阼ꠋhttps://truefitness.com/support/user-manuals/
ھام!
جمیع المنتجات المعروضة ھي النموذج. قد تختلف المنتج الفعلي تسلیمھا.
مواصفات المنتج، والمیزات والبرامج قابلة للتغییر دون إشعار.
لمعظم ما یصل حتى الآن دلیل المالك یرجى زیارة https://shop.truefitness.com/customer-service/user-manuals/
للمستندات في لغات إضافیة، یرجى زیارة https://shop.truefitness.com/customer-service/user-manuals/
WICHTIG!
Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt-
Spezifikationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu
Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen finden Sie unter
https://shop.truefitness.com/customer-service/user-manuals/
BELANGRIJK!
Alle getoonde producten zijn prototype. Daadwerkelijke product geleverd kan verschillen. Product specificaties,
eigenschappen & software zijn onderhevig aan verandering zonder kennisgeving. Voor de meest actuele handleiding van
de eigenaar & voor documenten in andere talen kunt u terecht op
https://shop.truefitness.com/customer-service/user-manuals/
ВАЖНО!
Все товары указаны прототипа. Фактический продукт, поставляемый могут отличаться. Технические
характеристики, особенности ипрограммного обеспечения могут быть изменены без предварительного
уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации и
Для документов на другие языки, пожалуйста, посетите https://shop.truefitness.com/customer-service/user-manuals/

4
Thank You for Choosing TRUE!
Since our founding in 1981, TRUE Fitness has been guided by two core principles: Build the highest quality products and
support them with superior service. Today, TRUE is the global leader in premium cardio equipment for the commercial and
residential markets.
Built on decades of experience and constantly refined over time, our machines have a reputation for exceptional reliability.
Our treadmills, ellipticals, and bikes face rigorous and systematic life-testing to guarantee they withstand the demands of
long-term, extended use -- whether at the gym or in your home.
Thank you for becoming a part of the TRUE experience.
Contacting Our Support Team
Before you contact TRUE, we recommend gathering the serial number, model number, and a brief description of the
reason for your request. After you have all the pertinent information, we suggest you contact your selling dealer or local
service company to set up an appointment. If you are not familiar with who is in your area, you can visit
https://shop.truefitness.com/store-locator/ and use our store locator to obtain the contact information for the closest dealer.
If you still need help, please contact our product support team.
Address TRUE Fitness
Attn: Product Support
865 HoffRoad
St. Louis, MO 63366
Phone [phone]
Email service@truefitness.com
Hours of Operation Monday - Thursday 8:30am - 6:00pm (CST)
Friday 8:30am - 5:00pm (CST)
Contacting Our Sales Team
Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the
appropriate sales representative to help answer your questions.
Address TRUE Fitness
Attn: Sales Department
865 HoffRoad
St. Louis, MO 63366
Phone [phone]
Email sales@truefitness.com
Hours of Operation Monday - Friday 8:30am - 5:00pm (CST)

5
Reporting Freight Claims or Parts Damage
Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please
follow the guidelines below to determine the appropriate process for you to follow.
Severe Damage—Obvious damage to external packaging and internal product.
Please refuse the shipment and it will be returned to TRUE by the carrier. Contact TRUE product support by calling
800.883.8783 or sales support by calling 800.426.6570 Monday-Friday during normal business hours to notify us that the
shipment has been refused. Once we have received the damaged shipment, a replacement shipment will be sent to you.
If the shipment comes in multiple boxes, only refuse boxes with damage.
Slight Damage—Minimal damage to external packaging with unknown internal damage to product.
If the shipment has minimal damages and you are not sure if the actual product is damaged, you must sign the bill of
lading as damaged when accepting the shipment. Once you have opened the box and you have determined something
is indeed damaged, please gather the serial number, model number, description of damage, and photos of damage.
Please make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact
TRUE product support (service@truefitness.com // 800.883.8783) or TRUE sales support (sales@truefitness.com //
800.426.6570) Monday-Friday during normal business hours.
Concealed Damage—No damage to external packaging but internal damage to product.
You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages.
Please notify the carrier immediately. TRUE will not be able to file a claim if the carrier is not notified in a timely manner.
Once you have called the carrier you will need to gather the serial number, model number, description of damage, and
photos of damage. Contact TRUE product support (service@truefitness.com // 800.883.8783) or TRUE sales support
(sales@truefitness.com // 800.426.6570) Monday-Friday during normal business hours.

6
TABLE OF CONTENTS
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS...........................................................................7
POWER REQUIREMENTS.....................................................................................................................................................9

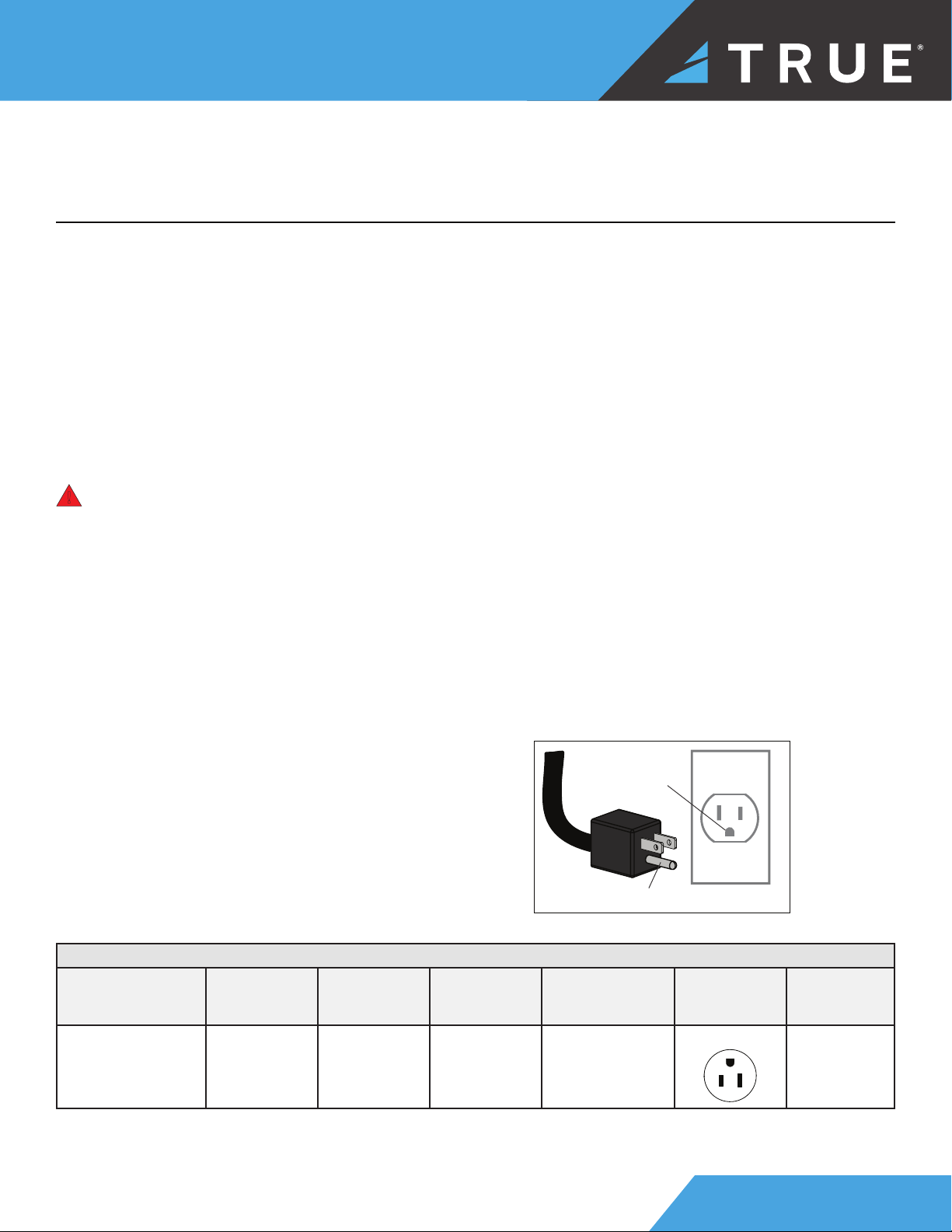

GROUNDING INSTRUCTIONS..............................................................................................................................................9

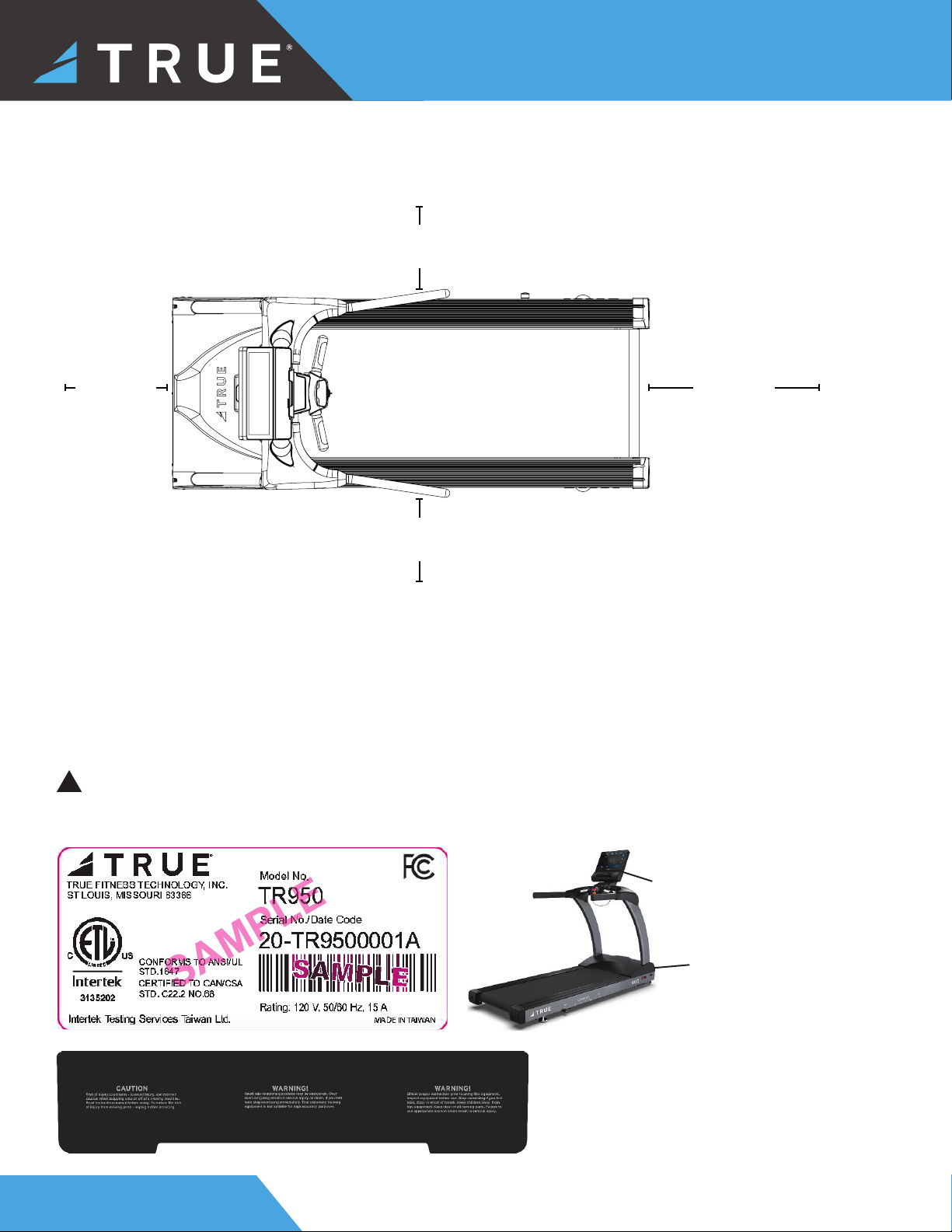

SPACE REQUIREMENTS....................................................................................................................................................10
SPECIFICATIONS..................................................................................................................................................................10
WARNING DECALS.............................................................................................................................................................10
COMPLIANCES...................................................................................................................................................................11
USE OF THE SAFETY KEY (E-STOP)...............................................................................................................................11
ASSEMBLY INSTRUCTIONS

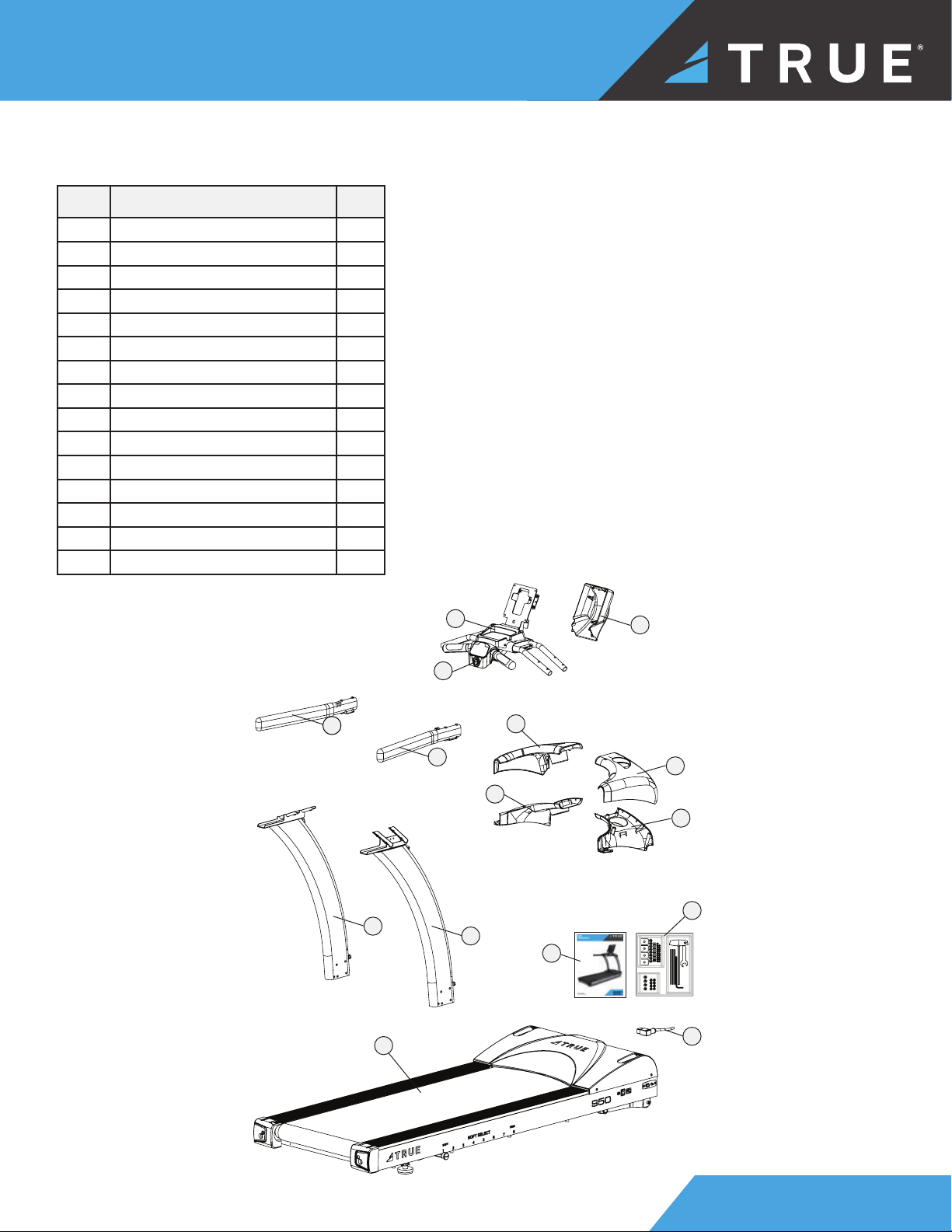

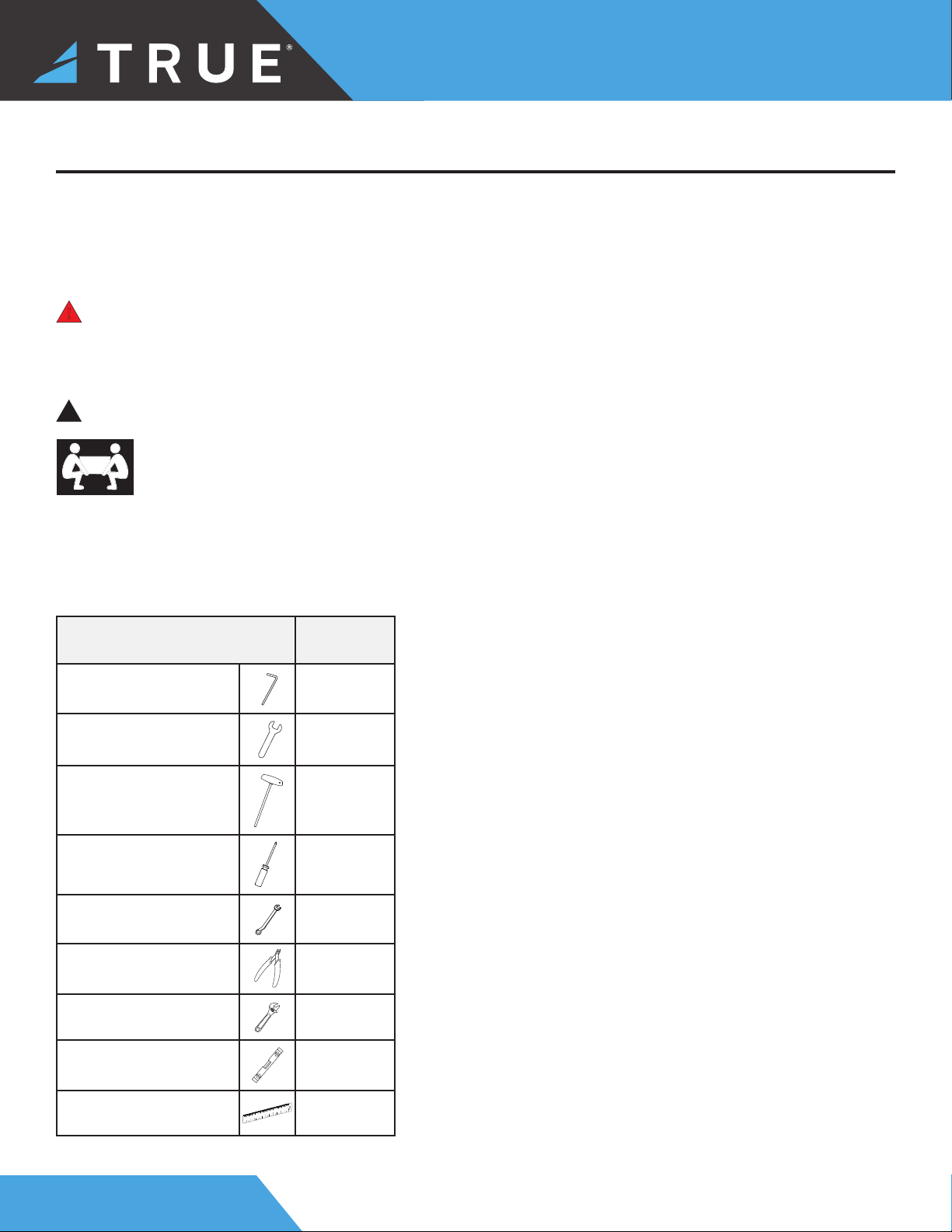

PRE-ASSEMBLY CHECKLIST.............................................................................................................................................12

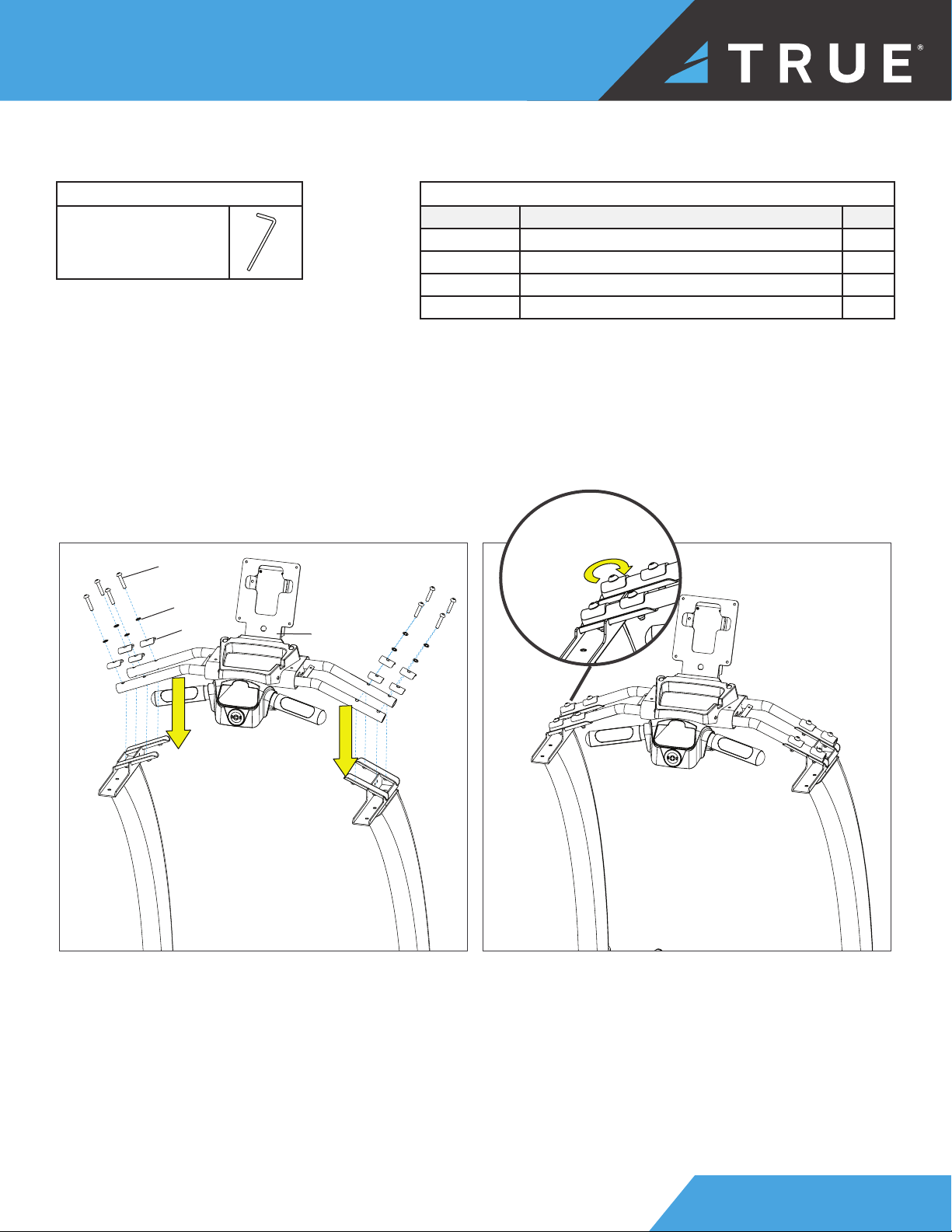

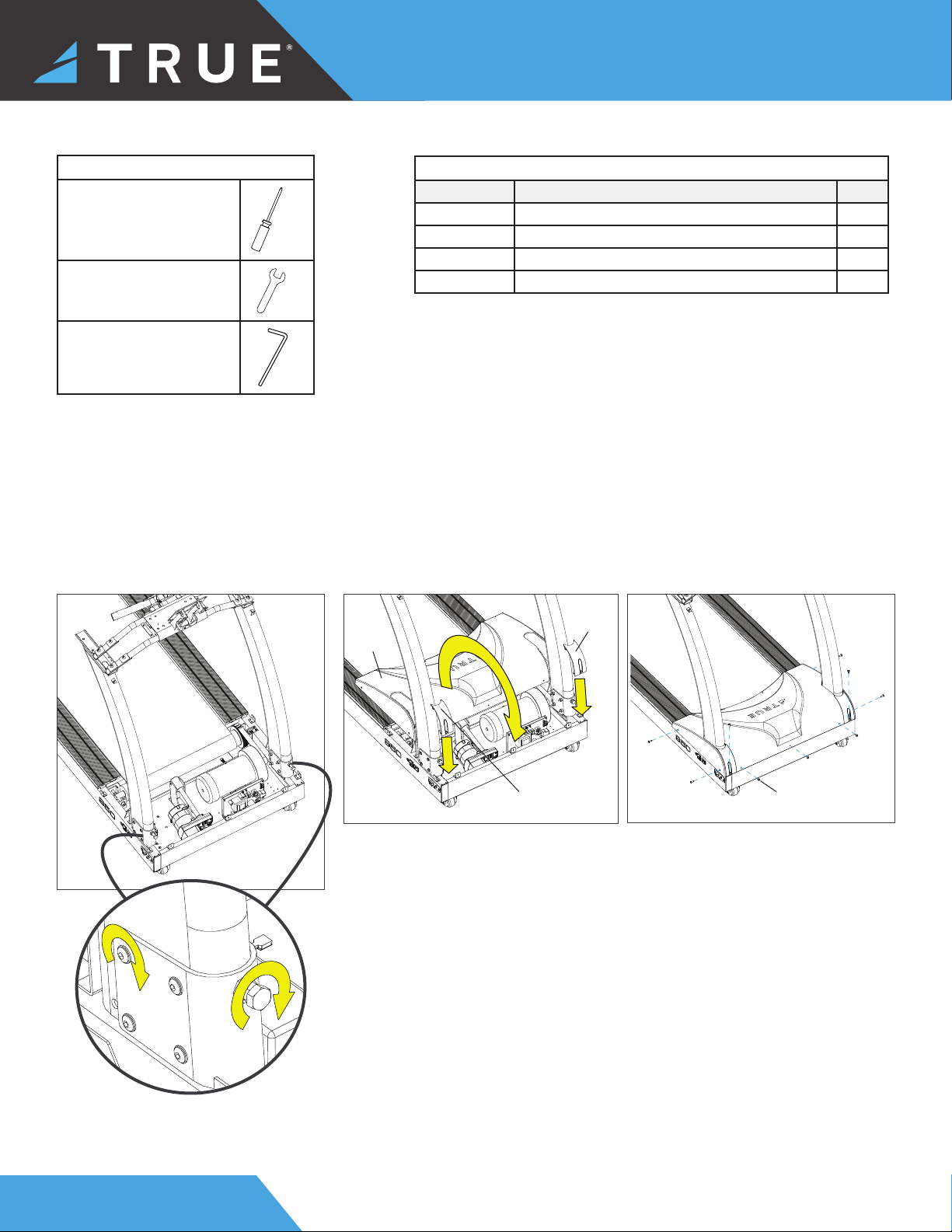

ASSEMBLY STEPS..............................................................................................................................................................15
PRODUCT FEATURES
TREADMILL OVERVIEW......................................................................................................................................................28
CARE AND MAINTENANCE
INSPECTION........................................................................................................................................................................29
CLEANING THE EQUIPMENT.............................................................................................................................................29
LEVELING THE TREADMILL.............................................................................................................................................30
RUNNING BELT ALIGNMENT............................................................................................................................................31
TENSIONING THE RUNNING BELT.................................................................................................................................32
LUBRICATING THE RUNNING BELT.................................................................................................................................33
PREVENTATIVE MAINTENANCE........................................................................................................................................33
LONG TERM STORAGE......................................................................................................................................................33
STORING THE CHEST STRAP............................................................................................................................................33
ADDITIONAL INFORMATION
TR950 WIRING DIAGRAM...................................................................................................................................................34
TROUBLESHOOTING..........................................................................................................................................................35
WARRANTY INFORMATION
TR950 TREADMILL RESIDENTIAL COMMERCIAL LIMITED WARRANTY.........................................................................40

7
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS
This equipment is intended for a commercial or institutional setting. This owner’s manual should be accessible to all
personal trainers, faculty, and members.
• Read and understand all instructions and warnings prior to use.
• Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or
experience pain, stop and consult your physician.
• Obtain proper instruction prior to use.
• This unit is intended for commercial use only.
• Inspect the unit for incorrect, worn, or loose components and do not use until corrected, replaced, or tightened prior to
use.
• Do not wear loose or dangling clothing while using the unit.
• Care should be used when mounting or dismounting the unit.
• Read, understand, and test the emergency stop procedures before use.
• Disconnect all power before servicing the unit.
• Do not exceed maximum user weight of 350 lbs (159 kg).
• Keep the top side of the moving surface clean and dry.
• Keep children and animals away.
• Use caution when moving and assembling unit.
• All exercise equipment is potentially hazardous. If attention is not paid to the conditions of equipment usage, death, or
serious injury could occur.
!DANGER: To reduce the risk of electric shock,
always unplug this product when not in use, before
cleaning, or attempting any maintenance activity. Do not
handle the plug with wet hands.
!WARNING: To reduce the risk of burns, fire,
and electric shock or injury to persons, follow these
instructions:
• Heart rate monitoring systems may be inaccurate.
Over-exercising may result in serious injury or death.
If you feel faint, dizzy, or experience pain, stop
exercising immediately.
• Health related injuries may result from incorrect or
excessive use of exercise equipment.
• TRUE STRONGLY recommends seeing a physician
for a complete medical exam before undertaking an
exercise program, particularly if the user has a family
history of high blood pressure or heart disease, is
over the age of 45, smokes, has high cholesterol,
is obese or has not exercised regularly in the past
year. Additionally, TRUE recommends consulting
a fitness professional on the correct use of this
product.
• Equipment should be immediately taken out of
use if it fails to work properly or when a warning is
presented electronically.
• When using this exercise machine, basic
precautions should always be followed.
• Use this equipment only for its intended use as
described in this manual.
• Do not move the equipment by lifting the console.
Do not use the console as a handlebar during a
workout.
• This product can expose you to chemicals including
Toluene and Acrylamide which are known to the
State of California to cause Cancer and birth defects
or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
• Keep equipment stable on flat ground.
• Risk of personal injury-crushing hazard when
equipment is in operation. Keep feet, hands, and
fingers away from moving parts.
• Replace warning labels that may be worn, damaged,
or missing.
• Replace any non-working or damaged components,
remove the unit from service until repair is
performed.
• Do not operate the equipment while being covered
with a blanket, pillow, plastic, or anything that
insulates or stops airflow. Keep air openings free of
lint, hair or any obstructing material.
• To avoid serious injury, remove and store the power
cord when the machine is not in use.
• This appliance should never be left unattended when
plugged in.
• Do not use any type of extension cord with this
product.
• Never operate a TRUE product if it has a damaged
power cord or electrical plug, or if it has been
dropped, damaged, or even partially immersed in
water.
• Use a TRUE AC power cord or AC/DC adapter only.
• Position this product so the power cord plug is
accessible to the user.

8
• Keep the power cord away from heated surfaces. Do
not pull the equipment by the power cord or use the
cord as a handle. Do not run the power cord along
the side or under the equipment.
• If the electrical supply cord is damaged it must be
replaced by the manufacturer, an authorized service
agent, or a similarly qualified person to avoid a
hazard.
• This product must be connected to a properly
grounded electrical outlet.
• To disconnect, turn power OFF at the ON/OFF
switch if applicable, then remove plug from electrical
outlet. On the machine power switch, ( ) means
that the machine power is ON and ( ) means the
machine power is OFF.
ON
OFF
• Never insert objects into any openings in this
product. If an object should drop inside, turn offthe
power, unplug the power cord from the outlet and
carefully retrieve it. If the item cannot be reached,
contact TRUE product support.
• Any changes or modifications to this equipment
could void the product warranty.
• Do not use this product in areas where aerosol spray
products are being used or where oxygen is being
administered. Such substances create the danger of
combustion and explosion.
• Do not use this product outdoors, near water, while
wet, or in areas of high humidity including extreme
temperature changes.
• Close supervision is necessary when used near
children under the age of 15, or disabled persons.
• This equipment is not intended for use by
persons with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge,
unless they are supervised or have been given
instruction concerning use of the equipment by a
person responsible for their safety.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made
by children without supervision.
• Wear shoes with rubber or high traction soles. Do
not use shoes with heels, leather soles, cleats or
spikes. Make sure no stones are embedded in the
soles. Do not use this product in bare feet. Keep
all loose clothing, shoelaces and towels away from
moving parts.
• To avoid injury, attach the safety clip to clothing
before use.
• When mounting the treadmill, ensure the treadmill
belt is not running.
• Use handlebars to maintain balance when mounting
and dismounting the treadmill and for additional
stability while exercising.
• To avoid injury, stand on the side rails before starting
the equipment.
• While the treadmill is in use, proceed at a speed
that the user can safely maintain with the ability
to immediately engage the safety key to stop the
treadmill belt if necessary.
• Avoid the possibility of bystanders being struck or
caught between moving parts by making sure that
they are out of reach of the equipment while it is in
motion.
• Do not use typing or web surfing features at
excessive speeds. Always stabilize yourself when
using typing or web surfing features. (Varies by
console option.)
• Never place liquids of any type directly on the
unit except in the accessory tray or bottle holders.
Containers with lids are recommended.
• Always follow the console instructions for proper
operation.
• Do not use the contact heart rate grips as a
handlebar during a workout.
• Avoid exiting equipment while leaving the tread belt
in motion.
• Never walk or jog backwards on the equipment.
• Allow only one person at a time on the equipment
while it’s operating.
• Do not allow animals on or near the equipment while
in operation.
• To avoid serious injury, do not touch the incline rack
while the equipment is in use.
incline rack
• To avoid serious injury, do not touch the belt while
the equipment is in use.
belt
• Do not reach into or underneath the unit, or tip it on
its side during operation.
• Do not use if you have a cold or fever.
• Do not change the incline of the equipment by
placing objects under it.
• Do not use attachments not recommended by the
manufacturer.
• Allow only trained personnel to service this
equipment.

9
• It is the sole responsibility of the owner/operator
to ensure regular and scheduled maintenance is
performed.
• Do not remove the motor cover or you may risk
injury due to electric shock. Please contact TRUE
product support if the motor area needs servicing.
POWER REQUIREMENTS
Read and understand all instructions before plugging any TRUE power cord into an electrical outlet.
DEDICATED LINE
This product requires a dedicated line. A dedicated line assures that adequate power is available for safe operation over
the life of your TRUE product.
GROUNDING INSTRUCTIONS
This product must be grounded. If the product malfunctions or breakdowns, grounding provides a path of least resistance
for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment
grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
grounded
outlet
grounding pin
!DANGER:
• Improper connection of the equipment grounding
conductor can result in risk of electrical shock.
• Check with a qualified electrician or service provider
if you are in doubt as to whether the equipment is
properly grounded or installed on a dedicated line.
• Seek a qualified electrician to perform any
modifications to the cord or plug. TRUE is not
responsible for injuries or damages as a result of
cord or plug modification.
• To reduce the risk of burns, fire, electric shock, or
injury, it is imperative to connect each product to a
properly grounded 110V or 220V electrical outlet.
The voltage required for your unit is located on the
serial number decal (usually on the front of the unit).
Depending on where you live voltage requirements
differ.
• Some TRUE products require a circuit rated 110V,
60 Hz, and 20 amps. In the United States, most
residential homes have circuits rated 110V, 60 Hz,
and 15 amps. If your unit requires a 20 amp outlet,
contact an electrician to install a dedicated 20 amp
circuit prior to use.
• 110 Volt—This model is for use on a nominal
110V circuit and has a grounding plug that looks
like the plug illustrated below. Make sure the
product is connected to an outlet having the same
configuration as the plug. No adapter should be
used with this product.
Power Information
Model Line Voltage
(V)
Frequency
(Hz)
Rated
Current
(Amps)
Number of
Units per
Circuit
Plug/Outlet*
Max Power
Dissipation
(Watt)
TR950 110 50/60Hz 15 Dedicated
1
NEMA 5-15
1230
*The plug configuration for the power adapter may vary by country.
• Noise emission under load is higher than without
load. A-weighted emission sound pressure level at
the trainer’s ear: 67 dBA.

10
SPACE REQUIREMENTS
TRUE recommends leaving a minimum of 24” (61cm) on each side of the equipment and a 79” (200.7cm) safety zone at
the rear of the equipment.
24”
(61cm)
24”
(61cm)
24”
(61cm)
79”
(200.7cm)
WARNING DECALS
!WARNING: Replace warning labels that may be worn, damaged, or missing.
To replace any worn or missing decals contact TRUE product support (service@truefitness.com // 800.883.8783).
base serial
number location
console serial
number location
SPECIFICATIONS
• DIMENSIONS (L X W X H)
79” L x 34.5” W x 62” H / 200.66 cm x 87.63 cm x 157.48 cm
• PRODUCT WEIGHT
324 lbs / 147 kg

11
COMPLIANCES
This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit
www.truefitness.com.
USE OF THE SAFETY KEY (E-STOP)
The safety key is a tethered device that attaches to the user and the treadmill. Removal of the safety key from the
treadmill will stop belt motion to prevent injury if the user is unable to continue.
1. Attach the safety clip to your clothing before each workout and when treadmill is in use.
2. Attach the magnetic safety key to the treadmill.
treadmill
safety
clip
magnetic
safety
key
1
2
!CAUTION:
To prevent potential injury to the user, the safety key must be attached to the treadmill and clipped to the user. The
machine will not operate if the safety key is not attached to the treadmill.
treadmill
safety
clip
magnetic
safety
key
user’s
clothing
user’s
clothing

12
PRE-ASSEMBLY CHECKLIST
BASIC GUIDELINES FOR SETTING UP THE EQUIPMENT
After removing the equipment from the packaging, place the equipment on a clean, level surface. Make sure the electrical
cord easily reaches a grounded three-pronged outlet.
!DANGER: Do not use an extension cord or ungrounded outlet. The ground helps prevent electrical damage to
your equipment and enhances your safety by helping to prevent shock. Check with a qualified electrician or serviceman if
you are in doubt as to whether the equipment is properly grounded. Do not modify the plug provided with the unit if it will
not fit the outlet. Have a proper outlet installed by a qualified electrician.
Use caution when assembling the treadmill.
Unpacking and assembling of this treadmill is a two person task.
VERIFY BOX CONTENTS
IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product
support (service@truefitness.com // 800.883.8783).
!CAUTION:
ASSEMBLY INSTRUCTIONS
TOOLS NEEDED FOR
ASSEMBLY
INCLUDED
IN BOX
5mm Allen Wrench YES
17mm Wrench YES
8mm T-Handle Allen
Wrench YES
#2 Phillips Screwdriver NO
7/16” Wrench NO
Wire Cutters NO
Adjustable Wench NO
Level NO
Long-Length Ruler
0”-48”/0 cm-120 cm NO

13
1
23
4
5
67
8
9
10
11
12
13
14
15
ITEM DESCRIPTION QTY
1 Base 1
2 Left Pedestal 1
3 Right Pedestal 1
4 Left Handrail 1
5 Right Handrail 1
6 Console Rack 1
7 Console Rear Cover 1
8 Left Shoulder Cover Top 1
9 Right Shoulder Cover Top 1
10 Left Shoulder Cover Bottom 1
11 Right Shoulder Cover Bottom 1
12 Safety Key 1
13 110V Power Cord 1
14 Hardware Pack 1
15 Manual 1
BOX CONTENTS

14
ITEM DESCRIPTION QTY
TC6061
BRACKET, CENTER POD, CURVED, BLACK
8
RT0011
WASHER, STAR, INTERNAL TOOTH, M8
20
PS0103
BHCS, M8X75MM
8
PS0034
BHCS, M8X1.25X40MM
8
TCS4028
BHCS, M8X1.25X80MM
4
TCS4029 PHMS, M4X0.7X10MM, PHILLIPS 19
TC6085_005 ZIP TIE 3
TC6085_003
8MM T-HANDLE ALLEN WRENCH
1
TC6085_004
5MM ALLEN WRENCH
1
TC6085_006
17MM WRENCH
1
00349000
LUBRICANT (SILICONE)
1
HARDWARE PACK

15
ASSEMBLY STEPS
1. Remove and set aside the nine (9) screws securing the motor cover and caps to the treadmill frame.
2. Remove and set aside the motor cover and caps.
STEP 1—REMOVE MOTOR COVER AND MOTOR CAP COVERS
Parts Used in this Step
PART DESCRIPTION QTY
PS0035 SCREW, M5XP0.8X15MM SCA5-15 9
RT0139 CAP, MOTOR COVER-LH 1
RT0140 CAP, MOTOR COVER-RH 1
RT0020 MOTOR COVER 1
Tools Used in this Step
#2 Phillips Screwdriver
RT0139
RT0140 RT0020
PS0035

16
STEP 2—ATTACH LEFT AND RIGHT PEDESTALS
Parts Used in this Step
PART DESCRIPTION QTY
PS0103 BHCS, M8X75MM 8
RT0011 WASHER, STAR, INTERNAL TOOTH, M8 8
TC4016LBK SUBASSEMBLY, PEDESTAL UPRIGHT-LH 1
TC4016RBK SUBASSEMBLY, PEDESTAL UPRIGHT-RH 1
Tools Used in this Step
5mm Allen Wrench
17mm Wrench
1. Using a 17mm wrench, verify the two bolts on the lower front of the frame are backed out enough so the pedestals
can slide into the frame.
2. Slide the left and right pedestals into the frame.
IMPORTANT! Carefully route the cables from the pedestals through the lower front openings on the frame.
DO NOT pinch the cables. Keep all cables away from moving parts inside the machine.
3. Finger tighten or use the 5mm allen wrench to loosely attach the pedestals to the frame.
IMPORTANT! DO NOT fully tighten the hardware until step 5.
PS0103
RT0011
TC4016LBK
TC4016RBK
verify the bolts do
not interfere with the
pedestals and the
frame—if the bolts
interfere, use a 17mm
wrench to loosen them
!CAUTION: AVOID
DAMAGE! ROUTE
CABLES THROUGH
THE LOWER FRONT
OPENING—ALWAYS
KEEP CABLES AWAY
FROM MOVING PARTS!

17
STEP 3—ROUTE AND CONNECT LOWER CABLES—INSTALL OPTIONAL AUXILIARY POWER
SUPPLY (IF NEEDED*)
Tools Used in this Step
7/16” Wrench
Wire Cutters*
Parts Used in this Step
PART DESCRIPTION QTY
00595500* FUYANG POWER SUPPLY 12V 6AMP 1
TC6085_005* ZIP TIE 3
*NOTE: Envison 16" and Showrunner PVS consoles require the optional auxiliary power supply.
Carefully make the following cable connections between the pedestals and the base:
• I/O Communication Cable to the Lower Control Board
• Power AUXPS Cable Connections
NOTE: Carefully route the AUXPS power cable from the right side of the machine under the incline motor mounting
bracket and make the cable connection to the AUXPS I/O combined cable.
NOTE: If an auxiliary power supply is being used, make the DC power connection to the auxiliary power supply and
then secure the cables and power suppy with zip ties. See page 18 for more information.
• Network Cable to the Base
• Coaxial Cable to the Base
NOTE: To fully tighten the coaxial cable nut, use a 7/16” wrench.
remove the nut and
washer from the end
of the coaxial cable
insert the coaxial cable
through the opening on
the frame and use the
washer and nut to secure
in place
network
cable
coaxial
cable
power
AUXPS
cables I/O
communication
cable
!CAUTION: AVOID
DAMAGE! ROUTE
CABLE UNDER THE
INCLINE MOUNTING
BRACKET—ALWAYS
KEEP CABLES AWAY
FROM MOVING PARTS!

18
SECURE OPTIONAL POWER
SUPPLY WITH ZIP TIES
IF THE OPTIONAL POWER
SUPPLY IS BEING USED,
CONNECT THE AUXPS POWER
CABLE FROM THE RIGHT
PEDESTAL TO THE DC PLUG
ON THE POWER SUPPLY
IF THE OPTIONAL POWER
SUPPLY IS BEING USED TUCK
THE AUXPS DC CONNECTOR
FROM THE LEFT PEDESTAL
OUT OF THE WAY
STEP 3—ROUTE AND CONNECT LOWER CABLES—INSTALL OPTIONAL AUXILIARY POWER
SUPPLY (IF NEEDED*) CONTINUED

19
STEP 4—ATTACH CONSOLE RACK
Parts Used in this Step
PART DESCRIPTION QTY
PS0034 BHCS, M8X1.25X40MM 8
RT0011 WASHER, STAR, INTERNAL TOOTH, M8 8
TC6061 BRACKET, CENTER POD, CURVED, BLACK 8
TC4017BK CONSOLE RACK 1
Tools Used in this Step
5mm Allen Wrench
1. Carefully place the console rack on left and right pedestals.
IMPORTANT! DO NOT pinch pedestal cables.
2. Finger tighten or use the 5mm allen wrench to loosely attach the hardware on both the left and right side.
3. Once all the hardware is in place, use the 5mm allen wrench to fully tighten the console rack to the left and right
pedestals.
PS0034
TC6061
RT0011
Console
Rack
fully tighten all
eight bolts

20
STEP 5—TIGHTEN PEDESTALS AND REATTACH MOTOR AND CAP COVERS
Tools Used in this Step
#2 Phillips Screwdriver
17mm Wrench
5mm Allen Wrench
PS0035
RT0139
RT0020
RT0140
1. Using a 17mm wrench, fully tighten the two bolts on the front of the left and right pedestals.
2. Using a 5mm allen wrench fully tighten the eight bolts on the sides of the left and right pedestals.
3. Slide the motor cover back into place.
4. Using a #2 Phillips screwdriver, secure the motor cover to the frame.
5. Using a #2 Phillips screwdriver, secure the left and right motor cover caps to the frame.
Parts Used in this Step
PART DESCRIPTION QTY
PS0035 SCREW, M5XP0.8X15MM SCA5-15 9
RT0139 CAP, MOTOR COVER-LH 1
RT0140 CAP, MOTOR COVER-RH 1
RT0020 MOTOR COVER 1
