Truper GEN-80X User manual

Important note:
This product should
not be exposed to
liquid drippings
or splashing
Manual
Model:
Code:
GEN-80X
15345
Power generator
ENGLISH
ESPAÑOL
15 Hp
Power
GEN-80X

1
SAVE THESE INSTRUCTIONS
You will need this manual in order to check safety and caution rules, assembly
instructions, operating and maintenance procedures; parts list and diagram.
Keep your invoice with this manual. Fill in the invoice number in the inner side
of the front cover. Keep the manual and invoice in a safe and dry place for future
reference.
TECHNICAL CHARACTERISTICS:
GEN-80X
Motor Rated Power: 15 Hp
Type of Motor: 4 Cycle
Motor Capacity: 420 cc
Type of Fuel: Gasoline
Noise Level: 97 dB at 13.1 ft
Fuel Tank: 7.4 gallons
Outlet: Two 120 V˜polarized twin contacts:
1 two-phase 240 V˜
Tension: 120 V˜ / 240 V˜ / 60 Hz
Maximum power at start up: 13.4 Hp
Maximum working power: 10.7 Hp
Duty Cycle:
Continuous Duty on Rated Power / 30 min
rest per tank used
This generator has the following characteristics: High energy, good performance
of the starting protection, high efciency and reliable operation, low gasoline
consumption, low environment contamination, low noise level, portability, useful
life and easy maintenance.
Read this manual thoroughly before using the tool
Read and follow all safety instructions and operation to
reduce risk of personal injury and damage to the equipment.
WARNING

2
Safety Instructions
1. Keep the work area in good working conditions.
Cluttered areas and workbenches favor accidents.
2. Watch carefully the work area conditions.
Do not use machinery or power tools in damp
or moist areas. Do not expose the tool to rain.
Keep the work area with good lighting. Do not
use power tools in the presence of gases or
ammable liquids.
3. Prevent against electric shock. Avoid body
contact with grounded surfaces like piping,
radiators and refrigerators.
4. Keep children away. Children should never be near the
work area. Do not allow children to hold machinery,
tools or extension cables. Do not allow other people to
touch the tools. Keep them away from your work area.
5. When not in use keep the equipment stored away in
a dry and dust-free place. Keep the tool locked to
prevent children to gain access to the tool.
6. Do not force the tool. It will perform better and in a
safer way is used for the purposed it was designed.
Do not try to use inadequate accessories to exceed
the tool capacity.
7. Use the right power tool. Do not use small tools for
heavy-duty jobs. This tool was not designed to make
heavy-duty jobs.
8. Wear appropriate clothes. Do not use loose clothes,
gloves, ties or jewelry. They can get trapped in the
mobile parts. Do not use slippery shoes. Use a hair
protector to retain long hair.
9. Wear eye protection. Always use safety
devices approved by the Mexican Ofcial
Standard (NOM) When working with materials
that shed metal shavings, sawdust or chemical
products wear goggles, face and dust mask.
10. Do not overreach. Avoid tiring positions. Keep a safe
stance and balance.
11. Keep tools in the best working conditions. Keep tools
clean to get better performance and safety. Follow
instructions for lubrication and change of accessories.
Periodically double-check the tool cable. If damaged
take the tool to repair in a Truper Authorized Service
center. Handles should always stay free of oil and
grease.
12. Stay alert. Pay attention on the job. Use common
sense. Never operate a tool when tired.
13. Look for damaged parts. Before keeping on using
the machine, protectors or mobile parts should be
carefully checked to assure they are in good working
order. Check alignment of mobile parts, see if they
are stuck or cracked. Verify assembly and/or any
other condition that could affect the tool operation.
All the components should be perfectly assembled
and comply with all the requirements to guarantee
the tool perfect performance. Protectors or damaged
parts should properly be repaired or replaced. Any
damaged switch should be replaced in a Truper
Authorized Service Center. Do not use any tool if the
On/Off switch is not working properly.
14. Parts and accessories replacement. When needing
to replace parts use only original Truper spare parts
made especially for this tool.
15. ATTENTION! For your personal safety
use accessories or additional tools indicated
in the Manual or recommended by the tool
manufacturer. Using other accessories different
from the indicated in the Manual may be a
personal hazard.
16. Hearing protection. Use hearing protection
when the noise level is above 85 dB.
17. The exhaust in this product motor contains chemical
elements known as cause of cancer, birth defects or
other reproductive damage.
18. The generator when running produces toxic
carbon monoxide. It is odorless and poisonous.
Breathing carbon monoxide produces nausea,
fainting and death.
• Operate the generator outdoors ONLY.
• Keep at least 2 ft. of free space around the
generator to get adequate ventilation.
• Do not operate the generator inside a
building or closed place, including the
generator compartment in a Recreational
Vehicle (RV).
19. Generators produce dangerous voltage. If
the generator is not insulated from the power
installations people using them could get
severely injured or could die. This is due to lack
of grounding.
• Do not use the generator with power
cables if worn, cut, peeled or damaged in
any way.
• Do not operate the generator under the
rain.
• Do not handle the generator o power
cables while standing on water, barefoot or
when your feet and hands are wet.
• Do not allow unqualied people or children
to operate or service the generator.
20. Motors when operating produce heat.
Temperature in the mufer and
surrounding areas could reach or be above
150 ºF . Severe burns may occur if getting
in contact with them.

3
Set the generator in a rm and leveled surface. Avoid ground with sand
or snow. Fuel could spill if the generator is knocked over or tilted. If the
generator is knocked over or sunk in a soft surface, sand, dust or water
could get into the machine
Learn to shut off the generator fast. Know what the function of each control
is. Never allow anybody to operate the generator without adequate instructions.
The mufer can get very hot while operating and it stays that way after turning off
the motor. Be careful. Do not touch the mufer if hot. Let the motor to cool off
before storing the machine in an enclosed place.
Verique que no haya combustible derramado o fugas.
The generator could generate energy, specic output and work
reliably within the following conditions:
Electric Safety
• The electric equipment (lines and plug connections included) shall not
have any defect.
• The generator shall not be connected to other power sources, such as
the electric company supply. Trying to be connected to existing power
systems in special situations like in case of emergency only a qualied
electrician should do the job. He or she will consider the differences
between the equipment in the power supply public network and the
generator.
• Protection against electric shock especially with the generator depends
of the homogenized circuit breaker. If the circuit breakers need to be
replaced, only a circuit breaker with the same class and performance
characteristics may be used.
• Due to the high voltage only rubber exible cable may be used (in
compliance with IEC 245-4) or equivalent may be used.
• The generator does not need to be grounded.
• AC connections in an electric system shall only be installed by a qualied
electrician and must comply with all applicable laws and electric codes.
Inadequate connections could generate feedback of electric current
from the generator to the utility lines.
• The feedback may electrocute people using the power circuits or even
people touching the lines during a blackout. When power is restored, the
generator could explode, get burned or cause re in the power system in
the premises.
In the event of any problem or question regarding the generator consult
with a Truper®Authorized Service Center.
Basic Parameters and Electric Safety
4 920 ft
ALTITUDE AMBIENT TEMPERATURE RELATIVE HUMIDITY
41 ºF - 104 ºF

4
Parts List and Diagram
1. Jack-line Handle for Manual Starting
2. Air filter
3. Handle
4. Fuel Tank Cap
5. Fuel Tank
6. Fuel Tap
7. Oil Measuring Rod
8. Choke Lever
9. Muffler
10. Spark Plug
11. On Switch
12. 120 V˜Polarized Twin Contact
13. 240 V˜ Two-phase Contact
14. Thermal Overload Protector
15. Ground Terminal
16. Voltmeter
17. Bracket
18. Frame
19. Battery
20. Carburetor
21. 12V--- Terminals
22. Oil drain cap
1
17
11
21
12
14
16
13
15
10 20
6
18
19
2
3
7
4
5
8
9
22

5
Included Accessories
Wheels: 2 pieces
Support legs: 2 pieces
Nuts & bolts bag: 1 piece
Tools bag : 1 Screwdriver
1 Spark-plug Wrench
2 Open-end Wrenches
Funnel: 1 piece
Hose: 1 piece
Plug: 1 piece for 240 V˜
These are single cylinder double stroke air-cooled gas
generators. It is a portable power source for recreational,
emergency or household use. (Is a light source for camping
and travel).
The accessories recommended for this tool are
specied in this Manual. Use of any different type of accessory may
be a hazard of personal injury. Use only accessories designated for
each purpose.
Wheels Assembly
1. Assemble the wheel using the assembly screw and install
on the bracket with the nut.
2. Assemble the support legs on the other side.
Inspection before operating
Before inspecting double-check that the
generator is set on a at and leveled surface and with the
motor OFF.
Motor Oil Level
Motor oil is an important factor that
could affect functioning and useful life of the unit. Use
of non-detergent oils and oil for two-stroke motor are not
recommended.
Use 4-stroke motor oil. SAE 10 W/30 for general use and
any temperature is recommended. As you can see in the
table below, other viscosities can be used when the avera-
ge temperature in your area is within the indicated rating
1. Unscrew the oil rod and clean with a clean cloth.
(Figure 2)
2. Insert the oil rod in the lling orice and see if the oil
level is in the rod upper mark.
3. In the event the oil level is below the lower mark in the
rod, ll with oil up to the upper mark in the rod.
4. Adjust the fuel tank cap and tighten.
It is advisable to check the oil level regularly.
Fuel Level
Verify if the fuel tank is full.
Double-check the fuel meter and ll the tank if the fuel
level is low.
1. Open the fuel tank cap. (Figure 3)
2. Fill up to the lter shoulder position..
3. Adjust the fuel tank cap and tighten.
Fuel is highly ammable and poisonous
- Stop the motor when lling up fuel. Fill in a well-
ventilated area.
- Never ll up when smoking or near an open ame or
the fuel storage area.
ASSEMBLY
Fig. 2
Fig. 3
Fig. 1
WARNING
WARNING
WARNING
Room Temperature
NOTICE
OIL

6
To prolong the useful life of the generator, when using it for
the rst time, let it run during 10 hours at 25% - 50% of its
rated load. After changing the motor oil use the generator
as instructed in this Manual.
Air Filter
Double-check the lter cartridges are clean and in good
working condition. Clean or replace cartridges if needed.
Never start the motor if the air lter is not
ready. The motor will wear out faster.
Start the motor with the jack-line
Before starting the generator do not connect any power
device.
1. Turn the fuel tap to the ON
(open) position
2. Set the choke lever on the OFF
(closed) position.
3. Turn the motor ignition key to
the ON (Start) position.
4. Slightly pull the jack-line handle
for manual starting until it is
blocked.
Then, pull quickly and apply force.
5. Set the choke lever on the ON
(open) position.
Operation
- Use caution when lling up the generator. Do no spill fuel
on the motor or silencer.
- In the event of accidentally swallowing any amount of
fuel, inhaling vapors or fuel gets into your eyes see a doctor
immediately.
Any amount of fuel spilled on your skin or clothes should be
washed with soap and water. Change your clothing.
Do not ll up more than indicated (fuel should not be up to
the tank neck). After lling up verify the cap is adequately
closed. (Figure 4)
Using unleaded fuel is recommended since it produces
fewer residues in the spark plug and motor and lengthens
the useful life or the unit parts.
Never use contaminated or spoiled fuel nor gasoline and
oil mix. Avoid dust, residues or water entering into the fuel
tank. Use of low-octane gasoline could cause “buzzing”
or “backre” (metallic banging noise). If it worsens could
damage the motor.
If, “backre” or “buzzing” are present
when running the motor in a stable speed and low load
change the gasoline brand. If the problem is still present
consult with a Truper Authorized Service Center. Failure to
follow these instructions will be considered misuse of the
generator and the warranty will get void.
En algunas ocasiones, usted notará ligeras detonaciones
mientras está operando su generador a carga pesada.
Esto no es motivo de alarma, signica que el motor está
funcionando correctamente.
Fuel tank capacity: 7.4 gallons
- Avoid spilling fuel when lling up. Spilled fuel or
excessive vapors could cause explosion. Clean the ll up
area if fuel was spilled. Verify the area is dry before starting
the motor.
- Keep away from the reach of children.
- Before buying gasoline in a new gas station try to nd
if it has alcohol. In which case double check the type and
percentage of alcohol used.
If noticing any undesired sign while using gasoline
containing alcohol, or gasoline you believe contains alcohol,
change for gasoline with no alcohol
Grounding the generator
- DO NOT connect to a commercial power outlet.
- DO NOT connect to a second generator.
Double-check the lter cartridges are clean and in good
working condition. Clean or replace cartridges if needed.
Never start the motor if the air lter is not
ready. The motor will wear out faster.
Fig. 6
Fig. 4
Fig. 5
WARNING
WARNING
WARNING
WARNING
OPEN
CLOSED

7
After being ON do not allow the jack-line handle for manual starting
to sharply get in place. Return it softly to its original position.
Starting the motor using the gear
Before starting the generator do not connect any power
device.
1. Turn the fuel tap to the
ON position (Open)
2. Set the choke lever on the
OFF (closed) position.
3. Turn the motor ignition key
to the START (Ignition) position.
4. Set the choke lever in ON (Open)
Use of the Generator
To avoid electric shock caused by defective devices
the generator should be grounded.
Connect resistant cables between the ground
outlet and the ground source. To avoid misuse
of the electric equipment the generator should
be grounded. We are not liable for damage to
the equipment or personal injury caused if this
safety measure is not obeyed before operating the
generator.
Use of the Generator
• A. C. connections in an electric system should be installed
by a qualied electrician and comply with all the applicable
electric laws and codes. Inadequate connections could
generate electric current feedback from the generator to
the utility lines.
• Current feedback could electrocute the users of the
circuits; even other people touching the lines during a
blackout could get electrocuted. When electricity is restored
the generator could explode, get burned or cause re in the
electric system.
• The total load of the power equipment should not exceed
the generator rated power.
• When the generator is started, the power equipment,
especially the conductor units will produce large ignition
current. The following table is a reference when connecting
power devices to your generator.
• To connect more than two loads into the generator,
connect the loads rst the high current start and then the
low current start.
A qualied electrician should verify the household
power supply previously to the connection of the generator
into the network.
A.C. outlet
1. Start the gas generator (Figure 7)
2. Connect the device (Figure 8)
• Verify the devices are not exceeding the generator rated
load capacity more than 30 minutes and they do not exceed
the highest load capacity.
• If there is an important overload, the load thermal
protector will shut off. It is possible a marginal overload will
not shut off the load thermal protector but it will reduce the
useful life of the generator.
• If, because a circuit has an overload, the load thermal
protector shuts off, reduce the electric load in the circuit and
wait a couple of minutes before restarting the load thermal
protector.
Fig. 7
OPEN
CLOSED
NOTICE
GEN-80X
8,000 W
800 W
400 W
2,600 W
2,200 W
(Two-phases)

8
Operation
• Double-check all the devices are working correctly
before connecting to the generator. In case a device starts
operating in an abnormal or awkward way or it stops
without any reason, immediately shut off the thermal
overload protector and the motor switch. Then, disconnect
the device and check the cause it is malfunctioning.
• After the loads have been connected to the generator,
inspect the connections are set right. Otherwise, to err
in the connections will cause damage to the generator. It
could also catch re.
3. Set the thermal overload protector in the ON position
(Figure 9).
Overload in the current will automatically shut off
the switch. Reduce the load and let the generator to stop a
couple of minutes. Then, turn on the generator.
If the battery will not be used for a long period of
time (should not exceed three months), recharge it 3 to 5 hours
with 2A - 5A current before using it again.
To shut off the motor
1. Set the overload thermal
protector in the OFF position.
2. Close the fuel tap.
Fig. 9
Fig. 8
3. Shut off the motor, turn the
switch key to the OFF position.
4. Remove all the loads
If needing to urgently
shut off the generator and directly
set the motor switch in the OFF
position.
Operating in high altitude
When the generator is in high altitude, the fuel-air mix in a
standard carburetor will be fuel-rich. Performance will diminish
and fuel consumption will increase.
The performance during a high altitude opertion may improve
if the carburetor is adjusted and if the head pin is set. Your
generator is set to operate at higher altitudes than 6 000 ft
above sea level, if you notice that your generator does not
operate efciently, allow a Truper authorized service center to
perform the corresponding modications to the carburetor.
Even tough carburetor injection is adequate, power in the motor
will decrease 3,5% approximately with each 1 000 ft increment
above 6 890 ft above sea level. Regarding altitude, change
in power will be higher if any carburetor adjustment is made.
If the generator is operating at an altitude
that is inadequate to that at which the carburetor is adjusted,
this could result in poor performance, overheating, and serious
engine damage caused by an excessive air-fuel mixture, check
according to the chart shown below.
CLOSED
OPEN
WARNING
NOTICE
NOTICE
NOTICE

9
Regular maintenance and adjustment is needed to get
adequate working conditions in the generator. Service and
check-up should be made according to the table shown
below.
Shut off the motor before any type of maintenance
work. Before you start doing maintenance double-check
the generator will not unexpectedly start running.
Maintenance
Oil change
To assure full and quick drainage, remove oil contents while
the motor is still warm.
1. Unscrew and remove the oil-
measuring rod.
2. Using counterclockwise
direction unscrew oil drain cap
and drain oil.
3. When nishing draining reset
the drain cap.
4. Pour motor oil (SAE-10W30) up
to the rod upper level.
5. Set rod into the lling orice
and screw back.
Select motor oil with viscosity
adequate for the region average
temperature.
For maintenance or repairs use only
Truper®original spare parts. Using non-original parts could
damage the generator.

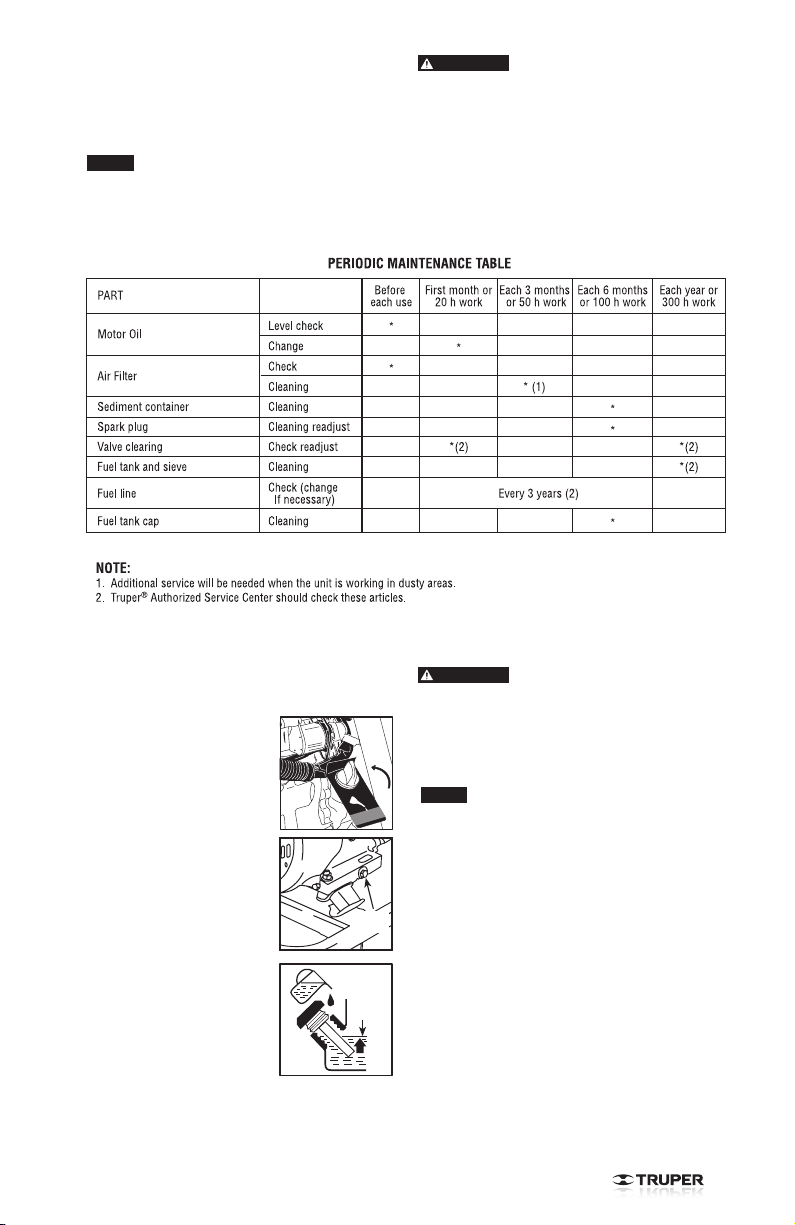

Maintenance Agenda
We recommend doing maintenance in the generator each
month or hours of operation whichever comes rst in the
Periodic Maintenance Table.
Used motor oil is a cause of skin cancer
when in contact with skin for long periods of time. However,
this is almost impossible to happen if using oil in minimal
daily proportions. Washing hands with soap and water is
recommended after working with oil.
Please dispose off oil in an environment friendly
way. We suggest to pour oil in a sealed container and to take it
to your local gas station. Do not dispose with household waste
or pour in the ground.
Oil lter
A dirty oil lter will block air entering the carburetor. Clean
regularly to prevent carburetor failure. (Figure 10).
1. Remove the oil lter cap. Remove screw and air lter
cover.
2. Wash cartridge with a household detergent and water
solution. Rinse or clean with low ignition degree or non-
ammable solvents. Dry cartridge completely.
WARNING
WARNING
LEVEL
MAX.
O
I
L
DRAIN
PLUG
NOTICE
NOTICE

10
Spark plugs
To assure the motor runs properly the spark plug should
be clear and free of residue.
When the motor is running the mufer
get considerably hot. Be Careful! Do not touch the mufer.
Never use gasoline to clean the air lter. It
could cause explosion or re. Never start the generator without
the air lter. The motor will wear out faster.
Fuel lter in the stopcock
The fuel lter stops water or dust in the fuel tank getting
into the carburetor. If the motor has been shut off for a long
time, the sediments container should be clean (Figure 11).
1. Stop the motor.
2. Turn the fuel stopcock into the OFF (closed) position.
3. Remove lter.
4. Remove sediments. Thoroughly clean container and air
lter. Dry.
5. Double-check the seal is in place. Reset the sediments
container and the fuel lter.
After installing the sediments
container verify there is no fuel leak or spillage. Verify
the area is dry before starting the motor.
Filter container
Plate
Filter
cartridge
Filter cover
Fastening Bolt
Maintenance
3. Soak cartridge in clean SAE-20 motor oil.
4. Wring lter to eliminate excessive oil. If you leave too
much oil in the cartridge the motor could release smoke
when started.
5. Install cartridge into the air lter container and set the
cover back into place.
Fig. 11
1. Remove the spark plug cap.
2. Clean any residue found in the
spark plug base.
3. Unscrew the spark plug with a
spark plug wrench.
4. Visually check the spark plug.
Remove if the insulation is broken
or chipped. Clean the spark plug
with a brush if still usable.
5. With a spark plug gauge,
measure the gap between both
electrodes. The distance between
the center electrode and the lateral
electrode should measure between
0,0276” and 0,0315”
6. Check the washer is in in good
shape. Insert the spark plug
manually to prevent a misaligned
position.
7.After setting the spark plug adjust
with a spark plug wrench to press
the washer.
When installing a new spark plug tighten up to
half a turn after the spark plug is in place and can press
down the washer. If installing a used spark plug, tighten
up to 1/8 - ¼ turn after the spark plug is in place and the
washer can be pressed.
The spark plug should be correctly
adjusted. If not well adjusted the spark plug could overheat
and damage the motor. Never use spark plugs with an
inadequate heat level. Use only adequate or equivalent
spark plugs.
Transport and storage
When moving the generator shut off the motor
and the fuel valve. Keep the motor leveled to prevent fuel spillage.
Vapor produced by the fuel or its spillage could cause explosion.
Fig. 10
WARNING
WARNING
WARNING
WARNING
WARNING
0,0276” 0,0315”
NOTICE

11
Maintenance
Before storing for long periods of time:
1. Double check the storage area is clean and dry.
2. Open the fuel tap and drain.
a) With the fuel valve closed, remove and empty the
sediments container.
b) Open the fuel valve and drain gasoline in the tank, into
an approved container.
c) Remove the sediments container and adjust.
d) Drain the carburetor loosing the drain bolt. Drain
gasoline in an approved container.
Gasoline is an extremely ammable product
and under certain circumstances it can be explosive. Do not
smoke or allow ames or sparks in the area.
3. Unscrew the motor oil cap and drain oil.
4. Screw back the drain screw and ll with motor oil up to
the upper mark in the motor oil-measuring rod.
5. Remove spark plug and empty a spoonful of clean motor
oil in the cylinder. Start the motor with the manual start
jack-line handle and wait some revolutions to distribute oil.
Install back the spark plug.
6. Gently pull the manual start jack-line handle until you feel
it stop. At this moment is possible the position is completing
the compression phase and both the exhaust and absorption
valves are closed. Storing the motor in this position will
prevent Inner corrosion.
7. Cover the motor to guard from dust.
Troubleshooting
WARNING
PROBLEM POSSIBLE CAUSE SOLUTION
The motor is not
starting
1. The switch is off.
2. There is not enough fuel.
3. Loads connected into AC
plugs.
4. No spark in the spark plug.
5. Gasoline is not reaching
the carburetor.
6. Low oil level
1. Double-check switch is in “ON” position.
2. Fill up fuel into the generator tank.
3. Disconnect any load in the generator.
4a. Disconnect spark plug cable. Clean dust
around the spark plug base. Remove spark
plug.
4b. Connect spark plug cable.
4c. Turn on the motor switch.
4d. Ground the lateral electrode spark plug
over any metallic part in the motor and pull
the jack line handle to verify spark in the
spark plug.
Double check there is no
spilled fuel close to the spark plug otherwise
it could cause an explosion. Test this in a
well-ventilated area.
4e. Change the spark plug if there is no
spark.
4f. If the new spark plug is not working take
the generator to your nearest TASC*
5. To check, set an approved container
under the drain tube. Turn on the fuel tap
and loosen the drain bolt. Gasoline should
flow freely. If there is no problem try to start
the motor as indicated in the Manual.
Double check there is no
spilled fuel before starting the motor. See if
the area around the spark plug and
generator are dry. Fuel spills or excessive
vapor could cause explosion.
6. Check oil level and replace if necessary.
If the motor does not star take it to your
nearest TASC*
WARNING
WARNING
Motor starts but
unexpectedly stops.
Low oil level Check oil level and restart motor.
No electricity in the
AC outlets.
Thermal protector has not
been reestablished.
Reestablish the overload thermal protector.
The overload thermal
protector is activated
when connecting the
equipment.
1. One of the power
equipment it is damage.
2. The generator capacity is
being exceeded.
1. Before connect any equipment, check it
work well.
2. Verify the power capacity of equipment
connected and if is necessary reduce the
load, wait a minutes before to reestablish the
overload protector. If the problem persist take
it to your nearest TASC*
The machine vibrates
or makes a lot of noise
The anchor removal
operation has not been made
Identify the warning label reading: “Remove
this protection before using the generator”
and remove the rubber support.
*TASC: Truper Authorized Service Center.

12
Maintenance

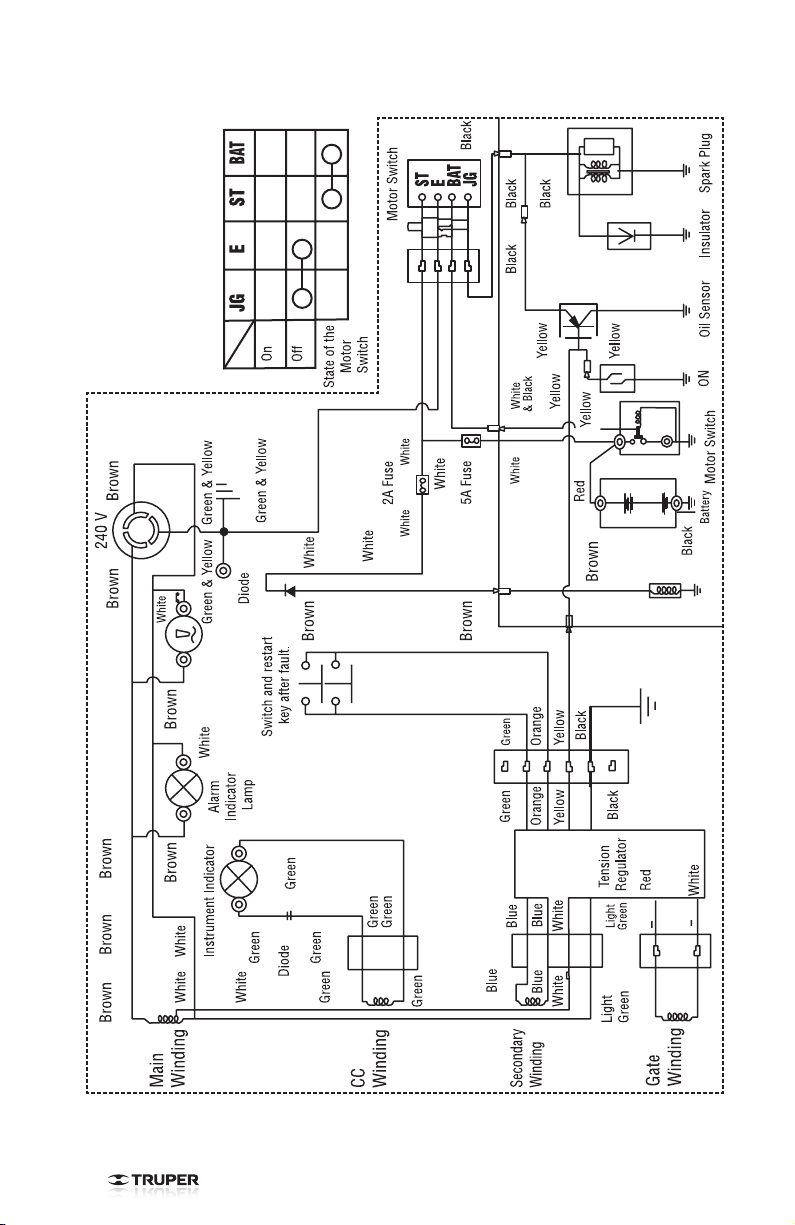

Electric Diagram
˜

13
Notes

Warranty policy
Model:
Code:
GEN-80X
15345
This product, its parts and components have a one year cover against any defects in material and/or
workmanship as well as its function, without expense for the customer. This warranty excludes the following:
1) when product is used under different from normal conditions; 2) usage in breach of the operating manual
furnished or; 3) when this product has been altered or repaired by personnel not certified by Truper®
This warranty shall be effective with the supplier selling the product, or at Truper®Authorized Service Centers
listed in this manual.
This warranty shall be effective when presenting the product and the valid Warranty policy duly stamped by
the supplier or the proof of purchase.
To comply with this warranty, Truper will cover transportation expenses in case consumer’s address is out
of range from Truper®Authorized Service Centers listed herein or at the website www.truper.com or at our
toll-free numbers: 01 [phone] or 01(800) 018-7873.
In the event of any problem regarding the validity of this warranty please call toll-free numbers mentioned
above.
Parts, components, consumables and accessories when applicable may be acquired at Truper®
Authorized Service Centers listed herein.
Stamp of the business and date of
purchase.
W
A
R
R
A
N
T
Y
W
A
R
R
A
N
T
Y
Imported by: TRUPER, S.A. de C.V. Parque Industrial No. 1, Jilotepec, C.P. 54240, Estado de México, México
TEL. [phone], FAX. [phone], (TIN) R.F.C: THE-791105-HP2 www.truper.com 03-2018

AUTHORIZED SERVICE CENTERS
Sale of parts, components, supplies and accessories.
Estado Ciudad Centro de Servicio
Aguascalientes Aguascalientes 671615
ZARAGOZA NO. 1205, COL. EL SOL,
AGUASCALIENTES, AGS. TEL.: 01(449)
9-96-59-78
Baja California Sur San José del Cabo 670796 CONTRURENTAS
PROL. I. ZARAGOZA Y MÁRQUEZ DE LEÓN,
COL. 5 DE FEBRERO, SAN JOSÉ DEL CABO,
BCS
TEL.: [phone]
Chihuahua Chihuahua 670032 PROVIND
AV. COLEGIO MILITAR # 4307 A, COL.
NOMBRE DE DIOS C.P. 31100, CHIHUAHUA,
CHIH.
TEL.: [phone]
Parral 671530 FERRETERÍA AMAYA S.A. DE C.V.
AV. ORTIZ MENA # 81, COL. CENTRO C.P.
33800
PARRAL, CHIH.TEL.[phone]
Coahuila Monclova 670712 INDUSTRIAL FERRETERA DE
MONCLOVA,S.A DE C.V.
BLVD. HAROLD R. PAPE # 1000, COL. CENTRO
C.P. 25700 MONCLOVA, COAH.
TEL.: [phone] FAX: 01 (866)
6-33-07-19
Colima Tecomán 671742 SURTIDORA DE FERRETERÍA
AV. ANTONIO LEAÑO ÁLVAREZ No. 527
COL. PONCIANO ARRIAGA
TEL.: [phone] Y 7666 FAX:
325-2700
Chiapas Tapachula 671770 TORNILLOS Y HERRAMIENTAS
PINEDA
17 PONIENTE No. 20-A, COL. CENTRO
TAPACHULA, CHIAPAS
TEL [phone]
Tuxtla Gutiérrez 671709 FERRETERA MANDIOLA, S.A. DE C.V.
5a NORTE PONIENTE No. 1615-B,
COL. MOCTEZUMA, C.P. 29000
TEL.: [phone]
671747 CENTRO DE SERVICIO DEL SURESTE
LIBRAMIENTO SUR ORIENTE S/N km 6.5
COL. TRABAJADORES
TUXTLA GUTIERREZ, CHIAPAS
TEL.: [phone]
San Cristóbal de 670515 FERRETERÍA CASUA
las Casas RAMÓN CORONA # 72, COL. BARRIO SANTA
LUCÍA C.P. 29250, SAN CRISTOBAL DE LAS
CASAS, CHIS.
TEL.: [phone]
671601 MATERIALES DE CONSTRUCCIÓN DE
LOS ALTOS, S.A. DE C.V.
FRANCISCO I. MADERO #5, COL. CENTRO,
C.P. 29200, SAN CRISTOBAL DE LAS CASAS,
CHIS.
671730 MATERIALES YACEROS BALAM S.A.
PERIFERICO NORTE-PONIENTE No. 50
COL. BISMAR, SN. CRISTOBAL DE LAS CASAS
TEL.: [phone] Y 7422
Palenque 670781 PREFABRICADOS DE PALENQUE, S.A.
DE C.V.
km 1 CARRETERA PALENQUE - PAKAL-NÁ
S/N
ENTRADA LIENZO CHARRO C.P. 22960,
PALENQUE,CHIS.TEL.: [phone]
/ 3-45-15-33
Mexico city Azcapotzalco 671829 EL FUERTE DE LAS HERRAMIENTAS
S.A. DE C.V. PONIENTE 140 #618 LOCAL B
COL. INDUSTRIAL VALLEJO, C.P. 02300
TELS.: 55-87-79-59 Y 77-31
Centro 670995 EL MONSTRUO DE CORREGIDORA
S.A. DE C.V.
CORREGIDORA # 22, COL. CENTRO C.P.
06060 MÉXICO, CIUDAD DE MÉXICO TEL.: 01
(55) 55-22-48-61 / 71 y
01 (55) 55-22-50-31, FAX: 01 (55)
55-22-50-21
671370 ADMINISTRADORA FERRETERA, S.A.
DE C.V.
CORREGIDORA # 76-A, COL. CENTRO C.P.
06060
MÉXICO, CIUDAD DE MÉXICO TEL.: 01 (55)
55-22-99-76
FAX: [phone]
Gustavo A. Madero 671131
CERRADA PINO SUAREZ # 24, COL. ZONA
ESCOLAR C.P. 07230, GUSTAVO A. MADERO.
MÉXICO, CIUDAD DE MÉXICO TEL.: 01 (55)
22-07-08-82
671137 INGENIERÍA SUMINISTROS Y
SERVICIOS INDUSTRIALES
CALZADA DE GUADALUPE #525-A, COL.
ESTRELLA,
C.P. 07810, GUSTAVO A. MADERO, MÉXICO,
CIUDAD DE MÉXICO TEL. Y FAX: 01 (55)
5577-93-31 / 5781-70-79
Durango Durango 670350 TORNILLOS ÁGUILA, S.A. DE C.V.
MASURIO # 200 ESQUINA GALIO, COL. LUIS
ECHEVERRIA C.P. 34250, DURANGO, DGO.
TEL.: [phone]
671671
ENRIQUE CARROLA ANTUNA
NO. 406 COL. CIÉNEGA, DURANGO, DGO. TEL.:
01618-825-27-10
Edo. De México Acolman 671600 ABC DE MATERIALES, S.A. DE C.V.
VENUSTIANO CARRANZA #
104 COL. LOS ÁNGELES TOTOLCINGO,
ACOLMAN, EDO. DE MÉXICO
TEL.: [phone]
Tecamac 671723 FERRETERATECAMAC S.A. DE C.V.
CARR. MEXICO-PACHUCA km 37.5
TECAMAC, EDO. DE MEX.
TEL.: [phone] Y 5934-6271
Tequixquiac 671765 TLAPALERIA CRUZ
AV. CUAUHTEMOC No. 3 COL. BO.SAN JOSÉ
TEL.: [phone]
Tlalnepantla 671025 SE RVICIO Y VENTA DE
HERRAMIENTAS VG
AV. DE LOS MAESTROS # 14, COL. LEANDRO
VALLE C.P.54040, TLANEPANTLA DE BAZ
EDO. DE MÉXICO
TEL. .: [phone] Y FAX: 01 (55)
53-98-21-04
Toluca 670050 ABRASIVOS Y SOLDADURAS
ESPECIALES DE TOLUCA ISABEL LA
CATÓLICA SUR # 101 ESQ.MIGUEL HIDALGO
COL. STA.CLARA C.P. 50090, TOLUCA, EDO.
DE MÉXICO, TEL. [phone]
7-73-11-16 2-14-94-58, FAX 01 (722)
2-15-21-45
Nezahualcóyotl 670514
AV. TEXCOCO # 354, COL. METROPOLITANA
2A SECCIÓN C.P. 57740, CD.
NEZAHUALCOYOTL, EDO. DE MÉXICO, TEL.:
01 (55) 57-92-44-58
Guanajuato Celaya 670150 COMPAÑÍA FERRETERA NUEVO
MUNDO
S.A. DE C.V.
AV. MÉXICO - JAPÓN # 225, CD. INDUSTRIAL
C.P. 38010, CELAYA, GTO.TEL.Y FAX: 01(461)
6-17-75-78 6-17-75-79 / 6-17-75-80 /
6-17-75-88
Irapuato 670261 PROVEEDORES DE HERRAMIENTAS
SINALOA No. 39 COL. MIGUEL HIDALGO
IRAPUATO, GTO. TELS.: 01 [phone],
124-8806
FAX: [phone]
León 671492 HERRAMIENTAS Y SERVICIOS DE
LEON
S. DE R. L. DE C.V.
LOPEZ MATEOS ORIENTE # 230, COL.
CENTRO CP. 37000 LEON, GTO. TEL./FAX 01
(477) 7-14-65-14
San Luis de la Paz 671290 EL GRINGO
LIBRAMIENTO SUR # 609, COL. DEL SOL C.P.
37900 SAN LUIS DE LA PAZ, GTO.
TEL. Y FAX .: [phone]
Guerrero Cd. Altamirano 670926 DISTRIBUIDORA RAGASA, S.A. DE C.V.
AV.LÁZARO CARDENAS # 908, COL. CENTRO
C.P. 40660
CD. ALTAMIRANO, GRO. TEL.: 01 (767)
6-72-08-43
Coyuca de Benítez 671637
LAS PALMERAS # 48 COL.
CENTRO, COYUCA DE BENÍTEZ, GRO. TEL.:
01 (781) 4-52-08-15
Ometepec 671677
MARIANO ABASOLO S/N COL.
OMETEPEC CENTRO, OMETEPEC, GRO. TEL.:
01741-412-13-39
Hidalgo Pachuca 670915 MUNDO TOOL MÉXICO, S.A. DE C.V.
ALLENDE # 320, COL. CENTRO C.P. 42000,
PACHUCA, HGO. TEL. Y FAX: 01(771)
7-15-00-48
670640 SAN ANTONIO MATERIALES PARA
CONSTRUCCIÓN
CARR. MEXICO-PACHUCA km. 81.5 COL. SAN
ANTONIO
EL DESMONTE, TEL.: [phone]
Estado Ciudad Centro de Servicio
Tulancingo 670655 FERREPRECIOS,S.A. DE C.V.
LIBERTAD ORIENTE No. 304 LOCAL 30,
INTERIOR DE PASAJE ROBLEDO, COL.
CENTRO
TEL. [phone], 16
Jalisco Guadalajara 670855 MAGNOCENTRO FERRETERO, S.A.
DE C.V.
AV. LA PAZ #1180, COL. CENTRO,
GUADALAJARA, JAL.
TEL.: [phone] / 59
FAX: [phone]
Ocotlán 670770 ACEROS Y MATERIALES DIAZ S.A.
DE C.V.
AV. FRANCISCO ZARCO # 755, COL. FLORIDA
C.P. 47800, OCOTLAN, JAL.
TEL.: [phone] /
9-22-01-77
Michoacán Apatzingán 671737 EQUIPOS Y HERRAMIENTAS
PROFESIONALES
JOSÉ MANUEL DE HERRERA No. 149,
COL.CENTRO
TEL. [phone]
671766 SERVICIOS Y HERRAMIENTAS DEL
SUR
AV. 22 DE OCTUBRE No. 303 COL. MIGUEL
HIDALGO
TEL. [phone]
Morelia 671830 MOTOSIERRAS Y SERVICIOS DE
MORELIA
MORELOS NORTE No. 821 COL. CENTRO C.P.
58000
TEL.: [phone]
Lázar o Cárd enas 670336 FERREMAQUINARIA INDUSTRIAL S.A.
DE C.V.
AV.LÁZARO CARDENAS # 241, COL. CENTRO
C.P. 60950, CD. LÁZARO CARDENAS, MICH.
TEL.: [phone] /
5-32-25-41
FAX: [phone]
Tacámbaro 670872 MATERIALES GARCIA Y BARRAGÁN
S.A. DE C,V.
IGNACIO ZARAGOZA # 187 B, COL. CENTRO,
C.P. 61650, TACAMBARO, MICH. TEL.: 01
(459) 5-96-01-90, FAX: [phone]
Zamora 671130 HERRAMIENTAS Y SERVICIOS
FORESTALES DE ZAMORA
AV. JUAREZ # 213 OTE. ENTRE 5 DE MAYO Y
AQUILES SERDAN, COL. CENTRO C.P.
59600, ZAMORA, MICH.
TEL.: [phone]
Zacapu 670805 LA NUEVA FERRETERÍA TRUPER
GENERAL PUEBLITA # 356,COL. CENTRO C.P.
58600, ZACAPU, MICH. TEL.: 01 (436)
3-63-33-51
Zitacuáro 671115 HERRAMIENTAS Y SERVICIOS
INDUSTRIALES DE ZITACUARO
NETZAHUALCOYOTL NORTE # 6, COL.
MOCTEZUMA
C.P. 61505, ZITACUARO, MICH.
TEL. [phone]
Uruapan 671664
AVENIDA FRANCISCO VILLA
NO. 31 COL. MORELOS, URUAPAN, MICH.
TEL.: [phone]
Morelos Alpuyeca 671877 FERREMATERIALES DURAMAX
km. 100 CARR. MEXICO-ACAPULCO,
COL. ALPUYECA, C.P. 62797
TEL.: [phone] TEL. / FAX: 777 678
7956
Oaxaca Oaxaca 671625 MARTINEZ BARRANCO, S.A. DE C.V.
AV. LA PAZ # 721 COL. CALIFORNIA,OAXACA
TEL.: [phone]
671712 MUNDO MAKITA
CALLE SÍMBOLOS PATRIOS No.101,
COL. ELISEO JIMÉNEZ RUÍZ, OAXACA, OAX
Puerto Escondido 671782 MI FERRE
CARR. COSTERA DEL PACIFICO No. 300,
COL. LOS MANGALES, PUERTO ESCONDIDO
TEL.: [phone]
Tuxtepec 671794AGROBOMBAS ROSARIOS S.A.
AV. INDEPENDENCIA No. 1323
COL. LA PIRAGUA C.P. 68300
TEL.: [phone]
Puebla Puebla 671420 DISTRIBUIDORA DE HERRAMIENTAS
MANUALES ZAVALETA, S.A. DE C.V.
RIVERA ATOYAC # 325, COL. SANTA CRUZ
BUENA VISTA, C.P. 72810, SAN ANDRÉS
CHOLULA, PUE.
TEL. Y FAX: [phone]
Tehuacán 671211 SERVITEC
AV. DE LA JUVENTUD # 1103 ESQ. 7
SUR,COL. NICÓLAS BRAVO C.P. 75790,
TEHUACAN, PUE.
TEL. Y FAX: [phone]
671822 TIENDA FIX TEHUACAN
AV. SEGUNDA DE MORELOS No. 303, COL.
CENTRO
TEL. [phone]
Querétaro Querétaro 670402 MOTORES Y HERRAMIENTAS
ELÉCTRICAS
AV. 6 # 1004-B ESQ. CALLE 19, COL. LOMAS
DE CASA BLANCA C.P. 76080, QUERETARO,
QRO.
TEL. Y FAX : [phone]
San Juan del Río 671265 FERRETERA PRADO HERRAMIENTAS
S.A. DE C.V.
AV. UNIVERSIDAD # 325-A, COL. GRANJAS
MANTHI
C.P. 76808, SAN JUAN DEL RIO, QRO.
TEL. Y FAX : [phone]
Quintana Roo Cancún 670046 CENTRO FERRETERO DE CANCUN
AV. COMACALCO # 12, COL.
SUPERMANZANA 59
C.P. 77515, CANCUN, Q. ROO.
TEL.: [phone]
Chetumal 671011
ÁLVARO OBREGÓN # 281-283
COL. CENTRO, CHETUMAL, QUINTANA ROO
TEL.: [phone]
671732 MULTISIERRAS TALICUMI
AVENIDA MIGUEL HIDALGO
NO.221
COL. VENUSTIANO CARRANZA
San Luis Potosí San Luis Potosí 671636 95/24 MÉXICO, S.A. DE C.V. SUC. SLP
AV. UNIVERSIDAD # 1850 COL. EL PASEO,
SAN LUIS POTOSÍ C.P. 78320
TEL. Y FAX: [phone]
Sinaloa Guasave 671642
JACARANDAS S/N COL. DEL BOSQUE,
GUASAVE, SIN.
TEL.: [phone]
Sonora Cd. Obregón 671045 FERRETERÍA LA ÚNICA
LÁZARO MERCADO # 1234 COL. MUNICIPIO
LIBRE
C.P. 85080 CD. OBREGÓN, SON.
TEL. Y FAX: [phone]
Tabasco Villahermosa 671610 GRUPO VAQUEIRO FERRETERO, S.A.
DE C.V.
PERIFÉRICO CARLOS PELLICER CÁMARA No.
2810
COL. MIGUEL HIDALGO, C.P. 86250
TEL. Y FAX: [phone] / 41 EXT.
106
671432 MERCADO DE LA SOLDADURA DEL
SURESTE, S.A. DE C.V.
BLVD.ADOLFO RUÍZ CORTÍNEZ 2001-B,
COL. ATASTA C.P. 86100
TEL.: [phone]
Tamaulipas Nuevo Laredo 671480 CONSTRURAMA GALVEZ
REVOLUCION # 1002, COL. BUENA VISTA C.P.
88120 NVO. LAREDO, TAM.
TEL. Y FAX: [phone]
Tampico 671755 FERRETERÍA ZANELLA
AV. TAMAULIPAS No. 713 COL.REVOLUCIÓN
VERDE
TEL.: [phone]
Tlaxcala Apizaco 671684 SERVICIO JUNIOR
CALLE 2 DE ABRIL PONIENTE No. 506, COL.
CENTRO
TEL. [phone]
Veracruz Córdoba 671435 METALURVE, S.A. DE C.V.
CALLE 18 # 2117, FRACC. LOMAS C.P. 94570
CÓRDOBA, VER.TEL.: [phone]
Martínez de 671635 LA CASA DISTR. TRUPER
de la Torre SUC. AV. YUCATAN # 137-A, COL. YUCATAN
C.P. 93600 MARTINEZ DE LA TORRE, VER.
TEL.: [phone]
TEL.: [phone]
Estado Ciudad Centro de Servicio
Minatitlán 671478 TALLER ELÉCTRICO MATHEY
ATENAS # 71, COL.NUEVA MINA C.P. 96760
MINATITLAN, VER.
TEL. Y FAX : 01 (922)
2-23-56-01
Perote 671605
HUMBOLT SUR # 49, COL. CENTRO C.P.
91270
PEROTE, VER.
TEL.: [phone]
Poza Rica 670397 LA CASA DISTRIBUIDORA TRUPER
CALLE URUGUAY # 713, COL. 27 DE
SEPTIEMBRE
C.P. 93320, POZA RICA, VER.
TEL. Y FAX: [phone] /
8-26-84-84
Tantoyuca 671535 DISTRIBUIDORA SANVER S.A. DE C.V.
CARRETERA NAL. TUXPAN-TAMPICO km 64,
COL. LA MORITA C.P. 92101
TEL.: [phone]
Veracruz 671451 MAYORISTAS JAGUAR S.A. DE C.V.
AV. IGNACIO ALLENDE No. 2377 COL. CENTRO
TEL.: [phone]
671781 MATERIALES Y ACEROS TUCAN S.A.
DE C.V.
PROL. AV. MIGUEL ALEMÁN No. 3800
COL. ARTÍCULO 123
TEL. [phone]
671452 COMERCIALIZADORA FERRESMAR
CAYETANO RIVERA No. 47 COL. DEL
MAESTRO
TEL. [phone]
TEL. / FAX:[phone]
Estado Ciudad Sucursales Truper
Baja California Tijuana SUCURSAL TIJUANA
BLVD. INSURGENTES # 6101 ENTRE BLVD.
MANUEL CLOUTIER Y PASEO GUAYCURA,
FRACC. GUAYCURA,
DELEGACIÓN CERRO COLORADO, (ANTES LA
PRESA) C.P. 22216, TIJUANA, B.C.
CONMUTADOR:01(664) 9-69-51-00
Sinaloa Culiacán SUCURSAL CULIACAN
LIBRAMIENTO BENITO JUAREZ #. 5599 B4,
EJIDO DE LAS FLORES (LA COSTERITA), C.P.
80296, CULIACAN, SINALOA
CONMUTADOR:01(667) 7-60-57-47
Tabasco Villahermosa SUCURSAL VILLAHERMOSA
CALLE HELIO LOTES 1,2 Y 3 MZNA. #1,COL.
INDUSTRIAL, 2A ETAPA C.P. 86010,
VILLAHERMOSA, TAB.
CONMUTADOR : 01 (993) 3-53-72-44
Jalisco Guadalajara SUCURSAL GUADALAJARA
ADOLF BERNARD HORN Nº 6800
TLAJOMULCO DE ZUÑIGA, JALISCO, C.P.
45655
CONMUTADOR: 01 (33) 3606-5290
Yucatán Mérida SUCURSAL MERIDA
CALLE 33 N° 600 Y 602 LOCALIDAD
ITZINCAB Y MULSAY, MUNICIPIO UMAN,
YUCATÁN, C. P. 97390
CONMUTADOR: 01(999) 912-24-51
Nuevo León Monterrey SUCURSAL MONTERREY
AV. STIVA #275, PARQUE INDUSTRIAL STIVA
BARRAGAN, SAN NICÓLAS DE LOS
GARZAS,
C.P. 66420, MONTERREY, N.L.
TELS.: 01 (81) 8352 8791 Y 8790
Puebla Puebla SUCURSAL PUEBLA
AV. PERIFÉRICO 2-A, SAN LORENZO
ALMECATLA,
COL. CUAUTLALCINGO, PUEBLA,
PUEBLA, C.P. 72710
CONMUTADOR:01(222) 2-82-82-82
Coahuila Torreón SUCURSAL LAGUNA
CALLE METAL MECÁNICA #280, PARQUE
INDUSTRIAL ORIENTE, TORREÓN, COAHUILA,
C.P. 27278, CONMUTADOR: 01 (871) 209 68
23
Edo. De México Jilotepec SUCURSAL CENTRO FORÁNEO
AV. PARQUE INDUSTRIAL # 1-A, JILOTEPEC
C.P. 54240, EDO. DE MÉXICO
CONMUTADOR: 01(761) 7-82-91-01
EXT. 5728 Y 5102
Mexico city Mexico city SUCURSAL CENTRO
CALLE D # 31-A, COL. MODELO DE
ECHEGARAY
C.P. 53330, NAUCALPAN, EDO. DE MÉXICO
TEL.: [phone]
Chihuahua Chihuahua SUCURSAL CHIHUAHUA
AV. SILVESTRE TERRAZAS 128-11
PARQUE INDUSTRIAL BAFAR
CARRETERA MÉXICO CUAUHTEMOC
CHIHUAHUA, CHIH.
TEL.: [phone]

TRUPER, S.A. de C.V. Parque Industrial No. 1, Jilotepec, C.P. 54240, Estado de México, México, Tel.: [phone], Fax: [phone]-2018
www.truper.com
Enter to:
01 [phone]
01 [phone]
Where to get an updated list in case you have any problems to contacts a service center
or call one of our two lines:
Where will inform you which is the Authorized Service Center closest Truper®

Truper, S.A. de C.V. Parque Industrial No. 1, Jilotepec, C.P. 54240, Estado de México, México, Tel.: [phone], Fax: [phone]-2018
www.truper.com
Ingrese a:
01 [phone]
01 [phone]
Donde obtendrá un listado actualizado en caso de tener algún problema para contactar un centro de servicio
o llame a cualquiera de nuestras dos lineas:
Donde le informarán cual es el Centro de Servicio Autorizado Truper®más cercano

CENTROS DE SERVICIO AUTORIZADOS TRUPER®
Venta de partes, componentes, consumibles y accesorios.
Estado
Ciudad Centro de Servicio
Aguascalientes Aguascalientes 671615
ZARAGOZA NO. 1205, COL. EL SOL,
AGUASCALIENTES, AGS. TEL.: 01(449)
9-96-59-78
Baja California Sur San José del Cabo 670796 CONTRURENTAS
PROL. I. ZARAGOZA Y MÁRQUEZ DE LEÓN,
COL. 5 DE FEBRERO, SAN JOSÉ DEL CABO,
BCS
TEL.: [phone]
Chihuahua Chihuahua
670032 PROVIND
AV. COLEGIO MILITAR # 4307 A, COL.
NOMBRE DE DIOS C.P. 31100, CHIHUAHUA,
CHIH.
TEL.: [phone]
Parral 671530 FERRETERÍA AMAYA S.A. DE C.V.
AV. ORTIZ MENA # 81, COL. CENTRO C.P.
33800
PARRAL, CHIH.TEL.[phone]
Coahuila
Monclova 670712 INDUSTRIAL FERRETERA DE
MONCLOVA,S.A DE C.V.
B
LVD. HAROLD R. PAPE # 1000, COL. CENTRO
C.P. 25700 MONCLOVA, COAH.
TEL.: [phone] FAX: 01 (866)
6-33-07-19
Colima
Tecomán 671742 SURTIDORA DE FERRETERÍA
AV. ANTONIO LEAÑO ÁLVAREZ No. 527
COL. PONCIANO ARRIAGA
TEL.: [phone] Y 7666 FAX:
325-2700
Chiapas
Tapachula 671770 TORNILLOS Y HERRAMIENTAS
PINEDA
17 PONIENTE No. 20-A, COL. CENTRO
TAPACHULA, CHIAPAS
TEL [phone]
T
uxtla Gutiérrez 671709 FERRETERA MANDIOLA, S.A.DE C.V.
5a NORTE PONIENTE No. 1615-B,
COL. MOCTEZUMA, C.P. 29000
TEL.: [phone]
671747 CENTRO DE SERVICIO DEL SURESTE
LIBRAMIENTO SUR ORIENTE S/N km 6.5
COL. TRABAJADORES
TUXTLA GUTIERREZ, CHIAPAS
TEL.: [phone]
San Cristóbal de 670515 FERRETERÍA CASUA
las Casas RAMÓN CORONA # 72, COL. BARRIO SANTA
LUCÍA C.P. 29250, SAN CRISTOBAL DE LAS
CASAS, CHIS.
TEL.: [phone]
671601 MATERIALES DE CONSTRUCCIÓN DE
LOS ALTOS, S.A. DE C.V.
FRANCISCO I. MADERO #5, COL. CENTRO,
C.P. 29200, SAN CRISTOBAL DE LAS CASAS,
CHIS.
671730 MATERIALES YACEROS BALAM S.A.
PERIFERICO NORTE-PONIENTE No. 50
COL. BISMAR, SN. CRISTOBAL DE LAS CASAS
TEL.: [phone] Y 7422
Palenque 670781 PREFABRICADOS DE PALENQUE, S.A.
DE C.V.
km 1 CARRETERA PALENQUE - PAKAL-NÁ
S/N
ENTRADA LIENZO CHARRO C.P. 22960,
PALENQUE,CHIS.TEL.: [phone]
/ 3-45-15-33
Ciudad De México Azcapotzalco 671829 EL FUERTE DE LAS HERRAMIENTAS
S.A. DE C.V. PONIENTE 140 #618 LOCAL B
COL. INDUSTRIAL VALLEJO, C.P. 02300
TELS.: 55-87-79-59 Y 77-31
Centro 670995 EL MONSTRUO DE CORREGIDORA
S.A. DE C.V.
CORREGIDORA # 22, COL. CENTRO C.P.
06060 MÉXICO, CIUDAD DE MÉXICO TEL.: 01
(55) 55-22-48-61 / 71 y
01 (55) 55-22-50-31, FAX: 01 (55)
55-22-50-21
671370 ADMINISTRADORA FERRETERA, S.A.
DE C.V.
CORREGIDORA # 76-A, COL. CENTRO C.P.
06060
MÉXICO,
CIUDAD DE MÉXICO TEL.: 01 (55)
55-22-99-76
FAX: [phone]
Gustavo A. Madero 671131
CERRADA PINO SUAREZ # 24, COL. ZONA
ESCOLAR C.P. 07230, GUSTAVO A. MADERO.
MÉXICO, CIUDAD DE MÉXICO TEL.: 01 (55)
22-07-08-82
671137 INGENIERÍA SUMINISTROS Y
SERVICIOS INDUSTRIALES
CALZADA DE GUADALUPE #525-A, COL.
ESTRELLA,
C.
P. 07810, GUSTAVO A. MADERO, MÉXICO,
CIUDAD DE MÉXICO TEL. Y FAX: 01 (55)
5577-93-31 / 5781-70-79
Durango
Durango 670350 TORNILLOS ÁGUILA, S.A. DE C.V.
MASURIO # 200 ESQUINA GALIO, COL. LUIS
ECHEVERRIA C.P. 34250, DURANGO, DGO.
TEL.: [phone]
671671
ENRIQUE CARROLA ANTUNA
NO. 406 COL. CIÉNEGA, DURANGO, DGO. TEL.:
01618-825-27-10
Edo. De México Acolman
671600 ABC DE MATERIALES, S.A. DE C.V.
VENUSTIANO CARRANZA #
104 COL. LOS ÁNGELES TOTOLCINGO,
ACOLMAN, EDO. DE MÉXICO
TEL.: [phone]
Tecamac 671723 FERRETERATECAMAC S.A. DE C.V.
CARR. MEXICO-PACHUCA km 37.5
TECAMAC, EDO. DE MEX.
TEL.: [phone] Y 5934-6271
Tequixquiac 671765 TLAPALERIA CRUZ
AV. CUAUHTEMOC No. 3 COL. BO.SAN JOSÉ
TEL.: [phone]
Tlalnepantla 671025 SERVICIO Y VEN
TA DE
HERRAMIENTAS VG
AV. DE LOS MAESTROS # 14, COL. LEANDRO
VALLE C.P.54040, TLANEPANTLA DE BAZ
EDO. DE MÉXICO
TEL. .: [phone] Y FAX: 01 (55)
53-98-21-04
Toluca 670050 ABRASIVOS Y SOLDADURAS
ESPECIALES DE TOLUCA ISABEL LA
CATÓLICA SUR # 101 ESQ.MIGUEL HIDALGO
COL. STA.CLARA C.P. 50090, TOLUCA, EDO.
DE MÉXICO, TEL. [phone]
7-73-11-16 2-14-94-58, FAX 01 (722)
2-15-21-45
Nezahualcóyotl 670514
AV. TEXCOCO # 354, COL. METROPOLITANA
2A SECCIÓN C.P. 57740, CD.
NEZAHUALCOYOTL, EDO. DE MÉXICO, TEL.:
01 (55) 57-92-44-58
Guanajuato Celaya
670150 COMPAÑÍA FERRETERA NUEVO
MUNDO
S.A. DE C.V.
AV. MÉXICO - JAPÓN # 225, CD. INDUSTRIAL
C.P. 38010, CELAYA, GTO.TEL.Y FAX: 01(461)
6-17-75-78 6-17-75-79 / 6-17-75-80 /
6-17-75-88
Irapuato 670261 PROVEEDORES DE HERRAMIENTAS
SINALOA No. 39 COL. MIGUEL HIDALGO
IRAPUATO, GTO. TELS.: 01 [phone],
124-8806
FAX: [phone]
León 671492 HERRAMIENTAS Y SERVICIOS DE
LEON
S. DE R. L. DE C.V.
LOPEZ MATEOS ORIENTE # 230, COL.
CENTRO CP. 37000 LEON, GTO. TEL./FAX 01
(477) 7-14-65-14
San Luis de la Paz 671290 EL GRINGO
LIBRAMIENTO SUR # 609, COL. DEL SOL C.P.
37900 SAN LUIS DE LA PAZ, GTO.
TEL. Y FAX .: [phone]
Guerrero Cd. Altamirano 670926 DISTRIBUIDORA RAGASA, S.A. DE C.V.
AV.LÁZARO CARDENAS # 908, COL. CENTRO
C.P. 40660
CD. ALTAMIRANO, GRO. TEL.: 01 (767)
6-72-08-43
Coyuca de Benítez 671637
LAS PALMERAS # 48 COL.
CENTRO, COYUCA DE BENÍTEZ, GRO. TEL.:
01 (781) 4-52-08-15
Ometepec 671677
MARIANO ABASOLO S/N COL.
OMETEPEC CENTRO, OMETEPEC, GRO. TEL.:
01741-412-13-39
Hidalgo Pachuca 670915 MUNDO TOOL MÉXICO, S.A. DE C.V.
ALLENDE # 320, COL. CENTRO C.P. 42000,
PACHUCA, HGO. TEL. Y FAX: 01(771)
7-15-00-48
670640 SAN ANTONIO MATERIALES PARA
CONSTRUCCIÓN
CARR. MEXICO-PACHUCA km. 81.5 COL. SAN
ANTONIO
EL DESMONTE, TEL.: [phone]
Estado Ciudad Centro de Servicio
Tulancingo 670655 FERREPRECIOS,S.A. DE C.V.
LIBERTAD ORIENTE No. 304 LOCAL 30,
INTERIOR DE PASAJE ROBLEDO, COL.
CENTRO
TEL. [phone], 16
Jalisco Guadalajara 670855 MAGNOCENTRO FERRETERO, S.A.
DE C.V.
AV. LA PAZ #1180, COL. CENTRO,
GUADALAJARA, JAL.
TEL.: [phone] / 59
FAX: [phone]
Ocotlán 670770 ACEROS Y MATERIALES DIAZ S.A.
DE C.V.
AV. FRANCISCO ZARCO # 755, COL. FLORIDA
C.P. 47800, OCOTLAN, JAL.
TEL.: [phone] /
9-22-01-77
Michoacán Apatzingán 671737 EQUIPOS Y HERRAMIENTAS
PROFESIONALES
JOSÉ MANUEL DE HERRERA No. 149,
COL.CENTRO
TEL. [phone]
671766 SERVICIOS Y HERRAMIENTAS DEL
SUR
AV. 22 DE OCTUBRE No. 303 COL. MIGUEL
HIDALGO
TEL. [phone]
Morelia 671830 MOTOSIERRAS Y SERVICIOS DE
MORELIA
MORELOS NORTE No. 821 COL. CENTRO C.P.
58000
TEL.: [phone]
Lázar o Cárd enas 670336 FERREMA QUINARIA INDUSTRIAL S.A.
DE C.V.
AV.LÁZARO CARDENAS # 241, COL. CENTRO
C.P. 60950, CD. LÁZARO CARDENAS, MICH.
TEL.: [phone] /
5-32-25-41
FAX: [phone]
Tacámbaro 670872 MATERIALES GARCIA Y BARRAGÁN
S.A. DE C,V.
IGNACIO ZARAGOZA # 187 B, COL. CENTRO,
C.P. 61650, TACAMBARO, MICH. TEL.: 01
(459) 5-96-01-90, FAX: [phone]
Zamora 671130 HERRAMIENTAS Y SERVICIOS
FORESTALES DE ZAMORA
AV. JUAREZ # 213 OTE. ENTRE 5 DE MAYO Y
AQUILES SERDAN, COL. CENTRO C.P.
59600, ZAMORA, MICH.
TEL.: [phone]
Zacapu 670805 LA NUEVA FERRETERÍA TRUPER
GENERAL PUEBLITA # 356,COL. CENTRO C.P.
58600, ZACAPU, MICH. TEL.: 01 (436)
3-63-33-51
Zitacuáro 671115 HERRAMIENTAS Y SERVICIOS
INDUSTRIALES DE ZITACUARO
NETZAHUALCOYOTL NORTE # 6, COL.
MOCTEZUMA
C.P. 61505, ZITACUARO, MICH.
TEL. [phone]
Uruapan 671664
AVENIDA FRANCISCO VILLA
NO. 31 COL. MORELOS, URUAPAN, MICH.
TEL.: [phone]
Morelos Alpuyeca 671877 FERREMATERIALES DURAMAX
km. 100 CARR. MEXICO-ACAPULCO,
COL. ALPUYECA, C.P. 62797
TEL.: [phone] TEL. / FAX: 777 678
7956
Oaxaca Oaxaca 671625 MARTINEZ BARRANCO, S.A. DE C.V.
AV. LA PAZ # 721 COL. CALIFORNIA,OAXACA
TEL.: [phone]
671712 MUNDO MAKITA
CALLE SÍMBOLOS PATRIOS No.101,
COL. ELISEO JIMÉNEZ RUÍZ, OAXACA, OAX
Puerto Escondido 671782 MI FERRE
CARR. COSTERA DEL PACIFICO No. 300,
COL. LOS MANGALES, PUERTO ESCONDIDO
TEL.: [phone]
Tuxtepec 671794AGROBOMBAS ROSARIOS S.A.
AV. INDEPENDENCIA No. 1323
COL. LA PIRAGUA C.P. 68300
TEL.: [phone]
Puebla Puebla 671420 DISTRIBUIDORA DE HERRAMIENTAS
MANUALES ZAVALETA, S.A. DE C.V.
RIVERA ATOYAC # 325, COL. SANTA CRUZ
BUENA VISTA, C.P. 72810, SAN ANDRÉS
CHOLULA, PUE.
TEL. Y FAX: [phone]
Tehuacán 671211 SERVITEC
AV. DE LA JUVENTUD # 1103 ESQ. 7
SUR,COL. NICÓLAS BRAVO C.P. 75790,
TEHUACAN, PUE.
TEL. Y FAX: [phone]
671822 TIENDA FIX TEHUACAN
AV. SEGUNDA DE MORELOS No. 303, COL.
CENTRO
TEL. [phone]
Querétaro Querétaro 670402 MOTORES Y HERRAMIENTAS
ELÉCTRICAS
AV. 6 # 1004-B ESQ. CALLE 19, COL. LOMAS
DE CASA BLANCA C.P. 76080, QUERETARO,
QRO.
TEL. Y FAX : [phone]
San Juan del Río 671265 FERRETERA PRADO HERRAMIENTAS
S.A. DE C.V.
AV. UNIVERSIDAD # 325-A, COL. GRANJAS
MANTHI
C.P. 76808, SAN JUAN DEL RIO, QRO.
TEL. Y FAX : [phone]
Quintana Roo Cancún 670046 CENTRO FERRETERO DE CANCUN
AV. COMACALCO # 12, COL.
SUPERMANZANA 59
C.P. 77515, CANCUN, Q. ROO.
TEL.: [phone]
Chetumal 671011
ÁLVARO OBREGÓN # 281-283
COL. CENTRO, CHETUMAL, QUINTANA ROO
TEL.: [phone]
671732 MULTISIERRAS TALICUMI
AVENIDA MIGUEL HIDALGO
NO.221
COL. VENUSTIANO CARRANZA
San Luis Potosí San Luis Potosí 671636 95/24 MÉXICO, S.A. DE C.V. SUC. SLP
AV. UNIVERSIDAD # 1850 COL. EL PASEO,
SAN LUIS POTOSÍ C.P. 78320
TEL. Y FAX: [phone]
Sinaloa Guasave 671642
JACARANDAS S/N COL. DEL BOSQUE,
GUASAVE, SIN.
TEL.: [phone]
Sonora Cd. Obregón 671045 FERRETERÍA LA ÚNICA
LÁZARO MERCADO # 1234 COL. MUNICIPIO
LIBRE
C.P. 85080 CD. OBREGÓN, SON.
TEL. Y FAX: [phone]
Tabasco Villahermosa 671610 GRUPO VAQUEIRO FERRETERO, S.A.
DE C.V.
PERIFÉRICO CARLOS PELLICER CÁMARA No.
2810
COL. MIGUEL HIDALGO, C.P. 86250
TEL. Y FAX: [phone] / 41 EXT.
106
671432 MERCADO DE LA SOLDADURA DEL
SURESTE, S.A. DE C.V.
BLVD.ADOLFO RUÍZ CORTÍNEZ 2001-B,
COL. ATASTA C.P. 86100
TEL.: [phone]
Tamaulipas Nuevo Laredo 671480 CONSTRURAMA GALVEZ
REVOLUCION # 1002, COL. BUENA VISTA C.P.
88120 NVO. LAREDO, TAM.
TEL. Y FAX: [phone]
Tampico 671755 FERRETERÍA ZANELLA
AV. TAMAULIPAS No. 713 COL.REVOLUCIÓN
VERDE
TEL.: [phone]
Tlaxcala Apizaco 671684 SERVICIO JUNIOR
CALLE 2 DE ABRIL PONIENTE No. 506, COL.
CENTRO
TEL. [phone]
Veracruz Córdoba 671435 METALURVE, S.A. DE C.V.
CALLE 18 # 2117, FRACC. LOMAS C.P. 94570
CÓRDOBA, VER.TEL.: [phone]
Martínez de 671635 LA CASA DISTR. TRUPER
de la Torre SUC. AV. YUCATAN # 137-A, COL. YUCATAN
C.P. 93600 MARTINEZ DE LA TORRE, VER.
TEL.: [phone]
TEL.: [phone]
Estado Ciudad Centro de Servicio
Minatitlán 671478 TALLER ELÉCTRICO MATHEY
ATENAS # 71, COL.NUEVA MINA C.P. 96760
MINATITLAN, VER.
TEL. Y FAX : 01 (922)
2-23-56-01
Perote 671605
HUMBOLT SUR # 49, COL. CENTRO C.P.
91270
PEROTE, VER.
TEL.: [phone]
Poza Rica 670397 LA CASA DISTRIBUIDORA TRUPER
CALLE URUGUAY # 713, COL. 27 DE
SEPTIEMBRE
C.P. 93320, POZA RICA, VER.
TEL. Y FAX: [phone] /
8-26-84-84
Tantoyuca 671535 DISTRIBUIDORA SANVER S.A. DE C.V.
CARRETERA NAL. TUXPAN-TAMPICO km 64,
COL. LA MORITA C.P. 92101
TEL.: [phone]
Veracruz 671451 MAYORISTAS JAGUAR S.A. DE C.V.
AV. IGNACIO ALLENDE No. 2377 COL. CENTRO
TEL.: [phone]
671781 MATERIALES Y ACEROS TUCAN S.A.
DE C.V.
PROL. AV. MIGUEL ALEMÁN No. 3800
COL. ARTÍCULO 123
TEL. [phone]
671452 COMERCIALIZADORA FERRESMAR
CAYETANO RIVERA No. 47 COL. DEL
MAESTRO
TEL. [phone]
TEL. / FAX:[phone]
Estado Ciudad Sucursales Truper
Baja California Tijuana SUCURSAL TIJUANA
BLVD. INSURGENTES # 6101 ENTRE BLVD.
MANUEL CLOUTIER Y PASEO GUAYCURA,
FRACC. GUAYCURA,
DELEGACIÓN CERRO COLORADO, (ANTES LA
PRESA) C.P. 22216, TIJUANA, B.C.
CONMUTADOR:01(664) 9-69-51-00
Sinaloa Culiacán SUCURSAL CULIACAN
LIBRAMIENTO BENITO JUAREZ #. 5599 B4,
EJIDO DE LAS FLORES (LA COSTERITA), C.P.
80296, CULIACAN, SINALOA
CONMUTADOR:01(667) 7-60-57-47
Tabasco Villahermosa SUCURSAL VILLAHERMOSA
CALLE HELIO LOTES 1,2 Y 3 MZNA. #1,COL.
INDUSTRIAL, 2A ETAPA C.P. 86010,
VILLAHERMOSA, TAB.
CONMUTADOR : 01 (993) 3-53-72-44
Jalisco Guadalajara SUCURSAL GUADALAJARA
ADOLF BERNARD HORN Nº 6800
TLAJOMULCO DE ZUÑIGA, JALISCO, C.P.
45655
CONMUTADOR: 01 (33) 3606-5290
Yucatán Mérida SUCURSAL MERIDA
CALLE 33 N° 600 Y 602 LOCALIDAD
ITZINCAB Y MULSAY, MUNICIPIO UMAN,
YUCATÁN, C. P. 97390
CONMUTADOR: 01(999) 912-24-51
Nuevo León Monterrey SUCURSAL MONTERREY
AV. STIVA #275, PARQUE INDUSTRIAL STIVA
BARRAGAN, SAN NICÓLAS DE LOS
GARZAS,
C.P. 66420, MONTERREY, N.L.
TELS.: 01 (81) 8352 8791 Y 8790
Puebla Puebla SUCURSAL PUEBLA
AV. PERIFÉRICO 2-A, SAN LORENZO
ALMECATLA,
COL. CUAUTLALCINGO, PUEBLA,
PUEBLA, C.P. 72710
CONMUTADOR:01(222) 2-82-82-82
Coahuila Torreón SUCURSAL LAGUNA
CALLE METAL MECÁNICA #280, PARQUE
INDUSTRIAL ORIENTE, TORREÓN, COAHUILA,
C.P. 27278, CONMUTADOR: 01 (871) 209 68
23
Edo. De México Jilotepec SUCURSAL CENTRO FORÁNEO
AV. PARQUE INDUSTRIAL # 1-A, JILOTEPEC
C.P. 54240, EDO. DE MÉXICO
CONMUTADOR: 01(761) 7-82-91-01
EXT. 5728 Y 5102
Ciudad De México Ciudad De México SUCURSAL CENTRO
CALLE D # 31-A, COL. MODELO DE
ECHEGARAY
C.P. 53330, NAUCALPAN, EDO. DE MÉXICO
TEL.: [phone]
Chihuahua Chihuahua SUCURSAL CHIHUAHUA
AV. SILVESTRE TERRAZAS 128-11
PARQUE INDUSTRIAL BAFAR
CARRETERA MÉXICO CUAUHTEMOC
CHIHUAHUA, CHIH.
TEL.: [phone]
