Bissell BGTS-17 Guide

Make a copy of this card for future reference.
2013 © BISSELL BigGreen Commercial. All rights reserved.
New Equipment Warranty
Limited Warranty
The manufacturer gives you the following limited warranty for this product if it was originally
purchased for use, not resale, from BISSELL BigGreen Commercial or a BISSELL BigGreen
Commercial-Authorized Retail Dealer.
The manufacturer will repair or replace, free of charge, to the original purchaser, any part
which is found to be defective in material or workmanship within one (1) year of the date of
purchase; ve (5) years on the motor and gear box.
Drive belts, brushes, and other parts subject to normal wear are not covered by this limited
warranty. This limited warranty does not apply to any part subjected to accident, abuse,
or alteration, misuse, damage caused by re or act of God, the use of voltages other than
indicated on the serial number plate of this product or service of this product by other than a
trained service technician.
The manufacturer does not authorize any person or representative to assume or grant any
other warranty obligation with the sale of this product.
The manufacturer’s limited warranty is valid only if you retain proof of purchase from BISSELL
BigGreen Commercial or a BISSELL BigGreen Commercial-Authorized Retail Dealer for this
product. If you purchase this product from any other source, your purchase is“AS IS,” which
means the manufacturer grants you no warranty, and that you, not the manufacturer, assume
the entire risk of the quality and performance of this product, including the entire cost of any
necessary servicing or repairs of any defects.
The manufacturer’s liability for damages to you for any costs whatsoever arising out of this
statement of limited warranty shall be limited to the amount paid for this product at the
time of original purchase, and the manufacturer shall not be liable for any direct, indirect,
consequential or incidental damages arising out of the use or inability to use this product.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE WARRANTY PERIOD, AND NO WARRANTIES, WHETHER
EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD.
Some states do not allow limitations on the duration of implied warranties, so the above
limitation may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary
from state to state.
BISSELL BigGreen Commercial
100 Armstrong Road | Suite 101 | Plymouth, MA 02360
Phone: [phone] | Fax: [phone]
www.bissellcommercial.com
2013 © BISSELL BigGreen Commercial. All rights reserved.
Important Information and Safety Instructions
Register your Machine – Return your Warranty Registration Card!
Serial No:
FMT Floor Machine SERIES
2000 RPM
Fully Adjustable
Balanced Design
All Metal Chassis
Quiet Motor
Safe & Easy to Use
REGISTER
YOUR
MACHINE!
Safety, Operation and Maintenance
Manual with Parts List
Please read before use!
Dual-SPEED Floor Machine
1.5 HP | 175/300 RPM
Models:
BGTS-17
BGTS-19
BGTS-21

(2) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine
Dear Valued Customer,
Congratulations on the purchase of your BISSELL BigGreen Commercial FMT
Dual-Speed Floor Machine! The world of oor care is becoming more high-tech and
competitive and we strive to provide you with the most innovative products. Our Floor
Machine is yet another example of this, bringing a new dimension to oor care and
maintenance with its cutting-edge features, quality and value.
Please review this manual paying careful attention to the Safety Instructions section.
Keep in mind that any unnecessary damage, neglect or abuse of this machine will void
your warranty. You can be condent that simple maintenance will ensure that your Floor
Machine provides quality performance for many years to come.
If warranty questions arise, please consult your manual or contact your distributor.
Should you have any questions regarding maintenance, replacing parts or ordering parts,
please call an authorized distributor.
Before you begin using your Floor Machine, thoroughly review the Owner’s Manual.
Again, congratulations on the purchase of your BISSELL BigGreen Commercial FMT
Dual-Speed Floor Machine!
Questions or Comments?
BISSELL BigGreen Commercial
100 Armstrong Road | Suite 101 | Plymouth, MA 02360
Phone: [phone] | Fax: [phone]
www.bissellcommercial.com
Warranty Registration
Mail to:
BISSELL BigGreen Commercial
100 Armstrong Road | Suite 101 | Plymouth, MA 02360
See reverse side for warranty information.
Make a copy of this card for future reference.
2013 © BISSELL BigGreen Commercial. All rights reserved.
Please take a moment to register your machine. Fill out the
information below and mail back to BISSELL BigGreen Commercial
immediately.
The warranty starts on the purchase date by the original purchaser, subject to proof
of purchase. Please immediately register your machine by returning this Machine
Registration Card at the time of purchase. If proof of purchase cannot be identied,
the warranty start date is ninety (90) days after the inventory stocking date at the
distributor’s warehouse.
Machine Model Purchase Date
Motor Type Serial No.
Place of Purchase
Shipped To
Your Name Phone
E-mail Fax
Address Line 1
Address Line 2
City State Zip
Comments:
©2013 BISSELL BigGreen Commercial. All rights reserved. All word marks, logos,product
congurations and registered trademarks are owned and used under the authority of BISSELL
BigGreen Commercial.

BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (3)2013 © BISSELL BigGreen Commercial. All rights reserved.
Please ll out the following information:
Model No:
Serial No:
Distributor Name:
Distributor Phone No:
Date of Purchase:
FMT Dual-Speed FLOOR MACHINE SERIES
By BISSELL BigGreen Commercial
Table of Contents
New Equipment Warranty...................................................................................................4
1.0 Safety Instructions .......................................................................................................5
2.0 Grounding Instructions ................................................................................................6
3.0 Assembly Instructions..................................................................................................7

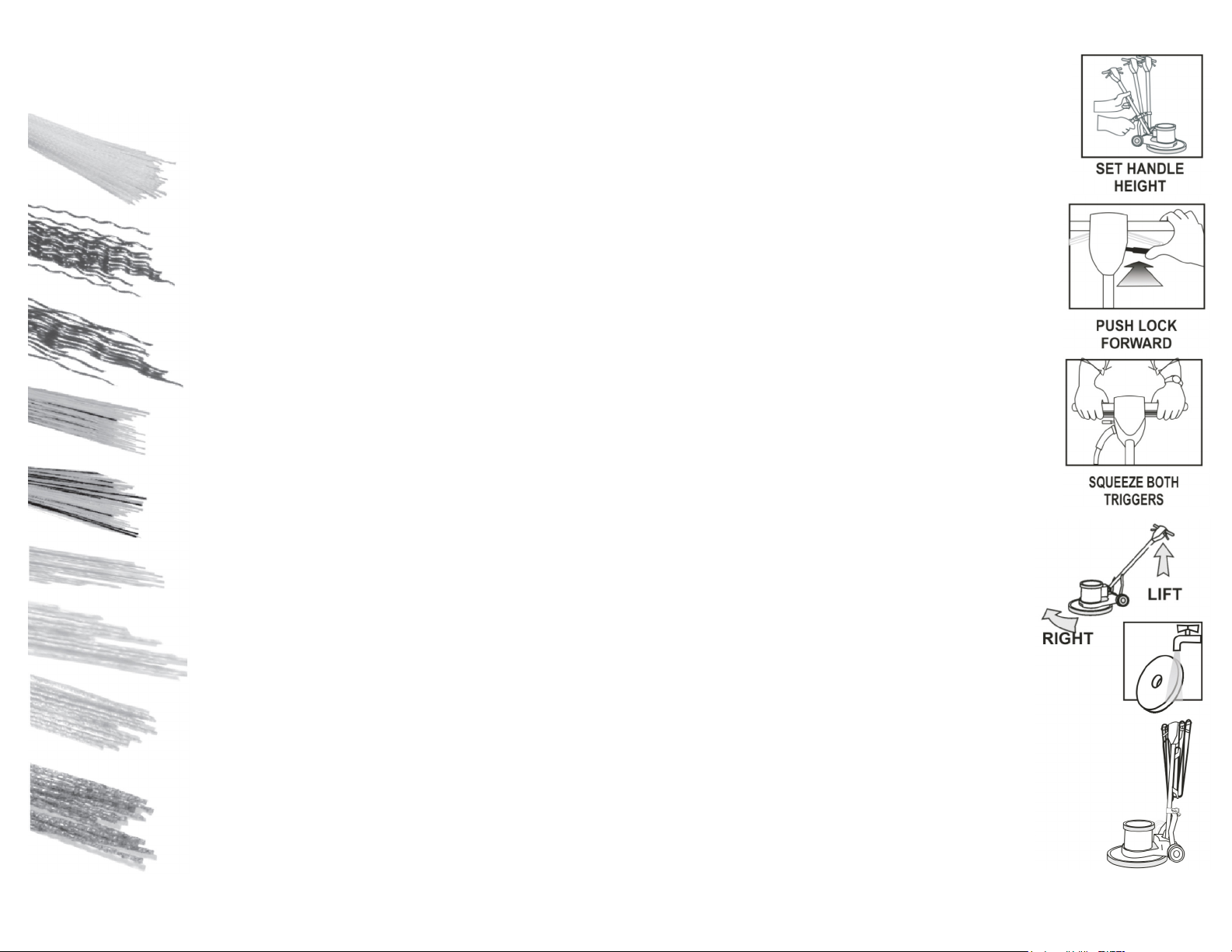

4.0 Operating Tips..............................................................................................................9
5.0 Trouble Shooting Guide.............................................................................................10

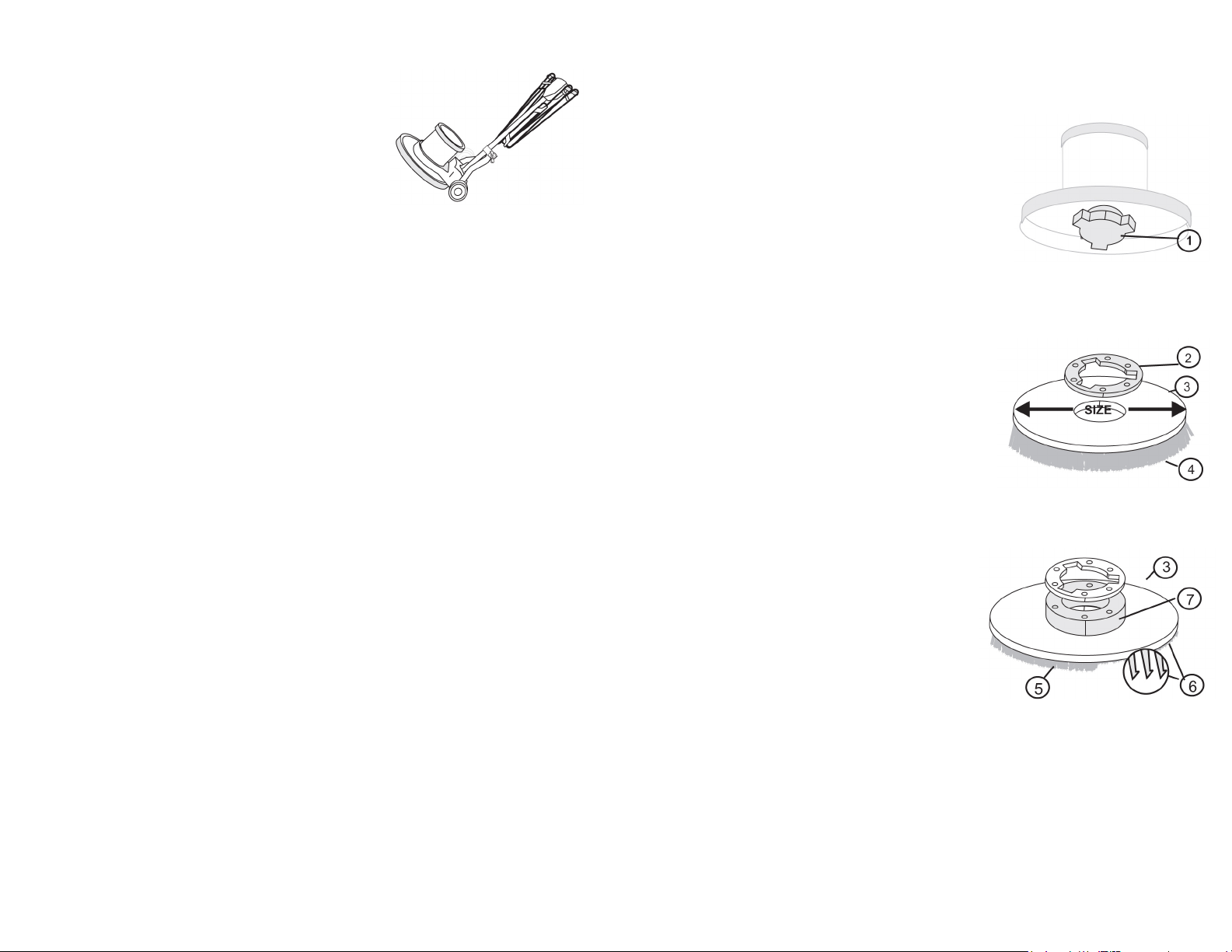

6.0 Brush Construction ....................................................................................................11
7.0 Machine Schematic Drawing.....................................................................................13
8.0 Machine Parts List .....................................................................................................14
BISSELL BigGreen Commercial
100 Armstrong Road | Suite 101 | Plymouth, MA 02360
Phone: [phone] | Fax: [phone]
www.bissellcommercial.com

(4) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (17)
New Equipment Warranty
5-year warranty on motor and chassis. 1-year warranty on service labor.
Limited Warranty
The manufacturer gives you the following limited warranty for this product if it was originally
purchased for use, not resale, from BISSELL BigGreen Commercial or a BISSELL BigGreen
Commercial-Authorized Retail Dealer.
The manufacturer will repair or replace, free of charge, to the original purchaser, any part which is
found to be defective in material or workmanship within one (1) year of the date of purchase; ve
(5) years on the motor and gear box.
Drive belts, brushes, and other parts subject to normal wear are not covered by this limited
warranty. This limited warranty does not apply to any part subjected to accident, abuse, or
alteration, misuse, damage caused by re or act of God, the use of voltages other than indicated
on the serial number plate of this product or service of this product by other than a trained service
technician.
The manufacturer does not authorize any person or representative to assume or grant any other
warranty obligation with the sale of this product.
The manufacturer’s limited warranty is valid only if you retain proof of purchase from BISSELL
BigGreen Commercial or a BISSELL BigGreen Commercial-Authorized Retail Dealer for this
product. If you purchase this product from any other source, your purchase is “AS IS,” which
means the manufacturer grants you no warranty, and that you, not the manufacturer, assume the
entire risk of the quality and performance of this product, including the entire cost of any necessary
servicing or repairs of any defects.
The manufacturer’s liability for damages to you for any costs whatsoever arising out of this
statement of limited warranty shall be limited to the amount paid for this product at the time of
original purchase, and the manufacturer shall not be liable for any direct, indirect, consequential or
incidental damages arising out of the use or inability to use this product.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE
LIMITED IN DURATION TO THE WARRANTY PERIOD, AND NO WARRANTIES,
WHETHER
EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD.
Some states do not allow limitations on the duration of implied warranties, so the above limitation
may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from
state to state.
©2013 BISSELL BigGreen Commercial. All rights reserved.
All word marks, logos,product congurations and
registered trademarks are owned and used under
the authority of BISSELL BigGreen Commercial.

(16) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (5)
1.0 Safety Instructions
READ THIS MANUAL BEFORE USING THE DUAL-SPEED FLOOR MACHINE.
KNOW THE PROPER OPERATION, CORRECT APPLICATIONS AND THE
LIMITATIONS OF THIS EQUIPMENT BEFORE USE.

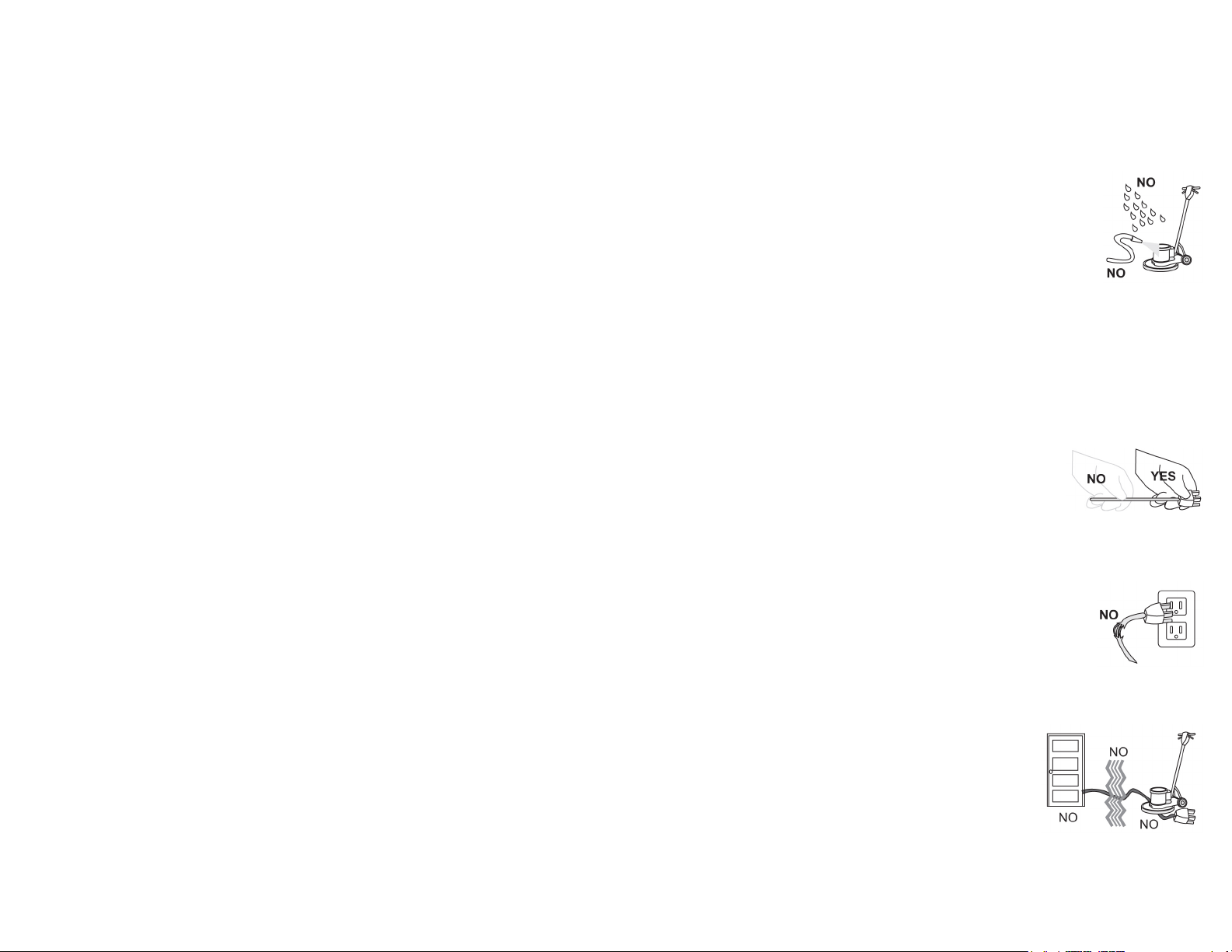

Reduce the Risk of Fire, Electric Shock or Injury:
• Thisoormachineisdesignedforindooruseonly.Donotuse
outdoors.Donotexposetorain.
• Donotwashthemotorwithowingwater.Ifthemotorgetswet,
seekauthorizedservice.
• Keeptheventsonthisair-cooledmotorfreefromdebris.Donot
operatewiththemotorcoveredorwithventsblocked.Donotuse
thismachineasaoorsander.
• Neveroperatethisoormachinenearammabledusts,liquids
orvapors.Neveruseammablesolventsasacleaningagent.
Enginesparksandoperatingheatcancausere.
• Neverhandleelectricalequipmentwithwethands.Neveroperate
thisoormachinewithbarefeet.
• Unplugtheoormachinewhennotinuseandwhenservicing
theequipment.Tounplug,grasptheplugnotthecord.
• Donotoperateaoormachinewithdamagedhandlecontrols,
cordorplug.Iftheequipmentisnotperformingproperly,seek
repairfromaqualiedservicesupplier.
• Thisoormachineisconstructedwithelectricalgroundingat
theplug.Operateonlywhenconnectedtoaproperlygrounded
outlet.Seesection1.2forgroundingdetails.
• Preventelectricalcordabuse.Donotcloseadooruponthecord,
driveequipmentoverit,orruntheoormachineoverit.Donot
exposethecordtohotsurfaces.Donotlift,pullorcarrythis
oormachinebythecord.
• Neveroperatetheoormachineoversharpobjectsthatcanbe
thrownoutandharmtheoperatoranddamagetheoor.Sweep
hardoorsbeforescrubbingorbufng.Vacuumclean
carpetsbeforeshampooingorbonnetcleaning.
• Trainyourstaffinproperuseofthisoormachine.
Notes:
WARNING – RISK OF EXPLOSION. When using this machine as a oor sander, sanding can produce
an explosive mixture of ne dust and air. Use any oor sanding machine only in a well ventilated area free
from any ames or sparks. WARNING OF POTENTIAL INJURY. THIS MACHINE HAS MOVING
PARTS – TO REDUCE RISK OF INJURY, UNPLUG BEFORE SERVICING.

(6) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (15)
8.0 Machine Parts List Continued
Item Description Part No. Qty.
62A Bumper 17” - Green M-232-17/G 1
62B Bumper 19” - Green M-232-19/G 1
62C Bumper 21” - Green M-232-21/G 1
63A Apron 17” A-169 1
63B Apron 19” A-171 1
63C Apron 21” A-172 1
64 Scrubber Plug B-50 1
65 Base Casting Screw B-31 4
66 Flag Wire Connector G48 3
67 Slotted Hex Head B-3 2
2.0 Grounding Instructions
DANGER: IMPROPER GROUNDING METHOD CAN RESULT IN A RISK OF
ELECTRIC SHOCK.
Electrical equipment must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electrical current and reduces the risk
of electric shock. The vacuum is equipped with a cord containing a grounding conductor
and grounding plug. The plug must be inserted into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
If repair or replacement of the cord or plug is necessary, DO NOT connect the grounded
wire to a at bed terminal. The green insulated wire, with or without yellow stripes, is the
grounding wire.
The BISSELL BigGreen Commercial Dual-Speed Floor Machine operates on a 10.8 amp
nominal 115V, 60 Hz, A.C. power circuit (motors may be custom wired at the factory
220V, 50 Hz international operation). The, amp, hertz and voltage ratings are listed on
the motor spec label found on each oor machine. Using voltages above or below those
indicated on the spec label will damage the motor. Always check your local voltage
requirements.
This oor machine is for use on a normal 120 volt circuit. It has a grounded plug that
ts the outlet illustrated in Figure A. If a properly grounded outlet is not available, a
temporary adapter, such as the adapter illustrated in Figure B and C, may be used to
connect the plug into a 2-pole outlet, as shown in Figure C.
The temporary adapter should be used only until a properly grounded outlet, Figure A,
can be installed by a qualied electrician. The green color rigid ear lug or grounding
means extending from the adapter must be connected to a permanent ground, such as
a properly grounded outlet box cover. Whenever the adapter is used, it must be held in
place by its grounding means and a metal screw, as shown in Figure C.
WARNING:
Improper connection of the equipment grounding conductor can result in a risk of electric
shock. Check with a qualied electrician or service person if you are in doubt as to
whether the outlet is properly grounded. DO NOT modify the plug provided with the
equipment. If it will not t into the outlet, have a proper outlet installed by a qualied
electrician.
The BISSELL BigGreen Commercial Dual-Speed Floor Machine is built with a 50 foot
(15 M) safety cord which plugs directly into an approved outlet. Use of extension cords
is NOT RECOMMENDED. NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electrical Code. This adaptor may not be used in Canada.

(14) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (7)
3.0 Assembly Instructions
3.1 Handle Installation
Thismachinehandle(1)hasbeencustomttoits
mountingyoke(2)atthefactoryandthentakenapartfor
shipping.Foreasyassembly,makesurethatthehandle
numberonthetag(seeright)matchedtheserialnumber
stampedonthechassis.
You will need 7/16” wrenches to complete the assembly:
1. Remove the handle and mounting hardware from the
carton. Bolts, nuts, washers and the locking lever
assembly are in the plastic bag attached to the handle.
2. Position the handle (1) over the mounting yoke
(2) with the power cord (3) facing away from the
motor. Push the tube down until the bolt holes are
lined up.
3. Insert the mounting bolts (4) into the bolt holes
from the back of the machine. Secure each bolt
with a locking nut (5). The locking nuts will face
the motor.
4. The handle mounting collar (6) is designed to slide
freely up and down the handle tube. This feature
allows the handle to be adjusted for the comfortable
operation of all users. Align the mounting collar (6)
and the two bent handle braces (7).
5. Remove the lever assembly parts from the plastic
bag.
• Place the thick spacer with a rectangular hole (9)
onto the locking lever shaft (8). The spacer must
t onto the rectangular neck of the lever.
• Insert the shaft through the mounting hole in the
right handle brace, the mounting collar and the left
handle brace.
• Place the spacer (10) on the shaft.
• Place the split washer (11) on the shaft.
• Adjust the wing nut for tightness. When correctly
installed, the collar slides easily when the cam-
engineered locking lever is “up,” but is rmly
xed when the lever is “down.”
8.0 Machine Parts List
Item Description Part No. Qty.
1 Switch Box Back A-104 1
2 Handle Tube Screw B-23 2
3 Switch Box Closing Screw B-21 4
4 Strain Relief Clip M-213 1
5 Ground Wire Screw B-68 2
6 Rubber Spacer - Green M-218-G 2
7 Hand Grip M-218 2
8 Handle Tube Insert M-247 1
9 Handle Tube Assembly M-206 1
10 Cable Hook Screw B-2 2
11 Cable Hook A-164 1
12 Sliding Collar A-111 1
13 Cam Washer B-37 1
14 Cam Lock Wing Nut B-25 1
15 Cam Split Washer B-39 1
16 Bent Brace M-216 2
17 Yoke Bolt B-18A 2
18 Yoke Nut B-19 2
19 Handle Tube Cable G-16 1
20 Black Rubber Cable Connector M-249 1
21 Cable Grommet B-63 1
22 Rectangular Hole Cam Washer B-67 1
23 A Cam Assembly C-100 1
23B Complete Cam Assembly Kit (Includes 1 each of CCA 1
Drawing Items #13, 14, 15, 22, 23)
24 50-Foot Cable, 14/3-Gauge - Yellow G-14-15-Y 1
25 Switch Mounting Plate G-30-B 1
26 Switch Plate Screw B-1 2
27 Int. Tooth Lock Washer (for Switch) B-35 1
28 Insulated Flag Wire Connector G-48 2
29 On-Off Switch and Plate Assembly G-30-AB 1
30 Lock Washer B-33 1
31 Trigger Return Spring G-30-CT057 4
32 Label for Switch Box Call for # 1
33 Switch Box Front A-103 1
34 Wire Connector G-47 1
35 Trigger A-105 2
36 16” Crossbar M-211-A 1
37 Safety Interlock Assembly SIA-1 1
38 Trigger Pin B-70 2
39 Crossbar Screw B-22 2
40 Acorn Nut for Yoke Pin B-8 2
41 Rubber Yoke Spacer B-5 2
42 Yoke Pin B-7 1
43 Yoke A-1001 1
44 Drip Cap Mounting Screw B-151 3
45 66 Frame Drip Cap Cover M-242 1
46 66 Frame Drip Cap Cover Bumper - Green M-239-G 1
47 Two-Speed Motor Screen SCR-02 1
48 Two-Speed Motor Screen Bumper - Green M-238-G 1
49 Cork Drip Cap Gasket M-248 1
50 Two-Speed Motor, 66 Frame, 1.5 HP w/ Gearbox 115V MOTOR/GB-TS 1
51 Gear Box, 11:1, Triple Planetary GB96008 1
52 Two-Speed Hi-Lo Switch Box SCAP-2 1
53 Two-Speed Hi-Lo Switch HILO-TS 1
54 Hub Caps V0038 2
55 Spring Washer B-51 4
56 6” Wheels M-250 2
57 ½” Flat Washer B-29 2
58 Spring B-30 2
59 Axel M-240 1
60 Main Machine Frame A-166 1
61 Thumb Screw B-96 3

(8) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (13)
3.2 Install / Change the Apron
If you’ve purchased more than one apron, you can easily
change aprons for different cleaning jobs.
• Lock the handle in the “up: position and tip the oor
machine back.
• If you’re changing the apron, give the brush a quick ip
counterclockwise to unlock and remove the brush.
• Remove the 3 knurled thumb nuts that hold the apron to
the machine chassis.
• Remove the existing apron.
• Align the new apron.
• Re-install the three bolts and tighten.
• Install a brush that is 2” smaller than the apron.
3.3 Attach the Power Cord
The triple-wire grounded power cord has been factory-
installed into the handle tube. A exible rubber cable
connector (11) is used to secure the plug-in connections.
The oor machine ships with this connector mounted on the
cord coming out of the handle (10). Stretch the connector
and slip the male connector (9) (coming out of the motor
housing) through the connector hole and then into the
female connector.
Now, plug the end of the 50 foot cord into a grounded power
outlet. Squeeze the triggers on the handle and check for
power to the motor.
3.4 Brush or Pad Driver Installation
A brush or pad driver mounts onto your oor machine with
a “B” style Universal clutch plate.
Unplug the oor machine. Lock the machine handle in
the “up” position and tip the oor machine back onto the
handle.
Slide the brush or pad driver clutch plate (11) over the drive
plug (12).
Quickly spin the brush counter-clockwise to lock the brush
onto the drive plug.
Now, lower the machine back onto the brush. You’re ready
to go to work.
7.0 Machine Schematic Drawing

(12) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (9)
4.0 Operating Tips
• For indoor use only. Sweep abrasive soils before
scrubbing.
• While the brush or pad driver is spinning, keep the oor
machine moving to avoid “donut” burns on the oor.
ToStartOperation:
• Unlock the handle by raising the locking lever.
• Lower the handle to a comfortable position, typically
waist height.
• Relock the handle by pushing the lever down. NEVER
OPERATE THE MACHINE WITH THE HANDLE
UNLOCKED.
• This oor machine is a high torque motor. Hold the
machine rmly with both hands when starting up.
• Push the red safety interlock switch forward to unlock the
dual triggers.
• Squeeze the dual triggers to release power to the motor.
Once power is on, either trigger will keep power to the
motor.
• To stop the oor machine release both triggers.
• The spinning brush helps move the oor machine. (Lift the
handle slightly to work to the right. Push the handle down
slightly to work to the left.)
4.1 To Store your Machine
• Lock the handle in the “up” position. Tilt the machine
back and remove the pad driver or brush.
• Wind the cord around the handles and the bottom cord
hook.
• Wash brushes or pads and hang to dry. Never store
machine standing on the brush.
• Inspect and maintain equipment on a regular schedule for
best results.
• Check and clean pads after each operation. Remove soil
and chemical buildup. Replace worn or damaged pads.
• Check the triggers and switches for proper operation.
• Repair or replace damaged skirts and dumpers.
• Use air pressure or vacuum to remove dust and debris
from the motor vents.
• Report problems and repair promptly.
6.2 Scrubbing Brush Filaments
Scrubbing brushes are available with a range of bristle types - from the softest for
high-gloss oors, to the most aggressive for heavy soils. Match your brush to the
oor as you match a detergent with the soils.
Nylon isusedforgeneralscrubbing.Becausenylonsoftenswhen
wet,itisgreatforgentlescrubbing,moppingandpolishingof
decorativeoors.Nylonwillnotscratchtile,terrazzoorcoated
surfaces.Nylonbrushesaredurableandlonglasting.
Polypropyleneisacommonchoiceforgeneralpurpose
scrubbingandworkswellonbothconcreteandoncoatedoors.
Polypropylenebrushestypicallycostlessthannylon,butdonot
lastaslong.
Non-scuff poly isanerdiameter(0.015-0.018”)lamentused
forlighterdutyscrubbingconditionsandonwaxedornished
oors.
Bassineisasoft,naturalber.Theendofthebristlesplitsor
“ags”tobuildapolishingsurface.
Union mixisamixtureofbassineandtampico(anothernatural
ber).Themixtureisstifferthanbassinealoneandisusedby
moretraditionalcleanersforscrubbing.Itisoftenreplacedby
poly.
Soft abrasive bristleisa0.018”nylonlamentextrudedwitha
500gradegrit.Itisusedforgentlescrubbingandisasaggressive
asawhitescrubpad.
Daily abrasive bristleisa0.035”nylonlamentwith180grade
grit.Itisusedfordailyscrubbingofresilienttileandnished
oorsandisasaggressiveasaredscrubpad.
Stripper abrasive bristleisa0.022”nylonlamentwith120
gradegrit.Itisusedforaggressivescrubbingandlightstripping
ofresilientoors,terrazzoandconcrete.Itisasaggressiveasa
bluescrubpad.
Heavy-duty stripper abrasive bristle isa0.050”nylonlament
with80gradegrit.Itisusedforveryaggressivescrubbingand
strippingofconcrete,brickandquarryle.Itisasaggressiveasa
blackscrub/strippad.

(10) BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine BISSELL BigGreen Commercial FMT Dual-Speed Floor Machine (11)
5.0 Troubleshooting Guide
Neveroperatethisoormachinewhentheequipmentisnotperformingasexpected
orwhenanypartisvisiblydamaged.Thecauseandsolutionforsomebasicproblems
aredescribedbelow.Whenrepairisneeded,taketheequipmenttoanauthorizedrepair
servicecenter.
5.1 The Floor Machine will not Run
• Circuit breakers are tripped in the building. Check and reset.
• Equipment is unplugged. Check plug, wall and at machine base. Plug in.
• Power cord failure. Test with a working power cord. Lock the handle up and tip the
motor back. Unplug the cord at the motor and plug the motor into your working
power cord.
• IMPORTANT! THIS IS JUST FOR TESTING. When you do this, you have
removed the safety handle controls from the circuit and you are sending power
directly to the motor. If the motor now spins, the problem is in the cord of the
handle assembly. Seek authorized repair services.
• If the motor still does not spin, the problem is either in the male connection at the
motor base or in the motor. Seek authorized repair service.
• Motor sparks or smokes. Seek authorized repair service.
5.2 Electrical Shock to Operator
• Equipment wiring failure or electrical short in the machine. Seek authorized service.
• Poor grounding or no grounding. Test the outlet with a ground fault interrupter.
Retaincertiedelectriciantoinspectandrepairgrounding.NEVERclipoffthe
ground plug on your cord.
• Repeated circuit breaking. High amp draw and circuit breaking can be an electrical
or mechanical problem. Seek authorized repair service.
5.3 High Vibration
• Pads are not centered on the pad driver. Tip machine back and re-center the pad.
• Uneven wear or warp of pads, pad drivers or brushes. Replace.
• Machine chassis is damaged by dropping. Replace.
4.2 Transport
Totransportthisoormachinefromthejanitor’scloset
totheworkarea:
• Lock the handle in the “up” position. Wid the cord
around the handles and the bottom cord hook.
• Tip the machine back onto the transport wheels. Push
or pull the machine by the handle, not by the cord or
any other part of the machine. Travel carefully.
6.0 Brush Construction
Yournewoormachineprovidesreliable,efcient,
safepowertoyourscrubbingbrush.Togetthebest
results,youneedtouseabrushofthebestdesignand
construction.
Youroormachineisbuiltwitha“B”styledrive
plug(1).Theheightandwidthoftheearsontheplug
willmatcha“B”styleor“Universal”clutchplate(2)
mountedonthebrushblock.
Thebrushblock(3)isconstructedofmoldedplastic
orthisplywood.Useabrushwithablockdiameter2”
lessthanyourmachineapronsize.
Thebristlematerial(4)thatactuallydoesthe
scrubbingistypically1-1/2”to2”long.Holesare
drilledintheblockandbundlesofbristlesarefolded
inhalf,forcedintotheholeandstapledinplace
(staple-set).
Whenthebristlesweardowntolessthan1/2”long,
theyhavelittleexibilityandit’stimetoreplace.
Bristlematerialsaredescribedonpage11.
6.1 Pad Driver Construction
If you scrub or polish with a non-woven pad, use a
pad driver to connect the pad to the machine.
The brush block (3) is constructed of molded plastic,
t with shorter, stiffer, pad-holding bristles (5) or
“velcro-like” pad-holding hooks (6) and use a riser
(7) to create extra clearance between the block and
the machine apron. With this construction, use a pad
driver with block diameter 1” less than your machine
apron size.
MachineApronSize   17” 19” 21”
PadDriver-with3/4”Riser  16” 18” 19”
Brush-withNORISER  15” 17” 18”
