Trusted Clean TPL-BK-13-TC Owner's manual

LOW SPEED AND DUAL SPEED
FLOOR MACHINE
OWNER’S/OPERATOR’S MANUAL
FOR MODELS:
TPL-BK-13-TC
TPL-SS-15-TC
TPL-SS-17-TC
TPL-BPC-17-ST-PD-CF
TPL-SS-20HD-TC
TPL-SS-17VS-TC
TPL-SS-20VS-TC
WWW.CLEANFREAK.COM
888-522-5508
REVISED 9-16-16

UNPACKING YOUR NEW LOW SPEED OR
DUAL SPEED FLOOR MACHINE:
When your package is delivered, check each of the 3
cartons carefully for signs of rough handling. If the
LOW SPEED OR DUAL SPEED FLOOR MACHINE is
damaged, notify the carrier immediately and request an
inspection. Be sure to keep the cartons, packing inserts,
packing lists and carrier’s receipt until the inspector has
veried your claim.
CLEANFREAK.COM’s liability ceases when the carrier
picks up the shipment. However, our customer service
sta will be happy to furnish any information needed in
connection with the claim and will attempt to expedite a
resolution.
PLEASE READ BEFORE
OPERATING YOUR NEW LOW SPEED OR
DUAL SPEED FLOOR MACHINE:
Read the manual carefully and completely before at-
tempting to operate the unit. is manual has important
information for the use and safe operation of the ma-
chine. Keep this manual handy at all times.
is equipment has been engineered and manufactured
to provide excellent performance and service. To ensure
that your equipment will continue to perform as intend-
ed:
• Maintain and inspect equipment regularly.
• Use only original CLEANFREAK.COM parts when
servicing.
• Operate equipment with care.
If additional information is needed, please contact
CLEANFREAK.COM at: 888-722-5508
All information and specications printed in the manual
are current at the time of printing; however, because of
CLEANFREAK.COM’s policy of continual product im-
provement, we reserve the right to make changes at any
time without notice.
FAILURE TO COMPLY WITH THE FOL-
LOWING WARNINGS AND INSTRUC-
TIONS WILL VOID THE WARRANTY.
WARNING!
• Do not operate the machine unless trained and au-
thorized.
• Do not leave the machine unattended when plugged
in. Unplug from the outlet when not in use, before
servicing, and when changing the brushes or pads.
• Use indoors only.
• Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
• Do not bypass or defeat the safety “lock-out lever.”
• e machine was designed for use as per instruc-
tions and recommendations written in this manual.
Any deviation from its proper use or purpose and
the consequential damage that may occur is the sole
responsibility of the end user.
• Do not use with damaged cord or plug. If the ma-
chine is not working as it should, or it has been
dropped, damaged, le outdoors or dropped into
water, take it to an authorized service center.
• Do not pull or carry by cord, use cord as handle,
close a door on the cord or pull cord around sharp
edges or corners. Do not run machine over cord.
Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Make sure the machine is plugged into an electrical
outlet with the same voltage and frequency rating
as shown on the nameplate of the machine. Do not
attempt to plug a 115- volt machine into a 230- volt
outlet.
• Do not immerse or use this machine in standing
water. Such use can cause electric shock.
• Keep the electrical supply cord from contacting the
rotating brush or drive block.
• Do not expose machine to freezing temperatures.
• To avoid electric shock, do not expose the unit to
rain. Store indoors only.
• Connect to a properly grounded outlet only. See
“Grounding Instructions.”
• Turn o all controls before unplugging.
• When using an extension cord, use a 3 conductor-
grounding cord, 12 gauge wire or heavier. Do not use
more than 25’ of extension cord.
• Do not put any object into openings.
2

• Do not use with any opening blocked. Keep free of
dust, lint, hair and anything that may reduce air ow.
• Do not operate machine in ammable or explosive
areas.
• All servicing of CLEANFREAK.COM equipment
should be performed by an CLEANFREAK.COM
authorized service center.
• Keep hair, loose clothing, ngers and all parts of
body away from openings and moving parts.
• Use extra care when cleaning near stairs.
• When servicing machine, use manufacturer’s sup-
plied or approved replacement parts.
• Do not wrap the cord too tightly when storing.
• Work only in well lit areas.
• is equipment is heavy. Use proper liing tech-
niques when liing heavy equipment.
GROUNDING INSTRUCTIONS:
is piece of equipment must be grounded. Should an
electrical malfunction occur, grounding provides a path
of least resistance for electrical current- reducing the risk
of electric shock. is piece of equipment is furnished
with a cord that has a grounding conductor and ground-
ing plug. e grounded plug must only be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordi-
nances.
WARNING:
Connecting the equipment to an improperly grounded
outlet can result in an increased risk of electric shock. A
qualified electrician should be consulted if you are un-
sure that the outlet is properly grounded. Do not modify
the plug provided with the equipment. If it will not fit
the outlet, have a proper outlet installed by a qualified
electrician.
is appliance is designed for use on a 120-volt circuit.
e grounding plug provided looks like the plug illus-
trated in Figure 1. Replace the plug if the grounding pin
is damaged or broken.
e Green (or Green/Yellow) wire in the cord is the
grounding wire. When replacing a plug, this wire must
be attached to the grounding pin only.
DO NOT use extension cords.
PREPARING THE MACHINE FOR
OPERATION
Your oor machine will operate in a wide variety of hard
oors and carpet cleaning applications. Consult with
your local dealer or CLEANFREAK.COM Customer
Service to select the correct accessories for the job you
are going to perform.
BRUSH, PAD DRIVER
INSTALLATION

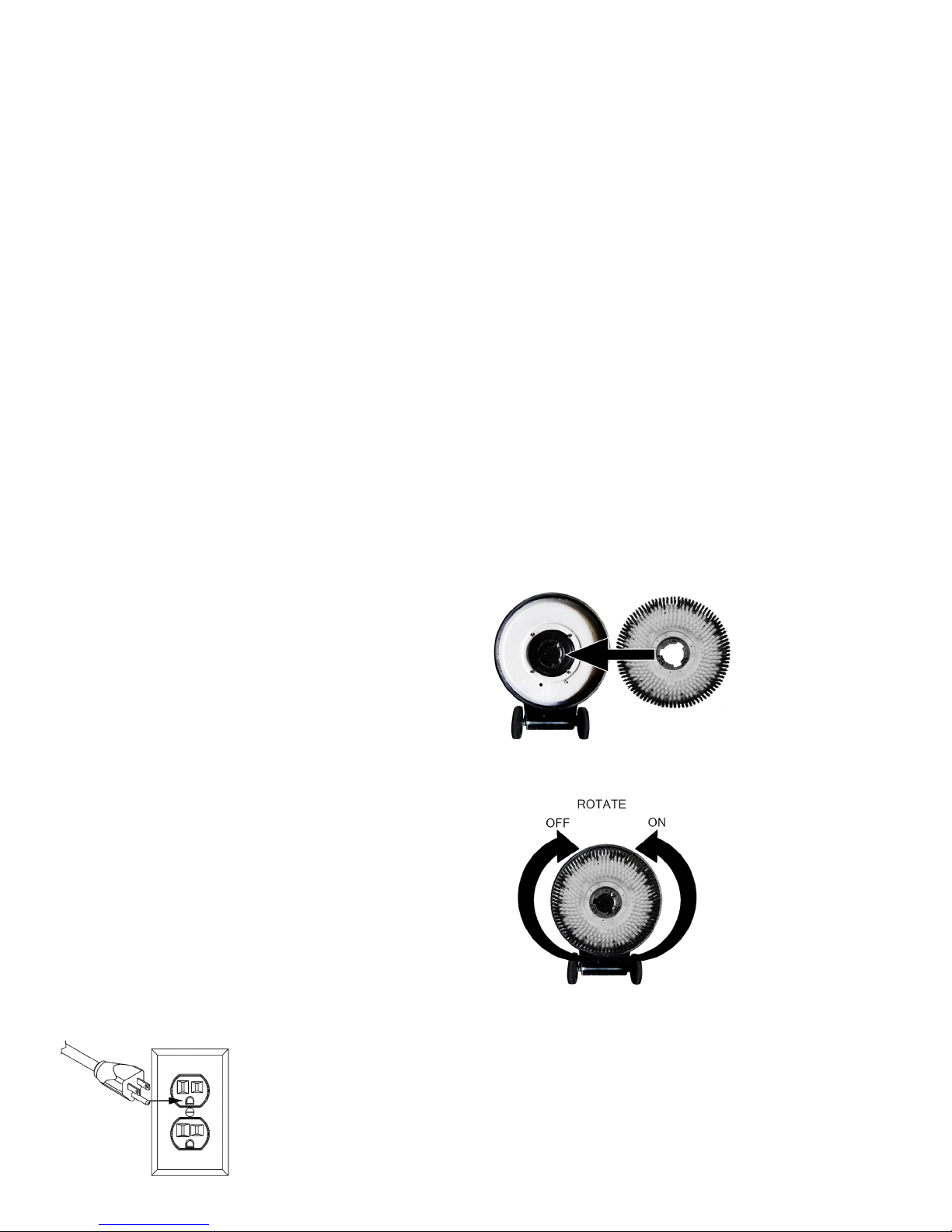

Lock the handle in the upright position and tip the ma-
chine back so it rests on the handle and wheels. Fit the
three slots of the clutch plate in the back of the brush
or pad driver over the three lugs of the drive plate (Fig.
1). Push it rmly into position and turn it counterclock-
wise until it locks in place (Fig. 2).
Fig. 1
Fig. 2
TO REMOVE PAD DRIVER:
Tip the machine back so it rests on the
handle and wheels. Turn the brush or pad driver
clockwise until it disengages and lis o.
Do not store the machine with the brush or pad drivers
installed.
3
Figure 1

PAD INSTALLATION
TO INSTALL PAD: Tilt the machine back on wheels
until machine is resting on handle. Center the pad on the
pad holder and press the pad onto the pad holder.
TO REMOVE PAD: Remove the pad from the pad hold-
er by pulling it away from the pad holder with steady
force.
MACHINE OPERATION:
is equipment is equipped with a safety “LOCK OUT”
lever. Refer to Diagram 1 for steps 4, 5, and 6.
1. Install the pad driver and pad or attachment.
2. Plug in machine.
3. Adjust the handle to the desired operating position.
4. Place both hands on the handle grips with your n-
gers around the ON/OFF lever (Refer to B on Dia-
gram 1) Which extends from one side to the other,
underneath the handle grips.
5. e safety “LOCK OUT” lever (Refer to A on Dia-
gram 1) is located underneath the right side handle
grip and switch lever. To unlock the “LOCK OUT”
lever, use your right hand fore nger to press the
lever toward the back of the switch box.
6. With “LOCK OUT” lever in the unlocked position,
pull up on either side of the ON/OFF lever (Refer to
B on Diagram 1) to power the motor. Pull up on only
one side of the ON/OFF lever.
TO MANEUVER YOUR FLOOR MACHINE
1. Raise the handle slightly and the machine will go to
the right. e higher you raise it, the faster it will go.
2. Lower the handle and the machine will go le. e
more you lower it, the faster it will go.
3. Practice on a smooth surface to gain experience in
operating the unit before moving on to other surfac-
es.

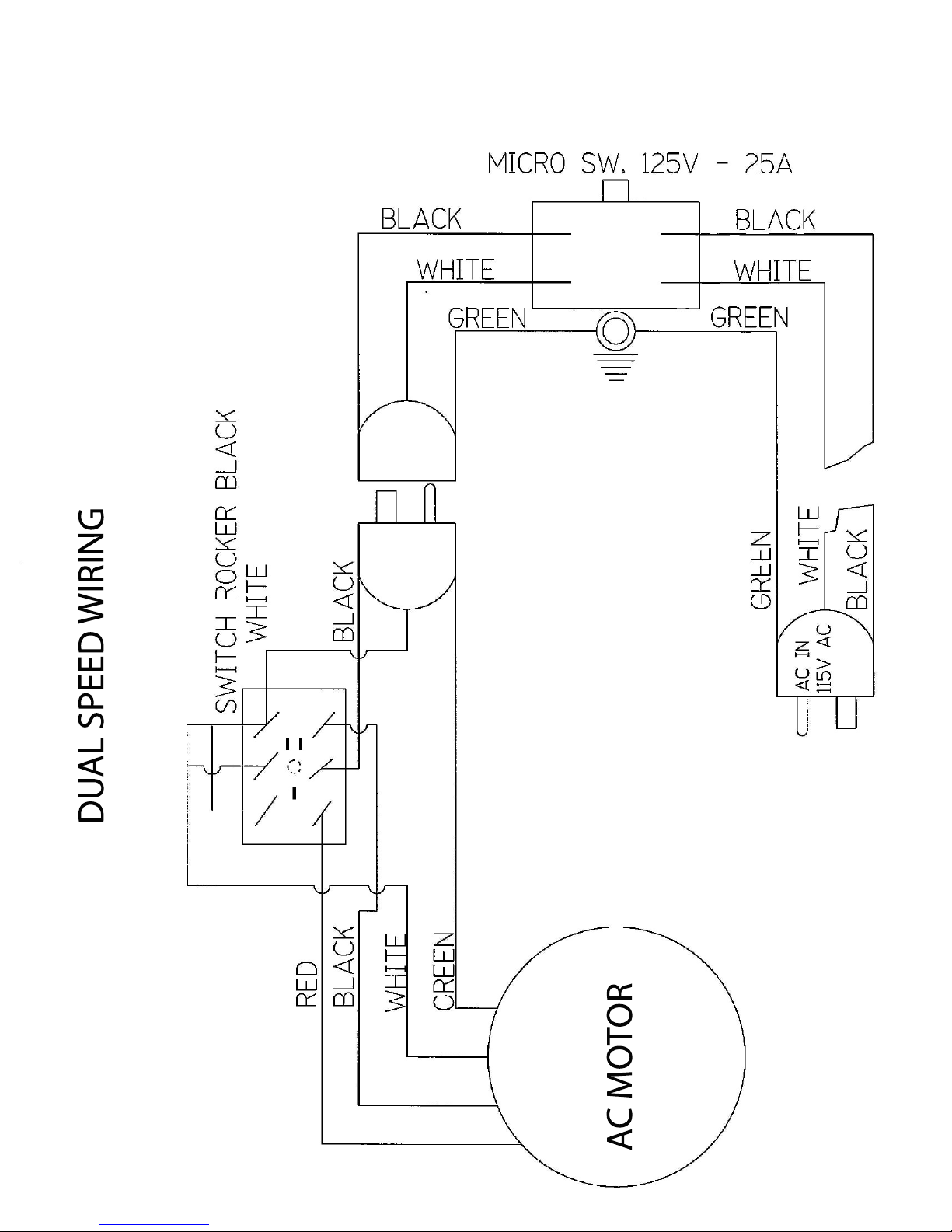

DUAL SPEED FUNCTION FOR 17DS3-BK &
20DS3-BK:
Use the black switch located directly behind the motor
to switch between low speed (180RPM) and high speed
(320RPM). Do not change speeds while machine is run-
ning. Always wait until motor has stopped completely
before changing speeds.
Storage:
Wipe with a clean damp cloth aer every use.
Store in a clean dry place.
CORD STORAGE:
• Unplug the cord- Clean and inspect for damage.
• Wrap the cord around the le side handle grip.
• Do not wrap too tightly.
SERVICING:
In the event that your LOW SPEED OR DUAL SPEED
FLOOR MACHINE requires service, please contact
CLEANFREAK.COM: 888-722-5508
No user serviceable components are employed in this
equipment. Do not attempt repairs yourself. CLEAN-
FREAK.COM will assist you in locating an indepedent
service contractor.
NOTE:

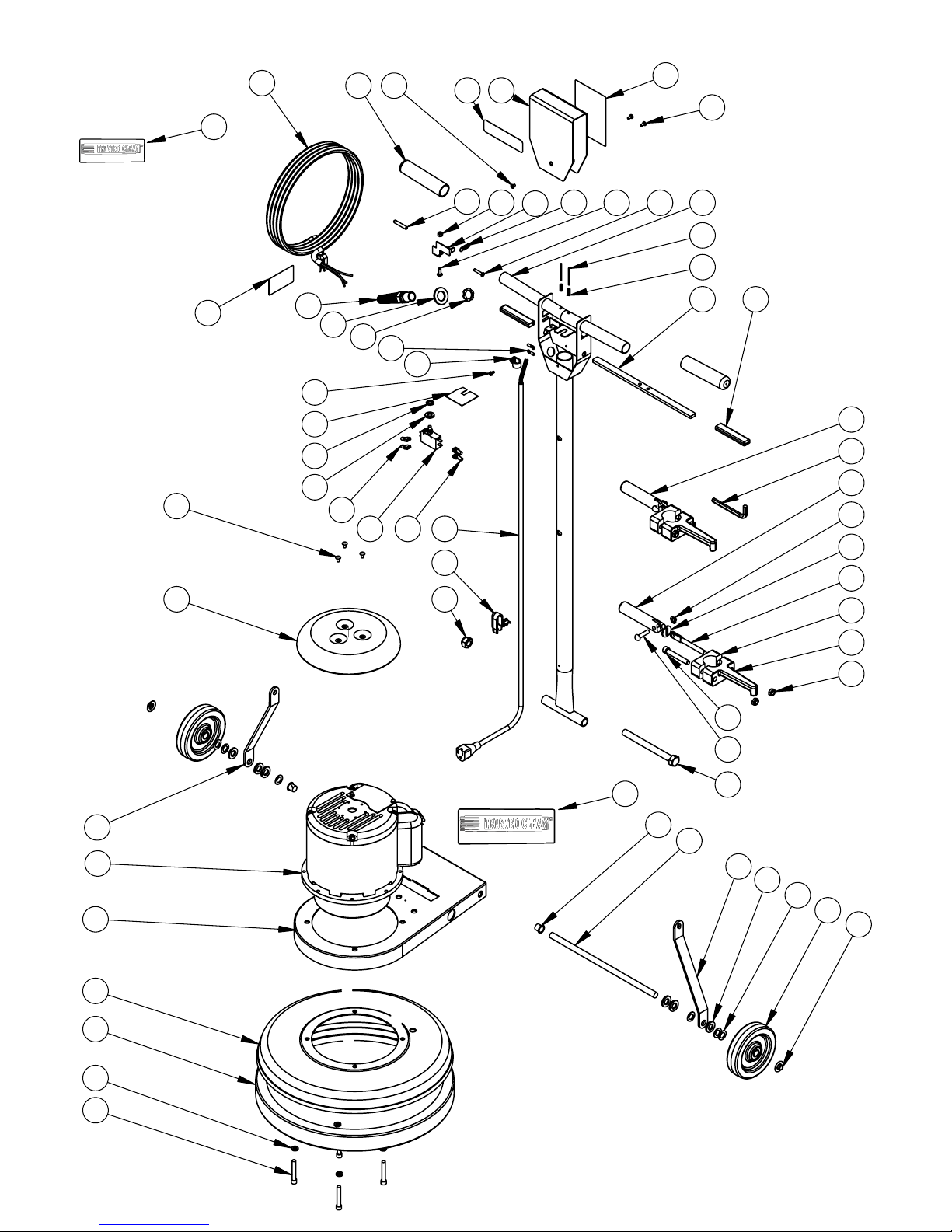

BREAKDOWNS FOR THE MOST COMMON
LOW SPEED OR DUAL SPEED FLOOR MACHINE
VERSIONS HAVE BEEN INCLUDED.
IF YOURS IS NOT LISTED, CONTACT CLEAN-
FREAK.COM FOR ASSISTANCE.
4

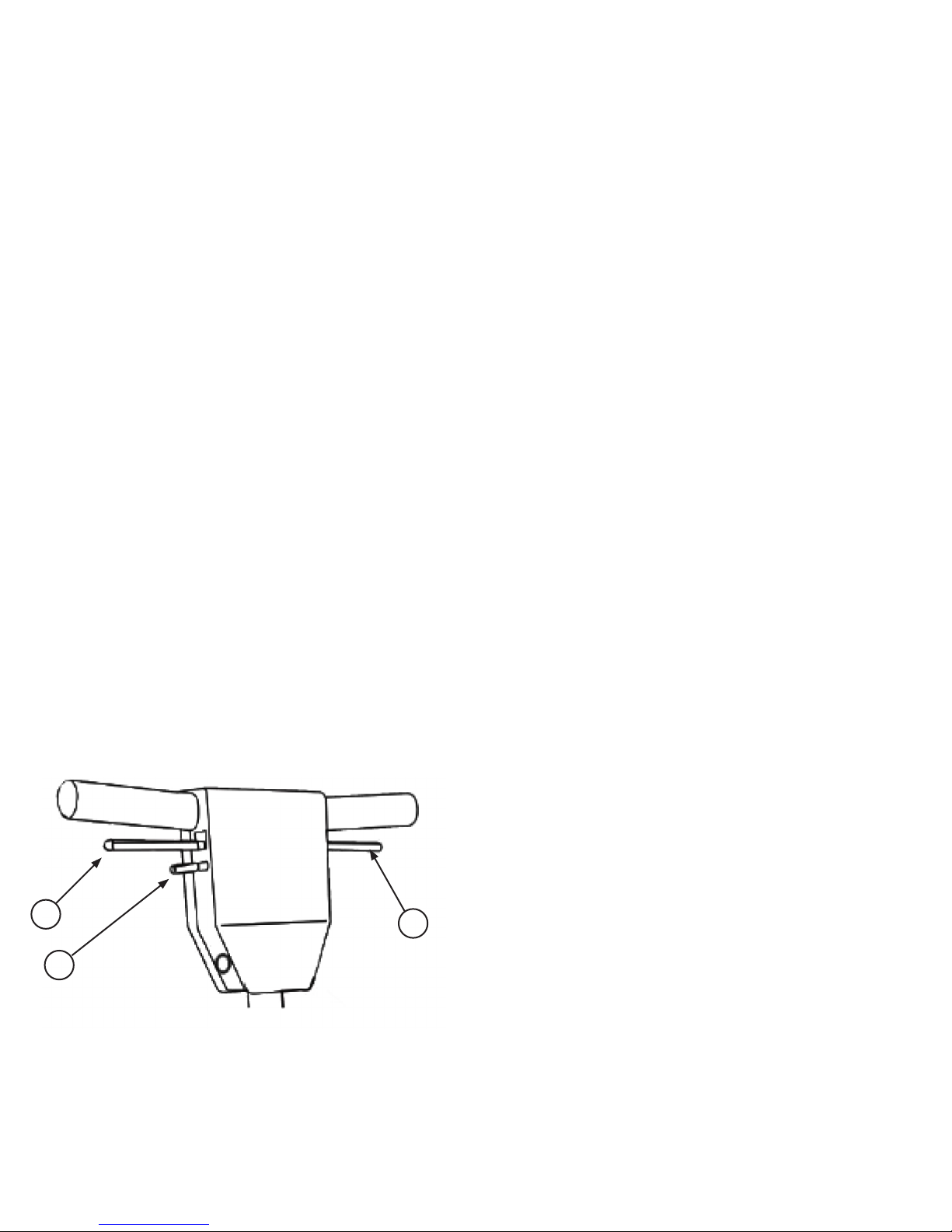

Diagram 1
B
B
A

5
1
9
2
68
35 6
7
8
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34 35
36
37 38
39
40
41
42
44
45
50
52
53
54
555657
58
59
60
61
62
63
64
65
66
67
46
69
70
LOW SPEED
MODELS:
TPL-BK-13-TC
TPL-SS-15-TC
TPL-SS-17-TC
TPL-BPC-17-ST-PD-CF
TPL-SS-20HD-TC

6
ITEM
NO.
PART NUMBER QTY.
ITEM
NO.
PART NUMBER QTY.
1
B11487-BLUE Power Cord, 14-3, 50
FT, SJTW
1
34
D11482 Handle Brace, Right,
Black
1
2K11498 Grip 235 C00240 Washer, Shoulder, Nylon 6
3C11528 Screw, 10-32 X .25 in 136 C11559 Washer, .515 X .875 X .032 6
5H12066 1.5HP Label 137 G11943 Wheel, 5 in Saturn 2
6D11496B Switch Box Cover, Black 138 C02305 Cap Nut, .5in Push-on 2
7
H11493 Label, Safety, Floor
Machine
139
C11501 Socket Cap Screw, .31 -
18
4
8C11529 Screw, 10-32 X .375 in 240 C00251 Lockwasher, .31, Split 4
9K11519 Lever Grip, Lockout, Black 141
E11476-BLUE Bumper, 13 in Floor
Machine
1
10 C00278 Locknut, 10-32, Nylon, SS 142 D11484B Brush Cover, 13 in, Black 1
11 D11494 Lockout Bracket 144 D11483C Chrome Motor Frame 1
12 D11524 Spring, Lockout 145
G11468 Motor W-Gearbox, 1.5 HP
115v
1
13
C90007 Screw, 10-32 X .625
Phillips, Truss Head, SS
146 D11481 Handle Brace, Left, Black 1
14 C11491 Screw, 10-32 X 1 in, SS 150 D11490B Drip Cover, Black 1
15
D11479-1 Handle, Chrome,
Floormachine
152 C11916 Screw, 10-32 X .375 Phillips 3
16 C00306 Roll Pin, .125 X 1.75 253 C13100 Nut, M14-2.0 Nylon Insert 1
17 D11523 Spring, Trigger 254 B10734 Strain Relief, Handle 1
18 D11495 Trigger, Zinc Plated 155 B11513 Cord, Handle, 14-3 SJTW 1
19 K11520 Lever Grip, Trigger, Black 256
B11762 Terminal Lug, Nylon,
Female
2
20
11507A Assembled Locking
Handle, Cord Hook
157 B11465 Switch, DPST, Pushbutton 1
21 C11619 Allen Wrench, .31 in 158
B00177 Terminal Lug, Female, QD,
.25 X .032
2
22 D11497 Handle, Locking Clamp 159 C00252 Washer, .375 in, Flat 1
23 C11538 Cap Nut, .31 in, Push-On 160 C11541 Washer, .375 in, Star 1
24 C00259 Washer, Slotted, Zinc 161 B11518 Switch Insulation 1
25 C11536 Spade Bolt, .375-16 X 4 in 162
C00284 Screw, 10-32 X .375
Ground
1
26 D11507-2 Cord Hook Clamp 163
B00187 Cable Clamp, Nylon, .43
in.
1
27 D11507 Cord Hook Body 164
B00180-10-3 Ring Terminal, #10
Center
2
28 C11558 Locknut, Black Oxide, Thin 265 B11505 Strain Relief Nut, Metal 1
29
C11502 Socket Cap Screw, .375-
16 X 2.5 in
166 C11560 Washer, .93 ID X 1.5 OD 1
30 C11537 Dowel Pin, .31 X 1.5 in 167 B11504 Strain Relief, Metal 1
31 C22558 Handle Pivot Bolt 168 H02548-2 Label, Important, Cord 1
32 K00674 Bushing, .50 in, Nylon 269 H11908 TC SWITCH BOX LABEL 1
33 D11510 Axle, Floor Machine 170 H11909 TC MOTOR LABEL 1
MODEL: TPL-BK-13-TC

7
ITEM
NO.
PART NUMBER QTY.
ITEM
NO.
PART NUMBER QTY.
1
B11487-BLUE Power Cord, 14-3, 50
FT, SJTW
1
34
D11482 Handle Brace, Right,
Black
1
2K11498 Grip 235 C00240 Washer, Shoulder, Nylon 6
3C11528 Screw, 10-32 X .25 in 136 C11559 Washer, .515 X .875 X .032 6
5H12066 1.5HP Label 137 G11943 Wheel, 5 in Saturn 2
6D11496B Switch Box Cover, Black 138 C02305 Cap Nut, .5in Push-on 2
7
H11493 Label, Safety, Floor
Machine
139
C11501 Socket Cap Screw, .31 -
18
4
8C11529 Screw, 10-32 X .375 in 240 C00251 Lockwasher, .31, Split 4
9K11519 Lever Grip, Lockout, Black 141
E13198-BLUE Bumper, 15 in Floor
Machine
1
10 C00278 Locknut, 10-32, Nylon, SS 142
D13194-SS Brush Cover, 15 in,
chrome
1
11 D11494 Lockout Bracket 144 D11483C Chrome Motor Frame 1
12 D11524 Spring, Lockout 145
G11468 Motor W-Gearbox, 1.5 HP
115v
1
13
C90007 Screw, 10-32 X .625
Phillips, Truss Head, SS
146 D11481 Handle Brace, Left, Black 1
14 C11491 Screw, 10-32 X 1 in, SS 150 D11490c Drip Cover, Chrome 1
15
D11479-1 Handle, Chrome,
Floormachine
152 C11916 Screw, 10-32 X .375 Phillips 3
16 C00306 Roll Pin, .125 X 1.75 253 C13100 Nut, M14-2.0 Nylon Insert 1
17 D11523 Spring, Trigger 254 B10734 Strain Relief, Handle 1
18 D11495 Trigger, Zinc Plated 155 B11513 Cord, Handle, 14-3 SJTW 1
19 K11520 Lever Grip, Trigger, Black 256
B11762 Terminal Lug, Nylon,
Female
2
20
11507A Assembled Locking
Handle, Cord Hook
157 B11465 Switch, DPST, Pushbutton 1
21 C11619 Allen Wrench, .31 in 158
B00177 Terminal Lug, Female, QD,
.25 X .032
2
22 D11497 Handle, Locking Clamp 159 C00252 Washer, .375 in, Flat 1
23 C11538 Cap Nut, .31 in, Push-On 160 C11541 Washer, .375 in, Star 1
24 C00259 Washer, Slotted, Zinc 161 B11518 Switch Insulation 1
25 C11536 Spade Bolt, .375-16 X 4 in 162
C00284 Screw, 10-32 X .375
Ground
1
26 D11507-2 Cord Hook Clamp 163
B00187 Cable Clamp, Nylon, .43
in.
1
27 D11507 Cord Hook Body 164
B00180-10-3 Ring Terminal, #10
Center
2
28 C11558 Locknut, Black Oxide, Thin 265 B11505 Strain Relief Nut, Metal 1
29
C11502 Socket Cap Screw, .375-
16 X 2.5 in
166 C11560 Washer, .93 ID X 1.5 OD 1
30 C11537 Dowel Pin, .31 X 1.5 in 167 B11504 Strain Relief, Metal 1
31 C22558 Handle Pivot Bolt 168 H02548-2 Label, Important, Cord 1
32 K00674 Bushing, .50 in, Nylon 269 H11908 TC SWITCH BOX LABEL 1
33 D11510 Axle, Floor Machine 170 H11909 TC MOTOR LABEL 1
MODEL: TPL-SS-15-TC

8
ITEM
NO.
PART NUMBER QTY.
ITEM
NO.
PART NUMBER QTY.
1
B11487-BLUE Power Cord, 14-3, 50
FT, SJTW
1
34
D11482 Handle Brace, Right,
Black
1
2K11498 Grip 235 C00240 Washer, Shoulder, Nylon 6
3C11528 Screw, 10-32 X .25 in 136 C11559 Washer, .515 X .875 X .032 6
5H12066 1.5HP Label 137 G11943 Wheel, 5 in Saturn 2
6D11496B Switch Box Cover, Black 138 C02305 Cap Nut, .5in Push-on 2
7
H11493 Label, Safety, Floor
Machine
139
C11501 Socket Cap Screw, .31 -
18
4
8C11529 Screw, 10-32 X .375 in 240 C00251 Lockwasher, .31, Split 4
9K11519 Lever Grip, Lockout, Black 141
E11477-BLUE Bumper, 17 in Floor
Machine
1
10 C00278 Locknut, 10-32, Nylon, SS 142
D11485-SS Brush Cover, 17 in,
chrome
1
11 D11494 Lockout Bracket 144 D11483C Chrome Motor Frame 1
12 D11524 Spring, Lockout 145
G11468 Motor W-Gearbox, 1.5 HP
115v
1
13
C90007 Screw, 10-32 X .625
Phillips, Truss Head, SS
146 D11481 Handle Brace, Left, Black 1
14 C11491 Screw, 10-32 X 1 in, SS 150 D11490c Drip Cover, Chrome 1
15
D11479-1 Handle, Chrome,
Floormachine
152 C11916 Screw, 10-32 X .375 Phillips 3
16 C00306 Roll Pin, .125 X 1.75 253 C13100 Nut, M14-2.0 Nylon Insert 1
17 D11523 Spring, Trigger 254 B10734 Strain Relief, Handle 1
18 D11495 Trigger, Zinc Plated 155 B11513 Cord, Handle, 14-3 SJTW 1
19 K11520 Lever Grip, Trigger, Black 256
B11762 Terminal Lug, Nylon,
Female
2
20
11507A Assembled Locking
Handle, Cord Hook
157 B11465 Switch, DPST, Pushbutton 1
21 C11619 Allen Wrench, .31 in 158
B00177 Terminal Lug, Female, QD,
.25 X .032
2
22 D11497 Handle, Locking Clamp 159 C00252 Washer, .375 in, Flat 1
23 C11538 Cap Nut, .31 in, Push-On 160 C11541 Washer, .375 in, Star 1
24 C00259 Washer, Slotted, Zinc 161 B11518 Switch Insulation 1
25 C11536 Spade Bolt, .375-16 X 4 in 162
C00284 Screw, 10-32 X .375
Ground
1
26 D11507-2 Cord Hook Clamp 163
B00187 Cable Clamp, Nylon, .43
in.
1
27 D11507 Cord Hook Body 164
B00180-10-3 Ring Terminal, #10
Center
2
28 C11558 Locknut, Black Oxide, Thin 265 B11505 Strain Relief Nut, Metal 1
29
C11502 Socket Cap Screw, .375-
16 X 2.5 in
166 C11560 Washer, .93 ID X 1.5 OD 1
30 C11537 Dowel Pin, .31 X 1.5 in 167 B11504 Strain Relief, Metal 1
31 C22558 Handle Pivot Bolt 168 H02548-2 Label, Important, Cord 1
32 K00674 Bushing, .50 in, Nylon 269 H11908 TC SWITCH BOX LABEL 1
33 D11510 Axle, Floor Machine 170 H11909 TC MOTOR LABEL 1
MODEL: TPL-SS-17-TC & TPL-BPC-17-ST-PD-CF

9
MODEL: TPL-SS-20HD-TC
ITEM
NO.
PART NUMBER QTY.
ITEM
NO.
PART NUMBER QTY.
1
B11487-BLUE Power Cord, 14-3, 50
FT, SJTW
1
34
D11482 Handle Brace, Right,
Black
1
2K11498 Grip 235 C00240 Washer, Shoulder, Nylon 6
3C11528 Screw, 10-32 X .25 in 136 C11559 Washer, .515 X .875 X .032 6
5H12066 1.5HP Label 137 G11943 Wheel, 5 in Saturn 2
6D11496B Switch Box Cover, Black 138 C02305 Cap Nut, .5in Push-on 2
7
H11493 Label, Safety, Floor
Machine
139
C11501 Socket Cap Screw, .31 -
18
4
8C11529 Screw, 10-32 X .375 in 240 C00251 Lockwasher, .31, Split 4
9K11519 Lever Grip, Lockout, Black 141
E11478-BLUE Bumper, 20 in Floor
Machine
1
10 C00278 Locknut, 10-32, Nylon, SS 142
D11486-SS Brush Cover, 20 in,
chrome
1
11 D11494 Lockout Bracket 144 D11483C Chrome Motor Frame 1
12 D11524 Spring, Lockout 145
G11468 Motor W-Gearbox, 1.5 HP
115v
1
13
C90007 Screw, 10-32 X .625
Phillips, Truss Head, SS
146 D11481 Handle Brace, Left, Black 1
14 C11491 Screw, 10-32 X 1 in, SS 150 D11490c Drip Cover, Chrome 1
15
D11479-1 Handle, Chrome,
Floormachine
152 C11916 Screw, 10-32 X .375 Phillips 3
16 C00306 Roll Pin, .125 X 1.75 253 C13100 Nut, M14-2.0 Nylon Insert 1
17 D11523 Spring, Trigger 254 B10734 Strain Relief, Handle 1
18 D11495 Trigger, Zinc Plated 155 B11513 Cord, Handle, 14-3 SJTW 1
19 K11520 Lever Grip, Trigger, Black 256
B11762 Terminal Lug, Nylon,
Female
2
20
11507A Assembled Locking
Handle, Cord Hook
157 B11465 Switch, DPST, Pushbutton 1
21 C11619 Allen Wrench, .31 in 158
B00177 Terminal Lug, Female, QD,
.25 X .032
2
22 D11497 Handle, Locking Clamp 159 C00252 Washer, .375 in, Flat 1
23 C11538 Cap Nut, .31 in, Push-On 160 C11541 Washer, .375 in, Star 1
24 C00259 Washer, Slotted, Zinc 161 B11518 Switch Insulation 1
25 C11536 Spade Bolt, .375-16 X 4 in 162
C00284 Screw, 10-32 X .375
Ground
1
26 D11507-2 Cord Hook Clamp 163
B00187 Cable Clamp, Nylon, .43
in.
1
27 D11507 Cord Hook Body 164
B00180-10-3 Ring Terminal, #10
Center
2
28 C11558 Locknut, Black Oxide, Thin 265 B11505 Strain Relief Nut, Metal 1
29
C11502 Socket Cap Screw, .375-
16 X 2.5 in
166 C11560 Washer, .93 ID X 1.5 OD 1
30 C11537 Dowel Pin, .31 X 1.5 in 167 B11504 Strain Relief, Metal 1
31 C22558 Handle Pivot Bolt 168 H02548-2 Label, Important, Cord 1
32 K00674 Bushing, .50 in, Nylon 269 H11908 TC SWITCH BOX LABEL 1
33 D11510 Axle, Floor Machine 170 H11909 TC MOTOR LABEL 1

10
1
9
2
68
35 6
7
8
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34 35
36
37 38
39
40
41
42
44
45
50
52
53
54
555657
58
59
60
61
62
63
64
65
66
67
46
69
70
DUAL SPEED
MODELS:
TPL-SS-17VS-TC
TPL-SS-20VS-TC

11
ITEM
NO.
PART NUMBER QTY.
ITEM
NO.
PART NUMBER QTY.
1B11487-Blue Power Cord, 14-3, 50 FT, SJTW 142 D11482 Handle Brace, Right, Black 1
2K11498 Grip 243 C00240 Washer, Shoulder, Nylon 6
3C11528 Screw, 10-32 X .25 in 144 C11559 Washer, .515 X .875 X .032 6
5H12066 1.5HP Label 145 G11943 Wheel, 5 in Saturn 2
6D11496C Switch Box Cover, Chrome 146 C02305 Cap Nut, .5in Push-on 2
7H11493 Label, Safety, Floor Machine 147 B00185-30 Wire, 14 Ga X 2 ft, White, UL195 1
8C11529 Screw, 10-32 X .375 in 248 B00185-40 Wire, 14 Ga X 2 ft, Black, UL1015 1
9K11519 Lever Grip, Lockout, Black 149 B00185-86 Wire, 14 Ga X 2 ft, Red, UL1015 1
10 C00278 Locknut, 10-32, Nylon, SS 150 B00228-2 1 Foot Shrinktube, .375 in, Poly 1
11 D11494 Lockout Bracket 151 C11619 Allen Wrench, .31 in 1
12 D11524 Spring, Lockout 152 C11501 Socket Cap Screw, .31 - 18 4
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head,
SS
453 C00251 Lockwasher, .31, Split 4
14 C11491 Screw, 10-32 X 1 in, SS 154 E11477-BLUE Bumper, 17 INCH Floor Machine 1
15 C00306 Roll Pin, .125 X 1.75 255 D11485-SS Brush Cover, 17 INCH, cHROME 1
16 D11523 Spring, Trigger 257 D11483C Frame, Motor, Chrome 1
17 D11479 Handle, Chrome, Floormachine 158 D11545 Motor Screen 1
18 D11495 Trigger, Zinc Plated 159 11573A Motor assembly 115v 1
19 K11520 Lever Grip, Trigger, Black 260 B00181 Butt Connector, Blue, 1 Wire 1
20 11507A Assembled Locking Handle, Cord
Hook
161 B00179-1 Closed End Cntr, 16-3 1
21 D11497 Handle, Locking Clamp 162 D11481 Handle Brace, Left, Black 1
22 C11538 Cap Nut, .31 in, Push-On 163
K11517 Spacer, .19 ID X .375 High X .50 OD,
Nylon
3
23 C00259 Washer, Slotted, Zinc 164 B11199 Strain Relief, Pigtail w-Locknut 1
24 C11536 Spade Bolt, .375-16 X 4 in 165 H10976-1 Label, UL STD 561-507 1
25 D11507 Cord Hook Clamp 168 D11490C-H Drip Cover w - Hole for Light BLK 1
26 D11507-2 Cord Hook Body 170 B02196-1 Light, Motor Carbon Brush Wear 1
27 C11558 Locknut, .375-16, Nylon 271 C13100 Nut, M14-2.0 Nylon Insert 1
28 C11502 Socket Cap Screw, .375-16 X 2.5 in 172 B10734 Strain Relief, Handle 1
29 C11537 Dowel Pin, .31 X 1.5 in 173 B11513 Cord, Handle, 14-3 SJTW 1
30 C13101 Screw, Hex Cap, M14-2.0 174 B11762 Terminal Lug, Nylon, Female 2
31 B13156 power cord 16/3 3 ft 175 B11465 Switch, DPST, Pushbutton 1
32 B11518 Switch Insulation 376 C00252 Washer, .375 in, Flat 1
33 B11751 Switch, Rocker, DPDT, Black 177 C11541 Washer, .375 in, Star 1
34 C00293 #8 X .5in Pan, Black SMS, Phillips 278 C00284 Screw, 10-32 X .375 Ground 1
35 D11582 Bracket, Switch Mount 179 B00187 Cable Clamp, Nylon, .43 in. 1
36 C00297 Screw,#8 X .25 in, Pan Head 480 B00180-10-3 Ring Terminal, #10 Center 2
37 D11646 Switch Bracket Cover 281 B11505 Strain Relief Nut, Metal 1
38 B00177-1 Terminal Lug, Female, QD, .25 X .032 182 C11560 Washer, .93 ID X 1.5 OD 1
39 B00177 Terminal Lug, Female, QD, .25 X .032 11 83 B11504 Strain Relief, Metal 1
40 K00674 Bushing, .50 in, Nylon 284 H02548-2 Label, Important, Cord 1
41 D11510 Axle, Floor Machine 185 H11909 TC SWITCHBOX LABEL 1
MODEL: TPL-SS-17VS-TC

12
ITEM
NO.
PART NUMBER QTY.
ITEM
NO.
PART NUMBER QTY.
1B11487-Blue Power Cord, 14-3, 50 FT, SJTW 142 D11482 Handle Brace, Right, Black 1
2K11498 Grip 243 C00240 Washer, Shoulder, Nylon 6
3C11528 Screw, 10-32 X .25 in 144 C11559 Washer, .515 X .875 X .032 6
5H12066 1.5HP Label 145 G11943 Wheel, 5 in Saturn 2
6D11496C Switch Box Cover, Chrome 146 C02305 Cap Nut, .5in Push-on 2
7H11493 Label, Safety, Floor Machine 147 B00185-30 Wire, 14 Ga X 2 ft, White, UL195 1
8C11529 Screw, 10-32 X .375 in 248 B00185-40 Wire, 14 Ga X 2 ft, Black, UL1015 1
9K11519 Lever Grip, Lockout, Black 149 B00185-86 Wire, 14 Ga X 2 ft, Red, UL1015 1
10 C00278 Locknut, 10-32, Nylon, SS 150 B00228-2 1 Foot Shrinktube, .375 in, Poly 1
11 D11494 Lockout Bracket 151 C11619 Allen Wrench, .31 in 1
12 D11524 Spring, Lockout 152 C11501 Socket Cap Screw, .31 - 18 4
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head,
SS
453 C00251 Lockwasher, .31, Split 4
14 C11491 Screw, 10-32 X 1 in, SS 154 E11478-BLUE Bumper, 20 INCH Floor Machine 1
15 C00306 Roll Pin, .125 X 1.75 255 D11486-SS Brush Cover, 20 INCH, cHROME 1
16 D11523 Spring, Trigger 257 D11483C Frame, Motor, Chrome 1
17 D11479 Handle, Chrome, Floormachine 158 D11545 Motor Screen 1
18 D11495 Trigger, Zinc Plated 159 11573A Motor assembly 115v 1
19 K11520 Lever Grip, Trigger, Black 260 B00181 Butt Connector, Blue, 1 Wire 1
20 11507A Assembled Locking Handle, Cord
Hook
161 B00179-1 Closed End Cntr, 16-3 1
21 D11497 Handle, Locking Clamp 162 D11481 Handle Brace, Left, Black 1
22 C11538 Cap Nut, .31 in, Push-On 163
K11517 Spacer, .19 ID X .375 High X .50 OD,
Nylon
3
23 C00259 Washer, Slotted, Zinc 164 B11199 Strain Relief, Pigtail w-Locknut 1
24 C11536 Spade Bolt, .375-16 X 4 in 165 H10976-1 Label, UL STD 561-507 1
25 D11507 Cord Hook Clamp 168 D11490C-H Drip Cover w - Hole for Light BLK 1
26 D11507-2 Cord Hook Body 170 B02196-1 Light, Motor Carbon Brush Wear 1
27 C11558 Locknut, .375-16, Nylon 271 C13100 Nut, M14-2.0 Nylon Insert 1
28 C11502 Socket Cap Screw, .375-16 X 2.5 in 172 B10734 Strain Relief, Handle 1
29 C11537 Dowel Pin, .31 X 1.5 in 173 B11513 Cord, Handle, 14-3 SJTW 1
30 C13101 Screw, Hex Cap, M14-2.0 174 B11762 Terminal Lug, Nylon, Female 2
31 B13156 power cord 16/3 3 ft 175 B11465 Switch, DPST, Pushbutton 1
32 B11518 Switch Insulation 376 C00252 Washer, .375 in, Flat 1
33 B11751 Switch, Rocker, DPDT, Black 177 C11541 Washer, .375 in, Star 1
34 C00293 #8 X .5in Pan, Black SMS, Phillips 278 C00284 Screw, 10-32 X .375 Ground 1
35 D11582 Bracket, Switch Mount 179 B00187 Cable Clamp, Nylon, .43 in. 1
36 C00297 Screw,#8 X .25 in, Pan Head 480 B00180-10-3 Ring Terminal, #10 Center 2
37 D11646 Switch Bracket Cover 281 B11505 Strain Relief Nut, Metal 1
38 B00177-1 Terminal Lug, Female, QD, .25 X .032 182 C11560 Washer, .93 ID X 1.5 OD 1
39 B00177 Terminal Lug, Female, QD, .25 X .032 11 83 B11504 Strain Relief, Metal 1
40 K00674 Bushing, .50 in, Nylon 284 H02548-2 Label, Important, Cord 1
41 D11510 Axle, Floor Machine 185 H11909 TC SWITCHBOX LABEL 1
MODEL: TPL-SS-20VS-TC

13
B
W
G
B
W
G

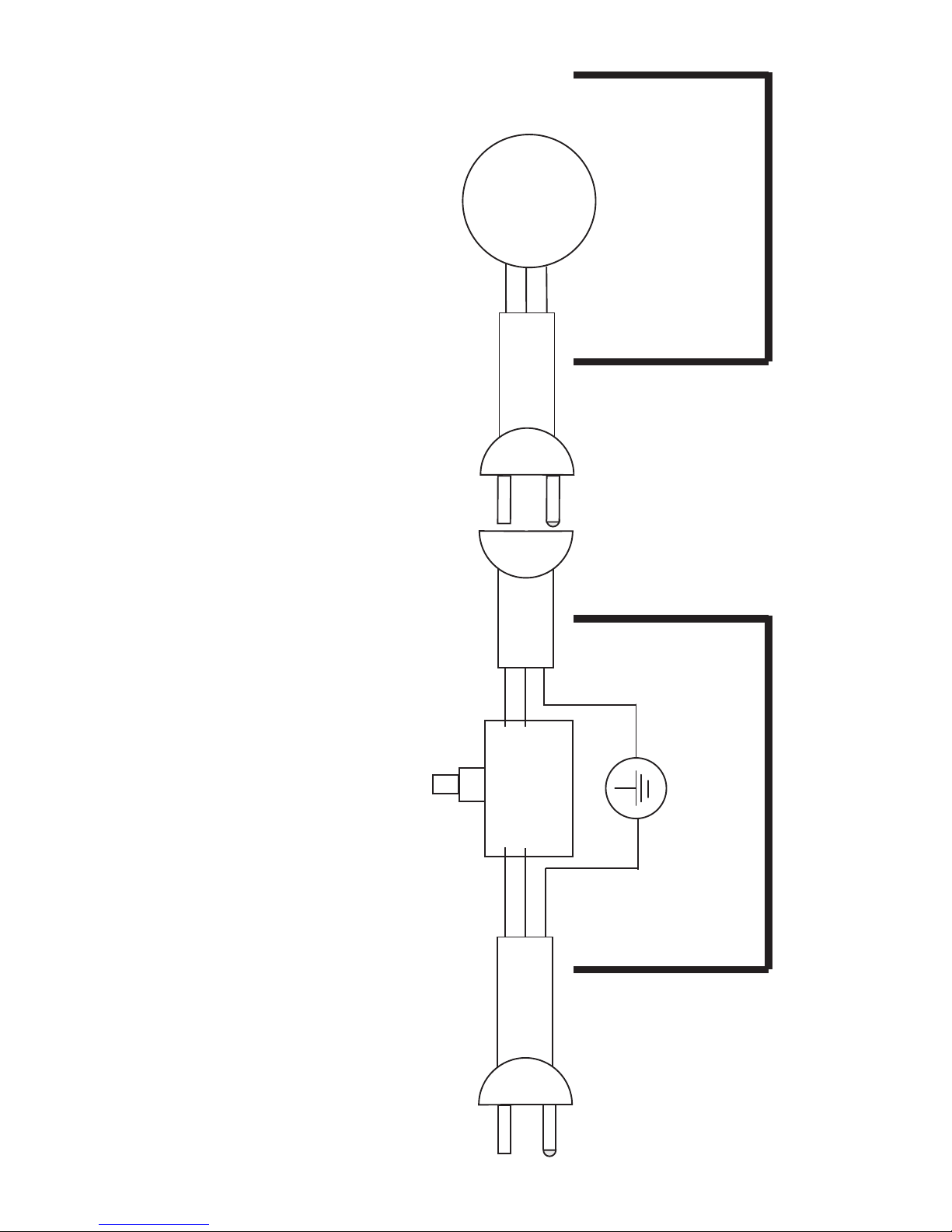

AC MOTOR
SWITCH
B
W
G
HANDLE MOTOR
LOW SPEED
WIRING

6
DUAL SPEED WIRING
AC MOTOR
14

15
DUAL SPEED WIRING
AC MOTOR
NOTES
