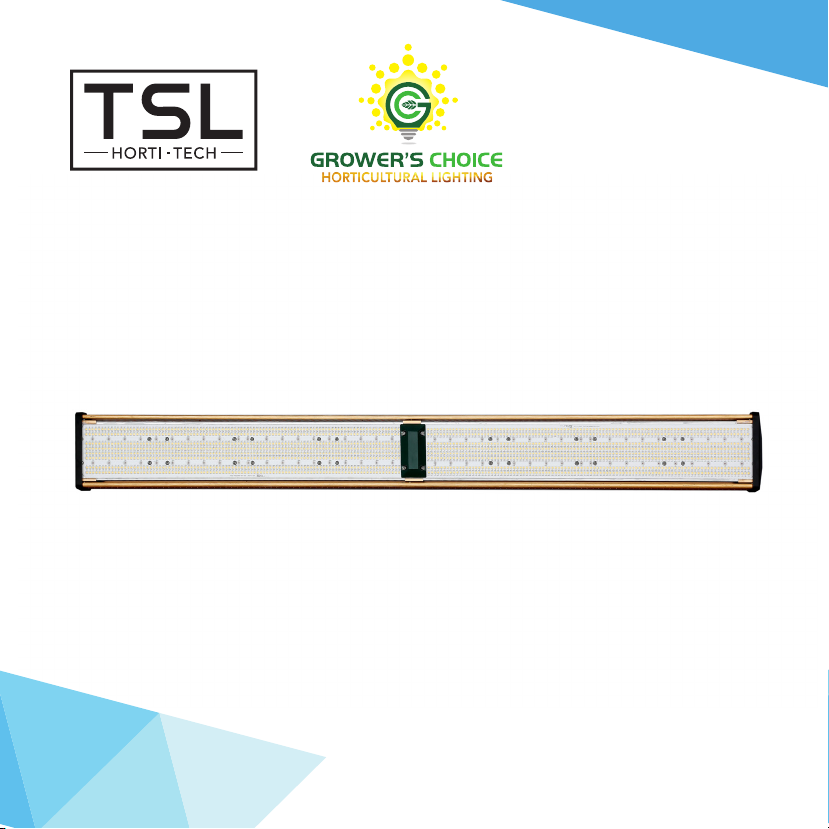

TSL Growers Choice GHS-730 User manual
GHS-730
LED user manual
Installation and Operating Instructions
introductions:
PLEASE READ
THESE INSTRUCTIONS
BEFORE USING
THE PRODUCT

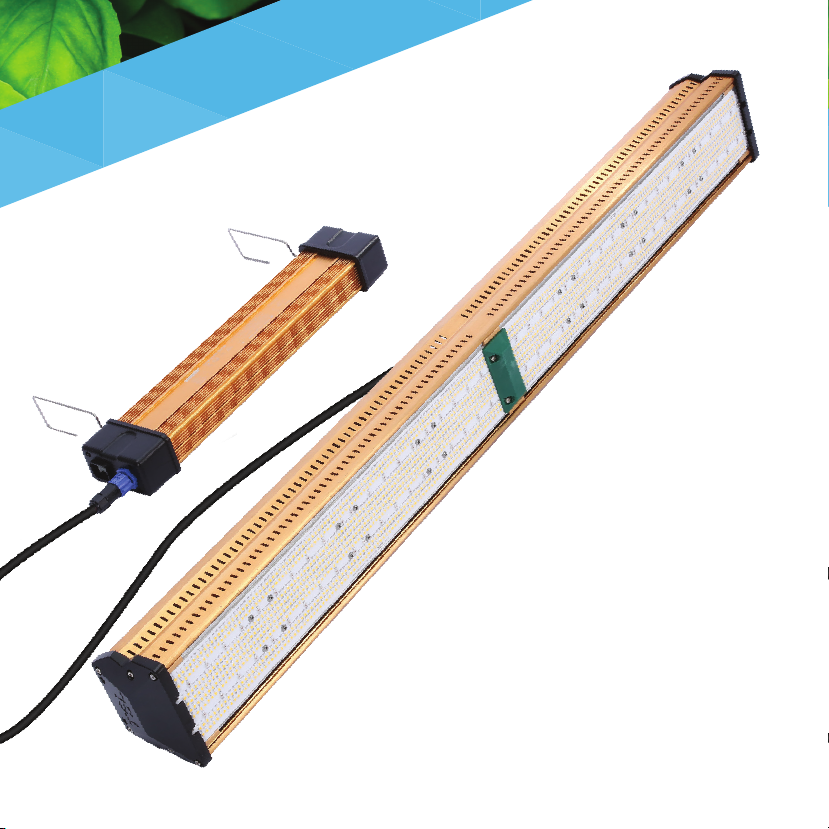

Introducing the New GHS-730, this sturdy commercial-grade light is
designed and built for use in commercial horticultural facilities. The
GHS-730 delivers one of the highest light outputs in the industry at 730W
with excellent thermal management. Its sleek linear design eliminates
unwanted shadows and makes it ideal for supplemental lighting in
greenhouses. As an added benefit this fixture is also compatible with our
CPS (Central Power Solution).
01 02
introductions:
PLEASE READ
THESE INSTRUCTIONS
BEFORE USING
THE PRODUCT
Introducing the New GHS-730, this sturdy commercial-grade light is
designed and built for use in commercial horticultural facilities. The
GHS-730 delivers one of the highest light outputs in the industry at 730W
with excellent thermal management. Its sleek linear design eliminates
unwanted shadows and makes it ideal for supplemental lighting in
greenhouses. As an added benefit this fixture is also compatible with our
CPS (Central Power Solution).
01 02
03 04
Specifications
GHS-730
Model
Item
Light Source
Spectrum
PPF
Imput Power
Efficacy
Fixture Dimension
(L*W*H)
Fixture Weight
Mounting Height
Thermal Management
Dimming
Light Distribution
Maximum Ambient
Power Factor
Certifications
Lifetime
Warranty
LED
GC-3K Full Phase
1800 umol/s
730W
2.6 umol/J
45.5”L x 5.2”W x 4.4”H / 115.5cm x 13.1cm x 11.2cm
28lbs / 12kg
Minimum 36” above canopy
Passive
0-10V
120°
104°F / 40°C
>90%
IP65, UL8800, UL1598, DLC
L90: >54,000 hrs
5 Years Standard Warranty
Voltage
Model 120V 208V 240V 277V
6.6AGHS-730 4.6A 3.6A 2.9A
* PPF calculations ccomplied
using our in-house integrating
sphere measurements and typical
spectroadiometric data for each
LED to determine the fixture
performance. Actual photometric
results may vary within the LED’s
manufacturer’s bin tolerance.
* Wattage values are typical
expected values. TSL Horti Tech
maintains and tolerance of +/-
10% range on flux and power
consumption. Target light level
can vary from projected levels
depending on ambient temperature,
room reflections values, and other
conditions.
03 04
Specifications
GHS-730
Model
Item
Light Source
Spectrum
PPF
Imput Power
Efficacy
Fixture Dimension
(L*W*H)
Fixture Weight
Mounting Height
Thermal Management
Dimming
Light Distribution
Maximum Ambient
Power Factor
Certifications
Lifetime
Warranty
LED
GC-3K Full Phase
1800 umol/s
730W
2.6 umol/J
45.5”L x 5.2”W x 4.4”H / 115.5cm x 13.1cm x 11.2cm
28lbs / 12kg
Minimum 36” above canopy
Passive
0-10V
120°
104°F / 40°C
>90%
IP65, UL8800, UL1598, DLC
L90: >54,000 hrs
5 Years Standard Warranty
Voltage
Model 120V 208V 240V 277V
6.6AGHS-730 4.6A 3.6A 2.9A
* PPF calculations ccomplied
using our in-house integrating
sphere measurements and typical
spectroadiometric data for each
LED to determine the fixture
performance. Actual photometric
results may vary within the LED’s
manufacturer’s bin tolerance.
* Wattage values are typical
expected values. TSL Horti Tech
maintains and tolerance of +/-
10% range on flux and power
consumption. Target light level
can vary from projected levels
depending on ambient temperature,
room reflections values, and other
conditions.
Safety
Warnings:
The GHS-730 is a passively cooled
system with no moving components.
Do not try to open or disassemble
the fixture, it contains no service
parts inside. Doing so May cause
harm to the fixture and void warranty.
05 06
• Always adhere to the local rules and
regulations when installing or using the fixture.
• Wearing protective gloves and glasses is
recommended during installation.
• Always disconnect from power source before
performing any maintenance to the fixture.
• The fixture will get hot during operation. Do
not touch while the light is on. Keep this
product away from children.
• Always allow at least 10 minutes for the
fixture to cool down before handling.
• Do not touch the LED diodes.
• Keep the power cord away from hot
surfaces.
• Do not plug this system into a supply
voltage other than what is instructed on
the fixture.
• Do not use the fixture when the power
cord is damaged.
• Do not use the fixtures if the unit has
been dropped, and there is damage to the
enclosure or bars.
• Only for damp location

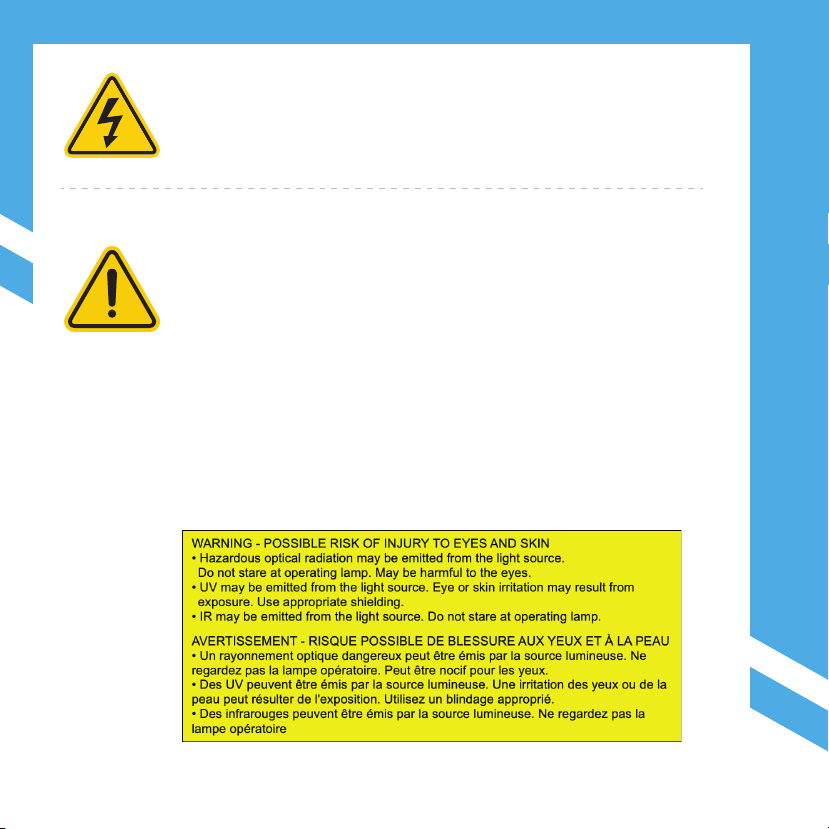

WARNING
Risk of electrical shock. To reduce the possibility of serious injury, always take
the proper precautions and unplug the fixture before moving or cleaning.
CAUTION
To reduce the risk of
overheating or fire, never
place operating fixtures
face down on a flush
surface. Always allow for
adequate ventilation of
fixtures and power supplies.
CAUTION – RISK OF PERSONAL INJURY
Disconnect power before servicing or installing fixture. Lighted fixture
may be hot. To reduce risk of injury, turn off or disconnect power and
allow to cool before handling. Fixture must be grounded in accordance
with appropriate codes. Failure to do so may result in serious injury or
death. Be sure all power is off prior to installing fixture.
CAUTION
LED and heat sink surfaces
may be hot. Allow sufficient
cooling time before handling.
CAUTION
To prevent eye damage,
avoid looking directly at the
unshielded LEDs.
Safety
Warnings:
The GHS-730 is a passively cooled
system with no moving components.
Do not try to open or disassemble
the fixture, it contains no service
parts inside. Doing so May cause
harm to the fixture and void warranty.
05 06
• Always adhere to the local rules and
regulations when installing or using the fixture.
• Wearing protective gloves and glasses is
recommended during installation.
• Always disconnect from power source before
performing any maintenance to the fixture.
• The fixture will get hot during operation. Do
not touch while the light is on. Keep this
product away from children.
• Always allow at least 10 minutes for the
fixture to cool down before handling.
• Do not touch the LED diodes.
• Keep the power cord away from hot
surfaces.
• Do not plug this system into a supply
voltage other than what is instructed on
the fixture.
• Do not use the fixture when the power
cord is damaged.
• Do not use the fixtures if the unit has
been dropped, and there is damage to the
enclosure or bars.
• Only for damp location
WARNING
Risk of electrical shock. To reduce the possibility of serious injury, always take
the proper precautions and unplug the fixture before moving or cleaning.
CAUTION
To reduce the risk of
overheating or fire, never
place operating fixtures
face down on a flush
surface. Always allow for
adequate ventilation of
fixtures and power supplies.
CAUTION – RISK OF PERSONAL INJURY
Disconnect power before servicing or installing fixture. Lighted fixture
may be hot. To reduce risk of injury, turn off or disconnect power and
allow to cool before handling. Fixture must be grounded in accordance
with appropriate codes. Failure to do so may result in serious injury or
death. Be sure all power is off prior to installing fixture.
CAUTION
LED and heat sink surfaces
may be hot. Allow sufficient
cooling time before handling.
CAUTION
To prevent eye damage,
avoid looking directly at the
unshielded LEDs.
07 08
Contents:

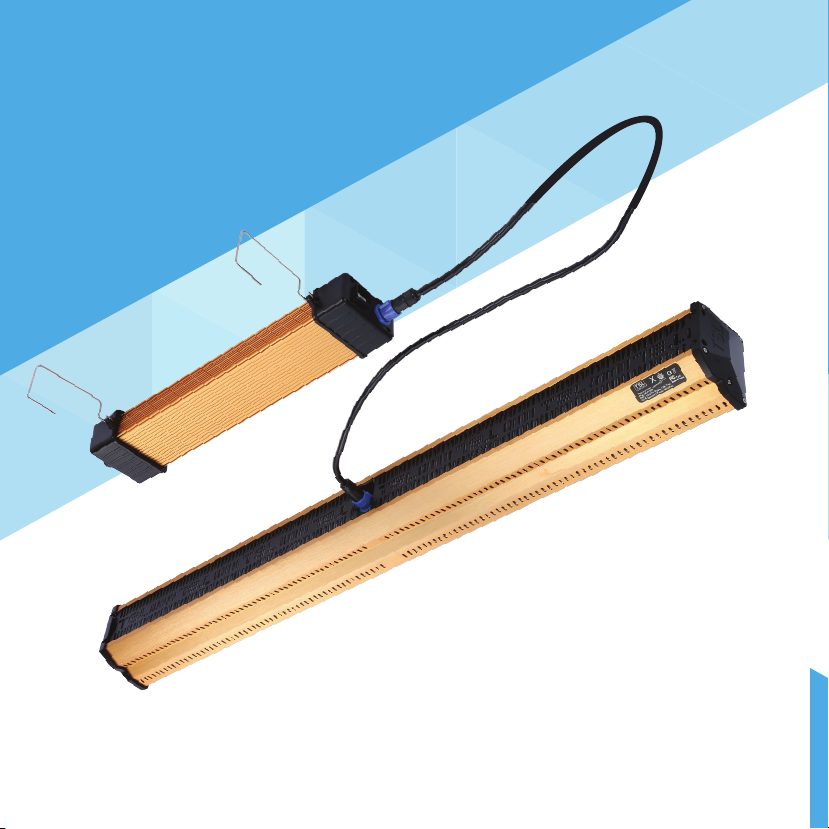

• GHS-730
• GHS-730 Driver
• 240/120 adapter
• Metal Hangers
• Power Cord
Not Included:
• Lighting Controller
• Chains
• Carabiner hangers
• RJ14 Cord
07 08
Contents:
• GHS-730
• GHS-730 Driver
• 240/120 adapter
• Metal Hangers
• Power Cord
Not Included:
• Lighting Controller
• Chains
• Carabiner hangers
• RJ14 Cord
installation:
09 10
• Remove your GHS-730 from its packaging.
(Do not remove the diode strip protective plastic
until the installation process is finished.)
• Place the included metal hangers on the desired beam. After
this insert it into the mounting holes at both ends of the unit.
Other Installation Options
For other installation methods refer to the provided charts. Mounting/hanging
gear not included.
• Next mount the driver using the S shaped
metal hangers provided on the same beam.
• After the beam installation plug in the
power cord with M25 adapter at each end
and plug them from your unit to its driver.
• Then take your power cord with and plug
in the M25 adapter into the driver.
• Lastly remove the protective plastic from
the diode strip.
Metal
Hanger
installation:
09 10
• Remove your GHS-730 from its packaging.
(Do not remove the diode strip protective plastic
until the installation process is finished.)
• Place the included metal hangers on the desired beam. After
this insert it into the mounting holes at both ends of the unit.
Other Installation Options
For other installation methods refer to the provided charts. Mounting/hanging
gear not included.
• Next mount the driver using the S shaped
metal hangers provided on the same beam.
• After the beam installation plug in the
power cord with M25 adapter at each end
and plug them from your unit to its driver.
• Then take your power cord with and plug
in the M25 adapter into the driver.
• Lastly remove the protective plastic from
the diode strip.
Metal
Hanger
Controllability:
The GHS-730 are fully controllable with a controller or through a
Central Power System (CPS). If using a controller you will need RJ14
data cords.
11 12
Controllability:
The GHS-730 are fully controllable with a controller or through a
Central Power System (CPS). If using a controller you will need RJ14
data cords.
11 12
13 14
Warranty:
TSL Horti Tech and Grower's Choice warrants the mechanical and
electronic components of their product to be free from defects in
material and workmanship if used under normal operation conditions
for a period of 1 year from the original date of purchase. If the product
shows any defects within this period and that defect is not due to
user error or improper use, TSL Horti Tech and Grower's Choice shall,
at its direction, either replace or repair the product using suitable
new or reconditioned products or parts. TSL Horti Tech and Grower's
Choice warranty liability extends only to the replacement cost of the
product. In case TSL Horti Tech and Grower's Choice decides to
replace the entire product, the limited warranty shall apply to the
replacement product for the remaining initial warranty period.
TSL Horti Tech and Growers Choice shall not
be held responsible for any damage caused by
the operation of the unit, be it incidental or
consequential or any type including, without
limitation, damage or injury caused to other
products or machinery or buildings. Nor will
responsibility be accepted for loss of time or
profit, or for any inconvenience caused in any
way whatsoever.
13 14
Warranty:
TSL Horti Tech and Grower's Choice warrants the mechanical and
electronic components of their product to be free from defects in
material and workmanship if used under normal operation conditions
for a period of 1 year from the original date of purchase. If the product
shows any defects within this period and that defect is not due to
user error or improper use, TSL Horti Tech and Grower's Choice shall,
at its direction, either replace or repair the product using suitable
new or reconditioned products or parts. TSL Horti Tech and Grower's
Choice warranty liability extends only to the replacement cost of the
product. In case TSL Horti Tech and Grower's Choice decides to
replace the entire product, the limited warranty shall apply to the
replacement product for the remaining initial warranty period.
TSL Horti Tech and Growers Choice shall not
be held responsible for any damage caused by
the operation of the unit, be it incidental or
consequential or any type including, without
limitation, damage or injury caused to other
products or machinery or buildings. Nor will
responsibility be accepted for loss of time or
profit, or for any inconvenience caused in any
way whatsoever.
Tel: (909) 972-8419
E-mail: [email protected]
Website: www.growersc.com
Address: 2510 E Merrill Ave. Ontario CA 91762
GHS-730 LED System Instructions revised - April 08, 2022
Table of contents
Other TSL Lighting Equipment manuals
