TT Aviation M4E User manual

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
M4E Manual
Make sure the pilot is well-trainned in operating UAVs before going on mission.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
Catalogue
1.Use Instruction...............................................................................................................................1
1.1 Safety Instruction............................................................................................................... 1
1.2 Pesticide Usage................................................................................................................. 2
1.3 Inspection............................................................................................................................3
1.4 Environment........................................................................................................................3
1.5 Operation.............................................................................................................................4
1.6 Compass Calibration Requirements...............................................................................5
2. Product Introduction.....................................................................................................................6
2.1 M4E Parameters................................................................................................................ 6
2.2 TIANNONG M4E Agriculture UAV Specification.......................................................... 7
2.3 Preparation Before Takeoff.............................................................................................. 8
2.3.1 Arm Installation....................................................................................................... 8
2.3.2 Spraying Tube Installation.................................................................................. 10
2.3.3 Battery Installation................................................................................................11
3. Charger Instruction.................................................................................................................... 11
3.1 Product Application..........................................................................................................11
3.2 Product Features............................................................................................................. 11
3.3 Main Technical Parameters and Application Demand...............................................12
3.4 Interface Indicator............................................................................................................ 12
3.5 Function and Operation Instruction.............................................................................. 13
3.6 Attention.............................................................................................................................13
4. App Setting of Copter................................................................................................................ 14
4.1 Software Configuration................................................................................................... 14
4.2 Parameters Adjustment.................................................................................................. 15
4.2.1 Remote Controller Calibration In GCS............................................................. 18
4.2.2 IMU Calibration..................................................................................................... 18
4.2.3 Compass Calibration........................................................................................... 19
4.2.4 Flying Parameters Adjustment........................................................................... 20
4.2.5 Low Voltage and Liquid Protection....................................................................21
4.2.5.1 Low Voltage Protection Settings............................................................ 21

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
4.2.5.2 Alarm Voltage Settings.............................................................................21
4.2.5.3 Voltage Calibration Settings....................................................................21
4.2.5.4 Low Liquid Protection...............................................................................22
4.2.5.5 Spraying Mode.......................................................................................... 22
4.2.6 Fail-Safe.................................................................................................................22
4.27 Map & Coordinates Offset....................................................................................23
4.3 Route Establish................................................................................................................ 24
4.3.1 Start Route Establish...........................................................................................24
4.3.2 Map point............................................................................................................... 25
4.3.3 Drone Point............................................................................................................26
4.3.4 Route Making........................................................................................................27
4.3.5 Executing Mission................................................................................................ 27
5. Remote Controller......................................................................................................................29
5.1 Function Description........................................................................................................30
5.2 Bind.................................................................................................................................... 31
5.3 RC Hardware Calibration............................................................................................... 31
5.4 RC Connection & Device Helper.APP Introduction....................................................31
5.5 Hand Mode Settings Introduction..................................................................................32
5.6 Remote Controller Antenna............................................................................................33
5.7 Flight Control.................................................................................................................... 34
6. Function Control......................................................................................................................... 35
6.1 Flight Mode....................................................................................................................... 35
6.2 AB Mode............................................................................................................................36
Appendix I Key Parts Maintenance...................................................................................... 38
Appendix II Implication of Indicator Light.............................................................................39
Appendix III How to connect copter to PC GCS................................................................ 40
Appendix IV How to download log from PC GCS.............................................................. 41
Appendix V How to upgrade the firmware...........................................................................42
Disclaimer........................................................................................................................................ 43

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
1
1.Use Instruction
1.1 Safety Instruction
The product is not suitable for the ones who are less than eighteen or who do not have
full capacity for civil conduct.
The product have bigger fuselage size, high speed rotary and strong flight dynamics.
At runtime have a certain dangerousness . Not in accordance with the requirement
operation and usage will cause to potential danger and hurt.
When using this product, please keep away from airport, railroad, high speed road,
high buildings ,electric wire and other dangerous environments.
When using this product, please keep away from mobile phone base stations, high
power transmitting equipment, and other high electromagnetic interference
environments.
When using this product，please keep away from army and kinds of manned craft flight
area.
Don’t use this product in rain, thunder, sandstorm, fog snow ,high wind ,and low
temperature and other bad environments.
When flying in more than three kilometers. Environmental factors can lead to flight
performance degradation, please care of using it.
When operating this product fly in low sky .Please always keep UAV and people &
animals in a safe distance of ten meters
When using this product in desert area, please keep UAV within the range of
operator’s eyes
Don’t hover or fly over the crowd, Don’t be delight in scaring others.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
2
When it is close to the crowd ,please land this UAV as soon as possible and guide
people to keep and avoid potential accident.
Don’t operate it in the area of children playing.
If not in the extreme necessary condition, please do not power off when flying in the
air.
You can not fly it you are in drinking , tied, drugs, physical ,discomfort, etc. .
Please inspect it before using very time, including but not limited to parts of fastness,
organism and propeller of cracks, and abrasion ,battery ,the effectiveness of light.
When error happens, please stop using immediately and replace the corresponding
parts.
Abnormal working state of the UAV maybe happen accidentally, don’t open the
propellers and forcibly fly with wrong.
Do not try to prevent the moving parts while working.
1.2 Pesticide Usage
All pesticides are poisonous. Please be careful and work strictly according to the
safety instructions of pesticides.
When dispensing, please use clear water. If not, will cause jams mesh of impurities. If
it is blocked, please clear it before reuse
When dispensing , please note that liquid sparks and the pesticide residue in fuselage
will be harmful to human body.
When dispensing, please pay more attention and use protective tools, and do not let
body directly touch with the pesticides; After pesticide spraying, please clear your skin,
copter and remote control.
When using pesticide, there will be interaction between different pesticides , user

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
3
should clear cartridge or keep a certain interval time。
Spraying shall be carried out in windless sunny day, don’t spray under high
temperature at noon. While breezing, the operator should be standing above the wind
and spraying; do not work when wind is four.
When spaying ,if you feel uncomfortable ,headache or dizzy, please leave the site at
once and rest. If once severe symptoms occur, immediately be sent to hospital.
Pesticide effect and the solution concentration, spray rate ,copter high from
crops ,wind direction, wind speed and so on are close related. When using pesticide
should consider the above factors, to achieve the best effect. Please make sure that
do not damage the human beings and animals and surroundings during the process of
sprayings.
When using pesticide , do not pollute river and drinking water
1.3 Inspection
Before flying, ensure the battery is enough
Ensure all the parts are installed firmly, and all the screws are tight as required.
Ensure all the wires are correctly linked.
Ensure all parts goes well. If it is broken or aging, please replace timely.
Before flying, carefully check the propellers installation direction 、rotation direction,
control and others.
Ensure all the propellers are fine, no any scratch and tightly installed.
Ensure the sprayer is fluent without any clogging and work normally.
1.4 Environment
While flying, please ensure the drone away from the crowds, dangerous goods, high

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
4
buildings, high-voltage wires and others. Please fly the drone in a dedicated space.
Please ensure the drone fly within the operator’s eyesight.
The drone working temperature is between 0℃-40℃.
Ensure the drone fly within the permit of local law and regulations.
To fly the drone safely as required, please fly it within in the height of 50 meters. If it
has local flying height limit within 5ometers, please make sure obey the related
regulations.
1.5 Operation
Please ensure the multi-rotor drone flying height is within 8 meters, except the special
requirements.
Before remote control calibration、hardware update, parameter setup, please remove
the propellers and avoid the potential moving suddenly.
Remove the battery if it does not fly, to avoid flying it when touching the remote control
once.
Please remove the batteries once landing. Do not move the drone when it is in power.
Do not touch the joy stick mistakenly, and prevent start the drone.
When it is powered, please stand in the safe distance of above 10 meters.
Ensure the propellers completely stop and power off.
Please switch it to the manual operation mode when errors happen. Please keep away
from the crowd.
When the battery is damaged, please ensure it is stored in the disposal area and avoid
spontaneous combustion. In order to protect environment, please don’t throw batteries
randomly. And consult the maker about the proper disposal method.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
5
During the flight, don’t fly overload and do not cause any potential dangers.
When low battery is warning, please return as soon as possible.
Ensure that the remote control and battery is enough, to ensure that firmware has
been updated to the latest version.
Ensure flying sites outside of the restricted areas and is proper for flight . .
Please make sure do not fly or operate the drone when you are drunk or with medicine
limitation.
Be familiar with the remote control operation & each flight mode, and ensure you
know how to operate the control condition.
User shall know and obey all the law and regulations in flying location.
1.6 Compass Calibration Requirements
Compass has to be calibrated before using the first time. If else, it cannot work and will
affect flying safety. Calibration tips:
Please do not calibrate it in the place close to the high-magnetic field or big metal
materials, such as high-voltage, magnet, parking lot, concrete iron building, etc.
When calibrating, please do not bring the magnetic materials, such keys and
cellphone.
If it is calibrated indoor, please do not re-calibrate it outdoor. It prevents that the two
magnet differences cause the potential flying data errors.
Magnetic field location is different, please make sure re-calibrate when it changes to
the place far away from the previous one.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
6
2. Product Introduction
TIANNONG M4E, the multi-rotor UAV, is the most economic integrated solution for all the
agriculture spraying services. This UAV is waterproof and easy to repair, long-time flight
with high-strength & light fuselage material. The big power brushless motor guarantees
the sensitiveness and flexibility. The Lipo batteries guarantee the power supply and easy
to repair and maintain. Various spraying tests proves the best performances of this UAV.
2.1 M4E Parameters
Weight (without
battery)
7KG
Max Pitch Angle
≤35°
Standard Takeoff
Weight
14KG
Best Spraying Speed
4--6m/s
Max Takeoff Weight
15KG
Max Spaying Speed
10m/s
Max Thrust-weight
Ratio
2.2
Working Time
1~5min/ flight
Battery
6S
Max Climbing Speed
5m/s
Max Power
9440W
Max Landing speed
3m/s
Hovering Power
1600W
Max Flying Speed
10m/s
Hovering Time
Empty flight ≥15min
Full flight ≥5.5min
Recommended Working
Temperature
10-35C°
Hovering Accuracy
Horizontal ±1.0m
Vertical ±0.5m
Max Anti-wind Strength
12m/s
Spraying Height
2--4m
Max Flying Altitude
3500m
Max rotation angle
360°
Best Storage
Temperature
10-25C°

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
7
2.2 TIANNONG M4E Agriculture UAV Specification
Frame
Diagonal Wheelbase
1090mm
Arm Length
368mm
Unfolded Height
485mm
Folded Height
495mm
Folded Width
577mm
Sprayer Distance
771mm
Power
System
Motor
Motor Model
TTA6215
Stator Size
62mm
KV
340KV
Max Thrust
8KG
Max Power
1700W
Weight
325g
ESC
Max Continuous Working Current
50A
Max Peek Current(3s)
100A
Working Voltage
6S
Working Pulse Width
1000--2000us
Compatible Signal Frequency
50--400Hz
Drive PWM frequency
400Hz
Foldable
Propellers
Material
High strength engineering
plastic
Diameter /Screw pitch
2388
Weight
95g
Battery
Capacity
16000/17000MAh
Spraying
System
Tank
Rated Payload
5KG
Sprayer
Model No.
Pressure Type ( Sector)
Quantity
2 pcs
Sprayer Diameter
1.0-2.0mm
Spraying Speed
4--6m/s
Spraying Volume
1.8--2.2L/min
Spraying Width
2-4m (up to height)
Spraying Droplet Diameter
80--200μm（adjustable）
Remote
Controller
Remote
Controller
Model No.
R4
Working Frequency
2.4Ghz
Working duration
10h
Effective Signal Distance(without
interference and shelter)
1.2KM

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
8
Battery volume
3.7V,4000mAh
Charging type
DC 5V, 2A
Working Environment Temperature
0--40C°
Storage Temperature
10--25C°
Best Charging temperature
10--25C°
2.3 Preparation Before Takeoff
2.3.1 Arm Installation
1) Main fuselage should be prepared well(the position with name plate is the head
direction,the other end is tail direction)
2) Prepare one piece of arm(CW with nozzle),one piece of arm(CCW with nozzle),one
piece of arm(CW),one piece of arm(CCW)
CCW arm assembly CW arm assembly
CCW with nozzle arm assembly CW with nozzle arm assembly

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
9
1) Connect arm MT60 female connector and main part MT60 male connector
2) Align 6mm inner bore of arm pipe clamp and 6mm hole of copter main part.
3) M5*49 shutter screw should be plugged into hexagon part of pipe clamp 6mm hole in
main part.
4) M5 nut should be tightened from the other side,see figure 2-2.
5) The other three arm should be installed as this method,see figure 2-3.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
10

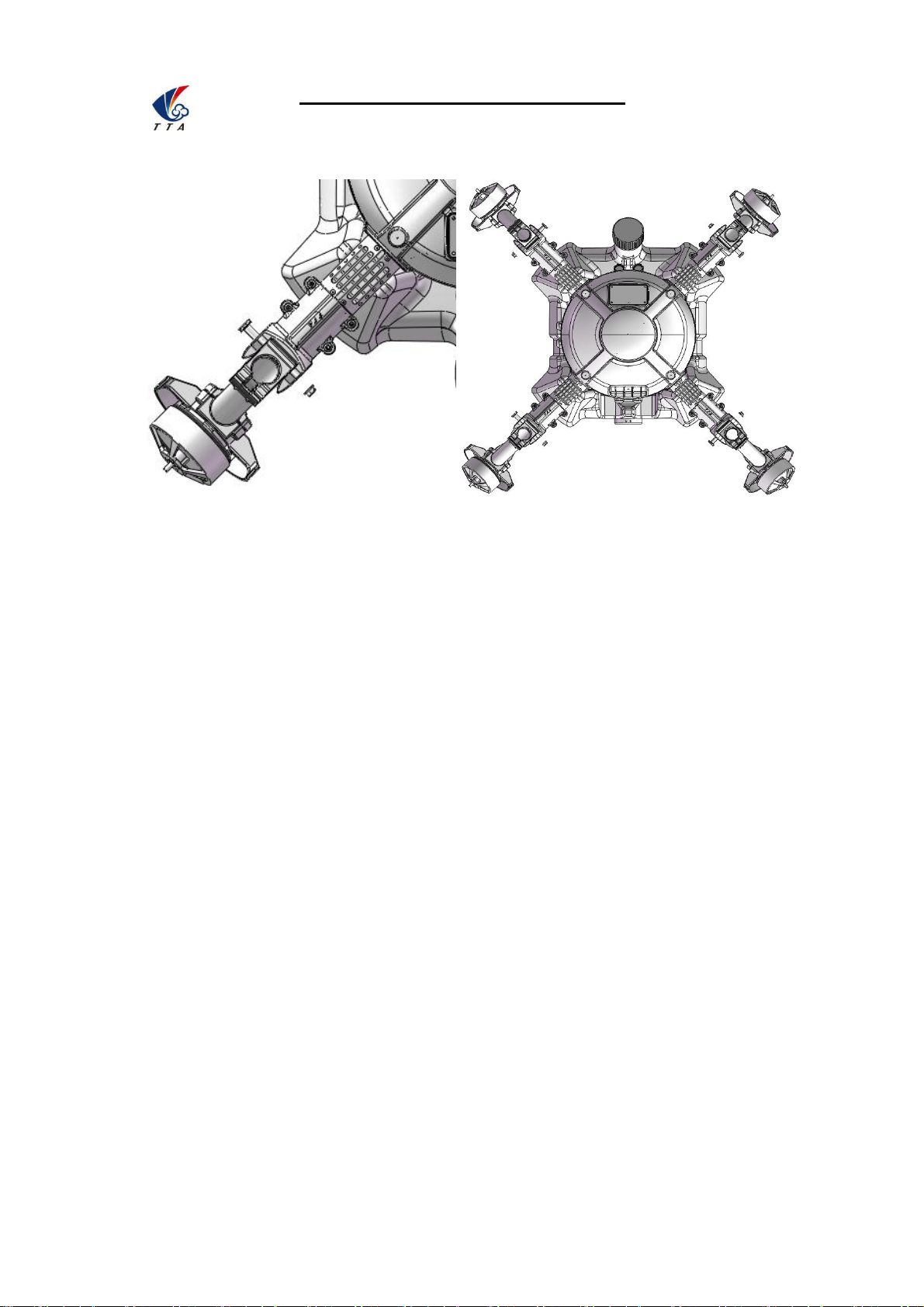

Figure 2-2 Figure 2-3
Attention:
1) The difference between CCW arm and CWW arm is that propeller rotation is
difference.There is an arrow label on the motor cabinet,same sequence with the propeller.
2) M1 should be CCW arm,M2 should be CW arm,M3 should be CCW with nozzle
arm,M4 should be CW with nozzle arm,see figure 2-1.
3) Arm could not do bend up during arm installation,maximum angle of arm is
horizontal,arm could only be fold downward.
2.3.2 Spraying Tube Installation
Connect Φ8 pipe with pipe connector of M3 arm(CW with nozzle) and M4 arm(CCW with
nozzle).

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
11

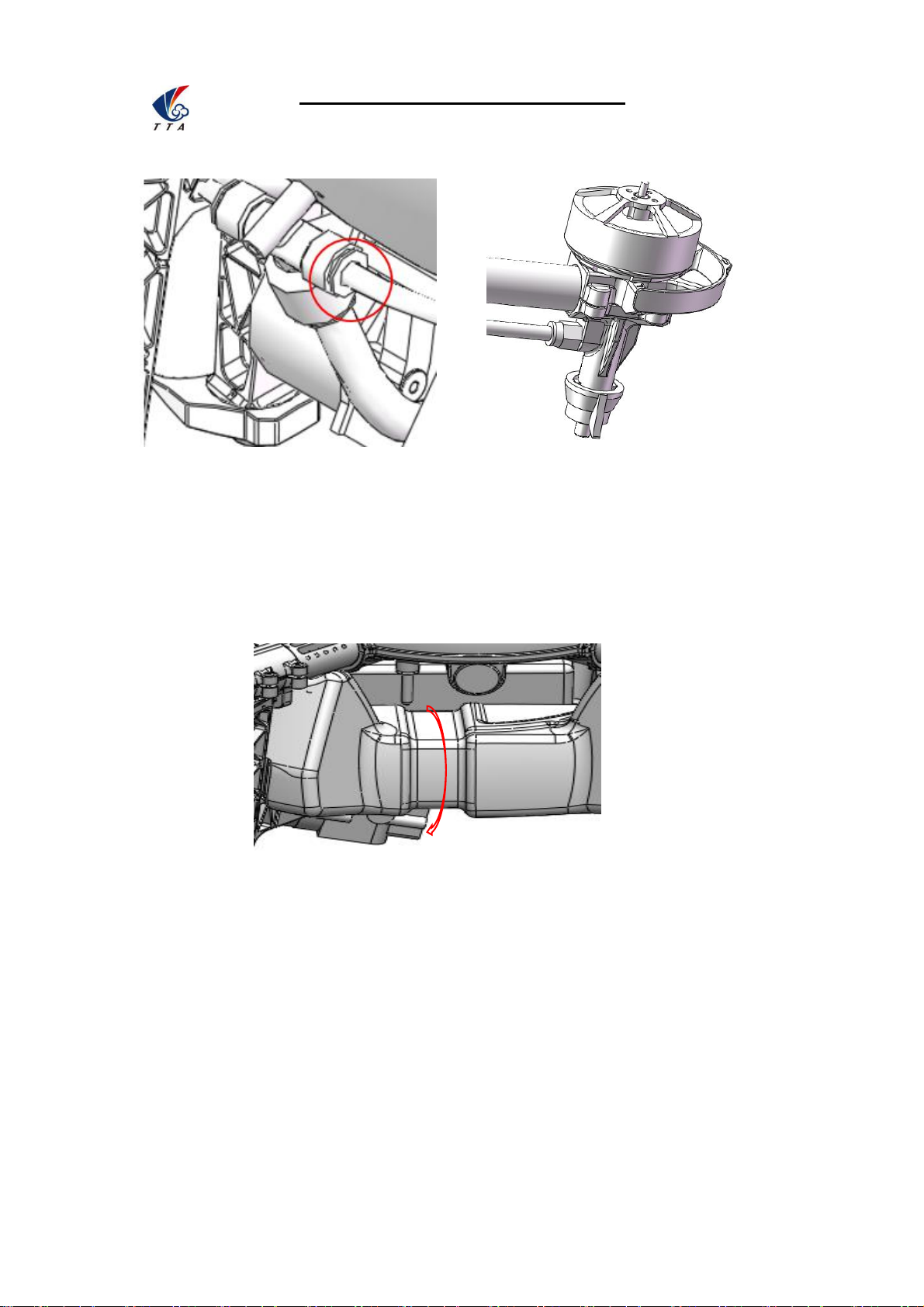

Figure2-4 Figure 2-5
2.3.3 Battery Installation
Battery should be fixed along with curve of tank by bandage,see figure 2-6.
Figure 2-6
3. Charger Instruction
3.1 Product Application
LiPo 6s balance charging
3.2 Product Features
1. balance charging
2. quick charging
3. input and output reverse polarity protection

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
12
4. Low static power
3.3 Main Technical Parameters and Application Demand
1. Input voltage: AC 220V or AC110V
2. Max charging current: CH1:20.0A;CH2:20.0A
3.Max charging power:CH1:500W;CH2:500W
4. Average output voltage:CH1:25.2V;CH2:25.2V
5. Max output voltage:27.0V
6.Max balance current:400mA
7.Max static power:2400mW
8.Display mode:LED display
9. Support battery cell number:6S
10. Charger working temperature:0～40℃
3.4 Interface Indicator
Charging
indicator
Output
status
indicator
CH1
CH2
Start
Dual channel6S-20A charger
Blance port
Charging
status
Charging
indicator
status indicator

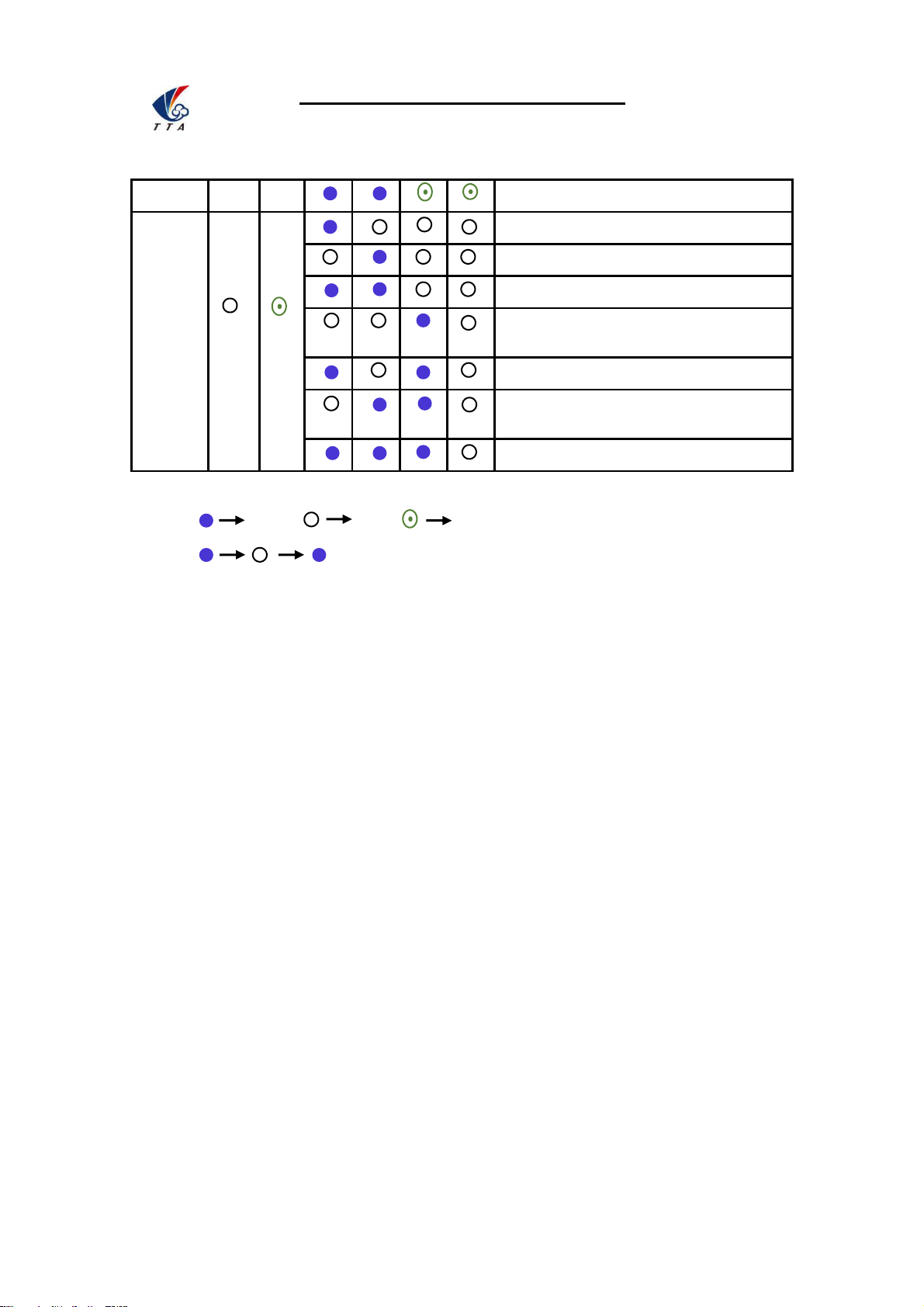

Note
gree
n
red
LED
1
LED
2
LED
3
LED
4
Idle
charging
Note 2
full
charging status:good,balance well
charging status:common,balance commonly
Charging
indicator
status
indicator

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
13
charging status:poor,balance poor
abnormal
charging module abnormal
balance port connection abnormal
input voltage abnormal
output voltage abnormal,check output
connection with battery
single cell high voltage alarm
battery inspection fail,check balance port and
output port
no charging current,check output connection
Note1: ON OFF flash
Note2: :LED1-LED4 flash in turn circularly,means charging in real
time
Fast cycle speed:big electric current change
Slow cycle speed:charging near full
3.5 Function and Operation Instruction
1.Connect with power,leave switch at OFF position,charging channel outside is
close,charging indicator is OFF.
2. Connect with power,leave switch on external power,external power supply
open,charging indicator is green,charging channel is OFF.
3. Connect with power,press start button for 2s,charging channel is open,charging
indicator means current status,charging status is red ON.
4.Press start button during charging process and exit charging mode;press start
button when abnormal which means exit abnormal status.
5. It is suggested to charge for a while if not balanced well, which can prolong the
lifetime of the battery.
3.6 Attention
1.Over low or high charger input voltage may lead to abnormal status or damage.
2. Please observe the instruction strictly.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
14
4. App Setting of Copter
Please choose no log in.
4.1 Software Configuration
1. Please install the GCS software.
2. GCS Downloading Link: https://www.ttaviation.org/downloadcat/app
3. After GCS installation,the label will be appeared as figure 4-1.
TTA-M4E support Android 4.0 or above
4. Open GCS,enter into the start page.
5. Enter into the main page ,see figure 4-2.
Figure 4-1

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
15
Figure 4-2
4.2 Parameters Adjustment
Sensitivity should not be changed by common user,the unnecessary loss
should be taken by user for authorized changing.
Remote controller could not unlock before parameters adjustment.
Exit could only be done when all of the parameters adjustment should be done
and confirmed.Copter could only fly by restarting after parameters adjustment.
Parameters could be adjusted when copter connected,the steps are as followings:
1) Open the OTG function from cellphone SETTINGS---SYSTEM---OTG(the default is Off
thus it should be opened every time),see figure 4-2-1.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
16
Figure 4-2-1
2）Built bluetooth connection between remote controller and cellphone
Open the bluetooth function in cellphone. Set the connect type of APP on Bluetooth mode.

Beijing TT Aviation Technology Co., Ltd.
Add: No.1 TTA Building, Niantou Industrial Park ,Changping District,Beijing, China
www.ttaviation.com
17

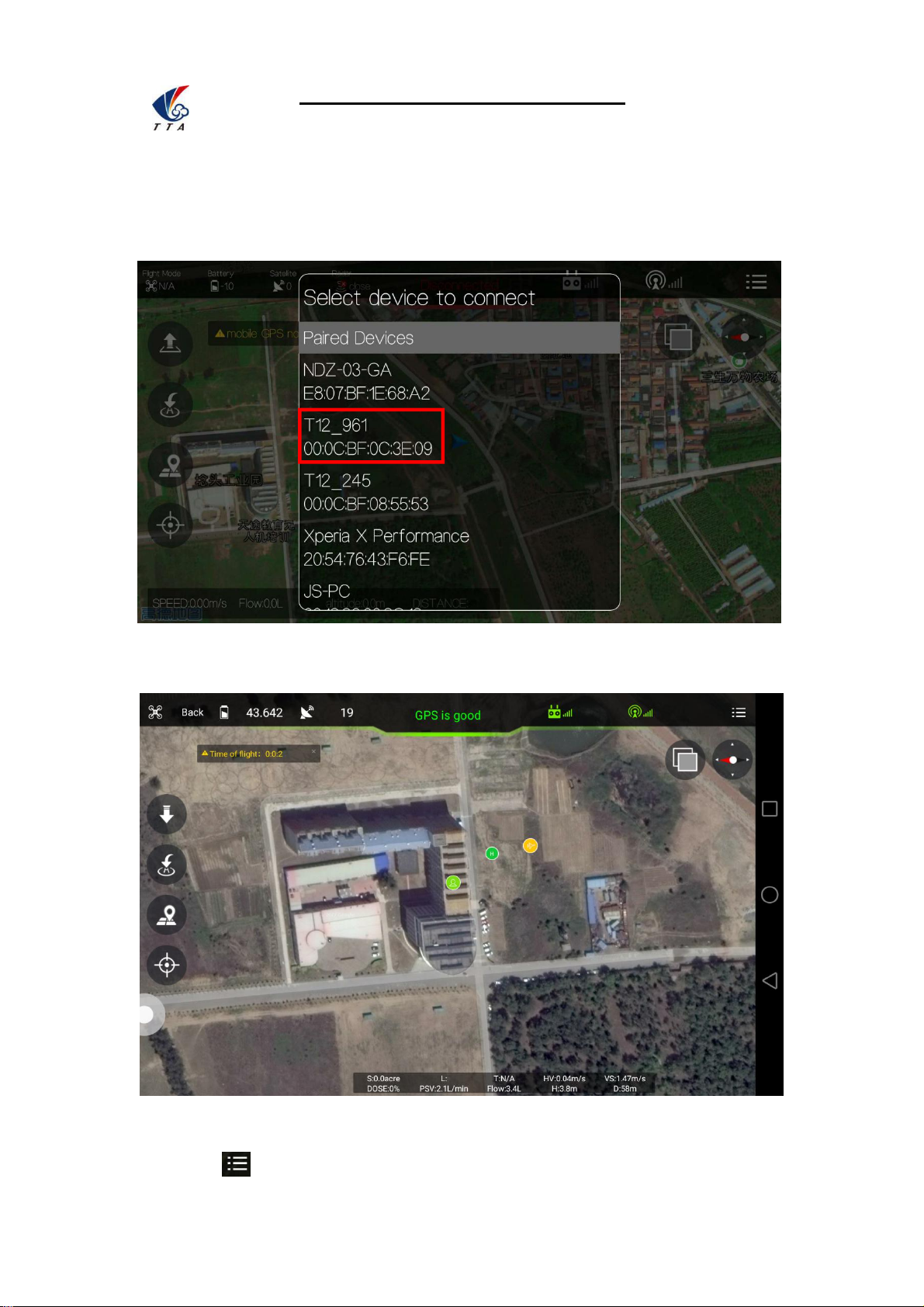

Connect the bluetooth of remote controller. Remote controller Bluetooth name:
T12_***, password:1234
After connection,app will be as followings,see figure 4-4
Figure 4-4
Click label at up right corner to enter into parameters adjustment.
