Tubo ONE XM User manual

ONE
TUBO
O N E
USER MANUAL

1
Thank you for choosing our product
Have fun with the electric scooter
Contents
1. Device and Accessories...................................................................................................................................................................................................................................................................................2
2. Product Overview .............................................................................................................................................................................................................................................................................................3
3. Assembling the Scooter..................................................................................................................................................................................................................................................................................5
4. Charging the Scooter ......................................................................................................................................................................................................................................................................................6
5. Learning to Ride .............................................................................................................................................................................................................................................................................................6
6. Safety Instructions.............................................................................................................................................................................................................................................................................................8
7. Folding and Transportation .........................................................................................................................................................................................................................................................................13
8. Care and Maintenance..................................................................................................................................................................................................................................................................................14
9. Parameters........................................................................................................................................................................................................................................................................................................16

2
1. Device and Accessories
Vehicle

3
Charging Adapter
Accessories
2. Product Overview
Vehicle and Control Panel
Screw*2
Hex Wrench

4
Control Panel Operating Instruction
1. To Turn On: Press the start button for 3 seconds
2. To Turn Off: Press the start button for 3 seconds
3. Speed Adjustment: The scooter has 3 speed gear; to change speed mode, quickly click the start button
speed mode with maximum speed
5. Power Display: The power level is indicated by three power lights on the control panel. As power is consumed, the lights w ill change from solid to flashing,
and finally turn off from left to right
6. Front Light: Quickly double-click the start button will turn the front light on, double-click the start button again to turn it off
4. Speed Gear Light: Blue Light indicates low speed mode with maximum speed of 10km/h; Purple light indicates medium
of 20km/h; and Red light indicates high speed mode with speed of maximum 25km/h

5
3. Assembling the Scooter
1. Unfold the scooter and adjust the steering
rob into the upright position
2. Set handlebar vertically
3. Use hew wrench in the box to tighten the
screws in the handlebar
4. Testing the power switch

6
4. Charging the Scooter
5. Learning to Ride
Open the
rubber cover
Connect the charger
into the charging port
Close the cover when
charging is completed
Please wear helmet and knee pad to prevent
injury when practicing
1. Turn on the scooter and check power display

7
2. Step on the deck with one foot, then
slowly kicks off the other foot on the ground
4. Loose the accelerate button to lower the
speed; The energy recovery system will initiate
automatically to brake slowly. To brake, press
the left disc brake tightly
3. Step on the other foot when the scooter starts
to coast, then press the accelerate button (only
accelerate when the speed is beyond 5km/h)*
5. Tilt your body to the steering direction and
turn the handlebar slowly
*) Please note that (for safety reasons) the accelerator and the motor are not active from standstill position, firstly you need to push the scooter with your foot in order start
movement and only then push the accelerator to activate the electric motor

8
6. Safety Instructions
It is not recommended to ride in the rain
Slightly bend knee to ride on uneven road and speed
bumps; please adjust to low speed mode (5-10km/h)
Ride with caution and look out for overhead obstacles
Do not accelerate the speed when riding in downhill

9
Do not press the accelerator while walking
Steer clear of obstacles when riding
Do not hang backpacks or other heavy
objects on the handlebar
Keep both feet on the deck while riding

10

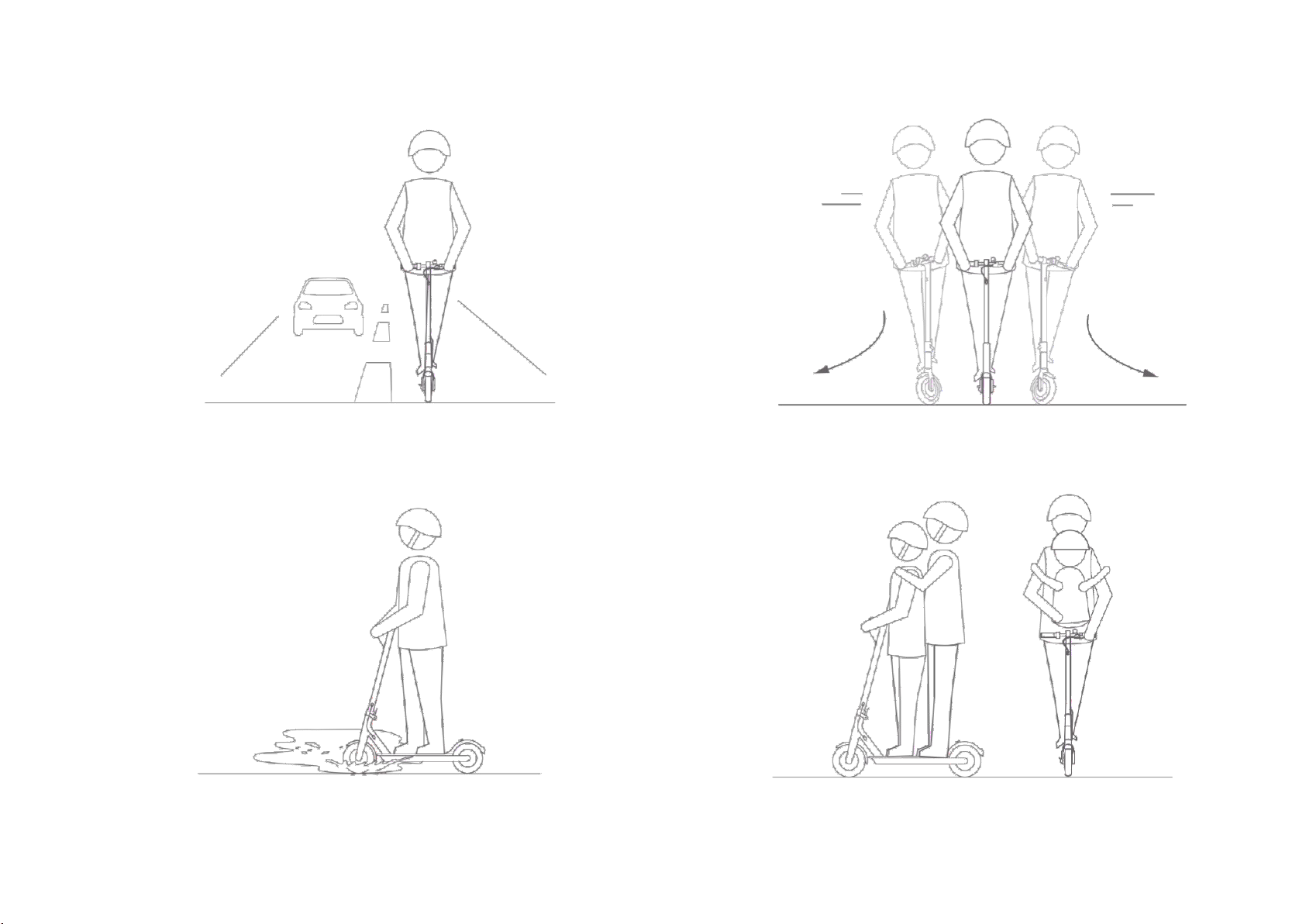

Do not ride in heavy traffic lanes or busy
residential areas with pedestrians
Do not turn the handlebar sharply while riding
Do not ride through puddles which exceeds
depth of 2cm
Do not ride with two or more
people including children

11

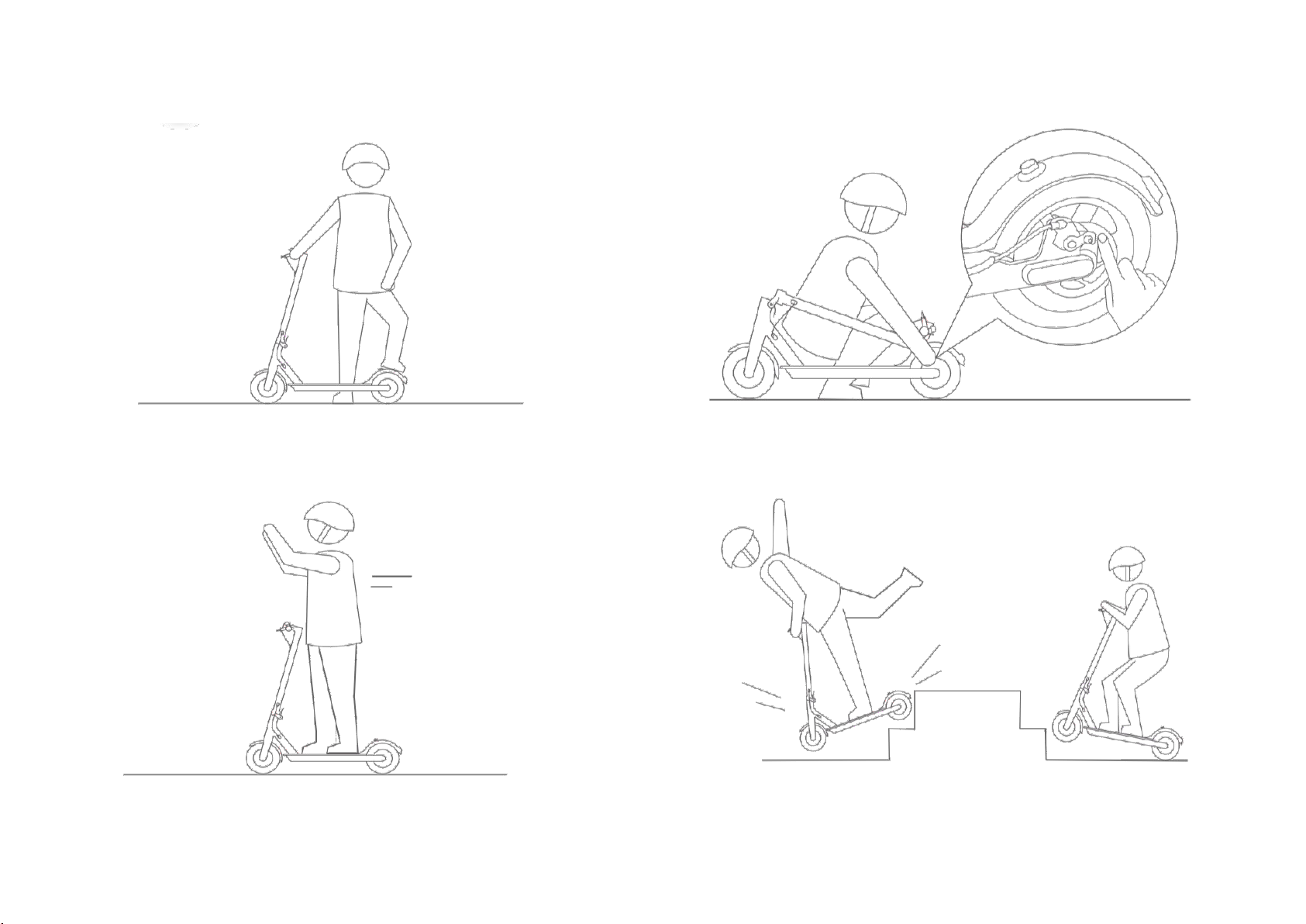

Do not step on the back of the fender
Do not touch the disc brake
Do not leave your hand off the handlebar
while riding
Do not ride up and down stairs or jump over obstacles

12
Safety Reminders
1. Electric scooter is only a leisure device, it is not a licensed vehicle. But once you are riding into public areas, the electric scooter will
be seen as a vehicle and it brings certain risks for your safety. For the sake of your safety and others, you must strictly follow the
instructions, outlined in this user manual.
2. You must follow the recommended safety procedures while riding the scooter in public areas. Please keep in mind that risks including
possibility of collision and injury cannot be entirely avoided as you are exposed to road accidents just as when you are walking or biking.
As other types of vehicles, the faster you ride, the longer it takes the scooter to brake. When riding on smooth surface, emergency
braking may cause slipping, loss of balance and even fall. Therefore, please use extra caution when riding and keep proper speed and
distance.
3. Please respect the pedestrians when riding. Do not startle them, especially children. When riding behind pedestrians, please switch to
the low speed mode and pass them slowly. If you are moving in the same direction with pedestrians, please steer to the left side as
much as possible (applicable to countries with right-hand side traffic rules). If you are moving in the opposite direction, steer to the right
and reduce the speed.
4. It is the owner’s responsibility to carefully read all of the contents of this manual and to comply with all laws pertaining to the operation
of bicycles and/or electric scooters in your local jurisdiction. Violation of the above rules may result in charges, personal injury, occurrence
of traffic accidents, legal disputes, conflict and other unpleasant situations. Our company does not bear any direct or joint liabilities.
5. Do not lend electric scooter to others whom do not know how to ride properly. Please take the responsibility to ensure he/she knows
the operation procedure and safety instructions if you do lend it to your friends.
6. Please do inspect the scooter carefully before every use. If you find shattered parts, dramatically decrease of battery life, leak tires or
signs of excessive wear and tear, strange noise when turning, or other abnormal symptoms, please do stop using the scooter immediately.

13
7. Folding and Transportation
Fold
Be sure the scooter is off. Unlock the folding mechanism locate at the steering stem, release the lever, grasp the stand firmly and pull it
down. Securing the stand by inserting a hook through a special ring, which is located on the rear wheel mudguard.
Transportation
Hold the handlebar stem to carry the scooter with one or both hands.

14
8. Care and Maintenance
Clean and store
If you find any stains on the scooter, use a soft, damp cloth to wipe the vehicle. You can firstly use toothpaste and a toothbrush to clean
the stains, then wipe it with a damp cloth. If you find scratches on plastic material of the scooter, use sandpaper or other grinding
materials to polish.
Store your scooter indoor in a dry and cool place while not using it. Excessive sunlight or extremely high/low temperature can cause
rapid depreciation of the scooter outer body, acceleration of tire aging and significantly reduce of battery life.
Warning:
Do not use alcohol, petrol, kerosene or other corrosive materials, and volatile chemical solvents to clean the vehicle. Usage of above
materials may cause serious damage to the scooter and can destroy internal parts.
Making sure to turn off the scooter and the power is unplugged when washing, do not wash electric scooter using high-pressure water.
When charging is completed, it is necessary to put the plug back to the charging port, otherwise it may cause an electric shock or may
have serious water damage due to water flowing into the charging hole.
Maintenance of Electric Scooter battery
1. Do not use batteries from other brands to avoid safety issues.
2. Do not open or disassemble the battery to prevent electric shock. Avoid contact with metal objects to prevent short circuit. Otherwise,
it may cause battery malfunction with potential injury risks.
3. It is recommended to use the AC adapter which comes in the original configuration with the device to prevent accidents of fire.
4. Improper disposal of used batteries and accumulators will cause severe environmental pollution. To protect the environment, please
dispose the batteries in accordance with local laws.

15
5. After each use of the device, charge the battery to prolong its lifespan. Do not store the scooter battery in rooms with temperatures
which exceed 50℃ or -20℃ (e.g., do not expose the battery under the sun during summer time); do not leave the battery near fire.
These dangerous actions may lead to battery deterioration, over-heating and even cause inflammation. If the scooter is not used within
30 days, charge the battery and keep the device indoor where its cool and dry. You need to charge the battery at least once every 60
days to prevent possible damages which is beyond limited warranty.
6. Always fully charge the battery to extend its lifespan. When using the device at normal room temperature, the battery will last longer
and its performance will be better; however, vehicle performance will worsen if you ride the scooter while the temperature stays below
0℃. For instance, at -20℃, the travel distance is less than normal conditions, but as the temperature increases, the vehicle will perform
better. You can check the remaining distance in the App.
Note: A fully charge scooter will last about 120-180 days of standby time. The built-in smart chip in the battery will store charging
information automatically. Failure to recharge the battery at least once a month may result irreversible damages to the battery which is
beyond limited warranty. (Caution: Do not disassemble the device by unauthorized personnel as there is a risk of electric shock or serious
injury caused by a short circuit)

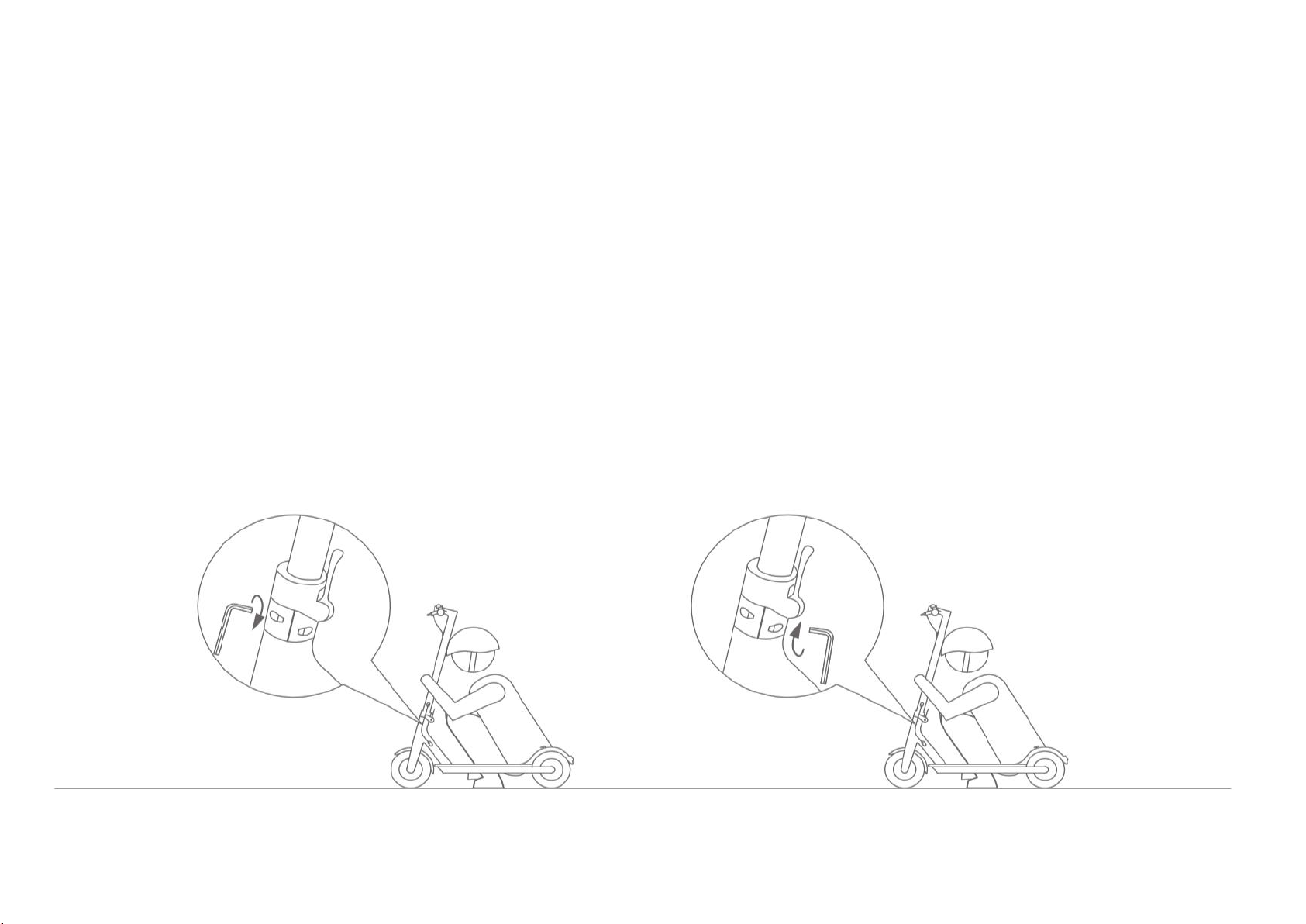

Adjusting the handlebar
If the handlebar and stem sways while riding, using a M5 hex wrench to tighten the two screws near the folding mechanism.

16
9. Parameters
Open Dimension (L*W*H)
Folded Dimension (L*W*H)
Net Weight/Gross Weight
Max Speed
25Km/h
Average Range per Charge
~26Km
Maximum Slope
15 Degree
Water Proof
Suspension
Front suspension
Tire
8.5 Inch solid tyres
Brake
EBS Brake + Disc Brake
LCD Display
Speed, Battery, Gears
Motor
350W
Battery
36V
7.5Ah
Charger Voltage
Charging Time
4~6 Hours
Maximum Load
100 KG
107*45*115 cm (stepboard width 15 cm)
107*45*48 cm (stepboard width 15 cm)
12/14Kg
IPX4
42V 1.5A
Other
Front and Rear lights + Bell
