Hiboy S2 MAX User manual

Electric Scooter
S2 MAX
USER MANUAL
The manufacturer reserves the right to make changes to the product
and update this manual at any time.
www.hiboy.com

Contents
011 Package Contents
022 Product Overview
044 Charging
045 Riding Basics
119 Folding and Carrying
1310 Daily Care and Maintenance
1812 Limited Warranty Statement
1711 Specifications
087 Dangerous Actions (No Attempting!)
066 Safety Instructions
033 Assembly and Set up
108 Safety Reminder
2013 Hiboy App
2114 Q&A and Trouble shooting
2415 Contact Us
1. Package Contents
Charger
6 x Screws
1
Valve Stem Extension
Allen Wrench
Carefully check package contents, if anything is missing or
damaged, please contact Hiboy customer service for support:
[e-mail]

2. Product Overview 3. Assembly and Set up
Download "Hiboy" form "App store"(iPhone) or
"Google Play"(Android), then connect to your scooter.
32
brake
Bell
Control panel
Throttle
Handlebar
Front Light
Folding mechanism
Kickstand
Rear brake light
Motor

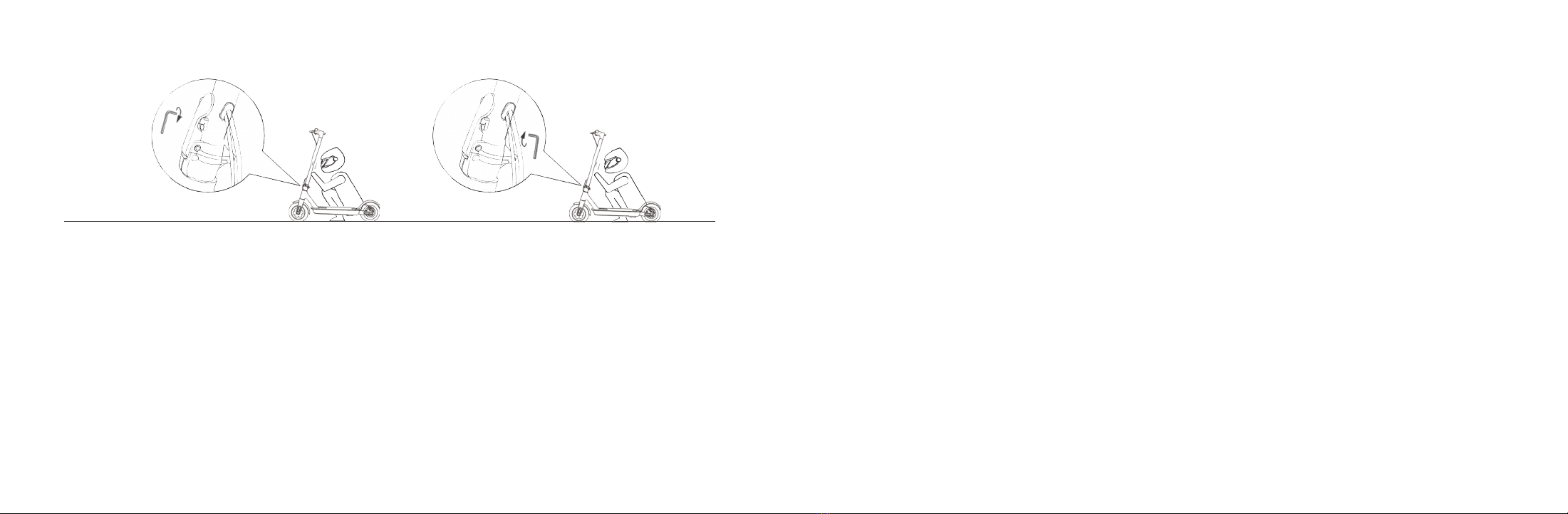

1. Unfold the stem and push the foling lever until you hear a click.
Then unfold the kickstand to support the scooter.
3. Use the Allen wrench to fix 6 screws,
make sure it's tightened.
4. Ensure your scooter powers on and off.
2. Attach the handlebar to the stem.
Make sure it's right way round.
Control Panel Power Button
Battery Indicator
Light
Mode
Temperature
S
Cruise Control
When the scooter is off, press the button to turn on the scooter; When the scooter is on, press and hold for 3 seconds to turn off
the scooter.
After the scooter is turning on, press the button to turn on or off all the lights (the front light and rear light).
Press twice to switch the speed mode, S indicates Sport mode (max speed 19 mph), and D indicates Drive mode (max speed 16
mph), ECO for Energy saving mode (max speed 11 mph)
When the icon lights up, please pull over to the side of the road to cool down the scooter.
When the icon light is alway on, you have activated cruise control function.Press three times to enable/off the cruise control.
The power level is indicated by five power lights on the control panel. As power is consumed, the lights will change from solid to
fashing, and fnally turn off. When all 5 power lights are on, the battery level is between 80%-100%; When 4 lights are solid, the
battery level is between 60%-80%, and so on. When the last power light fashes, it indicates low power. Please recharge soon for
further use.

4. Charging
5. Riding Basics
5
4
Insert the charger plug in Fill and fix the rubber
plug after the charging
Open the rubber cover
Your scooter will be fully charged when the LED light on the charger changes from red
(charging) to green (fully charged).
After a period of full charge, it will automatically cut off the charging.
Even so, we still don't recommend to charge your scooter for a long time.
Do not connect the charger if the charging port is wet. Cover the charging port when not use.
1. Turn the power on, and check the power indicator.
Note: The scooter can not be turned on during charging
Always wear a helmet and safety gear so to
avoid falling and injury during the driving
learning,as shown in the figure.
2. Step on the deck with one foot, and slowly kicks off
the other on the ground.
3. When the scooter starts to coast, put both
feet on the deck and press the throttle
(the throttle initiates once the coasting
speed exceeds 3.1 mph).
4. Release the throttle to reduce the speed
slowly. Squeeze the brake lever for a sudden
brake.
5. Tilt your body to the steering direction as you
turn, and turn the handlebar slowly.

Do not press the throttle when
you're walking alongside the scooter.
Always steer clear of obstacles.
Do not hang bags or other heavy stuff on the
handlebar.
Keep both feet on the deck all time.
6. Safety Instructions
76
Do not ride in the rain. Keep your speed between 3.1-6.2 mph when you ride through
speed bumps, elevator door sills, bumpy roads or other uneven
surfaces. Slightly bend your knee to better adjust mentioned surfaces
Look out for doors, elevators and other
overhead obstacles. Do not accelerate when you go downhill.

Do not keep your hands away from
handlebar.
Do not keep your feet on the rear
mudguard.
Do not try riding up or down stairs, and
jumping over obstacles

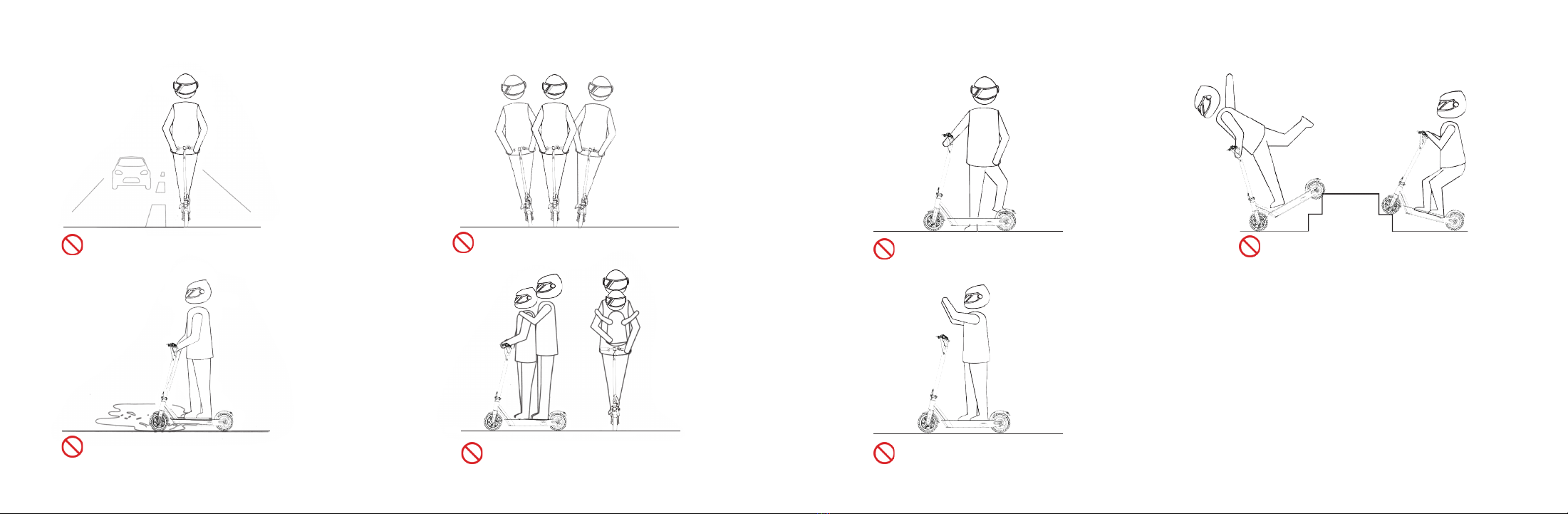

7. Dangerous Actions (No Attempting!)
98
Do not ride in traffic lanes or residential areas
where vehicles and pedestrians are both allowed.
Do not turn the handlebar violently during
high-speed riding
Do not ride in a ponding that is higher than 0.78
inches. Do not ride with anyone else, including
children.

9. Folding and Carrying

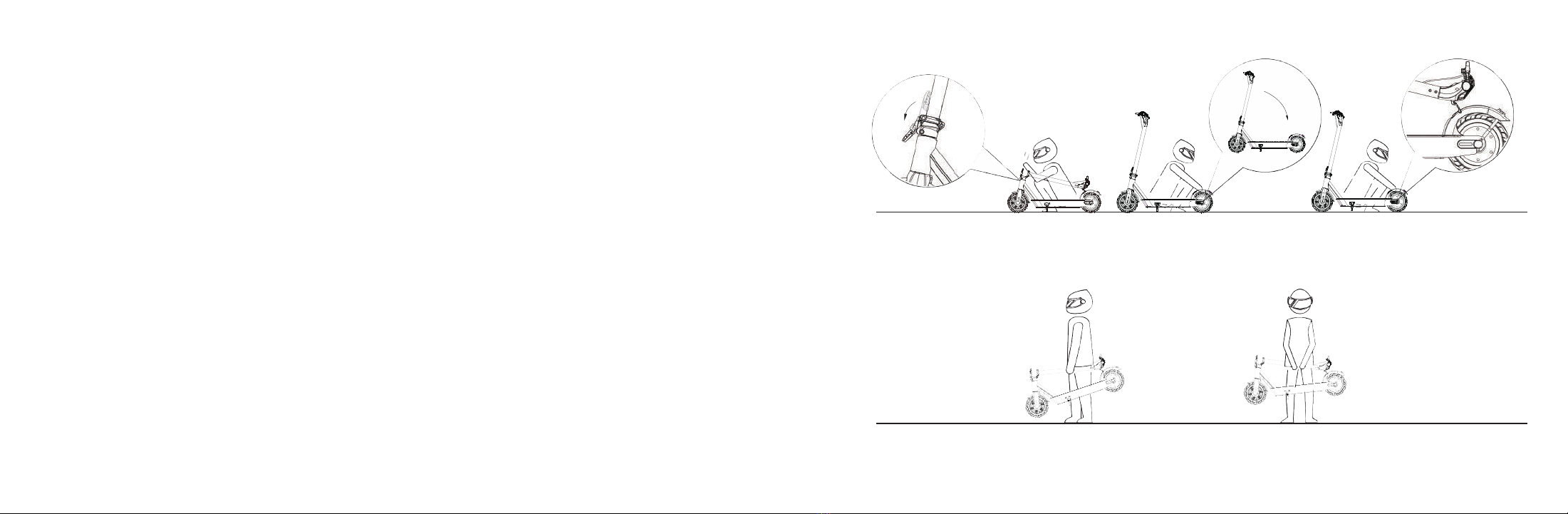

Make sure that the scooter's turned off. To fold, unlock the folding mechanism, and bend the handlebar stem to hook the clamp
on the rear fender. To open, unhook from the clamp, erect the handlebar and lock the folding structure.
Hold the handlebar stem with either one hand or both hands to carry.
Fold
Carry
1110
8. Safety Reminder
●This electric scooter is a leisure device. But once they're in a public area, they'll be seen as vehicles, subjecting to any risks faced by vehicles.
For your safety, please follow instructions in the manual and traffic laws and regulations set forth by government and regulatory agencies.
(Pour votre sécurité, veuillez suivre les instructions contenues dans le manuel et les lois sur la circulation et les règlements énoncés par les
organismes gouvernementaux et réglementaires).
●At the same time, you should understand that risks cannot be entirely avoided as others may violate traffic regulations and drive
incautiously, and you're exposed to road accidents just as when you're walking or biking. The faster the scooter is, the longer it takes to stop.
On a smooth surface, the scooter may slip, lose balance, and even result in a fall. Thus it is crucial that you use caution,
keep proper speed and distance, especially so when you're unfamiliar with the place.
●Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride from behind pedestrians, ring
your bell to give them a heads-up and slow your scooter to pass from their left (applicable to countries where vehicles drive on the right).
When you ride across pedestrians, keep to the right at a low speed. When you drive across pedestrains, keep the
lowest speed or getting off the vehicle
●Closely follow the safety instructions in the manual especially in the countries that lack relevant laws and regulations regarding electric
scooters. Hiboy shall not be liable for any financial losses, physical injuries, accidents, legal disputes and other interest conflicts resulted from
actions that violate user instructions.
●Do not lend your scooter to whoever doesn't know the operations. And when you do lend it to yourfriends, please take the responsibility
to ensure he/she knows the operation and wears the safety gear.
●Check the scooter before every use. When you note loosen parts, low battery alerts, excessive wear, strange sounds, malfunctions and other
abnormal conditions, stop riding immediately and call for professional support.
●Devices are not intended for use at elevations greater than 2000 m above sea level Prolonged Exposure to UV Rays, Rain and the Elements
May Damage the Enclosure Materials, Store Indoors When Not in Use
●WARNING – Risk of Fire – No User Serviceable Parts.
●AVERTISSEMENT - Risque d’incendie - Aucune des pièces ne peut être réparée parl’utilisateur

1312
If the handlebar and its stem sway during riding, please tighten the screws on the folding mechanism.
10.Daily Care and Maintenance
Cleaning and storage
If you see stains on the scooter's body, wipe them off with a damp cloth. If the stains won't scrub off, put on some
toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth. If you see scratches on plastic parts,
use sandpaper or other abrasive materials to polish them.
Notes: do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to prevent
dire damage. Do not wash the scooter with a high-pressure water spray. During cleaning, make sure that the scooter's
turned off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or
other major problems.
When the scooter's not in use, keep it indoors where it is dry and cool. Do not put it outdoors for long time. Excessive
sunlight, overheating and overcooling accelerate tire aging and compromise the scooter and the battery pack's lifespan.
(Lorsque le scooter n'est pas utilisé, gardez-le à l'intérieur dans un endroit sec et frais. Ne le mettez pas en plein air pendant
longtemps. La lumière du soleil excessive, la surchauffe et le sur-refroidissement accélèrent le vieillissement des pneus et
compromettent le scooter et la durée de vie de la batterie.)

15
14
Battery maintenance
WARNING!
1. Use original battery packs, use of other models or brands may bring about safety issues;
2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from metal objects to
prevent short circuit which may result in battery damage or even injuries and deaths;
3. Use original power adapter to avoid potential damage or fire;
4. Mishandling of used batteries may do tremendous harm to the environment. To protect natural environment, please
follow local regulations to properly dispose used batteries;
5. After every use, fully charge the battery to prolong its lifespan.
Do not place the battery in an environment where the ambient temperature is higher than 104°F or lower than 14°F (e.g.,
do not leave the scooter or the battery pack in a car under direct sunlight for an extended time). Do not throw the battery
pack into fire as it may lead to battery failure, battery overheating, and even another fire. If the scooter is expected to be
left idle for more than 30 days, please fully charge the battery and place it in a dry and cool place. Keep in mind to
recharge it every 60 days to protect the battery from potential damage which is beyond limited warranty.
Always charge before exhausting the battery to prolong the battery's lifespan. The battery pack performs better at normal
temperature, and poor when it is below 32°F. For instance, when it is below -4°F, the riding range is only half or less at
normal state. When the temperature rises, the riding range restores.
The damage caused by prolonged no charge is irreversible and is beyond limited warranty. Once the damage is done, the
battery can not be recharged.
ISED Canada Statement:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada 's licence exempt RSS(s). Operation is subject to the following two conditions:
(1)this device may not cause interference and
(2)this device must accept any interference, including interference that
may cause undesired operation of the device.
Radiation Exposure: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment
To maintain compliance with IC's RF Exposure guidelines, this equipment should be installed and operated with
minimum distance of 5mm the radiator your body. This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter
Déclaration de l'ISED Canada:
Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont conformes aux RSS exemptes de licence
d'Innovation, Sciences et Développement économique Canada. L'opération est sous réserve des deux conditions
suivantes :
(1)cet appareil ne peut pas causer d'interférences et
(2)ce dispositif doit accepter toute interférence, y compris
peut provoquer le fonctionnement indésirable de l'appareil.
Exposition aux rayonnements: Cet équipement est conforme aux radiations du Canada limites d'exposition pour un
environnement incontrôlé Pour maintenir le respect des guides d'exposition RF d'IC, cquipment doit être.installé et
actionné avec une distance minimale de 5mm le radiateur de votre corps. Cet appareil et ses antennes ne doivent pas
être co-localisé ou en opération en conjonction avec toute autre antenne ou émetteur

16 17
FCC Warning Statement
Changes or modificaons not expressly approved by the party responsible for compliance could void the user’ s
authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon
against harmful interference in a residenal installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference
to radio communicatons. However, there is no guarantee that interference will not occur in a parcular installation.
If this equipment does cause harmful interference to radio or television recepon, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separaon between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two condions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operaon.
The device has been evaluated to meet general RF exposure requirement.
11. Specifications
[1] Item height: from the ground to the top of the scooter;
[2] Max. load:the maximum allowable weight shall be kept within 220 lbs(driver and objects included) in any case. Consider an extra weight of the
clothes or other accessories with us during the trip and the gravity generated by speed, the scooter will not support it if this load limit is exceeded.
[3] MAX range: measured when it is nowind and at 77°F, the scooter'sfully charged to ride at a even speed of 11.4 mph (18.4 km/h) on a at
surface with a load of 165 pounds (75 kg).
The real battery life vary with different factors of the load,humidity, wind speed and operation habits...etc.
S2 MAX Items
Dimensions
Weight
Main
parameters
Battery pack
Wheel Motor
Charging adapter
L × W × H [1]
After folding: L × W × H
Max. load[2]
Riding
requirements Age
Max. speed
Max. range[3]
Max. climbing angle (%)
Operating temperature
Storage temperature
IP rating
Max. input voltage
Rated capacity
Intelligent battery management system
Input voltage
Output voltage
Output current
Rated voltage
Rated power
Output power
Max. power
Charging time
45.7*18.9*48.2 inch (1160*48*122.5 cm)
45.7*18.9*20.7 inch (1160*48*52.5 cm)
220 lbs (100 kg)
40.4 mile(65 km)
Approx. 20
48V DC
14–104 (°F)
14–104 (°F)
54.6V DC
11.6 Ah
500 W
650 W
Unusual temperature/short circuit/undervoltage/
over current protections...etc
100~240 V
54.6 V DC
2 A
109 W
16–50
IPX4
19 mph(30 km/h)
6-7 hours
Item weight 40 lbs (18.2 kg)

18 19
30 DAY SATISFACTION GUARANTEED RETURN POLICY
If you are unsatisfied with your purchase, Hiboy's return policy allows you to return your undamaged Hiboy product purchased on the Authorization channel within 30 days counting
from the date of receipt of shipment, and request a refund from the Authorization channel for any reason. Note: The cost of return shipping will be borne by the customer if the
product has no quality issue.
For the return request, Hiboy is not responsible for lost packages due to the carrier, or products received that cannot be verified. Received products that have damage determined
to have been caused by the end-user may be subject to denial of the return request.
LIMITED PRODUCT WARRANTY
Hiboy product basically will be free from defects in materials and workmanship under normal use for a period aforementioned.
Hiboy does not warrant the operation of the product will be uninterrupted or error-free.
Hiboy is not responsible for damage arising from failure to follow instructions relating to the product's usage.
TO QUALIFY FOR A REFUND, ALL THE FOLLOWING CONDITIONS MUST BE MET:
1.A Return Merchandise Authorization (RMA) must be requested from Hiboy within 30 days from the date of receipt of shipment. To request an RMA, contact Hiboy Service
Team at [e-mail].
2.The cost of return shipping will be borne by the customer.
3.For warranty service, please keep your receipt and/or invoice to validate proof of purchase.
4.Returned product must be in good physical condition (not physically broken or damaged).
5.All accessories originally included with your purchase must be included with your return.
6.If you return a product to Hiboy, (a) without an RMA from Hiboy(b) without all parts included in the original package, Hiboy retains the right to refuse delivery of such return.
12. Limited Warranty Statement REMEDIES
If a hardware defect is found and a valid claim is received by Hiboy within the Warranty Period, Hiboy will, at its option and to the extent permitted by law, either (1) repair the
product at no charge, using new or refurbished replacement parts or, (2) replace the product with a new or refurbished product. In the event of a defect, to the extent permitted
by law, these are your sole and exclusive remedies. Shipping and handling charges may apply except where prohibited by applicable law. This Limited Warranty is valid only in
the jurisdictions where the products are sold by www.hiboy.com, and is valid to the extent permitted by the applicable laws of such jurisdictions. Any replacement hardware
product will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer, or for any additional period of time that may be applicable in
your jurisdiction.
HOW TO OBTAIN WARRANTY SERVICE
A Warranty Service Order must be requested from Hiboy within Warranty Period from the date of receipt of shipment. To request a Warranty Service Order, contact Hiboy
Service Team [e-mail].
To obtain warranty service, you must deliver the product, in either its original packaging or packaging providing an equal degree of protection, to the address specified by
Hiboy. In accordance with applicable law, Hiboy may require the customer to furnish proof of purchase details and/or comply with registration requirements before receiving
warranty service.period or thirty (30) days, whichever is longer, or for any additional period of time that may be applicable in your jurisdiction.
LIMITATION OF DAMAGES
Except to the extent prohibited by applicable law, Hiboy shall not be liable for any incidental, indirect, special, or consequential damages, including but not limited to loss of
profits, revenue or data, resulting from any breach of express or implied warranty or condition, or under any other legal theory, even when Hiboy has been advised of the
possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so the above limitation or
exclusion may not apply to you.

20
21
2. Turn on the Scooter.
3. Select the device to connect.
4. After connecting with the scooter, you can use the App to control the scooter, such as change the Speed mode, Speed unit,
lock / unlock the scooter, turn on / off the lights...etc.
Have fun with Hiboy electric scooter.
13. Hiboy App
1. Scan the QR code to download Hiboy App.
Before using the App, you need to click on register to follow
registeration process on the App, if you meet with any
problems during registration, please refers to the “Question and
Answer” to find the answer, you can also contact us for
support.
14. Question & Answer
1. Is there any necessary information need to be included before contacting with Hiboy Support Team?
A: Yes, if you need any support from Hiboy, please contact us at [e-mail], and please always include your order number, correct model No., descriptions of the
problem, pictures, and videos that can show details about the issue in the email, thanks.
2. My scooter can’t be turned on, what can I do?
A: First please make sure you are not turning on the scooter during charging, because for safety consideration, we have set the scooter can’t be turned on during charging. Second
please make sure the scooter has been charged for a while to have enough battery to support it can be turned on, otherwise please contact us at [e-mail] for further
support.
3. I can’t charge my scooter, what’s the problem?
A: Please note if the scooter is charging, then the led on the charger will show red color, if the scooter is fully charged, then the led on the charger will show green color.
So please help to verify if the charger is defective first: Plug the charger into the socket but not connecting to scooter, if the charger led is NOT on or it is NOT green color, then it
means the charger is defective.
If the charger is not defective, please contact us at [e-mail] for further support.
4. When I tried to log in the App, it shows the user doesn’t exist, how can I solve it?
A: Please click on the “register” and use your email to register for the App first, and then your email can be used as an account for the App.
5. Why I can’t receive the verification code when registering the App?
A: The code will be sent to your email, please also check the spam box in your email to get the code.
6. I can’t register the App successfully, what can I do?
A: Please send the email you used for App registration, your mobile version (iPhone or Android) and the screenshot where you met problem during registration to
[e-mail], we will check and help out.
7. I forgot the password for the App, can I reset it?
A: Yes, please click “Forgot password” to reset your password.
8. It shows “The device is activated, please reset the device before proceeding”, what I can do?
A: Please note one scooter can only be connected to one App account, this means the scooter is connected by others (maybe your friend), please ask he/she to unbind or delete
the device on his/her App account, then you can connect with it.
9. What if the E-Scooter arrived missing accessory or broken part?
A: Please take a photo and send to Hiboy Support Team’s email: [e-mail], Hiboy Support Team will reply you soon and send correct accessory or part replacement.
10. How to attach the seat?
A: Please refer to the assembly steps in this manual, and you can also search for “how to assemble Hiboy seat” on Google, and then you can find some Youtube tutorial videos.
11. Is that possible to replace some components for example the rear fender?
A: Yes, please take a photo and send to Hiboy Support Team’s email: [e-mail], Hiboy Support Team will reply you soon.

12. My scooter is stolen, can you help me?
A: I’m sorry we can’t track on the location or serial number of the scooter, please call the local policeman and ask them for help.
13. I have written several emails to [e-mail], but no responses received, why?
A: Our Hiboy Support Team will reply to you within 1 working day, if you didn’t receive any reply from us, please also kindly check your spam box, and add [e-mail]
on your whitelist to make sure our reply is not blocked. In addition, you can also contact us on the platform where you purchased the scooter for exampleAmazon chat box, leave
message on hiboy.com website, eBay chat box...etc.
14. When I press on the throttle, why the scooter is not moving?
A: Please note our scooter is set with a kick-off start function considering safety factors, which means you need to stand on the scooter, kick it off to reach a certain minimum speed
3.1 mph, then when you press down the throttle, the scooter will accelerate further, you can check about this kick-off start operation description in the user manual, too.
15. What can I do with the App?
A: Via the App you can turn on / off the lights, lock / unlock the scooter, set the max speed, turn on / off cruise control or Zero start (Kick-off start) function, change the speed unit,
modify the scooter name, checking the scooter status for example speed, riding distance, battery capacity...etc.
16. Why the speed can’t reach 19 mph?
A: Please make sure you have double clicked the power button to set the speed mode to Sport mode, because we have two speed modes, one is D mode with max speed 13 mph,
the other one is S mode with max speed 19 mph.
After setting the speed mode to S mode and the speed still can’t reach 19 mph, then please check if you have modified the max speed on App by accident.
In addition, the battery status, rider weight and road situation will also influence the max speed, with enough battery, within 220 lbs weight and ride on flat road can reach 19 mph
speed easily.
17. Why the max distance is lower than advertised max distance?
A: Please note the max distance is measured when it is no wind and at 77°F, the scooter's fully charged to ride at a even speed of 11.4 mph (18.4 km/h) on a at surface with a load of
165 pounds (75 kg). The real battery life vary with different factors of the load , humidity , wind speed and operation habits...etc.
18. Can I ride the scooter in the rainy days?
A: Kindly note the scooter waterproof level is IPX4, we don’t suggest you to ride it in the rainy days.
19. It is advertised come with two brakes, but why there is only one brake lever on the scooter?
A: Kindly note the S2 MAX scooter are upgraded model considering easier operation, both brakes are integrated in one brake lever, so when you press the brake lever,
both front electronic brake and rear disc brake will start to work, this can ensure the short brake distance.
20. Is there any caution for storing the scooter if I need to go out for a long time vacation?
A: Please make sure the scooter is stored in a dry & cool place, do not put it outdoors for long time, and if the scooter is expected to be left idle for more than 30 days, please fully
charge the battery, keep in mind to recharge it every 60 days to protect the battery from potential damage which is beyond limited warranty.
Trouble shooting
Error code
E1 / F1
E2 / F2
E3
E4
E5
E6
E8
E9
Error description Solution
Need to replace the disc brake lever
Need to replace the throttle
Need to replace the top display PCB and the
display-controller connection cable
Normally the E4 will disappear automatically after cool down the
scooter for a while, if the E4 continues to show up frequently, then
need to replace the controller
First charge the scooter and see if E5 disappears, if E5 doesn't
disappear after charging, then need to replace the battery
When E6 shows up, please do not brake suddendly or climb / go down
slopes, just consume some power of the battery, then it will be back to
the normal
Need to check if the motor hall cables are connecting well first, if any
cable is not connecting well, re-connect it and see if the E7 error
disappears;
After re-connecting the haul cables and E7 still exists, then need to
replace the motor.
Need to replace the motor.
Restart the scooter for several times and see if the E9 disappears,
otherwise need to replace the controller
Brake error
Throttle error
There is problem for the communication between
the top display and controller inside the frame
Over current protection, when E4 appears, both
electronic brake and throttle will stop working
Low voltage protection, when the battery voltage
is lower than 30V, it will show up E5
Over voltage protection, when the battery voltage
is higher than 46V, it will show up E6
Motor hall errorE7
Motor phase error
Hardware error
22
23

24
@HiboyUS
HiboyUS
www.hiboy.com
@Hiboy_Official
15. Contact Us
Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your Hiboy S2 MAX
E-mail Service: [e-mail]
