Tumo-Int 3000W 5 Blades Wind Turbine User manual

Tumo-Int 3000 Watts 5 Blades Wind Turbine
Generator Kit (HYE MODEL)
USER’S MANUAL
Model
Installation
Debug and Test
Maintenance
Trouble Shooting
Packing, Transportation and Storage
Add: B220, Wansheng Square, Chengjiao, Conghua,Guangzhou, China. 510900
Tel: [phone] Fax: [phone]
Mobile: [phone]
Email: [e-mail]
Website: www.tumo-int.com
MADE IN CHINA
Tumo Int Corp. Ltd All Rights Reserved

1
THANK YOU FOR YOUR PURCHASE OF TUMO-INT WIND TURBINE GENERATOR
KIT. BEFORE ASSEMBLY, PLEASE CAREFULLY READ THE OWNER'S MANUAL
FOR SAFETY USE AND OUTSTANDING PERFORMANCE. ENJOY THE
CONVENIENCE WHICH TUMO-INT WIND TURBINE GENERATOR KIT BRINGS
YOU!
THE OWNER'S MANUAL ISSUED ON JULY 2011. PLEASE UNDERSTAND IN CASE
OF ANY PRODUCT IMPROVEMENT OCCUR, IT WILL BE UPDATED IN APPENDIX.

2
Preface
Dear Tumo-Int wind turbine owner:
Thank you for your purchase of Tumo-Int small wind turbine! You have purchased the
most advanced battery charging wind turbine in the world! We believe you will find it
easy to install your Tumo-Int wind turbine, moreover, we are confident you will
experience years of dependable service from it.
Please make sure you’ve carefully read the manual before any assembly, installation or
operation of your Tumo-Int wind turbine, it will help you to better improve Tumo-Int wind
turbine using experience. If failure of following this Tumo-Int wind turbine manual’s
instructions and requirements, Tumo Int Corp. Ltd will not be liable for any property loss.
This manual has been strictly reviewed to ensure you properly install and use Tumo-Int
wind turbine.
Tumo Int Corp. Ltd is committed to continuously improve Tumo-Int wind turbine features
and service quality, to reserves the right to change any products and any other
information in the manual without prior notice.
This manual can help you to better understand and properly use Tumo-Int small wind
turbine, however, the content of hardware configuration is not included in the manual.
Regarding to whole system configuration, please refer to the relevant contract (if any) or
distributor. Pictures in the manual are for reference only, if there is discrepancy between
picture and product, please prevail in kind.
If you find actual situation of Tumo-Int wind turbine is inconsistent with the description in
the manual, or you would like to know the latest information, or you have any questions
or comments, please call during working hours (Monday- Saturday 9:00a.m. to 5:00 p.m.
Beijing Standard Time). Our number is 0086-13902383429. Or visit our shop in
Amazon.com to leave messages.
Sincerely,
Tumo Int Corp. Ltd

3
Safety Instructions
1. For your safety, please read these instructions carefully before installation or
operation.
2. Important: Please comply with the following instructions before using your Tumo-Int
wind turbine.
2.1 please read these instructions carefully before use.
2.2 Safety instructions before installation：
2.2.1 Install Tumo-Int wind turbine on sunny day.
2.2.2 Do not install Tumo-Int wind turbine during dusty day with more than 10 m/s wind
speed.
2.2.3 Wear wet gloves or clothes are prohibited.
2.2.4 Install and maintain Tumo-Int wind turbine under professionals guidance, or
contact distributor.
2.2.5 Do not use too thin or poor quality cables, use original cables as far as possible in
order to avoid leakage or fires and line losses.
2.2.6 Non-professionals do not open controller and inverter casing.
2.2.7 Install grounding device in accordance with application standard and installation
instructions.
2.2.8 Battery may be sparks flying while wiring, make sure that no inflammables the
work environment nearby.
2.2.9 Do not place the controller, inverter and battery in damp, rain, vibration, corrosion
and strong electromagnetic interference environment, the places in direct sunlight, near
heater or other heat sources are not allowed, either.
2.3 Selection and installation requirements of controller, battery:
2.3.1 Controller specification should be matched with voltage, power and current of the
battery, solar panel, wind turbine and load.
2.3.2 Controller and battery should be put in a power housing cabinet, and the housing
is located in ventilated place where people are not easy to touch.
2.3.3 Controller and battery must be installed in accordance with corresponding electric
equipment installation standard and operation regulations of manufacturer.
2.3.4 Power housing cabinet is placing near people living room, adoption of sealed
battery is far more safe.
2.3.5 Negative pole of battery should be in good grounding.
2.4 Wiring requirements:
2.4.1 Connections between components in the system should be fixed and reliable, plug
and socket are not allowed for the connection.
2.4.2 The Wind system’s power output terminal must be firmly fixed with consumption
load terminal, or the wind system’s power output terminal adopted of using power
socket.
2.4.3 Do not use two-way plug for the connection of wind system’s output terminal with
consumption load terminal.

4
2.4.4 Any cables or wires of the system, which might be damaged due to outdoor
exposure, should be coated with conduit for protection.
3. Precautions:
Operators must clearly know safety measurement. Safety relies on our joint efforts.
3.1 All operations must:
a. Follow instructions in the manual.
b. Operated by specialized workers.
c. Accident or injury or possible severe damage to equipment may result if false
operation.
3.2 Operation workers must master:
a. Equipment recognition.
b. Correct equipment operation ability.
c. Relevant safety knowledge.

5
Contents
1 WIND TURBINE INTRODUCTION……………………………………
2 SITING…………………………………………………………………..…
3 APPLICATION RANGE…………………………………………………..
4 MODELS, SELECTION, TECHNICAL SPECIFICATIONS………………
5 WIND TURBINE ASSEMBLY………………………………………………..
6 SYSTEM CONFIGURATIONS……………………………………………….
7 DEBUG AND TEST………………………………………………………….
8 MAINTENANCE…………………………………………………………….
9 TROUBLE SHOOTING……………………………………………………
10 PACKING, TRANSPORTATION AND STORAGE…………………………
APPENDIX I: THE WIND SCALE LIST

6
BEFORE INSTALLATION, PLEASE ENSURE ALL COMPONENTS IN CARTON ARE
FULLY MATCHED THE PACKING LIST, IF IN LACK OF ANY PARTS, PLEASE
CONTACT US IMMEDIATELY.
One ---- Wind Turbine Introduction
1.1 Blades: Patented blades with efficient twisted aerodynamic design are made with
Nylon and reinforced fiber glass materials by precision injection molding technology.
The blades are of exceptional consistency and aerodynamic outline with a mass
distribution that ensures the rotor operates with minimum noise and minimal vibration.
Tumo-Int wind turbine has very low start-up/cut-in wind speed and a high coefficient of
productivity, which is specially designed to prevent the blades from feathering post stall.
1.2 Generator: Made from high-quality rare earth permanent magnets material. The
wind turbine is of small size, light weight and high-efficiency power generation
characteristics. Unique electromagnetic design technique has endowed the wind
turbines in an excellent start performance, which effectively ensures Tumo-Int wind
turbine can be started up in a gentle breeze.
1.3 Body: Tumo-Int wind turbine, adopts high-quality aluminum alloy material and
stainless steel accessories, which is light weight. It has such high reliability that can be
applicable to various working conditions, such as severe climate, an ambient
temperature from -30 to 60 , high humidity, sand and salt ℃ ℃ corrosive environment as
well.
Tumo-Int wind turbine is elegant and easy to install, which makes you enjoy clean
energy in all-weather circumstances, as well as a joyful landscape.
Two ---- Siting
Small changes in wind speed and wind direction can have a dramatic effect on
power production. In general, the higher the tower, the greater the wind speed
and ultimately power production. Therefore, the siting of your wind turbine should
be carefully considered. Each installation is different and is often a compromise
among tower height, distance from the battery bank, local zoning requirements
and obstacles such as buildings and trees.
Specific requirements about installation and sitting of wind turbine are as follows:

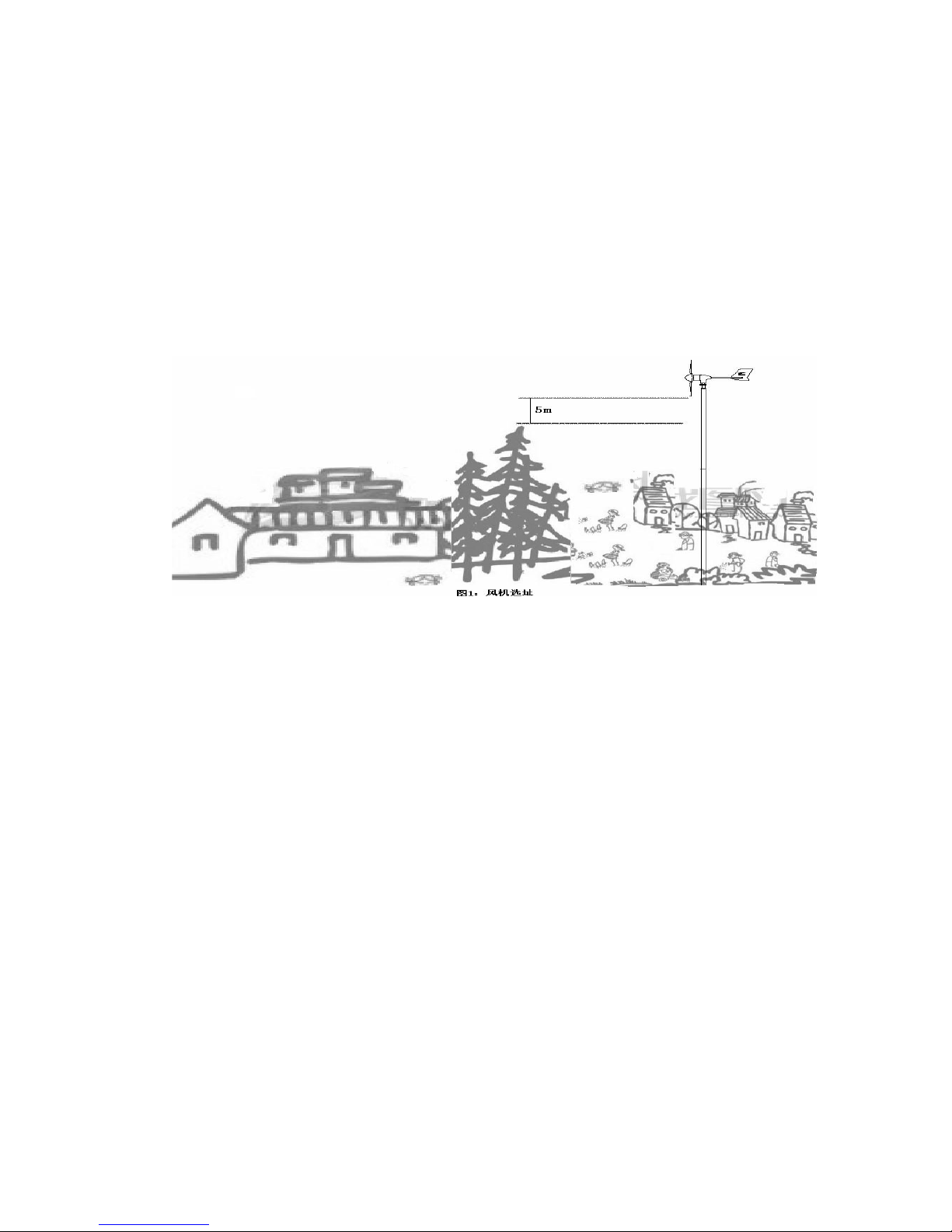

2.1 The minimum recommended tower height is 8m on open ground or 5m above
nearby obstructions (Fig. 1), there are no obstacles within 100 meters as far as
possible;

7
2.2 If install two wind turbines on one area, the distance between them is 8-10 times
of rotor diameter. Try to locate the wind turbine in the “cleanest” turbulent free air as
possible. Turbulence will reduce the efficiency of the wind turbine and may
accelerate wear on rotating components.
2.3 Less natural disaster places are preferred.
Safety must be the primary concern when selecting the mounting location. Even if
installing the wind turbine in a less than ideal location, don’t attempt to mount the
turbine while blades are spinning.
Fig.1
Three ---- Application Range
At present, Tumo-Int wind turbine has widely applied in:
3.1 Lighting System: city street lights, road lights, landscape lighting;
3.2 Highway Monitoring;
3.3 Telecommunication;
3.4 Offshore Oil Platform;
3.5 Isolated Island Desalination;
3.6 Wind Solar Spring System;
3.7 Power Supply System for Ship;
3.8 Power Supply System for Home;
3.9 Power Supply System for Farm.
Four ---- Models, Selection, Technical Specifications
4.1 Model: according to local natural resources, the user should choose the suitable
wind turbine.

8
4.2 Selection of Tumo-Int Wind Turbine
Tumo-Int wind turbine is applicable to various-climate regions. Please fully consider the
surrounding environment resources to bring the best performance while selection of
Tumo-Int wind turbine.
4.2.1 Wind Speed: low wind speed wind turbine could effectively utilize wind energy
from low wind speed region, it's recommended to use low wind speed model in no
hurricane areas with annual wind speed of less than 3.5m/s.
4.2.2 Environmental Temperature: it's recommended to use low-temperature type at
regions where minimum temperature is less than -10 .℃
4.3 Technical Specifications
Tumo-Int 3000W 5 blades wind turbine generator
Rotor diameter: 3.05m
Start-up wind speed: 2.5m/s
Cut-in wind speed: 3.0m/s
Rated wind speed: 12m/s
Rated power: 3000W
Rated voltage: DC 48V/110V
Blades no.: 5pcs
Survival wind speed: 50m/s
Over-speed protection: blade aerodynamic elastic,
electromagnetic braking and dump load
Certifications: CE、RoHS、ISO9001、ETL

9
Five --- Wind Turbine Assembly
Most of Tumo-Int wind turbine assembly has been finished in the factory; installation on
site is simpler, mainly including mounting blades on the hub, mounting wind turbine on the
tower, suspension setting on site and system wiring.
Tumo-Int wind turbine has different types, as well as mounting methods.
According to wind speed type, it can be divided into: low-wind speed 5 blades wind turbine
and high-wind speed 3 blades wind turbine;
According to charging type, it can be divided into: off-grid wind turbine and on-grid wind
turbine.
Please install the whole turbine in accordance with the following instructions of
corresponding type.
5.1 Tumo-Int 3000W Wind Turbine Generator (HYE MODEL) Installation Diagram

10

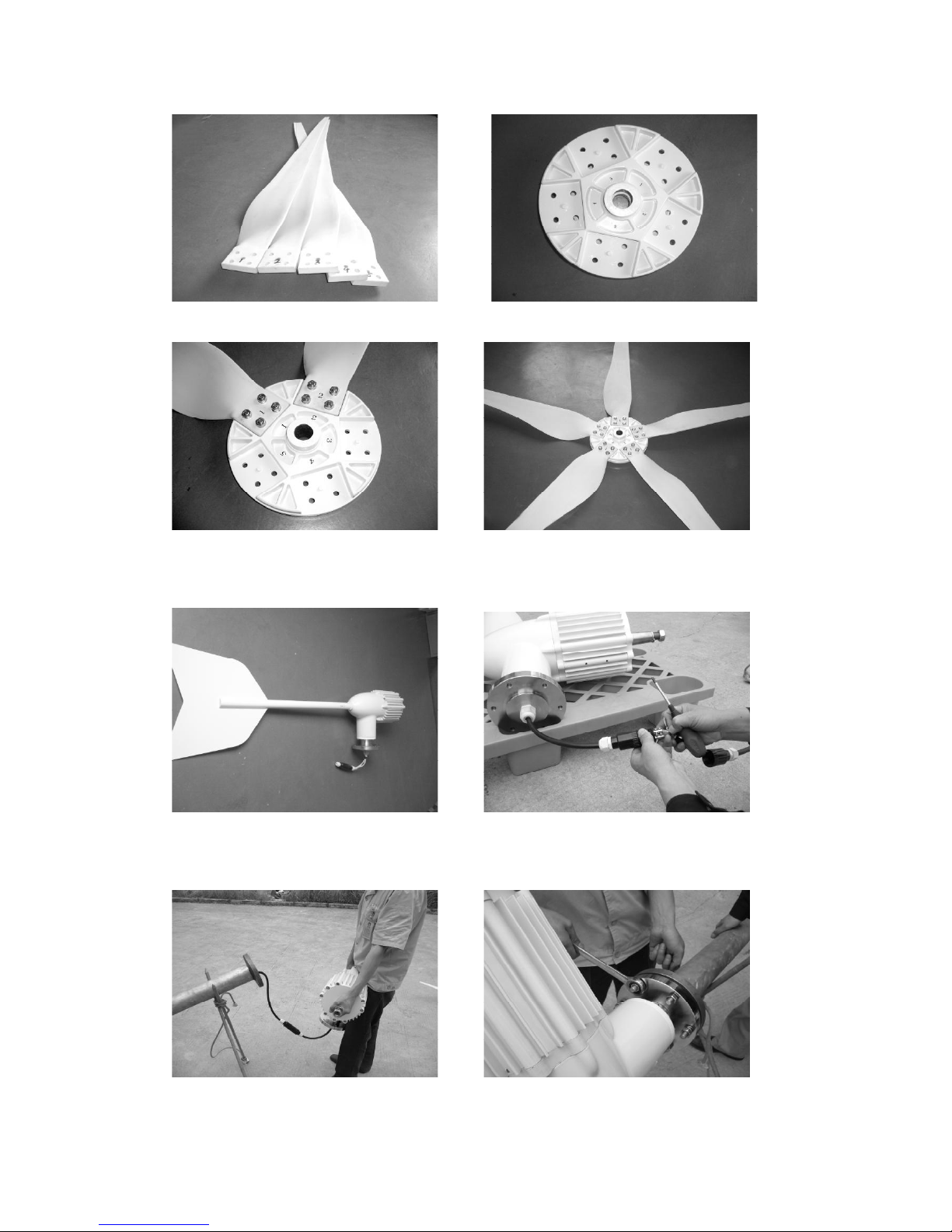

⑴ The blades (total five). ⑵ The hub of five blades.
⑶ One-to-one mounting blade on the hub ⑷ Completed pattern.
according to the number of blade and hub
and screw down the nuts.
⑸ The wind turbine. ⑹ Screwing out one terminal of cable cover
and connect the cables three-phase wire
with wind turbine three-phase wire.
⑺ Passing the cable through the tower. ⑻ Mounting flange and tower with locknuts.

11

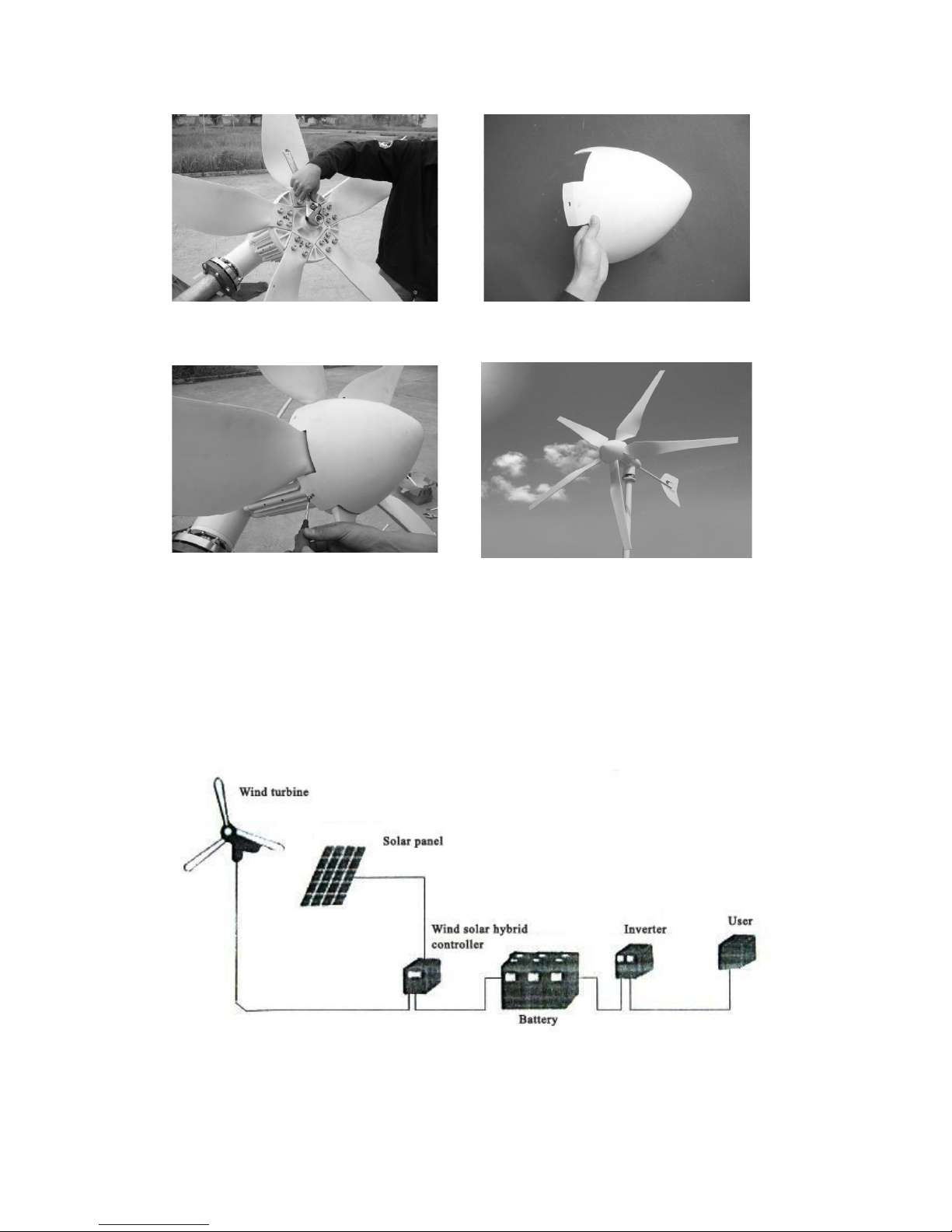

⑼ Mounting the hub with blades ⑽The front cover of five blades(nosecone)
onto the motor shaft.
⑾ Pressing the front cover ⑿Assembly finished(lightning rod is
onto the hub (strength equally). optional).
Six --- System Configurations
There are three common system configurations for Tumo-Int 3000W wind turbine:
(A) Wind and solar Tumo-Int hybrid power system for home:
(B) Wind turbine power system for home:

12
(C) On-grid system wiring diagram:
Tumo-Int wind and solar hybrid power system configuration introduction:
6.1 Wind and Solar hybrid Controller
Tumo-Int 3000W off-grid wind turbine uses off-grid controller, while on-grid types use
on-grid inverter.
Off-grid controller is divided into direct charging controller, wind and solar hybrid controller.
User can choose by the corresponding wind turbine. In general, Tumo-Int wind and solar
hybrid controller can be used the same as charging controller, however, charging
controller can not be used in wind and solar hybrid power system.
The main voltage specifications of on-grid inverter for Tumo-Int wind turbine is
AC110V/60Hz and AC220V/50Hz. User should reasonably choose on the basis of local
single-phase voltage class.
6.2 Inverter
For customers who need AC power, it is recommended to use AC220V/50Hz or

13
AC110V/60Hz inverter, the capacity should be determined according to maximum
electricity load.
6.3 Battery
There are many battery choices available –lead acid, absorbed glass mat (AGM), gel cell
and NiCad. The type of battery utilized will depend largely on the battery bank location
and cost. For battery installations where fumes can be safely ventilated and the potential
for acid leakage accommodated, the lead-acid battery is typically the most economical
choice.
200AH/12V batteries are recommended for Tumo-Int 2000W and Tumo-Int 3000W wind
turbine owners. Negative pole of the battery should be in a good grounding. The capacity
must be based on electricity load of the owners.
6.4 Solar Panel
The common solar panel models for wind and solar hybrid system have the
following standard:
Power（W) Voltage（Vdc）
Power（W) Voltage（Vdc）
60w 12 24 140w 12 24
75w 12 24 150w 12 24
80w 12 24 180w 12 24
100w 12 24 240w 12 24
120w 12 24
Remark: voltage is calculated by
battery voltage.
The capacity should be designed in accordance with wind turbine and local wind and
sun resources.
6.5 Wire Size
All electrical systems lose energy due to resistance in conductors: the wires.
Large wires have less resistance but can be considerably more costly. Resistance
losses will also increase with increasing current; therefore, if yours is a high wind site,
it may be worthwhile to go with a larger size wire to take advantage of the greater
power production potential of your site. Conversely, in low wind sites it may not be
cost effective to increase the wire size since power production will be low.
For selection of wire size, the following factors should be taken into consideration:
① Measuring the distance from the batteries to your Tumo-Int wind turbine. Be sure
to include height of the tower;
② Your system voltage;

14
③ Your system power distance.
For selection of wire size, the following factors should be followed:
① Practical and affordable;
② Satisfying using condition;
③ The positive pole of battery is red line, negative pole is black line(or blue line);
The following wiring sizes provide maximum annual energy losses of 5% or less for
sites with a 5.4m/s average wind speed (assuming the standard Rayleigh distribution
of wind speeds) which is sufficient for most sites.
Refer to the appropriate chart for your system voltage and number of turbines and select
the wire size.
A：12 Volt Systems, AWG/Metric Wire Size Unit: mm²
No. of
Turbines
0-9m
9-18m
18-27m
27-46m
46-58m
58-76m
76-95m
95-119m
119-152m
1 8/10 6/16 4/24 2/35 1/50 00/50 00/10 000/90 000/90
2 6/16 4/25 1/50 00/70 000/90
000/120
✪ ✪ ✪
3 4/25 2/35 0/50 000/90
000/120
✪ ✪ ✪ ✪
B：24 Volt Systems, AWG/Metric Wire Size Unit: mm²
No. of
Turbines
0-9m
9-18m
18-27m
27-46m
46-58m
58-76m
76-95m
95-119m
119-152m
1 14/2.5
12/4 10/6 8/10 6/16 4/50 4/10 4/90 2/90
2 12/4
8/10 6/16 4/25 4/25 2/35 2/35 1/50 0/50
3 10/6 8/10 6/16 4/25 2/35 2/35 1/50 0/50 00/10
C：48 Volt Systems, AWG/Metric Wire Size Unit: mm²
No. of Turbines 0-27m 27-76m 76-95m 95-152m
1 14/2.5mm² 12/4 mm² 6/16mm² 8/10mm²
2 12/4 mm² 8/10mm² 6/16mm² 4/25mm²
3 10/6mm² 8/10mm² 10/6mm² 4/25mm²
Seven --- Debug and Test
The operation of wind turbine system should be debugged after installation, the
requirements are as follows:
7.1 Make sure the functions of controller meet the requirements; the specification of
controller is matched with voltage and current of battery, solar panel, wind turbine, loads;
7.2 Wiring is in strict accordance with wiring requirements of controller. Firstly, connect to

15
battery and dumper, and then connect to small wind turbine and solar panel, at last
connect to load; take down connection in the reverse order. Positive and negative pole of
the battery, solar panel can not be reversed and short-circuited;
7.3 The wire leads of wind turbine and connection wires of battery should refer to 6.5
requirement and regulations;
7.4 Please read carefully about controller instructions to set the functions after the
completion of system wiring, such as model selection and regular time setting;
7.5 PV charging debug: In the light condition (output voltage of solar panel is greater than
that of battery), the controller’s PV indicator should be working (normal on or blinking),
measure output current by DC clamp meter, the current size depends on illumination
intensity and battery capacity;
7.6 Wind turbine charging debug: wind turbine operation is normal or not when it is windy,
while reach or exceed cut-in wind speed, the controller’s wind turbine indicator should be
working (normal on or blinking), measure output current by AC clamp meter, the current
size depends on wind speed and battery capacity;
7.7 Light-control function debug: measure battery voltage by multimetre to ensure battery
voltage is higher than over discharge recovery voltage, then set to light-control mode,
disconnect any wire of solar panel from controller, several minutes later, observe whether
the light of loads is on or not, it is normal if the light is on. Then connect the solar panel
wire with controller again, the load output is cut off a few minutes later and the light goes
out;
7.8 Time-control function debug: ensure battery voltage is higher than over discharge
recovery voltage, observe whether the lighting time of load output light is the same as that
of setting.
7.9 Detailed debug and test about on-grid wind turbine refer to on-grid inverter manual.
The controller specification and detailed debug methods are subject to controller manual.
Eight --- Maintenance
Although your high reliability of Tumo-Int wind turbine has been designed to run for long
periods without requiring any maintenance, reliability and performance will be enhanced if

16
you periodically inspect your system.
The following situations need regular maintenance:
No. Maintenance item After
storm
Every
six
months
Every a
year
Every
two
years
Every
five
years
1 Check the guy rope tightness of tower √ √
2 Check the working condition of the whole
system and connector tightness √ √
3 Maintain battery (refer to battery manual) √
4 Check all electrical connections to make
sure they are tight and free from corrosion.
√ √
5 Wash off any built-up dirt or debris from the
blades and check blades for chips or nicks
√ √
6 Check damaged degree of nosecone √ √
7 Replace blades
8 Replace battery √
Remark: “√” indicates maintenance.
Nine --- Trouble Shooting
9.1 Wind turbine’s Abnormal Vibration
Wind turbine vibration is mainly caused by the following reasons:
① Guy rope is loose and needs to be tightened;
② The blades mounting bolts on are loose and need to be tightened;
③ The surface of blades freeze and needs to be removed;
④ The blades have been distorted, defected and need to be replaced by contact
of supplier.
CAUTION: Turbine operation should be stopped as soon as abnormal vibration
happened, and then solve problems.
9.2 Abnormal Noise
Besides wind turbine running well creates noise, it is probably cause by friction
between rotor and stator, bearing damaged, in case of these situations, please contact
supplier to solve problems.
9.3 Rotational Speed Dramatically Decreases
Wind turbine rotational speed dramatically decreases under heavy wind condition,
which can be mainly divided into normal deceleration and abnormal deceleration:

17
① Turbine normal deceleration is mainly due to wind turbine over-voltage protection,
dump load, electromagnetic braking and normal short circuit, which is wind turbine
regular work;
② Turbine abnormal deceleration is mainly due to friction between rotor and stator,
bearing damaged, generator burned, in case of these situations, please contact
supplier to solve problems.
9.4 Wind Turbine Insensitive to Adjust Blades Direction
Tumo-Int wind turbine mainly adopts tail yaw to adjust the blades direction, if it is not
sensitive to adjust blades direction, which is because the turbine alternator shaft is
damaged, the tower is out of vertical, in case of these situations, the shaft should be
replaced and tower vertically must be adjusted.
9.5 Generator Abnormal AC Output
Generator abnormal AC output mainly is divided into:
① Generator output voltage is low, which is due to low wind speed or long connection
line, small wire size results in high pressure drop, therefore, selection of wire size
should refer to 6.5 regulations and requirements.
② Generator three-phase output voltage is imbalanced. Voltage unbalanced rate shall
not exceed 10% (same wind speed or rotational speed) in accordance with related
national standards, if exceeded, the generator fails, please contact supplier to solve
problems.
③ Generator has no output voltage under heavy condition, check whether generator
is normal short-circuited or not and three-phase resistance values are balanced or not
(uncharged operation), if imbalanced, the generator fails, please contact supplier to
solve problems.
9.6 Generator Has AC Output but No DC Output
Off-grid wind turbine charges battery, wind turbine transfers AC to DC by controller,
the DC voltage must be higher than battery voltage, or turbine will not generate power.
If AC input voltage of the generator is normal (voltage higher than battery voltage after
rectification) while there is no current display on DC terminal, check whether the
controller’s wind turbine indicator work or not (blinking), connection is normal or not,
connection terminals are burned or not, fuses are burned out or not etc. Analyze these

18
situations and get rid of the troubles. In the event of burning of controller, please
contact supplier to solve problems.
9.7 Solar Output Voltage Too Low or No Output in Wind and Solar hybrid System
Check whether solar panel lead is short circuit, circuit break, open circuit or not.
9.8 Light Source Is Not On in Wind and Solar hybrid System
This situation is mainly cause by:
① Light source is damaged and need to be replaced;
② Battery is under voltage, controller does not supply power, which is system normal
protection;
③ Controller is burned out and needs to be replaced;
④The mode setting on the controller is not correct and needs to be reset according to
controller manual.
9.9 Wind Turbine Does Not Charge Battery
This situation is mainly caused by:
① Wind speed is too small to reach cut in state, output DC voltage of wind turbine is
lower than battery voltage;
② Type of battery is not matched with controller, battery should be replaced (commonly
use lead acid battery);
③ Burning of controller results in not charging battery, controller should be replaced;
④ Battery is fully charged, controller is over-voltage protection.
9.10 On-grid inverter faults and trouble shooting refers to inverter fault codes and
solutions.
Ten --- Packing, Transportation and Storage
10.1 Tumo-Int wind turbine components are packaged separately in accordance with
national standard packaging requirements.
10.2 Tumo-Int wind turbine meets transportation requirements of all components.
10.3 Tumo-Int wind turbine meets storage requirements of all components.

19
10.4 The packaging design of Tumo-Int wind turbine meets the following criteria:
GB/T 4857.3 Transport Packages Stacking Test Methods Using a Static Load
GB/T 4857.5 Transport Packages Drop Test Methods
GB/T 1974-88 General Specification for Transport Packages of General Cargo
Recommended handling ways:
Fort lift work Manual work
APPENDIX I: THE WIND SCALE LIST
