Turbosound iQ Series User manual

Quick Start Guide
iQ Brackets
iQ15-WB, iQ12-WB, iQ10-WB, iQ8-WB
Steel Wall Brackets for iQ Series Loudspeakers

2iQ Brackets Quick Start Guide 3
Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other TURBOSOUND product,
please visit our website at turbosound.com.
Unpacking the Brackets
After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim.
Please retain all packaging in case of futurere-shipment.
The graphics below show the assembly of the optional mounting brackets (iQ8-WB, iQ10-WB, iQ12-WB and iQ15-WB). These mounting brackets are designed to mount
one speaker each only. Do not secure any additional loads of any kind. These brackets are intended solely for use with iQ speakers when assembled in accordance with
the following instructions:

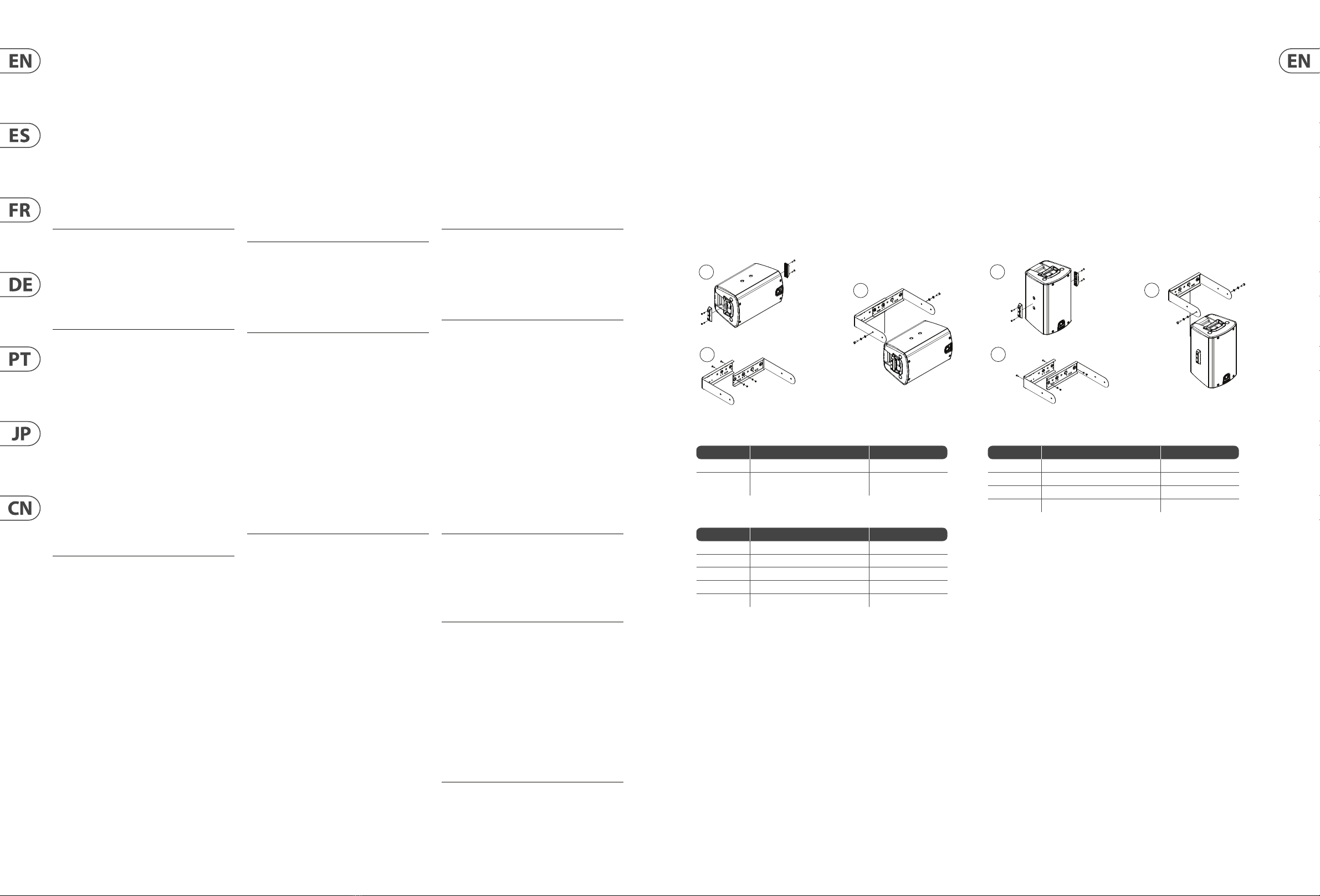

iQ8-WB Yoke Mounting
iQ8-WB YOKE HORIZONTAL MOUNTING iQ8-WB YOKE VERTICAL MOUNTING
1
3
2
1
3
2
Step 1: Secure Yoke Spacers
ITEM DESCRIPTION QUANTITY
1 Yoke spacer 2
2M5 x 25 mm screw with nylon thread
locking 4
Step 2: Assemble Steel Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket 1 1
2 Steel yoke bracket 2 1
3 M5 x 15 mm screw 2
4 M5 plain washer 2
5 M5 nylon locking nut 2
Step 3: Place Speaker Into Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket assembly 1
2 M8 x 25 mm screw 2
3 M8 plain washer 2
4 M8 spring lock washer 2
LEGAL DISCLAIMER
MUSIC Tribe accepts no liability for any loss which
may be suered by any person who relies either
wholly or in part upon any description, photograph,
or statement contained herein.Technical specications,
appearances and other information are subject to
change without notice. All trademarks are the property
of their respective owners. MIDAS, KLARKTEKNIK,
LAB GRUPPEN, LAKE, TANNOY,TURBOSOUND,
TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA and
COOLAUDIO are trademarks or registered trademarks of
MUSIC Tribe Global Brands Ltd. © MUSIC Tribe Global
Brands Ltd. 2018 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions
and additional information regarding MUSIC Tribe’s
LimitedWarranty, please see complete details online at
musictri.be/warranty.
NEGACIÓN LEGAL
MUSIC Tribe no admite ningún tipo de responsabilidad
por cualquier daño o pérdida que pudiera sufrir
cualquier persona por conar total o parcialmente en la
descripciones, fotografías o armaciones contenidas en
este documento. Las especicaciones técnicas, imágenes
y otras informaciones contenidas en este documento
están sujetas a modicaciones sin previo aviso. Todas las
marcas comerciales que aparecen aquí son propiedad de
sus respectivos dueños. MIDAS, KLARK TEKNIK,
LAB GRUPPEN, LAKE, TANNOY,TURBOSOUND,
TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA
y COOLAUDIO son marcas comerciales o marcas
registradas de MUSICTribe Global Brands Ltd.
© MUSIC Tribe Global Brands Ltd. 2018 Reservados
todos los derechos.
GARANTÍA LIMITADA
Si quiere conocer los detalles y condiciones aplicables
de la garantía así como información adicional sobre la
Garantía limitada de MUSICTribe, consulte online toda
la información en la web musictri.be/warranty.
DÉNI LÉGAL
MUSIC Tribe ne peut être tenu pour responsable pour
toute perte pouvant être subie par toute personne
se ant en partie ou en totalité à toute description,
photographie ou armation contenue dans ce
document. Les caractéristiques, l’apparence et d’autres
informations peuvent faire l’objet de modications sans
notication.Toutes les marques appartiennent à leurs
propriétaires respectifs. MIDAS, KLARKTEKNIK,
LAB GRUPPEN, LAKE, TANNOY,TURBOSOUND,
TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA et
COOLAUDIO sont des marques ou marques déposées de
MUSIC Tribe Global Brands Ltd. © MUSIC Tribe Global
Brands Ltd. 2018Tous droits réservés.
GARANTIE LIMITÉE
Pour connaître les termes et conditions de garantie
applicables, ainsi que les informations supplémentaires
et détaillées sur la Garantie Limitée de MUSICTribe,
consultez le site Internet musictri.be/warranty.
HAFTUNGSAUSSCHLUSS
MUSIC Tribe übernimmt keine Haftung fürVerluste,
die Personen entstanden sind, die sich ganz oder
teilweise auf hier enthaltene Beschreibungen, Fotos
oder Aussagen verlassen haben.Technische Daten,
Erscheinungsbild und andere Informationen können
ohne vorherige Ankündigung geändert werden. Alle
Warenzeichen sind Eigentum der jeweiligen Inhaber.
MIDAS, KLARKTEKNIK, LAB GRUPPEN, LAKE, TANNOY,
TURBOSOUND, TC ELECTRONIC,TC HELICON, BEHRINGER,
BUGERA und COOLAUDIO sind Warenzeichen oder
eingetragene Warenzeichen der MUSIC Tribe Global
Brands Ltd. © MUSICTribe Global Brands Ltd. 2018
Alle Rechte vorbehalten.
BESCHRÄNKTE GARANTIE
Die geltenden Garantiebedingungen und zusätzliche
Informationen bezüglich der von MUSIC Tribe
gewährten beschränkten Garantie nden Sie online
unter musictri.be/warranty.
LEGAL RENUNCIANTE
O MUSIC Tribe não se responsabiliza por perda alguma
que possa ser sofrida por qualquer pessoa que dependa,
seja de maneira completa ou parcial, de qualquer
descrição, fotograa, ou declaração aqui contidas. Dados
técnicos, aparências e outras informações estão sujeitas
a modicações sem aviso prévio. Todas as marcas são
propriedade de seus respectivos donos. MIDAS,
KLARK TEKNIK, LAB GRUPPEN, LAKE, TANNOY,
TURBOSOUND, TC ELECTRONIC,TC HELICON, BEHRINGER,
BUGERA e COOLAUDIO são marcas ou marcas registradas
do MUSIC Tribe Global Brands Ltd. © MUSIC Tribe Global
Brands Ltd. 2018Todos direitos reservados.
GARANTIA LIMITADA
Para obter os termos de garantia aplicáveis e condições
e informações adicionais a respeito da garantia limitada
do MUSIC Tribe, favor vericar detalhes na íntegra
através do website musictri.be/warranty.
法的放棄ここに含まれる記述、写真、意見の全体または一部に依拠して、いかなる人が損害を生じさせた場合にも、MUSIC Tribeは一切の賠償責任を負いません。技術仕様、外観およびその他の情報は予告なく変更になる場合があります。商標はすべて、それぞれの所有者に帰属します。MIDAS、KLARK TEKNIK、LAB GRUPPEN、LAKE、TANNOY、TURBOSOUND、TC ELECTRONIC、TC HELICON、BEHRINGER、BUGERAおよびCOOLAUDIO はMUSIC Tribe
Global Brands Ltd.の商標または登録商標です。© MUSIC Tribe Global Brands Ltd.
2018無断転用禁止。限定保証適用される保証条件とMUSIC Tribeの限定保証に関する概要については、オンライン上musictri.be/warrantyにて詳細をご確認ください。法律声明对于任何因在此说明书提到的全部或部份
描述、 图片或声明而造成的损失, MUSIC Tribe
不负任何责任。 技术参数和外观若有更
改, 恕不另行通知。 所有的商标均为其
各自所有者的财产。 MIDAS, KLARK TEKNIK,
LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND,
TC ELECTRONIC, TC HELICON, BEHRINGER, BUGERA
和 COOLAUDIO 是 MUSIC Tribe Global Brands Ltd.
公司的商标或注册商标。 © MUSIC Tribe Global
Brands Ltd. 2018 版权所有。
保修条款有关音乐集团保修的适用条款及其它相关
信息, 请登陆 musictri.be/warranty 网站查看完
整的详细信息。

4iQ Brackets Quick Start Guide 5
iQ8-WB Mounting Options
CEILING MOUNTED WALL MOUNTED
Step 1: Secure Yoke Spacers
ITEM DESCRIPTION QUANTITY
1 Yoke spacer 2
2M5 x 25 mm screw with nylon thread
locking 4
Step 2: Assemble Steel Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket 1 1
2 Steel yoke bracket 2 1
3 M5 x 15 mm screw 4
4 M5 plain washer 4
5 M5 nylon locking nut 4
Step 3: Place Speaker Into Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket assembly 1
2 M8 x 25 mm screw 2
3 M8 plain washer 2
4 M8 spring lock washer 2
Step 1: Secure Yoke Spacers
ITEM DESCRIPTION QUANTITY
1 Yoke spacer 2
2M5 x 25 mm screw with nylon thread
locking 4
Step 2: Assemble Steel Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket 1 1
2 Steel yoke bracket 2 1
3 Steel yoke bracket 3 1
4 M6 plain washer 6
5 M6 x 16 mm screw 6
6 M6 nylon locking nut 6
Step 3: Place Speaker Into Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket assembly 1
2 M8 x 25 mm screw 2
3 M8 plain washer 2
4 M8 spring lock washer 2
iQ10-WB Mounting Options
CEILING MOUNTED WALL MOUNTED
NOTE: For iQ8 and iQ10, the nished bracket requires only 2 pieces, while the iQ12 and iQ15 bracket requires 3 pieces.
iQ10-WB Yoke Mounting
iQ10-WB YOKE HORIZONTAL MOUNTING iQ10-WB YOKE VERTICAL MOUNTING
1
3
2
1
3
2
iQ12-WB Yoke Mounting
iQ12-WB YOKE HORIZONTAL MOUNTING iQ12-WB YOKE VERTICAL MOUNTING
1
3
2
1
3
2

6iQ Brackets Quick Start Guide 7
iQ15-WB Mounting Options
CEILING MOUNTED WALL MOUNTED
iQ12-WB Mounting Options
CEILING MOUNTED WALL MOUNTED
Step 1: Secure Yoke Spacers
ITEM DESCRIPTION QUANTITY
1 Yoke spacer 2
2M5 x 25 mm screw with nylon thread
locking 4
Step 2: Assemble Steel Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket 1 1
2 Steel yoke bracket 2 1
3 Steel yoke bracket 3 1
4 M6 plain washer 6
5 M6 x 16 mm screw 6
6 M6 nylon locking nut 6
Step 3: Place Speaker Into Yoke Bracket
ITEM DESCRIPTION QUANTITY
1 Steel yoke bracket assembly 1
2 M8 x 25 mm screw 2
3 M8 plain washer 2
4 M8 spring lock washer 2
IMPORTANT NOTE: The mounting of a permanently installed sound system may be dangerous unless undertaken by qualied personnel with the required experience and
certication to perform the necessary tasks. Walls, oors or ceilings must be capable of safely and securely supporting the actual load. Themounting accessory used must be
safely and securely xed both to the loudspeaker and to the wall, oor or ceiling.
When mounting rigging components on walls, oors or ceilings, ensure that all xings and fasteners used are of an appropriate size and load rating. Wall and ceiling
claddings, and the construction and composition of walls and ceilings, all need to be taken into account when determining whether a particular xing arrangement can be
safely employed for a particular load. Cavity plugs or other specialist xings, if required, must be of an appropriate type, and must be tted and used in accordance with the
maker’sinstructions. When suspending the components a secondary safety method should be used in accordance with local laws and standards.
The operation of your speaker cabinet as part of a own system, if installed incorrectly and improperly, canpotentially expose persons to serious health risks and
even death. In addition, please ensure that electrical, mechanical and acoustic considerations are discussed with qualied and certied (by local state or national
authorities) personnel prior to any installation or ying.
Make sure that speaker cabinets are set up and own by qualied and certied personnel only, using dedicated equipment and original parts and components
delivered with the unit. If any parts or components are missing please contact your Dealer before attempting to set up the system.
Be sure to observe the local, state and other safety regulations applicable in your country. MUSIC Group, including the MUSIC Group companies listed on the enclosed
“Service Information Sheet”, assumes no liability for any damage or personal injury resulting from improper use, installation or operation of the product. Regular
checks must be conducted by qualied personnel to ensure that the system remains in a secure and stable condition. Make sure that, where the speaker is own,
the area underneath the speaker is free of human trac. Do not y the speaker in areas that can be entered or used by members of the public.
Speakers create a magnetic eld, even if not in operation. Therefore, please keep all materials that can be aected by such elds (discs, computers, monitors, etc) at a
safe distance. A safe distance is usually between 1 and 2 metres.
iQ15-WB Yoke Mounting
iQ15-WB YOKE HORIZONTAL MOUNTING iQ15-WB YOKE VERTICAL MOUNTING
1
3
2
1
3
2

8iQ Brackets Quick Start Guide 9

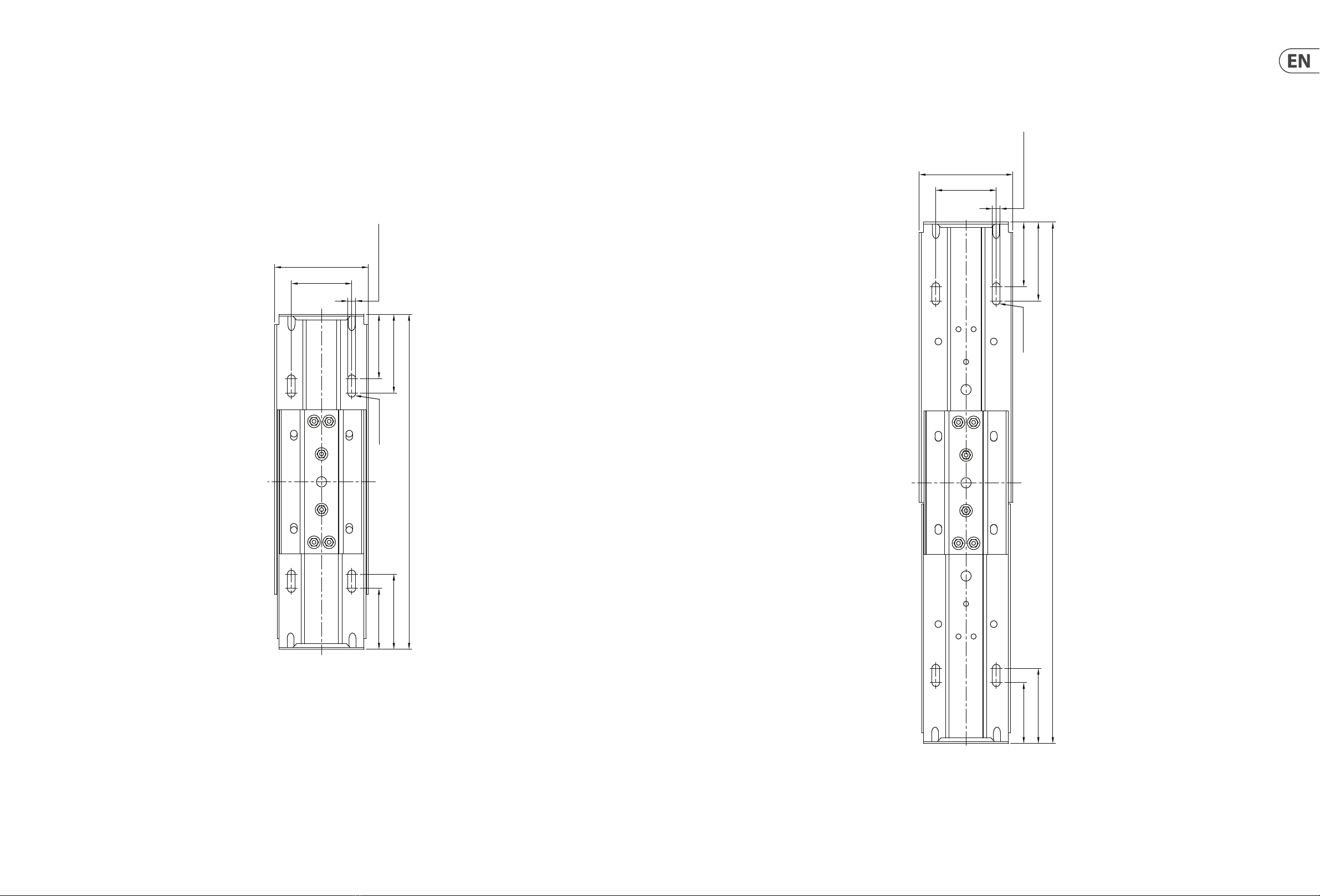

iQ8-WB VERTICAL MOUNTING
M8 TYP
CL
324 [12.8]
100 [3.9]
199 [7.8]
56 [2.2]
9.9 [0.39] TYP 155 [6.1]

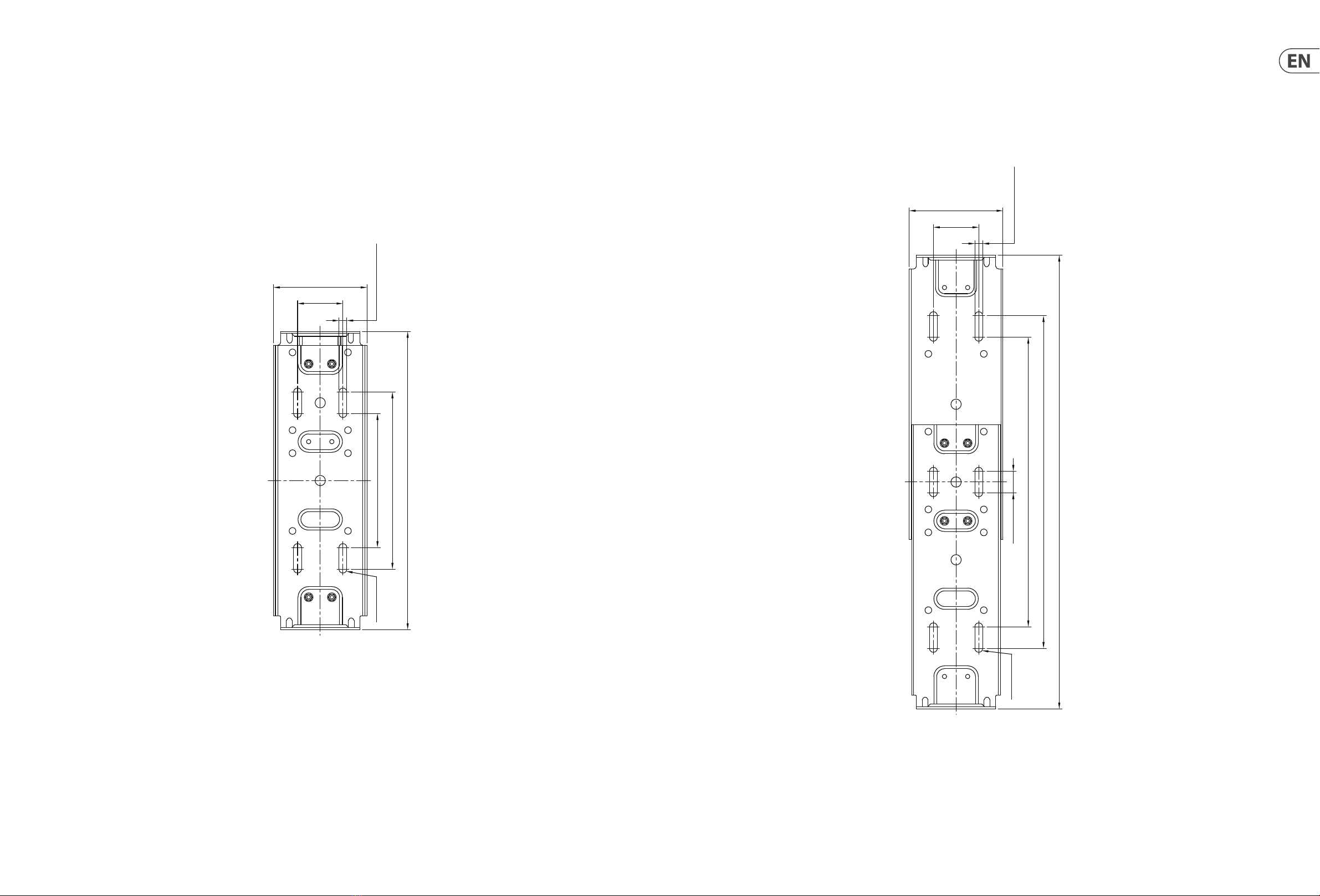

iQ8-WB Drilling Plan
iQ8-WB HORIZONTAL MOUNTING
M8 TYP
CL
100 [3.9]
501 [19.7]
22 [0.9]
333 [13.1] 377 [14.8]
9.9 [0.39] TYP
56 [2.2]

10 iQ Brackets Quick Start Guide 11

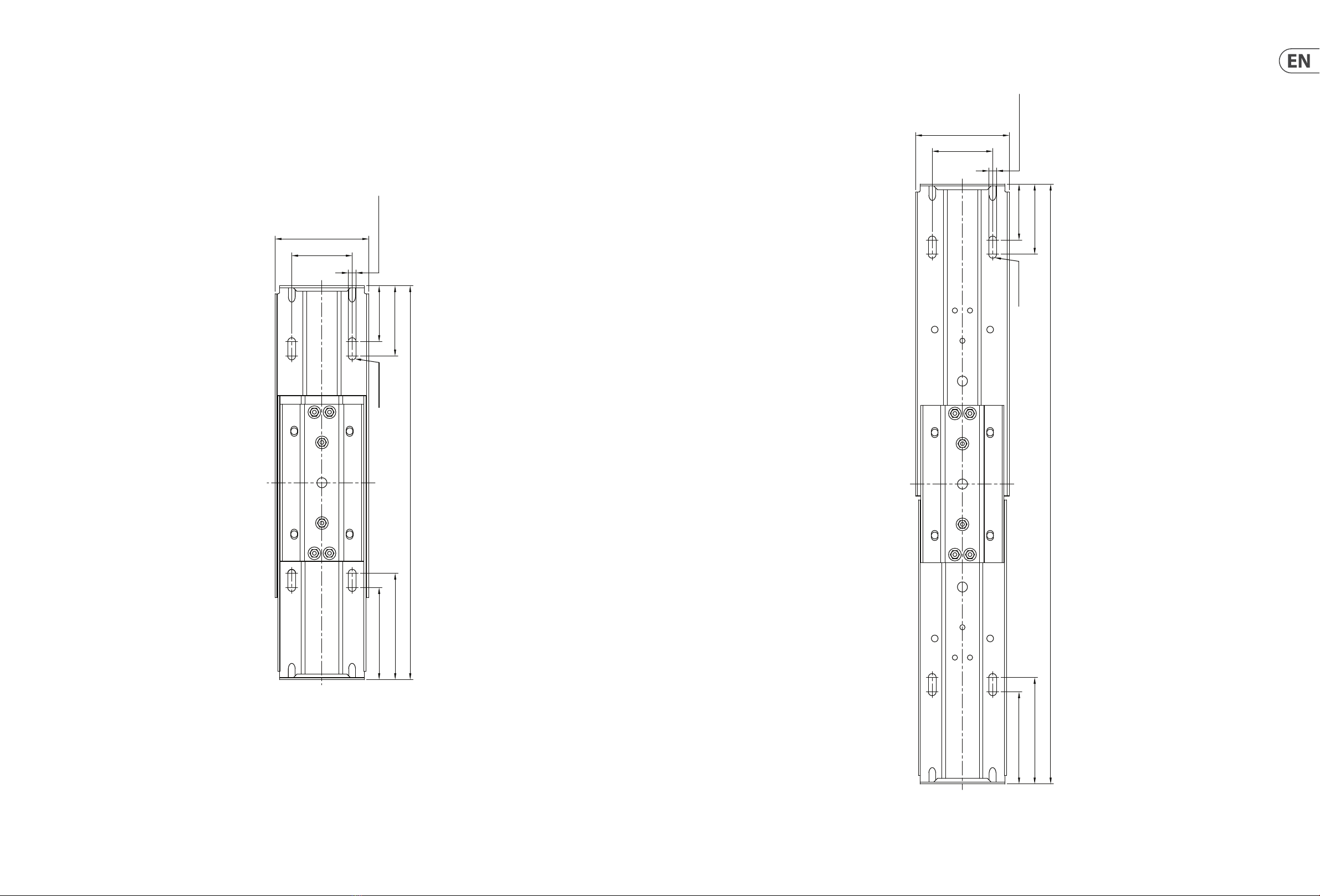

iQ10-WB Drilling Plan
iQ10-WB VERTICAL MOUNTING
M8 TYP
CL
223 [8.8]
169 [6.6]
376 [14.8]
118 [4.6]
57 [2.2]
9.9 [0.39] TYP
iQ10-WB HORIZONTAL MOUNTING
M8 TYP
CL
572 [22.5]
118 [4.6]
9.9 [0.39] TYP
57 [2.2]
419 [16.5]
27 [1.1]
365 [14.4]

12 iQ Brackets Quick Start Guide 13
iQ12-WB Drilling Plan
iQ12-WB VERTICAL MOUNTING
M8 TYP
CL
81 [3.2]
99 [3.9]
118 [4.6]
76 [3.0]
9.9 [0.39] TYP
422 [16.6]
77 [3.0]
95 [3.7]
iQ12-WB HORIZONTAL MOUNTING
M8 TYP
CL
657 [25.9]
77 [3.0]
95 [3.7]
81 [3.2]
99 [3.9]
76 [3.0]
9.9 [0.39] TYP
118 [4.6]

14 iQ Brackets Quick Start Guide 15
iQ15-WB Drilling Plan
iQ15-WB VERTICAL MOUNTING
CL
M8 TYP
496 [19.5]
70 [2.8]
88 [3.5]
116 [4.6]
134 [5.3]
118 [4.6]
76 [3.0]
9.9 [0.39] TYP
iQ15-WB HORIZONTAL MOUNTING
CL
M8 TYP
756 [29.8]
70 [2.8]
88 [3.5]
116 [4.6]
134 [5.3]
9.9 [0.39] TYP
76 [3.0]
118 [4.6]
