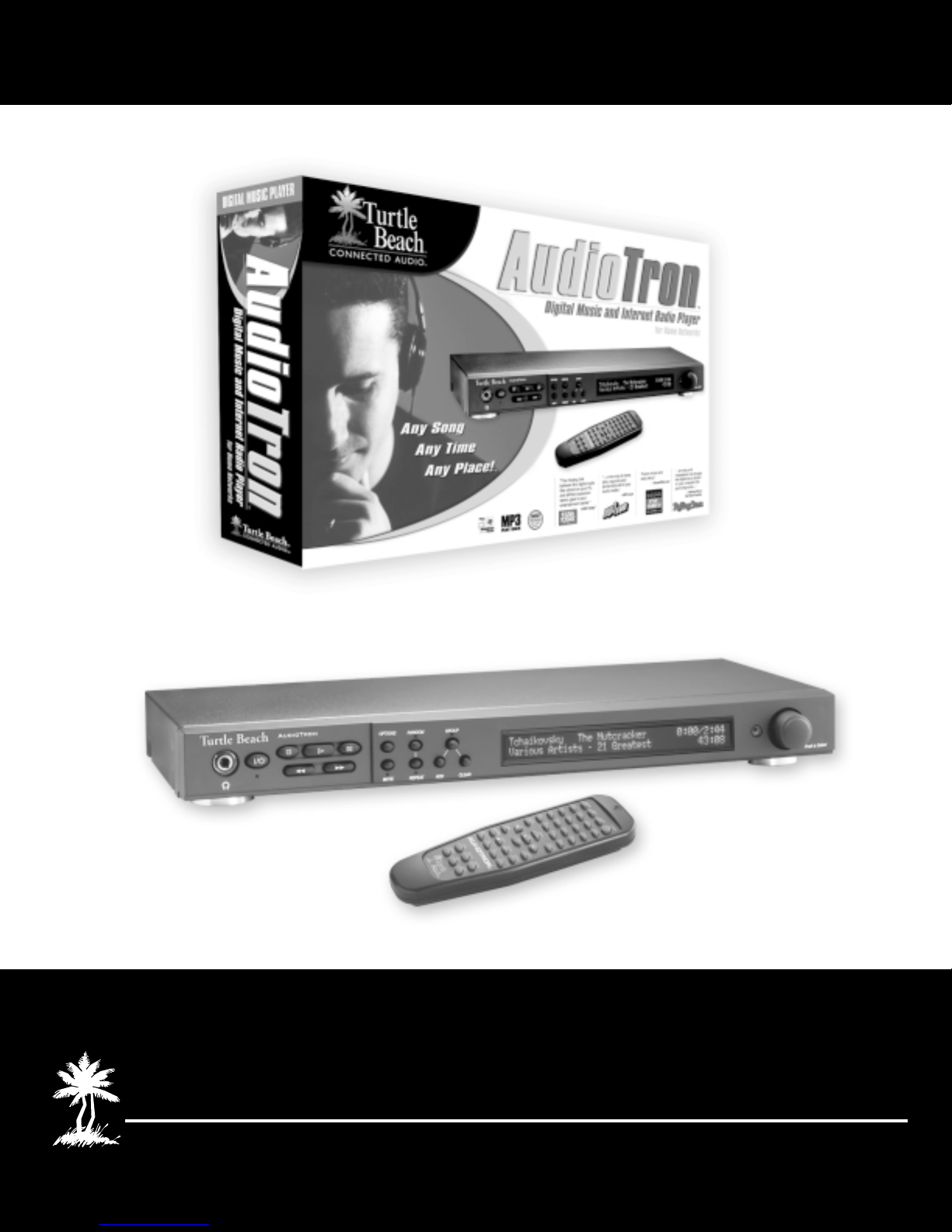

Turtle Beach AudioTran User manual

TM
CONNECTED AUDIO TM
Turtle Beach TM
AudioTron
Setup Guide
Digital Music Player for Home Networks

AudioTron™Setup Guide - Table of Contents
Notices ....................................................................................................................................................... 1
Important Safety Information...................................................................................................................................... 1
Introducing AudioTron................................................................................................................................ 2
Getting Started ........................................................................................................................................... 3
Package Contents...................................................................................................................................................... 3
AudioTron Options ..................................................................................................................................................... 3
System Requirements................................................................................................................................................ 4
AudioTron Accessory Software Applications ............................................................................................................. 4
Controlling AudioTron ................................................................................................................................ 5

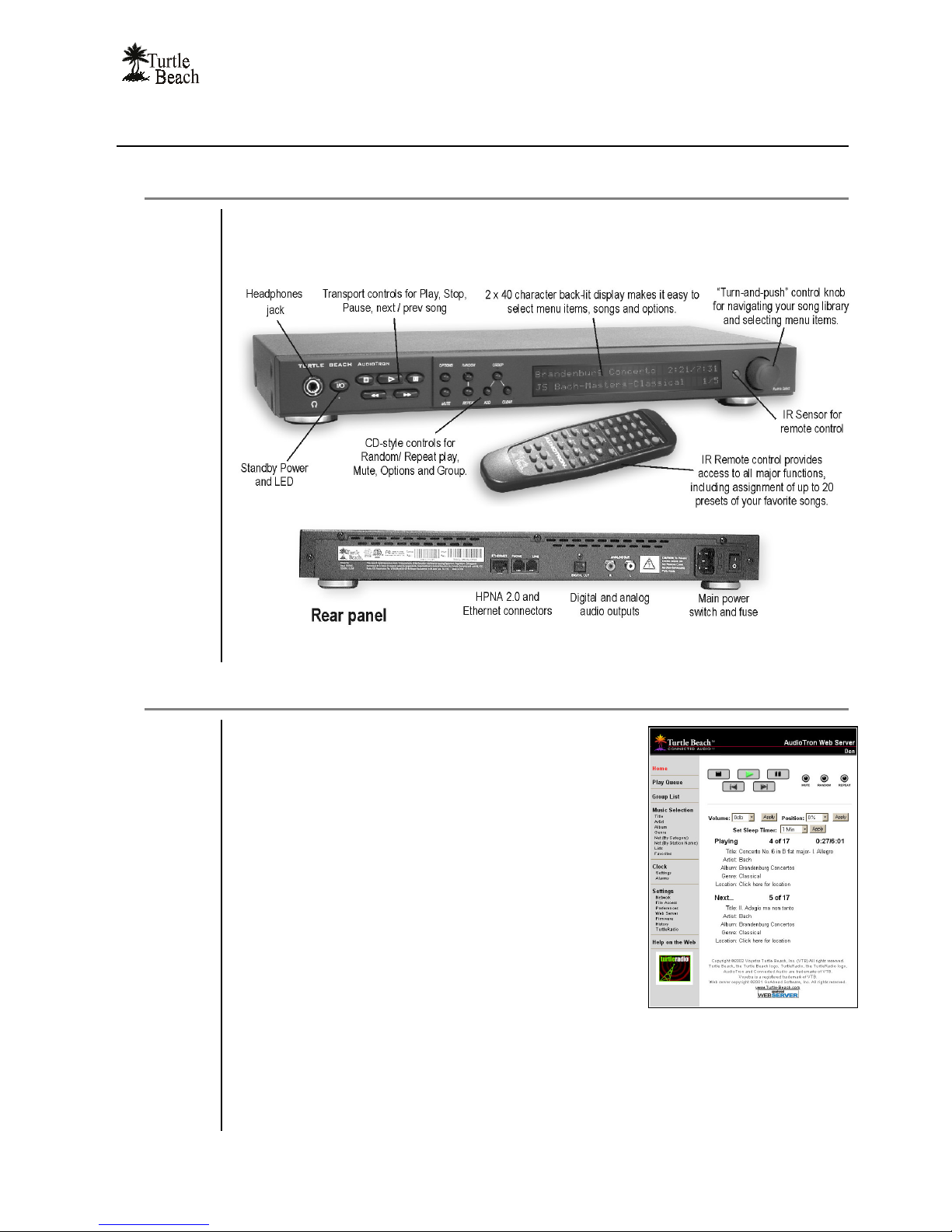

Front Panel, Rear Panel and Remote Control ........................................................................................................... 5
Web Server ................................................................................................................................................................ 5
AudioTron Setup Procedure Overview....................................................................................................... 7
Step 1: Installing the CD and Connecting AudioTron................................................................................. 8
Installing the AudioTron CD ....................................................................................................................................... 8
Connecting AudioTron to the Network....................................................................................................................... 8

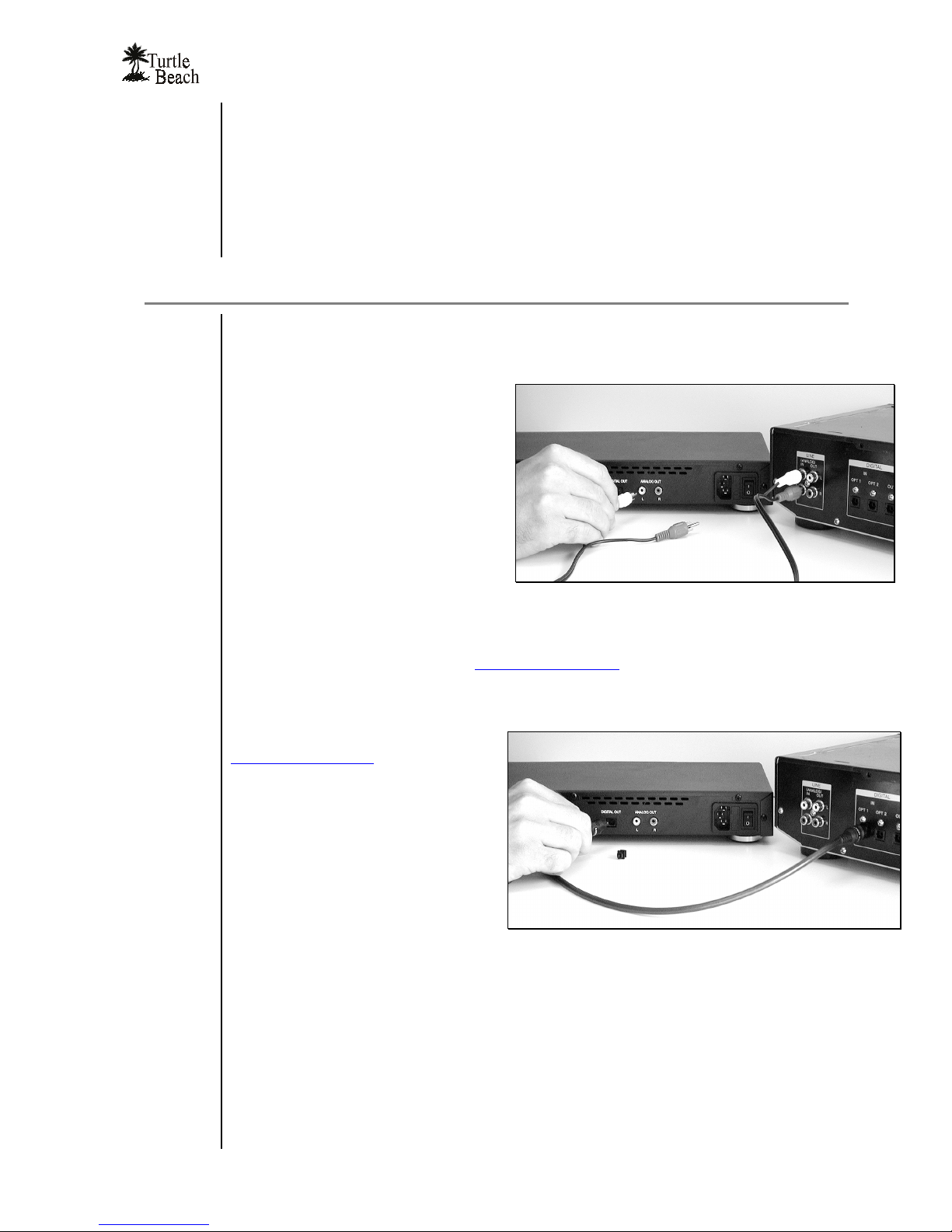

Connecting AudioTron’s Audio Outputs..................................................................................................................... 9
Turning on AudioTron’s Power ................................................................................................................................ 10
Step 2: Configuring AudioTron with the Setup Utility ............................................................................... 11
Setup Utility Advanced Options ............................................................................................................................... 15
Step 3: Configuring AudioTron to Play Internet Radio ............................................................................. 16
About Internet Radio Broadcasts ............................................................................................................................. 16
Accessing the Internet on a Network ....................................................................................................................... 17
Using the Setup Utility and Web Server to configure Internet Radio....................................................................... 18
Listening to your Music Library ................................................................................................................ 21
Main Menu Display .................................................................................................................................................. 21
Song Playback Display ............................................................................................................................................ 21
Song Position Display .............................................................................................................................................. 22
Playback Volume Display ........................................................................................................................................ 22
Play Queue .............................................................................................................................................................. 22
Group List ................................................................................................................................................................ 23
Managing Your Music Library with AudioStation ..................................................................................................... 23
Front Panel Menu Modes......................................................................................................................... 24
AudioTron Digital Music System Configurations ...................................................................................... 25
Operation Tips.......................................................................................................................................... 29
Network Troubleshooting Tips ................................................................................................................. 31
General Network Troubleshooting Tips ................................................................................................................... 31
Checklist for Ethernet networks ............................................................................................................................... 31
Checklist for HPNA 2.0 networks............................................................................................................................. 32
Product Specifications.............................................................................................................................. 33
Regulatory Compliance Information......................................................................................................... 34
Contacting Turtle Beach........................................................................................................................... 35
Technical Support .................................................................................................................................................... 35
Software Product ID Number
The software Product ID Number can be found on the software CD sleeve. You will need this
number when you install the software, if you phone for technical support and to register your
AudioTron.
Please copy this number below and keep it in a safe place so you will have it for future
reference. (Note: The number may have either three or four digits in the last group):

AudioTron Setup Guide
Page 1
Notices
AudioTron Setup Guide, Version 3.0; May 2002
Copyright © 2002 Voyetra Turtle Beach, Inc. All rights reserved.
No part of this publication may be reproduced or transmitted by any means or in any form, without prior written consent from Voyetra Turtle Beach, Inc. (“VTB”).
In no event will VTB be liable for direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual,
even if advised of the possibility of such damages. In the interest of continued product development, VTB reserves the right to make improvements to this
manual and the products it describes at any time, without notices or obligation.
Turtle Beach, the Turtle Beach Logo and AudioTron are trademarks of Voyetra Turtle Beach, Inc. AudioStation, the Voyetra logo and Voyetra
are registered trademarks of Voyetra Turtle Beach, Inc. CDDB-Enabled, CDDB, and the CDDB logo are trademarks of Gracenote,
Microsoft, Windows and Windows Media are trademarks or registered trademarks of Microsoft Corporation. All other trademarks are the
property of their respective holders and are hereby acknowledged.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and THOMSON Multimedia. Supply of the MP3 functionality in this
product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in real
time broadcasting (terrestrial, satellite, cable and/or any other media) or broadcasting via Internet and/or other networks, including, but not
limited to, intranets or in pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit
http://www.mp3licensing.com.
Important Safety Information
Your Turtle Beach™ AudioTron is designed and tested to meet the latest standards for safety of digital music
technology equipment. However, to ensure safe use of this product, it is important that the safety instructions
marked on the product and in the documentation are followed. Always follow these instructions to help guard
against personal injury and damage to your product:
•Read and follow all instructions marked on the product and in the documentation before you operate your
system. Retain all safety and operating instructions for future use. Do not use this product near water or a
heat source such as a radiator. Set up the system on a stable work surface. The product should be
operated only from the type of power source indicated on the rating label.
•Openings in the product case are provided for ventilation. Do not block or cover these openings. Make
sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you
set up your work area. Never insert objects of any kind into the ventilation openings.
•This product is equipped with a three-conductor power cord to make sure that the product is properly
grounded when in use. The plug on this cord fits only into a grounding-type outlet. This is a safety feature.
If you are unable to insert the plug into an outlet, contact an electrician to install the appropriate outlet. If
you use an extension cord with this product, make sure that the total ampere rating on the products
plugged into the extension cord does not exceed the extension cord ampere rating. Do not walk on the
power cord or allow anything to rest on it.
•Do not spill anything on the product. The best way to avoid spills is to avoid eating and drinking near the
product. To avoid electrical shock, always unplug all cables from product before cleaning the product.
•When the product is turned off, a small amount of electrical current still flows through it. The power cord
should be unplugged from the wall outlet when the device is not used for extended periods of time.
•This equipment contains no user serviceable parts. Please refer all servicing to trained, qualified service
personnel.
•Unplug the product from the wall outlet and refer servicing to qualified personnel if: (1.) The power cord or
plug is damaged. (2.) Liquid has been spilled into the product. (3.) The product does not operate properly
when the operating instructions are followed. (4.) The product was dropped or the cabinet is damaged. (5.)
The product performance changes.
Caution
Do not use this product in areas classified as hazardous locations. Such areas include patient care areas of
medical and dental facilities, oxygen-laden environments, or industrial facilities.
To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord. Replace fuse only with
a 5 x 20mm Slo-Blo® UL/CSA Cartridge Type Fuse matching the original equipment specifications.

www.Turtle-Beach.com
Page 2
Introducing AudioTron

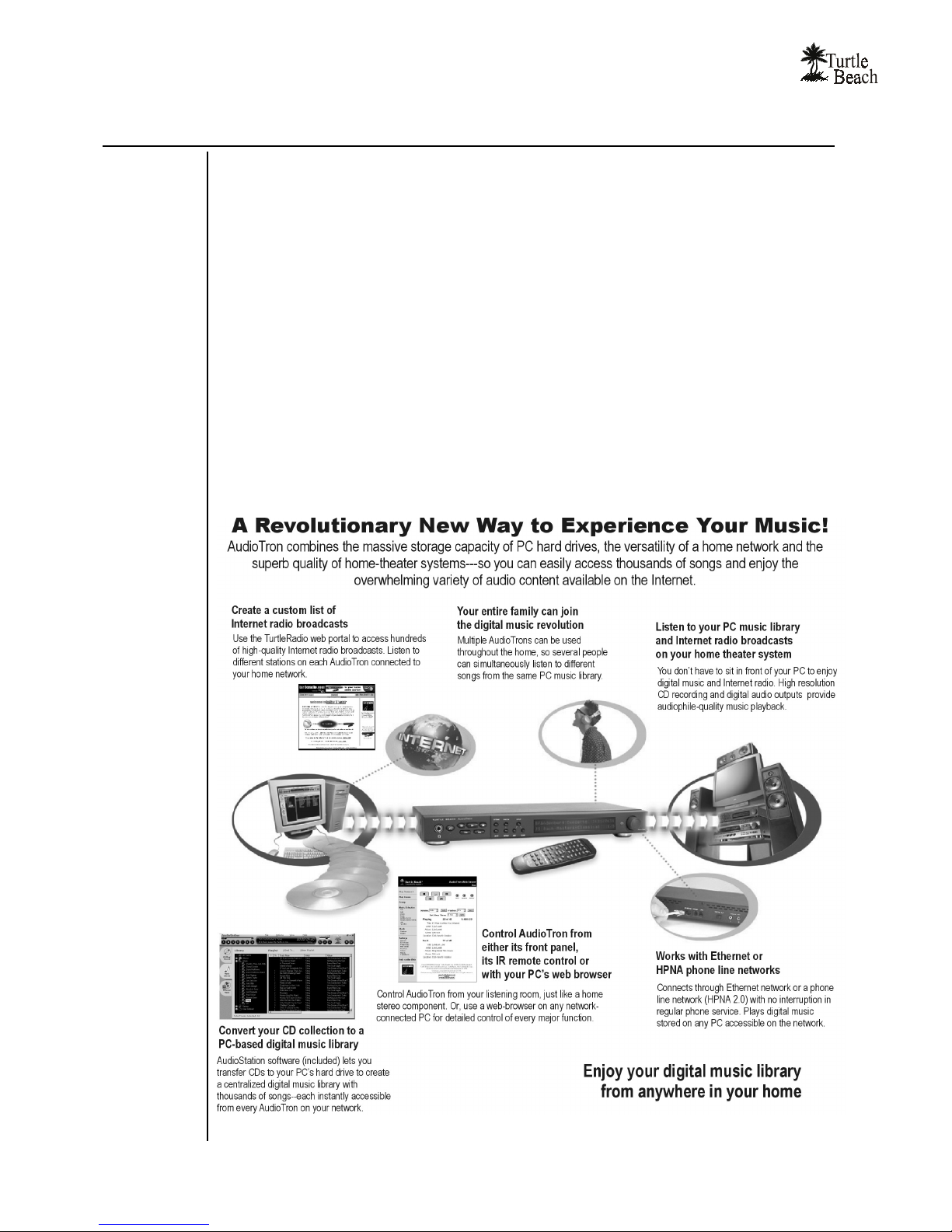

Your Turtle Beach AudioTron represents a new generation of home entertainment devices—a "smart
stereo component" that takes full advantage of the power and convenience of home networking, yet fits
right in with the rest of your home entertainment system.
AudioTron uses a network connection to play digital music files stored on your PC hard drive and
music streamed over the Internet—so you don’t have to be in front of your PC to enjoy the benefits
of a digital music library and Internet radio. Your PC hard drive can store thousands of songs in
digital format, which you can obtain by transferring CDs to the hard drive or by downloading music
from the Internet. Internet radio is available from hundreds of different sources, providing a wide
variety of content and styles of music.
Storing a digital music library on your PC lets you easily manage your music collection, create custom
playlists, create custom CDs, transfer music to a portable digital player, and select songs without
having to search through a pile of CDs—effectively transforming your PC into a powerful jukebox.
You can enjoy instant playback of any song at any time, from anywhere in your home. Best of all, by
installing multiple AudioTrons throughout your home, several users can simultaneously listen to
different Internet radio stations or to different songs from the same song library—making your entire
music collection and the versatility of the Internet accessible to the entire family.

AudioTron Setup Guide
Page 3
Getting Started
This Setup Guide provides the basic steps for setting up your AudioTron. For detailed information on
AudioTron features, configuration suggestions, and troubleshooting tips, please refer to the
AudioTron Reference Manual provided in PDF format on the AudioTron CD. After installing the
CD, you may view the Reference Manual by selecting Start Æ
ÆÆ
ÆTurtle Beach AudioTron Æ
ÆÆ
Æ
AudioTron Reference Manual.
Package Contents
Turtle Beach AudioTron
This Setup Guide
AC Power cord
IR remote control with AAA batteries
RCA-to-RCA stereo audio cable (to connect to your home stereo or powered speakers)
Telephone cable with RJ-11 connectors (for use with HPNA phone line network)
Ethernet Category-5 (“Cat-5”) cable with RJ-45 connectors (for use with Ethernet network)
AudioTron CD, which includes the following:
AudioTron Options
The following items may be purchased from the Turtle Beach web site (www.Turtle-Beach.com):
AudioTron Setup Utility This program is used to properly configure your AudioTron on the network. It
also serves as a useful diagnostic tool if you ever experience problems with
your system configuration.
AudioStation® This feature-rich program lets you create and manage your music library, as
well as play audio CDs, burn custom CDs from your digital music library files
and print labels for your CDs and CD jewel case.
Sample Music Files These digital music files are used to test AudioTron and AudioStation
playback functions.
SoundCheck™ An audio diagnostic utility useful for troubleshooting PC audio problems.
Demo Programs Demo versions of Voyetra music programs.
Adobe® Acrobat® Reader A limited version for viewing and printing the PDF manuals.
AudioTron and
AudioStation Reference
Manuals
These PDF manuals describe AudioTron and AudioStation in detail. The
manuals may be viewed and printed with the Adobe Acrobat Reader
program included on the CD.
Product Literature A PDF version of Voyetra Turtle Beach product literature.
AudioTron Rack Ears Use these to mount AudioTron in a 19” rack system.
Fiber Optic Cable Connects AudioTron’s digital optical output to compatible audio equipment.
RCA-to-1/8” Cable Connects AudioTron’s RCA outputs to speaker systems with 1/8” line input jacks.
Additional
AudioTrons
Listen to digital music everywhere in your home with multiple AudioTron units.
Additional AudioTron
Remote Control
AudioTron Remote Controls are available for replacing or augmenting the existing
remote control included with AudioTron.

www.Turtle-Beach.com
Page 4
System Requirements
AudioTron requires the following in order to operate properly:
AudioTron Accessory Software Applications
The following software applications will be used when operating and setting up AudioTron:
AudioTron Web Server
AudioTron’s web server (run from Internet Explorer, Netscape or other browser used to access
Internet Web sites) lets you configure AudioTron’s settings and play songs from the music library.
AudioTron Setup Utility
The Setup Utility (installed from the AudioTron CD) helps you set up AudioTron and troubleshoot
problems and network issues. The Setup Utility can also configure directories with the proper shares
and names so you can easily move your music files into these directories after setting up your system.
AudioStation
AudioStation (installed from the AudioTron CD) lets you create and manage your music library, play
audio CDs, burn custom CDs and manage TurtleRadio custom station lists. A comprehensive
AudioStation reference manual is included on the AudioTron CD in PDF format.
One or more networked PCs Recommended Minimum PC System: Pentium 233MHz processor,
64MB RAM, CD drive with digital audio extraction, 16 bit color video card,
Internet connection and web browser. The PC should have sufficient hard
disk space for storage of your digital music files. (A four-minute song uses
approximately 3 to 5 MB of hard disk space in MP3 or WMA compressed
format.)
Windows File Sharing Although AudioTron will work with any network accessible share, Turtle
Beach technical support provides support for Windows 98/ ME/ XP Home/
XP Pro/ 2000 Pro.
An HPNA 2.0 or Ethernet
10/100BaseT network
running TCP/IP
AudioTron includes a phone cable for the HPNA connection and a Cat-5
cable for the Ethernet connection. Note that WAV file playback requires an
Ethernet connection.
Powered speakers or a
stereo system with line level
inputs
AudioTron includes a stereo RCA-to-RCA cable for connecting the analog
audio outputs to powered speakers or a stereo receiver. A fiber optic
cable for the digital audio output may be purchased at the Turtle Beach
web site.
An Internet Connection Internet access is required for the Internet radio feature and to download
song titles when converting CDs to the PC hard drive.
A PC “jukebox” program to
convert your CDs to digital
audio files
The AudioTron CD includes the AudioStation jukebox software to perform
this function. AudioTron also operates with jukebox programs compatible
with music files in the MP3, WMA and WAV formats and ID3 tags in the
Version 1.0, 1.1 or 2.3 format.

AudioTron Setup Guide
Page 5
Controlling AudioTron
Front Panel, Rear Panel and Remote Control
AudioTron’s main controls are illustrated below. For details on the Front Panel, Rear Panel and
Remote Control functions, see the Reference Manual on the AudioTron CD.
AudioTron front and rear panels with Remote Control
Web Server
AudioTron’s extensive list of features cannot all be controlled
from the limited number of buttons on the remote control and
front panel. Instead, we’ve provided an integrated “web server”
that can be accessed from your PC’s web browser. Once your
AudioTron is configured, any PC on your network can be used to
access the web server by simply launching your web browser (e.g.
Internet Explorer or Netscape) and entering the IP address of your
AudioTron, enabling you to communicate with the AudioTron
from the PC.
After you’ve become accustomed to AudioTron’s powerful set of
features, you’ll appreciate the convenience of using the AudioTron
web server to control your song library and AudioTron settings.
The Reference Manual includes a comprehensive description of all
the web server features. This section provides an overview of what
it can do.
Menu Selections
The gray area on the left side of the screen lists all of the web server screens. To access a screen, click
the name in the menu list. Clicking on the Turtle Beach logo at the top of the screen will access the
Turtle Beach web site. Clicking on the TurtleRadio logo at the bottom of the left menu will access
the TurtleRadio web site. Clicking on the Help on the Web menu item will access the relevant help
sections at the Turtle Beach web site.

www.Turtle-Beach.com
Page 6
Playing Songs from the Web Server
The Home, Play Queue and Group List screens work together with the Music Selection screens
to let you select and play music. Because the web server runs on a PC screen and is therefore not
limited by the characters on the front panel display, song selection and playback is more intuitive and
versatile. So, it’s easier to perform tasks such as assigning songs to the “Favorites” buttons on the
remote control.
Home
This is the web server’s main screen, which emulates the controls on the front panel. From here you
can set volume, song position, mute, random, and repeat. You can also see what song is currently
playing and what song is coming up next in the “Play Queue”. The Sleep Timer setting on this
screen lets you automatically stop the music after a preset time, such as when you’re listening to music
before falling asleep.
Play Queue
Click on this menu item to see the list of songs selected for playback. From here you can jump to any
song in the queue. Note that the song currently playing will be noted by a “ÅNow Playing” symbol
next to the song, which corresponds to the “Playing” song shown on the Home screen. The next
song in the list corresponds to the “Next…” song on the Home screen.
Group List
Click on the Group List menu item to see the songs entered into the Group List. Songs are added to
the group by pressing the Add to Group button at the bottom of the song selection pages, or by
pressing the Add button on the front panel. The Group List works just like a playlist created with
AudioStation or other music management program—except you can create the Group List from the
AudioTron front panel or web server. You can play the Group List either by pressing the Play Group
button at the bottom of the screen, or by selecting the Group List from the Lists menu item, just as
you would select any other playlist.
Music Selection Menu Items
The menu items under the heading “Music Selection” correspond to the main menu display options
on the AudioTron front panel—Title, Artist, Album, Genre, Net and Lists. These menu items let you
select songs from your music library, just as you would from the front panel—but with much more
control over song selection. For example, click on Title to see all of the songs in your library listed by
title, or click Artist to select songs by Artist name, etc. You can even assign songs to the “Favorites”
button on the remote control by clicking on the Favorites menu item.
Using the AudioTron Clock Feature
AudioTron can also be set to display the time and date as well as act as an alarm clock, complete with
a “snooze” feature! Click on the Clock Settings menu item to set the clock options and click on the
Alarms menu item to set the alarm functions.

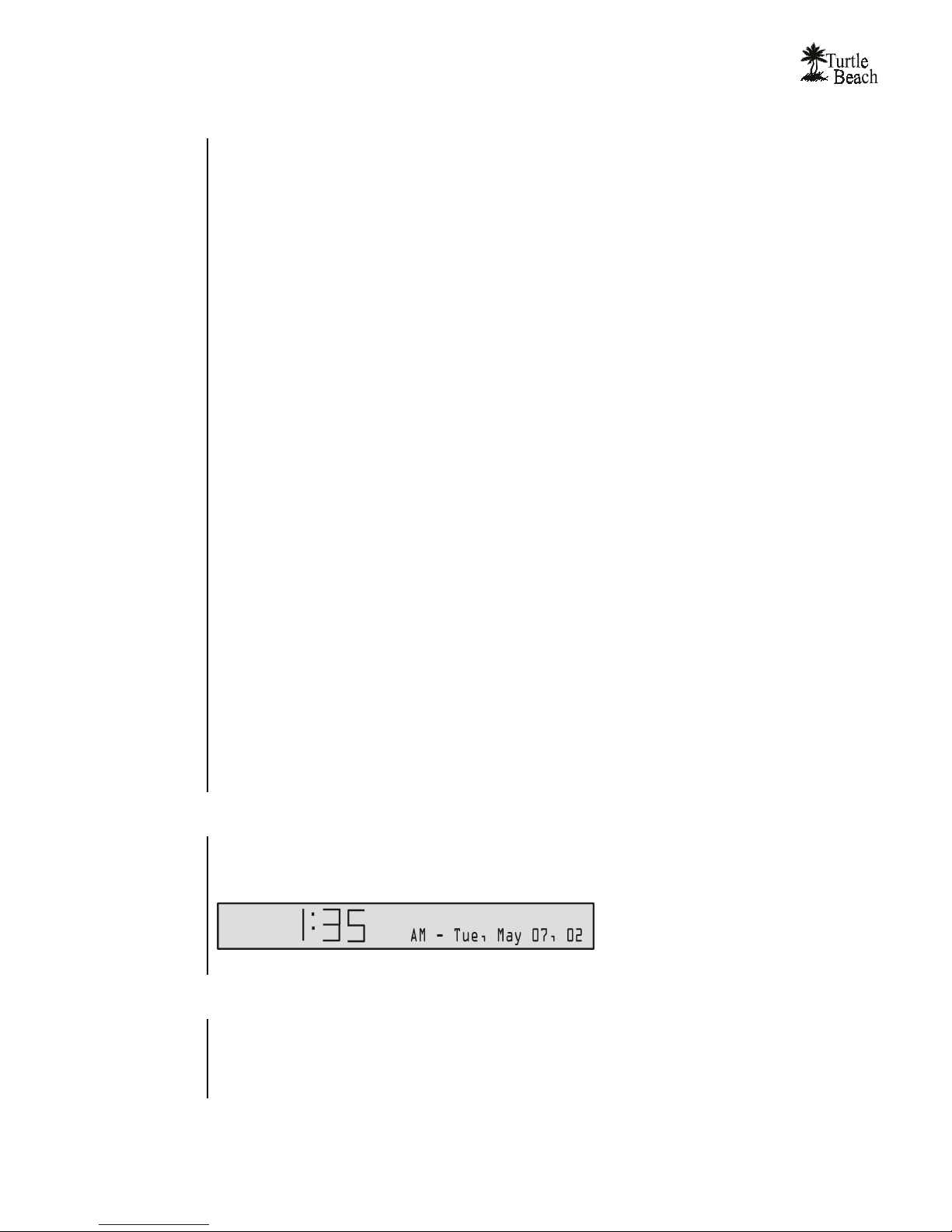

AudioTron Front Panel Clock Display
Editing Configuration Settings
The menu items under the Settings heading let you configure the way AudioTron operates, search
for songs in your music library, update AudioTron’s firmware, search for Internet radio stations and
more. Click on each menu item to see the available options and refer to the detailed descriptions in
the Web Server section in the Reference Manual.

AudioTron Setup Guide
Page 7
AudioTron Setup Procedure Overview
Setting up AudioTron involves three major steps, as outlined below. Refer to the sections in this manual
with the corresponding STEP headings for detailed descriptions of each step.
Â
If you don’t have a broadband Internet connection (e.g. DSL or cable modem), you may want to
skip Step 3. Internet radio may not function adequately on a dial-up modem connection.
9Be sure your HPNA or Ethernet network is operating properly before setting up
AudioTron.
Install the Setup Utility,
AudioStation and
reference manuals from
the AudioTron CD
Connect AudioTron to
your network.
Connect AudioTron to
your audio system. 9Use either the analog line outputs or S/PDIF digital optical output.
Power-on AudioTron 9Turn on the rear panel power switch, then press, hold and release the standby button.
9The Setup Utility is used to set up AudioTron.
9AudioStation lets you manage your music library.
9AudioTron and AudioStation reference manuals provide detailed feature descriptions.
STEP 1: Install the CD and connect AudioTron
9The Setup Utility will set up directories that conform with AudioTron's requirements and
install a sample music file for the playback test.
Establish that AudioTron
is communicating on the
network
Establish that AudioTron
can access the files in the
music library
Establish that AudioTron
can play songs from the
music library
9Once AudioTron can play the sample music file, you're all set! Now you can move your
existing music library to the new directories and add more music by recording your CDs
to the PC hard drive using AudioStation.
9The Setup Utility will check if AudioTron is accessible on your network.
9If AudioTron is accessible, use the AudioTron web server to configure its settings.
STEP 2: Configure AudioTron with the Setup Utility
Set up a TurtleRadio
account, then enter your
TurtleRadio Player ID into
AudioTron's web server
Check that AudioTron can
access the Internet and
the TurtleRadio web site
9Access the TurtleRadio web site and follow the instructions to register your personal
radio station list for AudioTron.
9Once you've set up TurtleRadio, you're ready to listen to Internet radio stations with
AudioTron!
9You may not want to install the Internet radio feature if you don't have a broadband
connection (e.g. DSL or cable modem.)
9Use AudioTron's web server to enable and set up the Internet radio feature.
9The Setup Utility checks if AudioTron can access the Internet and www.TurtleRadio.com.
STEP 3 (optional): Configure AudioTron's Internet radio feature
Load TurtleRadio Internet
radio stations from
AudioTron's web server
Enable the Internet Radio
feature from AudioTron's
web server

www.Turtle-Beach.com
Page 8

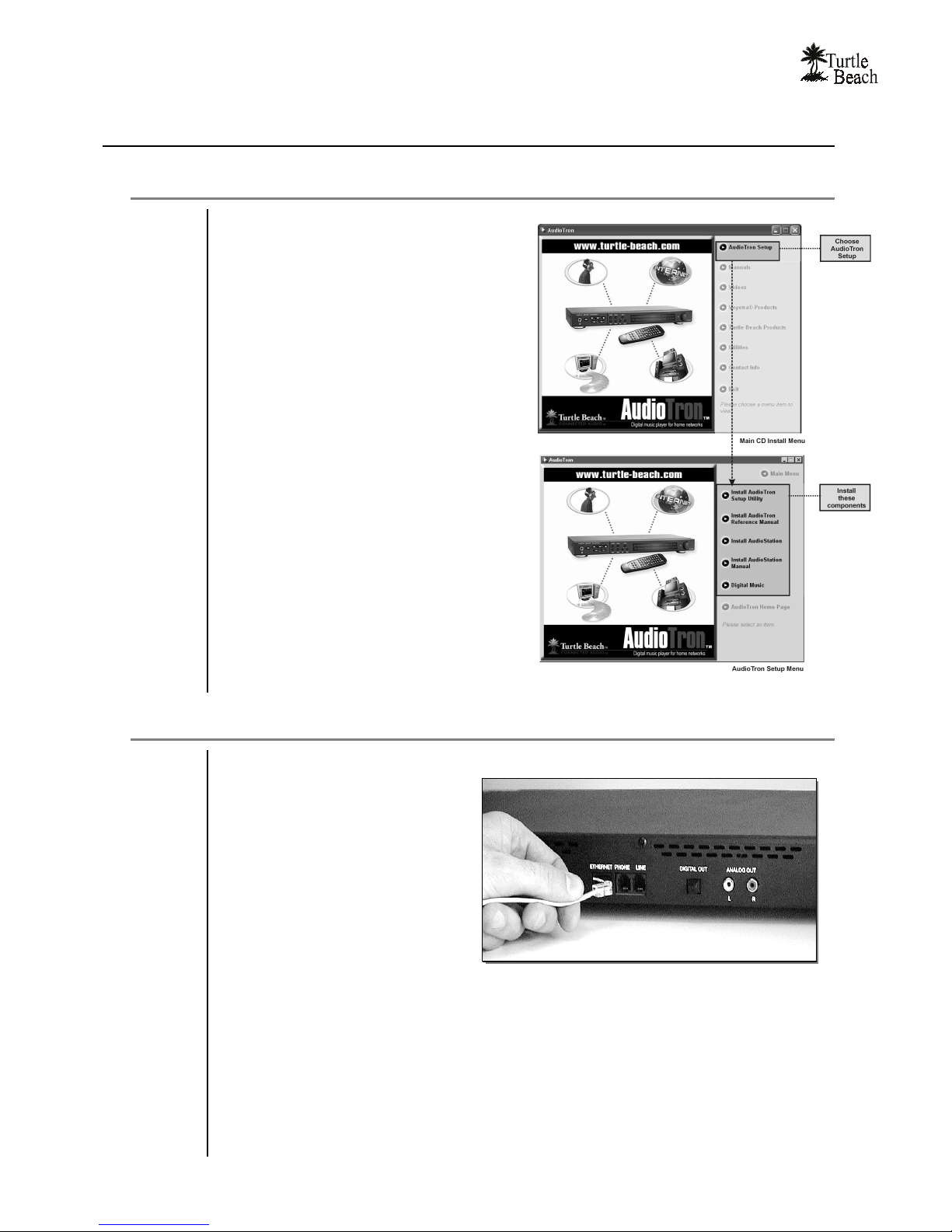

Step 1: Installing the CD and Connecting AudioTron
Installing the AudioTron CD
1. Place the AudioTron CD in your PC’s CD
ROM tray. If the AudioTron Installation
program doesn’t run automatically, click
Start ÆRun, then click on the Browse button
and select the CD-ROM drive letter. Double-
click on Setup.exe. Then click on OK to start
the installation program. The opening screen
with the CD install main menu will appear, as
shown.
2. Click on AudioTron Setup to activate the
AudioTron Setup Menu. From the Setup
Menu, install the AudioTron Setup Utility,
AudioTron Reference Manual,
AudioStation, AudioStation Reference
Manual, and Digital Music.
3. When you run AudioStation for the first time,
you’ll be asked for the Product ID number.
This is located on the label attached to the
CD envelope.
ÂIf we update AudioTron’s firmware or the
AudioStation software, we won’t be able to
let you know if we don’t know who you are!
So when you install the AudioTron CD,
please be sure to take a minute to register.
You can also return to the on-line
registration form later on by accessing Help
menu
Æ
ÆÆ
Æ
Register in AudioStation.
Connecting AudioTron to the Network
AudioTron includes both HPNA and
Ethernet network connections. You
need only connect one or the other,
depending on the type of network
you’re using. This installation
procedure assumes you have already
installed your network and it is
functioning properly.
For instructions on how to install and
check your network, refer to the
documentation included with your
network hardware. The AudioTron
Reference Manual on the CD also
includes information on AudioTron
network configurations.
To connect AudioTron to an HPNA network…
1. Insert the phone cable (included with AudioTron) into the LINE connector on the rear panel.
2. Insert the other end of the cable into your HPNA phone jack.
3. If you had a phone connected to the phone jack, you can insert the phone line into the
connector labeled PHONE.
Connect AudioTron to HPNA or Ethernet on the rear panel
usin
g
the included cables.

AudioTron Setup Guide
Page 9
To connect AudioTron to an Ethernet network…
1. Insert the Cat-5 Ethernet RJ-45 cable (included with your AudioTron) into the connector
labeled ETHERNET on the AudioTron rear panel.
2. Insert the other end of the cable into your Ethernet hub, which in turn connects to a network
interface card in your PC.
ÂWhen connecting the cable make sure it “clicks” when inserted.
Connecting AudioTron’s Audio Outputs
AudioTron includes both analog and digital audio (S/PDIF) outputs. You need only connect one or
the other, depending on the type of audio equipment you’re using.
Analog Audio Outputs
AudioTron’s analog Left/Right outputs
are compatible with most stereo receivers
and powered speaker systems. The front
panel headphone jack is compatible with
most 8 ohm – 32 ohm headphones. Note
that when headphones are plugged in, the
rear panel analog audio is muted.
To Connect the analog outputs…
1. Use the stereo “RCA to RCA” audio
cable included with AudioTron to
connect the AudioTron RCA jacks to
the line input jacks on your stereo receiver (which may be labeled AUX, CD or LINE IN.)
2. If you’re connecting AudioTron to powered speakers with an 1/8” input jack, you’ll need a 1/8”
to RCA adapter cable, available at www.Turtle-Beach.com.
Digital Audio Output
The optical digital output connection
(requires a fiber optic cable available at
www.Turtle-Beach.com) provides a
digital signal compatible with high-end
stereo receivers and home theater
systems. This output operates differently
than the analog audio outputs in the
following ways:
The digital output supports a fixed
number of sample rates that adhere
to the S/PDIF standard. Thus,
music files that are formatted in
non-S/PDIF sample rates will not
play out of the digital output. For a
list of supported sample rates, see the Reference Manual.
The volume control will not affect the digital output.
On most audio systems, the digital output may have a higher volume than the analog output.
To connect the digital output…
1. Remove the plastic cover from the DIGITAL OUT connector on the AudioTron rear panel.
2. Connect one end of the optional fiber optic cable (not included with AudioTron) to the stereo
component's Digital Input and the other end to the Digital Out on the AudioTron back panel.
Use the included RCA-to-RCA cable to connect the Analog outputs
Connecting the digital output requires an optional fiber optic cable.

www.Turtle-Beach.com
Page 10
Turning on AudioTron’s Power
AudioTron has two power switches: The rear panel power switch turns on the main AC power to
the unit. The front panel Standby button places AudioTron in a “sleep” state whereby the main
power is still on, but the unit is in a “partial shutdown” mode that retains its temporary settings.
To Power-on AudioTron…
1. Insert the AC cable into AudioTron’s rear panel AC receptacle. Plug the other end of the cable
into an AC outlet.
2. Turn on the rear panel AC switch. Wait a few seconds, then press the front panel Standby
button.
3. If AudioTron is properly connected to the network, it will search the network for PC hosts with
song files. After finding the PC hosts, it scans for songs and catalogs the song names in its
internal memory so they can be quickly accessed.
4. Once AudioTron is powered on, it should be turned on and off with the Standby button. This
bypasses the network search process initiated by turning on the rear panel power switch.
ÂIf you will not be using AudioTron for an extended period of time, the AC power switch on the
rear panel should be turned off.
One or more of the following messages may appear while AudioTron is powering on:
“Re-setting” AudioTron
AudioTron may be “reset” by turning the rear panel power switch off and on, waiting a few seconds,
then pressing the Standby button. This would be necessary, for example, if AudioTron is behaving
erratically, or if you have loaded new firmware (see the AudioTron Reference Manual). Note that
this may also reset some of AudioTron’s configuration settings to their default values.
Version x.x – Enet DHCP Indicates the firmware version number and the type of network connection
detected. For details on how to upgrade the firmware version, see the
Reference Manual Appendix called “Updating AudioTron’s Firmware”.
If you connected an Ethernet cable and AudioTron’s display indicates HPNA,
check the network cable connection to AudioTron and check the network for
proper operation.
Connecting to
TurtleRadio
Indicates that AudioTron is searching for an Internet connection to download
radio station URL locations from the TurtleRadio web site. The internet radio
feature is disabled by default and may be enabled from the AudioTron web
server “TurtleRadio” page.
Searching for Hosts
– xx% Complete
Indicates that AudioTron has found the network connection and is searching
for PCs on the network.
Searching host x of x Indicates the number of PCs detected on the network.
Searching for Music
Found xxxx Songs
xxx Stations
Indicates the number of songs and Internet Radio Stations found on the PCs
in the network. After the song search is completed, the main menu is
displayed and AudioTron is ready to play music.
Waiting for network: xx
secs
(DHCP Mode Only) Indicates that AudioTron is trying to connect to the
network. If a network connection can’t be established after 120 seconds,
AudioTron stops searching and displays “No Hosts Found” followed by “No
Song Titles Found”. Use the Setup Utility to help troubleshoot this problem.
No Song Titles Found Indicates that no songs were found on the host, or that no host was found.
Use the Setup Utility to help troubleshoot this problem, or check for the
proper directory names and shares, as described in the Reference Manual.
No Hosts Found Indicates that no PCs were found on the network. Reconnect the network
cable into AudioTron’s rear panel to make sure it “clicks” when inserted, or
try another network cable. Use the Setup Utility to help troubleshoot this
problem.

AudioTron Setup Guide
Page 11
Step 2: Configuring AudioTron with the Setup Utility
After installing the CD and setting up AudioTron’s audio and
network connections, the next step is to use the AudioTron
Setup Utility (installed from the AudioTron CD in Step 1) to
check AudioTron’s network connections and set up your music
directories. The AudioTron web server, accessed from your PC’s
web browser, will also be used to configure AudioTron. For a
detailed description of the web server features, see the
AudioTron Reference Manual on the CD.
Before proceeding, check the following…
1. You should have either an HPNA 2.0 or Ethernet 10/100
network installed and running properly.
2. AudioTron should be connected to the network and to
your audio system. Both AudioTron and your audio
system should be powered on.
3. You should have installed the AudioTron CD on a PC
connected to the network, per the instructions in the
previous section.
4. The PC used in this setup procedure should be set to use
“File and Printer Sharing” per the information in the
Windows documentation for the version of Windows
running on the PC. The Setup Utility will notify you if it
detects that File and Printer Sharing is not set.
5. Disable any virus protection, firewall, Internet “ad-
blocking” or “cookie blocking” software running on the PC.
These programs may interfere with the normal operation
of the Setup Utility.
Run the AudioTron Setup Utility
Run the Setup Utility by clicking Start Æ
ÆÆ
ÆPrograms Æ
ÆÆ
ÆTurtle
Beach AudioTron Æ
ÆÆ
ÆAudioTron Setup Utility. The
“Welcome” screen will appear, as shown.
Press Next and the Setup Utility will check your PC’s network
adapter. If the test passes, the Setup Utility Main Menu screen
will appear.
Press Next to start the test called “Check AudioTron
Network Connection”.
ÂIf a network adapter error occurs, the “Adapter Error”
screen will appear. In the device list, highlight the network
adapter used to connect AudioTron (e.g. if you’re using
an Ethernet network, it will be listed as an Ethernet
Adapter) then press “Next” and follow the on-screen
instructions for advice on how to correct the problem.
Searching for AudioTrons on the network
In the Check AudioTron Network Connection screen, select
the number of AudioTrons on your network and press Next.
The Setup Utility will scan each node on the network to see if it
can detect an AudioTron. The test will stop after it detects the
number of AudioTrons listed, or after all network nodes have
been checked.

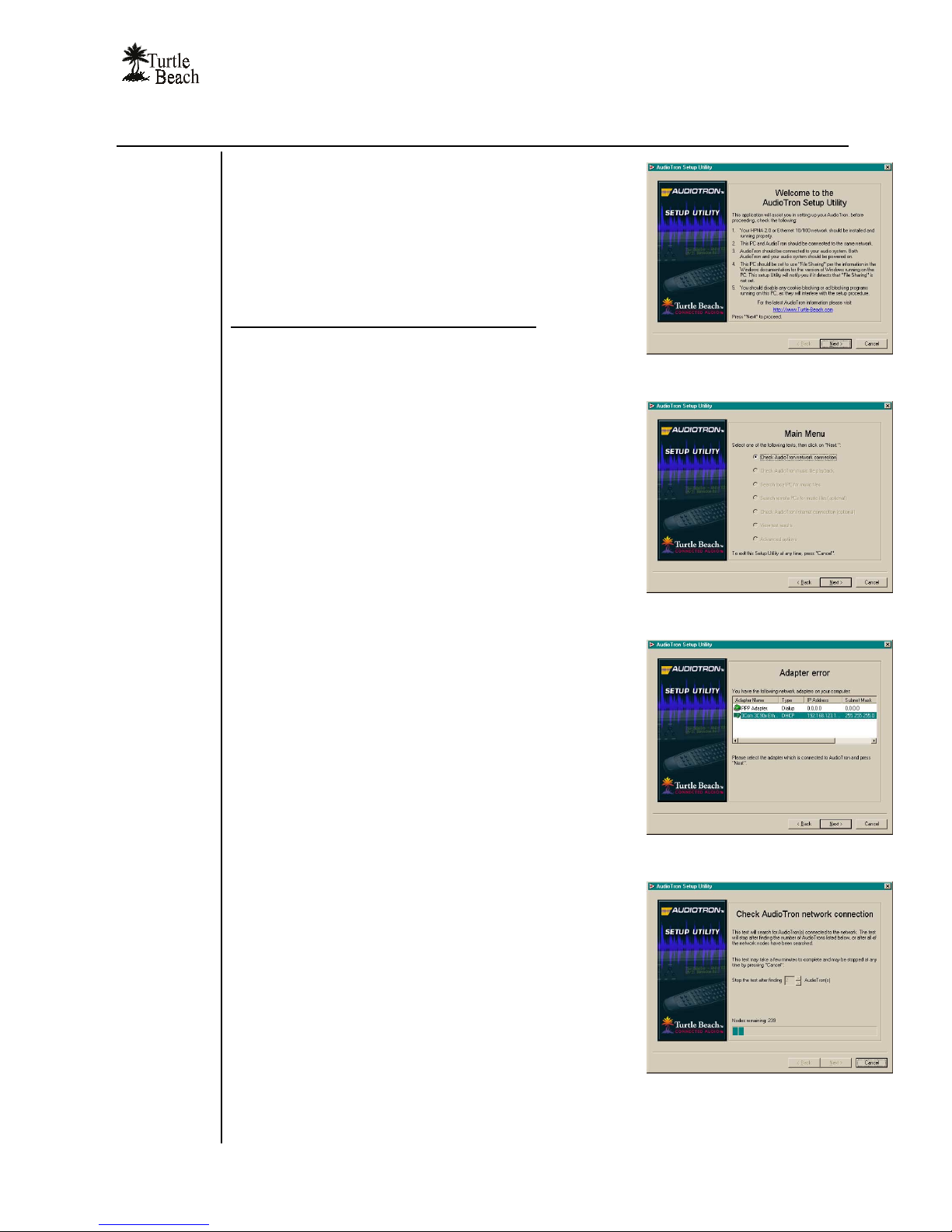

Setup Utility Welcome Screen
Main Menu Screen
Adapter Error screen
Check AudioTron network connection
screen

www.Turtle-Beach.com
Page 12
Search Results
After scanning the network, the Search Result screen will
show the number of AudioTrons detected. If the number is
the same as the number of AudioTrons on your network,
check Yes. Then press Next to enter the Search Results
List screen, which shows the network information and
firmware version for each AudioTron detected.
ÂIf the number of AudioTrons shown is less than the
number you’ve connected, first press the Back button
to check if the number you entered in the Check
AudioTron network connection screen is correct. If
that’s not the problem, check each AudioTron to make
sure the power is turned on and that they’re properly
connected to the network. If neither of these corrects
the problem, check No in the Search Results screen
and follow the screen instructions.
Set AudioTron Location Name
Click “Next” on the “Search Results List” screen to enter
the “Location Name” screen.From here, follow the screen
directions to assign a name to each AudioTron. This name
will be displayed on the home screen of the AudioTron web
server.
Create an AudioTron Web Server Shortcut
Click Next to enter the Launch Web Server screen.
Click on Create desktop shortcut to place an icon on your
desktop that can easily launch the AudioTron web server. If
you have more than one AudioTron, a menu will let you
select an icon for each one.
Launch AudioTron’s web server
Click on the “Launch AudioTron web server” button to
launch the AudioTron web server. The web server runs from
the same browser used to access Internet web sites (e.g.
Internet Explorer, Netscape, etc.). When the web browser
asks for a password, enter the default password “admin”
into both boxes.
The AudioTron web server makes it easy to configure
AudioTron’s options settings, as well as search for and play
songs from your PC. It also provides links to access the
TurtleRadio web site and the AudioTron Knowledge Base
at the Turtle Beach web site. For complete details on the
web server, see the AudioTron Reference Manual.
Now that you know how to launch the web server, let’s
return to the setup process. After AudioTron is set-up, you
can return to the web server and explore the features.

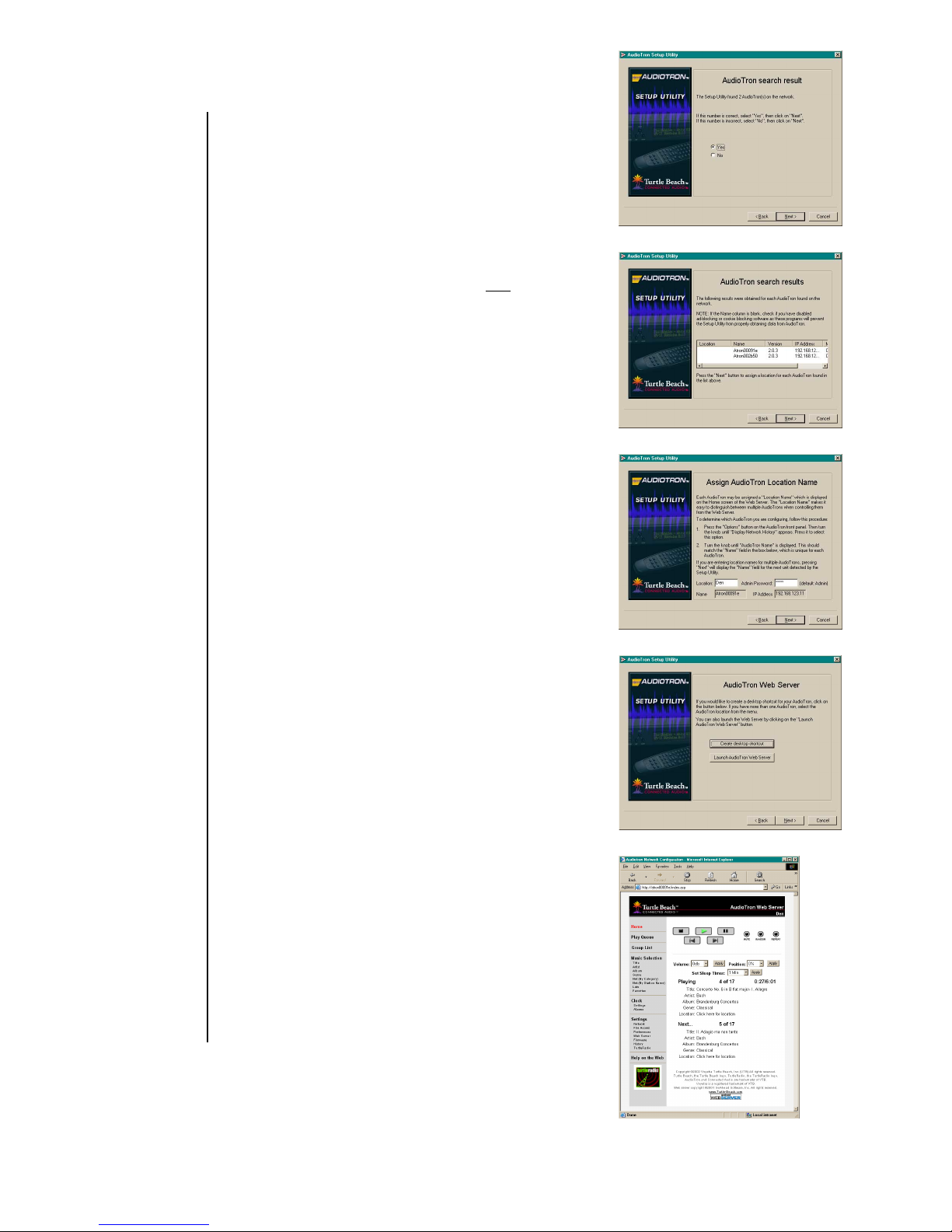

Search Result screen
Search Results List screen
Location Name screen
Launch Web Server screen
Web server Home screen

AudioTron Setup Guide
Page 13

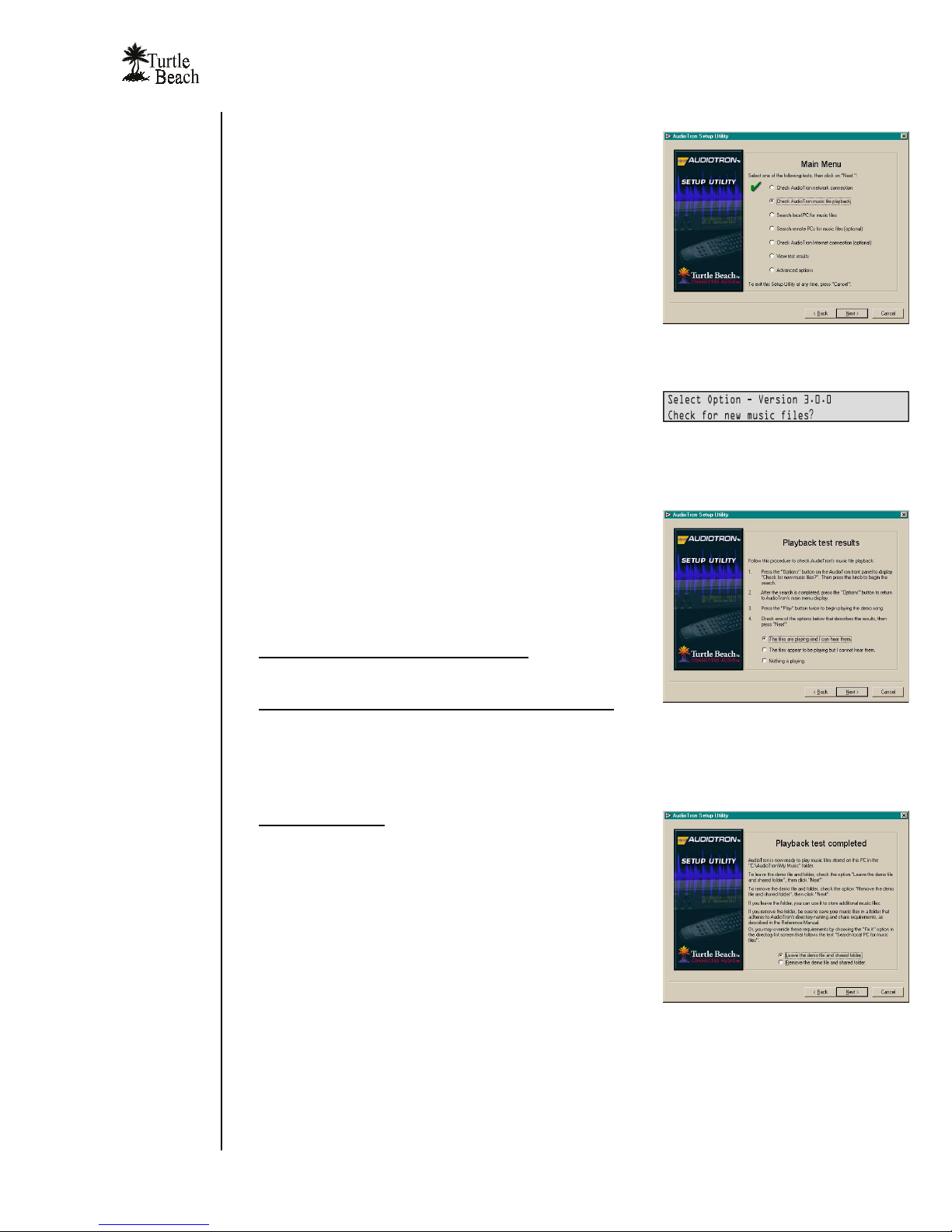

Check AudioTron Playback
Click Next to enter the Main Menu. Click Next again to run the
Check AudioTron music file playback test, which creates a
shared directory called \AudioTron\My Music and copies a
music demo file from the AudioTron CD to this directory.
ÂAudioTron has special requirements for music directories,
which are explained in the Reference Manual. This test
configures the directories to conform with these
requirements.
Check for demo music file
Press the Options button on the AudioTron front panel to
activate the Check for new music option. Press the knob, which
causes AudioTron to search the network for the music file
installed by the Setup Utility.
Play demo music file
Press the Options button again to return to the main menu on
the AudioTron display. Press the front panel Play button twice
and you should hear music play.
Playback Test Results
Now that we’ve checked music playback on AudioTron, return to
the Setup Utility Playback Test Results screen and check one of
the following options:
•The files are playing and I can hear them: Check this if
you heard music play.
•The files appear to be playing but I cannot hear them:
Check this if AudioTron’s front panel indicates playback
activity, but you can’t hear music. This could mean that your
audio system is not set up properly. If you can’t correct the
problem, check the section “Audio Troubleshooting Tips”
in the Reference Manual.
•Nothing is playing: Check this if AudioTron’s front panel
shows no playback activity. This indicates there is no
communication between the PC and AudioTron. This could
be caused by a network error that is preventing AudioTron
from communicating with the PC.
Remove or keep the new directories
Press Next to enter the Playback Test Completed screen,
where you can choose to either remove or retain the
\AudioTron\My Music directory created in the previous test.
If you do not already have a music library, check “Leave the
demo file and shared folder” so you can copy your new music
to this folder as you record your CDs with AudioStation.
If you already have a music library on your PC, you can either
copy the library to this new directory, or delete the directory and
have the Setup Utility set up the share properties of your existing
directory to conform with AudioTron’s requirements.
Main Menu screen
Front panel Check for New Music display
Playback Test Results screen
Playback Test Completed screen

www.Turtle-Beach.com
Page 14

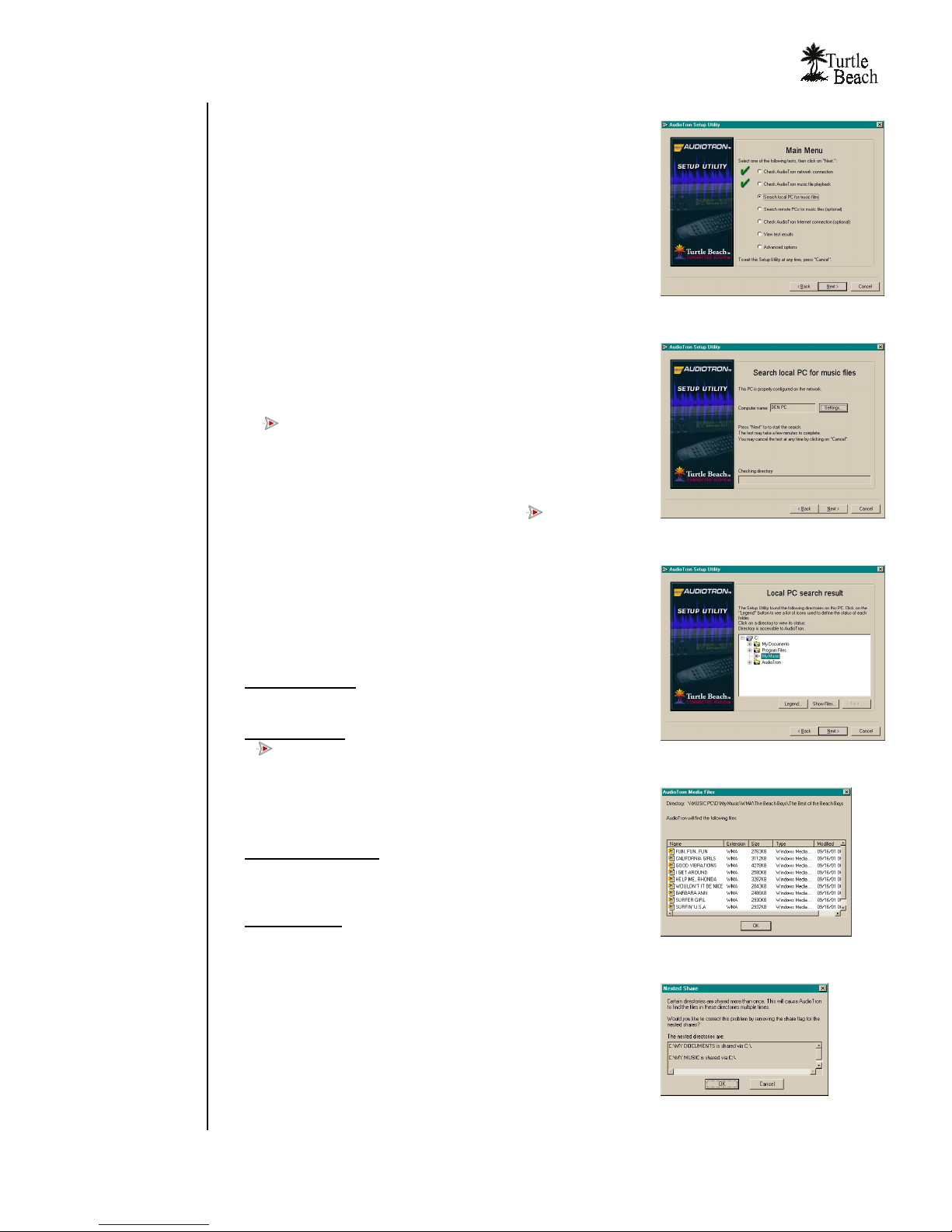

Search local PC for music files
Now it’s time to search for music files on your “local” PC (i.e. the
PC running the Setup Utility). Click Next to return to the Main
Menu screen. Click Check Local PC for Music Files, then click
Next until the Search Local PC screen appears, as shown.
Click the Settings button to set the File Search Options. Then
click Next to begin the song file search.
ÂTo search other PCs on your network for music files, use the
main menu test called Search remote PCs for music files,
described in the next section.
File Search Results
After the search is completed, the Local PC Search Results
screen will list the directories with icons to indicate their status. A
“Play” icon is placed next to directories with music files, playlist
files or firmware update files accessible to AudioTron. In the
illustration, the directory My Music contains files accessible to
AudioTron. The other directories are inaccessible to AudioTron.
ÂOnly music files in directories marked with a icon can be
played by AudioTron.
Viewing the Directory Contents
Highlighting a directory in the Search Results screen shows its
status at the top of the box. In this example, the status message
shows that the contents of directory My Music are accessible to
AudioTron.
•“Legend” button: Click this button to see a list of the icons
used to mark the directory test results.
•“Fix it” Button: If you have music in a folder not marked with
a icon, clicking this button will make the folder accessible to
AudioTron by placing a special “tag” file in the folder. After
running this “Fix-it” feature, re-scan for music files by pressing
the Options button on the AudioTron display to activate “Check
for New Music”.
•“Show Files” button: Click this button to display the files in
the highlighted directory, as shown in the “Directory
Contents” screen illustration.
•Nested Shares: If music directories are shared multiple times,
AudioTron will list the music in those directories twice. If a
dialog box indicates this situation, click on OK to correct this
condition.
AudioTron is now ready to play your music library!
At this point, AudioTron is ready to access music files from PCs on
your network.
ÂIf you do not want to set up the Internet Radio feature, you
can skip Step 3 and move on to the section called “Listening
to Your Music Library”.
Main Menu screen
Search Local PC screen
Local PC Search Results screen
Directory Contents screen
Nested Shares screen

AudioTron Setup Guide
Page 15

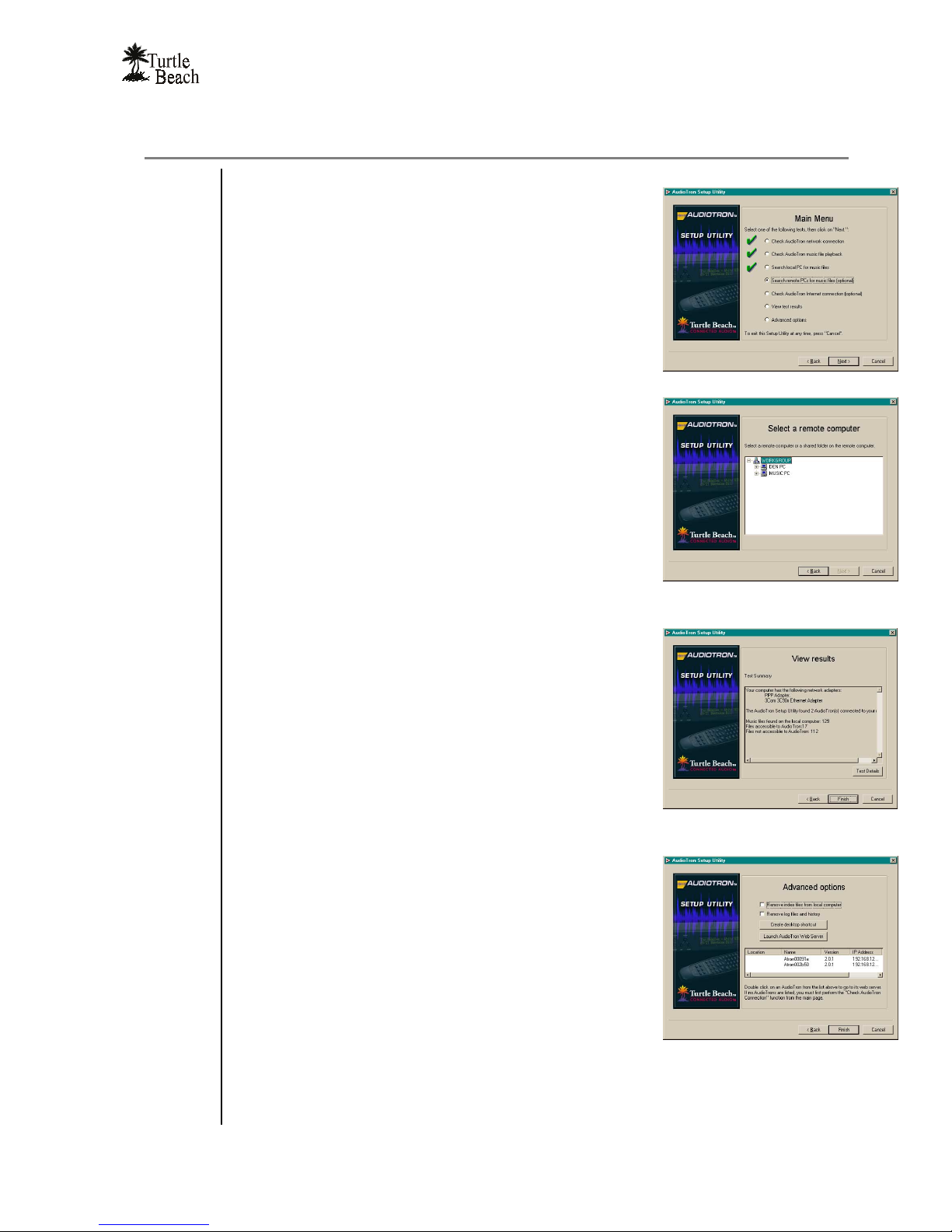

Setup Utility Advanced Options
Check a remote PC for music files
If you have other networked PCs with music files you’d like to add
to the music library, run the option Search remote PC for music
files from the Main Menu screen. This search is identical to
Search local PC for music files, except it can be run on any PC
connected to the network.
Highlight the remote PC you’d like to search by clicking on the PC
name in the Select a Remote PC directory tree, then click Next
to begin the search.
Note that some network configurations may require you to run the
Setup Utility on the remote PC in order to use the “Fix it” feature
described in the Search Results screen earlier in this section.
ÂIf you have a large network with many files, this test can
take several minutes to run.
Just as with the Search local PC for music files option, after
this search is completed, you must load the music file locations
into AudioTron’s internal database by pressing the Options
button on the front panel, then pressing the knob to activate
Search for new music.
Viewing the Setup Utility Test Results
If you’d like to see the Setup Utility test results, click on View
Test Results on the Main Menu, then click Next to display the
View Test Results screen. Press the Test Details button to view
the test results for the Network Adapters, AudioTron, Local
PC, Remote PC and Internet Connection.
ÂNote that the Internet Connection selection will show the
network settings for your network gateway and DNS server,
which may be required during the setup of your network
Internet connection.
Running Advanced Options
The Advanced Options screen is accessed by selecting
Advanced Options on the Setup main menu screen, then
pressing Next.
The option labeled Remove Log Files and History will delete
the Setup Utility data after you press Finish. Deleting this data
lets you run the Setup Utility as if it were run for the first time on a
new setup.
The option labeled Remove Index Files from Local Computer
will remove the special files inserted in the music directories to
override the AudioTron directory restrictions.
The Launch AudioTron Web Server and Create Desktop
Shortcut buttons are identical to the buttons described in the
Launch Web Server screen earlier in this section.
Main Menu screen
Select a Remote PC screen
View Test Results screen
Advanced Options screen

www.Turtle-Beach.com
Page 16
Step 3: Configuring AudioTron to Play Internet Radio
ÂWe recommended that you use the Internet radio feature with a broadband Internet
connection, such as DSL or a cable modem. Although Internet radio will work with a standard
phone line modem connection (i.e. a “dial up” connection), this type of connection is not
adequate for providing a consistent and reliable stream of data for Internet streaming audio.
AudioTron’s Internet radio function is turned off by default and must be enabled from the web server
Settings Æ
ÆÆ
ÆTurtleRadio menu item, as described in this section. Once activated, Internet radio
stations can be accessed from the Net main menu item on the front panel display, or the Net (by
Category) and Net (by Station Name) menu items in the web server. Internet radio stations are
provided by the TurtleRadio web site (www.TurtleRadio.com.)
TurtleRadio Web Site
Rather than burden you with having to search for
Internet radio stations compatible with AudioTron,
we at Turtle Beach have created the TurtleRadio
web site (located at www.TurtleRadio.com) which
lists a wide variety of Internet broadcasts compatible
with AudioTron. You can also add stations that are
not listed at the TurtleRadio site by using
AudioStation. This section explains the process of
setting up AudioTron to play Internet radio stations,
which involves these key steps:
1. Enable the Internet radio feature from the
Settings Æ
ÆÆ
ÆTurtleRadio web server screen.
2. Test if AudioTron can play audio from the
TurtleRadio site by activating the sample
broadcast from the Music Selection Æ
ÆÆ
ÆNet (by Category) web server screen.
3. Register at the TurtleRadio web site to receive a TurtleRadio Player ID for your AudioTron,
which you then enter into the Settings Æ
ÆÆ
ÆTurtleRadio web server screen.
4. Set up your station list at the TurtleRadio site and scan your stations into AudioTron’s music
database by using “Check for new stations” in the Settings Æ
ÆÆ
ÆTurtleRadio web server screen.
5. Play the stations from the Net (by Category) or Net (by Station Name) web server screens, or
from the front panel display’s “Net” menu item.
About Internet Radio Broadcasts
Internet radio stations use a technology called “streaming audio” to broadcast over the Internet.
Unlike the files in your PC music library, the streaming audio from an Internet radio station travels
through your Internet connection to AudioTron in sequential pieces that are stored temporarily by
AudioTron in a memory “buffer”. As the buffered part of the streaming file is played by AudioTron,
another part is loaded right behind it—so it’s ready to play after the preceding part is erased. Thus, the
entire streaming audio file from the Internet station never fully resides on your PC or in AudioTron.
Buffering the audio stream lets AudioTron ignore most Internet interruptions that may delay the file
transfer from the station, in much the same way your car CD player can handle going over a bump in
the road. However, if interruptions of the streaming audio exceed the buffer size, it could create a
break in playback and result in “stuttering” or erratic playback of Internet radio stations.
ÂAudioTron can play Internet radio stations that broadcast in streaming MP3 format (e.g.
SHOUTcast, IceCast and Nanocaster) and Windows Media Format. For more information
about Icecast visit www.Icecast.org. For more information about SHOUTcast visit
www.SHOUTcast.com. For more information on Windows Media Format, visit
www.windowsmedia.com.

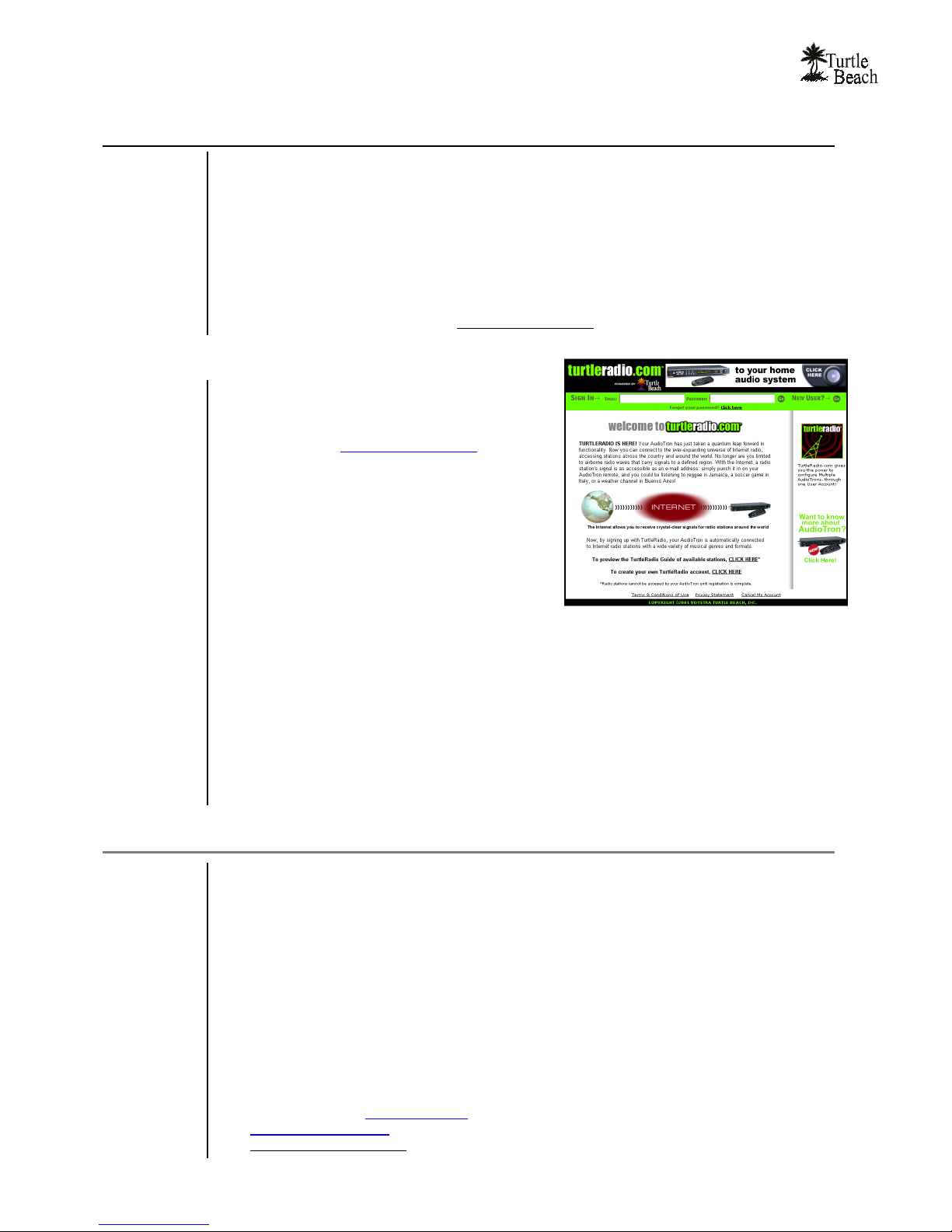

TurtleRadio Web Site Home page

AudioTron Setup Guide
Page 17
Connection Speeds and Internet Radio Quality
The speed at which an Internet radio station sends streaming data over the Internet is measured in
“kilobits” per second, or simply “k”. For example, an Internet radio station streaming data at 56k
means it is sending an average of 56,000 bits per second to AudioTron’s buffer. High quality stations
use high bitrates that can approach CD fidelity, which require a broadband Internet connection such
as DSL or a cable modem. Lower quality stations, which transmit at bitrates less than 33k, can be
received on low-bandwidth dial-up Internet connections but do not have the same fidelity as the
higher bitrate stations.
For instance, a 56k dial-up modem (which typically provides a bitrate of 33k) is capable of supporting
Internet radio streams of 33k or lower. However, this bitrate capability will vary based on the quality
of the modem phone line connection and the server streaming the Internet radio station. In addition,
the Internet connection will not be able to sustain additional data required by another use of the
Internet, such as web browsing while listening to Internet radio. For this reason, it is not advisable to
use a dial-up modem connection for listening to Internet radio broadcasts.
After you’ve created an account at the TurtleRadio web site, you can set your custom preferences to
receive only streams with a bitrate appropriate for your Internet connection.
Accessing the Internet on a Network
When more than one PC has access to the Internet on a network, most likely, the Internet connection
will either be distributed through a gateway/hub device or one of the PCs on your network will ‘share’
its Internet connection on the network. Two possible configuration scenarios are illustrated below:

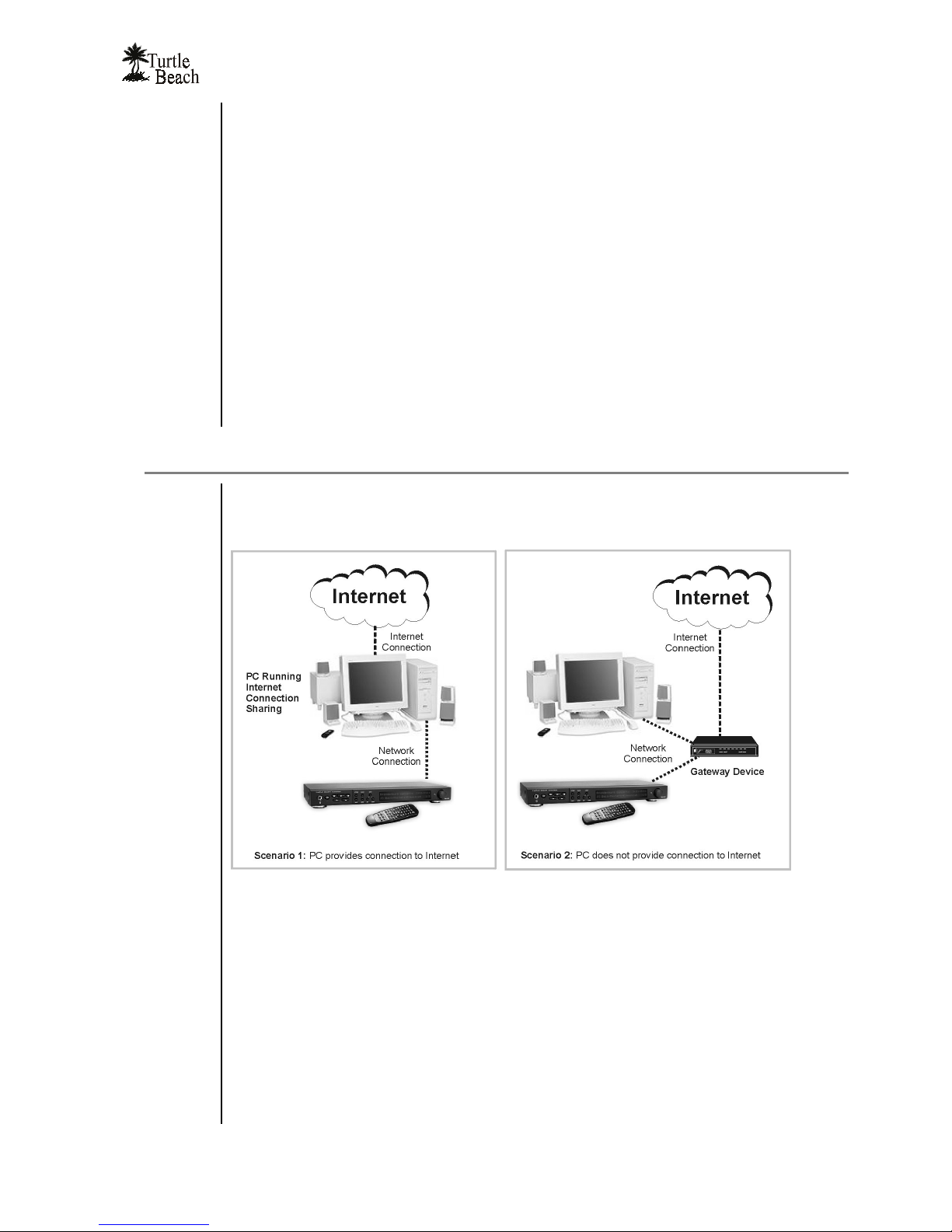

AudioTron Internet connection scenarios
In Scenario 1, a PC with a dial-up, DSL or cable modem connection is used to access the Internet. In
order to allow other PCs and AudioTrons on the network to access this connection, the PC must be
configured for “Internet Connection Sharing”. Although this is beyond the scope of this manual, you
can get information on how to do this by looking in a good book that describes Windows
configuration settings, or referring to Windows Help.
In Scenario 2, a dedicated hub or router connected to a dial up, DSL or cable modem provides
Internet access to the PCs and AudioTrons on the network. For configuration information, see the
setup guide included with the router/hub.
ÂIn either scenario, if a PC can’t access the Internet from the network connection, neither will
AudioTron. So, you must first make sure that Internet access is properly set up on your
network before proceeding with the AudioTron Internet radio installation.

www.Turtle-Beach.com
Page 18

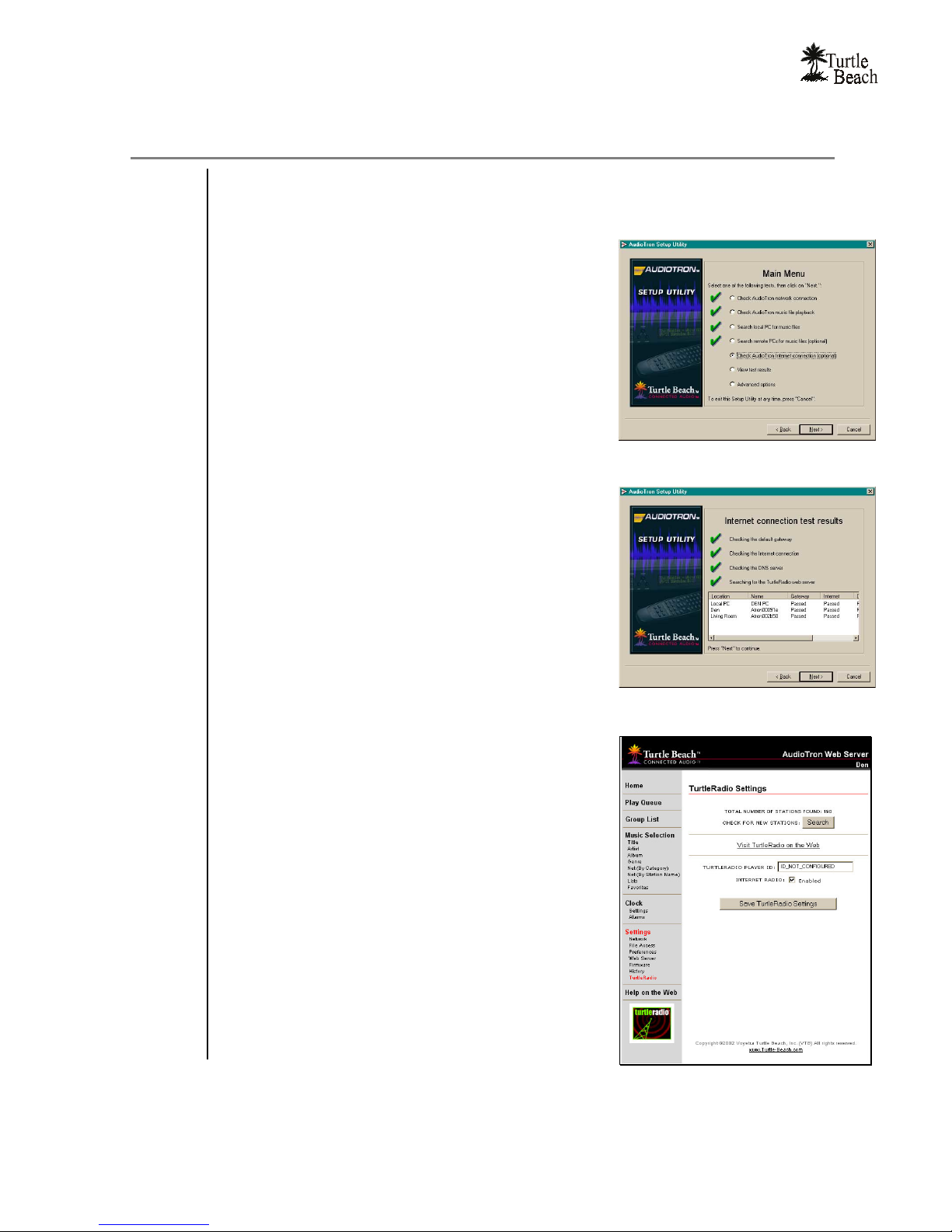

Using the Setup Utility and Web Server to configure Internet Radio
After you’ve checked that your network is configured for Internet access, use the Setup Utility to set
up AudioTron’s Internet radio feature as follows:
Check AudioTron’s network Internet Connection
From the Setup Utility Main Menu, click the Check
AudioTron Internet Connection option, then click Next.
In this test, the Setup Utility will attempt to access an
Internet Connection from the network. If it can’t, it will
attempt to access an Internet connection from the local PC.
Based on these tests, it will diagnose the Internet access
configuration and suggest if any changes are required for
AudioTron Internet access.
Evaluate the test results
After the tests are completed, the Internet Connection Test
Results screen will show the test results.
If there are green “checks” next to all of the tests (as
shown in the sample screen) press Next.
If an “X” is displayed in any of the tests, examine the list
at the bottom to see what part of the test failed.
Note that the first row in the list shows the test results for the
device providing Internet access to the network. The other
rows show the test results for the AudioTron(s) found on the
network.
If any problems are listed, see the Reference Manual for
troubleshooting tips.
Activate AudioTron’s Internet radio feature
AudioTron’s Internet radio feature is turned off by default
from the factory. To enable this feature, activate the
AudioTron web server by double-clicking the desktop icon
created in the previous section (“Configuring AudioTron with
the Setup Utility”) or by typing in the IP address of the
AudioTron into your web browser.
On the AudioTron web server screen, click on TurtleRadio
under the Settings category of the left menu to activate the
TurtleRadio Settings screen.
Select the check box to enable Internet Radio and click
Save TurtleRadio Settings.
Click the Search button next to “Check for new stations”.
Main Menu screen
Internet Connection Test Results screen
Web server TurtleRadio Settings screen
