Tuzio® Woodstock
Towel Warmer
Installation Guide
Code: H6013 / H6014 / H6016
26.5” x 37” x 5.5” Hydronic
Technical Helpline:
Toll-Free 1-877-757-8990
www.icocanada.com

2
Congratulations!
You are the proud owner of a quality Tuzio Towel Warmer.
This product has been specifically engineered and tested to provide
optimal comfort and satisfaction.
ICO carries a broad range of luxury bathroom products designed to make
everyday living just a little more enjoyable! Visit www.icocanada.com to
learn more.
Contents
Rough-In Requirements For Constant Circulation Heating System Page 3
Rough-In Requirements For Dedicated Heating System Page 4
Installation Instructions Page 5
Valve Connection Page 5
Specifications & Drawings –Wall Rough-In Page 6
Specifications & Drawings –Floor Rough-In Page 7

3
fig. 1
Using this installation method, the towel warmer is controlled using the valves attached to the towel warmer, and can be
operated independently from the heating system. This method of installation is popular where there are multiple heating
appliances connected to a closed hot water heating system, and electronic control of the individual towel warmer is not
important.
1. Install heating system pipework to proposed towel warmer location and tee off the main circuit to provide a branch
circuit for the towel warmer. Piping to towel warmer valves should be 1/2” copper.
2. If towel warmer supply pipes are coming through wall, rough-in pipes as per locations shown on fig 4. If towel warmer
supply pipes are coming through floor, rough-in pipes as per locations shown on fig 7.
3. If a hydronic installation pack is being used (see figs 5 & 8), these should be connected (solder connected) within the
wall / floor. If a hydronic installation pack is not being used (see figs 6 & 9), these 1/2” copper supply lines should
protrude through wall/floor in order to connect to towel warmer valves.
4. Wall studs or plywood backing is required in the wall at bracket locations. See figure 4 for bracket locations.
Towel Warmer Installation Procedure
Rough-in Requirements - for constant circulation heating system (see figure 1)
1

Towel Warmer Installation Procedure
Rough-in Requirements - for dedicated heating system (see figure 2)
1
fig. 2
Using this installation method, the towel warmer is controlled using the thermostat wired to the circulator pump, and
cannot be operated independently from the heating system. This method of installation is popular where there is only
one heating appliance connected to a closed hot water heating system, and electronic control of the individual towel
warmer is required.
1. Install heating system pipework to proposed towel warmer location. Piping to towel warmer valves should be 1/2”
copper.
2. If towel warmer supply pipes are coming through wall, rough-in pipes as per locations shown on fig 4. If towel warmer
supply pipes are coming through floor, rough-in pipes as per locations shown on fig 7.
3. If a hydronic installation pack is being used (see figs 5 & 8), these should be connected (solder connected) within the
wall / floor. If a hydronic installation pack is not being used (see figs 6 & 9), these 1/2” copper supply lines should
protrude through wall/floor in order to connect to towel warmer valves.
4. Wall studs or plywood backing is required in the wall at bracket locations. See figure 4 for bracket locations.
4

Towel Warmer Installation Procedure

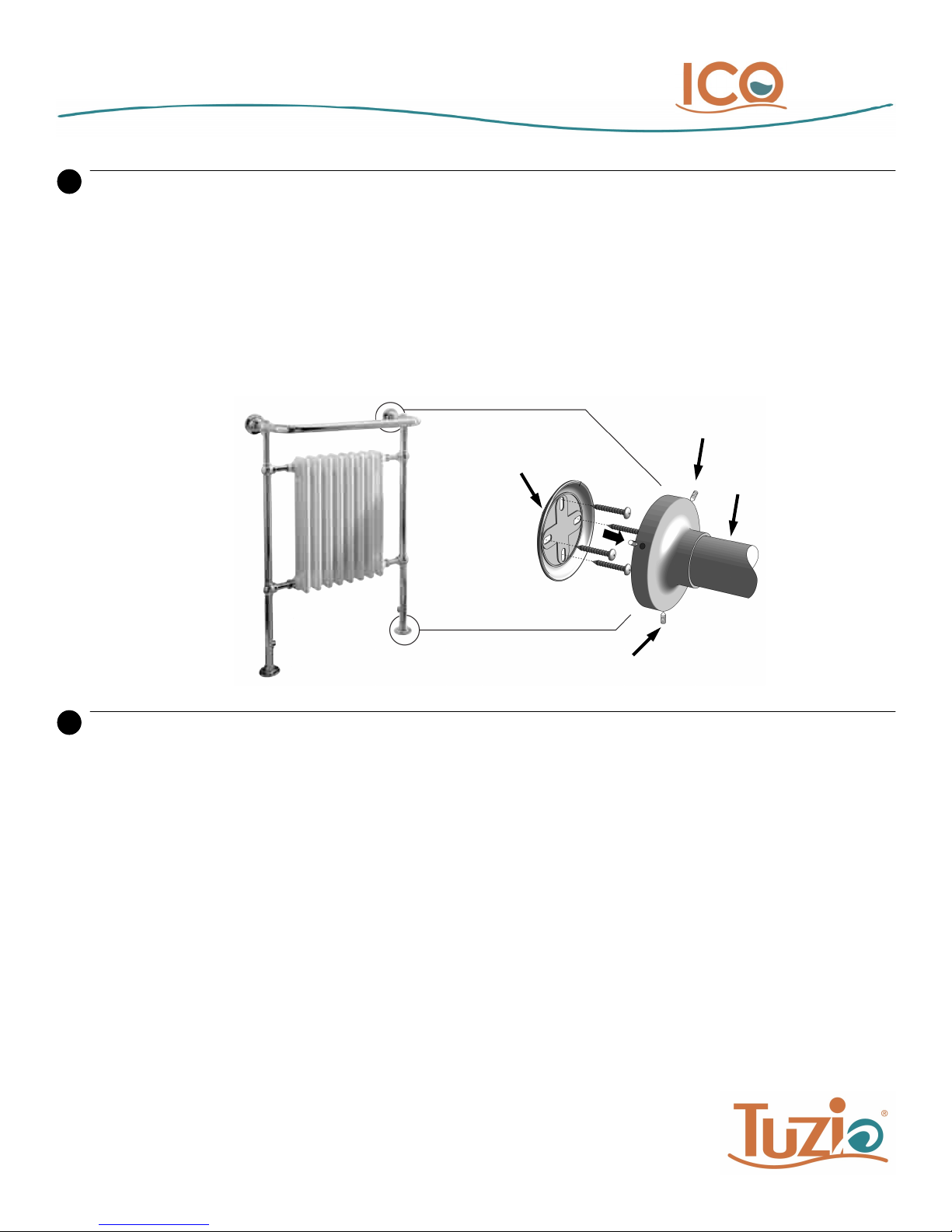

Installation Instructions (see figure 3)
2
1. Check all items have been received. You should have Towel Warmer and mounting discs including fixings. Read all
instructions before continuing.
2. Fix mounting discs "A" using the screws provided and in locations as shown on figure 2.
3. Mount towel warmer and slide brackets “B” over mounting discs “A”.
4. Fasten Towel Warmer using set screws "C" to lock mounting discs “A" into brackets "B". Ensure the Towel Warmer is
firmly and safely fixed.
1. If using a hydronic installation pack, slide escutcheon (supplied with hydronic installation pack) over 1/2” supply pipe.
2. Unscrew male threaded components including collars from valve and thread into female inlets towards the bottom of
towel warmer leg using a 12mm allen key wrench.
3. Push compression fitting on to 1/2” supply pipe and tighten 1/2” compression fitting collar on valve.
4. Seat male threaded component (now connected to towel warmer) on valve and tighten collar.
5. Insert/tighten air vent plug found at the location as shown in fig 4.
6. Check for leaks and bleed system if necessary using air vent plug.
Valve Connection (see figure 5, 6, 8 or 9)
3
Warning: All hydronic plumbing connections should be made in accordance with local and
national plumbing regulations. It is the responsibility of the plumber to ensure plumbing
system and towel warmer installation comply with these regulations.
fig. 3
5
B
C
A
C

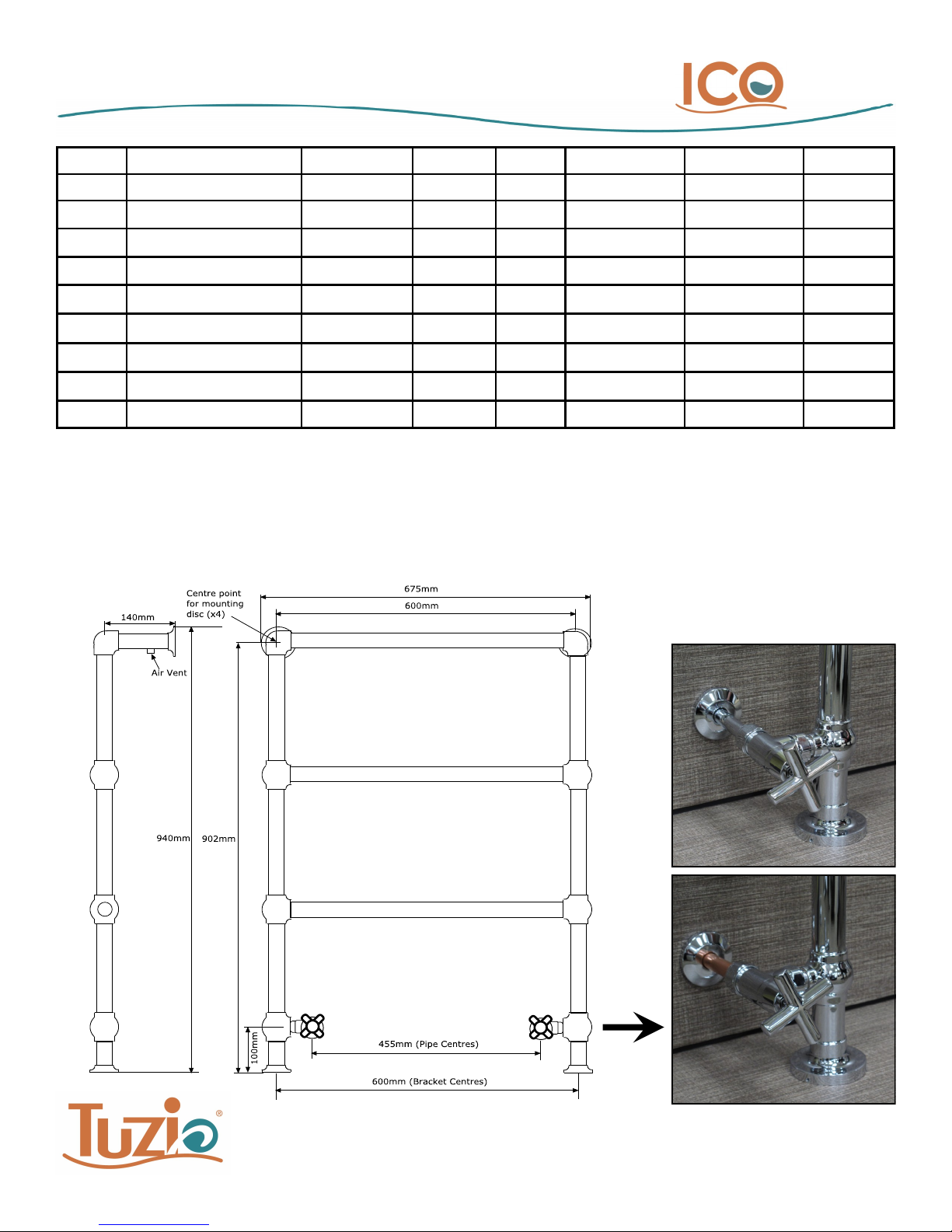

Specifications & Drawings (wall rough-in)
Material Specifications: Brass Tube Diameter 1.25” x 0.03” (31.8mm x 1mm) tested to 11 bar
Warranty: 5 years
Fixings: Screws and fixings are included
Hydronic System: Hydronic towel warmer should be used only on a closed system incorporating an anti-rust inhibitor.
Care & Maintenance: A periodic wash using warm water and a soft cloth will retain the high quality finish of your towel warmer for
many years to come. ON NO ACCOUNT should any household bleaches, detergents, abrasive polishes, steel wool or other cleaning
agents be used on this item.
IMPORTANT: Circuit temperature must not exceed 158° Fahrenheit.
6
Model # Description Finish Weight (lb) Output WxHxD (mm) WxHxD (Inches) Metal Type
H6013 Woodstock Hydronic Chrome 14.0 832Btu 675 x 940 x 140 26.5” x 37” x 5.5” Mild Steel
H6014 Woodstock Hydronic Brushed Nickel 14.0 832Btu 675 x 940 x 140 26.5” x 37” x 5.5” Mild Steel
H6016 Woodstock Hydronic Polished Nickel 14.0 832Btu 675 x 940 x 140 26.5” x 37” x 5.5” Mild Steel
A1063 Traditional Gate Valve Chrome 2.7 - - - Mild Steel
A1064 Traditional Gate Valve Brushed Nickel 2.7 - - - Mild Steel
A1066 Traditional Gate Valve Polished Nickel 2.7 - - - Mild Steel
A3013 10” Installation Pack Chrome 0.4 - - - Copper
A3014 10” Installation Pack Brushed Nickel 0.4 - - - Copper
A3016 10” Installation Pack Polished Nickel 0.4 - - - Copper
fig. 6
fig. 5
fig. 4

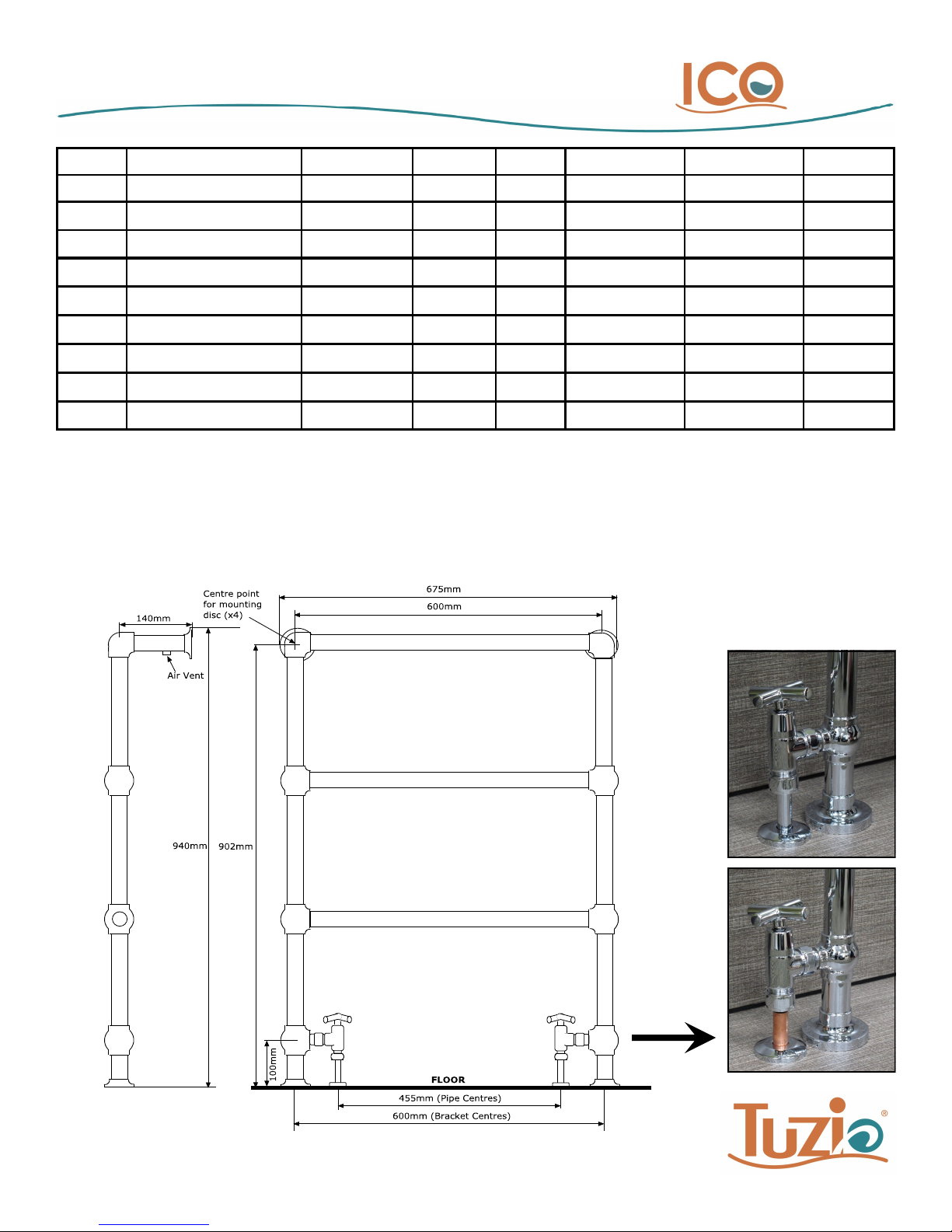

Specifications & Drawings (floor rough-in)
Model # Description Finish Weight (lb) Output WxHxD (mm) WxHxD (Inches) Metal Type
H6013 Woodstock Hydronic Chrome 14.0 832Btu 675 x 940 x 140 26.5” x 37” x 5.5” Mild Steel
H6014 Woodstock Hydronic Brushed Nickel 14.0 832Btu 675 x 940 x 140 26.5” x 37” x 5.5” Mild Steel
H6016 Woodstock Hydronic Polished Nickel 14.0 832Btu 675 x 940 x 140 26.5” x 37” x 5.5” Mild Steel
A1063 Traditional Gate Valve Chrome 2.7 - - - Mild Steel
A1064 Traditional Gate Valve Brushed Nickel 2.7 - - - Mild Steel
A1066 Traditional Gate Valve Polished Nickel 2.7 - - - Mild Steel
A3013 10” Installation Pack Chrome 0.4 - - - Copper
A3014 10” Installation Pack Brushed Nickel 0.4 - - - Copper
A3016 10” Installation Pack Polished Nickel 0.4 - - - Copper
Material Specifications: Brass Tube Diameter 1.25” x 0.03” (31.8mm x 1mm) tested to 11 bar
Warranty: 5 years
Fixings: Screws and fixings are included
Hydronic System: Hydronic towel warmer should be used only on a closed system incorporating an anti-rust inhibitor.
Care & Maintenance: A periodic wash using warm water and a soft cloth will retain the high quality finish of your towel warmer for
many years to come. ON NO ACCOUNT should any household bleaches, detergents, abrasive polishes, steel wool or other cleaning
agents be used on this item.
IMPORTANT: Circuit temperature must not exceed 158° Fahrenheit.
fig. 8
fig. 9
fig. 7
7
