TV Ears 5.0 User manual

TV Ears 5.0 Analog
User Manual
Voice Clarifying Circuitry®

v1.4.2014.5.0A
TV Ears logos, pictures, design, and content ©2014 TV Ears, Inc. All rights reserved.
Keep these instructions in a safe place for future reference.

Important Safety Information
Introduction
Product Diagram
What’s Included
Ideal TV Ears Placement
Installation
Step 1 - Place & Power the Transmitter

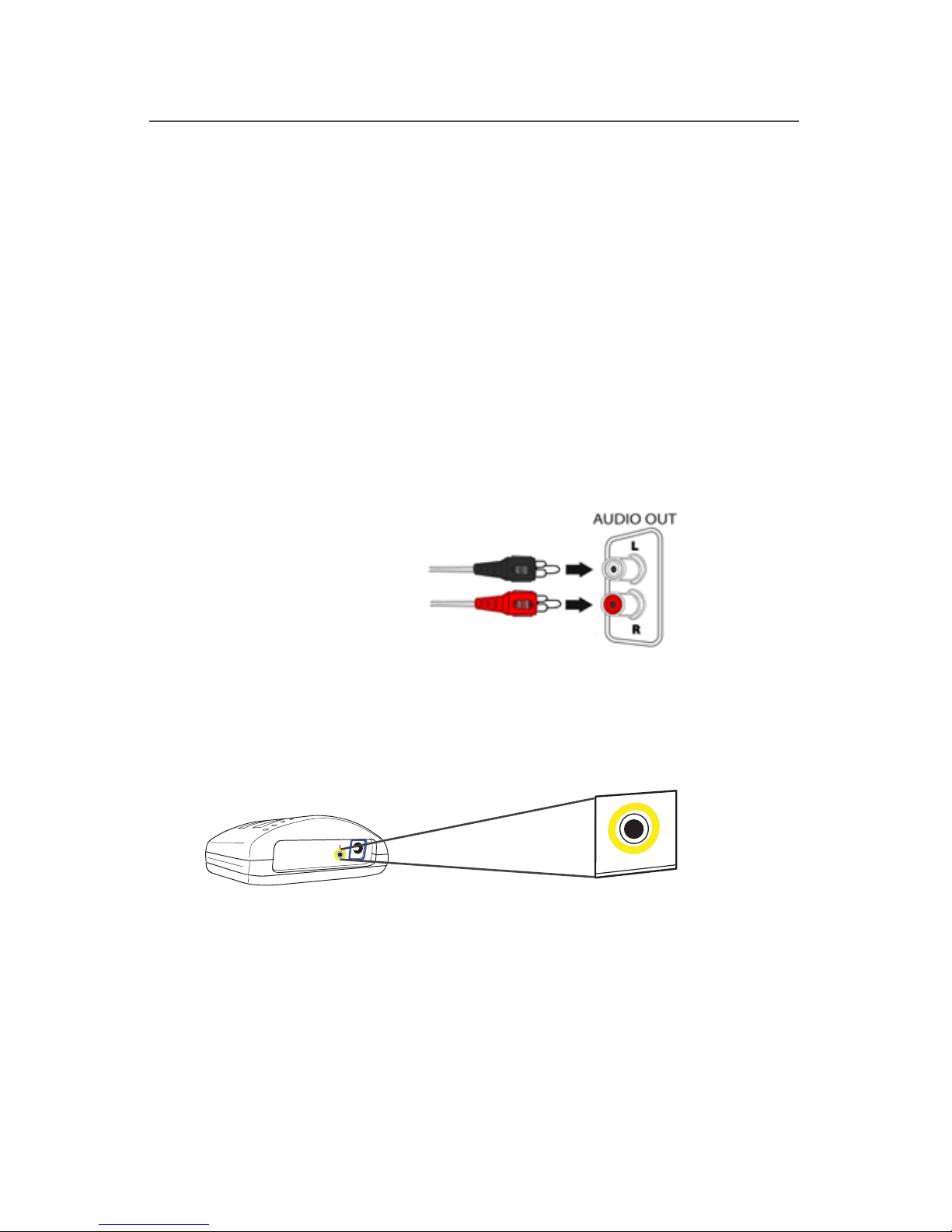

Step 2 - RCA Analog Installation
Step 2.1 - 3.5mm Cord Analog Installation
Step 3 - Charge the Headset
Custom Fit the Headset
Using the System & Features
Caring for your Product
Troubleshooting
Appendix
Warranty and Return Information
Manufacturer Declarations
Technical Specications
Contact Information
2
3
4
5
6
8
9
10
11
12
13-14
15
16-17
18
19
20
Rear Cover
Table of Contents

TV Ears, Inc. asks that you read all instructions completely and heed
all warnings to ensure proper handling and prevent any injuries.
Failure to act in accordance with TV Ears, Inc.’s instructions can lead to
physical harm or injury.
For safety purposes, do not deface the prongs on the AC adapters. If
the provided plug does not t into your outlet, purchase the correct
adapter or consult an electrician for further assistance.
Only use attachments and accessories specied by TV Ears, Inc. with
your TV Ears system.
Warning: To prevent possible hearing loss, do not listen at high
volume levels for long periods of time.
Warning: To reduce the risk of re or electric shock, do not expose
the TV Ears product to rain or moisture. The TV Ears product should
not be exposed to dripping or splashing liquids. Do not place objects
lled with liquid such as vases on or near the TV Ears product.
Warning: Keep batteries out of reach of children. Discard the batteries
appropriately and carefully. If swallowed, call The National Button
Battery Ingestion Hotline at 1-202-625-3333.
Warning: The magnetic eld emitted by the TV Ears speakers is
minimal. When used as indicated, TV Ears headsets should not cause
magnetic interference with pacemakers or internal debrillators. The
magnetic eld strength of the speakers is less than 1 Gauss when
within 1 inch (3 cm) of the pacemaker or internal debrillator. It is
recommended that the user keep the ear tips at least 1 inch away
from any pacemaker or internal debrillator. If you have concerns, we
recommend you contact your physician.
!Important Safety Information
2

3
Introduction
Thank you for purchasing from TV Ears and welcome to the
family! This User Manual is designed to give you the most
information possible and answer all the questions you might
have when installing and using your new product.
In this manual, we will demonstrate the ideal set up as well
as show you how to successfully install your product with
illustrated step-by-step instructions. You will learn what each
piece is used for, how to use all of the features available to
you, and how to troubleshoot the issues most commonly
experienced by other users. We aim to cover any pitfalls you
might experience, and give you tips for best practices.
Towards the back of the manual, you will nd information
on our warranty, technical specications of your product,
and support contact information just in case you have any
questions.
Again, we welcome you to the TV Ears family and wish you
happy TV listening!

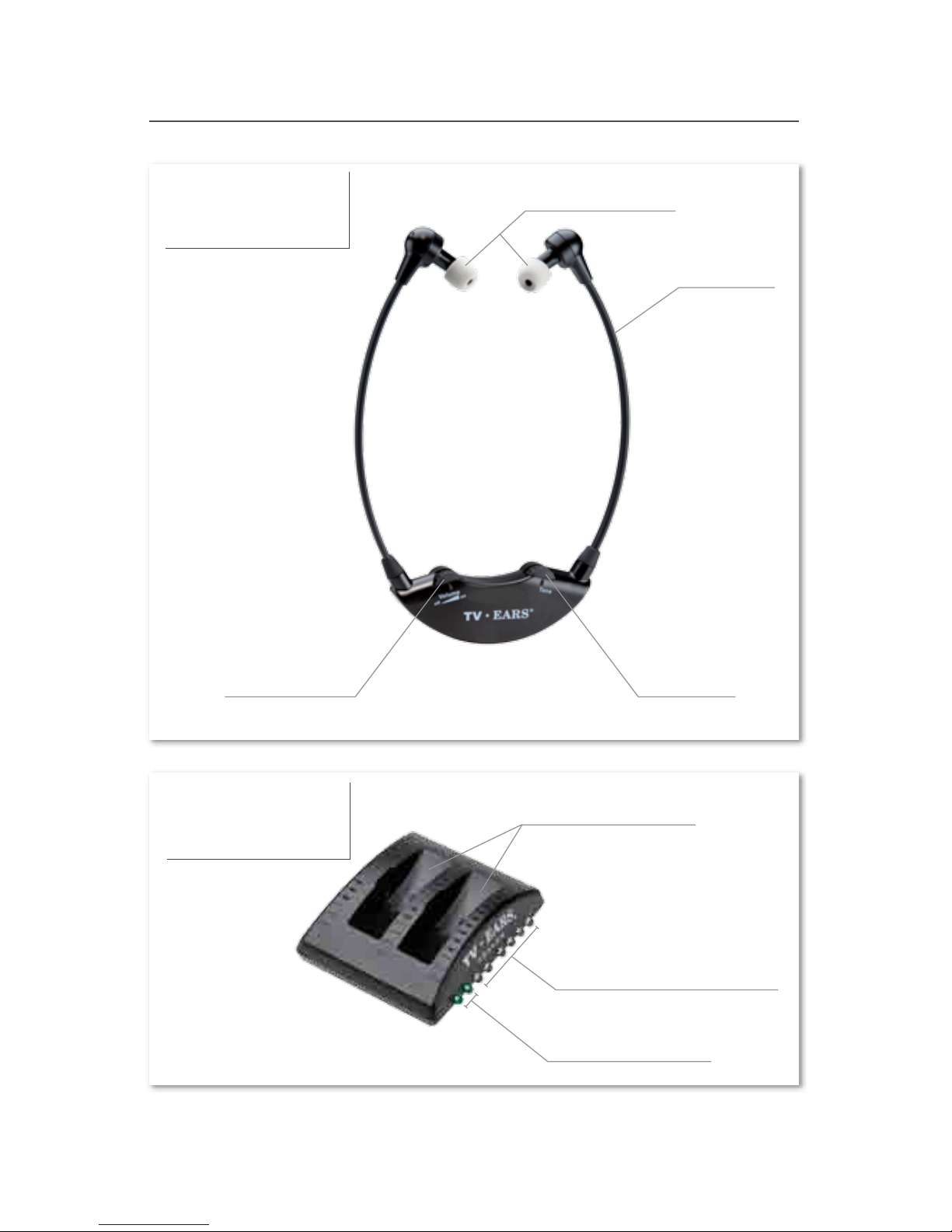

Product Diagram
4
Tone Dial
Headset
Bow Arm
Transmitter
On/Off &
Volume Dial
Foam Ear Tips
Infrared Signal Lights
Charging Lights
Charging Cradles

5
Package Contents
5.0 Analog Transmitter
5.0 Wireless Headset
RCA Analog Audio Cord
AC Power Adapter
3.5mm Analog Audio Cord

Ideal TV Ears Placement
6
Every wireless TV Ears system utilizes infrared technology to
send audio signals from the transmitter to the headset.
Infrared technology requires a direct line-of-sight from the
transmitter to the receiver (or headset) to successfully transmit
audio signals. Therefore, when installing any wireless TV Ears
system, you will have to be sure the transmitter has a direct
line-of-sight with the headset when the headset is in use.
For the best results, the transmitter should be placed on a at
surface that is three to ve feet from the ground and should be
facing directly towards the seating area where the headset will
be used. Make sure that nothing is blocking the signal between
the transmitter and headset (ie. books, newspapers, etc.).

Installation
pgs. 8-11

Step 1 - Place & Power the Transmitter
8
This step explains where to place the transmitter for the best
performance as well as how to power the transmitter.
The infrared diodes on the transmitter must be in direct line-
of-sight with the headset when using the system for best
performance. There cannot be anything blocking the direct signal,
otherwise there will be no audio received and no sound heard.
Place the transmitter on a at surface that is 3 to 5 feet
above the ground. Be sure it is pointed to the seating area
where the headset will be used.
Plug the AC adapter into a standard electrical outlet or
surge protector.
Plug the end of the AC adapter into the port labeled “12V”
on the back of the transmitter. The correct port has a blue
border around it.
1
2
3
Analog Audio In
12
V
12v
Power Port
For assistance, call us at 866-611-9934
