TV Logic TDM-243W (3D) User manual

MODEL NAME:
TDM-243W (3D) 24” 3D BROADCAST MONITOR
SERVICE MANUAL
KEEP THIS SERVICE MANUAL FOR FUTURE REFERENCE.
PLEASE CALL 82-70-8668-6611 OR EMAIL TO [email protected] FOR ASSISTANCES
IF YOU HAVE ANY QUESTION ABOUT LEM-150W MODEL.
THIS INFORAMATION OF THIS MANUAL IS SUBJECT TO CHANGE WITHOUT ANY NOTICE.
MULTI FORMAT
BROADCAST MONITOR

ABOUT TVLOGIC SERVICE MANUAL:
TVLogic Service manual contains information and service procedures to
assist the service technician in understanding and correcting problem
about TDM-243W model.
This information should be reviewed by a service personnel to provide a
basic understanding of how the components function in the working
system.
The troubleshooting section of this manual is intended to provide a
quick reference concerning issues that arise most frequently through
customer complaints.
We hope that technicians will repair TDM-243W without any problem
through our service manual.
SERVICE PREPARATION:
A clean work area at the start of each job is essential for an efficient
service work. Tools need for the job should be ready for use before the
work is started.
2

1.SAFETY PRECAUTION
3
USE SET VOLTAGE.
- AC 100 ~ 240V (1.2A / 50~60㎐)
- DC 12 ~ 24V (MAX 6A)
SAFETY PRECAUTION ABOUT PARTS
- Some parts of this product should be handled with
cauon. User can find those parts in a circuit diagram
and part list.
Do not use aachments not recommended by the
manufacturer. Use of inadequate aachment can result
in accidents.
- Drawing can’t be revised without TVLogic’s permission.
- Use screw holes on the corner when installing the
LCD module.
- Do not push the panel or frame and do not cause an
electric shock to protect the product from damages.
- When handling the LCD module, put an wrist band
to avoid the LCD module from stac electricity
which may cause damages to the electric
components.
- Do not leave the product in a hot or humid place for
a long me.
- Keep the LCD module away from direct rays of the
Sun-light.
- Keep away the product from water because it’s the
reason for short circuit and reducing life span of
electric components.
- Use socloths to wipe the surface of LCD module
when it gets dirty.(Do not use coarse cloths which
might cause damages to the LCD module.)
-If the product is exposed to water, you must wipe
the device with a dry cloth then dissemble the
device to dry.
SAFETY PRECAUTIONS ABOUT DISASSEMBLY
- Please use soft cloths or cushioned sponge
when you disassemble or assemble the
products.
- To separate the panel, release the screws
on the four corners then slowly lift up the
panel while removing the panel interface
cable.
- To separate the board, remove the cable
from it first, remove the bolt which is
holding down the board then separate.
Make sure the cable pin is firmly connected
to the connector while doing it.
SAFETY PRECAUTIONS ABOUT ASSEMBLY
- Please set torque at 2K of electronic screw
driver when you assemble LCD panel and
cases in order to avoid damages of screw
holes of case. This might cause changing
of whole case if you use over torque of
electronic screw driver.
- The connector should be handled with
caution because it is thin and weak. Wrong
connection causes malfunction of the
board and the panel.
WARNING
BE CAREFUL OF THE ELECTRIC SHOCK!
- Make sure to disconnect the adapter from
the AC power when replacing CCFL or
inverter circuit because high voltage about
650Vrms flows in inverter circuit.
- Do not make the cover of cables damaged
in order to avoid accidents such as a fire
USE SET VOLTAGE.
- AC 100 ~ 240V (1.2A / 50~60Hz)
- DC 12 ~ 24V (MAX 6A)
SAFETY PRECAUTION ABOUT PARTS
- Some parts of this product should be handled
with cauon. User can find those parts in a circuit
diagram and part list.
- Do not use aachments not recommended by the
manufacturer. Use of inadequate aachment can
result in accidents.
- Drawing can’t be revised without TVLogic’s
permission.
SAFETY PRECAUTIONS ABOUT HANDLING LCD MODULE
- Use the screw holes on the corner when installing
the LCD module.
- Do not push the panel or frame and do not cause
an electric shock to protect the product from
damages.
- When handling the LCD module, put a wrist band
on to protect the LCD module from stac electricity
which may cause damages to the electric components.
- Do not leave the product in a hot or humid place for
a long me.
- Keep the LCD module away from direct rays of sunlight.
- Keep away the product from water as it is the reason
for short circuit and reduced life span of electric
components.
- Use so cloths to wipe the surface of LCD module
when it gets dirty (Do not use coarse cloths which
might cause damages to the LCD module).
- If the product is exposed to water, you must wipe
the device with a dry cloth then dissemble the device
to dry.
SAFETY PRECAUTIONS ABOUT DISASSEMBLY
- Please use so cloths or cushioned sponge when you
disassemble or assemble the products.
- To separate the panel, release the screws on the four
corners then slowly li up the panel while removing
the panel interface cable.
- To separate the board, remove the cable from it first,
remove the bolt which is holding down the board
then separate. Make sure the cable pin is firmly
connected to the connector while doing it.
SAFETY PRECAUTIONS ABOUT ASSEMBLY
- Please set torque at 2K of the electronic screw driver
when you assemble LCD panel and cases in order to
avoid damaging of screw holes on the case. This
might require you to change the enre case if you
use over torque of electronic screw driver.
- The connector should be handled with cauon as it
is thin and fragile. Wrong connecon causes
malfuncon of the board and the panel.
WARNING
BEWARE OF ELECTRIC SHOCKS!
- Make sure to disconnect the adapter from the AC
power when replacing CCFL or the inverter circuit
because high voltage of about 650 Vrms flows in the
inverter circuit.
- Do not make the cover of cables damaged in order
to avoid accidents such as fire or electric shocks.
All the cables in the inverter circuit must be
handled with cauon.

4
Front
Rear
2.CONTROLS & FUNCTIONS
STATUS INDICATOR
TALLY
HDMI
SDI
2D
3D
F1
F2
F3
F4
ENTE
R
UP
DOWN
MENU
MARKER
SCAN
APERTURE
BRIGHT
CONTRAST
AUDIO OUT
POWER
POWER
INDICATOR
USB
REMOTE
RS-422 IN
RS-422 OUT
RS-232
HDMI-L
HDMI-R
SDI-L IN/OUT
ETHERNET
AUDIO IN
AC IN
DC IN
POWER S/W

5 5
3.FRONT KEY BUTTON

6

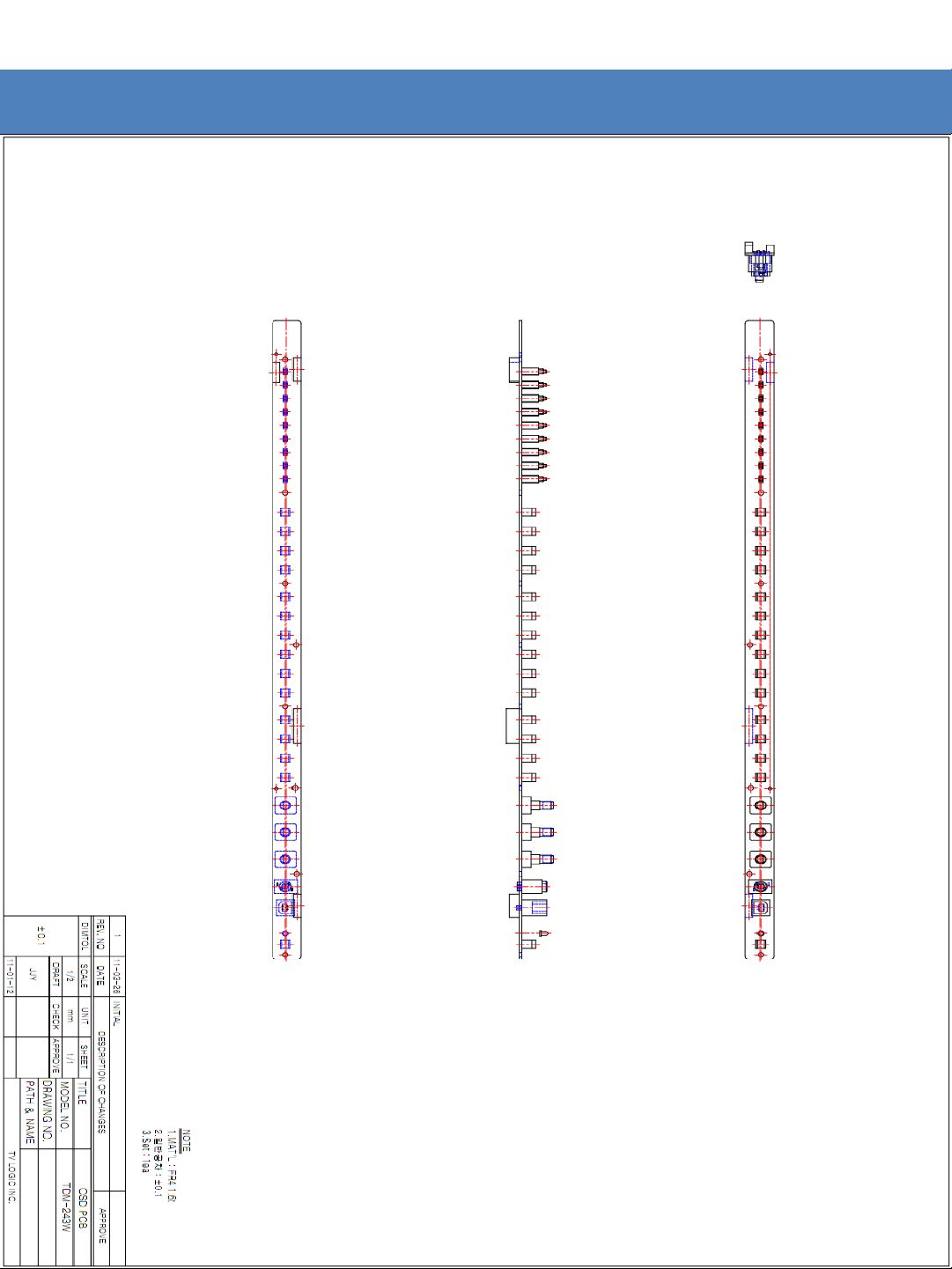

4.MONITOR DRAWING

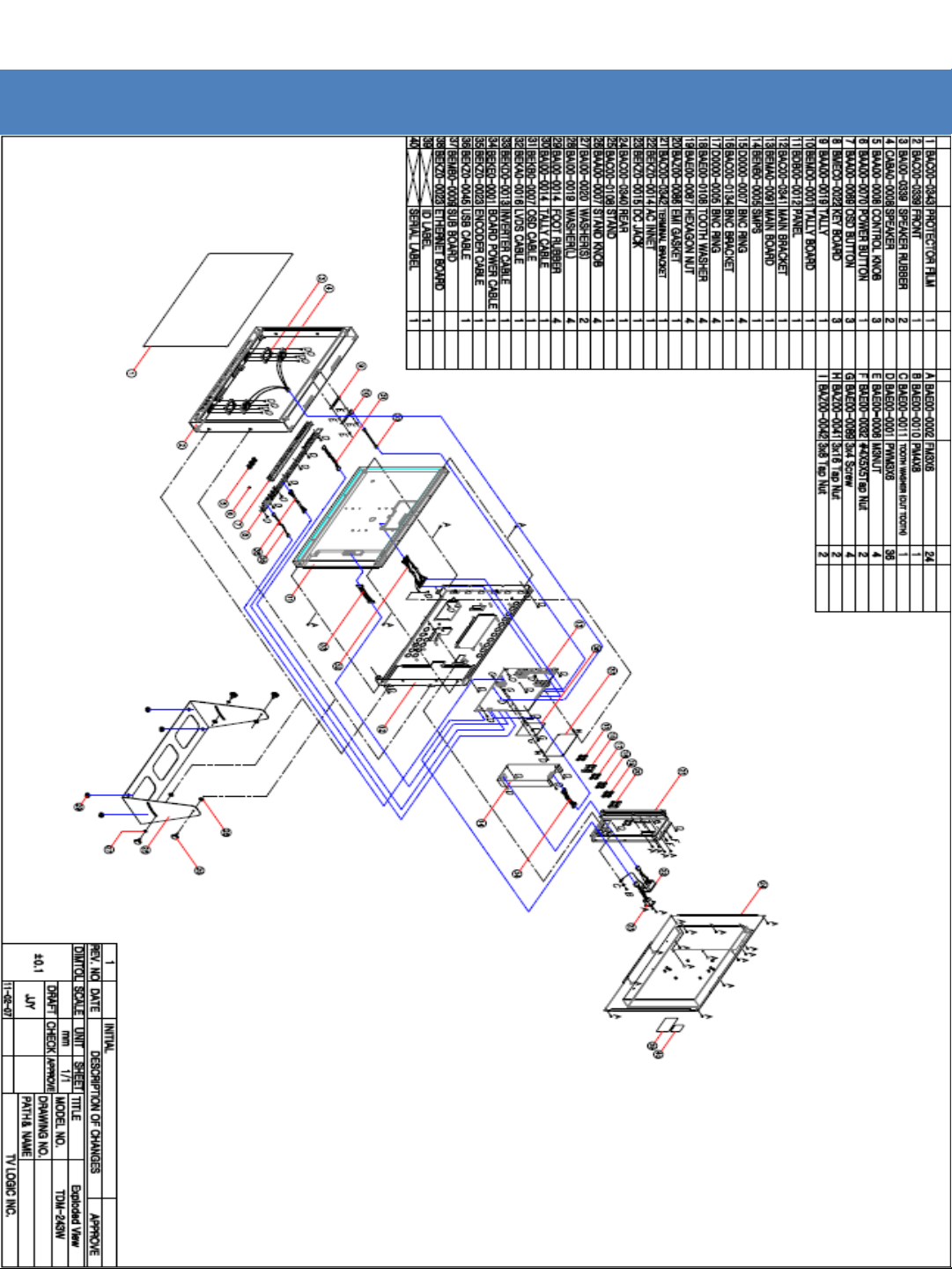

5.EXPLODED DIAGRAM
7

1) Loosen and remove 4 Stand knobs on
both sides of TDM-243W.
2) Loosen 16 screws from the back frame.
3) Separate the back frame. 4) Remove all the cables and screws and
then separate the terminal bracket.
6.1 DISASSEMBLY PROCEDURE
8

5) Remove all cables on the main board.
7) Remove LVDS cable and loosen 4 screws
between the front frame and the panel.
6) Remove all the screws and separate SMPS
from the main board.
8) Separate the panel from the front frame.
9
6.2 DISASSEMBLY PROCEDURE

9) Picture of the front frame.
6.3 DISASSEMBLY PROCEDURE
10

11
7.DVI ANALOG/DIGITAL SUPPORT RESOLUTION
DVI ANALOG/DIGITAL Support Resolution
Resolution
Frequency
640 ×480
60Hz, 75Hz
720 x 400
70Hz
800 ×600
60Hz, 72Hz, 75Hz
1024 ×768
60Hz, 70Hz, 75Hz
1366 x 768
60Hz/75Hz
• DVI-ANALOG mode supports the following modes :
SMPTE-274M
1080i (60 / 59.94)
SMPTE-296M
720p (60 / 59.94)
SMPTE-125M
480i (59.94), 480p(59.94)
•DVI DIGITAL / HDMI Graphic mode support the following modes :
•DVI DIGITAL / HDMI Video mode support the following input signals :
•DVI DIGITAL mode is separated into Graphic mode and Video mode.
•In DVI ANALOG/DIGITAL mode, ZERO scan must be selected for normal function.
•If the input image is in non-wide mode, press ASPECT button to change to wide display.
Resolution
Frequency
640 ×480
60Hz, 75Hz
800 ×600
60Hz, 72Hz, 75Hz
1024 ×768
60Hz, 70Hz, 75Hz
1366 x 768
60Hz/75Hz

12
* Above specifications may be changed without notice.
8.PRODUCT SPECIFICATIONS
TDM-243W
Input
2 x BNC
SDI A/B Channel Input
2 x HDMI
HDMI Input
Output
2 x BNC
SDI A/B Channel (Loop Through Out)
Input Signal
3G-SDI
2.970Gb/s
HD-SDI
1.485Gbps
SD-SDI
270Mbps
HDMI
480i/480p/720p/1080i & VESA/IBM Modes
SDI Input Signal Formats
SMPTE-425M-A/B
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
1080i (60/59.94/50)
SMPTE-372M
Dual HD-SDI YPbPr (4:2:2)
1080p (50 / 59.94 / 60)
Dual HD-SDI YPbPr/RGB (4:4:4)
1080i (50 / 59.94 / 60)
1080p/psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-274M
1080i (60/59.94/50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
720p (60/59.94/50)
SMPTE-260M
1035i (60/59.94)
SMPTE-125M
480i (59.94)
ITU-R BT.656
576i (50)
2K Format
2048 x 1080(23.98p/psf, 24p/psf)
Audio In
Embedded Audio / Analog Stereo (Phone Jack)
Audio Out
Analog Stereo (Phone Jack). Internal Speaker(Stereo)
LCD
Size
24”
Resolution
1920 x 1200 (16:10)
Pixel Pitch
0.270(H) x 0.270(W) mm
Color
1.06Bil. (Dither 10bit)
Viewing Angle
2D : 178˚ (H/V) 3D : 178˚ (H)/20˚ (V)
Luminance of white
400 cd/㎡(Center)
Contrast
1000:1
Display Area
518(H) x 324(V) mm
Power
DC 24V/AC100~240V(50~60Hz)
Power Consumption (Approx.)
77 Watts(Max)
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (- 4°F to 140°F)
Main Body Dimensions (mm/inch)
552.5 x 389 x 97.5 (21..75 x 15.31 x 3.83)
Main Body Dimensions (With Stand)
560.5 x 416.8 x 150 (22.06 x 16.40 x 5.9)
Weight
10.8Kg / 23.80 Lbs
Accessory
AC Power cord, Manual, 3D Glasses
Option
Carrying case, 19” Rack Mountable Kit(6U)

13
9. PCB BLOCK DIAGRAM

14
- The selectable functions are as follows
<GPI Remote>
- The location of each pin is shown on the right picture.
Menu Classification
Settable Values
PIN 1~6
NONE, ANALOG CHANNEL, DIGITAL A CHANNEL, DIGITAL B CHANNEL,
PBP CHANNEL, TALLY R, TALLY G, TALLY Y, UNDER SCAN, 1:1 SCAN,
ASPECT, H/V DELAY, BLUE ONLY, MONO, 16:9 MARKER, 4:3 MARKER,
4:3 ON AIR MARKER, 15:9 MARKER, 14:9 MARKER, 13:9 MARKER,
1.85:1 MARKER, 2.35:1 MARKER, 1.85:1&4:3 MARKER, CENTER MARKER,
SAFETY AREA 80%, SAFETY AREA 85%, SAFETY AREA 88%,
SAFETY AREA 90%, SAFETY AREA 93%, SAFETY AREA 100%, 708,
608(LINE 21), 608(ANC), DYNAMIC-UMD
- This product provides a REMOTE CONTROL mode.
- User can designate a function through each pin.
- The default settings are as follow
PIN 1 : ANALOG CHANNEL
PIN 2 : SDI A CHANNEL
PIN 3 : SDI B CHANNEL
PIN 4 : PBP CHANNEL
PIN 5 : TALLY R
PIN 6 : TALLY G
10. CIRCUIT OPERATION

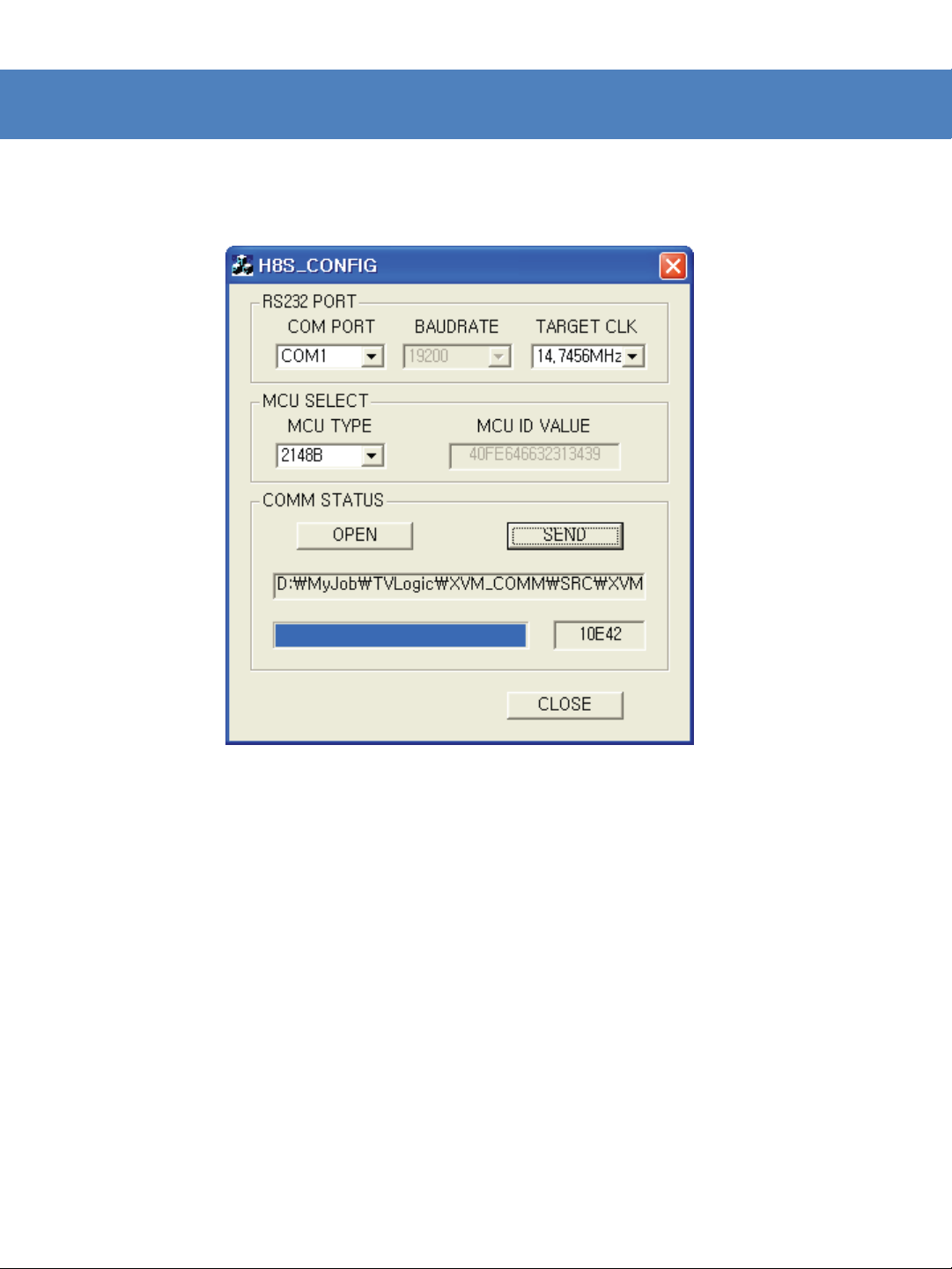

11. PROGRAM UPDATE – WEBHARD
15

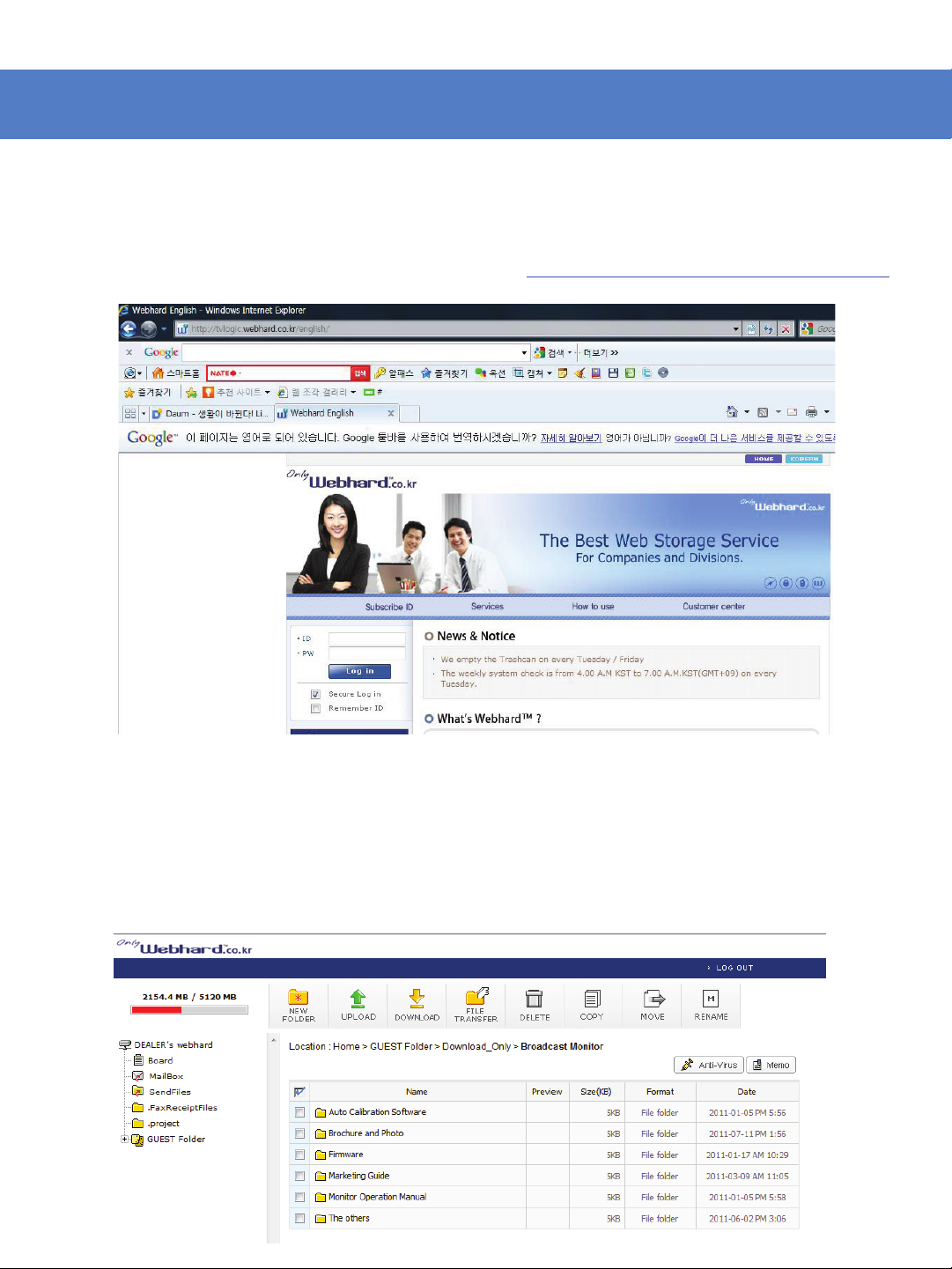

TVLOGIC WEBHARD INFORMATION
If you need to upgrade to a new firmware with TVLogic monitor,
please visit the TVLogic webhard at hp://tvlogic.webhard.co.kr/english
ID: dealer
Password: XXXXXXXXX
Please request the password from TVLogic overseas sales team.
the password may be changed without any noce.

16
1) Monitor Sengs
- In the OSD Menu -> REMOTE -> Enter IP Address, Subnet Mask, Gateway value.
* Changing the PORT NO. is not recommended.
* Enter the IP Address of the connected internet with monitor.
* PASSWORD feature is available with Ver. 1.0 and above.
- Leave the monitor on.
2) Upgrade program sengs
- Run XVM_COMM.exe
Picture 1 : Monitor upgrade SW=>
- Enter the same IP address as entered for the monitor. (See Picture 2)
* Changing the PORT NO. is not recommended.
- When the “CON TEST“ buon is pressed, Version number will appear in the
Ver. Box if connected properly. If not, “??” will appear in the box.
- If “??” appears, check the IP address for the monitor and program, then
try again.
12.1 PROGRAM UPDATE WITH ETHERNET

17
3) Firmware update
- FPGA
Picture 2 : Update setting
* Select FPGA #1 for DEV in UPDATE PROCESS. Then, OPEN and select
the FPGA firmware file.
* Press the SEND button to start transferring the firmware file to the
Ethernet Board.
Picture 3: Transfer finished message window
* Once the transfer finishes, message window appears to confirm the
start of update.
12.2 PROGRAM UPDATE WITH ETHERNET

18
Picture 4: Update start message window =>
* Press the “OK” buon to start updang.
Picture 5: CONFIG SUCCESS message window =>
* “CONFIG SUCCESS” message window appears when update is finished.
-CPU
* Select ARM/GEN for DEV in UPDATE PROCESS. Then, press OPEN and select
the ARM/GEN firmware file.
* Press the SEND buon to start transfer.
* Follow the above FPGA updang steps to finish the update.
-VXP
* Select VXP #1 for DEV in UPDATE PROCESS. Then, press OPEN and select
the VXP firmware file.
* Press the SEND buon to start transfer.
* Follow the above FPGA updang steps to finish the update.
12.3 PROGRAM UPDATE WITH ETHERNET

19
Picture 6 : ETHERNET BOARD Upgrade SW
- Connect the cable with serial port of PC and RS232 port of monitor.
The PC must have RS232 port and can not use the USB to RS232 converter.
See Picture 7 for the cable connection.
- Select COM PORT.
- Select “14.7456MHz” for TARGET CLK.
- Select “2148B” for MCU TYPE.
- OPEN and select the “*.mot” file.
- Press the SEND button.
4) How to Upgrade ETHERNET BOARD
12.4 PROGRAM UPDATE WITH ETHERNET BOARD

20
2 : RX
3 : TX
4 : DTR
5 : GND
6 : DSR
7 : RTS
8 : CTS
2 : RX
3 : TX
4 : DTR
5 : GND
6 : DSR
7 : RTS
8 : CTS
MONITOR
RS232
MALE
PC
RS232
MALE
9 : RI 9 : RI
Picture 7: Cable connection for ETHERNET BOARD upgrade
12.5 PROGRAM UPDATE WITH ETHERNET BOARD
