Introduction
The 1T- MV-8474 is a 4K Multiviewer designed for easy collaboration in
huddle rooms, conference facilities, medical, education, government
applications or control rooms –anywhere that single or multiple inputs are
required, whatever the resolution, to be displayed on a single 4K screen.
Control is quick and simple either using the front panel, a remote control or
a fully featured web interface.
The 1T- MV-8474 supports native 4K inputs (resolutions up to
3840x2160@30 on HDMI and 3840x2160@60 via DisplayPort) together
with up/down conversion, audio breakaway and selectable audio delay.
Offering seven multi-format video inputs (4x HDMI, 2x DisplayPort, 1x
VGA/YPbPr) the system can display up to four video windows
simultaneously via sixteen different fixed layouts which can be simply
recalled to present your content in a variety of combinations. The sixteen
layouts include Quad split, Picture-In-Picture, Triple, Side-By-Side, Full
screen and other, more complex, layouts with multiple layers. A single
scaled HDMI output is capable of supporting resolutions up to
3840x2160@30. In addition, seven independent stereo analog inputs and
outputs, allow you to switch audio separately from the HDMI stream and
also integrate 7.1 audio with external equipment.
The on board web interface gives access from your PC to system setup, Full
EDID management and audio control including delay and volume
adjustments, making it easy to integrate the 1T-MV-8474 into complex
systems. Control is via a Web interface, RS232, Ethernet, Infrared remote or
from the front panel buttons.
The 1T-MV-8474 is an extremely flexible Multiviewer and a capable
Presentation Switcher making it an excellent fit for many different user
applications.

7
Key Benefits
Multiple inputs: 4 x HDMI, 2 x DisplayPort, 1 x RGB/YPbPr.
HDMI, DisplayPort source input with 4Kx2K@30Hz support.
Supports MHL in the four HDMI input ports.
Supports multiple HDMI output resolutions, such as 4Kx2K@30Hz
and 1080P.
Supports Auto Scaler in each source input.
Auto-detect EDID.
Supports different multiple-window modes: quadruple windows;
triple windows; double windows and a single window, outputting
to a display device through one HDMI output.
Supports up to four window inputs and sixteen pre-defined
multiple-window mode.
HDCP compliant.
Fast switch between input ports.
Supports 7.1 analog and digital audio.
Supports multiple-channel HDMI, DisplayPort audio de-embedding,
optical TOSLINK and eight-channel analog outputs.
Easy-to-use panel and WebGUI.
Control methods –Assignable Front Panel, IR, LAN (WebGUI,
Telnet & UDP) and RS232
Firmware upgrading through LAN, RS232 or USB ports.
1 RU Height, 19” width standard enclosure, rack mountable design

8
Getting Started

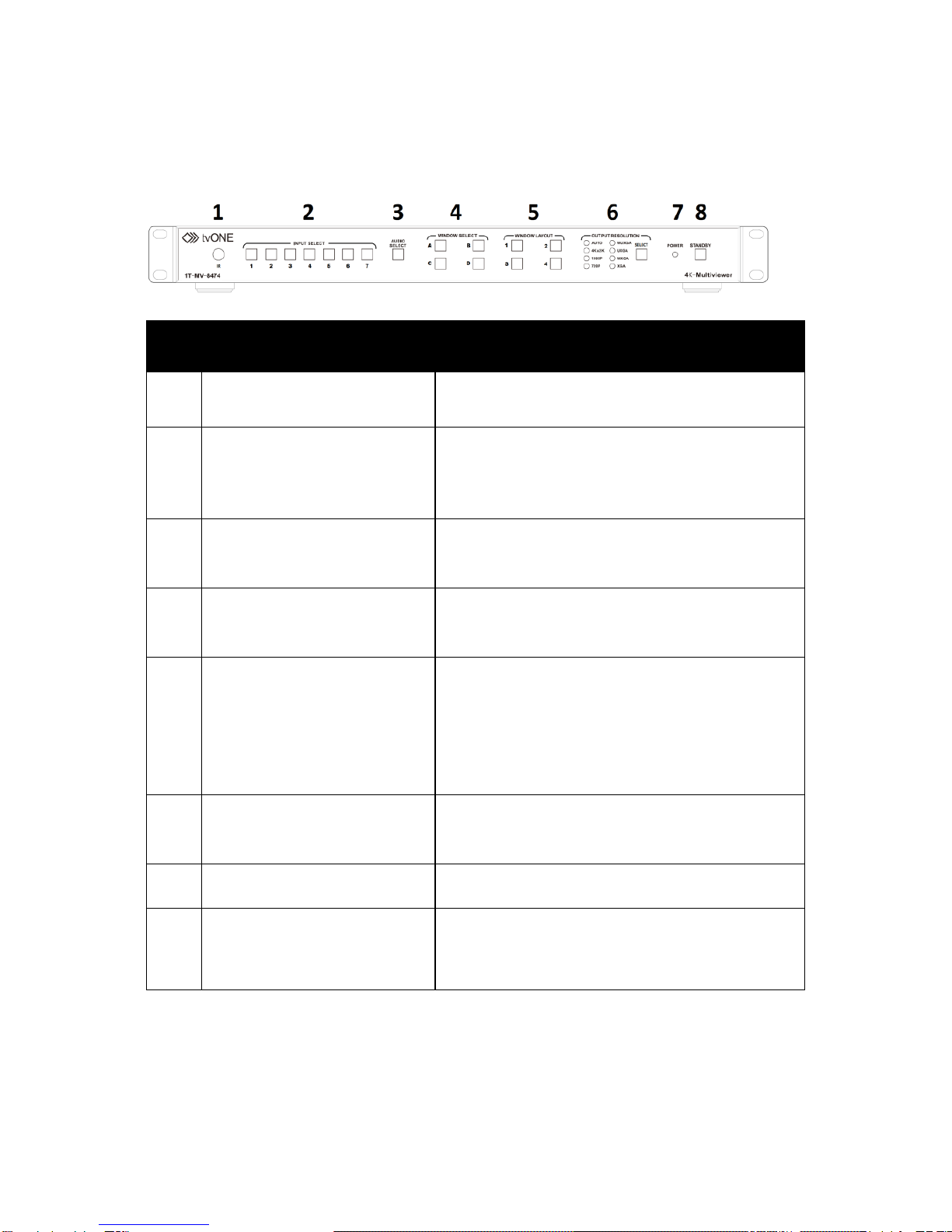

Front Panel
ID
Name
Description
1
IR receiver window
Infrared sensor for use with the remote
control.
2
Input Select
Buttons 1-7 to correspond with video or
audio inputs. The indicators mean the
corresponding status of the video or audio
input.
3
Audio Select
Press to select the Audio Input required.
The designated Input will light up, and the
others will flash.
4
Window Select
A-D represents the 4 possible windows.
Pressing one will show which designated
Input is selected, and the others will flash.
5
Window Layout
Select the Window Layout mode from the
four options: single window, double
windows, triple windows and quadruple
windows. These layouts can be
reprogrammed using the web GUI from a
choice of 16 layouts.
6
Output Resolution
Press to scroll through the different
resolutions. A light indicates the current
output.
7
Power
Indicates when the unit has power.
8
Standby
Switches between standby and working
mode. The switch lights up when standby
mode is selected.

9
Rear Panel
ID
Name
Description
1
Power Switch and
110/220 AC Power
Receptacle
Power ON or OFF using this switch.
Connect the AC power cord provided to an
available electrical outlet.
2
Analog audio output
8 channel analog audio output, Connect a 3.5mm
stereo input to the Line In jack of a multimedia
system.
3
Optical output
Connect the optical output port to the digital
audio input port of your amplifier.
4
HDMI output
Connect an HDMI cable from this port to an
HD or 4K display.
5
Analog audio input 1-
7
7 channel stereo analog audio input, Connect a
3.5mm stereo input from the Line Out jack on the
audio source to this jack.
6
HDMI input 1-4
Connect up to four Hi-Def sources to these inputs
using HDMI cables.
7
DisplayPort input 1-2
Connect up to two Hi-Def sources to these inputs
using DisplayPort cables.
8
RGB/YPbPr input
Connect up to a Hi-Def sources to this input using
DB-15 cable or YPbPr-VGA cable.
9
USB
USB socket for firmware updates.
10
IP Cont.
Connect an Ethernet cable between
this jack and a LAN to use IP control.
Refer to RS-232 and IP Configuration for
more information on setting up IP control.
11
RS-232
Connect an RS-232 cable from this port
to an RS-232 device. See RS-232 and
IP Configuration for more information on
setting up RS-232 control.

10
IR Remote Control Unit
ID
Name
Description
1
Power
Power the Multiviewer ON or OFF
2
Input 1-7
Press "1-7" to select the corresponding video input or
audio input
3
Windows A-D
A-D represents the 4 possible windows. Pressing one
will show which designated Input is selected, and the
others will flash.
4
Window
Layout
Select the Window Layout mode from the four
options: single window, double windows, triple
windows and quadruple windows. These layouts can
be reprogrammed using the WebGUI from a choice
of 16 layouts.
5
Audio
Press this button and then press the "1-7" buttons to
select the required audio input
6
Mute
Toggle between Mute and Unmute
7
Resolution
Scroll through the different resolutions. A light
indicates the current output on the front of the
Multiviewer Switcher HDMI output resolution

11
Package Contents
1T-MV-8474 4K Multiviewer
19 Button remote control
AC Power cord
2x Rack ears
Instruction Manual
Installation
How to Connect the Multiviewer
1. Connect up to four 4K or HD HDMI sources to the input ports
(HDMI 1 - HDMI 4), Connect up to two 4K or HD DisplayPort
sources to the input ports (DISPLAYPORT 5 - DISPLAYPORT 6),
Connect up to one VGA or YPbPr sources to the input ports
(RGB/YPbPr) on the Multiviewer.
2. Connect a UHD 4K or HD (1080p or 720p) display to the HDMI
Output port on the unit.
Optional steps include:
Connect up seven stereo analog audio sources to audio
input ports (1-7) on the unit.
Connect four 3.5mm stereo inputs from the jacks on the
Multiviewer to the Line In jack of a multimedia system, or
Connect an optical cables from the OPTICAL on the unit to
the Optical In of a multimedia system.
Connect an RS-232 cable from the RS-232 port on the unit
to the RS-232 connector on the serial controller.
Connect an Ethernet cable from the LAN port on the unit
to a Local Area Network (LAN).
3. Connect the AC power cord to the unit and connect the plug to an
available electrical outlet.

12
Wiring Diagram
Operating
Standby and Work Mode
The Power LED on the front panel illuminates red to indicate the unit has
power. If the indicator does not illuminate, check the power supply is
attached correctly.
When the unit is in standby mode, the indicator light will display as green.
In normal working mode the indicator light turns off.
There are three ways to start the device:
Power On (button on reverse of unit), then press the Standby
button,
Use ON/OFF button on the Remote control,
or using LAN or RS232 commands.

13
Screen layout Configuration
Multiviewer Switcher offers up to 16 window configurations through the
web interface, with four of them available at any one time via the front
panel or remote control. The default configuration consists of: single,
double, triple or quadruple windows on buttons 1 through to 4. The 16
screen configurations consist of the following layouts (with numbers 1-4
being the factory defaults):
Pressing one of the four options will display the Screen Layout, and the
button will remain illuminated. You will also notice that in Window Select
that the buttons A-D will illuminate to reflect the number of potential
windows available in that layout.

14
Multiviewer displays up to four sources. When multiple sources are
displayed on the screen, each source is regarded as a single window, and
each window is defined as an input.
Examples of configurations
This section demonstrates how a series of configurations are created. To
assist with the description we will use the following example to illustrate a
configuration.

15
Single Window
1. Select the Window Layout 1 button on the front panel or on the
remote to set single window mode, Windows Select A button
indicator lights up, Input Select 1 indicator lights up.
2. HDMI output configures the HDMI 1 input, the window is shown as
follows.
3. If you want to switch to the signal of DisplayPort5, either:
Press 5 in the Input select or on the remote, or
Press A in the Windows Select or on the remote. Within
the input section a solid light denotes the current
selection, any flashing buttons denote a source that can
be selected. Press 5 to complete the selection.
4. Input 5 changes to a solid light and the HDMI output picture is
changed to the signal of DisplayPort5. (Example Input 5 E)

16
Double Windows
1. Select the Window Layout 2 button on the front panel or on the
remote to change the mode of double window. Video A and B
button indicators on the front panel light up. Within the Input
Select two buttons will light to denote the current selection.
2. Press Windows Select A, the Inputs will flash. Select the required
Input. (Example Input 5 E).
3. Press Windows Select B, the Inputs will flash. Select the required
Input. (Example Input 6 F).
Alternatively, you can press the Input channel required, select
Windows Select A, after a few seconds the channel will display.
Press the second Input you require and press Windows Select B.
In Double Window, you will finish with two Inputs lit, Windows Select A and
B, and Windows Layout 2.

17
Triple Windows
Select the Window Layout 3 button on the front panel or on the
remote to set to triple windows mode, Windows Select A, B and C
button indicators on the front panel light up.
Press Windows Select A, the Inputs will flash. Select the required
Input. (Example Input 1 A).
Press Windows Select B, the Inputs will flash. Select the required
Input. (Example Input 2 B).
Press Windows Select C, the Inputs will flash. Select the required
Input. (Example Input 3 C).
Alternatively, you can press the Input channel required, select
Windows Select A, after a few seconds the channel will display.
Press the second Input you require and press Windows Select B.
Select the third Input you require and Press Windows Select C.
In Triple Window mode, you will finish with up to 3 Inputs lit*, Windows
Select A, B and C; and Windows Layout 3. (*You could have one Input used
in two Video windows).

18
Quadruple Windows
1. Select the Windows Layout 4 button on the front panel or on the
remote to set to quadruple windows mode, Windows Select A, B, C
and D button indicators on the front panel light up.
Press Windows Select A, the Inputs will flash. Select the required
Input. (Example Input 1 A).
Press Windows Select B, the Inputs will flash. Select the required
Input. (Example Input 2 B).
Press Windows Select C, the Inputs will flash. Select the required
Input. (Example Input 3 C).
Press Windows Select D, the Inputs will flash. Select the required
Input. (Example Input 4 D).
Alternatively, you can press the Input channel required, select
Windows Select A, after a few seconds the channel will display.
Press the second Input you require and press Windows Select B.
Select the third Input you require and Press Windows Select C.
Select the fourth Input you require and Press Windows Select D.
In Quadruple Windows mode, you will finish with up to 4 Inputs lit*,
Windows Select A, B, C and D and Windows Layout 4. (*You could have one
Input used in several Video windows).
