Introduction
Thank you for choosing a high-quality product “MADEIN GERMANY” from TW AUDiO.
Our B15 loudspeaker is a true multi-talent, especially with the optional passive crossover
PWB15. The 1× 15“ fitted bass reflex system is suitable for the switchable bi-amp mode or
as a passive bass extension for our M and C series loudspeakers.
The passive crossover has a satellite output with a switchable high-pass filter. This enables
the B15 loudspeaker to be passively used without additional system controllers together with
various 8 ohm loudspeakers with one standard amplifier.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
NOTE
TIP
CAUTION
WARNING
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation for persons with a pacemaker. Failure to comply with this safety instruction can lead
to serious injury or even death.
WARNING

Operation manual B15
3
Notes on the products
Read manual
before use!
Before using the device, carefully read the operating manual and keep it with the B15 loudspe-
aker.
General information
Operation manual: OM-B15
Version 1.1 en, 11/2018
© by TW AUDiO 2018; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
E-Mail: [email protected]
WWW: www.twaudio.de

Operation manual B15
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
2.2 Variants ................................................................................................................... 8
2.2.1 B15A/B15P models............................................................................................ 8
2.3 Operation modes..................................................................................................... 9
2.3.1 MODE 1 - ACTIVE (BI-AMPED).......................................................................... 9
2.3.2 MODE 2 - PASSIVE 1 (M-SYS-ONE)................................................................ 10
2.3.3 MODE 3 - PASSIVE 2 (M-SYS-TWO) ............................................................... 11
3. Technical data .............................................................................................................. 12
3.1 Data sheet............................................................................................................. 12
3.2 Connection diagram .............................................................................................. 13
3.2.1 Variant: B15A ................................................................................................... 13
3.2.2 Variant: B15P ................................................................................................... 13
4. Commissioning............................................................................................................. 14
4.1 Setup .................................................................................................................... 14

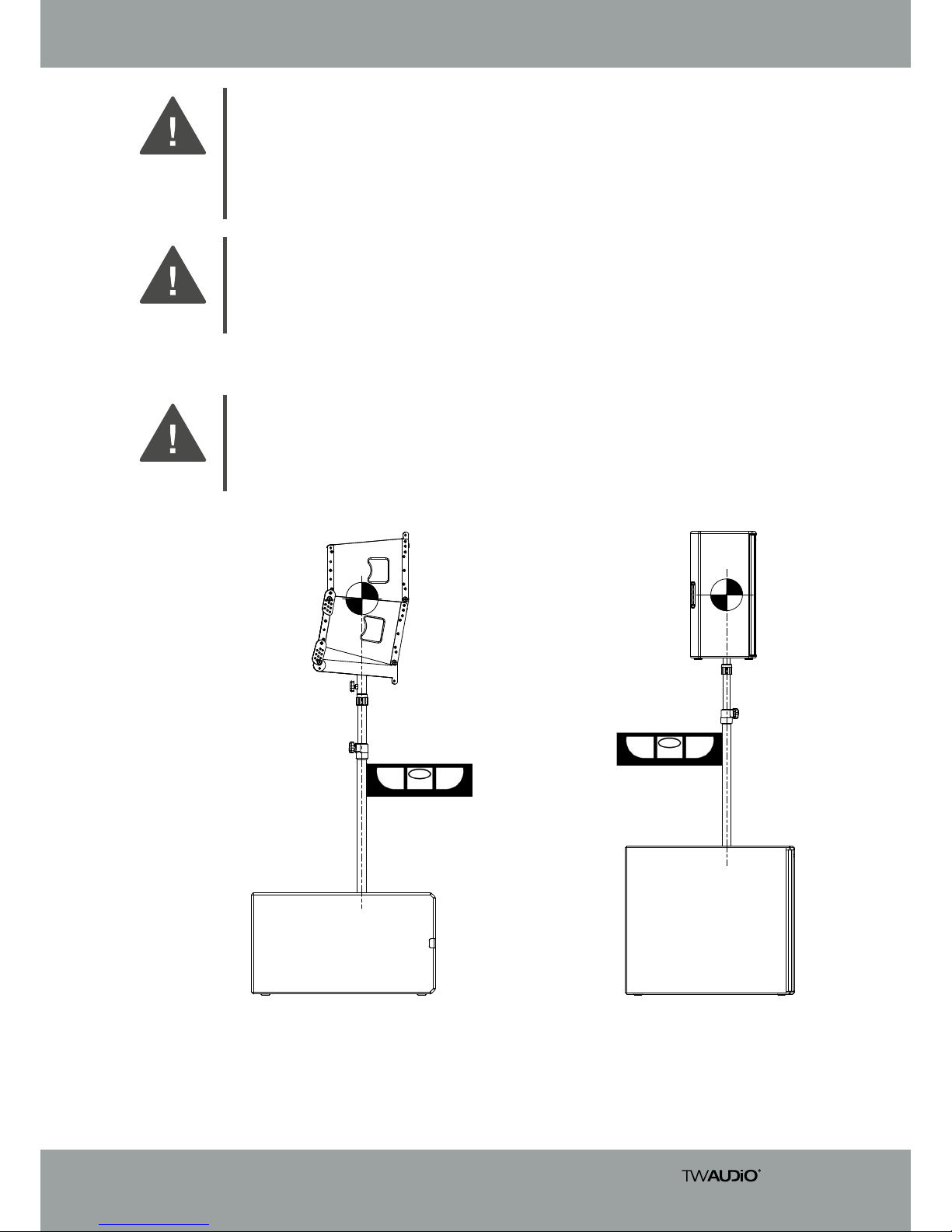

4.2 M20 pole mount flange.......................................................................................... 14
4.3 Operation .............................................................................................................. 17
4.4 Connecting the cable............................................................................................. 18
5. Transport and storage .................................................................................................. 19
6. CE Conformity Declaration............................................................................................ 20
7. Disposal ....................................................................................................................... 21

Operation manual B15
5
1. Safety | Intended use
Please adhere to the following safety instructions to avoid risks when operating loudspeakers.
The B15 loudspeaker was developed for use in professional sound systems. The loudspea-
ker may only be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TW AUDiO.
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not permit-
ted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can
cause pacemakers to malfunction.
When working with heavy loads exceeding 20kg (44,09 lbs.), use suitable aids (dollies, hois-
ting slings, etc.). Multiple persons may be required depending on the situation.
Ensure that the units are in a stable position and are firmly attached. A falling loudspeaker can
result in serious personal injury and property damage.
When using and assembling TWAUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the applicable
safety regulations.
WARNING
When setting up loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• direct sunlight
• Humidity
• Jolting
• Dust
Keep away from the immediate vicinity of loudspeakers that are operated at high sound pres-
sure levels. These loudspeaker systems are capable of endangering your health. Sound levels
beginning as low as approximately 90dBSPL can lead to long-term hearing impairment.
WARNING
Avoid:
• Feedback
• Distorted signals (clipping) and
• Peaks resulting from switching on devices, plugging in devices or unplugging devices during
operation.
Such signals can lead to loudspeaker overload and ultimately to loudspeaker failure.
WARNING
NOTE
NOTE

Operation manual B15
6
Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over-
loads may cause a fire and result in serious personal injury and property damage.
WARNING
Note that TWAUDiO does not provide a warranty for damage that can be attributed to this
type of overload and therefore cannot be held liable for any secondary damage.
A permanent magnetic field is present in the immediate vicinity of loudspeakers. Ensure that
objects which react sensitively to magnetic fields are not located in the immediate vicinity of
the loudspeaker. In particular, this applies to magnetic storage media, magnetic stripe cards
such as debit cards and CRT displays. A distance of approximately one meter is sufficient to
avoid damage.
Check loudspeakers and accessory parts regularly for visible wear. This is essential to ensure
continuing fault-free operation. Worn parts should be replaced immediately. Spare parts are
available from TWAUDiO.
NOTE
NOTE

Operation manual B15
7

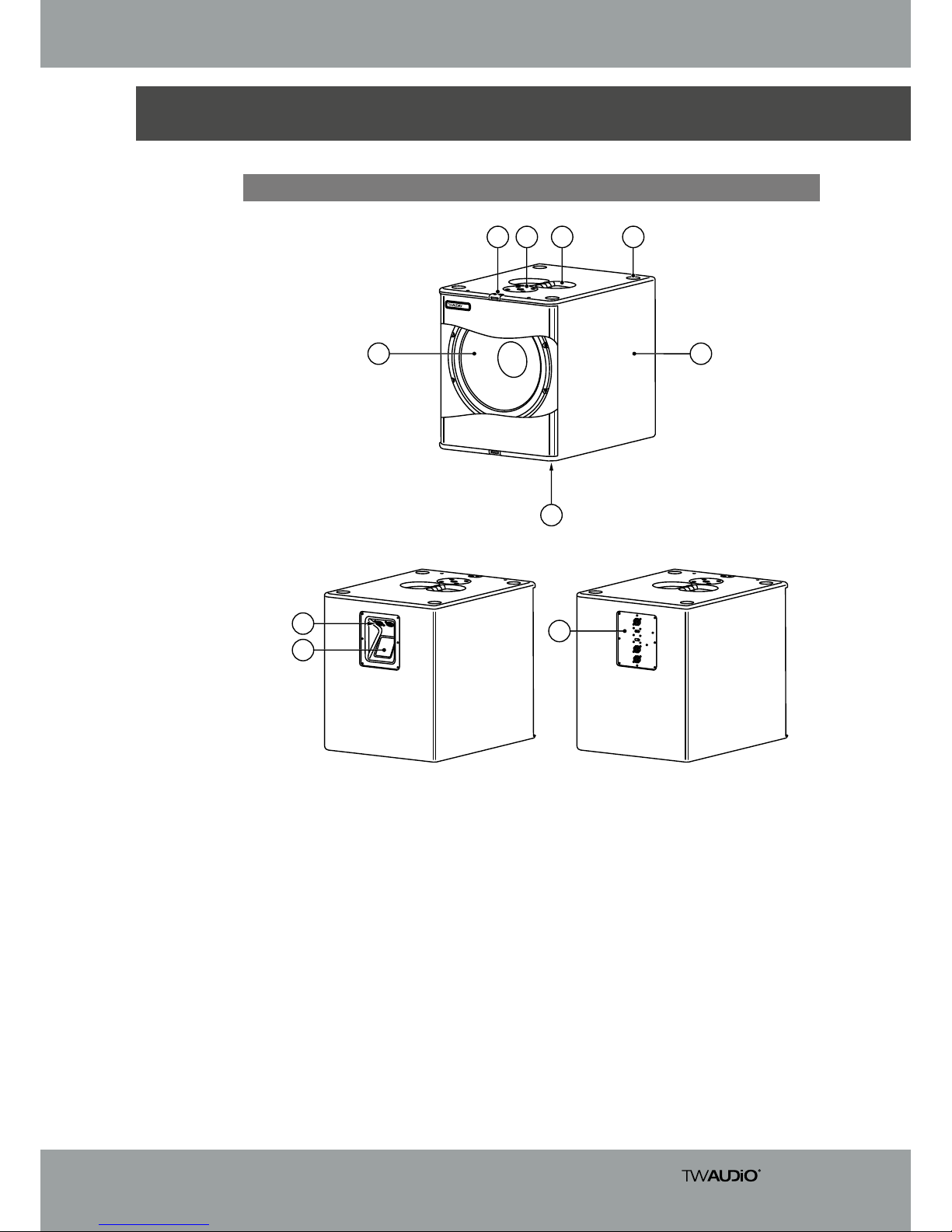

2. Overview
2.1 Components
1. 15“ cone driver
2. Dolly latch base to attach the TW AUDiO B15 front dolly
3. M20 pole mount flange for attaching a distance rod
4. Ergonomic carrying handle (top and bottom)
5. Milled recess for rubber feet for safely stacking loudspeakers
6. 15 mm multiplex housing – Warnex texture paint surface finish
7. Rubber feet (4 units)
8. Standard connection panel
9. Type label
10. Passive crossover PWB15
Figure 2.1 - Overview
1
9
10
6
23 4 5
7
P51BA51B
8

Operation manual B15
8
2.2 Variants
The B15 loudspeaker comes in two different variants. These variants are the B15A (ACTIVE
model) and B15P (PASSIVE model).
2.2.1 B15A/B15P models
The standard model of the B15 loudspeaker is the B15A variant, which can only be operated
in the „ACTIVE“ operating mode. It is supplied with a standard connection panel. The separa-
tion occurs in the DSP of the amplifier.
The B15P model can also be operated in the „PASSIVE 1“ and „PASSIVE 2“ modes. This
permits the connection of an additional loudspeaker on the high-pass output or the link out-
put when operating with only one amplifier channel. The installed passive cross-over (pos.10
“Figure 2.1 - Overview” on page 7) has two selector switches, which are described in the
following section.

Operation manual B15
9
Figure 2.3.1 - Connection diagram B15P
2.3 Operation modes
In operation mode 1 „ACTIVE“, the internal passive crossover is switched out of the signal
path, and the separation of the loudspeakers must take place in the DSP of the amplifier. The
pin connection of the B15 loudspeaker is switched to pin 2+/-.
1. Set the upper switch to “OFF”! This must never be set to “ON” when no loudspeaker is
connected to the high-pass output!
2. Switch the bottom switch to ACTIVE mode.
3. Connect the amplifier to the “input” connector. Do not inadvertently connect it to the high
pass output!
WARNING
two amplifier channels / 4-wire speaker cable required
Pin 1+/- TOP speaker
Pin 2+/- B15 subwoofer
The top selector switch is used to activate the high-pass output. The bottom selector switch
is used to activate the passive crossover and changes the pin assignment of the connection
sockets.
2.3.1 MODE 1 - ACTIVE (BI-AMPED)
OUTPUT to
additional
speaker
INPUT

Operation manual B15
10
Figure 2.3.2 - Connection diagram B15P
In operation mode 2 „PASSIVE 1“, the B15 loudspeaker and other loudspeakers are operated
on the „link output“ output on pin 1+/-.
1. Set the upper switch to “OFF”! This must never be set to “ON” when no loudspeaker is
connected to the high-pass output!
2. Switch the bottom switch to „PASSIVE mode“.
3. Connect the amplifier to the “input” connector. Do not inadvertently connect it to the high-
pass output!
WARNING
one amplifier channel is required
Pin 1+/-B15+M15
Pin 2+/-free
Note that the total impedance may vary depending on the connected loudspeaker. See
“Connecting the cable” on page 18.
NOTE
Never change the operation mode while the loudspeaker is in operation. This may damage the
connected loudspeakers.
Operation mode 1 „ACTIVE“ additionally requires the correct preset at the amplifier.
NOTE
2.3.2 MODE 2 - PASSIVE 1 (M-SYS-ONE)
OUTPUT to
speaker
INPUT
!
Be sure HP-output switcher is in
OFF
position.
Keeping
ON
position without any load may couse a damage.
IMPORTANT!

Operation manual B15
11
Figure 2.3.4 - Connection diagram B15P
In operation mode 3 „PASSIVE 2“, the B15 loudspeaker is operated with an M8 loudspeaker
on the „high-pass output“. The separation of the two loudspeakers is performed via the inter-
nal passive crossover. The pin connection of the B15 loudspeaker is switched to pin 1+/-.
1. Connect the M8 loudspeaker to the high pass output! Never connect an amplifier to this
connector!
2. Switch the top switch to „ON“.
3. Switch the bottom switch to „PASSIVE mode“.
4. Connect the amplifier at the „Input“-pin.
WARNING
2.3.3 MODE 3 - PASSIVE 2 (M-SYS-TWO)
Never change the operation mode while the loudspeaker is in operation. This may damage the
connected loudspeakers.
NOTE
one amplifier channel is required
Pin 1+/-B15+M8
Pin 2+/-free
OUTPUT to M8
INPUT

Operation manual B15
12
3.1 Data sheet
Variant
B15A B15P
Drivers 1x 15“ LF
Frequency
response 40 - 1500Hz
Power handling
(program/Peak) 1200 / 2400W ACTIVE 1200 / 2400 W
PASSIVE 1
1200 / 2400 W
PASSIVE 2
1200 / 2400 W
Impedance 4 Ω 4 Ω 4 Ω 4 Ω
Max. SPL / 1 m 127 dB
Dimensions
(h x w x d) 506 x 440 x 560 mm [19,92 x 17,32 x 22,05 in]
Weight 22,1 kg [48,7 lbs] 24,2 kg [53,4 lbs]
Surface Warnex textured paint
3. Technical data

Operation manual B15
13

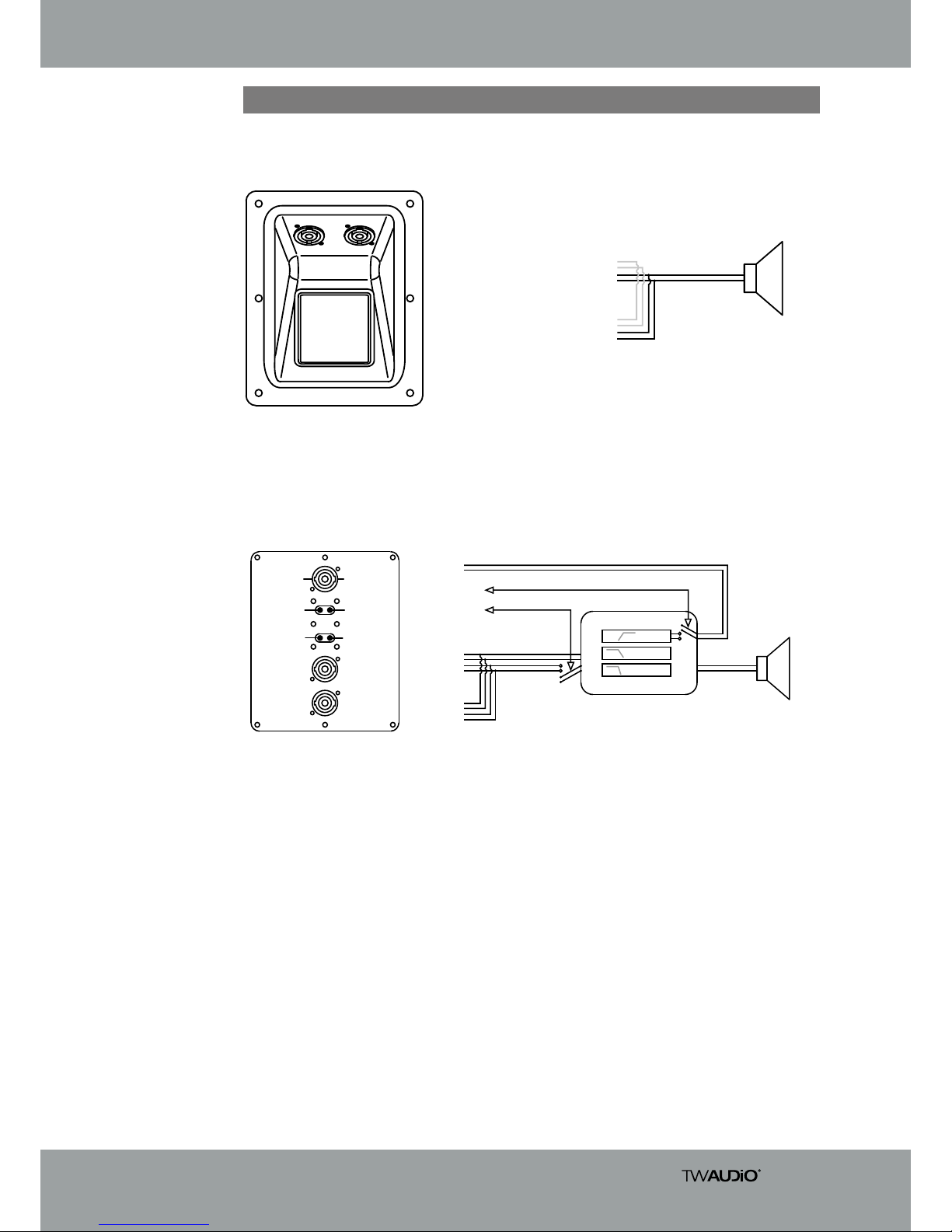

3.2 Connection diagram
Figure 3.2.1 - Connection diagram B15A
3.2.1 Variant: B15A
Figure 3.2.2 - Connection diagram B15P
3.2.2 Variant: B15P
input
and
link output
Never connect this output to
an amplifier. Risk of damage!
High pass output
to drive 8 ohm load
ON HP-output
PASSIVE mode
input is pin 1 +/-
HP-output OFF
ACTIVE mode
input is pin 2 +/-
4 OHM
2,5 OHM
(with M8)
+
--
PIN 1+
PIN 1–
PIN 1+
PIN 1–
PIN 2+
PIN 2–
PIN 1+
PIN 1–
PIN 2+
PIN 2–
15"
parallel
HP
LP 1st order
LP 2nd order
ACTIVE / PASSIVE
HP-output ON / OFF
4 OHM
+
--
rear connectors
parallel
PIN 1+
PIN 1–
PIN 2+
PIN 2–
PIN 1+
PIN 1–
PIN 2+
PIN 2–
15"

Operation manual B15
14
4.1 Setup
The B15 loudspeaker is designed for standing operation.
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting loudspeakers.
NOTE
Ensure that the loudspeakers are securely attached to prevent personal injury and prop-
erty damage. Secure stacked loudspeakers properly so that they can be tipped by 10° in
any direction without toppling.
WARNING
4.2 M20 pole mount flange
For all system components mounted on top of the M20 pole mount flange, observe the res-
pective operating instructions!
Also be sure to observe all of the following warnings:
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
WARNING
Make sure that the maximum load of 50kg / 110lbs for the M20 pole mount flange is not
exceeded! Figure 2.1 – Item 3.
WARNING
Make sure that no unauthorized persons can access the system structures!
Cordon off the area professionally!
WARNING
The M20 pole mount flange (figure 2.1- item 3) is not designed for side forces once mounted
– do not apply any pressure from the sides.
Make sure that no external forces are applied to the system structures. No objects or per-
sons should lean against the structures, no objects such as balls should be thrown against
them. If pressure is applied on the flange when mounted the loudspeaker may be damaged
by falling over.
WARNING
4. Commissioning

Operation manual B15
15
Before setting up the system outdoors, consider unexpected wind conditions at the opera-
tion site!
Disassemble your system immediately when wind speeds exceed 8 bft (34 to 40 kn / 62 to
74 kph / 38.5 to 46 mph) and secure the system components!
Make sure that there are no persons in the immediate vicinity of the system structure!
WARNING
Figure 4.2.1 - system setup B15
Please note that only centered loads are allowed to be placed on the M20 pole mount flange
– figure 2.1 – Item 3.
WARNING
Make sure that the system structures are not operated over the audience at wind speeds in
excess of 6 bft (22 to 27 kn / 39 to 49kph / 24.2 to 30.45 mph) and that there are no persons
in the immediate vicinity of the system structure!
WARNING

Operation manual B15
16

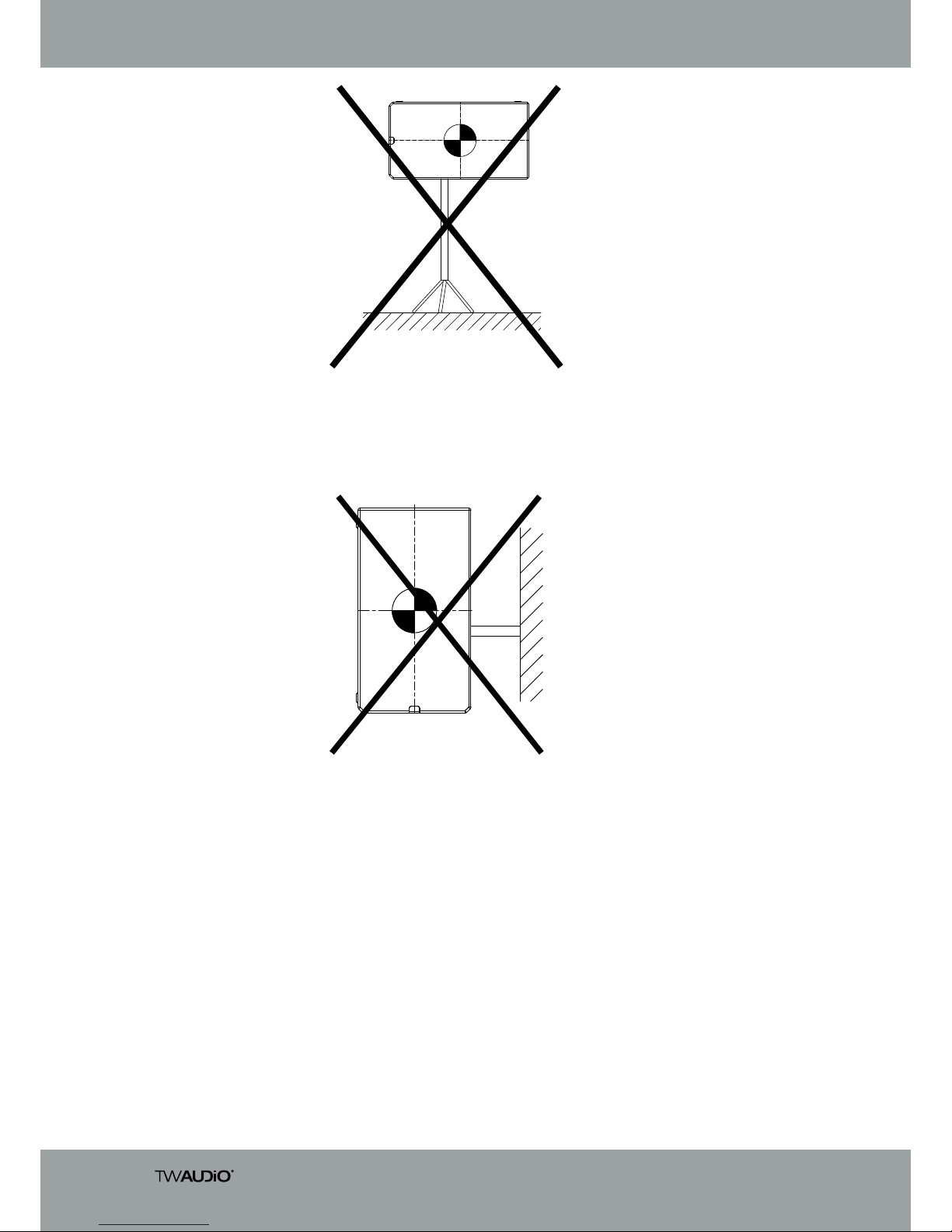

Figure 4.2.2 - B15 – improper installation
Figure 4.2.3 - B15 – improper wall mounting

Operation manual B15
17
4.3 Operation
Operation of the B15A speaker requires a DSP-Controller. TW AUDiO recommends opera-
ting the B15P loudspeaker on a DSP-Controller. For this purpose, only presets developed by
TW AUDiO are recommended. The TWAUDiO system racks are ideally suited for this purpose.
Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that
doesn’t meet the specifications can destroy the loudspeaker.
Please note the technical data in section 3.1 on page 12.
NOTE
Before connecting the loudspeaker to the amplifier, ensure that the right preset has been
loaded.
Using the wrong preset or a preset not provided by TW AUDiO preset can destroy the speaker.
NOTE

Operation manual B15
18
4.4 Connecting the cable
To create a cable connection with an amplifier rack from TW AUDiO, proceed as follows.
Ensure that the cable cross sectional area is sufficient (at least 1.5 mm²) to avoid power losses.
TW AUDiO recommends using the loudspeaker cables available from TW AUDiO.
When connecting the cables to the loudspeaker, ensure that polarity (+/-) and pin assignment
(1/2) are correct. Incorrect connection can lead to a significant change in the loudspeaker’s
sound characteristics and may damage the driver.
The pin connections of the B15 loudspeaker can be found in section 3.2 (“Connectiondia-
gram”) on page 13.
The internal wiring of the B15 loudspeaker allows for parallel connection of multiple loudspe-
aker units.
Please note that parallel connections will decrease the total impedance of your loudspeaker
configuration.
The total impedance and the resulting power of the speaker configuration must match the
output power of the amplifier.
NOTE

Operation manual B15
19
To transport the unit with a single person, TWAUDiO recommends using the FDB15 front
dolly.
When transporting and storing the unit, it is important to ensure that the surface and front
grill of the loudspeaker are not damaged. Moisture can penetrate through exposed wood
surfaces and cause the wood to swell. A bent or broken front grill will no longer adequately
protect the sensitive speaker membranes.
In addition, appreciable dust deposits may considerably impair the functionality of a loudspe-
aker membrane. For this reason, the loudspeakers should be transported and stored in a
safe, careful, dry and largely dust-free manner.
The following accessory parts for transport and storage are available from TW AUDiO:
• FDB15 (front dolly)
• CoverB15 (protective cover)
The original packaging is unsuitable as permanent storage and transport packaging.
NOTE
5. Transport and storage
Due to the B15 loudspeaker weighing over 20kg [44.09 lbs.], two persons are required to
handle and transport the unit.

Operation manual B15
20
Copy and translation of the original CE Conformity Declaration:
We hereby declare that the below-referenced components by virtue of their design and
construction, and in the configuration placed on the market by us, satisfy the safety and
health requirements of the applicable EC directives. This declaration becomes invalid in
case of modifications that have not been approved by us.
This declaration applies to the following components
• B15A
• B15P
as well as all model variants based on these, provided that they correspond to the original
factory models and have not been technically modified in any way.
Applicable directives:
• 2001/95/EG
• 2011/65/EU
Applicable national standards and technical specifications:
• DIN EN 18 800
• DIN EN ISO 12 100
• BGV C1 / BGI 810-3
• EN 50581: 2013-02
Ludwigburg, Germany, January 1st, 2008
Tobias Wüstner
6. CE Conformity Declaration
