tws CTS CHASSIS User manual

USER MANUAL
CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE

STEER SYSTEM MODE GUIDE
STEP 1 FRONT AXLE ASSEMBLY
Step 1-1 lower link & link mount assembly
Step 1-2 knuckle carrier & damper mount assembly
Step 1-3 lower link & knuckle carrier assembly
Step 1-4 upper link & front axle assembly
Step 1-5 CVD driveshaft assembly
Step 1-6 bevel gear & CVD driveshaft assembly
Step 1-7 steering knuckle & axle cover assembly
Step 1-8 servo & steering links assembly
STEP 2 REAR AXLE ASSEMBLY
Step 2-1 lower link & link mount assembly
Step 2-2 axle lockout & damper mount assembly
Step 2-3 lower link & axle lockout assembly
Step 2-4 upper link & rear axle assembly
Step 2-5 rear driveshaft assembly
Step 2-6 bevel gear & rear driveshaft assembly
Step 2-7 axle cover assembly
STEP 3 TRASMISSION SYSTEM ASSEMBLY
Step 3-1 transfer case assembly
Step 3-2 planetary reducer assembly
Step 3-3 planetary reducer assembly
Step 3-4 planetary reducer & motor assembly
Step 3-5 planetary reducer & accessories assembly
STEP 4 SHOCK ASSEMBLY
INDEX
STEP 5 CHASSIS ASSEMBLY
Step 5-1 transfer case & chassis assembly
Step 5-2 transmission system & frame assembly
Step 5-3 front crossmember & shock tower assembly
Step 5-4 rear crossmember & shock tower assembly
Step 5-5 link mount & chassis assembly
Step 5-6 battery mount & frame assembly
Step 5-7 front axle & frame assembly
Step 5-8 rear axle & frame assembly
Step 5-9 shocks & frame assembly
Step 5-10 tires & rims assembly
Step 5-11 attaching R/C equipment
PARTS CHART
A bag to G bag
H bag to K bag
L bag to N bag
Step 1 & step 2 bag
Step 3 bag
Step 4 bag
Step 5 bag
Other parts bag
PART INDEX
WHEELBASE GUIDE
01
01
02
02
03
05
05
05
06
06
07
07
08
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
31
31
32
33

AMS
AXLE MOUNTED SERVO
CMS
CHASSIS MOUNTED SERVO
Default assembly
More direct controlMore scale look
Please refer tws website to assembly

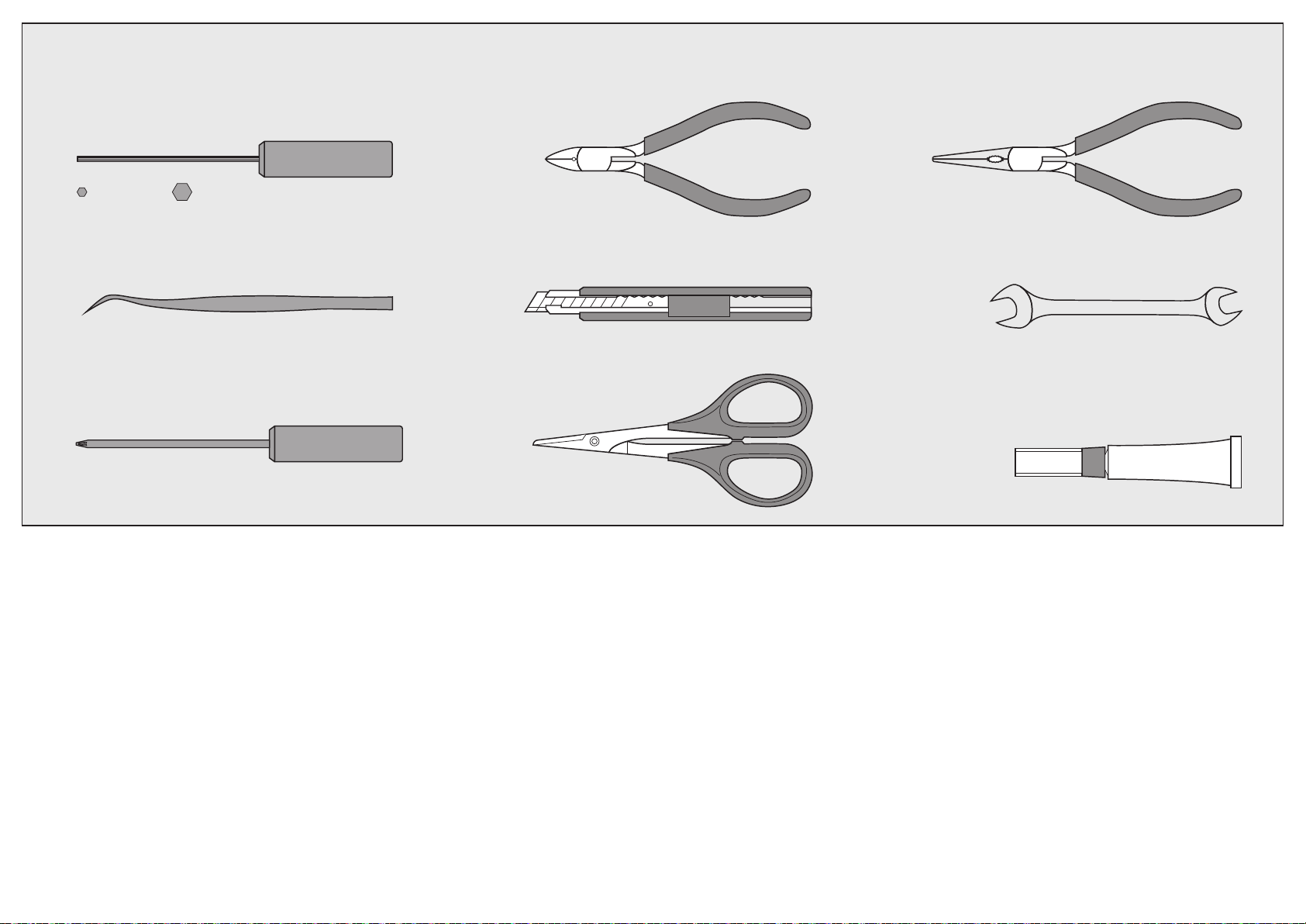

準備製作工具 / TOOL RECOMMENDED
六角螺絲起子
Hex wrench 斜口鉗
Side cutters
鑷子
Tweezers
美工刀
Modeling knife
車殼剪刀
Scissors
瞬間黏著劑
Instant cement
1.5mm 2.0mm
尖嘴鉗
Needle nose pliers
小型十字螺絲起子
Philips screwdriver
5.5 扳手
Open end wrench
NOTICE
All manuals and other collateral documents are subject to change at the sole discretion of TWS MODEL Co., Ltd.
For up-to-date product literature, visit www.tws-rc.com and click on the support or resources tab for this product.
Meaning of Special Language
The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral
damage, and serious injury OR create a high probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a
possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little
or no possibility of injury.
Age Recommendation: Not for Children under 14 years. This is not a toy.
SAFETY PRECAUTIONS AND WARNINGS
Read and follow all manuals and safety precautions before use. Improper use can result in fire, serious injury
and damage to property. As the user of this product, you are solely responsible for operating in a manner that
does not endanger yourself and others or result in damage to the product or property of others. This model is
controlled by a radio signal subject to interference from many sources outside your control. This interference
can cause momentary loss of control, so it is advisable to always keep a safe distance in all directions around
your model as this margin will help avoid collisions or injury. • Never operate your model with low transmitter
batteries. • Always operate your model in open spaces away from full-size vehicles, traffic and people. • Never
operate the model in the street or in populated areas for any reason. • Carefully follow the directions and
warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) you use. •
Keep all chemicals, small parts and anything electrical out of the reach of children. • Never lick or place any
portion of the model in your mouth as it could cause serious injury or even death. • Exercise caution when
using tools and sharp instruments. • Take care during maintenance as some parts may have sharp edges. •
Immediately after using your model, do NOT touch equipment such as the motor, electronic speed control and
battery, because they generate high temperatures. You may burn yourself seriously touching them. • Do not
put fingers or any objects inside rotating and moving parts, as this may cause damage or serious injury. •
Always turn on your transmitter before you turn on the receiver in the car. Always turn off the receiver before
turning your transmitter off. • Keep the wheels of the model off the ground when checking the operation of the
radio equipment.

01CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
lower link & link mount assembly
STEP 1-1
A SIDE
(A)
A
B1
A1 “A”
C3
M3 lock nut
RH screw M3X16
B SIDE
M3 lock nut
RH screw M3X16
C3
X2
Make
knuckle carrier & damper mount assembly
STEP 1-2
C4 “A”
C2
C5 “B”
“A”
“B”
0 1 2 3 cm

02CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
lower link & link mount assembly
STEP 1-3
RH screw M3X10
D1
spacer
3X6X0.5
RH screw M3X5
RH screw M3X5
E6
upper link & front axle assembly
STEP 1-4
(B)
B
B1
A2 “B” X2
Make
RH screw M3X12
RH screw M3X12
M3 nutM3 nut
“B”
“A”
0 1 2 3 cm
※thread lock

03CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
CVD driveshaft assembly
STEP 1-5
wheel axle drive axle “long”
drive axle “short” wheel axle
shaft 2X9.8
cross joint
cross joint
shaft 2X9.8
bevel gear & CVD driveshaft assembly
STEP 1-6
bearing 5X10x4
bearing 5X10X4
grub screw M3X3
bearing 5X10X4
pinion bevel gear
13T
spur bevel gear
26T
bearing 8X14X4
shaft 2X9.8
“long”
“short”
bearing 8X14X4bearing 8X14X4
locker spool
不可鎖緊此螺絲
do not over tighten the screw
請使用"鋼針移除器"維護此部件
please use "shaft remover" to maintain
GREASE
ANTI WEAR
GREASE
ANTI WEAR
ROTATION
FREE
ENSURE
ROTATION
FREE
ENSURE
GREASE
ANTI WEAR
0 1 2 3 cm
請注意齒輪方向!
Please notice the gear direction.

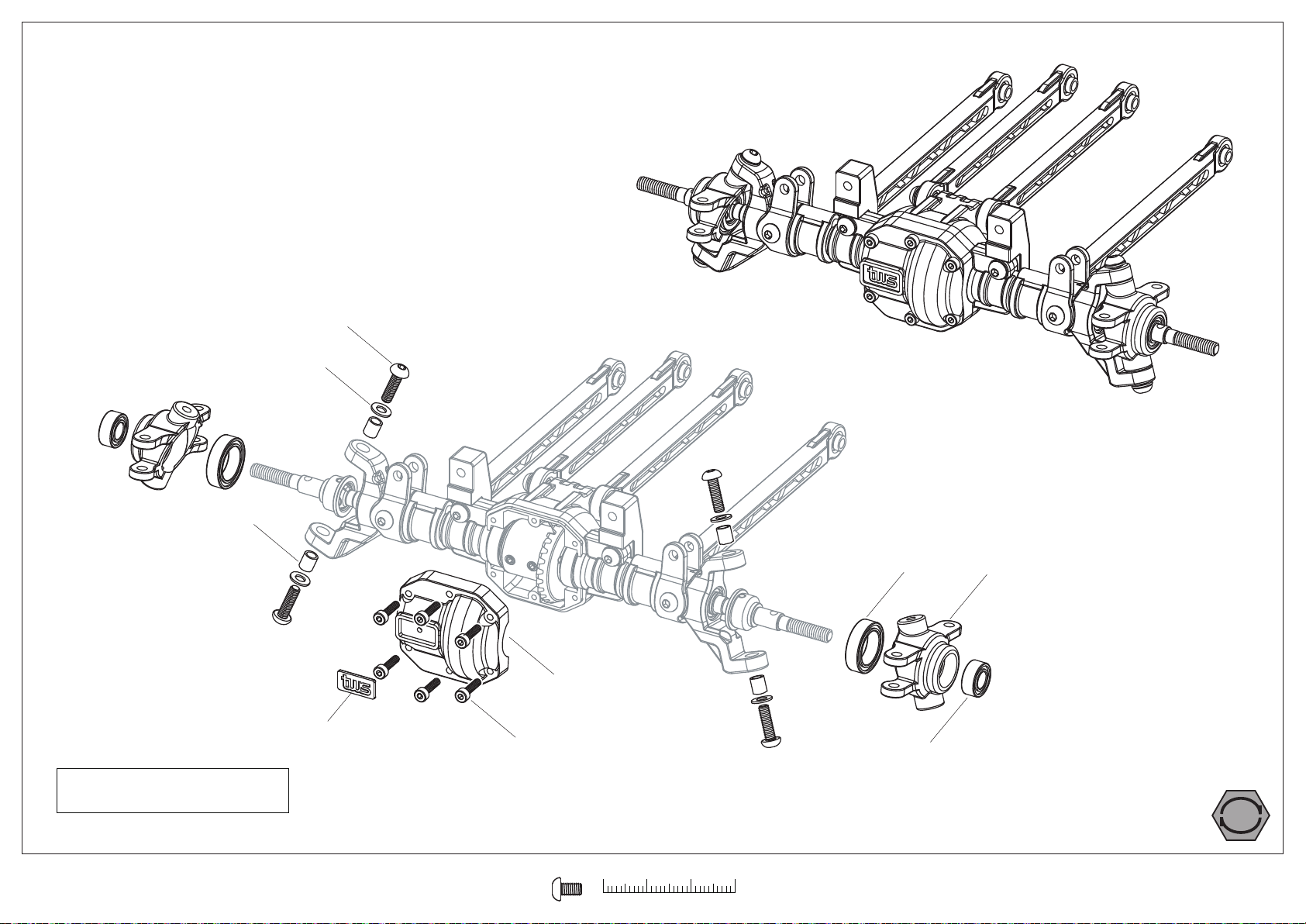

steering kunckle & axle cover assembly
STEP 1-7
04CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
D2
cap screw M2X8
D3
C1
bearing 10X15X4
bearing 5X10X4
RH screw M3X10
spacer 3X6X0.5
tube 3X4X4.5
ROTATION
FREE
ENSURE
0 1 2 3 cm
請注意齒輪方向!
Please notice the gear direction.

05CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
servo & steering links assembly
STEP 1-8
90 deg.
B1
F5
F2
grub screw M3X16
M3 lock nut
RH screw M3X25
RH screw M3X16
RH screw M3X10
spacer 3X6X0.5
spacer 3X6X0.5
M3 lock nut
RH screw M3X16
RH screw M3X8
servo
G1 “E” B1
grub screw M3X16
F1
F7 / F8
23 for SANWA/KO
25 for FUTABA/SAVOX
請先將遙控器歸零後再送電至伺服機，
伺服機片再依上圖位置安裝。
Attach as shown with servo in neutral.
建議使用金屬齒輪伺服機。
recommend using servo with metal gear.
0 1 2 3 cm

lower link & link mount assembly

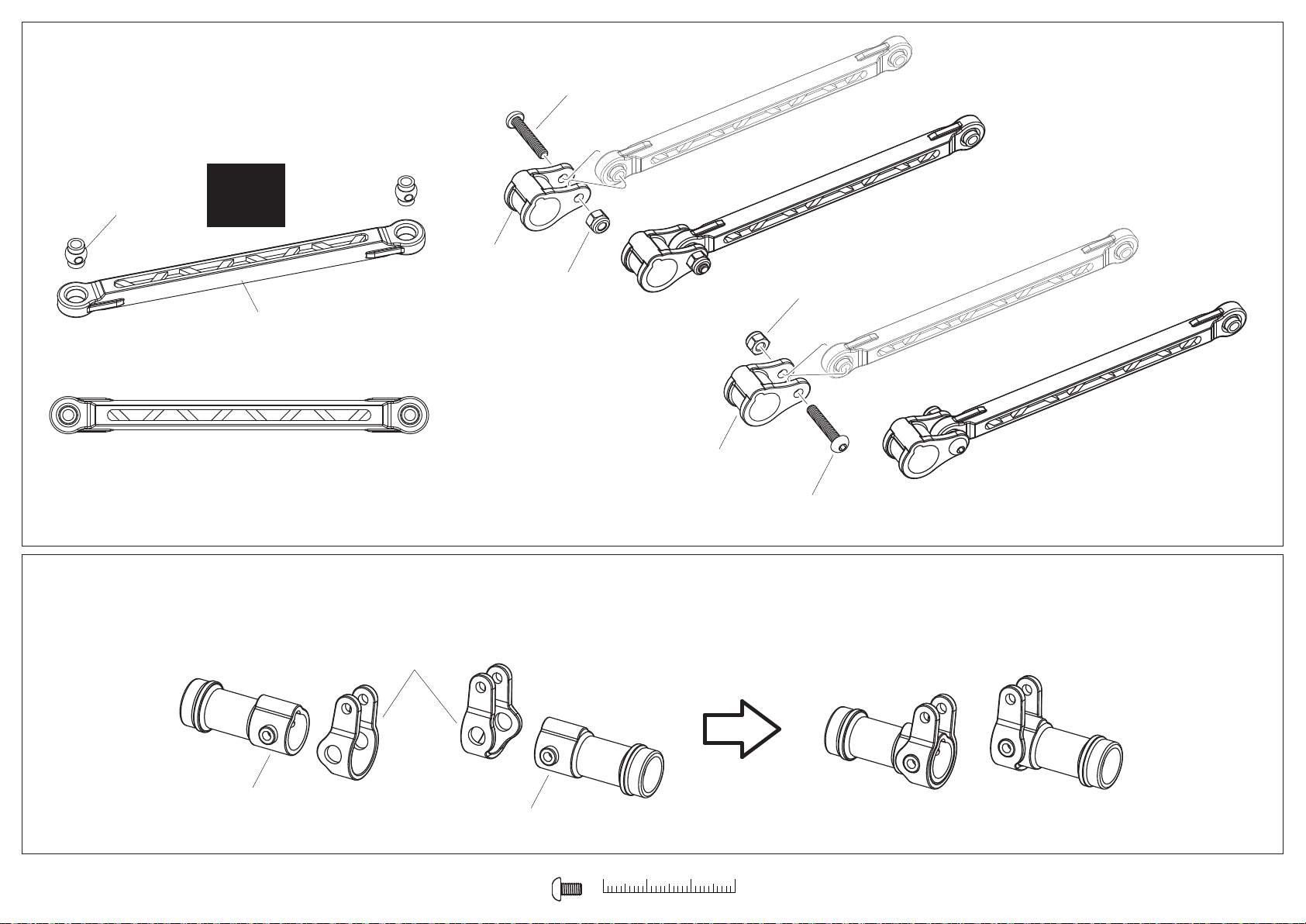

STEP 2-1
axle lockout & damper mount assembly
STEP 2-2
06CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
C7 “A”
C6 “B”
C2
A SIDE
(A)
A
B1
A1 “A”
M3 lock nut
RH screw M3X16
B SIDE
M3 lock nut
RH screw M3X16
C3
X2
Make
C3
“A”
“B”
0 1 2 3 cm

07CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
lower link & link mount assembly
STEP 2-3
RH screw M3X5
RH screw M3X5
D1
upper link & rear axle assembly
STEP 2-4
(B)
B
B1
A2 “B”
RH screw M3X12RH screw M3X12
M3 nut
X2
Make
“A”
“B”
0 1 2 3 cm
※thread lock

08CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
rear driveshaft assembly
STEP 2-5
drive axle “long”
drive axle “short”
E-clip 4.0
E-clip 4.0
bevel gear & rear driveshaft assembly
STEP 2-6
bearing 5X10X4
“long”
“short”
bearing 5X10X4
bearing 5X10x4
grub screw M3X3
pinion bevel gear
13T
spur bevel gear
26T
bearing 8X14X4
shaft 2X9.8
bearing 8X14X4bearing 8X14X4
locker spool
不可鎖緊此螺絲
do not over tighten the screw
請使用"鋼針移除器"維護此部件
please use "shaft remover" to maintain
GREASE
ANTI WEAR
ROTATION
FREE
ENSURE
0 1 2 3 cm
請注意齒輪方向!
Please notice the gear direction.

09CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE

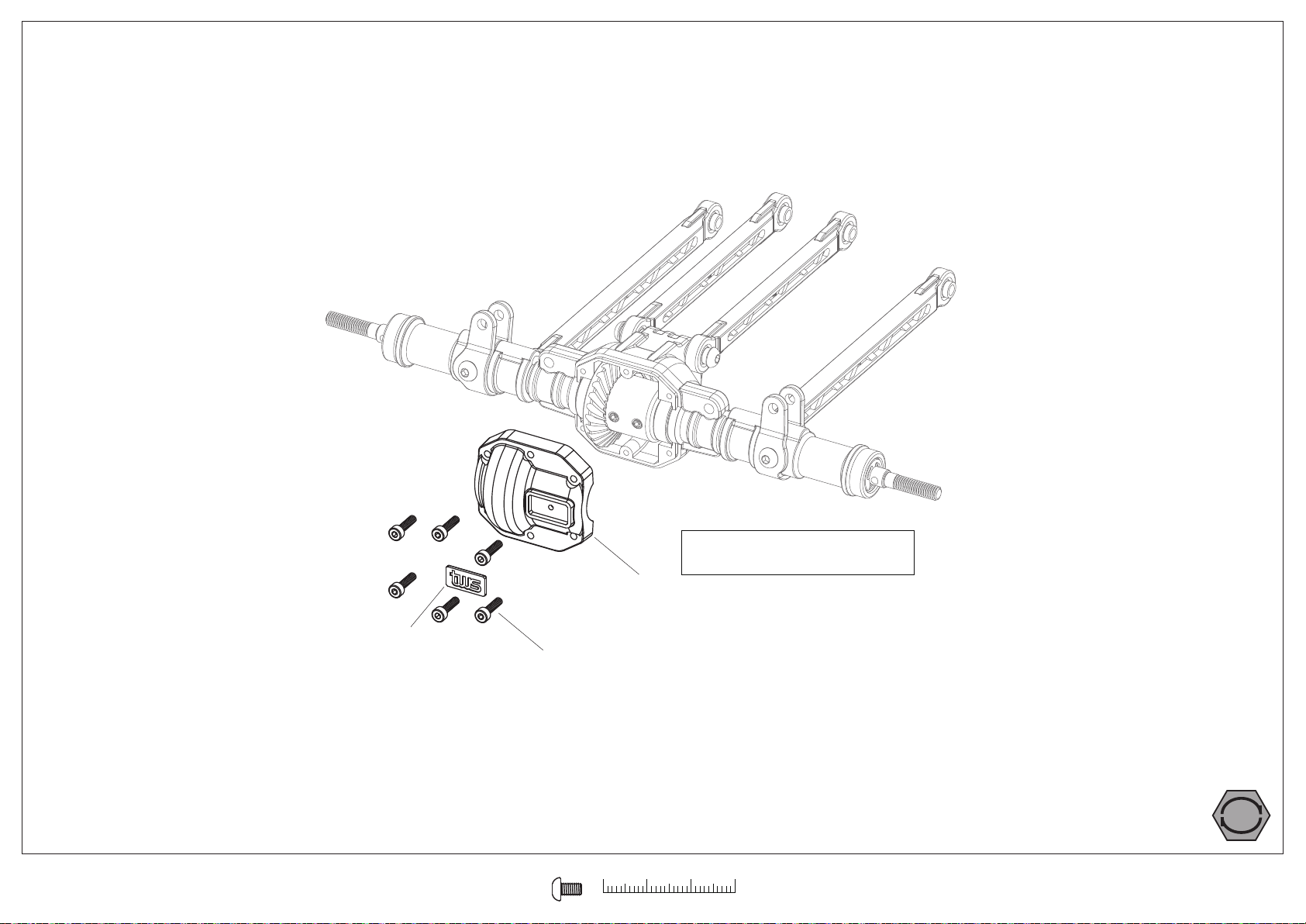

axle cover assembly
STEP 2-7
D2
cap screw M2X8
D3
ROTATION
FREE
ENSURE
0 1 2 3 cm
請注意齒輪方向!
Please notice the gear direction.

transfer case assembly
STEP 3-1
10CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
H4
breaing 5X10X4
breaing 5X10X4
gear shaft
RH screw M3X5
spacer 3X6X0.5
shaft 2X7.8
X1
Make
breaing 5X10X4
breaing 5X10X4
shaft 2X9.8
spacer 3X6X0.5
RH screw 3X5
gear shaft
H5 25T
20T
20T
25T
20T 25T
X3
Make
25T
20T
RH screw 3X16
H2
H1
※one left for reducer box.
ROTATION
FREE
ENSURE
GREASE
ANTI WEAR
GREASE
ANTI WEAR
1
2
3
1
2
3
0 1 2 3 cm
請注意齒輪方向!
Please notice the gear direction.

planetary reducer assembly
STEP 3-2
11CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
I5
H6
I6
FH screw M2X8
I3
I1
I4
shaft 3X9.8
breaing 4X8X3
RH screw 2X6
gear shaft
breaing 4X8X3
breaing 10X15X4
shaft 2X9.8
main shaft
breaing 5X10X4
GREASE
ANTI WEAR
ROTATION
FREE
ENSURE
※Do not over tight!
0 1 2 3 cm

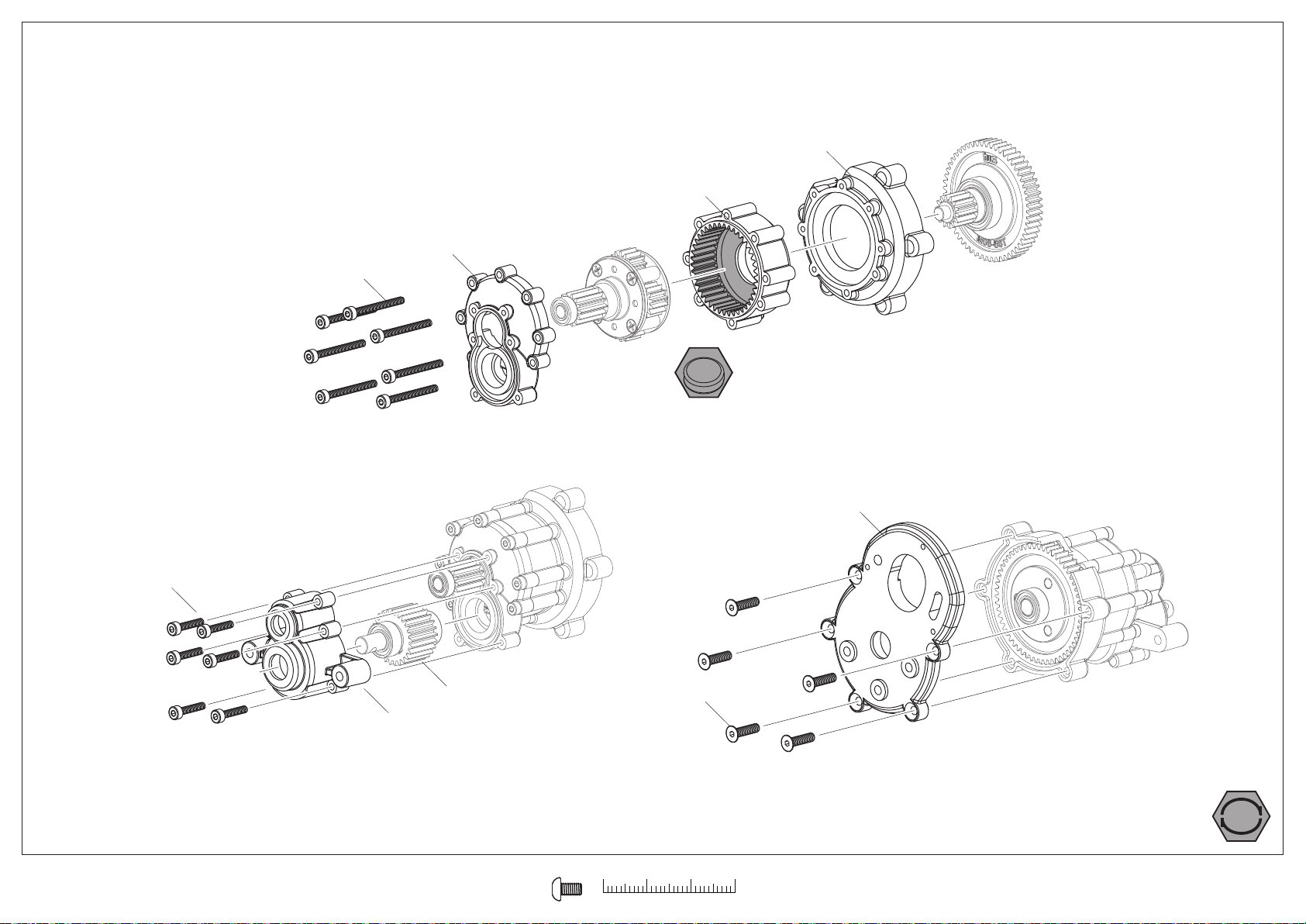

planetary reducer assembly
STEP 3-3
12CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
J4
I2
J2
cap screw M2X20
J5
cap screw M2X10
25T
J1
FH screw M2.5X10
GREASE
ANTI WEAR
ROTATION
FREE
ENSURE
0 1 2 3 cm

cap screw M2X10
J3
planetary reducer & motor assembly
STEP 3-4
13CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
RH screw M3X10
spacer 3X6X0.5
Pinion Gear
FDR
16T 17T 18T 19T 20T 21T 22T 23T 24T 25T
62.5 58.8 55.6 52.6 50.0 47.6 45.5 43.5 41.7 40.0
approx. 5.7mm
motor
grub screw M3X3
pinion gear
allow clearnce for
gears to run smoothly.
ROTATION
FREE
ENSURE
0 1 2 3 cm
建議使用27T馬達或較高轉速的馬達
recommend using 27T motor or higher speed motor.

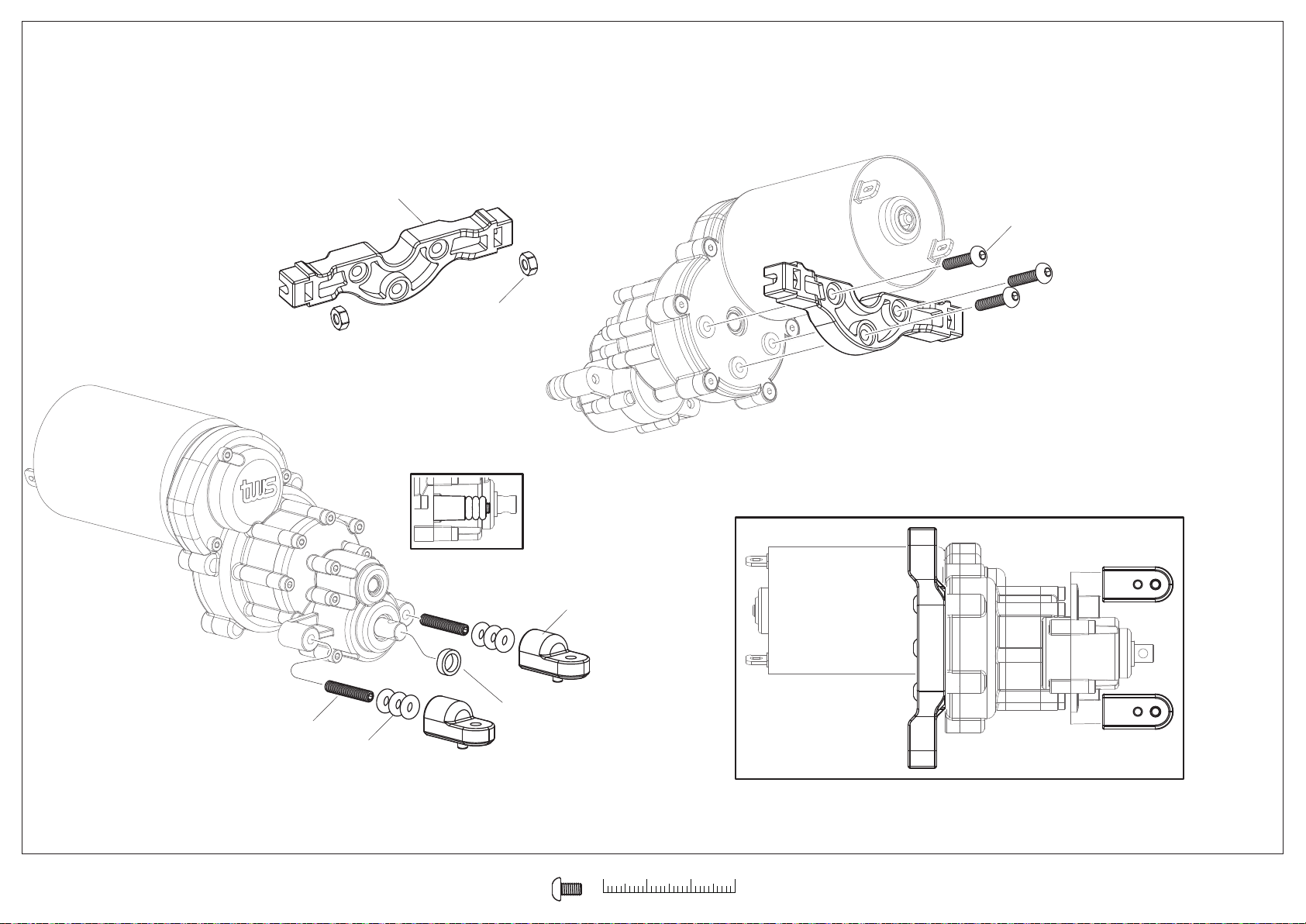

planetary reducer & accessories assembly
STEP 3-5
14CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
RH screw 3X12
J7
M3 nut
grub screw M3X16
O-ring P3
(black)
L8 spacer 5X7X2 note direction.
H3
0 1 2 3 cm

15CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
shock assembly
STEP 4
X4
Make
K7
E-clip 2.0
piston rod
O-ring P3
(clear)
K4
O-ring 6X1
(black) K3
shock body
K1
B1
O-ring 6X1
(black)
K6
K2
B1
approx.
3.0mm
K5
spring
(long)
long spring
short spring
soft
stiff
TOOL
※approx.
28~30 drops
pull down piston rod and pour oil into shock body.
remove air bubbles by slowly moving piston rod up and down.
push up piston rod in position and tighten K1.
ROTATION
FREE
ENSURE
0 1 2 3 cm
approx.
22.3mm

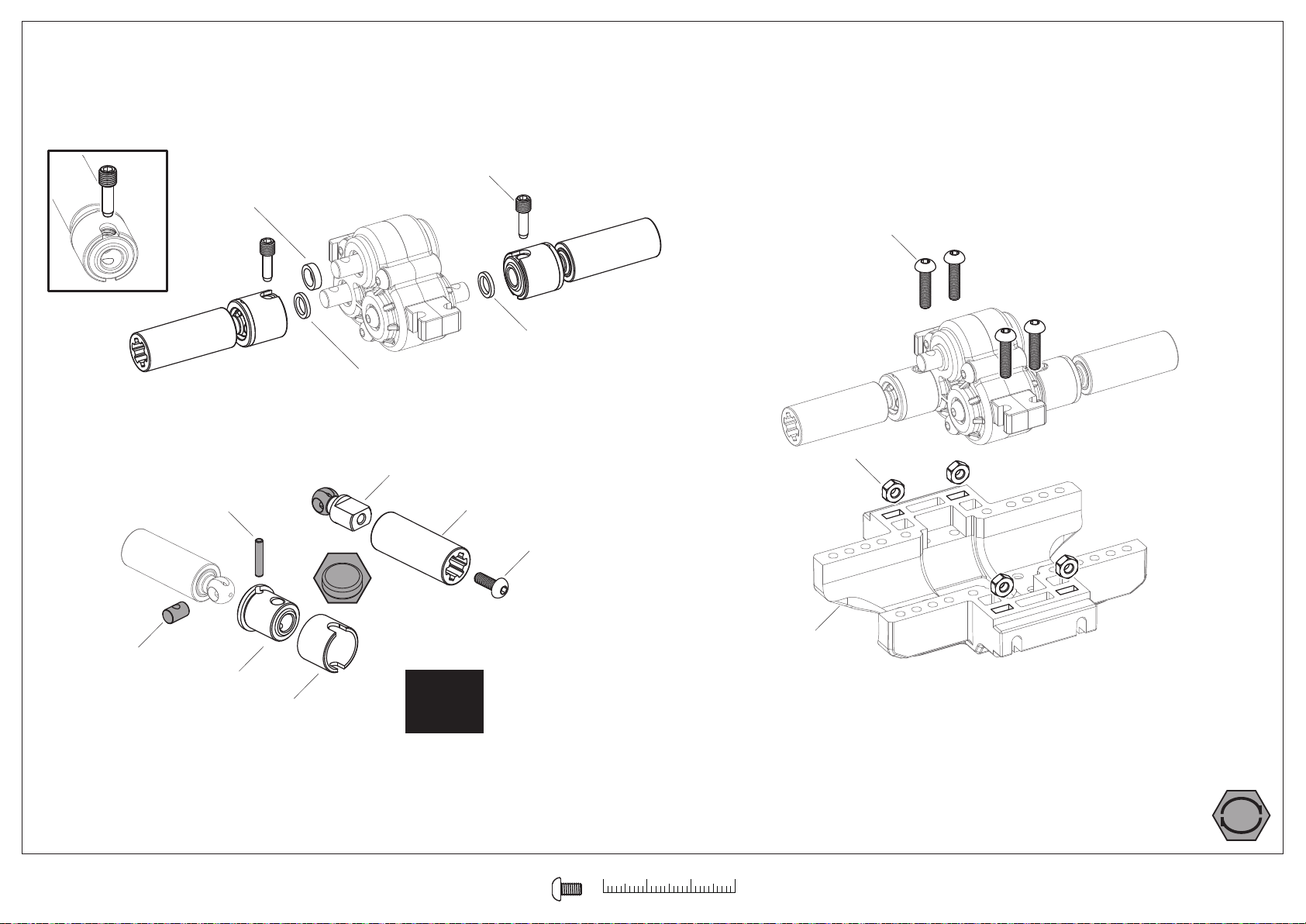

transfer case & chassis assembly
STEP 5-1
16CTS
CHASSIS
RC 4WD HIGH PERFORMANCE VEHICLE
screw pin
L8 spacer 5X7X2
L7 spacer 5X7X1
RH screw M3X12
M3 nut
RH screw M3X8
L3 short
drive joint A
L2
drive joint B
cross joint
shaft 2X10.8
L7 spacer 5X7X1
J6
X4
Make
※two left for frame assembly.
GREASE
ANTI WEAR
ROTATION
FREE
ENSURE
0 1 2 3 cm
