TYAN S3115 User manual

S3115
Version 1.00
Copyright
Copyright © MiTAC Computer Corporation, 2009. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN®is a trademark of MiTAC Computer Corporation.
Intel®is a trademark of Intel ® Corporation.
AMI®, AMIBIOS® and combinations thereof are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Winbond®is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will MiTAC be held liable for any direct
or indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com
2

http://www.tyan.com
3
Contents
Before you begin… ..............................................................................4
Chapter 1: Instruction .......................................................................... 5
1.1 - Congratulations ............................................................................................. 5
1.2 - Hardware Specifications................................................................................ 5
1.3 - Software Specifications ............................................................................... 11
1.4 - AST2050 User Guide .................................................................................. 11
Chapter 2: Board Installation ............................................................13
2.1 - Board Image................................................................................................ 14
2.2 - Block Diagram ............................................................................................. 15
2.3 - Board Parts, Jumpers and Connectors........................................................ 16
2.4 - Tips on Installing Motherboard in Chassis................................................... 22
2.5 - Installing the Memory .................................................................................. 24
2.6 - Attaching Drive Cables ................................................................................ 26
2.7 - Installing Add-In Cards ................................................................................ 27
2.8 - Connecting External Devices ...................................................................... 28
2.9 - Installing the Power Supply ......................................................................... 29
2.10 - Finishing Up .............................................................................................. 30
Chapter 3: BIOS Setup.......................................................................31
3.1 - About the BIOS............................................................................................ 31
3.2 - BIOS Menu Bar ........................................................................................... 31
3.3 - Setup Basics ............................................................................................... 32
3.4 - Getting Help ................................................................................................ 32
3.5 - In Case of Problems .................................................................................... 32
3.6 - BIOS Main Menu ......................................................................................... 33
3.7 - BIOS Advanced Menu ................................................................................. 34
3.8 - PCI PnP Menu............................................................................................. 50
3.9 - Boot Menu ................................................................................................... 52
3.10 - Security Menu............................................................................................ 55
3.11 - Chipset Menu ............................................................................................ 56
3.12 - Exit Menu .................................................................................................. 59
Chapter 4: Diagnostics ...................................................................... 61
4.1 - Flash Utility.................................................................................................. 61
4.2 - AMIBIOS Post Code.................................................................................... 62
Appendix: How to Make a Driver Diskette........................................65
Glossary..............................................................................................67
Technical Support..............................................................................73

http://www.tyan.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1x S3115 Motherboard
2 x SATA Cable
1 x S3115 User’s manual
1 x S3115 Quick reference guide
1 x TYAN®Driver CD
1 x I/O shield

http://www.tyan.com
5
Chapter 1: Instruction
1.1 - Congratulations
Congratulations in purchasing the TYAN®S3115 motherboard. This Intel 945GC
express chipset utilizes the latest Intel Atom 330 CPU to create a highly cost
affective product. This product can be used for social networking, voice over IP and
numerous other online activities.
TYAN®S3115 is designed around several different configurations which are all
detailed in the following Hardware Specification section:
1.2 - Hardware Specifications
TYAN S3115 (S3115GM2N)
Supported CPU Series Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage 8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
PCI-E (1) PCI-E x1 slot
Expansion
Slots PCI (1) PCI 32-bit slot
Port QTY (2)
LAN Controller Intel 82574L
Connector (4) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset Aspeed AST2050
Graphic
Video RAM 8MB
USB (4) USB 2.0 ports (2 at rear, 2 via cable)
COM (1) port
Input /Output
VGA (1) D-Sub 15-pin VGA port
Input /Output RJ-45 (2) GbE ports

http://www.tyan.com
6
Power ATX 2x10 pin connector
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
SATA (3) SATA-II vertical and (1) right angle SATA-II
connectors
Chipset Winbond W83627DHG-P
Voltage Monitors voltage for CPU, memory, chipset and
power supply
Fan Total (3) 4-pin headers
System
Monitoring
Temperature Monitors temperature for CPU and system
environment
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash/ USB 2.0 virtual hub
Server
Management
AST2050 iKVM Feature 24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size AMI / 2MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
(Retail)
Cable SATA (2) SATA signal cables

http://www.tyan.com
7
TYAN S3115 (S3115GM2N-B)
Supported CPU Series Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage 8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM QTY (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
Expansion
Slots PCI (1) PCI 32-bit slot
Port QTY (2)
LAN Controller Intel 82574L
Connector (2) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset Aspeed AST2050
Graphic
Video RAM 8MB
USB (2) USB 2.0 ports (at rear)
COM (1) port
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE ports
Power ATX 2x10 pin connector
PSMI (1) 1x5-pin header
Input /Output
SATA (2) SATA-II vertical connectors
Chipset Winbond W83627DHG-P
Voltage Monitors voltage for CPU, memory, chipset and
power supply
System
Monitoring
Temperature Monitors temperature for CPU and system
environment
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash/USB 2.0 virtual hub
Server
Management
AST2050 iKVM Feature 24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
BIOS Brand / ROM size AMI / 2MB

http://www.tyan.com
8
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (10) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Package
Contains
(Bulk Pack) Installation CD (1) TYAN installation CD
TYAN S3115 (S3115GMN)
Supported CPU Series Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage 8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
PCI-E (1) PCI-E x1 slot
Expansion
Slots PCI (1) PCI 32-bit slot
Port QTY (1)
LAN Controller Intel 82574L
Connector (4) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Graphic Resolution 1600x1200@60Hz

http://www.tyan.com
9
Chipset Aspeed AST2050
Graphic Video RAM 8MB
USB (4) USB 2.0 ports (2 at rear, 2 via cable)
COM (1) port
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port
Power ATX 2x10 pin connector
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
Input /Output
SATA (3) SATA-II vertical and (1) right angle SATA-II
connectors
Chipset Winbond W83627DHG-P
Voltage Monitors voltage for CPU, memory, chipset and
power supply
Fan Total (3) 4-pin headers
System
Monitoring
Temperature Monitors temperature for CPU and system
environment
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2050 iKVM Feature 24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size AMI / 2MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
(Retail)
Cable SATA (2) SATA signal cables

http://www.tyan.com
10
TYAN S3115 (S3115GN)
Supported CPU Series Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage 8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
PCI-E (1) PCI-E x1 slot
Expansion
Slots PCI (1) PCI 32-bit slot
Port QTY (1)
LAN Controller Intel 82574L
Connector (4) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset 945GC integrated graphics
Graphic
Video RAM 1MB/8MB (select in BIOS)
USB (4) USB 2.0 ports (2 at rear, 2 via cable)
COM (1) port
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port
Power ATX 2x10 pin connector
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
Input /Output
SATA (3) SATA-II vertical and (1) right angle SATA-II
connectors
Chipset Winbond W83627DHG-P
Voltage Monitors voltage for CPU, memory, chipset and
power supply
Fan Total (3) 4-pin headers
System
Monitoring
Temperature Monitors temperature for CPU and system
environment
BIOS Brand / ROM size AMI / 2MB

http://www.tyan.com
11
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
(Retail)
Cable SATA (2) SATA signal cables
Remember to visit TYAN®website at http://www.tyan.com there you can find
information on all of TYAN®s products with FAQs, online manuals and BIOS
upgrades and more.
1.3 - Software Specifications
For OS (operation system) support, please check the TYAN®website for the latest
information.
1.4 - AST2050 User Guide
Remember to visit the TYAN®website at http://www.tyan.com for the AST2050
user guide.

http://www.tyan.com
12

http://www.tyan.com
13
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN®recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Note:
DO NOT APPLY POWER TO THE BOARD IF IT HAS
BEEN DAMAGED.

http://www.tyan.com
14

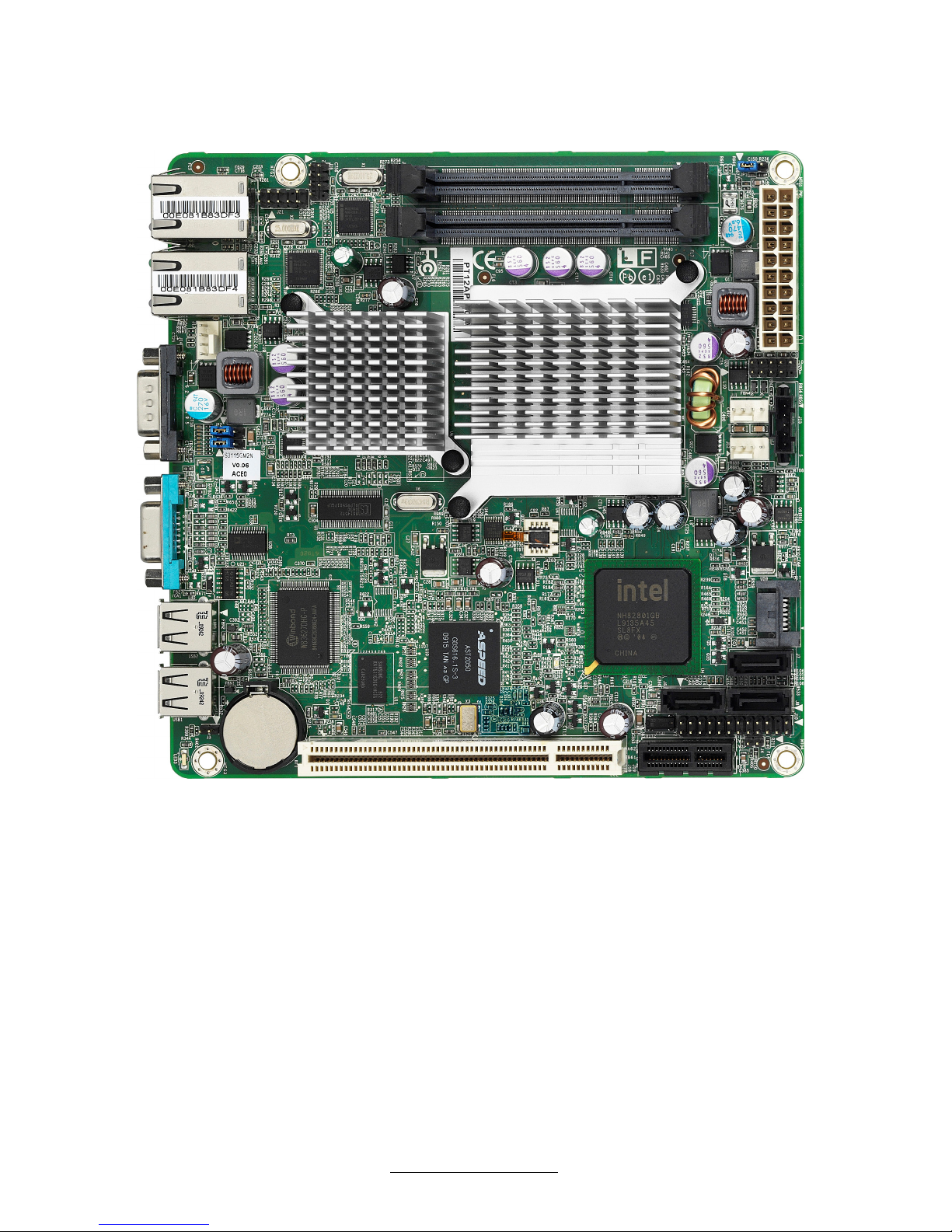

2.1 - Board Image
This diagram is representative of the latest motherboard revision available
at the time of publishing. The board you receive may not look exactly like
the above diagram.

http://www.tyan.com
15
2.2 - Block Diagram
S3115 Block Diagram

http://www.tyan.com
16

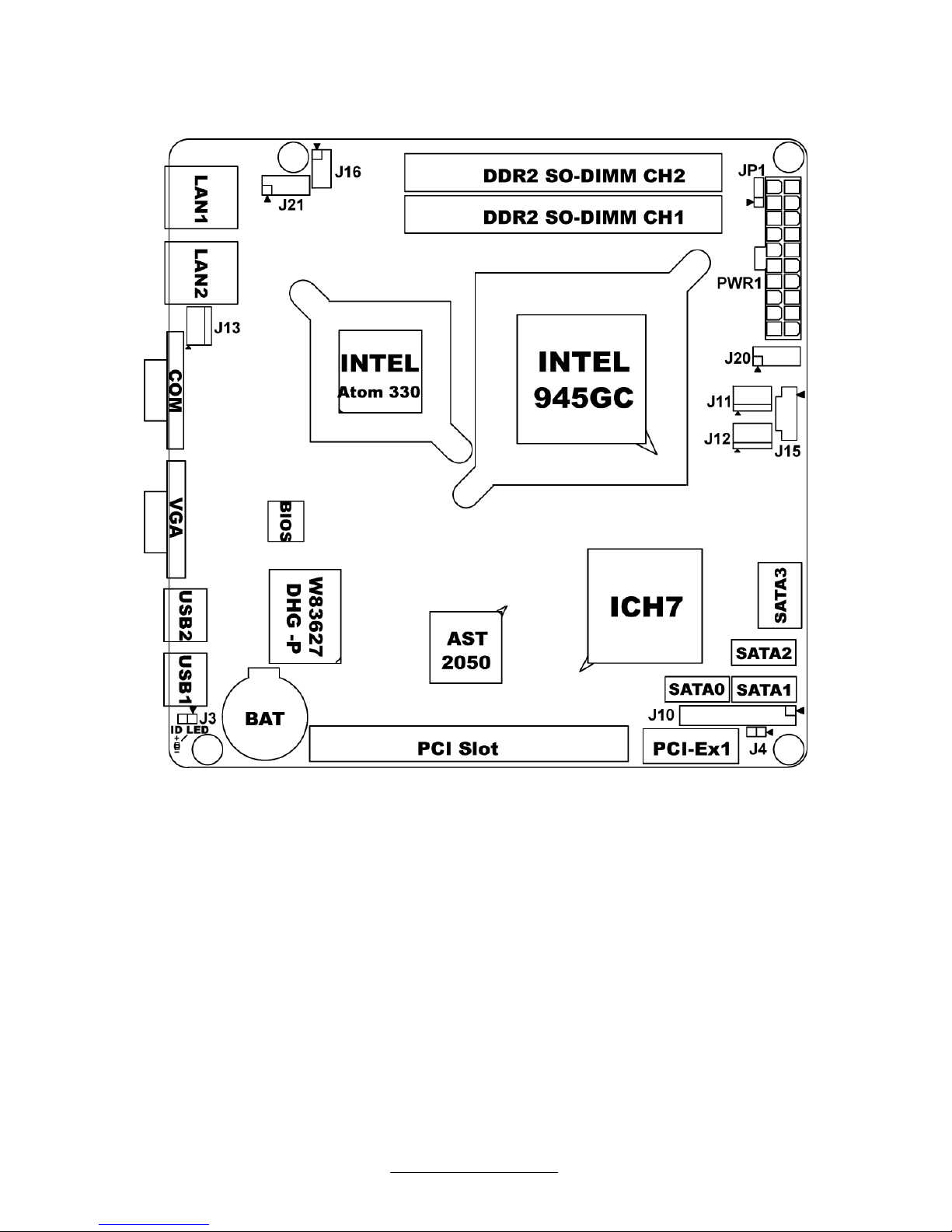

2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision (S3115GM2N)
available at the time of publishing. The board you receive may not look exactly
like the above diagram.

http://www.tyan.com
17
Jumpers and Connectors
Jumper/Connector Function
J11/J12/J13 FAN Connector
J3 BMC Reset Header
J4 HDD LED header
J10 Front Panel
J15 PSMI Header
J16 Rear Panel I/O
J20 USB Pin Header
J21 BMC Pin Header
JP1 Clear CMOS
Jumper Legend
OPEN - Jumper OFF Without jumper cover
CLOSED - Jumper ON With jumper cover

http://www.tyan.com
18
Jumper Placement
J11/J12/J13: Fan Connector
Pin 1 2 3 4
Pin_1 Signal GND +12V TACH PWM
Note: These fan headers are keyed to accept both 3-pin and 4-pin fans.
If you use only a 3-pin fan, some fan options will not be available.
J3: BMC Reset Pin Header
Pin 1 2
Pin_1 Signal BMC_DIS_L GND
J11
J12
J13
J3 J4
J10
J15
J16

http://www.tyan.com
19
J4: HDD LED Pin Header
Pin 1 2
Pin_1 Signal FP1_HDLED_P FP1_HDLED_N
J10: Front Panel Header
Signal Pin Pin Signal
PWRLED+ 1 2 PWR
KEY 3 4 IDLED+
PWRLED 5 6 IDLED
HDDLED+ 7 8 FAULTLED1
HDDLED 9 10 FAULTLED2
PWRBTN 11 12 LAN1LED+
GND 13 14 LAN1LED
RESET 15 16 SMBUSDATA
GND 17 18 SMBUSCLK
IDBTN 19 20 CASEOPEN
NC 21 22 LAN2LED+
NMIBTN 23 24 LAN2LED
NOTE：1: +3.3VSB power rail is IDLED, WLED (Warning LED), LANLED
2: +5VSB power rail is PWRLED
3: +3.3V power rail is HDLED
J15: PSMI Pin Header
Pin 1 2 3 4 5
Pin_1
Signal BMC_PS
MI_CLK
BMC_PS
MI_DAT
PSU_SM
BALERT
_N
GND NC
J16: Rear Panel I/O Header
Signal Pin Pin Signal
PWRSW 1 2 GND
RSTSW 3 4 GND
PWRLED 5 6 PWRLED+
NC 7 8 KEY

http://www.tyan.com
20

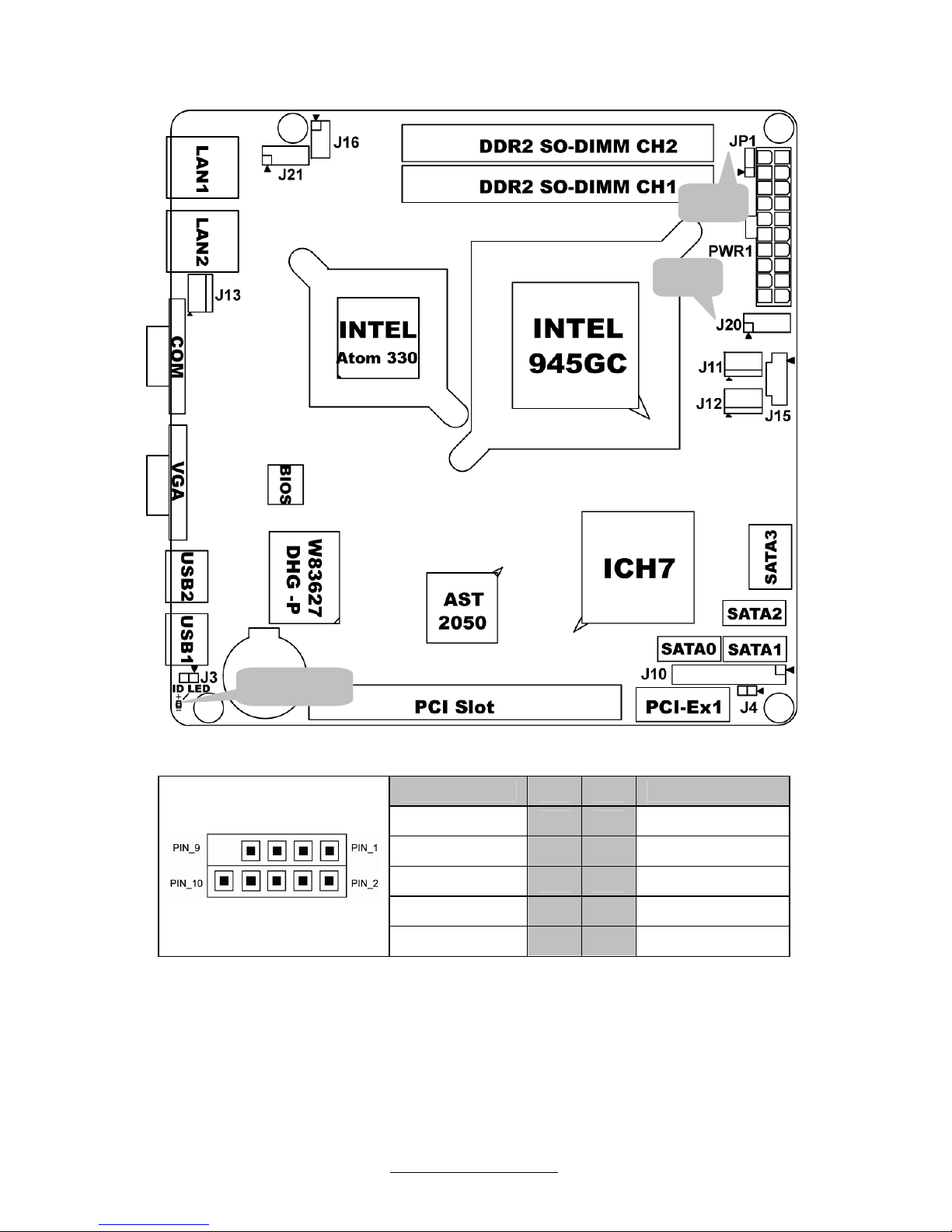

J20: USB Pin Header
Signal Pin Pin Signal
V5_USB_FP0 1 2 V5_USB_FP0
USB_C4_FB 3 4 USB_C3_FB
USB_T4_FB 5 6 USB_T3_FB
GND 7 8 GND
KEY 9 10 GND
J20
JP1
ID LED
