TYAN S7016 User manual

http://www.tyan.com
1
S7016
Version 1.1
Copyright
Copyright © 2009 MiTAC International Corporation. All rights reserved. TYAN®is a
registered trademark of MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
Intel®5500 Series and combinations thereof are trademarks of Intel Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft, Windows are trademarks of Microsoft Corporation.
SuSE is a trademark of Novell.
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

2
http://www.tyan.com
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations 5
1.2 Hardware Specifications 5
1.3 Server Engines Pilot2 8
Chapter 2: Board Installation
2.1 Board Image 10
2.2 Block Diagram 11
2.3 Board Parts, Jumpers and Connectors 12
2.4 Installing the Processor and Heatsink 22
2.5 Thermal Interface Material 25
2.6 Finishing Installing the Heatsink 26
2.7 Tips on Installing Motherboard in Chassis 27
2.8 Installing the Memory 28
2.9 Attaching Drive Cables 31
2.10 Installing Add-in Cards 32
2.11 Connecting External Devices 33
2.12 Installing the Power Supply 34
2.13 Finishing up 34
Chapter 3: BIOS Setup
3.1 BIOS Main Menu 37
3.2 Advanced Menu 38
3.3 PCI PnP Menu 66
3.4 Boot Menu 68
3.5 Security Menu 73
3.6 Chipset Menu 74
3.7 Exit Menu 80
Chapter 4: Diagnostics
4.1 Beep Codes 81
4.2 Flash Utility 81
4.3 AMI BIOS Post Code 82
Glossary 85
Technical Support 91

3
http://www.tyan.com
Check the box contents!
1x S7016 motherboard
2 x Serial ATA Cable
1 x USB2.0 cable
1 x S7016 user’s manual
1 x S7016 Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
2 x 1U passive heatsinks (proprietary)
(CHSK-0380, MiTAC P/N 343780900001)
2 x mini SAS Cable (S7016WGM3NR)
1 x mini SAS Cable (S7016GM3NR)
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.
NOTE: Please contact your vendor for optional cables and proprietary heatsinks
purchase.

4
http://www.tyan.com
NOTE

5
http://www.tyan.com
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. Based on Intel®
5520 (Tylersburg-36D) and Intel®82801JIR ICH10/R chipsets, the S7016 is
designed to support up to two Nehalem-EP 5500 Series processors and up to
144GB DDR3 registered ECC 800/1066/1333 memory, providing a rich feature set
and incredible performance. Leveraging advanced technology from Intel, the S7016
is capable of offering scalable 32 and 64-bit computing, high-bandwidth memory
design, and lightning-fast PCI-E bus implementation.
The S7016 not only empowers your company in today’s demanding IT environment
but also offers a smooth path for future application usage. All of this provides the
S7016 the power and flexibility to meet the needs of nearly any server application.
Remember to visit TYAN’s Website at http://www.tyan.com. There you can find
information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
S7016WGM3NR
Supported CPU
Series Intel Xeon Processor 5500 Series
Socket Type /
Q'ty LGA1366 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect
(QPI) support
Chipset IOH / ICH Intel 5520 / ICH10R
Supported DIMM
Qty (18) DIMM slots
DIMM Type /
Speed
DDR3 800/1066/1333* RDIMM/UDIMM / * limit 1 per
channel for 1333MHz speed
Capacity Up to 144GB at launch w/ dual rank RDIMMs
Memory channel 3 Channels per CPU
Memory
Memory voltage 1.5V
PCI-E (1) PCI-E Gen.2 x16 slot / (2) PCI-E Gen.2 x8 slots
Expansion Slots Recommended
TYAN Riser Card
M2083-RS, PCI-E x16 1U riser card (left) / M2081-2, PCI-E
x8 1U riser card (right)
Recommended
Barebone /
Chassis
1U Barebone GT24-B7016
Port Q'ty (3)
LAN Controller Intel 82574L / Intel 82576EB
Connector (2) Mini-SAS connectors (totally support 8 ports)
Storage SAS Controller LSI SAS1068E

6
http://www.tyan.com
Speed 3.0 Gb/s
RAID RAID 0/1/1E (LSI Integrated RAID)
Connector (1) Mini-SAS (4-port) + (2) SATA
Controller ICH10R
Speed 3.0 Gb/s
SATA
RAID RAID 0/1/10/5 (Intel Matrix RAID)
Connector type D-Sub 15-pin
Resolution 1600x1200@75Hz
Graphic
Chipset ServerEngines Pilot2
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)
COM (2) ports (1 at rear, 1 via cable)
PS/2 (1) PS/2 connector
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 Total (3) GbE ports, (1) shared with IPMI
Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-II connectors
Chipset Winbond W83793G
Voltage Monitors voltage for CPU, memory, chipset & power supply
Fan Total (7) 4-pin headers / Total (6) 8-pin headers
Temperature Monitors temperature for CPU & system environment
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Onboard Chipset Onboard ServerEngines Pilot2
ServerEngines
Pilot2 IPMI
Feature
IPMI 2.0 compliant baseboard management controller (BMC)
/ Supports storage over IP and remote platform-flash/ BIOS
update / Hardware-based security engine for SSL
acceleration
Server
Management
ServerEngines
Pilot2 iKVM
Feature
Highest resolution secured KVM over IP / Dual 10/100 Mb/s
MAC interfaces
Brand / ROM size AMI / 4MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot
/ ACPI 2.0 power management /Power on mode after power
recovery / User-configurable H/W monitoring / Auto-
configurable of hard disk types / Multiple boot options
Form Factor EATX
Form Factor Board Dimension 12"x13" (305x330mm)
Operating
System OS supported list Please refer to our OS supported list. http://www.tyan.com/tech/os_support1.aspx
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6
Complaint Yes
Motherboard (1) S7016 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
Package
Contains
I/O Shield (1) I/O Shield

7
http://www.tyan.com
SATA (2) SATA signal cables / (1) CCBL-067O, Mini-SAS cable for
GT24-B7016
SAS (1) CCBL-067O, Mini-SAS cable for GT24-B7016
Cable
USB (1) CCBL-035J, 2-port USB bracket cable
Heatsink CHSK-0380, LGA1366 CPU heatsink for S7016 (proprietary)
Riser Card M2083-RS, PCI-E 1U riser card (left) / M2081-2, PCI-E x16
1U riser card (right)
Optional
accessories for
future upgrade Cable
(1) CCBL-0615, COM port bracket cable / (1) CCBL-0311,
SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB
bracket cable / (1) CCBL-067O, Mini-SAS cable for GT24-
B7016
S7016GM3NR
Supported CPU
Series Intel Xeon Processor 5500 Series
Socket Type /
Q'ty LGA1366 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect
(QPI) support
Chipset IOH / ICH Intel 5520 / ICH10R
Supported DIMM
Qty (18) DIMM slots
DIMM Type /
Speed
DDR3 800/1066/1333* RDIMM/UDIMM / * limit 1 per
channel for 1333MHz speed
Capacity Up to 144GB at launch w/ dual rank RDIMMs
Memory channel 3 Channels per CPU
Memory
Memory voltage 1.5V
PCI-E (1) PCI-E Gen.2 x16 slot / (2) PCI-E Gen.2 x8 slots
Expansion Slots Recommended
TYAN Riser Card
M2083-RS, PCI-E x16 1U riser card (left) / M2081-2, PCI-E
x8 1U riser card (right)
Recommended
Barebone /
Chassis
1U Barebone GT24-B7016
Port Q'ty (3)
LAN Controller Intel 82574L / Intel 82576EB
Connector (1) Mini-SAS (4-port) + (2) SATA
Controller ICH10R
Speed 3.0 Gb/s
Storage SATA
RAID RAID 0/1/10/5 (Intel Matrix RAID)
Connector type D-Sub 15-pin
Resolution 1600x1200@75Hz
Graphic
Chipset ServerEngines Pilot2
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)
COM (2) ports (1 at rear, 1 via cable)
PS/2 (1) PS/2 connector
VGA (1) D-Sub 15-pin VGA port
RJ-45 Total (3) GbE ports, (1) shared with IPMI
Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-II connectors

8
http://www.tyan.com
Chipset Winbond W83793G
Voltage Monitors voltage for CPU, memory, chipset & power supply
Fan Total (7) 4-pin headers / Total (6) 8-pin headers
Temperature Monitors temperature for CPU & system environment
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Onboard Chipset Onboard ServerEngines Pilot2
ServerEngines
Pilot2 IPMI
Feature
IPMI 2.0 compliant baseboard management controller (BMC)
/ Supports storage over IP and remote platform-flash/ BIOS
update / Hardware-based security engine for SSL
acceleration
Server
Management
ServerEngines
Pilot2 iKVM
Feature
Highest resolution secured KVM over IP / Dual 10/100 Mb/s
MAC interfaces
Brand / ROM size AMI / 4MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot
/ ACPI 2.0 power management /Power on mode after power
recovery / User-configurable H/W monitoring / Auto-
configurable of hard disk types / Multiple boot options
Form Factor EATX
Form Factor Board Dimension 12"x13" (305x330mm)
Operating
System OS supported list Please refer to our OS supported list. http://www.tyan.com/tech/os_support1.aspx
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6
Complaint Yes
Motherboard (1) S7016 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
SATA (2) SATA signal cables / (1) CCBL-067O, Mini-SAS cable for
GT24-B7016
Package
Contains
Cable
USB (1) CCBL-035J, 2-port USB bracket cable
Heatsink CHSK-0380, LGA1366 CPU heatsink for S7016 (proprietary)
Riser Card M2083-RS, PCI-E 1U riser card (left) / M2081-2, PCI-E x16
1U riser card (right)
Optional
accessories for
future upgrade Cable
(1) CCBL-0615, COM port bracket cable / (1) CCBL-0311,
SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB
bracket cable / (1) CCBL-067O, Mini-SAS cable for GT24-
B7016
1.3 – Server Engines Pilot2
Please visit the TYAN Web Site at http://www.tyan.com to download the latest
Server Engines Pilot2 User’s Guide.

9
http://www.tyan.com
Chapter 2: Board Installation
You are now ready to install your motherboard. The mounting hole pattern of the
S7016 matches the EATX specification. Before continuing with installation, confirm
that your chassis supports an EATX motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED.

10
http://www.tyan.com
2.1 - Board Image
S7016
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may or may not look exactly like the above
picture.

11
http://www.tyan.com
2.2 - Block Diagram
S7016

12
http://www.tyan.com
2.3 - Board Parts, Jumpers and Connectors
S7016
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.
Jumper Legend
 OPEN - Jumper OFF, without jumper cover
 CLOSED – Jumper ON, with jumper cover

13
http://www.tyan.com
Jumper/Connector Function
J3 IPMB Connector
J4 Front Panel Connector
J7 PSMI Connector
J11/J12 USB Front Panel Header (blue)
J16 COM2 Connector
J17 CPLD JTAG Header
J22 ICH SGPIO Header
J27 Chassis Intrusion Header
J49/J51/J52/J53/J54/J55 8-pin 4056 Fan Connector (reserved for BB)
J5/J21/J24/J25/J28/J30/J50 4-pin Fan Connector
J57 Power Switch
J58 Reset Switch
J59 LAN3 LED Header
USB1 Type-A USB Connector
J6 SAS Enable/Disable Jumper
J56 BMC Enable/Disable Jumper
J60 BMC Update Jumper
J61 Flash Manageability Engine (ME) Jumper
JP1 Clear CMOS Jumper
JP2/JP3 COM2 Switch Jumper
JP8 BMC Flash Jumper
JP9 PCI-E x8/x16 select Jumper

14
http://www.tyan.com

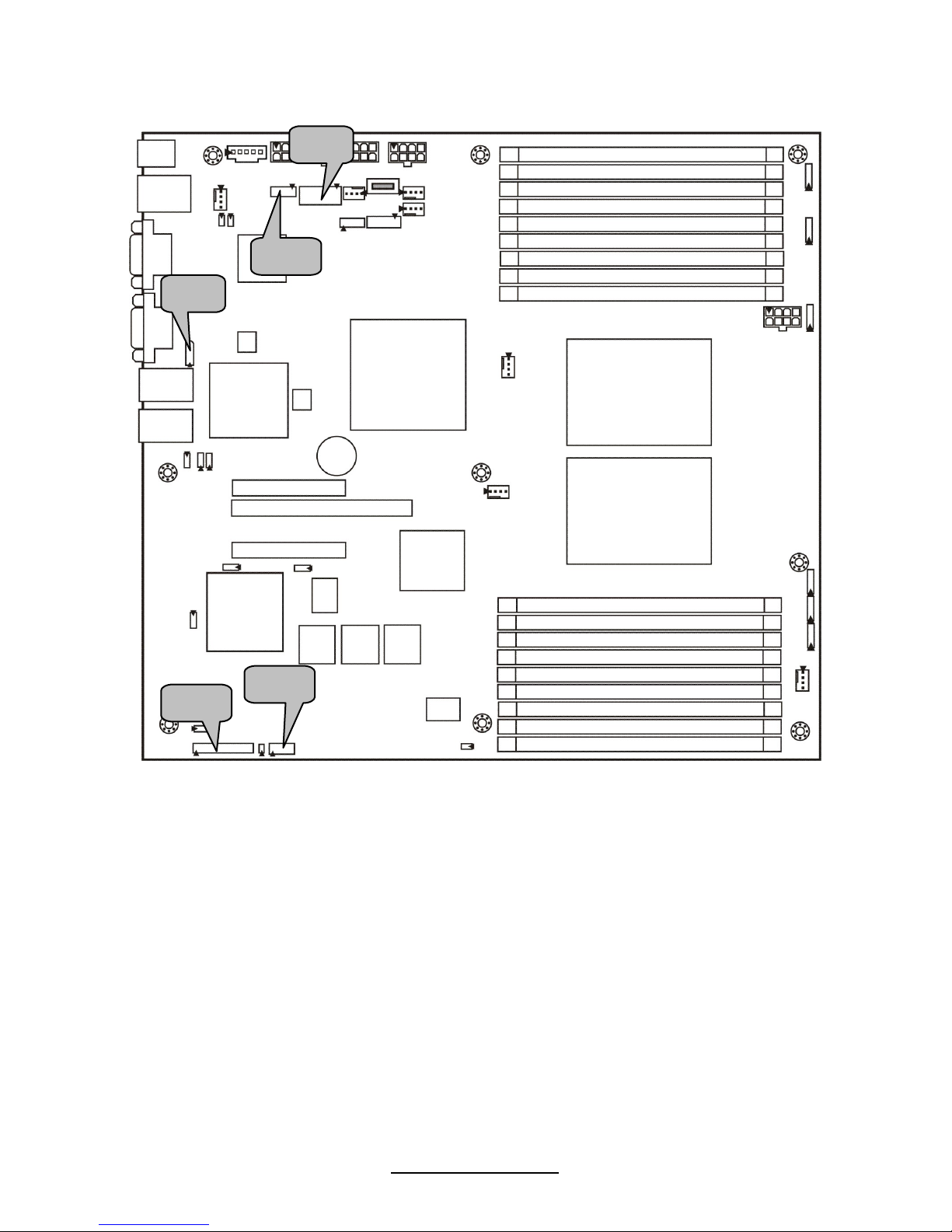

J16
J3
J11
J12
J4

15
http://www.tyan.com
J11/J12: USB Front Panel Header (Blue)
10 2
9
1
Pin Signal Pin Signal
1 +5V 2 +5V
3 USB D- 4 USB D-
5 USB D+ 6 USB D+
7 GND 8 GND
9 KEY 10 GND
J16: COM2 Connector
10
9
1
Pin Signal Pin Signal
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 KEY
J4: Standard Front Panel Connector
2
4
23
2
1
NOTE1: +3.3V power rail is IDLED, WLED
(Warning LED), LANLED
NOTE2: +5V power rail is PWRLED, HDLED
Pin Signal Pin Signal
1 PWRLED+ 2 +3VSB
3 KEY 4 IDLED+
5 PWRLED- 6 IDLED-
7 HDLED+ 8 WLED1-
9 HDLED- 10 WLED2-
11 PWRSW+ 12 LAN1LED+
13 GND 14 LAN1LED-
15 RSTSW 16 SMBDAT
17 GND 18 SMBCLK
19 IDLED_SW 20 INTRD#
21 GND 22 LAN2LED+
23 NMI_SW- 24 LAN2LED-
J3: IPMB Connector
1
Pin Signal Pin Signal
1 IPMB DATA 2 GND
3 IPMB CLK 4 NC

16
http://www.tyan.com

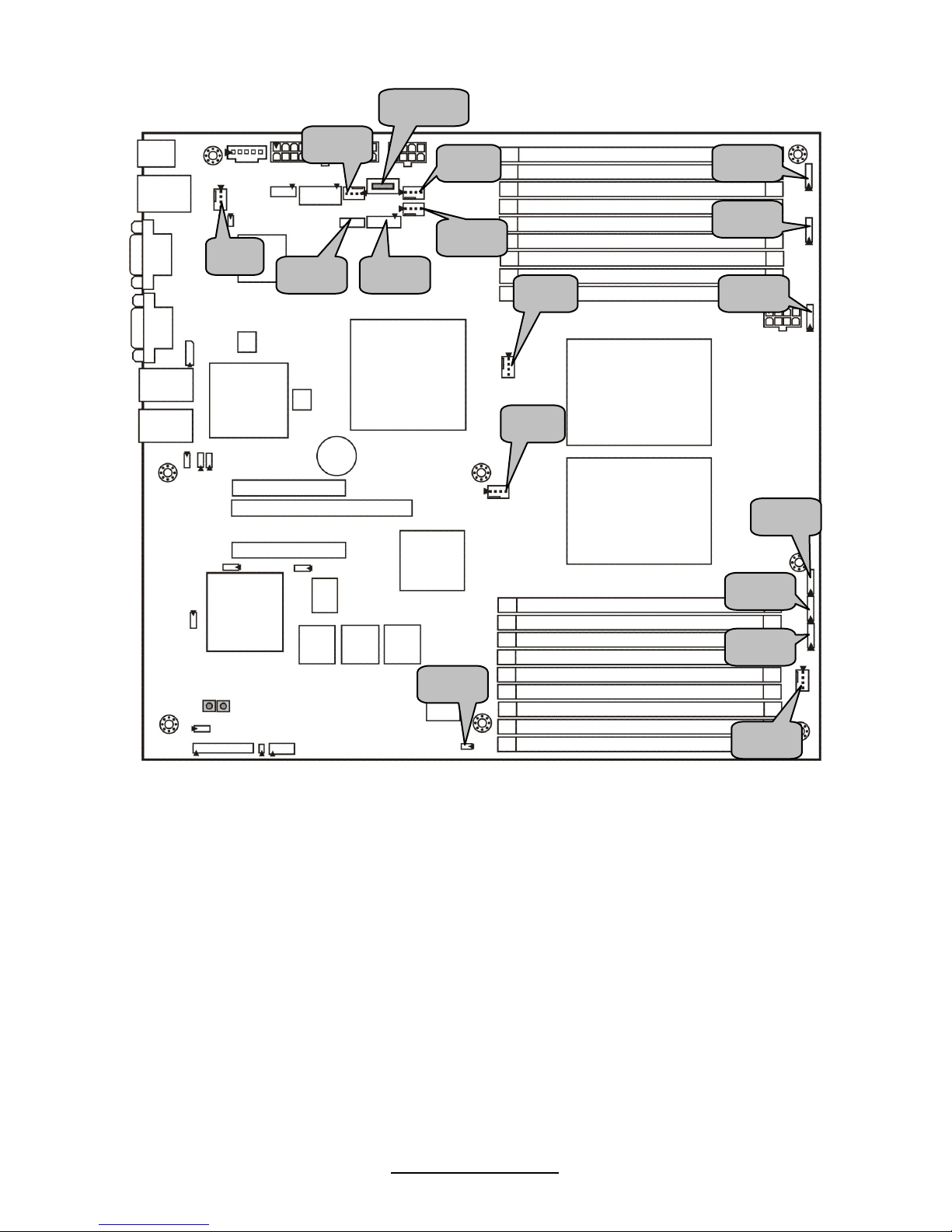

USB1
J24
J21
J30
J50
J49
J25
J5
J28
J55
J54
J53
J52
J51
J27
J17 J22

17
http://www.tyan.com

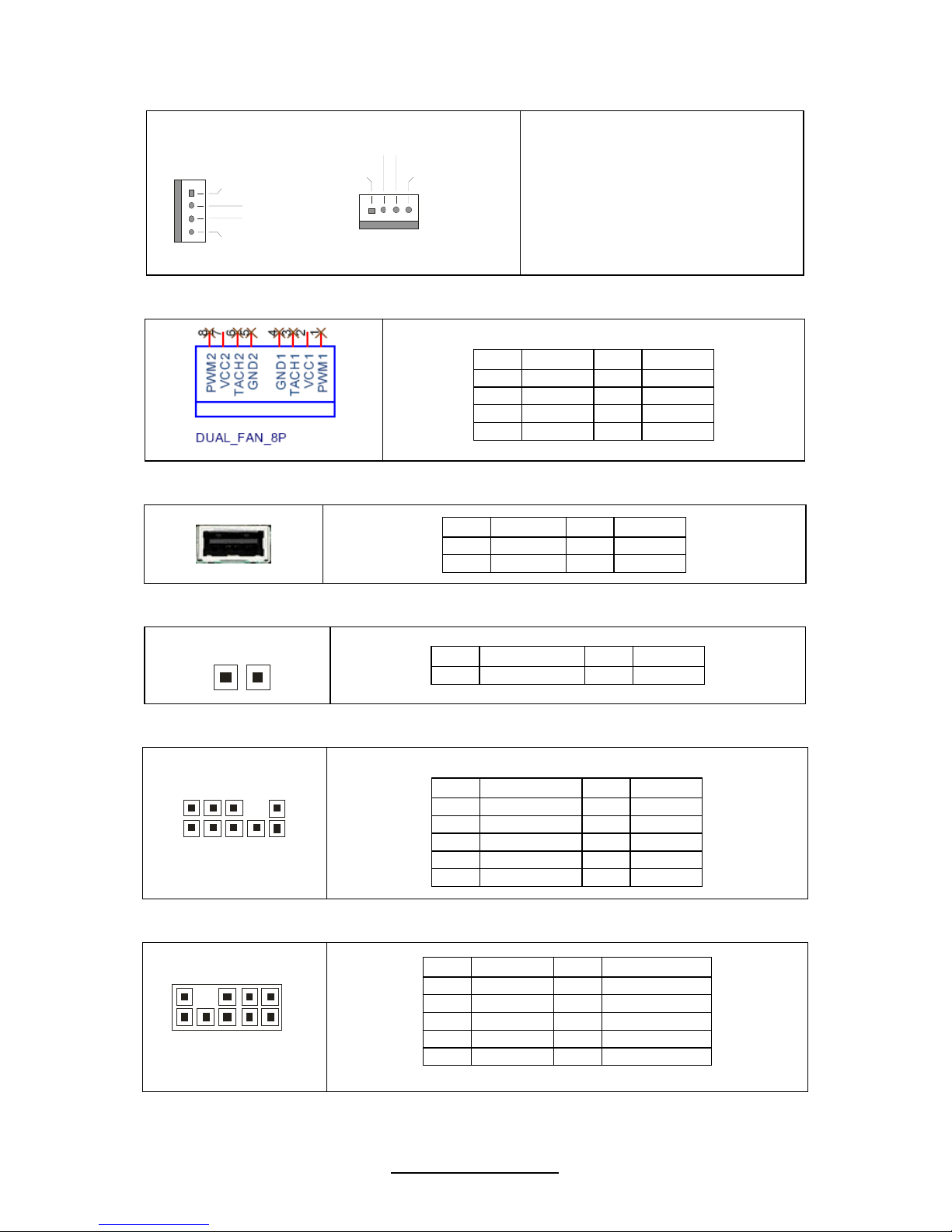

J5/J21/J24/J25/J28/J30/J50: 4-pin Fan Header
+12V
PWM Control
GND
Tachometer
1
+12V
PWM C ontrol
GND
Tachom eter
1
Use this header to connect the
cooling fan to your
motherboard to keep the
system at optimum
performance levels.
J49/J51/J52/J53/J54/J55: 8-pin 4056 Fan Header (reserved for barebone)
Pin Signal Pin Signal
1 PWM1 2 +12V
3 TACH1 4 GND
5 GND 6 TACH2
7 +12V 8 PWM2
USB1: Type-A USB Connector
Pin Signal Pin Signal
1 +5v 2 USB D-
3 USB D+ 4 GND
J27: Chassis Intrusion Header
1
Pin Signal Pin Signal
1 INTRUDER# 2 GND
J17: CPLD JTAG Header
10
9
2
1
Pin Signal Pin Signal
1 JTAG_TCK 2 GND
3 JTAG_TDO 4 +3.3V
5 JTAG_TMS 6 NC
7 NC 8 KEY
9 JTAQG_TDI 10 GND
J22: ICH SGPIO Header
10
9
1
Pin Signal Pin Signal
1 SMBCLK 2 SDATAOUT0
3 SMBDAT 4 SDATAOUT1
5 GND 6 SLOAD
7 KEY 8 SCLOCK
9 NC 10 NC

18
http://www.tyan.com

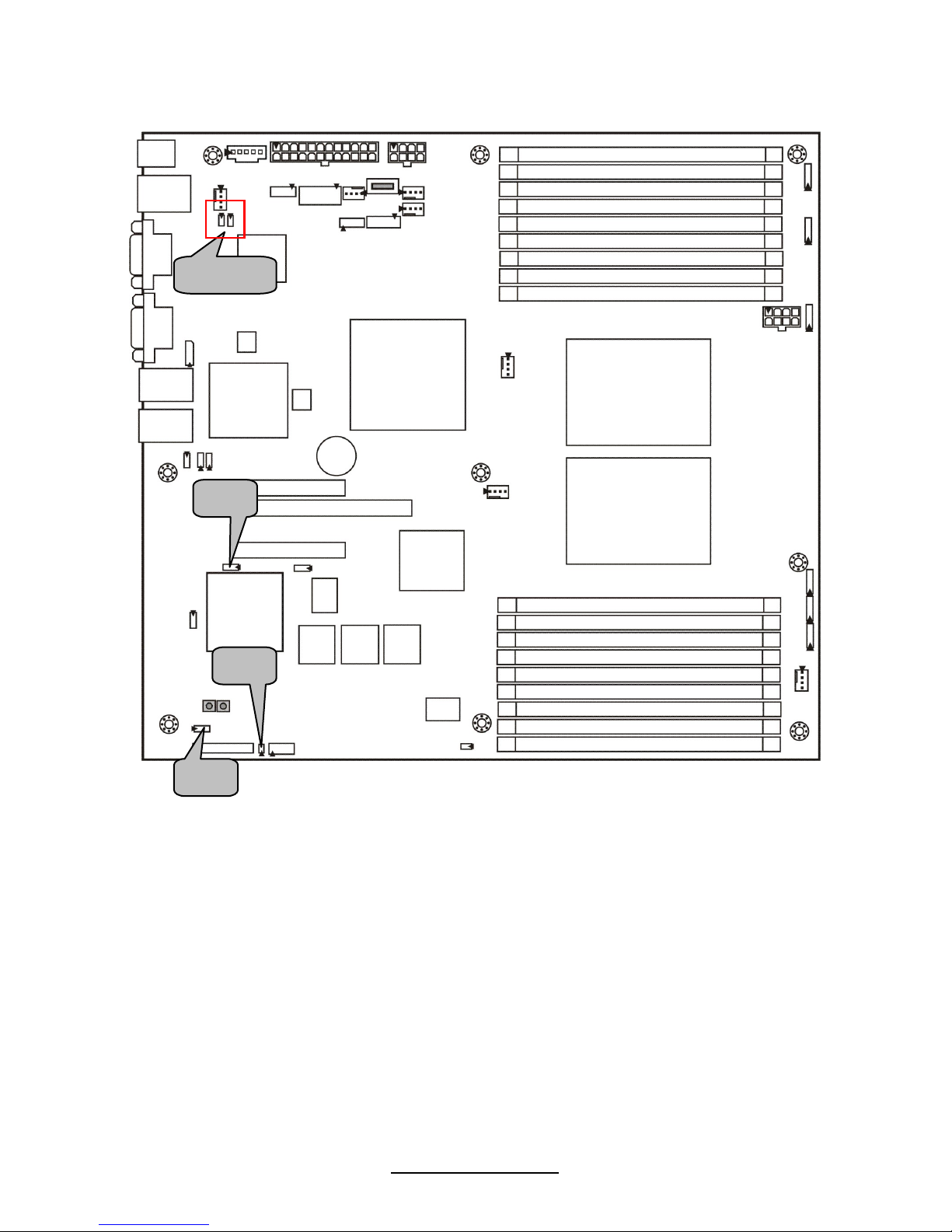

JP2/JP3
JP8
JP1
JP9
J7

19
http://www.tyan.com

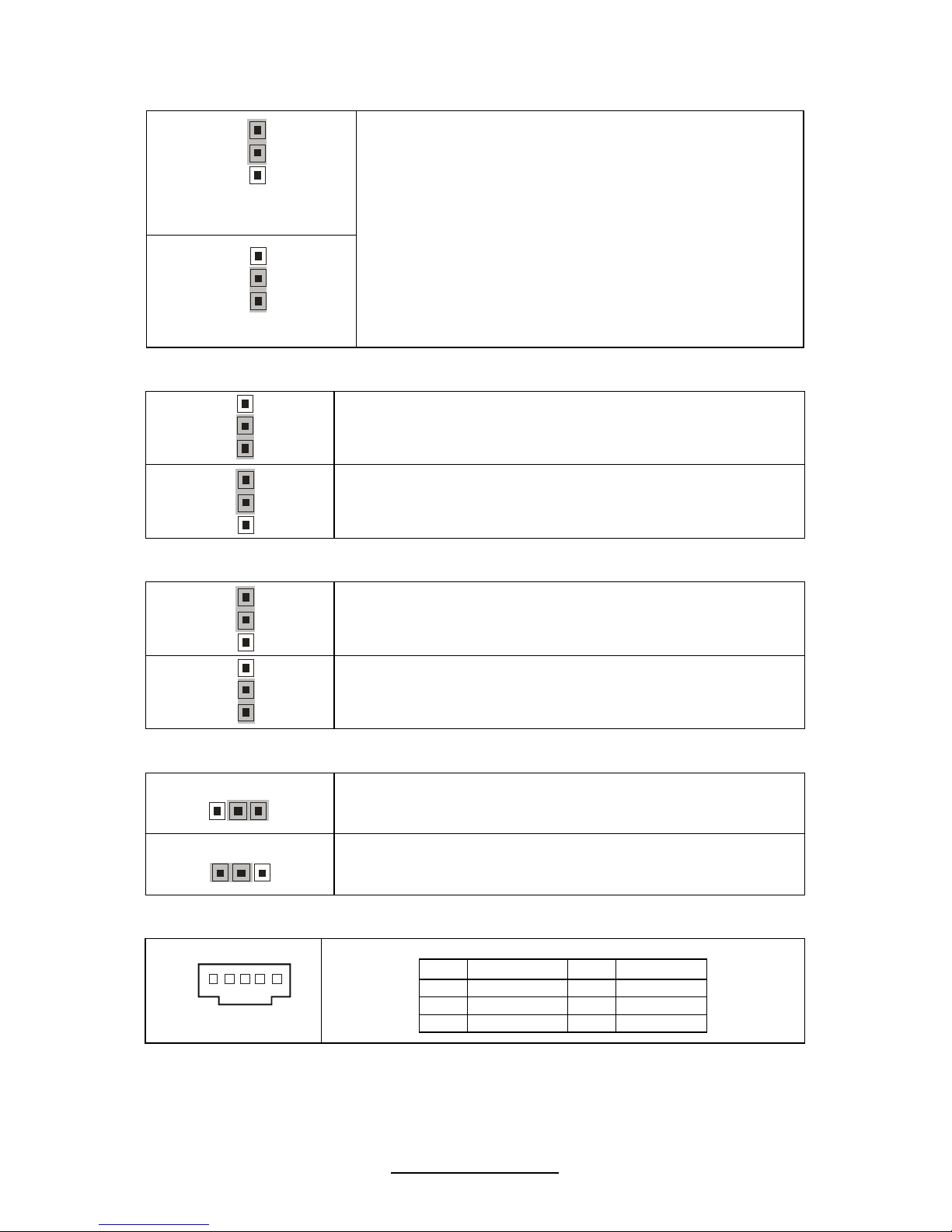

JP1: Clear CMOS Jumper
1
3
Normal
(Default)
1
3
Clear
Use this jumper when you forgot your system/setup
password or need to clear system BIOS setting.
How to clear the CMOS data
-Power off system and disconnect power
supply from AC source
-Use jumper cap to close Pin_2 and 3 for
several seconds to Clear CMOS
-Replace jumper cap to close Pin_1 and 2
Reconnect power supply to AC source
Power on system
JP2/JP3: COM2 Switch Jumper
3
1
Pin 1-2 Closed: COM2 (Default)
3
1
Pin 2-3 Closed: BMC UART2 to COM2
JP8: BMC Boot FW Flash Jumper
1
3
Pin 1-2 Closed: Disable
1
3
Pin 2-3 Closed: Enable (Default)
JP9: PCIE x8/x16 Select Jumper
1
3
Pin 1-2 Closed: PCIE Slot6 x16 (Default)
3
1
Pin 2-3 Closed: PCIE Slot5/6 x8
J7: PSMI Connector
1
Pin Signal Pin Signal
1 SMB_CLK 2 SMB_DAT
3 SMBALERT 4 GND
5 V3P3

20
http://www.tyan.com
J60/J56
J59
J6
J61
