Chapter1–Introduction
1.1 Overview
The S1571 is a quality, high performance mainboard designed for Intel
Pentium microprocessors. This mainboard utilizes the Intel 430TX
chipset and can support CPU speeds of 75MHz through 233MHz. The
S1571 will also support the CyrixM1/6x86, Cyrix M2, AMD K6, and Intel
multimedia Pentium P55C/P54CTB (MMX Overdrive), which utilizes
MMX commands.
The S1571's PCI Local Bus provides high performance capabilities that
are ideal for a wide range of demanding applications such as CAD,
CAM, CAE, networking, multi-user environments, database manage-
ment, desktop publishing, image processing, and 3D animation.
This integrated system board achieves high reliability with numerous
features and yet is small enough to be supported in an AT form factor.
Some of the features included are on-board dual channel PCI PIO, Bus
Master IDE and UltraDMA/33, on-board floppy controller, USB Port,
PS/2 Mouse Port, on-board high speed I/O, and support for pipeline-burst
SRAM.
Flexibility and expandibility have been designed into the S1571. With I/O
and drive controller support built on-board, the five PCI and four ISA
(one ISA and one PCI as a shared slot) slots are free for numerous add-
on expansion cards.
Remember to take a look at TYAN Computer's web site, located at
http://www.tyan.com. Here you can find information on all of TYAN's
products along with FAQs, distributors list, drivers, and CMOS setting
explanations. If you have a tech support question please contact us at
www.tyan.com.
Introduction

5S1571 D1181-001 http://www.tyan.com
Introduction
1.2 Hardware Specifications/Features
wCPU Intel Pentium 75 MHz thru 200 MHz (Socket 7).
Intel Pentium MMX 166 MHz thru 233 MHz.
Intel Pentium P55C/P54CTB (MMX Overdrive).
Cyrix/IBM/SGS M1/6x86 PR120+/PR150+/
PR+166 (see page 11 for PR200+).
Cyrix M2 PR166/PR200(see page 11 for PR233).
AMD K5 PR90-PR166+, K6 166/200/233Mhz.
wSpeed 50/60/66/75/83 MHz system bus.
25/30/33 MHz PCI bus.
wDRAM 3 banks of 72-pin SIMM and 2 DIMM sockets.
Supports 5V or 3.3V memory.
Supports EDO (Extended Data Out) DRAMs.
Supports SDRAM (Synchronous DRAM).
Supports Fast Page Mode DRAMs.
Supports 8MB to 256MB of DRAMs.
wL2 Cache 512KB on board 2nd level PB SRAM.
wEIDE Controller Primary and secondary PCI EIDE channels on
board for support of up to four EIDE Mode 0
through Mode 4 drives.
Supports DMA (Bus Master) multiword mode 0
to 2 (the Bus Master driver is available on the
web at www.tyan.com).
Supports "Ultra 33" Synchronous DMA mode at
33MB/s transfer rate.
wEnhanced I/O Multi-mode bi-directional parallel port that
supports standard, EPP, and ECP modes.
Supports 16550 compatible UARTs for on-board
high speed serial ports.
Support for an IrDA-compliant Infra Red inter-
face.

6S1571 D1181-001 http://www.tyan.com
1.4 Environment
Ambient Temperature 0 to +50 C (operating)
Relative Humidity 0 to +85% (operating)
Altitude 0 to 10,000 feet (operating)
Vibration 0 to 1,000 Hz
Voltage 4.9 to 5.2 V
Informationpresentedinthispublicationhasbeencarefullycheckedfor
reliability;however,noresponsibilityisassumedforinaccuracies.The
informationcontainedinthisdocumentissubjecttochangewithout
notice.
Introduction
On-board floppy controller.
On-board Universal Serial Ports.
wI/O Bus Slots 5 Master/Slave 32-bit PCI-Bus slots (slot 1 and
slot 5 share a bus mastering resource).
4 16-bit ISA Bus slots.
One ISA and one PCI shared slot.
1.3 Software Specifications
wBIOS Default:Award BIOS.
Virus Protection.
Year 2000 Ready.
Plug and Play.
Support for easy BIOS upgrades with flash
EPROM chip.
wOS Operates with MS-DOS, Windows 3.x, Windows
for WorkGroups 3.x, Windows 95, Windows
NT, OS/2, Novell Netware, Solaris, and SCO
Unix.
wMouse On-board PS/2 mouse connector.
wSpecial features LM78 optional.
LANdesk compatible (only with LM78 installed).
Switching power supply.

7S1571 D1181-001 http://www.tyan.com
Chapter2–BoardInstallation
2.1 Unpacking
The mainboard package should contain the following:
wS1571Mainboard
wOne IDE 40 pin cable
wOne 34 pin floppy cable
wUser's Manual
The mainboard contains sensitive electric components which can be easily
damaged by static electricity, so the mainboard should be left in its original
packaging until it is ready to be installed.
With the power supply plugged in and turned off, touch an unpainted area
of the system chassis immediately before handling the mainboard or any
component. Doing so discharges the static charge your body may have
acquired.
After opening the mainboard carton, extract the system board–holding it by
its edges–and place it on a grounded anti-static surface, component side
up. Inspect the board for damage. Do not inspect board unless it is placed
on an anti-static mat. Do not touch the bottom of the board.
DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED!
Board Installation
2.2 Installation
You are now ready to install your mainboard. The mounting hole pattern of
the S1571 matches the Baby-AT system board specifications. It is assumed
that the chassis is for a standard Baby-AT mainboard form factor.

Board Installation
EXTSMI
8
Trademarks
Award,BIOS/FlasharetrademarksofAwardSoftwareInternational,
Inc.
AMIBIOSisatrademarkofAmericanMegatrends,Inc.
IBM,PC,AT,PS/2aretrademarksofIBMCorporation.
INTEL,PentiumaretrademarksofIntelCorporation.
Allothertrademarksarethepropertyoftheirrespectivecompanies.

•••••
PCI Slot 1 PCI Slot 2
PCI Slot 4
Chapter3–On-BoardResourceSettings
KB CTR Powerconnector
ISA Slot 1 ISA Slot 2
ISA Slot 3
ISA Slot 4
Keyboard
CON
BIOS AMI/AWARD
PCI Slot 3

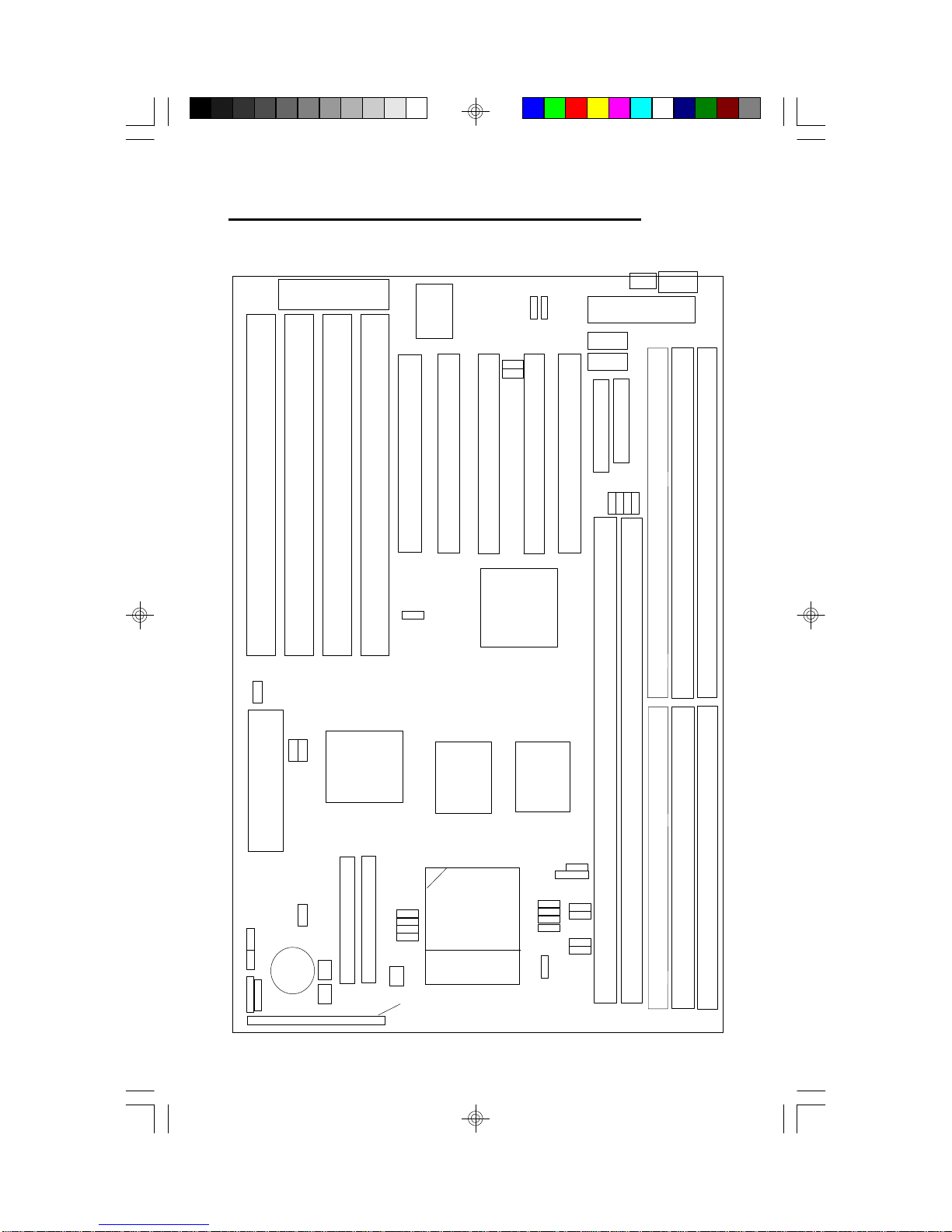

Figure3.1 S1571Board Layout
Socket 7
CPU 0
82371AB
82439TX
Parallel Port
1
1
1Com1
Com2
Bank 0
Bank 1 Bank 1
Bank 2 Bank 2
SDRAM Bank 1
Bank 0
SDRAM Bank 0
Primary IDE
Secondary IDE
1
1
USB1
PCI Slot 5
USB2
1
SMC I/O
PS/2
Mouse
JP25 JP24
JP17
JP16
3Volt
Battery
pin1
PWRLED
RSTSW HD LED IR
SPKR
PIIX4
pin 1
JP21
••
••
••
••
••
••
••
••
••
•••
•••
1
Floppy Conn.
SRAM SRAM
••
VIO
•••
•••
••••
••••
••••••••••••••••••• ••••••
pin27
EXTSM1
JP26
IR1
•••
•••
•••
FAN1
pin 1
pin 1
FAN3
JP22pin 1
FAN2
JP23 pin 1
••• •••
J22 J23 pin 1
•• •• •• ••
JP1 JP4 JP3 JP2
••
••
••
••
•••
••••
VID1
VID0
VID2
VID3 JP5
JP6
JP7
JP8
JP9JP10
JP15
15 6
10
20
BF0
BF1
BF2
JP17
9
1
1
1

10S1571 D1181-001 http://www.tyan.com
CPU BF0 BF1 BF2 JP9 JP10 JP15 VID0 VID1 VID2 VID3 VIO
P54C 75 OFF OFF OFF 1-2, 3-4 ON 1-2 ON ON ON ON OFF
P54C 90 OFF OFF OFF 3-4 ON 1-2 ON ON ON ON OFF
P54C 100 OFF OFF OFF 1-2 ON 1-2 ON ON ON ON OFF
P54C 120 ON OFF OFF 3-4 ON 1-2 ON ON ON ON OFF
P54C 133 ON OFF OFF 1-2 ON 1-2 ON ON ON ON OFF
P54C 150 ON ON OFF 3-4 ON 1-2 ON ON ON ON OFF
P54C 166 ON ON OFF 1-2 ON 1-2 ON ON ON ON OFF
P54C 200 OFF ON OFF 1-2 ON 1-2 ON ON ON ON OFF
P55C 166 ON ON OFF 1-2 ON 1-2 ON OFF OFF OFF ON
P55C 200 OFF ON OFF 1-2 ON 1-2 ON OFF OFF OFF ON
P55C 233 OFF OFF OFF 1-2 ON 1-2 ON OFF OFF OFF ON
K5 90 OFF OFF OFF 1-2 ON 1-2 ON ON ON ON OFF
K5 100 OFF OFF OFF 1-2 ON 1-2 ON ON ON ON OFF
K5 120 ON OFF OFF 3-4 ON 1-2 ON ON ON ON OFF
K5 133 ON OFF OFF 1-2 ON 1-2 ON ON ON ON OFF
K5 166 ON ON OFF 1-2 ON 1-2 ON ON ON ON OFF
K6 166 ON ON OFF 1-2 ON 1-2 ON OFF OFF ON ON
K6 200 OFF ON OFF 1-2 ON 1-2 ON OFF OFF ON ON
K6 233 OFF OFF OFF 1-2 ON 1-2 ON ON OFF OFF ON
IDT C6 150 (50x3) OFF ON OFF 1-2, 3-4 ON 1-2 ON ON OFF ON OFF
IDT C6 180 (60x3) OFF ON OFF 3-4 ON 1-2 ON ON OFF ON OFF
Cyrix PR120+ M1 ON OFF OFF 1-2, 3-4 ON 1-2 ON ON ON ON ON
Cyrix PR133+ M1 ON OFF OFF 1-2, 3-4 OFF 1-2 ON ON ON ON ON
Cyrix PR150+ M1 ON OFF OFF 3-4 ON 1-2 ON ON ON ON ON
Cyrix PR166+ M1 ON OFF OFF 1-2 ON 1-2 ON ON ON ON ON
Cyrix PR200+ M1 ON OFF OFF 3-4 OFF 1-2 ON ON ON ON ON
Cyrix PR150L M1 ON OFF OFF 3-4 ON 1-2 ON OFF OFF OFF ON
Cyrix PR166L M1 ON OFF OFF 1-2 ON 1-2 ON OFF OFF OFF ON
Cyrix PR200L M1 ON ON OFF 3-4 OFF 1-2 ON OFF OFF OFF ON
Cyrix PR166 M2 ON ON OFF 3-4 ON 1-2 ON OFF OFF OFF ON
Cyrix PR200 M2 ON ON OFF 1-2 ON 1-2 ON OFF OFF OFF ON
Cyrix PR233 M2 ON ON OFF 3-4 OFF 1-2 ON OFF OFF OFF ON
Resource Settings
3.2 Jumper Settings
*Chips in the Cyrix “L” series are “Low Voltage” and operate at 2.8 volts.

11S1571 D1181-001 http://www.tyan.com
Resource Settings
BIOS VCC JP23
5V 1-2
12V 2-3
BUS Speed Settings
BUS
Frequency JP9 JP10
50 MHz 1-2,
3-4 ON
55 MHz 1-2,
3-4 OFF
60 MHz 3-4 ON
66 MHz 1-2 ON
75 MHz 3-4 OFF
83 MHz 1-2 OFF
BIOS Memory Voltage
Select
CPU VCC2.0V 2.1V 2.2V 2.3V 2.4V 2.5V 2.6V 2.7V 2.8V 2.9V 3.0V 3.1V 3.2V 3.3V 3.4V 3.5V
VID0OFFOFFOFFOFFOFFOFFOFFOFFONONONONONONONON
VID1OFFOFFOFFOFFONONONONOFFOFFOFFOFFONONONON
VID2OFFOFFONONOFFOFFONONOFFOFFONONOFFOFFONON
VID3OFFONOFFONOFFONOFFONOFFONOFFONOFFONOFFON
CPU Voltage Settings
CPU Multipliers
CPUMult BF0 BF1 BF2
x1.5 OFF OFF OFF
x2 ON OFF OFF
x2.5 ON ON OFF
x3 OFF ON OFF
Note: please ignore the JP21
label on the board.
WARNING:
This motherboard incorporates support for 75MHz and 83MHz BUS speeds.
However, these speeds will push PCI bandwidth beyond the Intel-recommended
specification for PCI 2.1 compliance. Therefore, TYAN Computer Corporation
takes no responsibility for any problems, hardware or software, related to the
use of BUS speeds beyond 66MHz. We also cannot guarantee any PCI cards’
compatibility beyond the specified speed of 33MHz. Technical support and
RMA/Warranty claims relating to the use of BUS speeds beyond the 66MHz/
33MHz limit recommended by Intel will not be honored by TYAN. Use at your
own risk.

12S1571 D1181-001 http://www.tyan.com
DRAM VCC JP1 JP2 JP7 JP8
3V OFF OFF ON ON
5V ON ON OFF OFF
DIMM Memory Voltage Select
SIMM DRAM Memory Voltage Select
DIMM VCC JP3 JP4 JP5 JP6
3V OFF OFF ON ON
5V ON ON OFF OFF
PS/2 Mouse Connector:
GND DATA VCC Keyboard
CLK
Resource Settings
Others
JP26 Install only if there is a speaker on board.
JP24 Connected to the LED for Turbo On/Off.
JP25 Connected to the switch for Turbo On/Off.
JP26 Pin 4 and 5 for Keylock function.
*Deturbo is not supported in 430TX chipset.
Windows95 Users:
You may encounter problems with some of the devices in the Intel 82371AB
chipset. Neither the PCI Bridge nor the PCI Universal BUS device IDs for this
chipset (also called PIIX4) are recognized by Windows95. This is a software
problem, not a hardware problem, and can be easily remedied by either upgrading
to Windows98 or downloading the 82371AB patch found at http://www.tyan.com
or at ftp://download.intel.com/design/pcisets/busmastr/setupex.exe

13S1571 D1181-001 http://www.tyan.com
Resource Settings
I/O Port Setting: JP16 and JP17
JP16 JP17
For Serial Port 1-2 1-2
For IR Port 2-3 2-3
J17 Settings
pins function
3-4 EXTSM1
6-7 IR Receive
8-9 IR Transmit
13-14 IDE LED Primary
15-16 IDE LED Secondary
18-20 PWR LED
22-23 RST SW
24-27 SPK
3.3CMOSRTC
The TX chipset includes a Real Time Clock circuit. It provides the date and
the time for the system. Normally the life span of an RTC battery is 5 years.
If the battery for the RTC is low, it will prevent your system from
POSTing and you will not get a display. If this occurs, you will need to
replace the battery with another 3-volt lithium battery (Duracell DL2032).
3.4 Speaker Connector Installation
The S1571 provides a 4-pin header to connect the speaker. The speaker is
connected to pins 24-27 of jumper block J17.
3.5 Hardware Reset Switch Connector Installation
The RESET switch on your case's display panel provides users with the
HARDWARE RESET function, which is the same as power on/off. The
system will do a cold start after the RESET switch is pushed. The RESET

14S1571 D1181-001 http://www.tyan.com
RESOURCE
SETTINGS
Resource Settings
switch is a 2-pin connector and should be installed on pins 22 and 23 on
jumper block J17.
3.6 Flash EPROM-Jumper JP23
The S1571 uses flash memory to store BIOS programs. It can be updated
as new versions of the BIOS become available. The flash utility will guide
you through the process step by step.
JP23 determines which type of EPROM is used. This jumper has been set
to match the on-board BIOS chip. The factory default for the S1571 is on
pins 1 and 2. Depending on the type of EPROM used, some boards will
have JP23 on pins 2 and 3.
Refer to chapter 5 for Flash EPROM upgrade procedures.
3.7 Hardware CMOS & Password Reset: JP22
If you have been locked out of your system because you forgot your pass-
word or set the CMOS incorrectly, follow the instructions below.
a. Power off the system.
b. Connect jumper JP22 to pins 2 and 3.
c. Wait for 2 seconds, then return JP22 to pins 1 and 2.
d. Power on the system again.
By following the above procedures, you will erase your password and re-
set the CMOS to the BIOS defaults.

15S1571 D1181-001 http://www.tyan.com
Resource Settings
3.8 DRAM Installation
The S1571 uses a 64-bit data path from memory to CPU and can
accommodate up to 256MB of RAM. The mainboard supports Fast
Page Mode, and EDO (Extended Data Out) 72 pin SIMMs. SDRAMs
(Synchronous) are also supported in the DIMM slots. DIMMs must be of
the unbuffered variety. All installed memory will be automatically
detected so there is no need to set jumpers. The TX chipset can cache
up to 64MB of RAM.
wSIMM modules must be installed in pairs.
wEach pair of SIMMs must be of the same size and type.
wThe mainboard supports 1, 2, 4, 8, and 16MBx32 SIMM modules.
wSIMM banks 0, 1, and 2 can use either double- or single-sided SIMMs.
wTwo SIMMs or one unbuffered DIMM must be installed for the system
to POST.
wThe mainboard supports 1, 2 and 4MBx64 DIMM modules.
wSIMM bank 0 and DIMM bank 0 cannot be used at the same time.
wSIMM bank 1 and DIMM bank 1 cannot be used at the same time.
wYou can use SIMM bank 0 with DIMM bank 1.
wYou can use SIMM bank 1 with DIMM bank 0 (see figure below).
The shaded boxes represent occupied slots.
OK OK

16S1571 D1181-001 http://www.tyan.com
DRAM DRAM DRAM SDRAM SDRAM Total
Bank 0 Bank 1 Bank 2 Bank 0 Bank 1
4MBx2 none none none none 8MB
none none none 8MBx1 none 8MB
none none none 16MBx1 none 16MB
8MBx2 none none none none 16MB
4MBx2 4MBx2 4MBx2 none none 24MB
16MBx2 none none none none 32MB
none 8MBx2 none 16MBx1 none 32MB
32MBx2 none none none none 64MB
none none none none 64MBx1 64MB
none none none 32MBx1 64MBx1 96MB
none none none 64MBx1 64MBx1 128MB
64MBx2 none none none 64MBx1 192MB
none none none 128MBx1 128MBx1 256MB
Resource Settings
3.9 CPU Installation
Several types of CPUs can be used on the S1571. Please refer to
section 3.2 for the correct CPU jumper settings for your board.
Remember:
w The CPU is a sensitive electronic component and it can be easily
damaged by static electricity. Do not touch the CPU pins with your
fingers.
w When installing the CPU into the socket, match the CPU pins to the
socket pins.
w Before the CPU is installed, the mainboard must be placed on a flat
surface. You should be able to insert the CPU with minimal pressure.
Do not push down hard, but do use firm pressure.
wA cooling fan and/or heat sink assembly is required to protect
the CPU from being damaged.
wIf you use 4MBx64 DIMMs you cannot use DRAM bank 2. DRAM
bank 2 has an upper limit of 32MB.
wWe do not recommend using DRAM bank 2 along with DIMMs.
wThe following table shows some of the available memory configurations.

17S1571 D1181-001 http://www.tyan.com
3.10 Upgrading Cache Memory
The S1571 has 512KB of on-board pipeline-burst SRAM and cannot be
upgraded in the field. The TX chipset can cache a maximium of 64MB
of RAM.
3.11 Peripheral Device Installation
After all the jumpers on the mainboard have been set, it can then be mounted
into the case. Proceed to install the display card and any other peripheral
devices.
If a PCI-Bus interface card is to be installed in the system, any one of the
five PCI-Bus slots can support either a Master or a Slave device.
After installing the peripheral controllers, you should check everything
again, and prepare to power on the system.
Installation procedure:
1. Make sure the ZIF socket lever is up. To raise the lever, pull it out
to the side a little and raise it as far as it will go. The top plate will
slide back.
2. Align the CPU and socket pin 1 corners. The pins on the bottom of
the CPU should align with the rows of holes in the socket.
3. Insert the CPU in the socket. It should insert easily. If it does not,
adjust the position of the lever a little.
4. Press the lever down. The top plate will slide forward. You will
feel some resistance as the pressure starts to secure the CPU in
the socket. This is normal and will not damage the CPU. The lever
should snap into place at the side of the socket.
Resource Settings

18S1571 D1181-001 http://www.tyan.com
3.12 Connecting the Power Supply
The system power supply connector on the mainboard is for a 5-volt
power supply. Incorrect installation of the power supply could result in
serious damage to the system board and connected peripherals.
Good Power Signal
VCC
+12V
-12V
GND
GND
GND
GND
-5V
VCC
VCC
VCC
5 volt
power
connector
pinout
Pin 1
To connect the leads from either voltage power supply, you should first
make sure the power supply is unplugged. Most power supplies have
two leads. Each lead has six wires, two of which are black.
Resource Settings
Orient the connectors so the black wires are in the middle of the
5V power supply.
Caution: Some power supplies also include 3V connectors. The
connection wires normally have two colors with 3 black wires on
one side. Please be careful not to use the wrong connector.

19S1571 D1181-001 http://www.tyan.com
Align the plastic guide pins on the lead cables with their receptacles on
the mainboard. You may need to hold the lead at an angle to line it up.
Once you have the guide pins aligned, press the lead connector so that
the plastic clips on the lead snap into place and secure the lead to the
connector.
Resource Settings
Connectingthe5V power supply

20S1571 D1181-001 http://www.tyan.com
Chapter4–BIOSConfiguration
Award's BIOS has a built-in setup program that allows the user to modify
the basic system configuration. This type of information is stored in the
battery-backed CMOS NVRAM. Entering incorrect information or for-
getting your password can lock you out of your system (refer to sec-
tion 3.9 for information on resetting the CMOS NVRAM).
4.1. Entering Setup
You may enter setup by powering on the computer and watching for the
below message during the POST (Power On Self Test).
* TO ENTER SETUP BEFORE BOOT PRESS DEL KEY
When this message appears at the bottom of your screen, press the <Del>
key. This must be done quickly, for the message is only displayed for a brief
time. If you do not press the <Del> key in time, the system will not boot
and an error message will appear on the screen. You will be asked to:
* PRESS F1 TO CONTINUE OR <DEL> TO ENTER SETUP
If you choose to enter Setup the Main Menu will appear on the sceen (see
Figure 4.1 on the following page). Use the arrow keys to select among the
items and press <Enter> to enter each sub-menu.
BIOS Configuration

21S1571 D1181-001 http://www.tyan.com
STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP SUPERVISOR PASSWORD
CHIPSET FEATURES SETUP USER PASSWORD
POWER MANAGEMENT IDE HDD AUTO DETECT
PNP/PCICONFIGURATION SAVE&EXITSETUP
LOADBIOSDEFAULTS EXITWITHOUTSAVING
LOADSETUPDEFAULTS
4.2 Control Keys
Below is a chart of the control keys available in Setup.
ESC : Quit
F10 : Save & Exit Setup (Shift)F2:Change Color
:SelectItem
Time, Date, Hard Disk Type...
Figure 4.1: Main Menu
ROM ISA BIOS (2A59IT5A)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
BIOS Configuration
PgUp key Increases the numeric value or makes changes.
PgDn key Decreases the numeric value or makes changes.
F1 key General help.
F2 key Changes color; choose from a total of 16 colors.
F5 key Restore the previous CMOS value.
F6 key Load BIOS defaults.
F7 key Load Setup Defaults.
F10 key Save all CMOS changes (only for Main Menu).
<Esc> key Quit
