TYAN TEMPEST I5000PX User manual

1
Tempest i5000PX /// S5380
Version 1.0
Copyright
Copyright © TYAN Computer Corporation, 2006. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
TYAN Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN, Tempest i5000PX are trademarks of TYAN Computer Corporation.
Intel, Blackford, and combinations thereof are trademarks of Intel Corporation.
Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.
Notice
Information contained in this document is furnished by TYAN Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
TYAN assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. TYAN
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will TYAN be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

2
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations…………………………………………………………… 5
1.2 Hardware Specifications………………………………………………… 5
Chapter 2: Board Installation
2.1 Board Image……………………………………………………………… 8
2.2 Block Diagram……………………………………………………………. 9
2.3 Board Parts, Jumpers and Connectors………………………………... 10
2.4 Tips on Installing Motherboard in Chassis…………………………….. 20
2.5 Installing the Processor(s)………………………………....................... 21
2.6 Installing the Memory……………………………………………………. 24
2.7 Attaching Drive Cables………………………………………………….. 26
2.8 Installing Add-in Cards………………………………............................ 28
2.9 Connecting External Devices…………………………………………… 29
2.10 Installing the Power Supply……………………………………………... 30
2.11 Finishing up………………………………………………………………. 30
Chapter 3: BIOS Setup
3.1 About the BIOS…………………………………………………………… 31
3.2 BIOS Main Menu…………………………………………………………. 33
3.3 Advanced Menu………………………………………………………….. 41
3.4 Security Menu…………………………………………………………….. 54
3.5 Power Menu………………………………………………………………. 55
3.6 Boot Menu………………………………………………………………… 56
3.7 Exit Menu…………………………………………………………………. 57
Chapter 4: Diagnostics
4.1 Beep Codes………………………………………………………………. 59
4.2 Flash Utility……………………………………………………………….. 59
4.3 BIOS Post Code………………………………………………………….. 60
Appendix I: SMDC Information
Appendix II: How to Make a Driver Diskette
Glossary

3
Check the box contents!
1x S5380 motherboard
1x 34-Pin floppy drive cable
1 x Ultra-DMA-133/100/66/33 IDE cable
3 x Serial ATA power cable
6 x Serial ATA Cable
1 x USB2.0 cable
1 x COM Port Cable
1 x S5380 user’s manual
1 x S5380 Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
2 x CPU Back Plane
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.

4

5
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. The Tempest
i5000PX (S5380) is a flexible Intel®platform for multiple applications, based on
Intel®“Blackford” MCH and ESB2 chipsets.
Designed to support Intel®Dempsey/Woodcrest processors and max 16GB
DDR2-533/667 FB-DIMM memory, and featured with integrated Dual Gigabit
Ethernet LAN, PCI-Express, PCI/PCI-X 32/64bit PCI bus plus six serial ATA
ports, the S5380 offers exceptional performance and versatile solution for your
server platform.
Remember to visit TYAN’s Website at http://www.TYAN.com. There you can
find information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
Processors
•Dual LGA771 sockets
•Supports up to two (x2) Intel®
Dempsey/Woodcrest processors
with1066/1333 MHz FSB
•VRM 11.0
Chipset
•Intel®“Blackford” MCH+ESB2
chipset
•Supports for 1066/1333 MHz FSB
•Winbond 83627HF super I/O chip
Memory
•Eight (x8) 240-pin DDR2 FBDIMM*
sockets
•Maximum of 16GB DDR2-533/667
FB-DIMM
*FB-DIMM: Fully Buffered DIMM
Expansion Slots
Integrated Video Controller
•ATI ES1000
•PCI interface
•32MB DDR memory
Integrated LAN Controllers
•One (x1) Intel Gigal network
controller
- Direct link to ESB2
•Two (x2) Gilgal LAN ports
•Two (x2) front panel LED headers
Intelligent Platform
Management Interface (Option)
Baseboard Management Controller
(BMC) from daughter card M3291
•Tailored for IPMI 2.0 specification
•Supports remote power on/off and
reset support (IPMI-over-LAN)
•Server Management Daughter
card via built-in 2x25 header

6
•Two (x2) 64/133 PCI-X slots
- One inversed PCIe x4 slot (w/ x8
signals from ESB2) for risers, in-
lined with the 1st PCI-X slot
•Two (x2) PCI Express x16 slot
(w/ x8 signals from Blackford
MCH)
•One (x1) PCI Express x8 slot (w/
x4 signals from ESB2)
•Five expansion slots in total
Integrated I/O
•One (x1) 9-pin 16550 UART serial
port
•One (x1) 15-pin VGA port
•One (x1) IDE port
•One (x1) Floppy port
•Total Eight (8) USB 2.0 ports (6 in
rear and 2 onboard with vertical
USB Type A connectors
- One (x1) 2-USB-port connector
- Two (x2) 2-USB-port + 1 RJ45
10/100/1000 LAN port
•PS/2 mouse & keyboard
connectors
•Standard/integrated SATA
connectors
System Management
•Analog Devices ADT7468
Hardware Monitor ASIC
•CPU thermal & voltage monitor
support
•2-pin chassis intrusion header
•Multiple 4-pin and 3-pin fan
monitoring headers
Integrated SATA 2.0 Controller
•Six SATA 2.0 ports from Intel
ESB2
•Integrated RAID 0/1/5 support
BIOS
•PhoenixBIOS on 8Mbit Flash
ROM
•Support APM 1.2, ACPI 1.0b
•Serial Console Redirect
•PXE via Ethernet, USB device
boot
•PnP, DMI 2.0, WfM 2.0 power
management
•User-configurable hardware
monitoring
•Auto-configuration of hard disk
types
•Multiple boot options
•48-bit LBA support
Form Factor
•SSI/Entended ATX (12” x 13”)
•EPS 12V/SSI (24+8+4 pin) power
connectors
•Stacked PS/2 keyboard and
mouse connectors
•Stacked USB 2.0 connectors (x2)
•Serial (x1) and VGA (x1)
connectors
•Two (x2) side-by-side stacked RJ-
45 LAN + Two (x2) USB ports
connectors with LEDs
Regulatory
•FCC Class B (DoC)
•European Community CE (DoC)

7
Chapter 2: Board Installation
You are now ready to install your motherboard. The mounting hole pattern of
the Tempest i5000PX S5380 matches the SSI CEB v1.01 specification. Before
continuing with installation, confirm that your chassis supports an SSI CEB
v1.01 motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the
antistatic bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED

8
2.1- Board Image
This picture is representative of the latest board revision available at
the time of publishing. The board you receive may or may not look
exactly like the above picture.

9

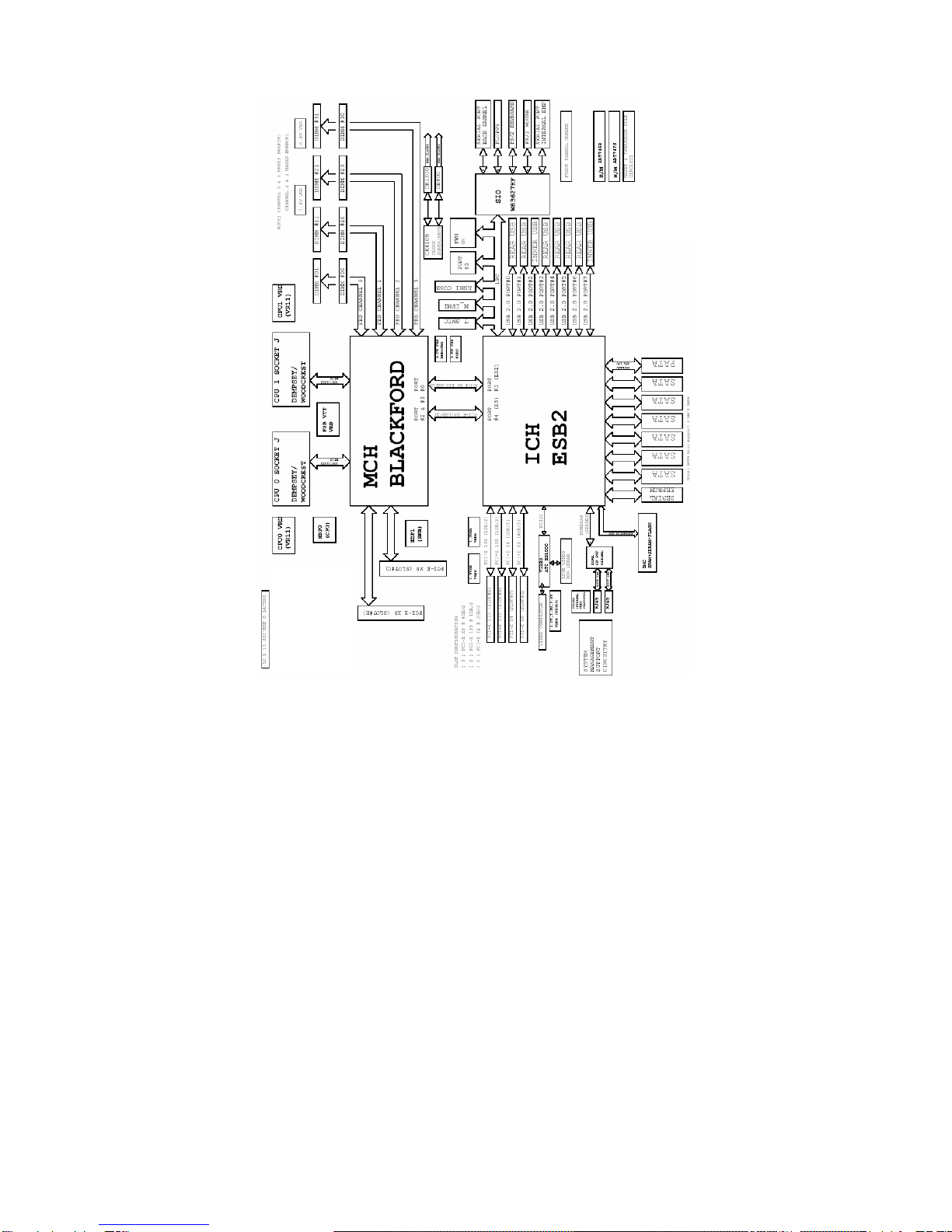

2.2 - Block Diagram
Tempest i5000PX S5380 Block Diagram

10
2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.

11
Jumper Legend
 OPEN - Jumper OFF, without jumper cover
 CLOSED – Jumper ON, with jumper cover
Jumper/Connector Function
J8 Onboard VGA Jumper
- Open: Enable VGA (Default)
- Closed: Disable VGA
J25 COM2 Header
J27 Fan Connector (for barebone use only)
J28 IPMB Connector
J7/J44/J68 Chassis Fan Connectors
J7: FAN1, J44: FAN3, J68: FAN2
J39/J40 CPU Fan Connectors
J39: CPUFAN1 J40:CPUFAN0
J70 Chassis LCD Module Interface Header
J76 IDE Connector
J74 The 2nd Front Panel Header
J77 The 1st Front Panel Header
J79 SMDC Connector
JP47 Clear CMOS Jumper
- Pin 1-2 closed: Normal (Default)
- Pin 2-3 closed: Clear
USB1/USB2 Front USB Connectors

12
J28
J8
USB1
USB2

13

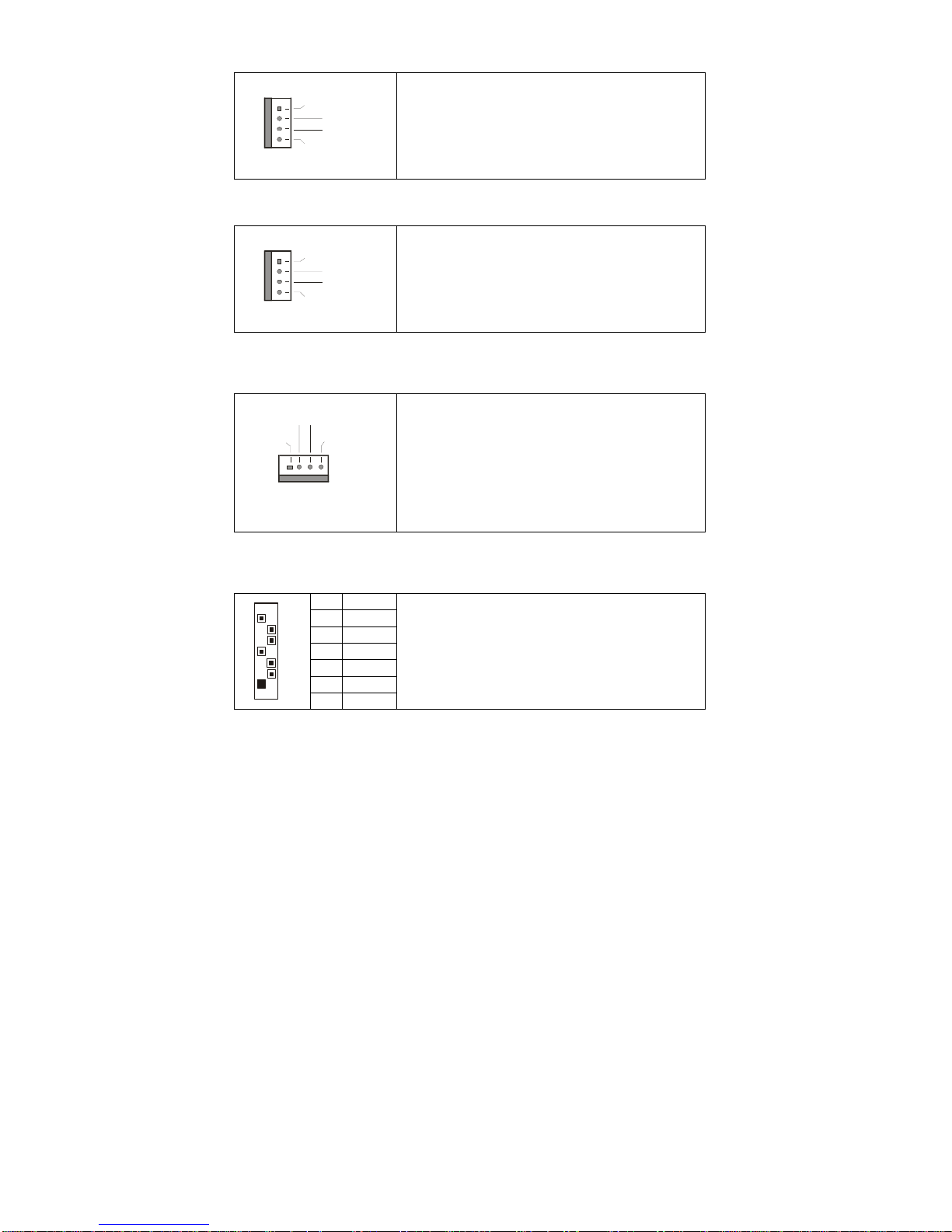

USB1/USB2: Front Panel USB2.0 Connector
1
Pin 1 USB PWR
Pin 2 USB_N_FB
Pin 3 USB_P_FB
Pin 4 GND
Use these headers to connect to the USB
devices.
J8: Onboard VGA Jumper
Enable the onboard ATI VGA function.
Disable the onboard ATI VGA function
J28: IPMB Connector
1
Pin 1 IPMB
DATA Pin 2 GND
Pin 3 IPMB
CLK Pin 4 NC

14

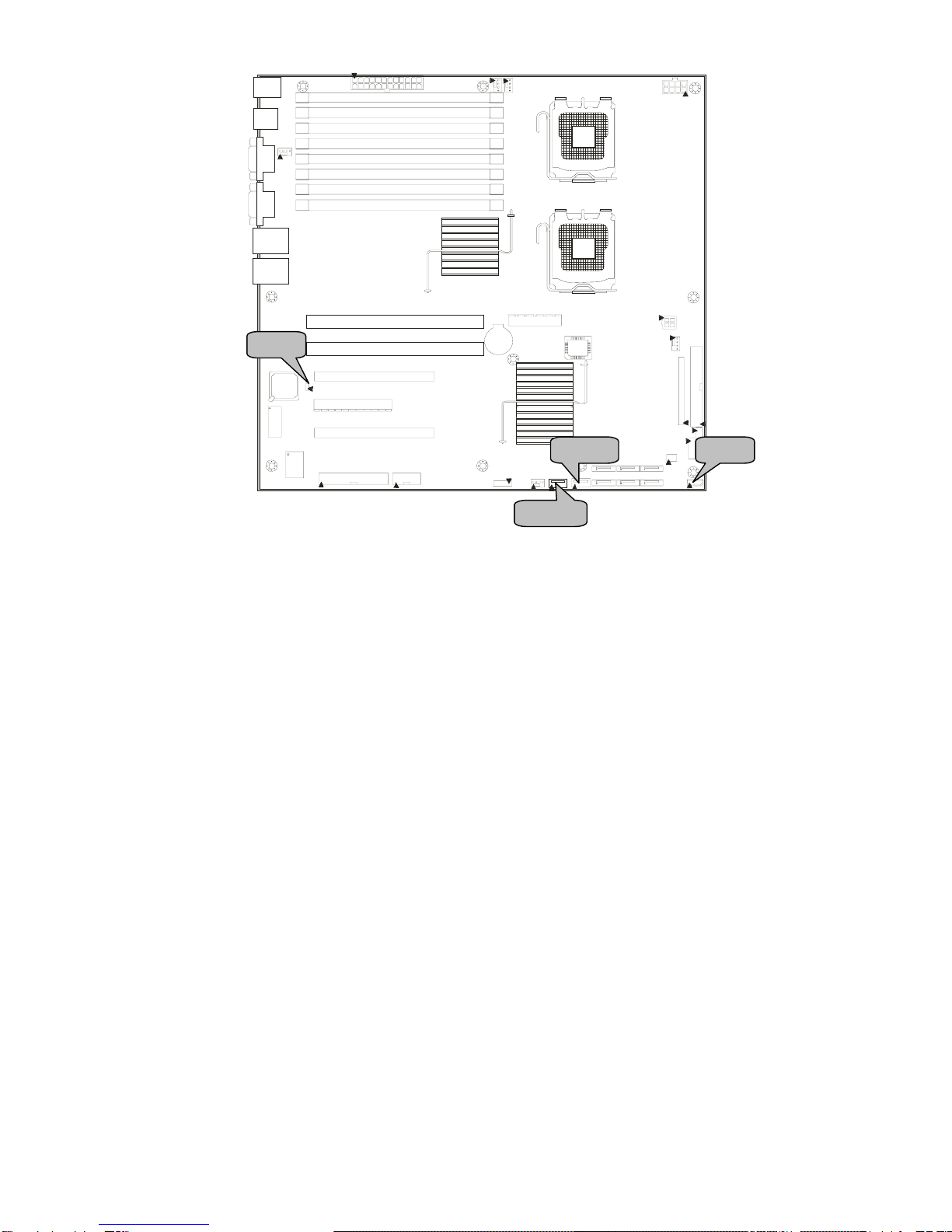

J47
J25
J74

15
JP47: Clear CMOS Jumper
13
Normal
(Default)
31
Clear
Use this jumper when you forgot your system/setup
password or need to clear system BIOS setting.
How to clear the CMOS data
-Power off system and disconnect power
supply from AC source
-Use jumper cap to close Pin_2 and 3 for
several seconds to Clear CMOS
-Replace jumper cap to close Pin_1 and 2
Reconnect power supply to AC source
Power on system
J25: COM2 Header
1
9
2 10
Use these pin definitions to connect a port to COM2.
*TYAN does not provide cable for this header. It is
designed for OEM use only.
Signal Pin Pin Signal
DCD 1 2 DSR
RXD 3 4 RTS
TXD 5 6 CTS
DTR 7 8 RI
GND 9 10 Key
J74: The 2nd Front Panel Header
11 12
12
Signal Pin Pin Signal
LAN1 LED+ 1 2 LAN1 LED-
LAN2 LED+ 3 4 LAN2 LED-
NC 5 6 NC
ID LED+ 7 8 ID LED-
ID SW+ 9 10 ID SW-
Reserved 11 12 Key
The 2nd Front Panel Header is used to connect
some control or signal wires from motherboard to
chassis, such as LAN LED or ID LED.

16

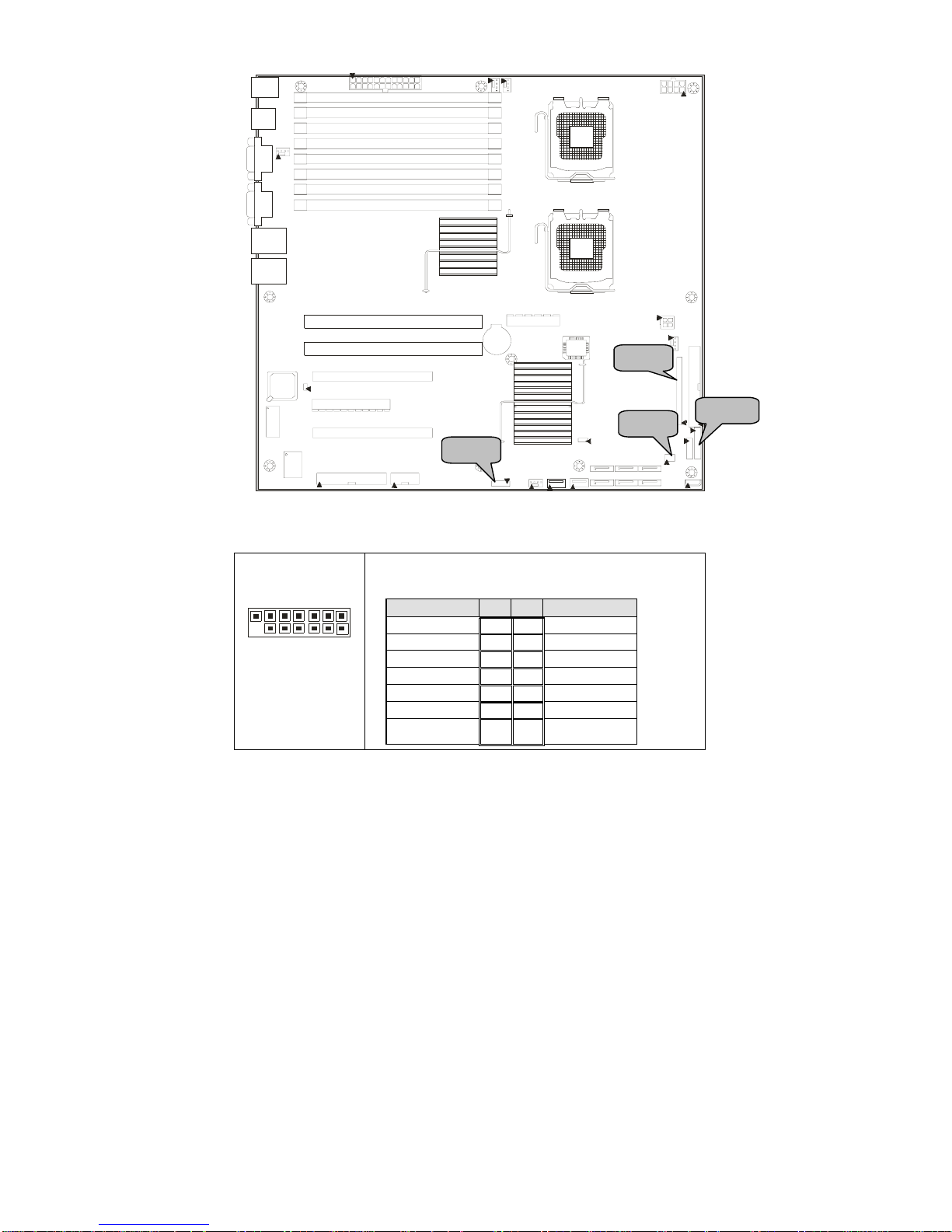

J27: FAN Connector (for barebone use only)
2
1
3
1
14
Use these pin definitions to connect to the barebone
fans.
Signal Pin Pin Signal
CPU0-TACH 1 2 SYS4-TACH
CPU1-TACH 3 4 SYS5-TACH
FAN3-TACH 5 6 SYS6-TACH
FAN1-TACH 7 8 SYS7-TACH
FAN2-TACH 9 10 SYS8-TACH
GND 11 12 Key
GND 13 14 HMO-
FANPWM1
J70 J77
J79
J27

17
J70: LCM Module Header
1
2
5
6
Use this header to connect the LCM module with
system monitoring function. This header is reserved for
barebone use.
Signal Pin Pin Signal
+5V 1 2 SIN
Key 3 4 GND
+5Vsb 5 6 SOUT
J79: SMDC Connector
The SMDC connector allows you to connect with Tyan Server Management
Daughter Card (SMDC). The S5380 supports Tyan SMDC M3291. See
Appendix I for more information on SMDC.
J77: The 1st Front Panel Header
The 1st Front Panel Header is used to connect some control or signal wires from
motherboard to chassis, such as HDD LED, power LED, power button, and
reset button.
HDDLED+ 1 2 PWR LED+
HDDLED- 3  4 PWR LED-
GND 5 6 PWR SW+
Reset SW+ 7 8 GND
Ground 9 10 W_LED+
NMI_BTN 11  12 W_LED-
5VSB 13  14 key
SMBus Data 15  16 GND
SMBus Clock 17 18 Chassis Intr# (Active Low)

18
J44
J40
J7
J39
J68
SATA 0/1/2/3/4/5

19
J39/J40: CPU0/CPU1 Fan Connectors
12V
PWM
GND
Ta c ho met e r
Use this header to connect the processor cooling
fan to your motherboard to keep the system at
optimum performance levels.
J39: CPUFAN1; J40: CPUFAN0
J68: Chassis Fan Connector
12V
PWM
GND
Ta c ho met e r
Use this header to connect the chassis cooling
fan to your motherboard to keep the system at
optimum performance levels.
J68: FAN2
J7/J44: Chassis Fan Connectors
+12V PWM
GND
Tachometer
Use this header to connect the chassis cooling
fan to your motherboard to keep the system at
optimum performance levels.
J7: FAN1; J44: FAN3
SATA0/1/2/3/4/5: Serial ATA RAID Connector
7 GND
6 RXP
5 RXN
4 GND
3 TXN
2 TXP
7
1
1 GND
Connects to the Serial ATA ready drives via the
Serial ATA cable
You may use these six Serial ATA ports to
have the support of RAID 0 or 1 through the
on board Intel ESB2 chipset.

20
2.4 - Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chassis has the
necessary motherboard support studs installed. These studs are usually
metal and are gold in color. Usually, the chassis manufacturer will pre-install
the support studs. If you are unsure of stud placement, simply lay the
motherboard inside the chassis and align the screw holes of the
motherboard to the studs inside the case. If there are any studs missing,
you will know right away since the motherboard will not be able to be
securely installed.
Some chassis’ include plastic studs instead of metal. Although the plastic
studs are usable, TYAN recommends using metal studs with screws that will
fasten the motherboard more securely in place.
Below is a chart detailing what the most common motherboard studs look
like and how they should be installed.
