TYAN TOMCAT I7230B User manual

1
http://www.tyan.com
Tomcat i7230B /// S5161
Version 1.0
Copyright
Copyright © TYAN Computer Corporation, 2005. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
TYAN Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN, Tomcat i7230B are trademarks of TYAN Computer Corporation.
Intel, Prescott, and combinations thereof are trademarks of Intel Corporation.
Phoenix, Phoenix-AwardBIOS are trademarks of Phoenix Technologies.
Microsoft, Windows are trademarks of Microsoft Corporation.
SuSE,is a trademark of SuSE AG.
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Notice
Information contained in this document is furnished by TYAN Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
TYAN assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. TYAN
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will TYAN be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

2
http://www.tyan.com
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations…………………………………………………………… 5
1.2 Hardware Specifications………………………………………………… 5
1.3 Software Specifications…………………………………………............. 7
Chapter 2: Board Installation
2.1 Board Image……………………………………………………………… 10
2.2 Block Diagram……………………………………………………………. 11
2.3 Board Parts, Jumpers and Connectors………………………………... 12
2.4 Tips on Installing Motherboard in Chassis…………………………….. 20
2.5 Installing the Processor & Cooling Fan………………………………... 21
2.6 Installing the Memory……………………………………………………. 25
2.7 Attaching Drive Cables………………………………………………….. 27
2.8 Installing Add-in Cards………………………………............................ 29
2.9 Installing Optional SO-DIMM Modules………………………………… 30
2.10 Connecting External Devices…………………………………………… 31
2.11 Installing the Power Supply……………………………………………... 32
2.12 Finishing Up………………………………………………………………. 33
Chapter 3: BIOS Setup
3.1 About the BIOS…………………………………………………………… 35
3.2 BIOS Main Menu…………………………………………………………. 36
3.3 Advanced Menu………………………………………………………….. 44
3.4 Security Menu…………………………………………………………….. 62
3.5 Power Menu………………………………………………………………. 63
3.6 Boot Menu………………………………………………………………… 65
3.7 Exit Menu…………………………………………………………………. 66
Chapter 4: Diagnostics
4.1 Beep Codes………………………………………………………………. 67
4.2 Flash Utility……………………………………………………………….. 67
4.3 BIOS Post Code………………………………………………………….. 68
Appendix I: SMDC Information
Appendix II: How to Make a Driver Diskette
Glossary

3
http://www.tyan.com
Check the box contents!
1x S5161 motherboard
1x 34-Pin floppy drive cable
1 x Ultra-DMA-133/100/66/33 IDE cable
2 x Serial ATA power cable
4 x Serial ATA cable
1 x USB2.0 cable
1 x S5161 user’s manual
1 x S5161 Quick Reference guide
1 x TYAN driver CD
1 x I/O shield
1 x Serial & Parallel Port cable set
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.
NOTE: The box contents do not include any driver diskette. Please use the
included driver CD to make a driver diskette. Refer to Appendix II for the
information on how to make a driver diskette.

4
http://www.tyan.com
NOTE

5
http://www.tyan.com
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. The Tomcat
i7230B (S5161) is a flexible Intel®platform for multiple applications, based on
Intel®E7230 (Mukilteo) MCH and ICH7-R chipsets.
Designed to support the family of Intel®Socket 775 processors and 8GB DDR2
667/533/400 memory. The S5161 has integrated Dual Gigabit Ethernet LAN,
built-in 16MB XGI XG20TM video and four serial ATA ports. This motherboard
represents the best choice for a server platform product.
Remember to visit TYAN’s Website at http://www.TYAN.com. There you can
find information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
Processor
•Single LGA775 socket
•Support Intel®Pentium®4,
Pentium®D and Celeron D CPU’s
•1066/800/533 MHz FSB
Chipset
•Intel®E7230 (Mukilteo) MCH
•ICH7-R South Bridge
•PXH-V 64-bit PCI Hub
•SMSC SCH5017 LPC Super I/O
chip
Memory
•Four 240-pin DDR2 DIMM sockets
•Supports ECC DIMMs
•Maximum of 8GB unbuffered
(Non-Reg) DDR2-667/533/400
Expansion Slots
•One (1) PCI-X 64/133 slot in-lined
with one (1) PCIe x4 slot (routed
to PCIe x8 bus from MCH)
•One (1) Tyan “TARO” SO-DIMM
socket, support
M7901/M7902/M9000
Integrated Video Controller
•XGI Volari Z7 (XG20)
•16MB frame buffer memory
Integrated ATA-100 (ICH7-R)
•One ATA-100 channel for up to
two ATA-100 devices
Integrated SATA Controllers
(ICH7-R)
•Supports four SATA-II ports
running at 3.0Gb/s
•RAID 0/1/5/10 capable (Windows
Driver support only)
Integrated LAN Controllers
•Two (2) Intel®i82573V GbE LAN
controllers
-operating at PCIe x1 interface
•One (1) Intel®i82551QM fast
Ethernet LAN controller
-operating at PCI 32/33 interface

6
http://www.tyan.com
System Management
•SMSC SCH5017 and EMC6D103
with hardware monitoring
•One (1) 3+1-pin CPU fan headers
with tachometer monitoring and
smart FAN control (by SCH5017)
•Five (5) 3+1-pin system fan
headers with tachometer
monitoring, three (3) of them
support smart FAN control
•Temperature and voltage
monitoring
•Watchdog timer support
•Port 80 code display lED
Integrated I/O
•One floppy connector
•One IDE connector
•Four SATA ports
•Six USB 2.0 ports (2 at rear, 4 via
cable)
•Two COM port (1 at rear, 1 via
cable)
•Tyan 2x9 front-panel pin header
•Tyan 2x6 front-panel pin header
for LAN LED and ID LED/Switch
•2x25 connector for optional Tyan
IPMI SMDC
Back Panel I/O Ports
•Stacked PS/2 mouse & keyboard
ports
•Stacked 2 USB ports & 1 RJ45
10/100 ports
•One 9-pin COM port
•One 15-pin VGA port
•Two side-by-side RJ-45
10/100/1000 ports
Optional Modules
•M3291, IPMI 2.0 Remote System
Management card
-Renesas H8S2167 BMC
controller
- BT, KCS, logging support
- IPMI-over-LAN
- Remote power on/off and reset
•M7901/M7902, Ultra320 SCSI
“TARO” card
-Adaptec AIC-7901/7902
single/dual-channel Ultra320
SCSI controller
- Adaptec HostRAID 0,1,10
supported
•M9000 SAS/SATA II “TARO” card
-Adaptec AIC-9405/9410 SAS
controller
- Supports up to 4-port (M9000-5)
and 8-port (M9000-10) SAS &
SATA running at 3.0Gb/s
- Adaptec HostRAID 0,1 & 10
supported
BIOS
•Phoenix BIOS on 8Mbit Flash
ROM
•Serial Console Redirect
•USB boot supported
•Supports APM1.2 and ACPI
•PnP, DMI2.0, WfM2.0
•S0/S1/S4/S5 states supported
Power Supply
•EPS12V
•24-pin + 8-pin power connectors
Form Factor
•ATX footprint
•12” x 9.6” (305mm x244mm)
Regulatory
•FCC Class B (DoC)
•European Community CE (DoC)
•BSMI

7
http://www.tyan.com
1.3 - Software Specifications
OS (Operating System) Support
Microsoft Windows 2000 SP4
Microsoft Windows XP SP2 (32-bit)
Microsoft Windows XP SP1 (64-bit)
Microsoft Windows Server 2003 SP1(32-bit & 64-bit)
SUSE LINUX Enterprise Server 9.0 SP2 (32-bit & 64-bit)
SUSE LINUX Professional 9.3 (32-bit & 64-bit)
RHEL3 Update 5 (32-bit & 64-bit)
RHEL4 Update 1 (32-bit & 64-bit)
TYAN reserves the right to add support or discontinue support for any OS with
or without notice.

8
http://www.tyan.com
NOTE

9
http://www.tyan.com
Chapter 2: Board Installation
You are now ready to install your motherboard. The mounting hole pattern of
the Tomcat i7230B S5161 matches the ATX specification. Before continuing
with installation, confirm that your chassis supports an ATX motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the
antistatic bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED

10
http://www.tyan.com
2.1- Board Image
This picture is representative of the latest board revision available at
the time of publishing. The board you receive may or may not look
exactly like the above picture.

11
http://www.tyan.com
2.2 - Block Diagram
Tomcat i7230B S5161

12
http://www.tyan.com
2.3 - Board Parts, Jumpers and Connectors
DDRII 4
DDRII 3
DDRII 2
DDRII 1
PCIX-P1PCIX-P1 PCIX-E1PCIX-E1
J11
CPU
P2W
PW1
J9
1
LAN2
LAN1
VGA
COM1
LAN3
USBx2
K/B
M/S
JP3
1
1
FDD
COM2 LPT SMDC
IDE
1
JP3
1
JP1
JP2
1
JP6
1
BIOS
J7P
JP9
1
1
JP8
1
J12
1
J17
1
J16P
1
J22
J21 J24
J25
J20
1
J19
1
JP15
1
J20
J13J13
J15
J14 J18
J11PJ13P
J12P
J10P
1
11
1
INTEL
E7230
MCH
J7
JP14
J6
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.

13
http://www.tyan.com
Jumper Legend
 OPEN - Jumper OFF, without jumper cover
 CLOSED – Jumper ON, with jumper cover
Jumper/Connector Function
J6 COM2 Header
J7/J9 Chassis Fan Connector
J11 SO-DIMM Socket
J13/J14/J18 Front Fan Connector
J15 CPU_Fan Connector
J21/J22/J24/J25 Serial ATA RAID Connector
JP1/JP2 SMDC/ASF2.0 Select Header
JP3 LAN3 Enable/Disable Jumper
JP6 PCI-X Speed Select Header
JP7/JP9 Front Panel USB2.0 Connector
JP14 SMDC Connector
JP16 Clear CMOS Jumper
J12/J17/J19/J20 Reserved for OEM only
JP8 Reserved for OEM only
JP10/JP11/JP12/JP13 Reserved for OEM only

14

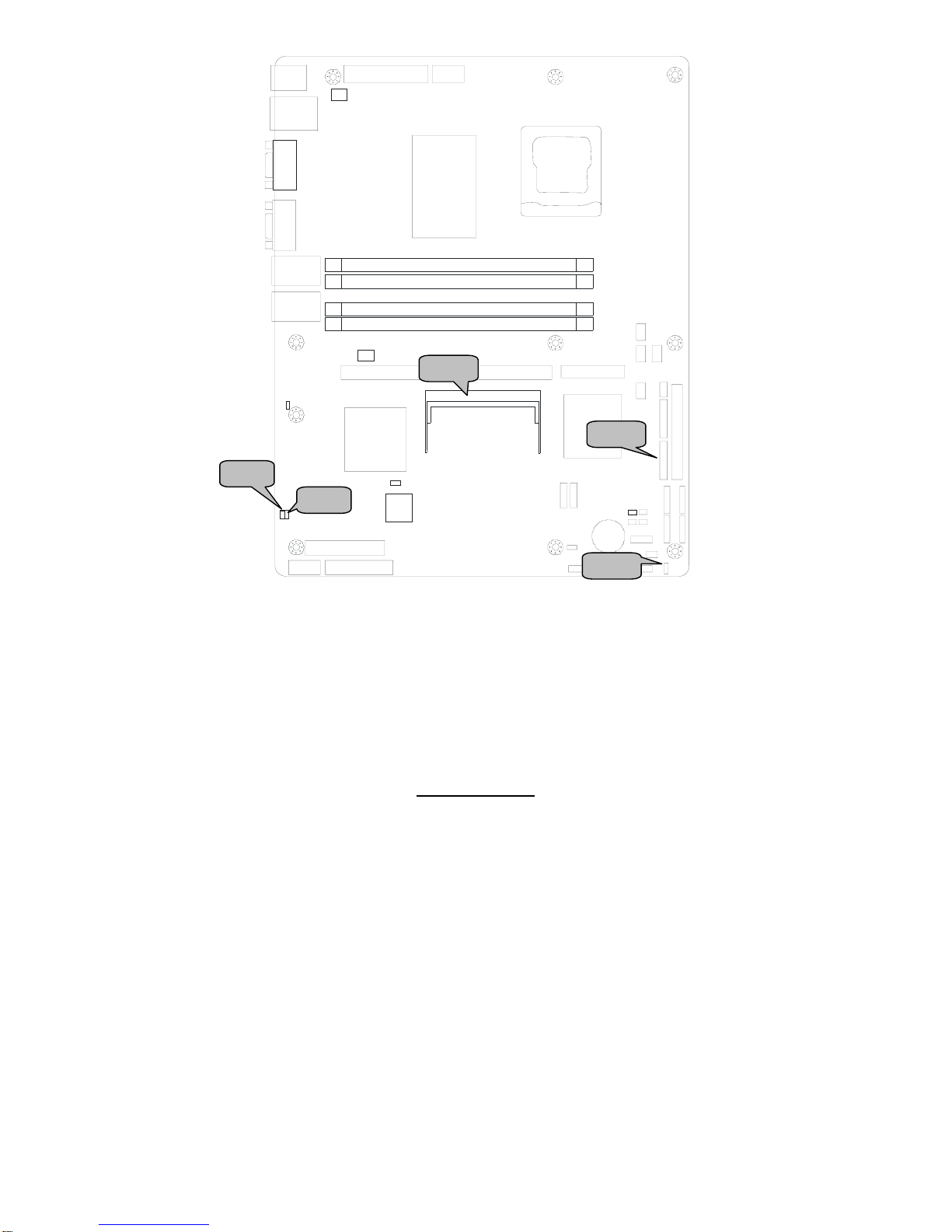

http://www.tyan.com
JP2
JP16
JP1
JP15
J11

15
http://www.tyan.com
JP15: Front Panel Header
The Front Panel Header is used to connect some control or signal wires from
motherboard to chassis, such as HDD LED, power LED, power button, and
reset button.
JP16: Clear CMOS Jumper
3
1
Normal
(Default)
3
1
Clear
Use this jumper when you forgot your system/setup
password or need to clear system BIOS setting.
How to clear the CMOS data
-Power off system and disconnect the power
supply from the AC source
-Use jumper cap to close Pin 2 and 3 for several
seconds to Clear CMOS
-Replace jumper cap to close Pin 1 and 2
Reconnect the power supply to the AC source
-Power on system
J11: Tyan SO-DIMM Connector
Use this connector to connect the Tyan TARO card.
JP1/JP2: SMDC/ASF2.0 Select Header
Pin 1-2 Closed: Enable ASF2.0 support (Default)
13
13
Pin 2-3 Closed: Enable SMDC card support
HDDLED+ 1 2 PWR LED+
HDDLED- 3  4 PWR LED-
Reset SW- 5 6 PWR SW+
Reset SW+ 7 8 PWR SW-
External INT+ 9 10 Warning LED+
External INT- 11  12 Warning LED-
+3VSB 13  14 N/A
SMBUS Data 15  16 Chassis Intr# (Active Low)
SMBUS Clock 17  18 Chassis Intr# (Active Low)

16
http://www.tyan.com
JP8: PCI 3.3V/5V Select Header
Pin 1-2 Closed: select 5V (Default)
13
13
Pin 2-3 Closed: select 3.3V
JP3
JP9JP7
JP14
J6
JP8

17
http://www.tyan.com
JP7/JP9: Front Panel USB2.0 Connector
1
2
9
10
Signal Pin Pin Signal
USB PWR 1 2 USB PWR
USB_A- 3 4 USB_B-
USB_A+ 5 6 USB_B+
GND 7 8 GND
Key 9 10 NC
Use these headers to connect to the USB devices
via the enclosed USB cable.
JP3: LAN3 Enable/Disable Jumper
Pin 1-2 Closed: Enable LAN3 (Default)
1
3
1
3
Pin 2-3 Closed: Disable LAN3
J6: COM2 Header
10 2
9
1
Use these pin definitions to connect a port to COM2.
*TYAN does not provide cable for this header. It is
designed for OEM use only.
Signal Pin Pin Signal
DCD 1 2 DSR
RXD 3 4 RTS
TXD 5 6 CTS
DTR 7 8 RI
GND 9 10 Key
JP14: SMDC Connector
The SMDC connector allows you to connect with the Tyan Server
Management Daughter Card (SMDC). The S5161 supports Tyan SMDC
M3291. Refer to Appendix I for more information on SMDC.

18
http://www.tyan.com
JP6: PCI-X Speed Select Header
31
Pin 1-2 Closed: 133MHz (Default)
31
Pin 2-3 Closed: 100MHz max
J7
J22
J25
J21
J18
J14
J15
J13
J24
JP6
J9

19
http://www.tyan.com
J13/J14/J18: Front Fan Connector
Speed Control
SpeedControl
GND
Tachometer
Use these headers to connect the chassis cooling fans
to your motherboard to keep the system stable and
reliable.
J13: FAN3, J14: FAN1, J18: FAN2
These connectors support the tachometer monitoring
and auto fan speed control.
J7/J9: Chassis Fan Connector
+12V 5V
GND
Tachometer
Use this header to connect the chassis cooling
fan to your motherboard to keep the system at
optimum performance levels.
J7: FAN 5, J9: FAN4
J15: CPU_FAN Connector
Speed Control
SpeedControl
GND
Tachometer
Use this header to connect the processor cooling fan
to your motherboard to keep the system stable and
reliable.
This connector supports the tachometer monitoring
and auto fan speed control.
J21/J22/J24/J25: Serial ATA RAID Connector
7 GND
6 RXP
5 RXN
4 GND
3 TXN
2 TXP
7
1
1 GND
Connects to the Serial ATA ready drives via the
Serial ATA cable
J21: SATA1 J22: SATA3
J24: SATA2 J25: SATA4
You can use any of the four Serial ATA ports for
RAID 0, 1, 5, and 10 from the onboard ICH7R chipset

20
http://www.tyan.com
2.4 - Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chassis has the
necessary motherboard support studs installed. These studs are usually
metal and are gold in color. Usually, the chassis manufacturer will pre-install
the support studs. If you are unsure of stud placement, simply lay the
motherboard inside the chassis and align the screw holes of the
motherboard to the studs inside the case. If there are any studs missing,
you will know right away since the motherboard will not be able to be
securely installed.
Some chassis’ include plastic studs instead of metal. Although the plastic
studs are usable, TYAN recommends using metal studs with screws that will
fasten the motherboard more securely in place.
Below is a chart detailing what the most common motherboard studs look
like and how they should be installed.
