TYAN S5510 User manual

S5510
Version 1.2
Copyright
Copyright © MiTAC Computer Corporation, 2012. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN®is a trademark of MiTAC Computer Corporation
Intel®is a trademark of Intel®Corporation.
AMI®, AMIBIOS® and combinations thereof are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Aspeed®is a trademark of Aspeed Technology Inc.
Notice
Information contained in this document is furnished by MiTAC Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will MiTAC be held liable for any direct
or indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.TYAN.com
2
About this guide
This user guide contains the information you need when installing and configuring
the motherboard.
How this guide is organized
This guide contains the following parts:
Chapter1: Instruction
This chapter describes the features of the motherboard and the new technology it
supports.
Chapter2: Board Installation
This chapter lists the hardware setup procedures that you need to abide by when
installing system components. It includes description of the jumpers and
connectors on the motherboard.
Chapter3: BIOS Setup
This chapter tells how to change system settings through the BIOS setup menu.
Detailed descriptions of the BIOS parameters are also provided.
Chapter4: Diagnostics
This chapter introduces some BIOS codes and technical terms to provide better
service for the customers.
Appendix: Fan and Temp Sensors
This section aims to help readers identify the locations of some specific Fan and
Temp Sensors on the motherboard. A table of BIOS Temp sensor name
explanation is also included for readers’ reference.

http://www.TYAN.com
3
Contents
Before you begin… ...........................................................................4
1.1 - Congratulations ..........................................................................................5
1.2 - Hardware Specifications.............................................................................5
1.3 - Software Specifications ............................................................................11
1.4 - AST2150 User Guide ...............................................................................11
Chapter 2: Board Installation.........................................................12

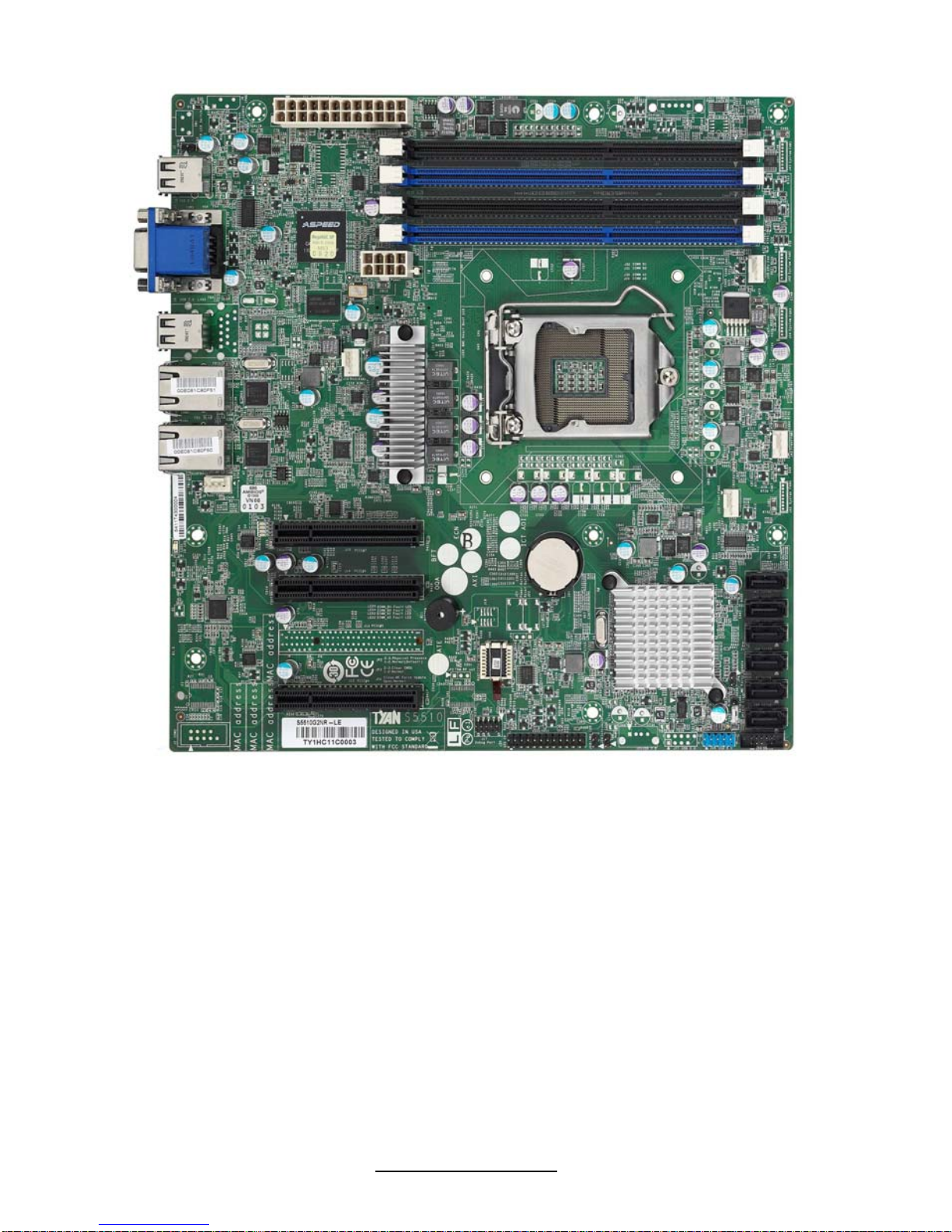

2.1 - Board Image.............................................................................................13
2.2 - Block Diagram ..........................................................................................15
2.3 - Board Parts, Jumpers and Connectors.....................................................19
2.4 - Installing the Processor ............................................................................30
2.5 - Installing the Heatsink ..............................................................................33
2.6 - Thermal Interface Material........................................................................34
2.7 - Tips on Installing Motherboard in Chassis................................................35
2.8 - Installing the Memory ...............................................................................37
2.9 - Attaching Drive Cables .............................................................................40
2.10 - Installing Add-In Cards ...........................................................................41
2.11 - Connecting External Devices .................................................................42
2.12- Installing the Power Supply .....................................................................44
2.13 - Finishing Up ...........................................................................................45
Chapter 3: BIOS Setup....................................................................46
3.1 - About the BIOS.........................................................................................46
3.2 - Setup Basics ............................................................................................46
3.3 - Getting Help .............................................................................................47
3.4 - In Case of Problems .................................................................................47
3.5 - BIOS Main Menu ......................................................................................48
3.6 - BIOS Advanced Menu..............................................................................50
3.7 - Chipset Menu ...........................................................................................75
3.8 - Boot Configuration....................................................................................83
3.9 - Security Menu...........................................................................................85
3.10 - Server Mgmt Menu .................................................................................86
3.10.1 - System Event Log Sub-Menu..............................................................87
3.10.2 - BMC Network Configuration Sub-Menu...............................................88
3.11 - Event Logs .............................................................................................89
3.12 - Save & Exit Menu...................................................................................90
Chapter 4: Diagnostics...................................................................92
4.1 - Beep Codes..............................................................................................92
4.2 - Flash Utility...............................................................................................92
Glossary.........................................................................................101
Technical Support.........................................................................109

http://www.TYAN.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
Item Name P/N Number Description
1x S5510
Motherboard / N/A
6x Serial ATA
Cable 422736300010
TF-CABLE
ASSY;SBU,SATA-
500MM,S2865
1x USB 2.0
Cable 422736300007
TF-CABLE
ASSY;SBU,USB CONN,2
PORT,S2865
1x I/O shield 341T44000001
TF-I/O
SHIELDING;SBU,SUS,500
12-6AP,S5512
1x S5510 User’s
manual / N/A
1x S5510 Quick
reference guide / N/A
1x TYAN®Driver
CD /
TFSOFTWARE;SBU,TYAN
Driver CD FOR INTEL C200
Series
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.

http://www.TYAN.com
5
Chapter 1: Instruction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. Based on the
Intel® Cougar Point PCH chipset, The TYAN®S5510 series motherboard is
designed to support single Intel®Xeon E3-1200 and i3-2100 (32nm / 22nm)
series, socket H2 LGA1155 processor.
The S5510 has four 240-pin DIMM slots that can support up to 32GB of
unbuffered ECC DDRIII. The memory interface supports speed up to 1333/1066
MHz. There are also 2 memory channels, DIMM can be installed in either a single
or a dual channel (interleaved) configuration, which requires modules of the same
size and speed to be installed in pairs.
The S5510 includes four PCI-E Gen2 x8 slots which capable of offering a
lightning-fast PCI-E bus implementation. Please refer to Chapter 2.3 for Board
sketch. The TYAN® S5510 not only empowers you in today’s demanding IT
environment but also offers a scalable 32 and 64-bit computing environment of a
smooth path for future application upgradeability.
The TYAN S5510 series is designed around several different configurations
which are detailed in the following 1.2 Hardware Specification section:
1.2 - Hardware Specifications
TYAN S5510 (S5510GM3NR)
Supported CPU
Series Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series processors
Socket Type / Q'ty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C204
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC DDR3 1600/1333/1066/800
Capacity Up to 32GB
Memory channel 2 Channels
Memory
Memory voltage 1.5V
PCI-E (1) PCI-E Gen.2 x4 slot / (2) PCI-E Gen.3 x8 slot (w/
x8 link) / (1) PCI-E Gen.2/Gen.3 x4 slot
Expansion
Slots Note: use Intel Ivy Bridge CPU to support PCI-E Gen.3
Port Q'ty (3) GbE ports
LAN Controller Intel 82574L

http://www.TYAN.com
6
Connector (6) SATA
Controller Intel C204
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Graphic Chipset Aspeed AST2150
Chipset Infineon SLB9635
TPM Version TPM v1.2
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (2) ports (1 at rear, 1 via cable)
RJ-45 (3) GbE ports
Power SSI/ATX 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (6) SATA-II connectors
Chipset Nuvoton 5577D
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Onboard Chipset Onboard Aspeed AST2150
AST2150 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management AST2150 iKVM
Feature 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor Micro ATX
Physical
Dimension Board Dimension 9.6"x9.6" (243.8x243.8mm)
Operating
System OS supported list Coming soon
FCC (DoC) Class A
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating 90%, non-condensing at 35° C

http://www.TYAN.com
7
Humidity
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S5510 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S5510-LE (S5510G2NR-LE)
Supported CPU
Series Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series processors
Socket Type / Q'ty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C202
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC DDR3 1600/1333/1066/800
Capacity Up to 32GB
Memory channel 2 Channels
Memory
Memory voltage 1.5V
PCI-E (2) PCI-E Gen.3 x8 slot (w/ x8 link) / (1) PCI-E Gen.3
x8 slot (w/ x4 link)
Expansion
Slots Note: use Intel Ivy Bridge CPU to support PCI-E Gen.3
Port Q'ty (2)
LAN Controller Intel 82574L
Connector (6) SATA
Controller Intel C202
Speed 3.0 Gb/s
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1600x1200@60Hz
Graphic Chipset Aspeed AST2150-GP-V
USB (6) USB2.0 ports (4 at rear, 2 via cable)
COM (1) port (rear)
RJ-45 (2) GbE ports
Power SSI/ATX 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (6) SATA-II connectors
Chipset Nuvoton 5577D
System
Monitoring

http://www.TYAN.com
8
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
Others Chassis intrusion detection / Watchdog timer support
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor Micro ATX
Physical
Dimension Board Dimension 9.6"x9.6" (243.8x243.8mm)
Operating
System OS supported list Coming soon
FCC (DoC) Class A
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S5510 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S5510 (S5510G2NR-HE [BTO])
Supported CPU
Series Intel Xeon Processor E3-1200 series, Intel Core i3- 2100 series
Socket Type / Qty LGA 1155/ (1)
Processor Thermal Design
Power (TDP)
wattage Max up to 95W
PCH Intel C206
Chipset Super I/O Nuvoton 5577D
Supported DIMM
Qty (4) DIMM slots
DIMM Type / Speed Unbuffered ECC DDR3 / 1333/1066
Capacity Up to 32GB
Memory
Memory channel 2 Channels

http://www.TYAN.com
9
Memory voltage 1.5V
Expansion
Slots PCI-E (2) PCI-E Gen.2 x8 slots / (2) PCI-E Gen.2 x8 slots (x4 link)
Port Qty (2)
LAN Controller Intel 82574L
Connector (6) SATA
Controller Intel C206
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset Aspeed AST2150 (VGA)
Graphic
Video RAM 8MB
Chipset Infineon SLB9635 (not included in standard version,
can add for customized purpose)
TPM Version TPM v1.2
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (1) port (1 at rear)
RJ-45 (2) GbE ports
Power SSI 24-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (6) SATA connectors
Chipset Nuvoton 5577D
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & system
environment
LED Fan fail LED indicator / Over temperature warning
indicator
System
Monitoring
Others Chassis intrusion detection / Watchdog timer support
Brand / ROM size 8MB / AMI
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor Micro ATX
Physical
Dimension Board Dimension 9.6"x9.6" (243.8x243.8mm)
Operating
System OS supported list Please visit our web site for the latest update.
FCC (DoC) Class A
Regulation CE (DoC) Yes

http://www.TYAN.com
10
Operating Temp. 0° C ~ 55° C (32° F~ 131° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S5510 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Cable SATA (6) SATA signal cables
Package
Contains
USB (1) USB bracket cable

http://www.TYAN.com
11
S5510 SKU Comparison Table I
Model Chip LAN IPMI
Front
USB
HEADER
USB Type A 1x8 fan
connector
ID
switch
PCI-e
slot
S5510GM3NR C204 3 Yes 2 1 4 1 4
S5510G2NR C204 2 No 2 1 4 1 4
S5510G2NR-LE C202 2 No 1 0 0 0 3
S5510G2NR-HE C206 2 No 2 1 4 1 4
Remember to visit TYAN®’s Website at http://www.TYAN.com. There you
can find information on all of TYAN®’s products with FAQs, online manuals
and BIOS upgrades and more.
1.3 - Software Specifications
For OS (operation system) support, please check the TYAN®website for the
latest information.
1.4 - AST2150 User Guide
Remember to visit TYAN®’s Website at http://www.TYAN.com for AST2150
user guide.

http://www.TYAN.com
12
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN®recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the
antistatic bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
DO NOT apply power to the board, if it has been damaged.

http://www.TYAN.com
13
2.1 - Board Image
S5510GM3NR

http://www.TYAN.com
14
S5510G2NR-LE
This diagram is representative of the latest motherboard revision available at the
time of publishing. The board you receive may not look exactly like the above
diagram.

http://www.TYAN.com
15
2.2 - Block Diagram
S5510GM3NR Block Diagram

http://www.TYAN.com
16
S5510G2NR [BTO] Block Diagram

http://www.TYAN.com
17
S5510G2NR-LE Block Diagram

http://www.TYAN.com
18
S5510G2NR-HE [BTO] Block Diagram

http://www.TYAN.com
19
2.3 - Board Parts, Jumpers and Connectors
Important Notes to the User
• "▲" indicates the location of “Pin1”.
• Jumpers not indicated are for testing only.
• The diagram is representative of the latest board revision available at the
time of publishing. The board you received may not look exactly like this
diagram.
• The grey area represents varying parts in the 4 SKUs which will be removed
or remained.
• PCIE Slot 5 is not present in G2NR-LE version.
• Any other connectors or jumpers differences in the 4 SKUs please refer to
S5510 SKU Comparison Table II

http://www.TYAN.com
20
Jumpers & Connectors
S5510 SKU Comparison Table II
S5510 series jumper and connector Support SKUs
Jumper/Connector Function G3NR G2NR G2NR-
LE G2NR- HE
J9/J10/J33/J35/J43 4-Pin Fan Connectors YES YES YES YES
J42/J44/J45/J46 Fan2&Fan5/Fan3&Fan6/
Fan1/Fan 4
8-Pin Fan Connectors
YES NO NO NO
SW1 ID LED Switch Button YES NO NO NO
J1 Front Panel IDLED
Switch 2 Pin Header YES YES YES YES
J2 COM2 Header YES NO NO NO
J8 IPMB Connector YES NO NO NO
J20 Front Panel Header YES YES YES YES
J23 LAN3 ACTIVE LED 2Pin
Header YES NO NO NO
J24 Intrusion Switch 2Pin
Header YES YES YES YES
J25 (Port 11) USB2.0 Type-A
Connector YES YES NO YES
J26 PSMI Connector YES NO NO NO
J27 (Port 4/ Port 5) Dual
USB2.0 Header YES YES NO YES
J28 (Port 2/ Port 3) Dual
USB2.0 Header YES YES YES YES
J34 SGPIO Header YES YES YES YES
J36/J37/J38/
J39/J40/J41 SATA5/SATA4/SATA3/
SATA2/SATA1/ SATA0 YES YES YES YES
JP3 RTC Clear CMOS Set YES YES YES YES
JP4 ME recovery function Set YES YES YES YES
Jumper Legend
OPEN - Jumper OFF Without jumper cover
CLOSED - Jumper ON With jumper cover
