TYAN S8010 User manual

http://www.tyan.com
1
S8010
Version 1.0
Copyright
Copyright © 2011 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
AMD®is a trademark of AMD®Corporation.
Intel®is a trademark of Intel®Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Winbond®is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com
2

http://www.tyan.com
3
Contents
Before you begin….................................................................................... 4
Chapter 1: Instruction ................................................................................ 5
1.1 Congratulations ................................................................................. 5
1.2 Hardware Specifications .................................................................. 5
1.3 Software Specifications ................................................................... 10
Chapter 2: Board Installation................................................................... 11
2.1 Board Image .................................................................................... 12

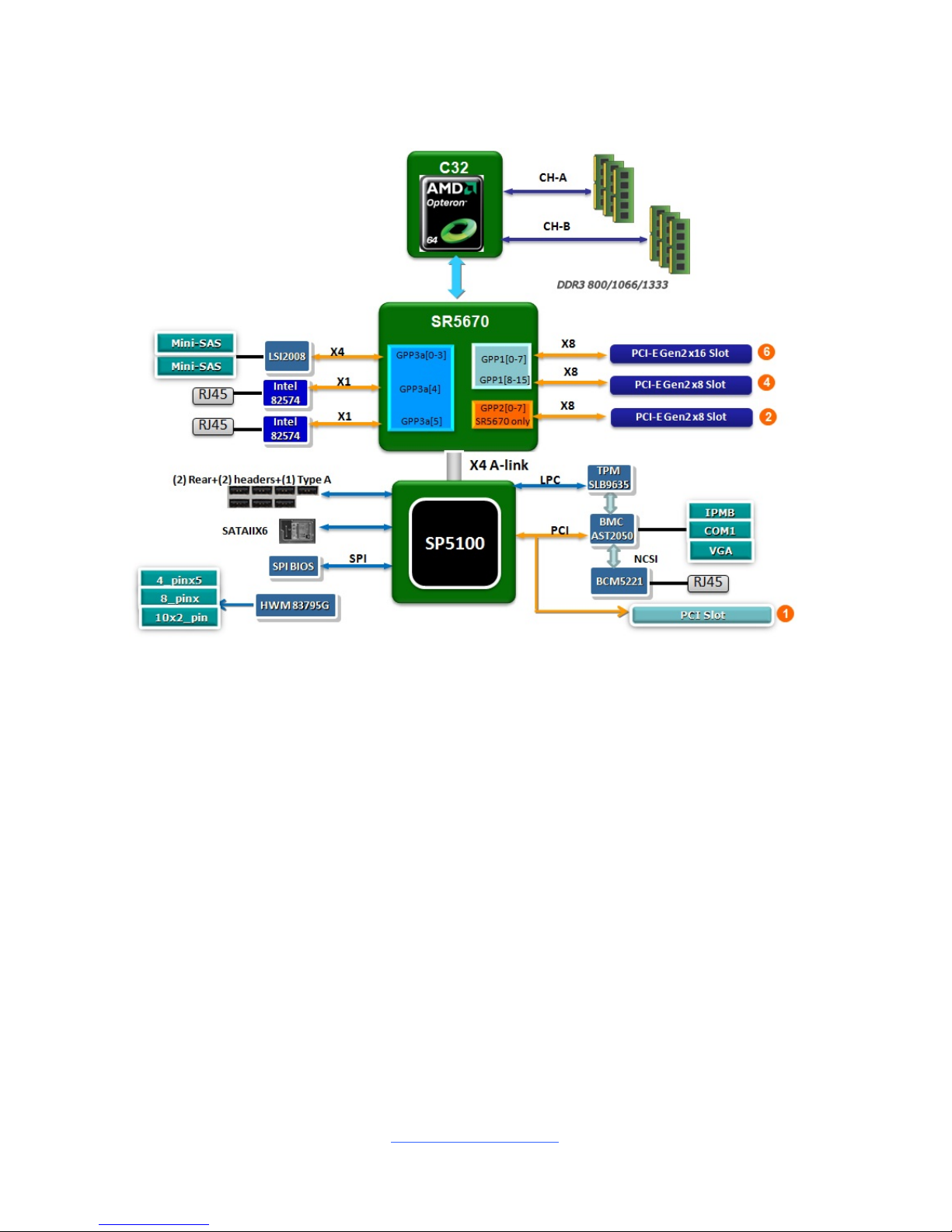

2.2 Block Diagram ................................................................................. 13

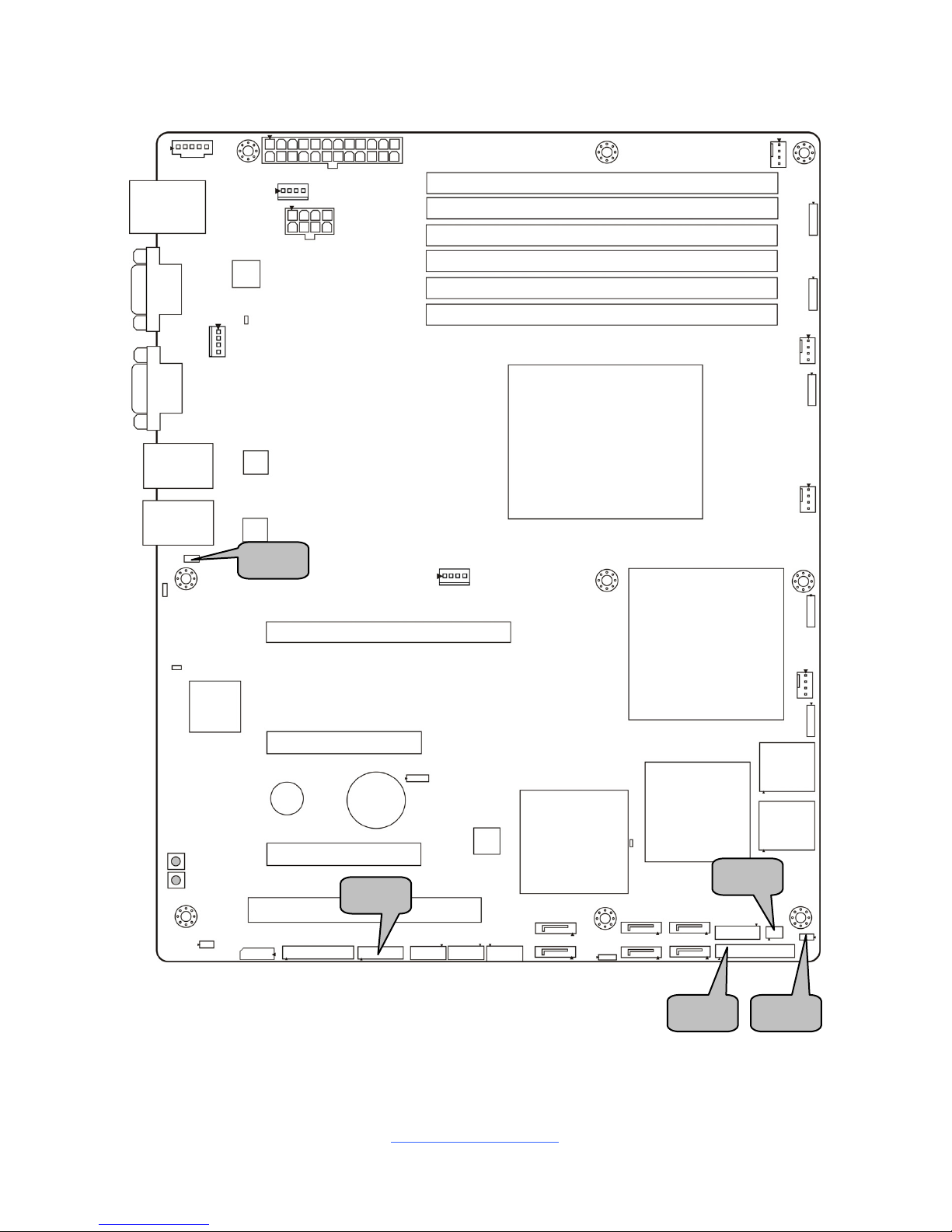

2.3 Board Parts, Jumpers and Connectors ........................................... 14
2.4 Installing the Processor and Heat sink ............................................ 26
2.5 Thermal Interface Material .............................................................. 29
2.6 Tips on Installing Motherboard in Chassis ...................................... 30
2.7 Installing the Memory ...................................................................... 31
2.8 Attaching Drive Cables .................................................................... 34
2.9 Installing Add-In Cards .................................................................... 35
2.10 Connecting External Devices ........................................................ 36
2.11 Installing the Power Supply ........................................................... 37
2.12 Finishing Up................................................................................... 38
Chapter 3: BIOS Setup ............................................................................. 39
3.1 About the BIOS................................................................................ 39
3.2 Main Menu....................................................................................... 41
3.3 Advanced Menu............................................................................... 42
3.4 PCI/PnP Menu................................................................................. 60
3.5 Boot Menu ....................................................................................... 62
3.6 Security Menu.................................................................................. 66
3.7 Chipset Menu .................................................................................. 68
3.8 Exit Menu......................................................................................... 82
Chapter 4: Diagnostics............................................................................. 83
4.1 Flash Utility ...................................................................................... 83
4.2 AMIBIOS Post Code........................................................................ 84
Glossary..................................................................................................... 87
Technical Support .................................................................................... 93

http://www.tyan.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1x S8010 Motherboard
6x SATA Cable
2x SAS Cable
1xUSB2.0 Cable
IO shielding
1 x S8010 User’s manual
1 x S8010 Quick reference guide
1 x TYAN®Driver CD
IMPORTANT NOTE:
Sales sample may not come with the accessory listed above.
Please contact your sales representative to help order accessory for your
evaluation.

http://www.tyan.com
5
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S8010 motherboard, based on the
AMD®SR5670/5650 and SP5100 chipsets. The S8010 is designed to support
single AMD®45nm 4-Core/6-Core Opteron 4100 Series Processor and up to
64GB of DDR3 667MHz RDIMM and 16GB DDR3 1066MHz UDIMM. Leveraging
advanced technology from AMD®, the S8010 is capable of offering scalable 32
and 64-bit computing, high-bandwidth memory design, and lightning-fast PCI-E
bus implementation.
The S8010 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provides the S8010 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can
find all the information on all TYAN®products as well as all the supporting
documentation, FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
TYAN S8010 (S8010WGM2NR)
Supported CPU
Series
AMD 45nm 4-Core/6-Core Opteron 4100 Series
Processors (Lisbon)
Socket Type / Q'ty C32 / (1)
Average CPU Power
(ACP) wattage Up to 75W
Processor
System Bus Up to 5.2 GT/s Hyper-Transport link support
Chipset AMD SR5670 + SP5100
Chipset Super I/O Winbond W83627
Supported DIMM Qty (6) DIMM slots
DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
Capacity Up to 64GB DDR3 667 RDIMM/ 16GB DDR3 1066
UDIMM
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
PCI-E (2) PCI-E Gen.2 x8 slots / (1) PCI-E Gen.2 x16 slot
(w/ x8 link)
Expansion
Slots PCI (1) PCI 32-bit slot
Port Q'ty Total (3) ports, (1) dedicated for IPMI
Controller Intel 82574L
LAN
PHY Broadcom BCM5221 PHY (dedicated for IPMI

http://www.tyan.com
6
connection)
Connector (2) Mini-SAS connectors (totally support 8 ports)
Controller LSI SAS2008
Speed 6.0 Gb/s
SAS
RAID RAID 0/1/1E/10 (LSI Integrated RAID)
Connector (6) SATA
Controller AMD SP5100
Speed 3.0 Gb/s
Storage
SATA
RAID RAID 0/1/10/5 (Promise Integrated Software RAID)
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Graphic
Chipset Aspeed AST2050
Chipset Infineon SLB9635
TPM Version TPM v1.2
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (2) ports (1 at rear, 1 via cable)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
Power Universal 24-pin + 8-pin power connectors / ATX12V
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
Input /Output
SATA (6) SATA-II connectors
Chipset Winbond W83795G
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / USB 2.0 virtual hub / BIOS update
Server
Management
AST2050 iKVM
Feature
24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size AMI / 4MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)

http://www.tyan.com
7
Operating
System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) 8010 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
SATA (6) SATA signal cables
Package
Contains
Cable SAS (2) Mini-SAS cables
TYAN S8010 (S8010GM2NR)
Supported CPU
Series
AMD 45nm 4-Core/6-Core Opteron 4100 Series
Processors (Lisbon)
Socket Type / Q'ty C32 / (1)
Average CPU Power
(ACP) wattage Up to 75W
Processor
System Bus Up to 5.2 GT/s Hyper-Transport link support
Chipset AMD SR5670 + SP5100
Chipset Super I/O Winbond W83627
Supported DIMM Qty (6) DIMM slots
DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
Capacity Up to 64GB DDR3 667 RDIMM/ 16GB DDR3 1066
UDIMM
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
PCI-E (2) PCI-E Gen.2 x8 slots / (1) PCI-E Gen.2 x16 slot
(w/ x8 link)
Expansion
Slots PCI (1) PCI 32-bit slot
Port Q'ty Total (3) ports, (1) dedicated for IPMI
Controller Intel 82574L
LAN
PHY Broadcom BCM5221 PHY (dedicated for IPMI
connection)
Connector (6) SATA
Controller AMD SP5100
Storage SATA
Speed 3.0 Gb/s

http://www.tyan.com
8
RAID RAID 0/1/10/5 (Promise Integrated Software RAID)
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Graphic
Chipset Aspeed AST2050
Chipset Infineon SLB9635
TPM Version TPM v1.2
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port
Power Universal 24-pin + 8-pin power connectors / ATX12V
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
Input /Output
SATA (6) SATA-II connectors
Chipset Winbond W83795G
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / USB 2.0 virtual hub / BIOS update
Server
Management
AST2050 iKVM
Feature
24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size AMI / 4MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)
Operating
System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes

http://www.tyan.com
9
Motherboard (1) 8010 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S8010 (S8010G2NR-LE)
Supported CPU
Series
AMD 45nm 4-Core/6-Core Opteron 4100 Series
Processors (Lisbon)
Socket Type / Q'ty C32 / (1)
Average CPU Power
(ACP) wattage Up to 75W
Processor
System Bus Up to 5.2 GT/s Hyper-Transport link support
Chipset AMD SR5650 + SP5100
Chipset Super I/O Winbond W83627
Supported DIMM Qty (6) DIMM slots
DIMM Type / Speed U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
Capacity Up to 64GB DDR3 667 RDIMM/ 16GB DDR3 1066
UDIMM
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
PCI-E (1) PCI-E Gen.2 x8 slot / (1) PCI-E Gen.2 x16 slot (w/
x8 link)
Expansion
Slots PCI (1) PCI 32-bit slot
Port Q'ty Total (3) ports, (1) dedicated for IPMI
Controller Intel 82574L
LAN
PHY Broadcom BCM5221 PHY (dedicated for IPMI
connection)
Connector (6) SATA
Controller AMD SP5100
Speed 3.0 Gb/s
Storage SATA
RAID RAID 0/1/10/5 (Promise Integrated Software RAID)
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Graphic
Chipset Aspeed AST1100
USB (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) port (rear)
VGA (1) D-Sub 15-pin VGA port
Power Universal 24-pin + 8-pin power connectors / ATX12V
Input /Output
Front Panel (1) 2x12-pin SSI front panel header

http://www.tyan.com
10
PSMI (1) 1x5-pin header
SATA (6) SATA-II connectors
Chipset Winbond W83795G
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature Monitors temperature for CPU & system environment
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
System
Monitoring
Others Watchdog timer support
Brand / ROM size AMI / 4MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring
Form Factor ATX
Physical
Dimension Board Dimension 12"x9.6" (305x243.8mm)
Operating
System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) 8010 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
1.3 Software Specifications
For OS (operation system) support, please check with TYAN®support for latest
information.
Remember to visit our Web site at http://www.tyan.com for the latest AST2050
User’s Guide.

http://www.tyan.com
11
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE: Do not apply power to the board if it has been damaged.

http://www.tyan.com
12
2.1 Board Image
S8010
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.

http://www.tyan.com
13
2.2 Block Diagram
S8010WGM3NR Block Diagram

http://www.tyan.com
14
2.3 Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram. But
for the DIMM number please refer to the above placement for memory installation.
For the latest board revision, please visit our web site at http://www.tyan.com.

http://www.tyan.com
15
Jumpers & Connectors
Jumper/Connector Function
J26 IPMB Connector
J43/J44/J45/J46/J47/J48 Serial ATA Connector
J49/J50 Mini SAS Connector
J52/J54/J55/J56/J57/J58/J59 8-pin 4056 Fan Connector
J63 SAS Fault LED Connector
J64 PSMI Connector
J65 Front Panel Connector
J66 Power Button
J67 Reset Button
J71 2x10-pin Fan Connector for TYAN
J72 CMOS Clear Jumper
J75 SAS2008 Enable/Disable Jumper
J83 Chassis Intrusion Header
J90 SP5100 SATA SGPIO Pin Header
J91 ID LED Header (for TYAN FT48 chassis)
J92 SAS SMB & HDD Fault Header
J93 ID LED Button Header
J94/J95/J96/J97/J98 8-pin Fan Connector
LED25 BMC HB LED
LED26 SAS HB LED
LED28 Standby Power Ready LED
LED29 ID LED
USB1/USB2 USB FP Connector
USB3 Type-A Vertical USB Connector
Jumper Legend
OPEN - Jumper OFF Without jumper cover
CLOSED - Jumper ON With jumper cover

http://www.tyan.com
16
J55
J56
J54
J58
J52
J59
J71
J57
J26
J63
J64

http://www.tyan.com
17
J26: IPMB Connector
Signal Pin Pin Signal
IPMB_DATA 1 2 GND
IPMB_CLK 3 4 N/C
J54/J55/J56/J57/J58/J59: 4-Pin FAN Connector
Pin 1 2 3 4
Signal GND +12V Tachometer Fan PWM (speed)
Control
Use this header to connect the cooling fan to your motherboard to keep the
system stable and reliable.
J63: SAS Fault LED Connector
Signal Pin Pin Signal
LED_N0 1 2 LED_N1
LED_N2 3 4 LED_N3
LED_N4 5 6 LED_N5
KEY 7 8 LED_N7
10
9
2
1
LED_N6 9 10 GND
J64: PSMI Connector
Pin 1 2 3 4 5
Signal SMB_CLK SMB_DAT SMBALERT GND V3P3
J71: 2X10-pin FAN connector (Reserved for TYAN Barebone)
Signal Pin Pin Signal
FANIN1 1 2 FANIN6
FANIN2 3 4 FANIN7
FANIN3 5 6 FANIN8
FANIN4 7 8 FANIN9
FANIN5 9 10 FANIN10
GND 11 12 KEY
FANCTL5 13 14 FANCTL4
FANIN11 15 16 N/C
FANIN12 17 18 N/C
N/C 19 20 FANCTL6

http://www.tyan.com
18
J83
J91
J65
J90
J92

http://www.tyan.com
19
J65: Front Panel Connector
Signal Pin Pin Signal
Power LED+ 1 2 3.3V
Key 3 4 ID LED+
Power LED- 5 6 ID LED-
HD LED+ 7 8 Fault_LED1-
HD LED- 9 10 Fault_LED2-
Power SW# 11 12 LAN1 ACTLED+
GND1 13 14 LAN1 ACTLED-
Reset SW# 15 16 SMBUS SDA
GND2 17 18 SMBUS SCL
ID SW 19 20 INTRU#
Temp Sensor 21 22 LAN2 ACTLED+
NMI_SW# 23 24 LAN2 ACTLED-
J83: Chassis Intrusion Jumper
1
Use this jumper to disable the system chassis intrusion
alarm.
1
(Default)
Use this jumper to trigger the system chassis intrusion
alarm.
J90: SP5100 SATA SGPIO Pin Header
Signal Pin Pin Signal
SMB_CLK 1 2 DIN
SMB_DAT 3 4 SDATAOUT
GND 5 6 END
KEY 7 8 SCLOCK
1
210
9
N/C 9 10 HD_ERR_LED
J91: ID LED Header (Reserved for TYAN FT48 chassis)
Signal Pin Pin Signal
1
ID_LED+ 1 2 ID_LED-
J92: SAS SMB & HDD Fault Header
Signal Pin Pin Signal
V3DU 1 2 HDD_BP_SCL
GND 3 4 HDD_BP_SDA
1
5
2
6
KEY 5 6 SATA_ERR_LED

http://www.tyan.com
20

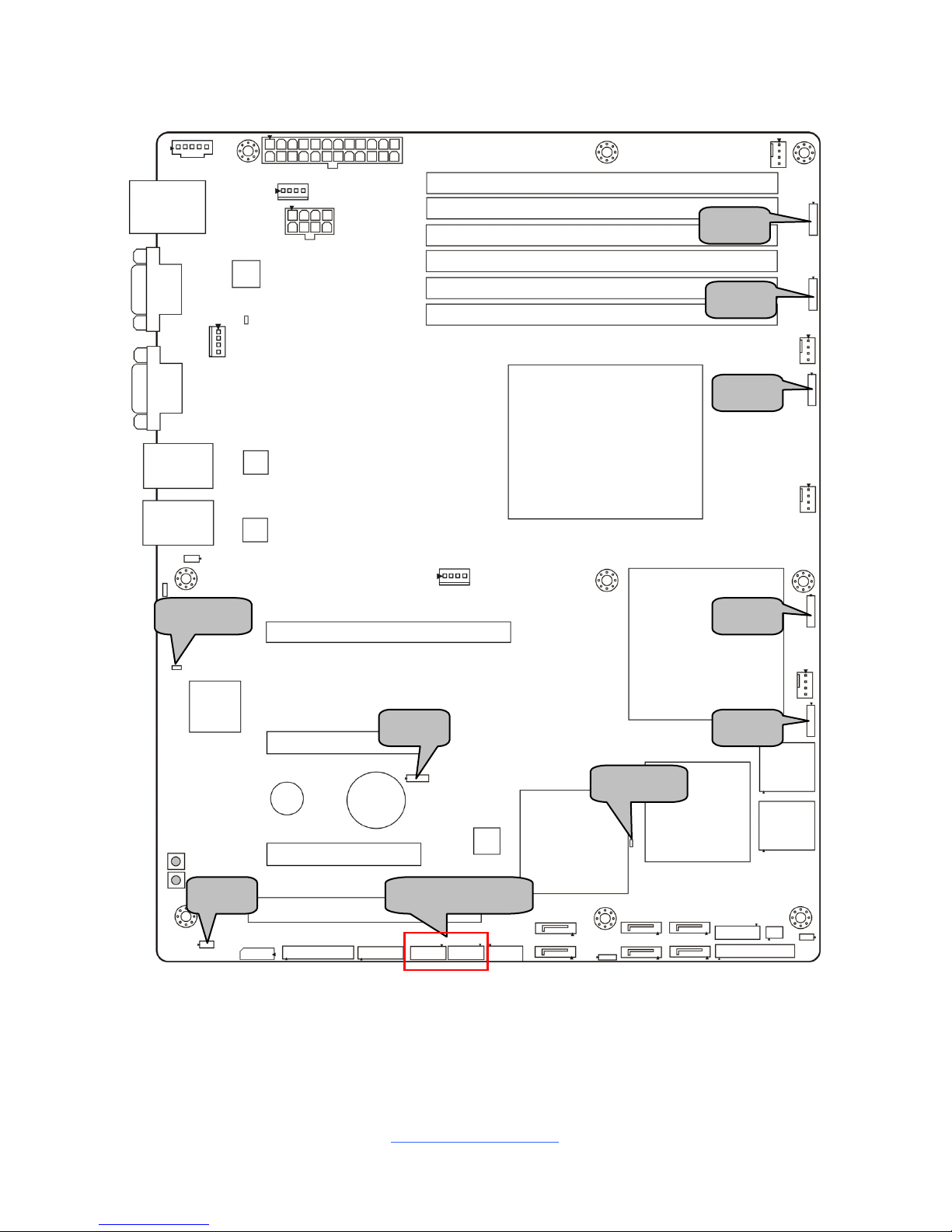

J72
USB1/USB2J93
LED25
LED26
J98
J97
J96
J95
J94
