Tyco Fire Protection Products AutoPulse Z-20 User manual

Z-20
COLOR TOUCHSCREEN
LCD ANNUNCIATOR
Copyright 2016 © Tyco Fire Protection Products LP. / All rights reserved. / www.tyco.com /
579-1172AR / Rev. A
INSTALLATION MANUAL

Copyright and
Trademarks
©2016 Tyco Fire Protection Products. All rights reserved.
Specifications and other information shown were current as of publication and are subject to
change without notice. TYCO, AUTOPULSE and the product names listed in this material are
marks and/or registered marks. Unauthorized use is strictly prohibited.
Cautions
and Warnings
READ AND SAVE THESE INSTRUCTIONS -Follow the instructions in this installation manual. These instructions
must be followed to avoid damage to this product and associated equipment. Product operation and reliability depend upon
proper installation.
DO NOT INSTALL ANY AUTOPULSE® PRODUCT THAT APPEARS DAMAGED- Upon unpacking your
AUTOPULSE product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim
with the carrier and notify an authorized AUTOPULSE product supplier.
ELECTRICAL HAZARD - Disconnect electrical field power when making any internal adjustments or repairs. All repairs
should be performed by a representative or authorized agent of your local AUTOPULSE product supplier.
FCC RULES AND REGULATIONS - PART 15 - This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
Copyrights, Trademarks, Cautions, Warnings, and Regulatory Info

3
Introduction The Color Touchscreen LCD Annunciator for the AUTOPULSE Z-20 Agent Releasing Panel*
provides remote annunciation of the AUTOPULSE Z-20. Visual status is provided by the
touchscreen and by the LEDs. Audible annunciation is provided through a piezo sounder. Access
to the annunciator switch functions can be enabled or locked using the keyswitch. A maximum of
six color touchscreen annunciators can be installed on an AUTOPULSE Z-20 panel.
*AUTOPULSE Z-20 Agent Releasing Panel, from this point on, will be referred to as the
AUOPULSE Z-20.
Compatibility The AUTOPULSE Z-20 must be at revision 3.02.07 or higher to support the Color Touchscreen
LCD Annunciator.
The following annunciators, boxes, and brackets are compatible with the AUTOPULSE Z-20:
Reference
Documents
Refer to the following documents for more information on how to program and use the remote
annunciator.
In this
publication
Introduction ................................................. 3 Compatibility ............................................... 3
Reference Documents ................................ 3 Wire Length Tables ..................................... 7
Module Overview ........................................ 4 Communication Wiring Length Tables ........ 8
General Mounting Information .................... 5 Address Setting ........................................... 8
General Wiring Guidelines .......................... 5 Mounting Instructions ................................ 10
Specific Wiring Guidelines .......................... 5 Verification Procedure ............................... 10
Wiring .......................................................... 6 Remote Annunciator Specifications .......... 11
Part Number Description
4606-9202AR AUTOPULSE Color Touchscreen LCD Annunciator, Red
2975-9461 AUTOPULSE Color Touchscreen LCD Annunciator, Surface Mount Box,
Red
2975-9463 AUTOPULSE Color Touchscreen LCD Annunciator, Retrofit, Semi-flush
bracket, Red
Document Number Title
579-1165AR AUTOPULSE Z-20 Operator’s manual
579-1167AR AUTOPULSE Z-20 Programmer’s manual
Color Touchscreen LCD Annunciator Installation Instructions

4
Module
Overview

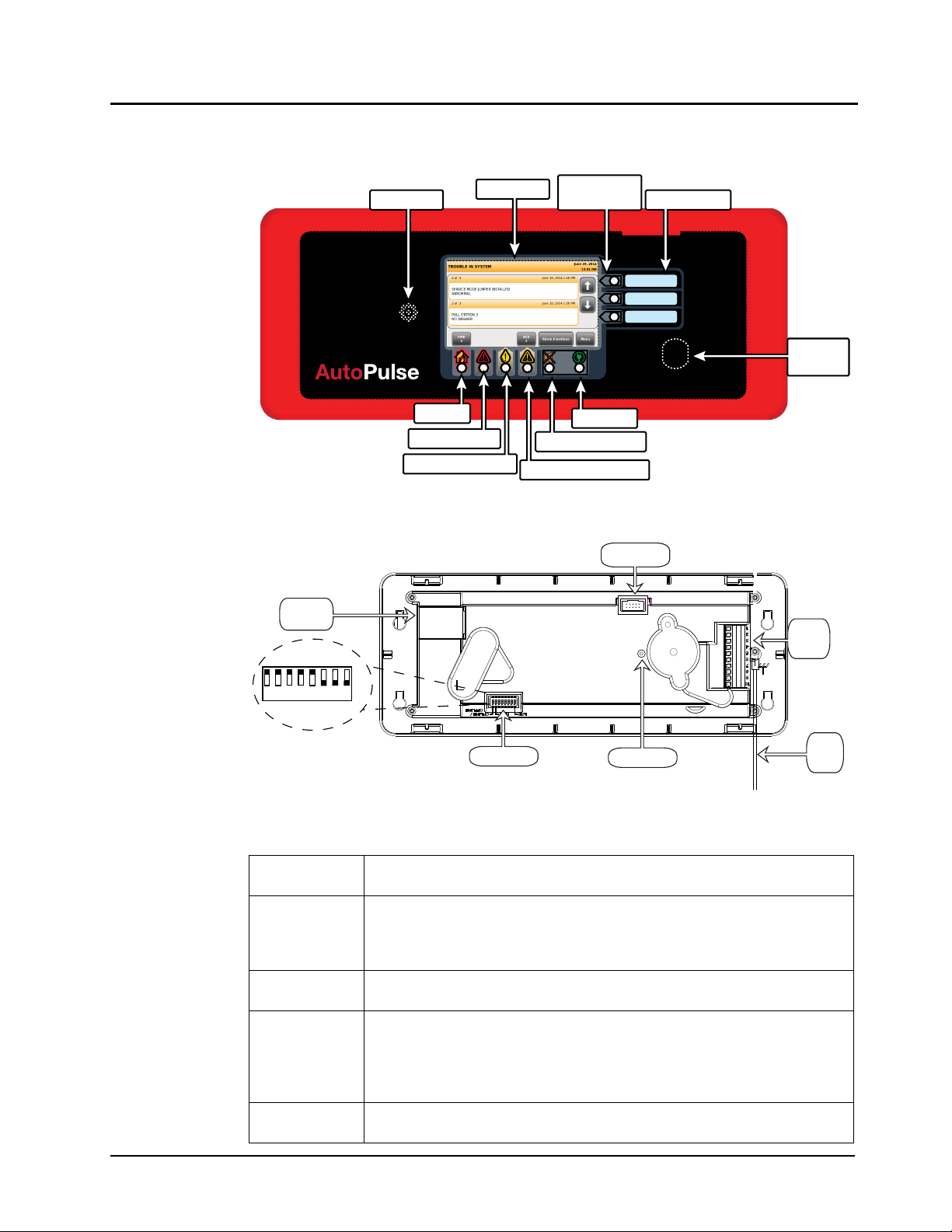

Refer to Figure 1 for the remote annunciator front view and to Figure 2 for the back layout.
Figure 1. Remote Annunciator Front View
Figure 2. Remote Annunciator Back View
Table 1. Remote Annunciator Main Back Components
Serial Service
Port (P2)
Not yet available. Future use.
USB port (P5) Allows downloading fonts and MsgLib information. To access the USB port,
remove the trim plate and then unscrew the annunciator from the back box
(see Figure 6). For more information about the thumb drive, refer to the
Programmer’s Manual, 579-1167AR.
Address
Switch (SW-2)
Sets AUTOPULSE Z-20 address and communications online or offline.
Reset Switch
(SW1)
Short press (< 5 seconds) to activate a software reset (warm start).
Press and hold (> 5 seconds) to force a hardware reset (warm start).
Unless the annunciator CPU is locked up, use the software controlled reset.
A warm start preserves the logs and the disabled status of points in the
disabled state.
Service Mode
Jumper
IMPORTANT: Factory use only. Do not remove.
Supervisory LED
Priority 2 LED Alarm Silenced LED
Fire LED
Keyswitch
Trouble LED
Power LED
Slide-in Labels
Piezo Touchscreen Bi-Color User
Defined LEDs
ON
OFF
1 2 3 4 5 6 7 8
USB Port
Serial
Service Port
Reset Switch
Ground
Harness
TB1
Address Switch
Color Touchscreen LCD Annunciator Installation Instructions, Continued

5
General
Mounting
Information

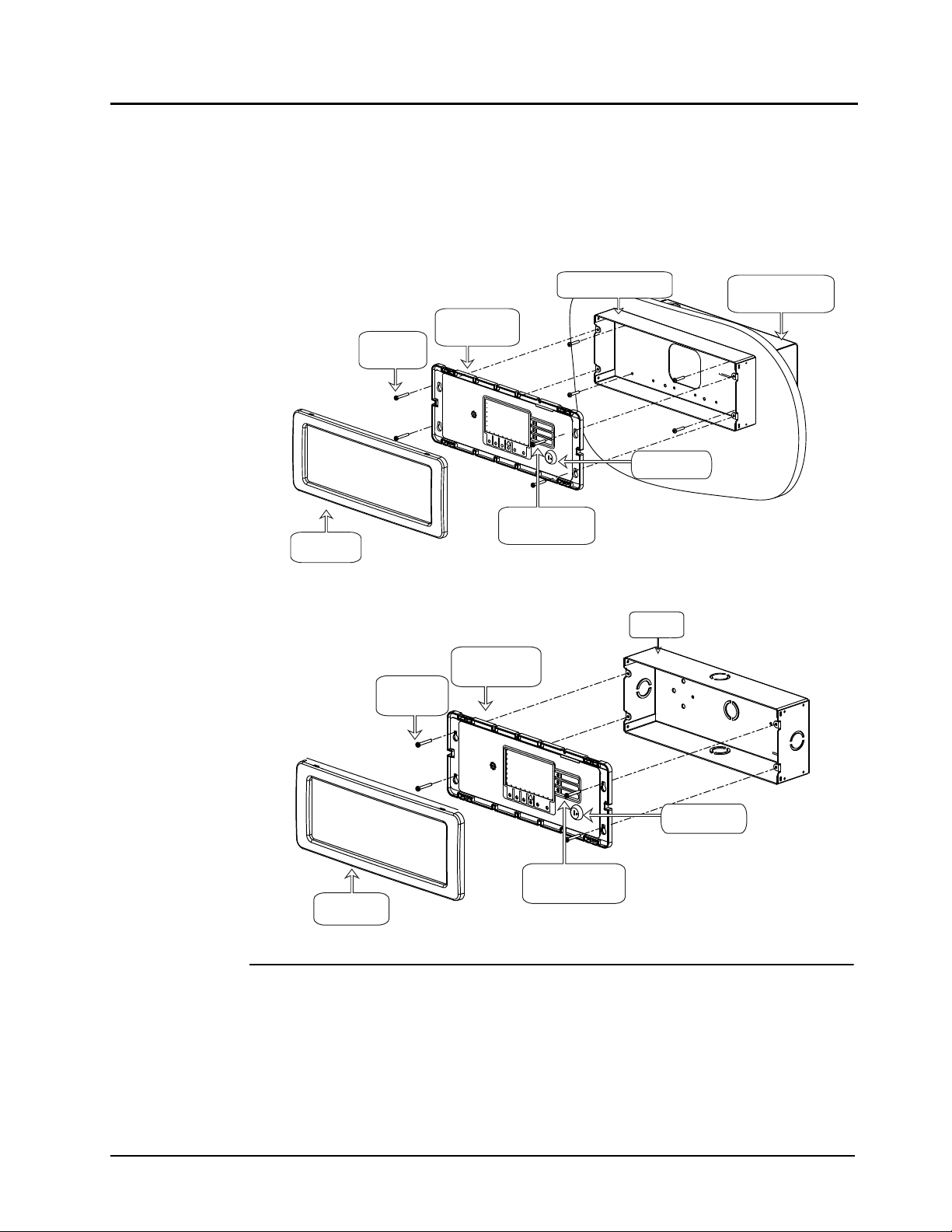

Flush-mount annunciators
• In masonry walls or plasterboard walls, use a RACO 944 as a 5-gang box (2½ inches /
64 mm deep) box or its equivalent.
Surface mount annunciators
• Use a 2975-9461 box (2½ inches/64 mm deep), red.
Semi-flush-mount annunciators
For mounting to an existing two-gang, four-gang, six-gang, or 4 inch (102mm) square flush
mounted box:
• Use bracket 2975-9463 (1¾ inch/44.5 mm), red.
General Wiring
Guidelines
• All wiring must be copper conductors only.
• Wire lengths in excess of the maximum lengths (see Table 2 through Table 5) are not
permitted.
• If shielding is used:
- Metallic continuity of the shield must be maintained throughout the entire length of cable.
- The entire length of the cable must have a resistance greater than 1 Megohm to Earth
ground.
- The shield must connect to a SHIELD terminal at each annunciator and must be
terminated only at the main panel.
• Underground wiring must be free of water.
• Do not run wires through elevator shafts.
• Wire runs in plenums must be in conduit unless rated for plenum use.
• Splicing is permitted provided that:
- All such connections are soldered (rosin-core solder), crimped in metal sleeves, or
encapsulated with an epoxy resin;
- When solder or crimped metal sleeves are used, the junction is insulated with a high-grade
electrical tape as sound as the original insulating jacket;
- The shield’s continuity is maintained throughout the cable’s length.
• Only system wiring can share the same conduit.
Specific Wiring
Guidelines
• 24 V power wiring must be power limited and communication wiring is supervised and
power limited.
• The Remote Annunciator cannot be used with wiring that goes outside the building (above or
below ground), unless overvoltage suppression is provided at both ends for both the
communication and the power wiring. Use model 2081-9044 overvoltage protectors (200mA
or less) for communication and power wiring. There are no restrictions on wire routing,
however, the maximum wire length is 2500 feet (762 meters).
-For underground wiring: select the appropriate isolated loop circuit protector. The
circuit wiring must be run in a separate parallel wiring trough, separated from any
commercial power distribution wiring.
-For overhead wiring: select the appropriate isolated loop circuit protector. The wiring is
limited to one contiguous property and the total wire length must not exceed 2500 feet
(762 meters). Run the circuit wiring on separate poles, separated from any poles
supporting commercial power distribution wiring. The circuit wiring must be run in
parallel with direct relation to the commercial power distribution. The separation is a
minimum distance (whichever is greater) of 100 feet (30.48 meters), or the maximum span
between any two adjacent poles of either the system’s circuit or the commercial power
distribution circuit.
• For maximum wire lengths with or without circuit protectors, see Table 2 to Table 5.
• If the interconnected control unit is not used to provide operating power to the annunciator, a
regulated power-limited, UL-listed 24 V DC power supply for fire protective signaling must
be used.
• 12-18 AWG twisted pair wiring is required for RUI communications.
• In accordance with NFPA 70, Article 250, a dedicated earth ground connection must be
provided to the back box.
Color Touchscreen LCD Annunciator Installation Instructions, Continued

6
Wiring Note: To prevent Electrostatic Discharge (ESD), use a wrist strap assembly that connects to ground. Ensure
power is OFF before installing or servicing the annunciator.
To properly install the remote annunciator:
1. Terminate the annunciator’s RUI communication and power lines (Figure 3).
2. Connect the ground harness (see Figure 2) to the metal back box’s earth ground.
3. Connect the RUI wiring from COMM+ and COMM- on the remote annunciator to RUI
terminal on the AUTOPULSE Z-20 panel power supply (see Figure 4).
Figure 4. Wiring Diagram
4. Set Jumper P1 on the AUTOPULSE Z-20 for Class A or Class B wiring.
5. To power the remote annunciator, connect the cable from 24+ and 24- on the AUTOPULSE
Z-20 power supply to 24V and 24C (0V) on the remote annunciator (Figure 4).
Figure 3. Terminating the COMM and Power Line
TB1-1: 24V IN from AUTOPULSE Z-20
Power Supply or Previous Annunciator
TB1-2: 24V OUT to Next Annunciator
TB1-3: 24C IN from AUTOPULSE Z-20
Power Supply or Previous Annunciator
TB1-4: 24C OUT to Next Annunciator
TB1-5: +COMM IN
+RUI communications from AUTOPULSE
Z-20 or Previous Annunciator
TB1-6: +COMM OUT
+RUI communications to Next Annunciator
TB1-7: -COMM IN
-RUI communications from AUTOPULSE
Z-20 or Previous Annunciator
TB1-8: -RUI communications to Next
Annunciator
TB1-9: SHIELD IN TB1-10: SHIELD OUT
7 8 9 10
24V 24C (0V)
1 2 3 4 5 6
- COMM
+ COMM SHIELD
IN OUT IN OUT IN OUT IN OUT IN OUT
7 8 9 10
24V 24C (0V)
1 2 3 4 5 6
+COMM -COMM SHIELD
IN OUT IN OUT IN OUT IN OUT IN OUT
Color Touchscreen
LCD Annunciator
7 8 9 10
24V 24C (0V)
1 2 3 4 5 6
+COMM -COMM SHIELD
IN OUT IN OUT IN OUT IN OUT IN OUT
DASHED LINES ARE FOR CLASS A OPERATION
RUI
Z-20 PSU
B+ B- A+ A-
Color Touchscreen
LCD Annunciator
24+ 24-
AUX Power
Color Touchscreen LCD Annunciator Installation Instructions, Continued

7
Wire Length
Tables
Table 2 and Table 3 show the maximum wire lengths possible for the power wiring. Table 4 and
Table 5 show the maximum wire lengths for the communication wiring.
• When using multiple annunciators and runs, the total of all runs must not exceed 10,000 feet
(304.8 m, including T-Taps).
• Four 2081-9044 Overvoltage Protectors are the maximum number permitted on any single
communication loop.
Power Wiring
Length Tables Table 2. Wire Length with 2081-9044 Overvoltage Protectors
Table 3. Without Transient Suppression
Total Current
(Amps)
12 AWG
(3.309 mm²)
14 AWG
(2.801 mm²)
16 AWG
(1.309 mm²)
18 AWG
(0.823 mm²)
0.100 2,500 ft.
(762 m)
2,500 ft.
(762 m)
2,371 ft.
(722.68 m)
1,409 ft.
(429.46 m)
0.200 2,500 ft.
(762 m)
1,782 ft.
(543.15 m)
889 ft.
(270.96 m)
705 ft.
(214.88 m)
Total Current
(Amps)
12 AWG
(3.309 mm²)
14 AWG
(2.801 mm²)
16 AWG
(1.309 mm²)
18 AWG
(0.823 mm²)
0.100 2,500 ft.
(762 m)
2,500 ft.
(762 m)
2,500 ft.
(762 m)
2,349 ft.
(715.97 m)
0.200 2,500 ft.
(762 m)
2,500 ft.
(762 m)
1,482 ft.
(451.71 m)
1,175 ft.
(358.14 m)
0.300 2,500 ft.
(762 m)
1,980 ft.
(603.5 m)
988 ft.
(301.14 m)
783 ft.
(238.65 m)
0.400 2,361 ft.
(719.63 m)
1,485 ft.
(452.62 m)
741 ft.
(225.85 m)
587 ft.
(178.91 m)
0.500 1,889 ft.
(575.76 m)
1,188 ft.
(362.1 m)
593 ft.
(180.74 m)
470 ft.
(143.25 m)
0.600 1,574 ft.
(479,75 m)
990 ft.
(301.75 m)
494 ft.
(150.57 m)
392 ft.
(119.48 m)
0.700 1,349 ft.
(411.17 m)
849 ft.
(258.77 m)
423 ft.
(128.93 m)
336 ft.
(102.41 m)
0.800 1,181 ft.
(359.96 m)
743 ft.
(226.46 m)
371 ft.
(113.08 m)
294 ft.
(89.61 m)
0.900 1,049 ft.
(319.73 m)
660 ft.
(201.16 m)
329 ft.
(100.27 m)
261 ft.
(79.55 m)
1.000 944 ft.
(287.73 m)
594 ft.
(181 m)
296 ft.
(90.22 m)
235 ft.
(71.62 m)
1.100 859 ft.
(261.82 m)
540 ft.
(164.59 m)
269 ft.
(81.99 m)
214 ft.
(65.22 m)
1.200 787 ft.
(239.87 m)
495 ft.
(150.87 m)
247 ft.
(75.28 m)
196 ft.
(59.74 m)
Color Touchscreen LCD Annunciator Installation Instructions, Continued

8
Communication
Wiring Length
Tables
Table 4. With 2081-9044 Overvoltage Protectors
Table 5. Without Transient Suppression
Address Setting Switch SW2 is a bank of eight dip switches. From left to right (see Figure 5) these switches are
designated as SW2-1 through SW2-8. The function of these switches is as follows:
• SW2-1. This switch enables communication between the card
and the AUTOPULSE Z-20 CPU. Set this switch to ON for
normal operation.
• SW2-2 through SW2-8. These switches set the card address
for the AUTOPULSE Z-20. Refer to Table 6 for a complete
list of the switch settings for all of the possible card
addresses. Set each card to the address assigned in the
AUTOPULSE Programmer.
Figure 5. DIP Switch SW2
Continued on next page
12 AWG (3.309 mm²) 14 AWG (2.801 mm²) 16 AWG (1.309 mm²) 18 AWG (0.823 mm²)
2,500 ft.
(762 m)
2,500 ft.
(762 m)
2,450 ft.
(746.76 m)
1,650 ft.
(502.92 m)
12 AWG
(3.309 mm²)
14 AWG
(2.801 mm²)
16 AWG
(1.309 mm²)
18 AWG
(0.823 mm²)
2,500 ft.
(762 m)
2,500 ft.
(762 m)
2,500 ft.
(762 m)
2,349 ft.
(715.97 m)
ON
OFF
(DIP Switch shown is set at address 31)
12345678
Most Significant Bit
Least Significant Bit
Color Touchscreen LCD Annunciator Installation Instructions, Continued

9
Address Setting Table 6. Address Chart
Address SW 2-2 SW 2-3 SW 2-4 SW 2-5 SW 2-6 SW 2-7 SW 2-8 Address SW 2-2 SW 2-3 SW 2-4 SW 2-5 SW 2-6 SW 2-7 SW 2-8
1ON ON ON ON ON ON OFF 61 ON OFF OFF OFF OFF ON OFF
2ON ON ON ON ON OFF ON 62 ON OFF OFF OFF OFF OFF ON
3ON ON ON ON ON OFF OFF 63 ON OFFOFFOFFOFFOFFOFF
4ON ON ON ON OFF ON ON 64 OFF ON ON ON ON ON ON
5ON ON ON ON OFF ON OFF 65 OFFONONONONONOFF
6ON ON ON ON OFF OFF ON 66 OFF ON ON ON ON OFF ON
7ON ON ON ON OFF OFF OFF 67 OFF ON ON ON ON OFF OFF
8ON ON ON OFF ON ON ON 68 OFF ON ON ON OFF ON ON
9ON ON ON OFF ON ON OFF 69 OFFONONONOFFONOFF
10 ON ON ON OFF ON OFF ON 70 OFF ON ON ON OFF OFF ON
11 ON ON ON OFF ON OFF OFF 71 OFFONONONOFFOFFOFF
12 ON ON ON OFF OFF ON ON 72 OFF ON ON OFF ON ON ON
13 ON ON ON OFF OFF ON OFF 73 OFF ON ON OFF ON ON OFF
14 ON ON ON OFF OFF OFF ON 74 OFF ON ON OFF ON OFF ON
15 ON ON ON OFF OFF OFF OFF 75 OFF ON ON OFF ON OFF OFF
16 ON ON OFF ON ON ON ON 76 OFF ON ON OFF OFF ON ON
17 ON ON OFF ON ON ON OFF 77 OFFON ONOFFOFFONOFF
18 ON ON OFF ON ON OFF ON 78 OFF ON ON OFF OFF OFF ON
19 ON ON OFF ON ON OFF OFF 79 OFF ON ON OFF OFF OFF OFF
20 ON ON OFF ON OFF ON ON 80 OFF ON OFF ON ON ON ON
21 ON ON OFF ON OFF ON OFF 81 OFF ON OFF ON ON ON OFF
22 ON ON OFF ON OFF OFF ON 82 OFF ON OFF ON ON OFF ON
23 ON ON OFF ON OFF OFF OFF 83 OFF ON OFF ON ON OFF OFF
24 ON ON OFF OFF ON ON ON 84 OFF ON OFF ON OFF ON ON
25 ON ON OFF OFF ON ON OFF 85 OFF ON OFF ON OFF ON OFF
26 ON ON OFF OFF ON OFF ON 86 OFF ON OFF ON OFF OFF ON
27 ON ON OFF OFF ON OFF OFF 87 OFF ON OFF ON OFF OFF OFF
28 ON ON OFF OFF OFF ON ON 88 OFF ON OFF OFF ON ON ON
29 ON ON OFF OFF OFF ON OFF 89 OFFONOFFOFFON ONOFF
30 ON ON OFF OFF OFF OFF ON 90 OFF ON OFF OFF ON OFF ON
31 ON ON OFF OFF OFF OFF OFF 91 OFFONOFFOFFONOFFOFF
32 ON OFF ON ON ON ON ON 92 OFF ON OFF OFF OFF ON ON
33 ON OFF ON ON ON ON OFF 93 OFF ON OFF OFF OFF ON OFF
34 ON OFF ON ON ON OFF ON 94 OFF ON OFF OFF OFF OFF ON
35 ON OFF ON ON ON OFF OFF 95 OFF ON OFF OFF OFF OFF OFF
36 ON OFF ON ON OFF ON ON 96 OFF OFF ON ON ON ON ON
37 ON OFF ON ON OFF ON OFF 97 OFF OFF ON ON ON ON OFF
38 ON OFF ON ON OFF OFF ON 98 OFF OFF ON ON ON OFF ON
39 ON OFF ON ON OFF OFF OFF 99 OFF OFF ON ON ON OFF OFF
40 ON OFF ON OFF ON ON ON 100 OFF OFF ON ON OFF ON ON
41 ON OFF ON OFF ON ON OFF 101 OFF OFF ON ON OFF ON OFF
42 ON OFF ON OFF ON OFF ON 102 OFF OFF ON ON OFF OFF ON
43 ON OFF ON OFF ON OFF OFF 103 OFF OFF ON ON OFF OFF OFF
44 ON OFF ON OFF OFF ON ON 104 OFF OFF ON OFF ON ON ON
45 ON OFF ON OFF OFF ON OFF 105 OFF OFF ON OFF ON ON OFF
46 ON OFF ON OFF OFF OFF ON 106 OFF OFF ON OFF ON OFF ON
47 ON OFF ON OFF OFF OFF OFF 107 OFF OFF ON OFF ON OFF OFF
48 ON OFF OFF ON ON ON ON 108 OFF OFF ON OFF OFF ON ON
49 ON OFF OFF ON ON ON OFF 109 OFF OFF ON OFF OFF ON OFF
50 ON OFF OFF ON ON OFF ON 110 OFF OFF ON OFF OFF OFF ON
51 ON OFF OFF ON ON OFF OFF 111 OFFOFF ON OFFOFFOFFOFF
52 ON OFF OFF ON OFF ON ON 112 OFF OFF OFF ON ON ON ON
53 ON OFF OFF ON OFF ON OFF 113 OFFOFFOFFONONONOFF
54 ON OFF OFF ON OFF OFF ON 114 OFF OFF OFF ON ON OFF ON
55 ON OFF OFF ON OFF OFF OFF 115 OFF OFF OFF ON ON OFF OFF
56 ON OFF OFF OFF ON ON ON 116 OFF OFF OFF ON OFF ON ON
57 ON OFF OFF OFF ON ON OFF 117 OFF OFF OFF ON OFF ON OFF
58 ON OFF OFF OFF ON OFF ON 118 OFF OFF OFF ON OFF OFF ON
59 ON OFF OFF OFF ON OFF OFF 119 OFF OFF OFF ON OFF OFF OFF
60 ON OFF OFF OFF OFF ON ON
Color Touchscreen LCD Annunciator Installation Instructions, Continued

10
Mounting
Instructions
1. Using the four provided screws, mount the annunciator in its back box (see Figure 6 for semi-
flush mounting and Figure 7 for surface mounting).
2. Label the separate user-defined labels with the appropriate label, based on programming.
3. Carefully pull the top of the label pocket forward and insert the user-defined labels.
4. Gently push on the trim plate to snap it in place, over the annunciator.
Figure 6. Semi-flush mounting for retrofit installation
Figure 7. Surface mounting
Verification
Procedure
When the installation is complete, verify that the remote annunciator is working properly.
If the annunciator displays the message Error communicating with Master, or if the
annunciator fails to power, check the wiring. If the wiring is correct, call technical support. If the
annunciator is not wired properly and is not communicating with the AUTOPULSE Z-20, error
messages appear and an audible signal is emitted. Also, a card missing trouble displays at the
AUTOPULSE Z-20.
For programming changes, please refer to the Programmer’s Manual, 579-1167AR.
#8-32
screws
Trim plate
LCD
annunciator
Bracket
Keyswitch
User-defined
labels
6-gang box or
Mansonry box
#8-32
screws
Trim plate
LCD
annunciator
Box
User-defined
labels
Keyswitch
Color Touchscreen LCD Annunciator Installation Instructions, Continued

11
Remote
Annunciator
Specifications
Table 7. Remote Annunciator Specifications
Operating Conditions:
Operating Temperature Range 32oF - 120oF (0oC-49oC)
Operating Humidity Range Up to 93% relative humidity at 100oF (38oC), non-condensing.
Power Supply 24 V DC Nominal/18 V DC minimum at power input terminals of
annunciator to allow for wiring losses.
Maximum Current Draw Backlight ON at 24 V DC: 70 mA
Backlight dimmed at 24 V DC: 45 mA
Color Touchscreen LCD Annunciator Installation Instructions, Continued

579-1172AR
Rev. A
